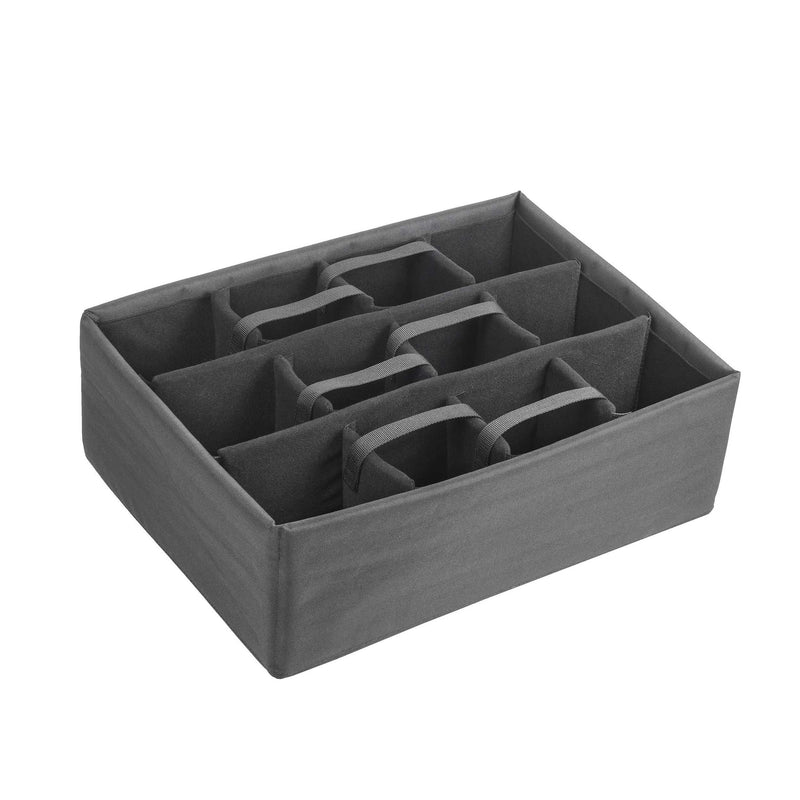

Grey padded divider insert for the MAX540H245 seen from an angle, three rows of compartments formed by movable dividers

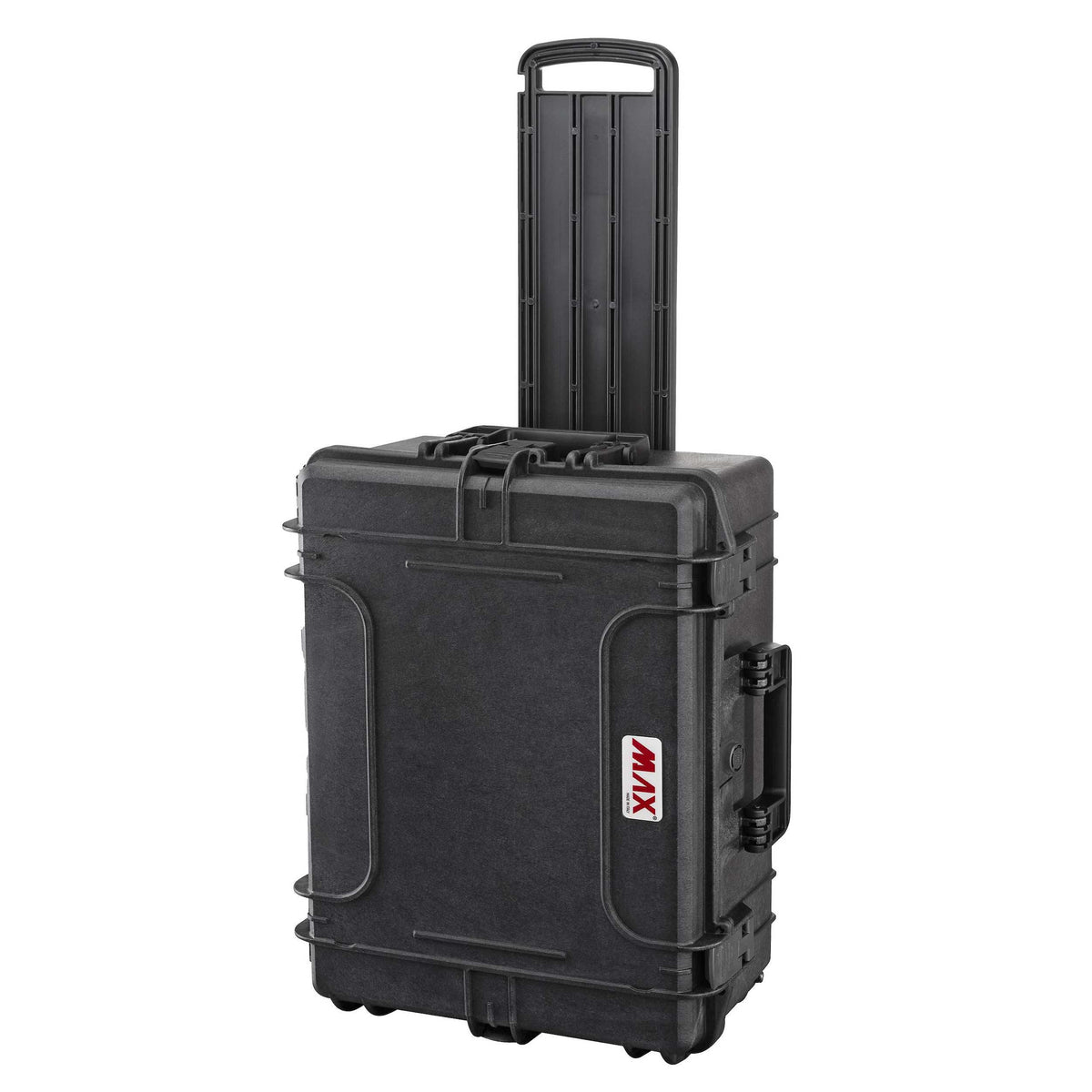

Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side

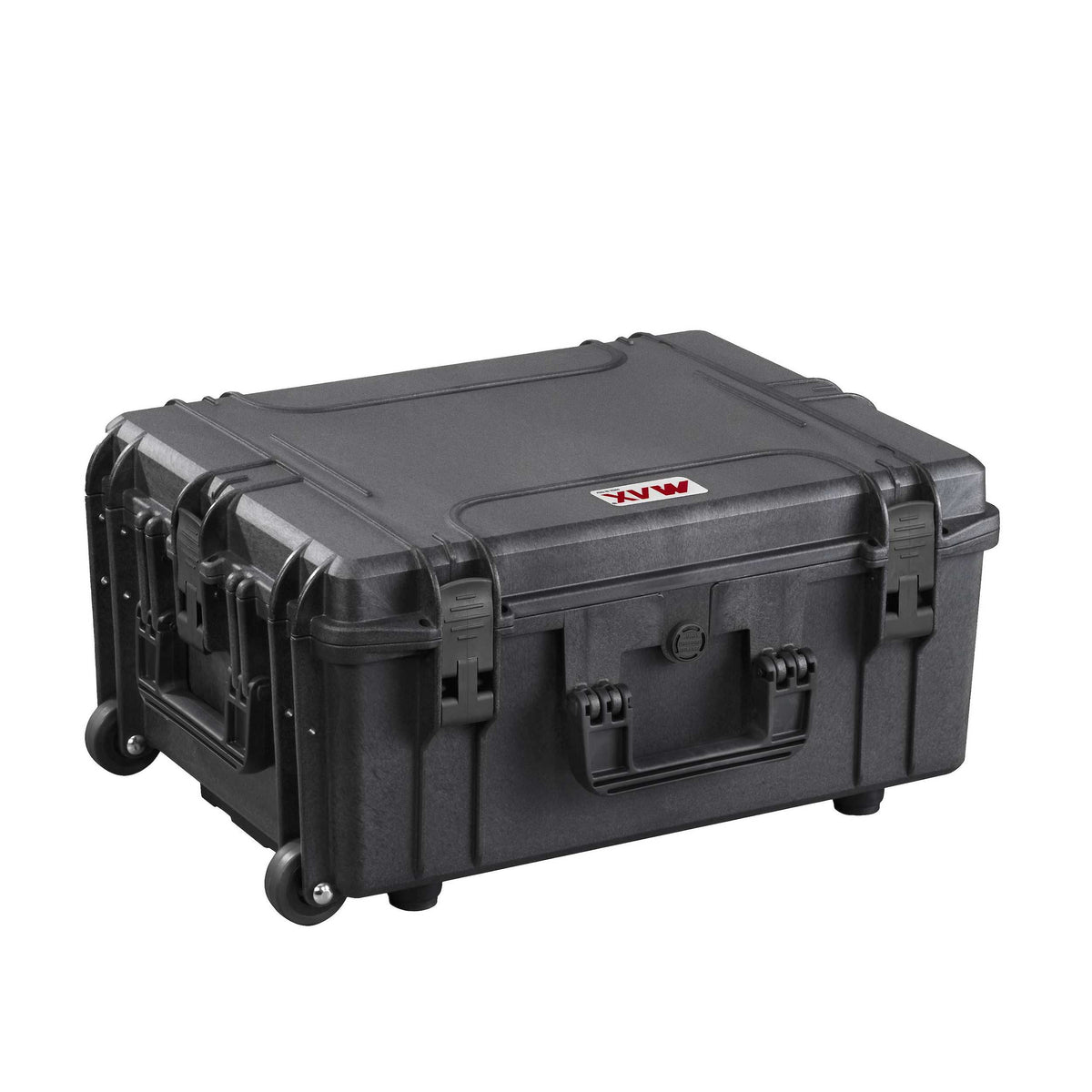

Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front
Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
MAX540H245CAMORGTR open with grey padded dividers in the base and a black mesh zip pocket lid organiser fitted inside the lid
Panaro lid organiser panel for the MAX540, black fabric with zipped mesh pockets top and bottom and elastic slots down the right side
Grey padded divider insert for the MAX540H245 seen from an angle, three rows of compartments formed by movable dividers
Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side
Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front
Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
MAX540H245CAMORGTR open with grey padded dividers in the base and a black mesh zip pocket lid organiser fitted inside the lid
Panaro lid organiser panel for the MAX540, black fabric with zipped mesh pockets top and bottom and elastic slots down the right side
Grey padded divider insert for the MAX540H245 seen from an angle, three rows of compartments formed by movable dividers
Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side
Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front
Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
Panaro

Panaro MAX540H245CAMORGTR Waterproof Case with Padded Dividers, Lid Organiser and Trolley Black

$849.53
$849.53
RRP $915.89
Or 4 payments of $212.38 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX540H245CAMORGTR

Camera Kit Trolley With a Pocketed Lid

The Panaro MAX540H245CAMORGTR is a rolling camera and drone case: padded dividers split the base into bays and a zipped organiser in the lid holds the small loose items.

Bodies, lenses, a gimbal or a compact drone go into the grey divider insert. The dividers fix with hook and loop tabs, as Panaro's photos show, so the bays can be rearranged when the kit changes. Batteries, memory cards, cables and filters live in the mesh zip pockets and elastic holders on the lid panel instead of rattling around on top of the padding.

The shell is the MAX540H245TR. According to Panaro it weighs 6.90 kg empty, measures 604 x 473 x 283 mm overall and gives 538 x 405 x 245 mm inside, split 50 mm in the lid and 195 mm in the base. Wheels on stainless steel pins and an extendable handle take the weight on long walks from the car to a venue or location.

Panaro mould the shell in Italy, latch it with nylon and seal it with an O-ring. For this case size they publish an IP67 certificate, an ATA 300 airline certificate, a MIL-STD-810H test and a STANAG 4280 / DEF STAN 81-41 environmental test.

Kit bags not tough enough? Look through our camera and AV cases, the wheeled trolley range or every Panaro MAX case.

Often ordered together

  • Padded divider insert with hook and loop dividers
  • Lid organiser with zipped mesh pockets and elastic holders
  • Extendable handle and wheels on stainless steel pins
  • Inside 538 x 405 x 245 mm
  • Automatic pressure release valve
  • IP67 and ATA 300 certificates from Panaro
  • Mirrorless or DSLR kits with spare lenses
  • Compact drones with controller and batteries
  • Event and wedding shooters moving kit on foot
  • Inspection cameras and accessories for field teams
  • Checked luggage for photo trips

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro (MAX Cases)

MPN: MAX540H245CAMORGTR

Mega Code: PMMAX540H245CAMORGTR

Configuration: Padded dividers in the base, zipped lid organiser, trolley

Internal Size: 538 x 405 x 245 mm

External Size: 604 x 473 x 283 mm

Lid + Base Depth: 50 + 195 mm

Weight: 6.90 kg for the MAX540H245TR case, per Panaro

Capacity: 53.38 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring, metal and plastic trolley

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Made In: Italy, per Panaro

Colour: Black

Pack Size: 1

Unit: Each

EAN: 8011236540217

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

One black MAX540H245 trolley case with a grey padded divider insert in the base and a lid organiser panel fitted inside the lid. Panaro's photo of this version shows the organiser in place of the egg-crate lid foam.
Yes. Each divider ends in a hook and loop tab, so you can take it out and refit it to make bays wider or narrower. Panaro do not publish a divider count, so plan from the photos.

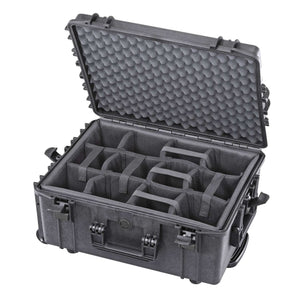

Both share the trolley shell and the padded dividers. The CAMTR keeps convoluted foam in the lid to press down on the kit, while this CAMORGTR swaps that foam for the zipped pocket panel.
Panaro list ATA 300 for the MAX540H245, the airline standard for reusable shipping cases, and an automatic valve balances pressure during the flight. Your airline's size and weight limits still apply.
Use the downloads on this page: Panaro's datasheet and 2D drawing, the four test documents for this size and their fluid contamination declaration for MAX cases.
No. The case has holes for two padlocks on the front; locks are sold separately.
