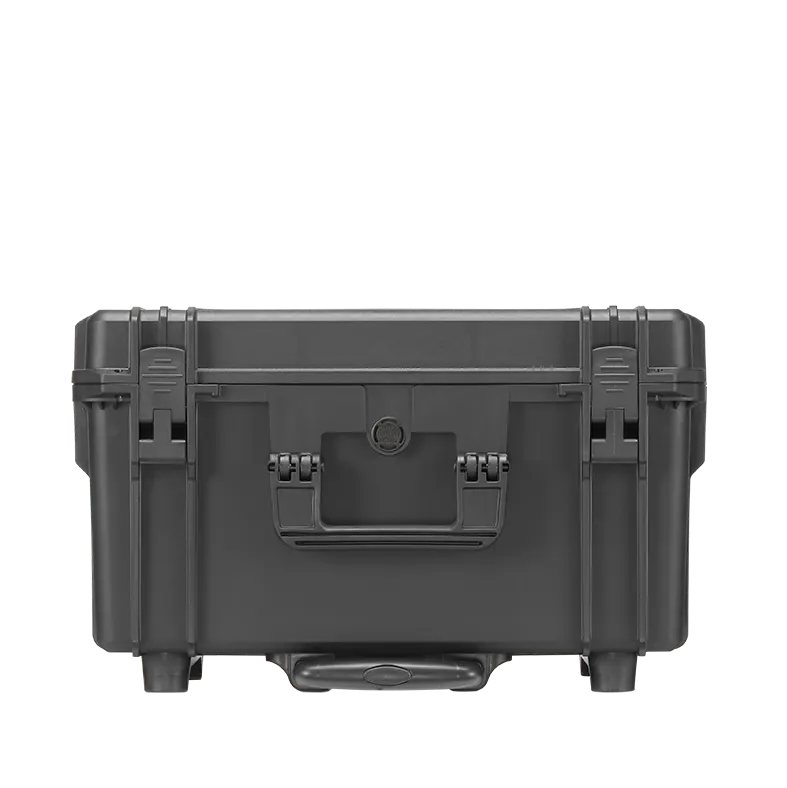

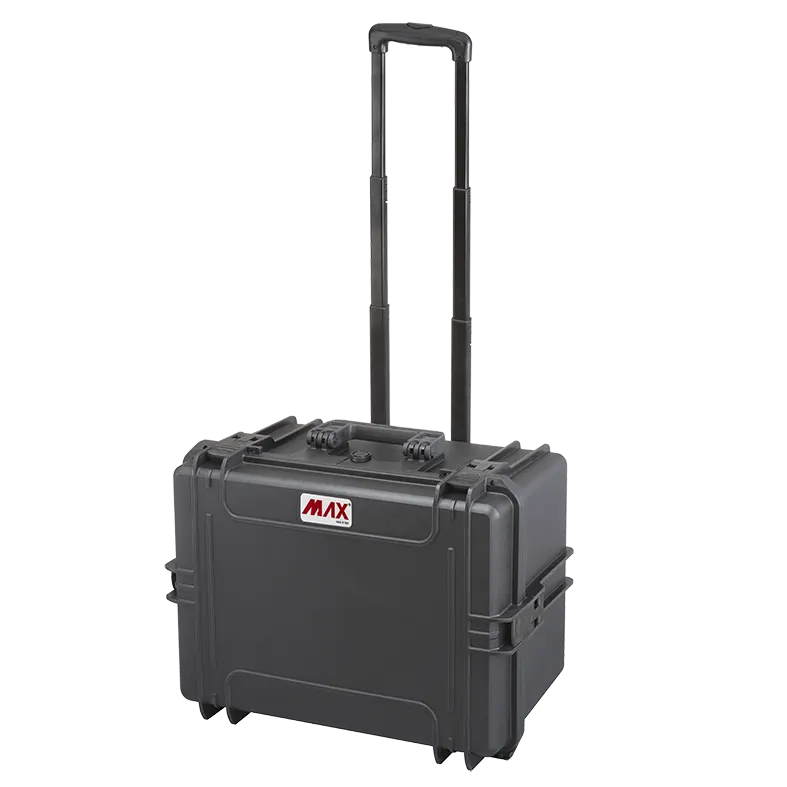

Black Panaro MAX505H280TR deep trolley case closed with telescopic handle extended and red MAX logo
Black MAX505H280TR open and empty, showing the deep plain interior and lid seal channel
Black MAX505H280TR from the latch side, handle base and wheels at the bottom edge
Rear of the black MAX505H280TR showing the stowed handle frame and wheels
Black Panaro MAX505H280TR deep trolley case closed with telescopic handle extended and red MAX logo
Black MAX505H280TR open and empty, showing the deep plain interior and lid seal channel
Black MAX505H280TR from the latch side, handle base and wheels at the bottom edge
Rear of the black MAX505H280TR showing the stowed handle frame and wheels
Black Panaro MAX505H280TR deep trolley case closed with telescopic handle extended and red MAX logo
Black MAX505H280TR open and empty, showing the deep plain interior and lid seal channel
Black MAX505H280TR from the latch side, handle base and wheels at the bottom edge
Rear of the black MAX505H280TR showing the stowed handle frame and wheels
Panaro

Panaro MAX505H280TR Waterproof Case with Trolley Black

$543.18
$543.18
RRP $577.38
Or 4 payments of $135.80 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505H280TR

Deep 49 Litre MAX Case On Wheels

The Panaro MAX505H280TR is the deep version of the MAX505, with 280 mm of internal height instead of 194 mm, supplied empty with wheels and a telescopic handle.

The extra depth takes the capacity to 49 litres in the same 500 x 350 mm footprint, with a 58 mm lid and 222 mm base. That suits tall items such as drones with props fitted, audio interfaces, stacked meters or a rack-mount panel: Panaro sell a rack frame for this model, which we list. Panaro give the case as 5.92 kg empty.

Panaro's drawing shows 555 x 437 x 326 mm closed and 997 mm with the handle extended. On its H280TR page Panaro name IP67 and ATA 300 alongside STANAG 4280, DEF STAN 81-41 and MIL-STD-810, and link a STANAG report run on the MAX505TR H280 itself plus MIL-STD-810H and IP67 documents, all attached here. O-ring seal, valve and nylon latches as on every MAX. Made in Italy.

See the Panaro range for the foam version, the trolley accessories list and our photography and AV cases.

Often ordered together

  • Deep interior: 500 x 350 x 280 mm, 49 L
  • Supplied empty on wheels with telescopic handle
  • Lid 58 mm, base 222 mm
  • Closed 555 x 437 x 326 mm; 997 mm handle up
  • Takes Panaro's rack frame accessory
  • IP67, STANAG 4280, MIL-STD-810, ATA 300 per Panaro
  • Tall drones and gimbals
  • Rack-mounted audio and radio equipment with Panaro's frame
  • Bulky test equipment and power supplies
  • Stacked camera bodies and monitors
  • Event and broadcast spares

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505H280TR

Mega Code: PMMAX505H280TR

Colour: Black

Configuration: TR, empty with trolley

External Dimensions: 555 x 437 x 326 mm (page and 2D drawing)

Internal Dimensions: 500 x 350 x 280 mm

Lid + Base Depth: 58 + 222 mm

Capacity: 49 L

Weight: 5.92 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, metal and plastic trolley, stainless steel wheel pins

Height With Handle Extended: 997 mm (Panaro drawing)

Test Standards Listed by Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Pack Size: 1 case, sold each

EAN: 8011236505254

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Internal height is 280 mm against 194 mm, and capacity is 49 litres against 33.95, per Panaro.
No, it is supplied empty. The MAX505H280STR is the same case with cubed foam.
Panaro list a rack frame accessory for the MAX505H280, and we sell it as the Panaro 19 Inch Rack Frame for MAX505H280 Cases.
The H280TR datasheet and 2D drawing, the H280 IP67 certificate, the STANAG report on the MAX505TR H280, the H280 MIL-STD-810H report, the ATA 300 report and the fluid and fungus declaration.
The datasheet prints 428 mm, while Panaro's page and drawing for the trolley case give 437 mm. We have used the page and drawing.
