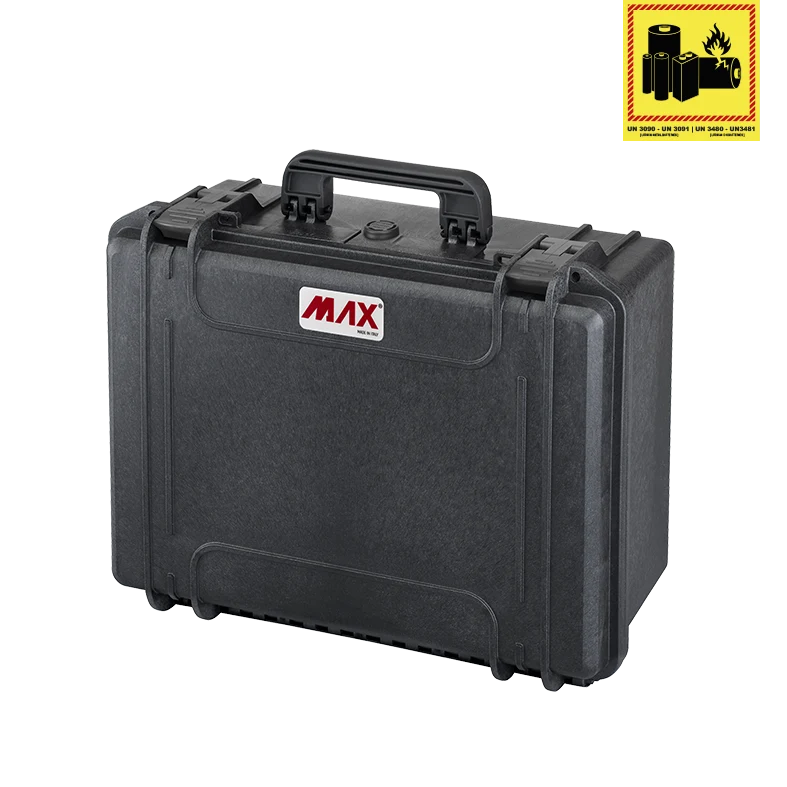

Black Panaro MAX465H220 deep waterproof case closed, three quarter view with handle, latches and red MAX logo
MAX465H220 open and empty showing the deep base, the lid and the seal channel
Front view of a black MAX465 lid with carry handle, two latches and MAX badge
MAX465H220 lying flat, latch side forward, showing the depth of the shell
Black Panaro MAX465H220 deep waterproof case closed, three quarter view with handle, latches and red MAX logo
MAX465H220 open and empty showing the deep base, the lid and the seal channel
Front view of a black MAX465 lid with carry handle, two latches and MAX badge
MAX465H220 lying flat, latch side forward, showing the depth of the shell
Black Panaro MAX465H220 deep waterproof case closed, three quarter view with handle, latches and red MAX logo
MAX465H220 open and empty showing the deep base, the lid and the seal channel
Front view of a black MAX465 lid with carry handle, two latches and MAX badge
MAX465H220 lying flat, latch side forward, showing the depth of the shell
Panaro

Panaro MAX465H220 Waterproof Case Black

$296.78
$296.78
RRP $305.14
Or 4 payments of $74.20 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX465H220

MAX465H220: Deep Watertight Case, Empty Interior

The Panaro MAX465H220 is the deep version of the 465 x 335 mm MAX case, with 220 mm of internal height and 34.27 litres, supplied empty.

Panaro split the depth as a 40 mm lid and 180 mm base, so the case takes upright items: a camera with its lens attached, a gas detector, a first aid layout or bulky spares. Externally it is 502 x 415 x 246 mm and 3.42 kg, and we list Panaro's trolley handle kit for MAX465H220 cases if you want wheels later.

This model comes with Panaro's IP67 and MIL-STD-810H certificates, a STANAG 4280 / DEF STAN 81-41 test report and an ATA 300 Cat. 1 certificate, attached below with the datasheet and drawing. Features include an automatic pressure release valve, padlock holes, extra fixing points, shoulder strap holes and full length hinges on nylon pins. Made in Italy by Panaro.

Fit outs for this size are listed under Panaro. First aid kit builders can also look at medical cases, and there are more brands in protective cases.

Often ordered together

  • Deep 465 x 335 x 220 mm interior, 34.27 L
  • Supplied empty
  • 40 mm lid over a 180 mm base

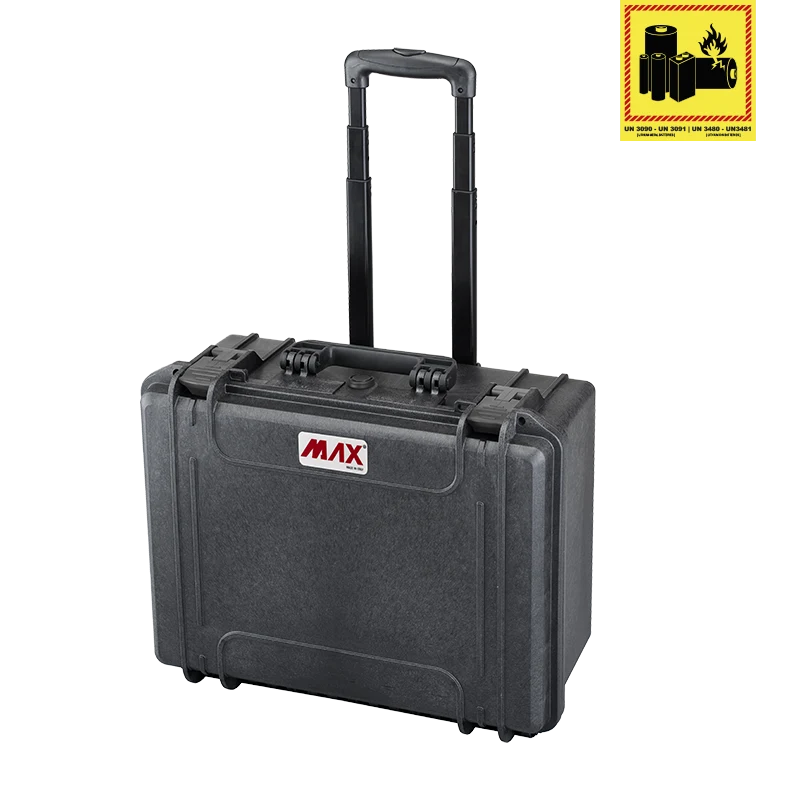

  • Takes Panaro's MAX465H220 trolley kit
  • Shoulder strap holes and fixing points
  • Made in Italy
  • Cameras with lenses mounted
  • Gas detectors and safety instruments
  • First aid and response layouts
  • Bulky spares and parts
  • Custom foam fit outs

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro, MAX Cases range

MPN: MAX465H220

Mega Code: PMMAX465H220

Configuration: Empty (no foam)

Colour: Black

Internal Dimensions: 465 x 335 x 220 mm (lid 40 + base 180 mm)

External Dimensions: 502 x 415 x 246 mm

Capacity: 34.27 L

Weight: 3.42 kg (Panaro datasheet)

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Certificates: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1 (per Panaro)

Temperature Range: -51 to 90 C (Panaro datasheet)

Made In: Italy (per Panaro)

Unit: Each

EAN: 8011236465039

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Anything within 465 x 335 x 220 mm, less any foam or padding you add.
We list Panaro's trolley handle kit for MAX465H220 cases. Panaro also sell the case factory fitted as the MAX465H220TR.
No, this is the empty case. For cubed foam choose the MAX465H220S, or the MAX465H220HDS for high density foam.
3.42 kg, per Panaro's datasheet.
