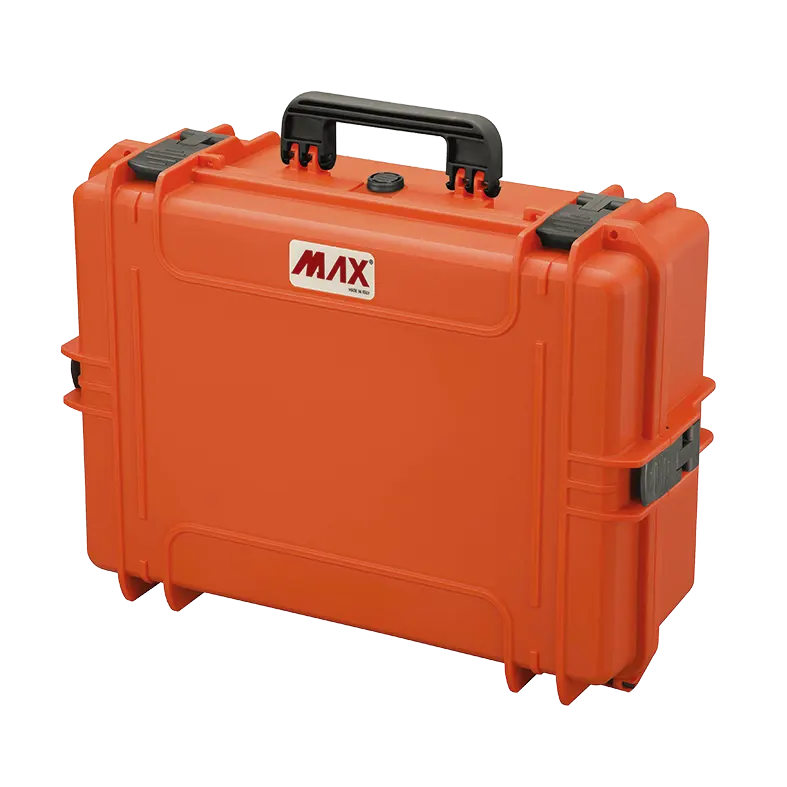

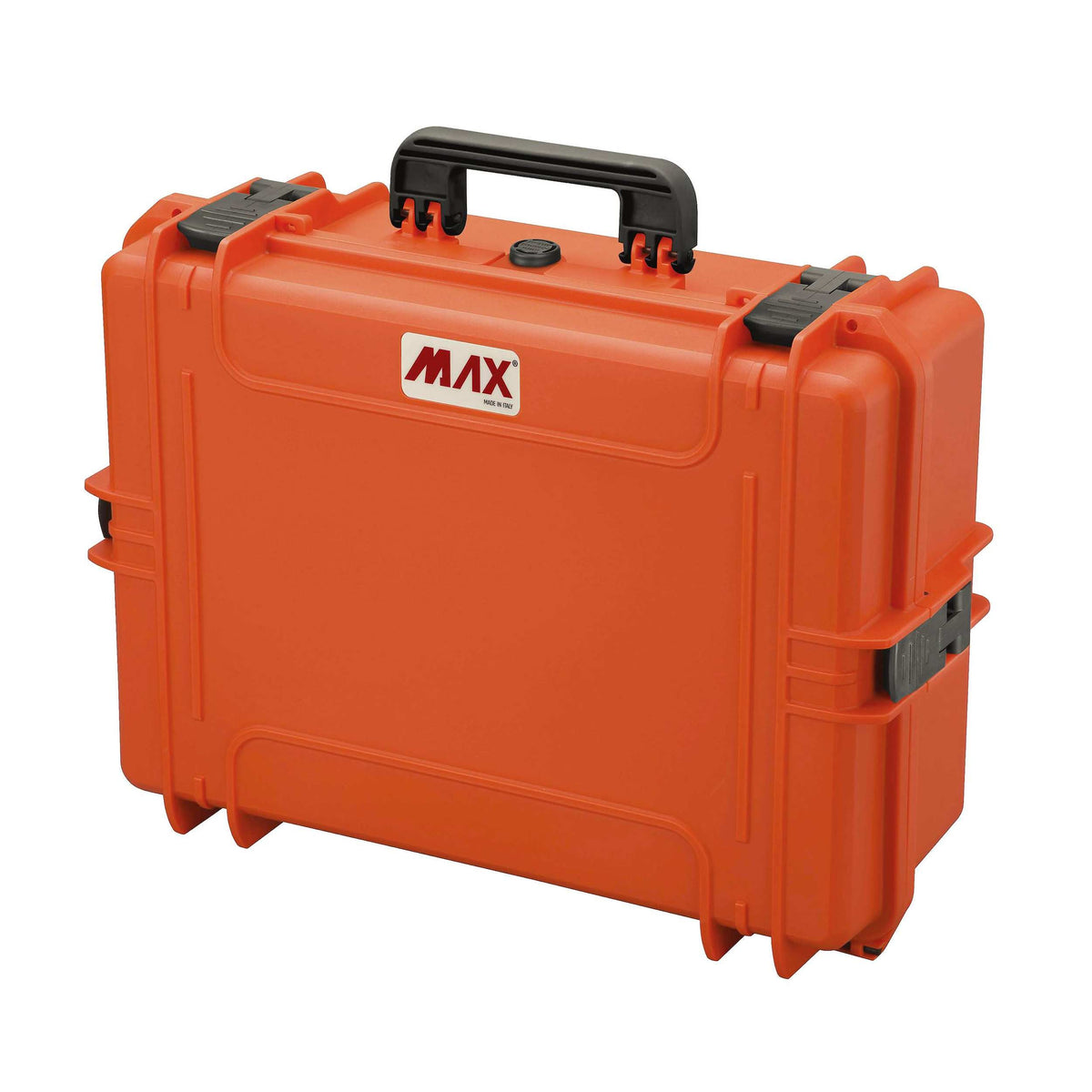

Closed orange Panaro MAX505 waterproof case, three quarter view with black handle, latches and red MAX logo

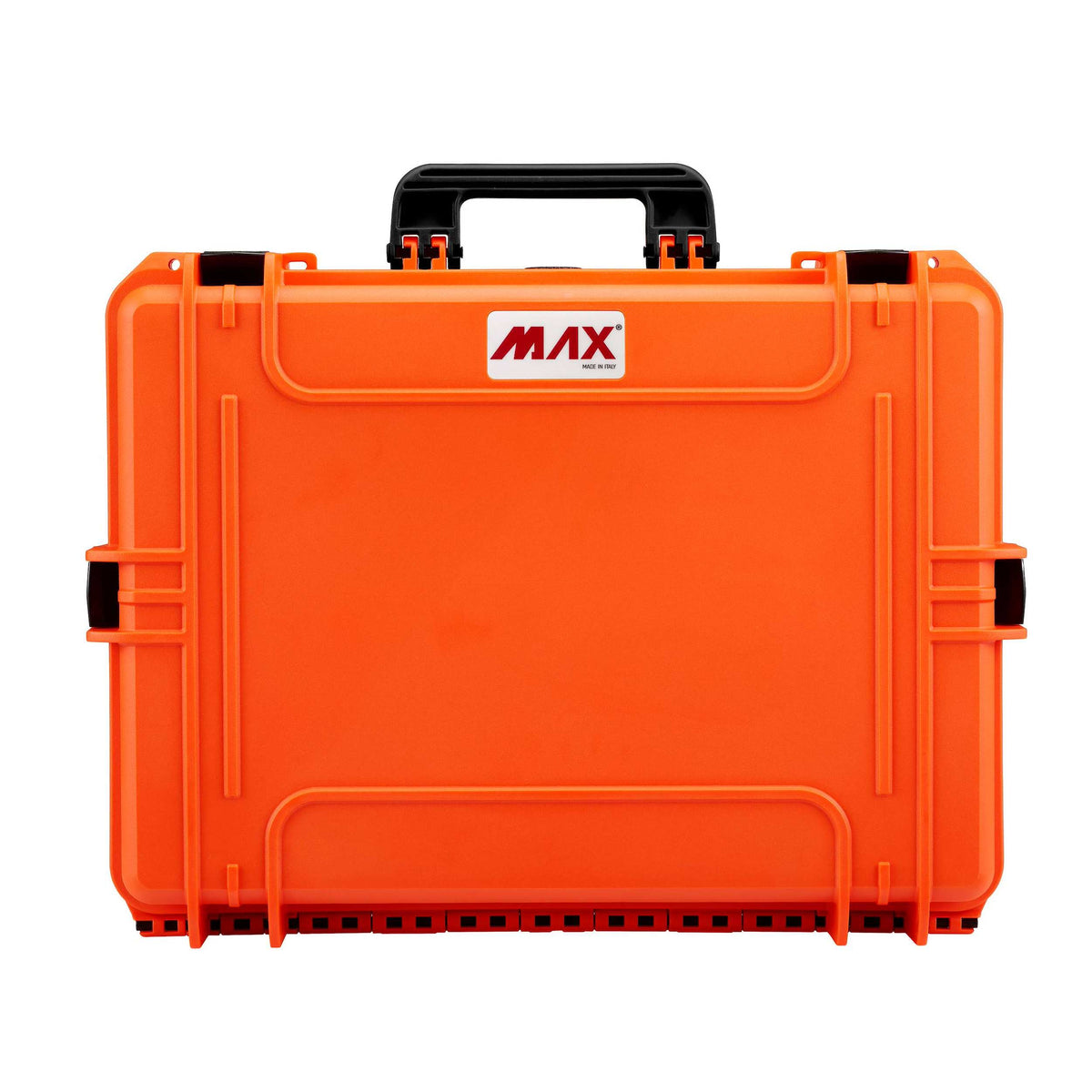

Front view of the orange MAX505 shell, black latches on both sides and the moulded carry handle on top

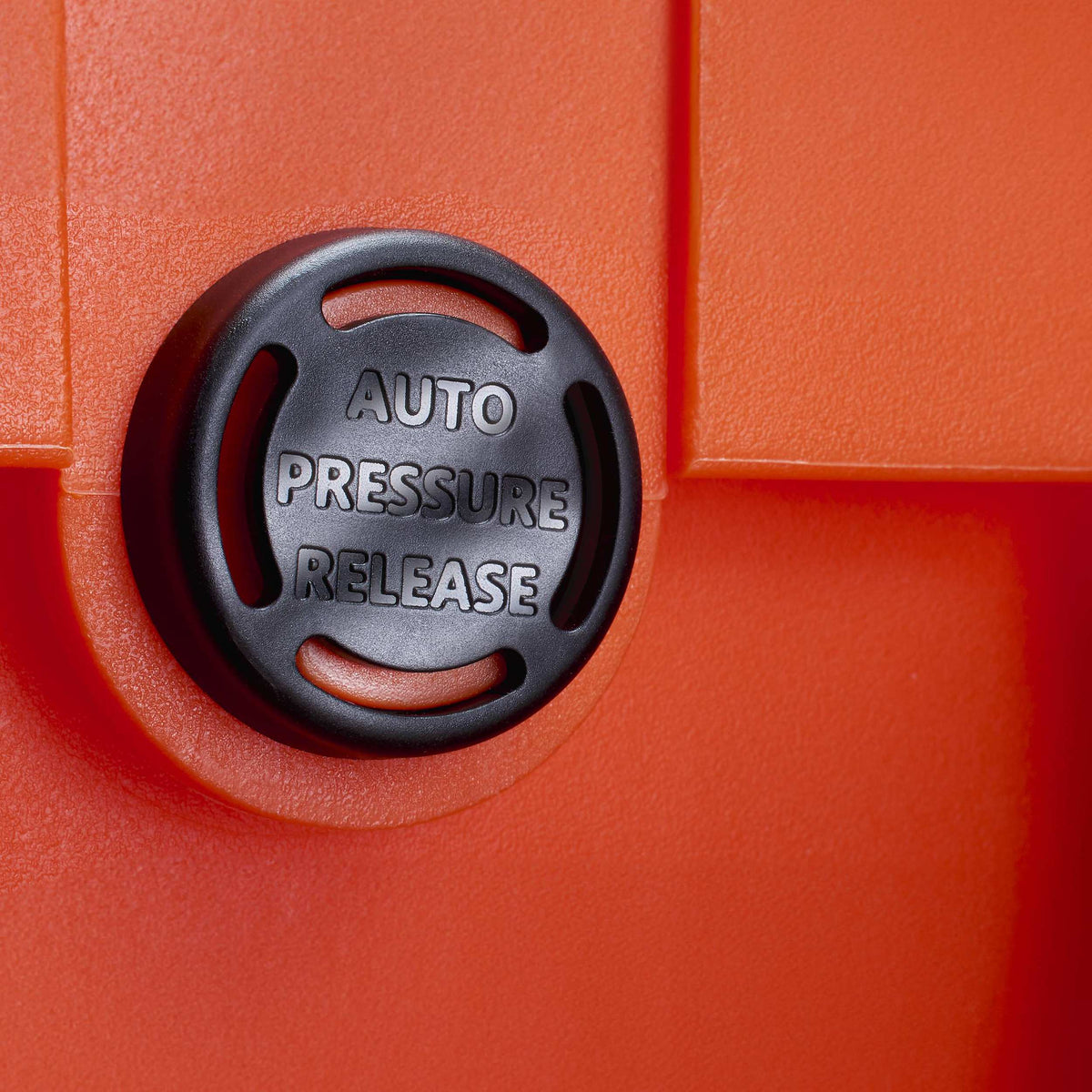

Close-up of the black AUTO PRESSURE RELEASE valve knob set into the orange MAX case wall
Close-up of a black MAX double throw latch closed over the orange lid and base
Orange Panaro MAX505S case open showing grey pick and pluck cubed foam below a convoluted foam lid
Closed orange Panaro MAX505 waterproof case, three quarter view with black handle, latches and red MAX logo
Front view of the orange MAX505 shell, black latches on both sides and the moulded carry handle on top
Close-up of the black AUTO PRESSURE RELEASE valve knob set into the orange MAX case wall
Close-up of a black MAX double throw latch closed over the orange lid and base
Orange Panaro MAX505S case open showing grey pick and pluck cubed foam below a convoluted foam lid
Closed orange Panaro MAX505 waterproof case, three quarter view with black handle, latches and red MAX logo
Front view of the orange MAX505 shell, black latches on both sides and the moulded carry handle on top
Close-up of the black AUTO PRESSURE RELEASE valve knob set into the orange MAX case wall
Close-up of a black MAX double throw latch closed over the orange lid and base
Panaro

Panaro MAX505S Waterproof Case with Cubed Foam Orange

$371.47
$371.47
RRP $395.87
Or 4 payments of $92.87 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505S-ORANGE

High-Visibility Orange With Foam To Fit

The Panaro MAX505S in orange pairs the bright MAX505 shell with cubed pick and pluck foam, for kit that has to be found fast on a deck, in a ute tray or at an incident.

Orange stands out against water, scrub and the grey of a vehicle hold, which is why rescue, marine and emergency crews favour it. Inside, Panaro supply a base pad of 20 mm, two layers of 55 mm cubes and a convoluted 50 mm lid pad, so a VHF radio, beacon or medical monitor can sit in its own cut-out within the 500 x 350 x 194 mm space.

For the MAX505 Panaro hold an IP67 certificate and test reports against STANAG 4280, DEF STAN 81-41, the US MIL-STD-810H and ATA 300 Category 1, each attached here. The automatic valve vents built-up air pressure, the nylon pins in the full length hinge do not corrode, and two padlock holes take your own locks. Made in Italy; 4.44 kg on Panaro's datasheet.

See the black and sahara versions in the Panaro collection, or browse medical and first aid cases and other hard protective cases.

Often ordered together

  • Orange shell for quick spotting on site or at sea
  • Cubed foam you pluck to the shape of your kit
  • Inside 500 x 350 x 194 mm
  • Automatic valve equalises air pressure
  • Corrosion-free nylon hinge pins
  • Panaro list IP67, STANAG 4280, MIL-STD-810H, ATA 300
  • Marine VHF radios, EPIRBs and flares on boats
  • SES and rescue team electronics
  • Portable patient monitors and AED spares
  • Survey and environmental sampling kits in the field
  • Lifesaving club radios and spares

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505S

Mega Code: PMMAX505S-ORANGE

Colour: Orange

Configuration: S, pick and pluck cubed foam

External Dimensions: 555 x 428 x 211 mm

Internal Dimensions: 500 x 350 x 194 mm

Lid + Base Depth: 58 + 136 mm

Capacity: 33.95 L

Weight: 4.44 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Foam (Panaro sheet): 20 mm base, 2 x 55 mm cubed layers, 50 mm convoluted lid

Test Standards Listed by Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Pack Size: 1 case, sold each

EAN: 8011236505308

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

It is easier to spot in low light, on water and among other gear. The case, foam and certificates are the same as the black MAX505S.
Panaro rate the MAX505 IP67, a dust-tight and temporary-immersion rating under EN 60529. They do not publish a buoyancy figure, so treat floating as unconfirmed.
Per Panaro's foam sheet: a 20 mm base layer, two 55 mm cubed layers and a 50 mm convoluted layer in the lid.
Download the datasheet, drawing, IP67, STANAG and DEF STAN, MIL-STD-810H and ATA 300 documents from the files listed on this page.
Yes. Panaro make the MAX505 in black, orange, sahara and green; this listing is the orange shell with the S foam set.
