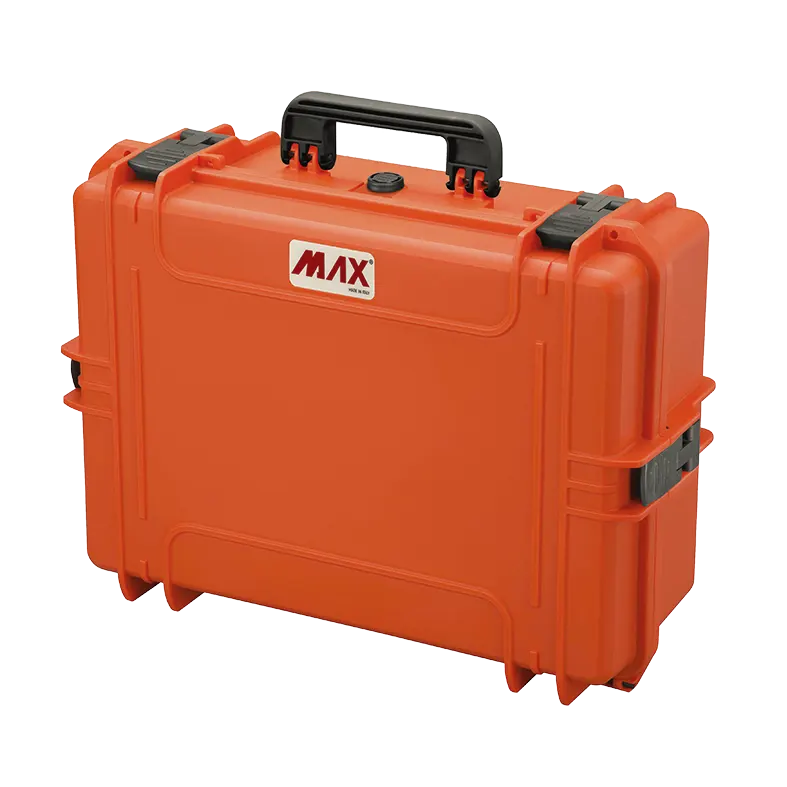

Closed Panaro MAX505 in bright orange, three-quarter view showing the MAX badge, black carry handle and black latches

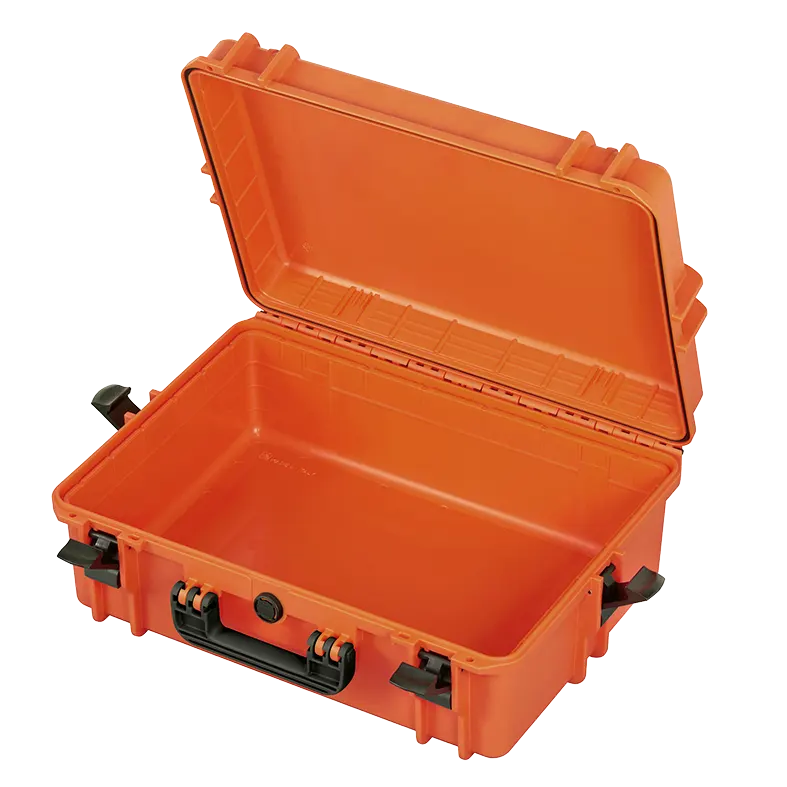

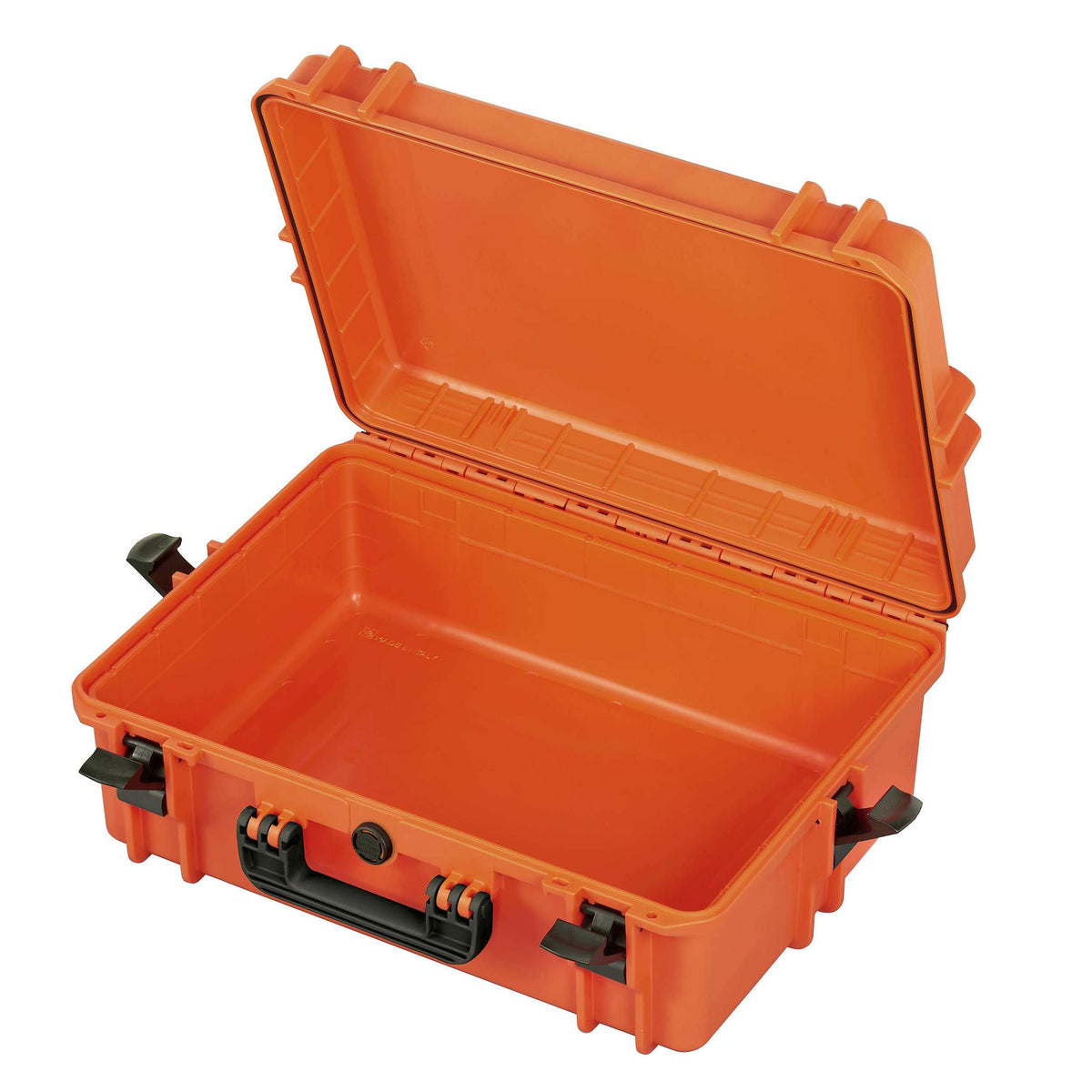

Open orange Panaro MAX505 case with an empty orange interior and the lid raised

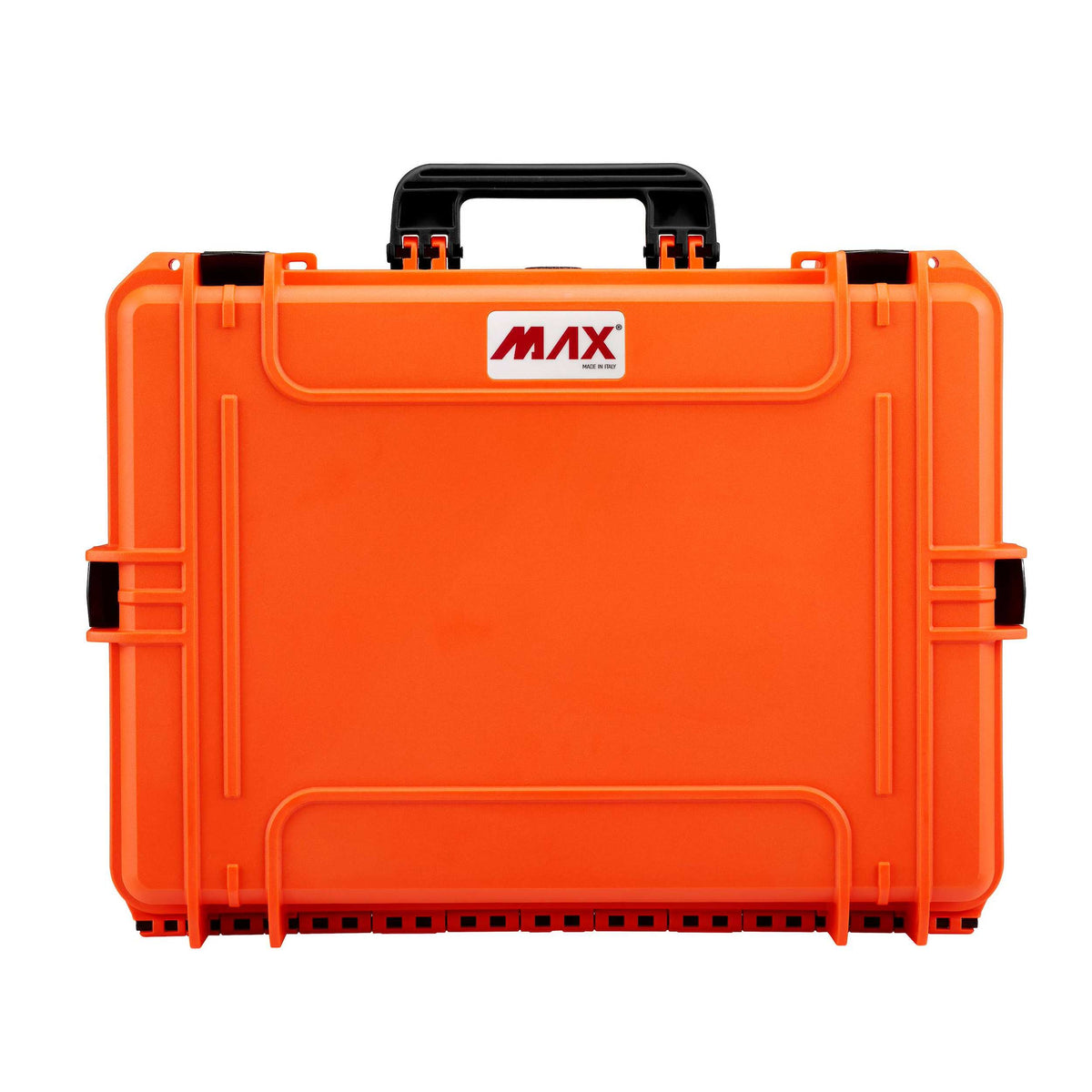

Straight-on view of the orange Panaro MAX505 lid with the MAX logo and the label area

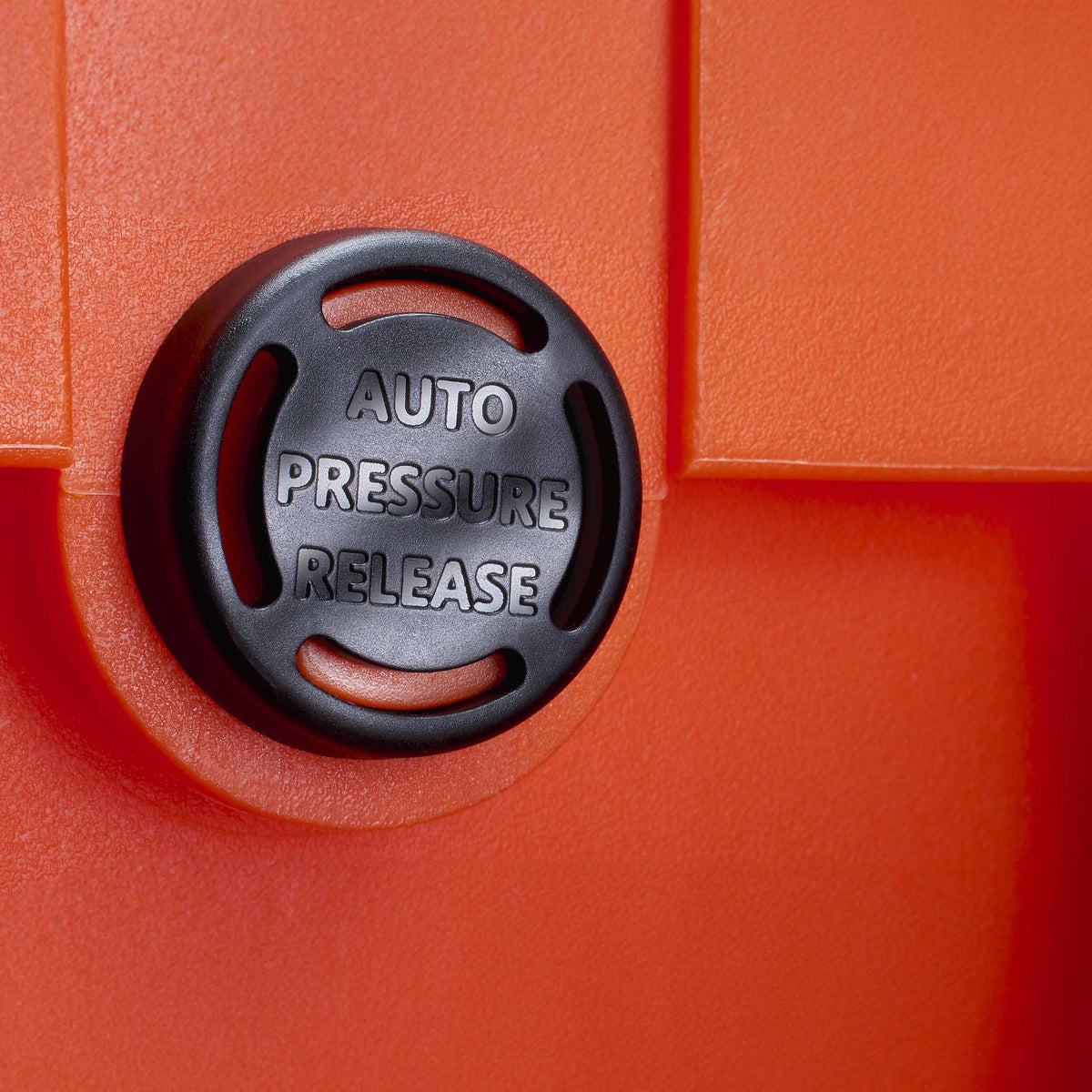

Detail of the AUTO PRESSURE RELEASE valve set into the orange shell of a Panaro MAX case
Close-up of a closed black double throw latch on an orange Panaro MAX case
Closed Panaro MAX505 in bright orange, three-quarter view showing the MAX badge, black carry handle and black latches
Open orange Panaro MAX505 case with an empty orange interior and the lid raised
Straight-on view of the orange Panaro MAX505 lid with the MAX logo and the label area
Detail of the AUTO PRESSURE RELEASE valve set into the orange shell of a Panaro MAX case
Close-up of a closed black double throw latch on an orange Panaro MAX case
Closed Panaro MAX505 in bright orange, three-quarter view showing the MAX badge, black carry handle and black latches
Open orange Panaro MAX505 case with an empty orange interior and the lid raised
Straight-on view of the orange Panaro MAX505 lid with the MAX logo and the label area
Detail of the AUTO PRESSURE RELEASE valve set into the orange shell of a Panaro MAX case
Close-up of a closed black double throw latch on an orange Panaro MAX case
Panaro

Panaro MAX505 Waterproof Case Orange

$304.48
$304.48
RRP $321.24
Or 4 payments of $76.12 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505-ORANGE

An Orange MAX505 You Can Spot Across The Deck

The orange Panaro MAX505 is the empty MAX505 shell moulded in a bright orange, for gear that should stand out in a boat, a ute tray or a pile of black cases.

Colour does a practical job here. Rescue, first response and marine crews often colour code their kit, and a bright case is quicker to find in a crowded store room or a dark vehicle. Because it ships with nothing inside, you decide the interior: a foam inlay cut to your equipment, a padded divider set from Panaro, or loose items that simply need to stay dry.

Panaro give the inside as 500 x 350 x 194 mm (58 mm lid, 136 mm base), 33.95 litres, with outside dimensions of 555 x 428 x 211 mm and a 3.90 kg weight. The orange shell keeps everything the black one has, from the sealed lid and self-venting valve to the two-stage latches, padlock points and stacking ribs. Certificates Panaro hold for the MAX505 cover ATA 300 Cat. 1, IP67, the military STANAG 4280 and DEF STAN 81-41 tests and MIL-STD-810; the case is built in Italy.

Compare colours and fit-outs in Panaro, or browse protective cases and defence and tactical.

Often ordered together

  • High visibility orange shell
  • Empty interior for your own fit-out
  • Inside 500 x 350 x 194 mm
  • IP67 rated lid seal per Panaro
  • Pressure release valve and padlock holes
  • Made in Italy, per Panaro
  • Marine and boating safety gear
  • First responder and rescue kits
  • Colour coded kit in a shared store
  • Outdoor and expedition equipment
  • Drone and camera gear once fitted with foam

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX505

Mega Code: PMMAX505-ORANGE

Configuration: Empty (no foam)

Colour: Orange

Internal Size: 500 x 350 x 194 mm

Lid / Base Depth: 58 + 136 mm

External Size: 555 x 428 x 211 mm

Capacity: 33.95 L

Weight: 3.90 kg

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certificates Listed By Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Pack Size: 1

Unit: Each

EAN: 8011236500112

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Only the colour. Panaro give the same sizes, weight and certificates for the MAX505 in every colour.
No, the orange MAX505 is sold empty. Orange versions with cubed foam, padded dividers or a trolley are listed separately.
Panaro do not publish a buoyancy figure, so we cannot say. Their IP67 rating covers dust and temporary immersion of the closed case.
You can download the MAX505 datasheet and 2D drawing and the orange case shares the black MAX505's test papers, all downloadable from this page.
