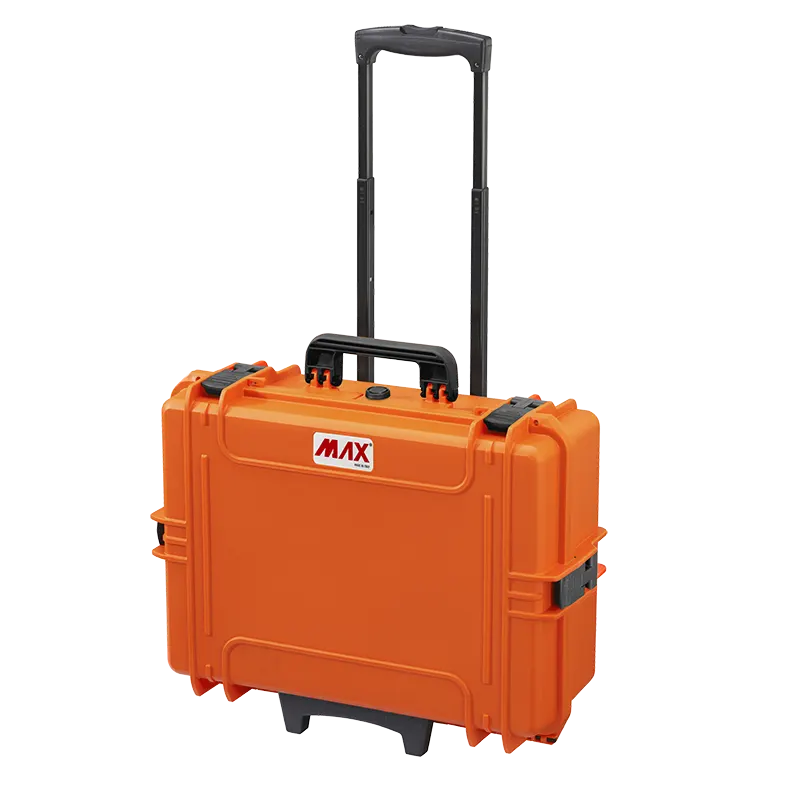

Orange Panaro MAX505TR trolley case closed with black telescopic handle extended and red MAX badge
Orange MAX505TR open and empty, showing the plain orange interior and lid seal channel

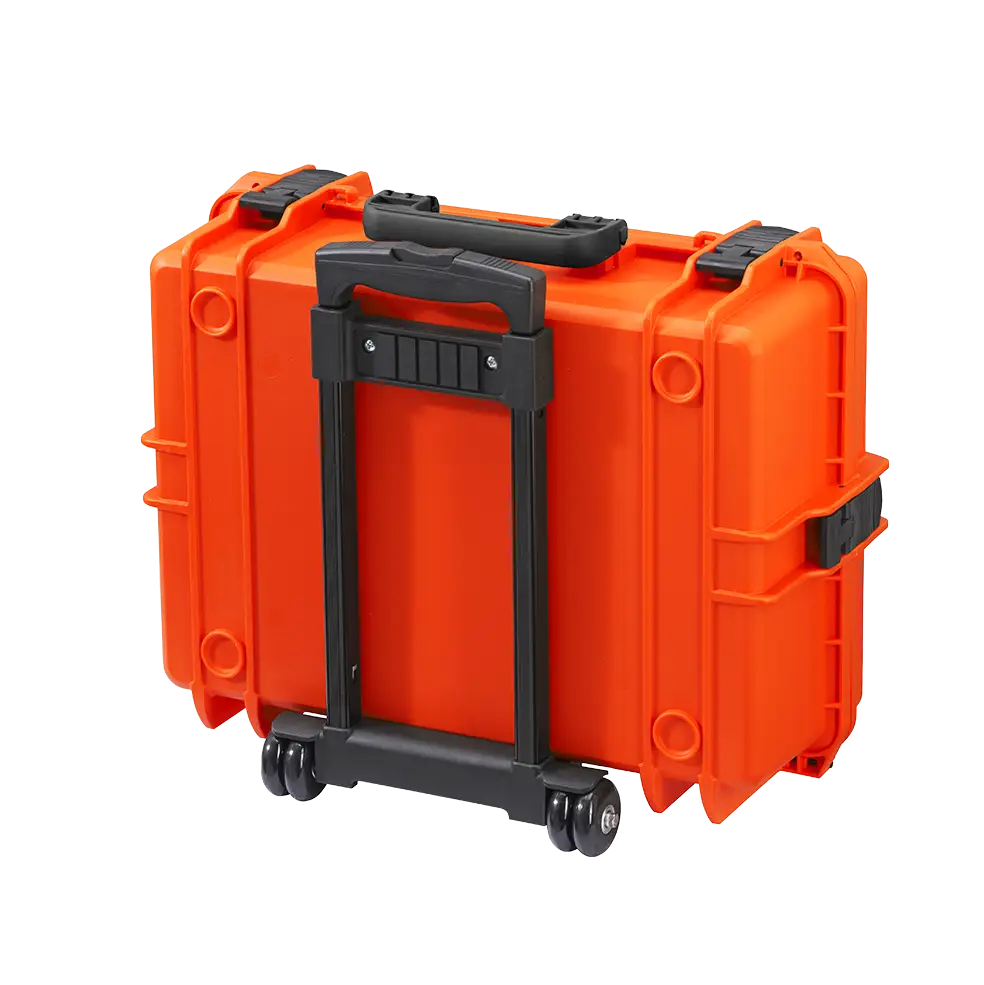

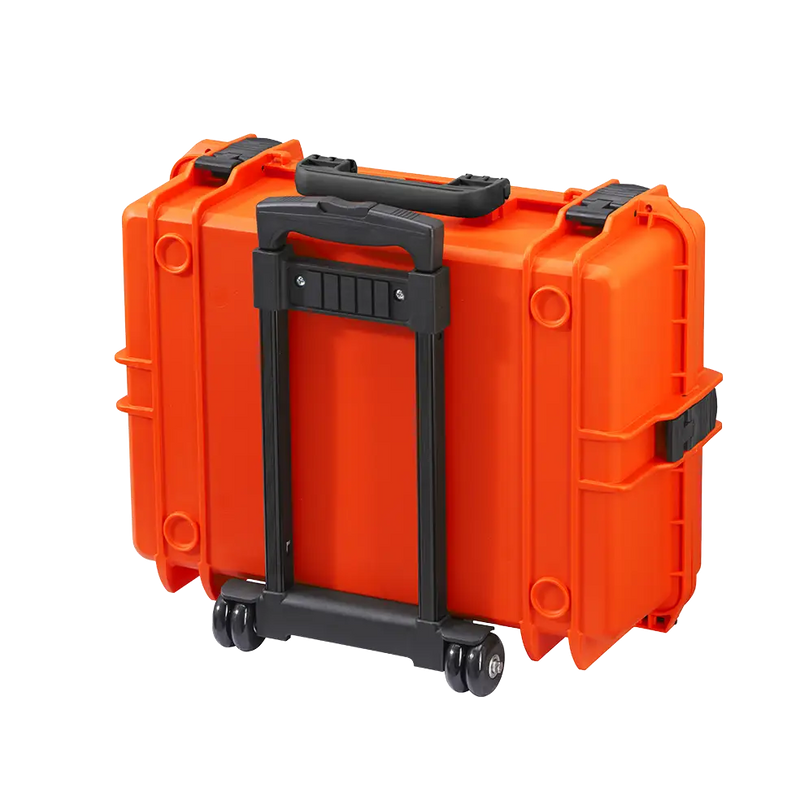

Rear of the orange MAX505TR with the retracted black handle frame and two wheels
Black AUTO PRESSURE RELEASE valve close-up on an orange MAX case
Closed black MAX latch on the orange case, close-up
Orange Panaro MAX505TR trolley case closed with black telescopic handle extended and red MAX badge
Orange MAX505TR open and empty, showing the plain orange interior and lid seal channel
Rear of the orange MAX505TR with the retracted black handle frame and two wheels
Black AUTO PRESSURE RELEASE valve close-up on an orange MAX case
Closed black MAX latch on the orange case, close-up
Orange Panaro MAX505TR trolley case closed with black telescopic handle extended and red MAX badge
Orange MAX505TR open and empty, showing the plain orange interior and lid seal channel
Rear of the orange MAX505TR with the retracted black handle frame and two wheels
Black AUTO PRESSURE RELEASE valve close-up on an orange MAX case
Closed black MAX latch on the orange case, close-up
Panaro

Panaro MAX505TR Waterproof Case with Trolley Orange

$446.71
$446.71
RRP $475.81
Or 4 payments of $111.68 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505TR-ORANGE

Bright Orange, Empty And Wheeled

The Panaro MAX505TR in orange is an empty high-visibility MAX505 on wheels, for teams who want to build their own interior and still spot the case at a glance.

Supplied without foam, it gives you a clear 500 x 350 x 194 mm space for spares, bagged kit or an insert cut to your equipment. The orange shell is easy to see on wharves, at incident staging points and in a dark store. Panaro give the case as 5 kg, and the drawing puts it at 555 x 445 x 258 mm with the lid shut, 970 mm to the raised handle.

The lid seals on a polymer O-ring under nylon double throw latches, and an automatic valve lets air pressure equalise. Panaro attach a MIL-STD-810H report to the TR page and print IP67 with the two defence protocols on the TR datasheet. Made in Italy.

Find the black TR and foam versions in the Panaro range, or browse medical and first aid and trolley lines.

Often ordered together

  • Orange shell for high visibility
  • Empty interior to fit out yourself
  • Pull handle extends to 970 mm
  • Wheels on stainless steel pins
  • O-ring lid with automatic valve
  • TR datasheet shows IP67
  • Boat spares and safety gear
  • Rescue team bulk kit and cables
  • Mobile first aid stock between sites
  • Event equipment that must be found quickly
  • Custom fitted inserts for responders

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505TR

Mega Code: PMMAX505TR-ORANGE

Colour: Orange

Configuration: TR, empty with trolley

External Dimensions: 555 x 445 x 258 mm (page and 2D drawing)

Internal Dimensions: 500 x 350 x 194 mm

Lid + Base Depth: 58 + 136 mm

Capacity: 33.95 L

Weight: 5 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, metal and plastic trolley, stainless steel wheel pins

Height With Handle Extended: 970 mm (Panaro drawing)

Test Standards Listed by Panaro: MIL-STD-810H report on the page; datasheet also shows IP67, STANAG 4280, DEF STAN 81-41 (no ATA 300)

Pack Size: 1 case, sold each

EAN: 8011236505117

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. It is the empty TR. The orange MAX505STR has cubed foam with the same wheels.
Closed, it is 555 x 445 x 258 mm on Panaro's drawing; the space inside is 500 x 350 x 194 mm.
A MIL-STD-810H report is linked from the TR page; the TR datasheet lists IP67 and the two defence protocols, STANAG 4280 and DEF STAN 81-41. Both files are attached here.
It is Panaro's standard orange for the MAX range, the same shell colour as the orange MAX505S and STR.
