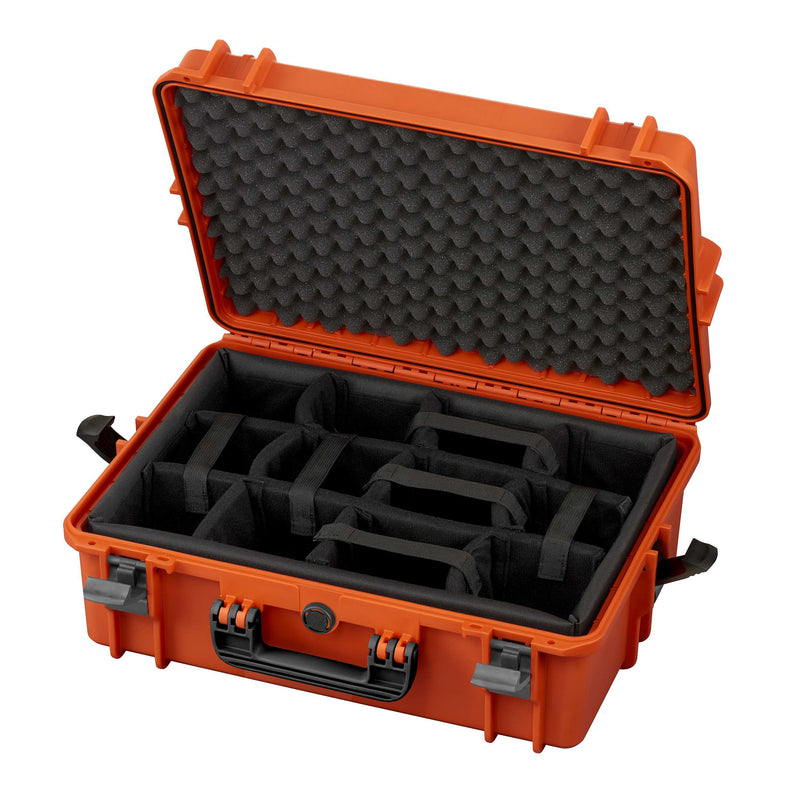

Orange Panaro MAX505CAM open with black padded dividers in the base and grey egg crate foam in the lid

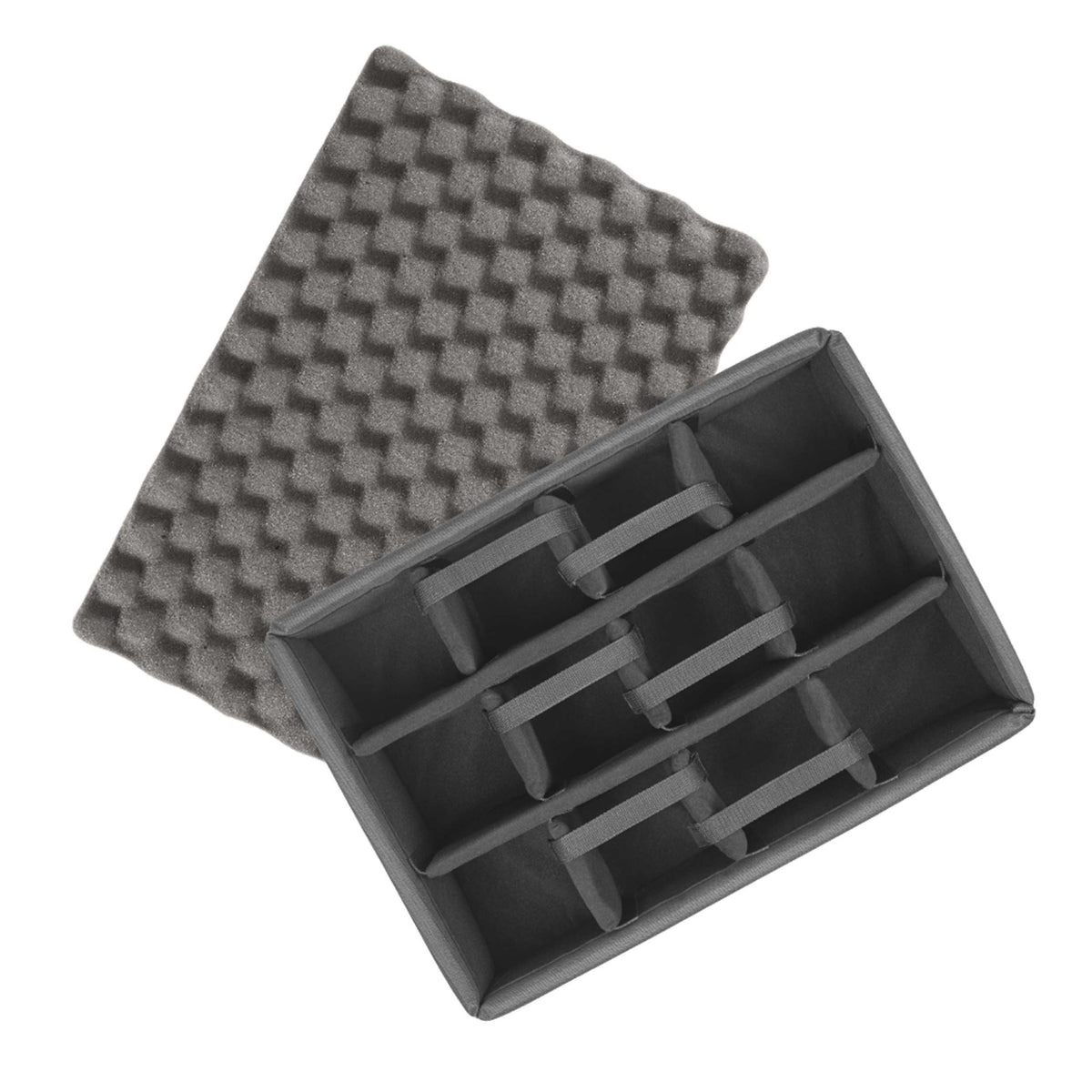

Panaro CAM kit for the MAX505: the padded divider insert and the convoluted lid foam shown out of the case
Top view of the Panaro MAX505 padded divider insert showing how the movable walls form separate bays

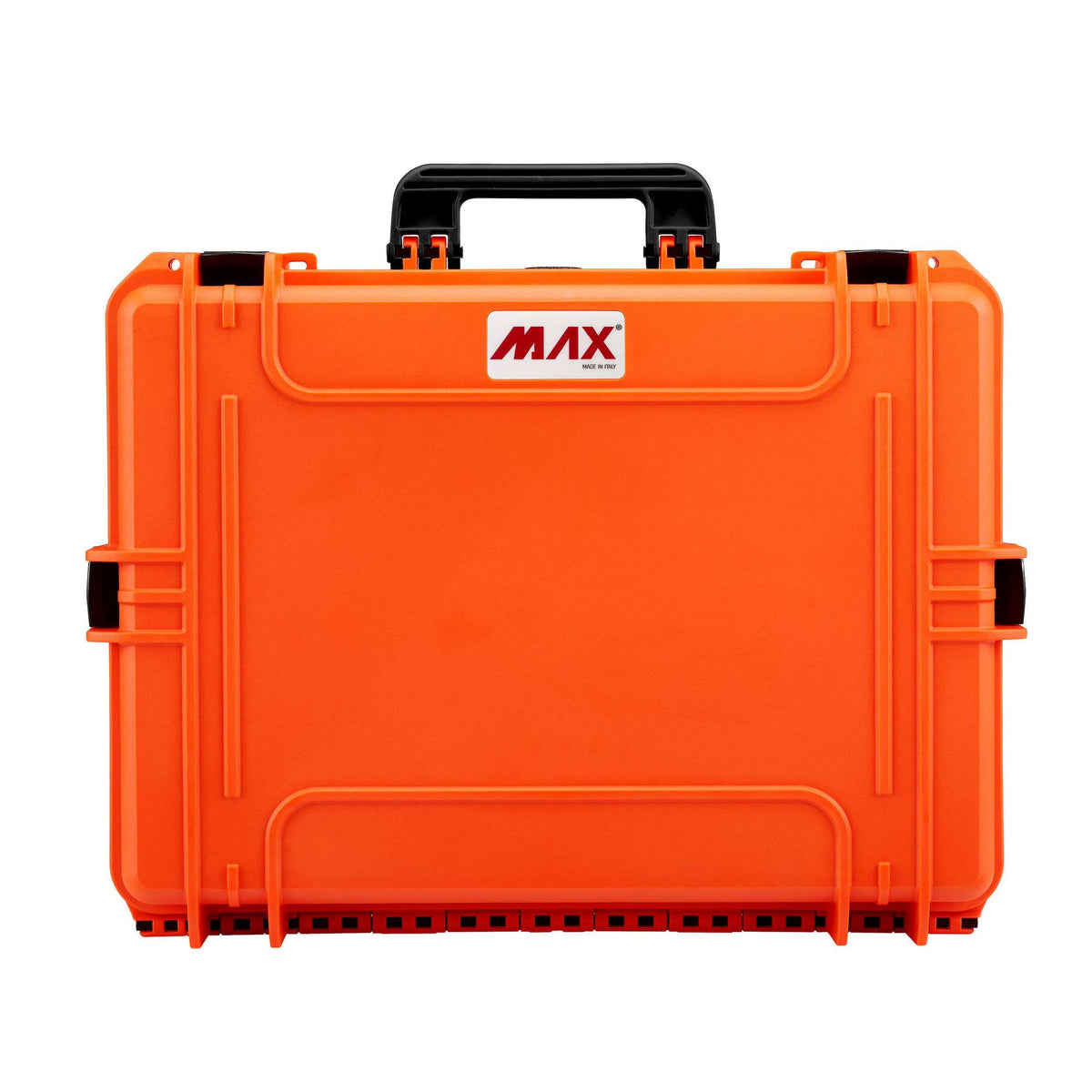

Front view of the closed orange Panaro MAX505 lid with the MAX logo
Close-up of the AUTO PRESSURE RELEASE valve on an orange Panaro MAX shell
Closed orange Panaro MAX505 shell as used for the MAX505CAM, showing the MAX badge and black latches
Orange Panaro MAX505CAM open with black padded dividers in the base and grey egg crate foam in the lid
Panaro CAM kit for the MAX505: the padded divider insert and the convoluted lid foam shown out of the case
Top view of the Panaro MAX505 padded divider insert showing how the movable walls form separate bays
Front view of the closed orange Panaro MAX505 lid with the MAX logo
Close-up of the AUTO PRESSURE RELEASE valve on an orange Panaro MAX shell
Panaro

Panaro MAX505CAM Waterproof Case with Padded Dividers Orange

$495.77
$495.77
RRP $534.36
Or 4 payments of $123.94 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505CAM-ORANGE

Bright Orange, With A Divided Interior

This MAX505CAM pairs Panaro's orange MAX505 shell with the CAM interior, so delicate items get their own padded bay inside a case that is easy to pick out.

It suits kit that is used outdoors and moved often: a survey drone with spare batteries, a marine camera setup, or rescue electronics such as radios and torches. Panaro's CAM set lines the base with padded walls you can move, and lays an egg crate pad under the lid; reposition the walls whenever the contents change.

In the orange MAX505CAM you get a 500 x 350 x 194 mm interior holding 33.95 litres, and the outside measures 555 x 428 x 211 mm. Panaro weigh it at 4.72 kg with the dividers fitted. The shell carries the full MAX feature set, including an IP67 rated seal, the automatic pressure release valve, padlock holes and stacking ribs, and for this code Panaro list an IP67 certificate, ATA 300 and MIL-STD-810, together with STANAG 4280 / DEF STAN 81-41 test results. MAX cases are made in Italy, per Panaro.

For colour and fit-out options, browse photography and AV, Panaro and protective cases.

Often ordered together

  • Orange shell that stands out
  • CAM padded divider set fitted
  • Egg crate foam pad in the lid
  • 33.95 litres inside the case
  • 4.72 kg with dividers fitted
  • Pressure release valve fitted
  • Survey and inspection drones
  • Marine camera gear
  • Rescue radios and torches
  • Outdoor filming kits

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX505CAM

Mega Code: PMMAX505CAM-ORANGE

Colour: Orange

Configuration: CAM set, movable padded dividers with lid foam

Internal Size: 500 x 350 x 194 mm

Lid / Base Depth: 58 + 136 mm

External Size: 555 x 428 x 211 mm

Capacity: 33.95 L

Weight: 4.72 kg

Materials: Polypropylene shell, nylon latches, polymer O-ring; polyester and polyurethane padded inserts

Certificates Listed By Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Pack Size: 1

Unit: Each

EAN: 8011236505605

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro fit it with movable padded dividers below and a convoluted pad fixed beneath the orange lid.
No. Panaro's photos show grey and black padded dividers inside the orange shell.
The dividers are padded fabric and foam. It is the closed case that Panaro rate IP67, so keep the lid shut and latched when it gets wet.
Yes. Yes. This listing carries the orange MAX505CAM's datasheet, Panaro's CAM configuration sheet and every MAX505 test certificate.
