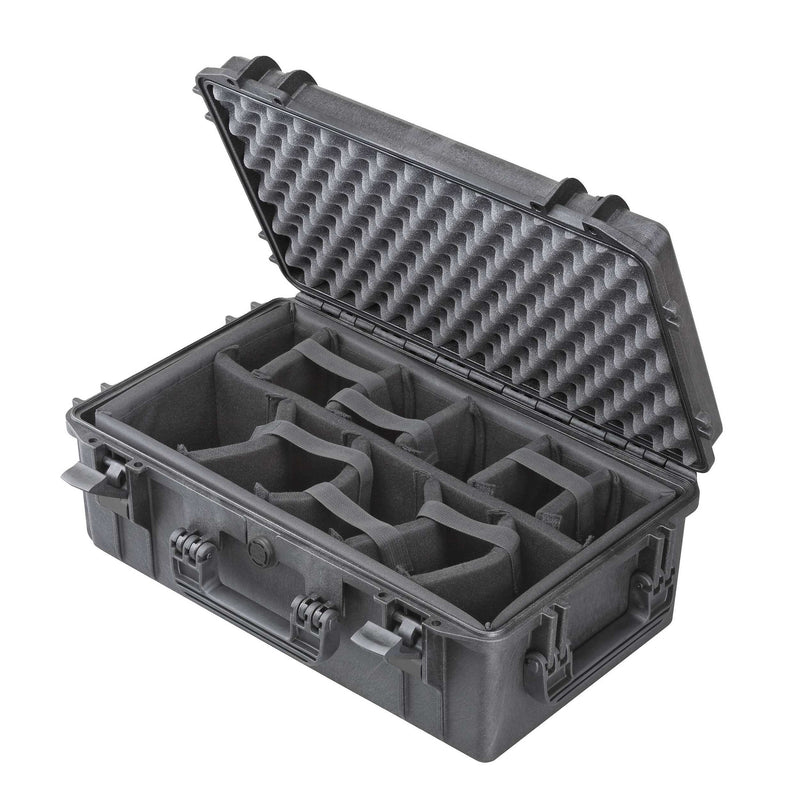

Panaro MAX520CAM open: grey padded dividers split the base into bays and convoluted foam lines the lid
Panaro MAX520CAM closed, three-quarter view of the black MAX520 shell with the red MAX logo, top carry handle and side latches

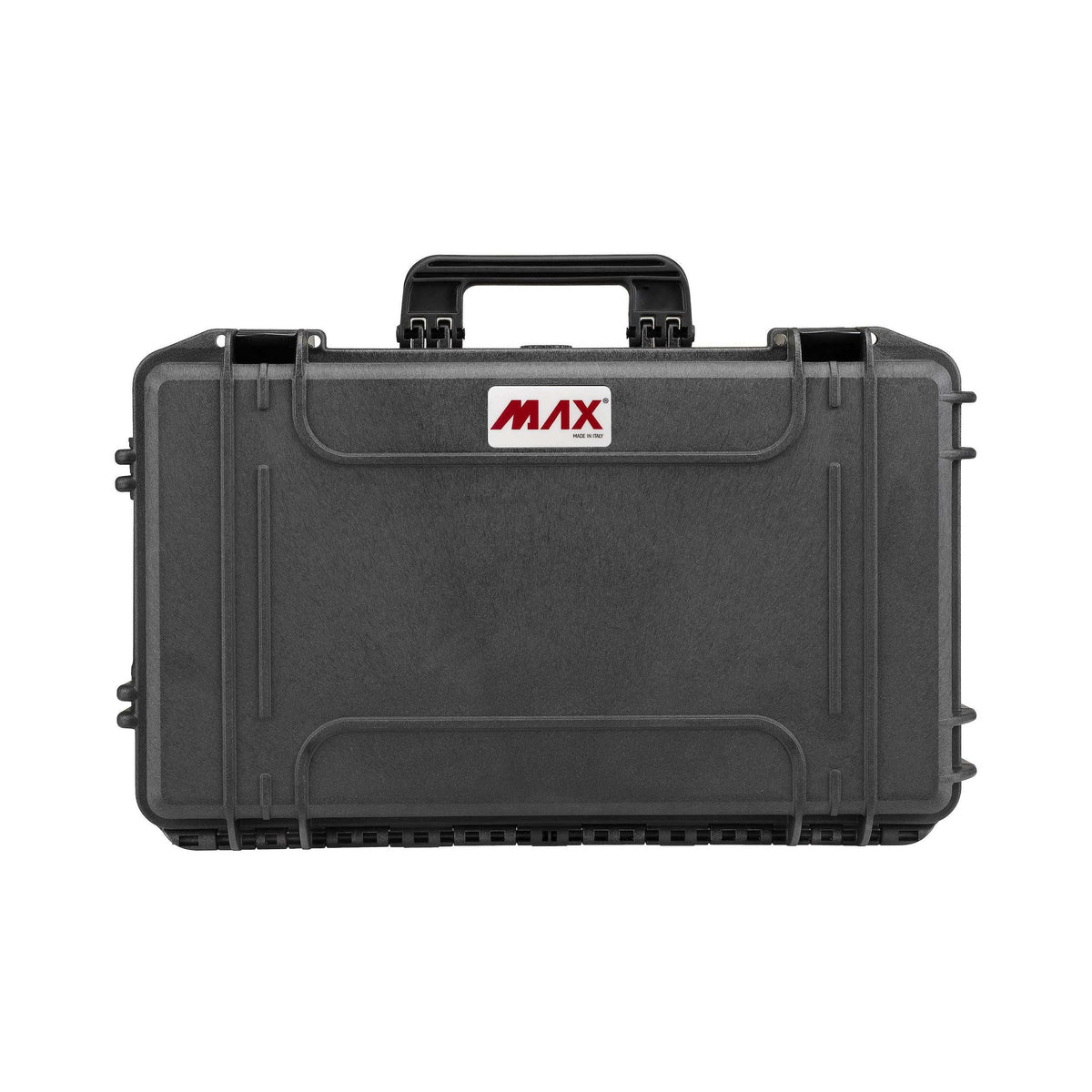

Panaro MAX520CAM straight-on view of the black MAX520 lid with red MAX logo, carry handle at the top and latches at each end

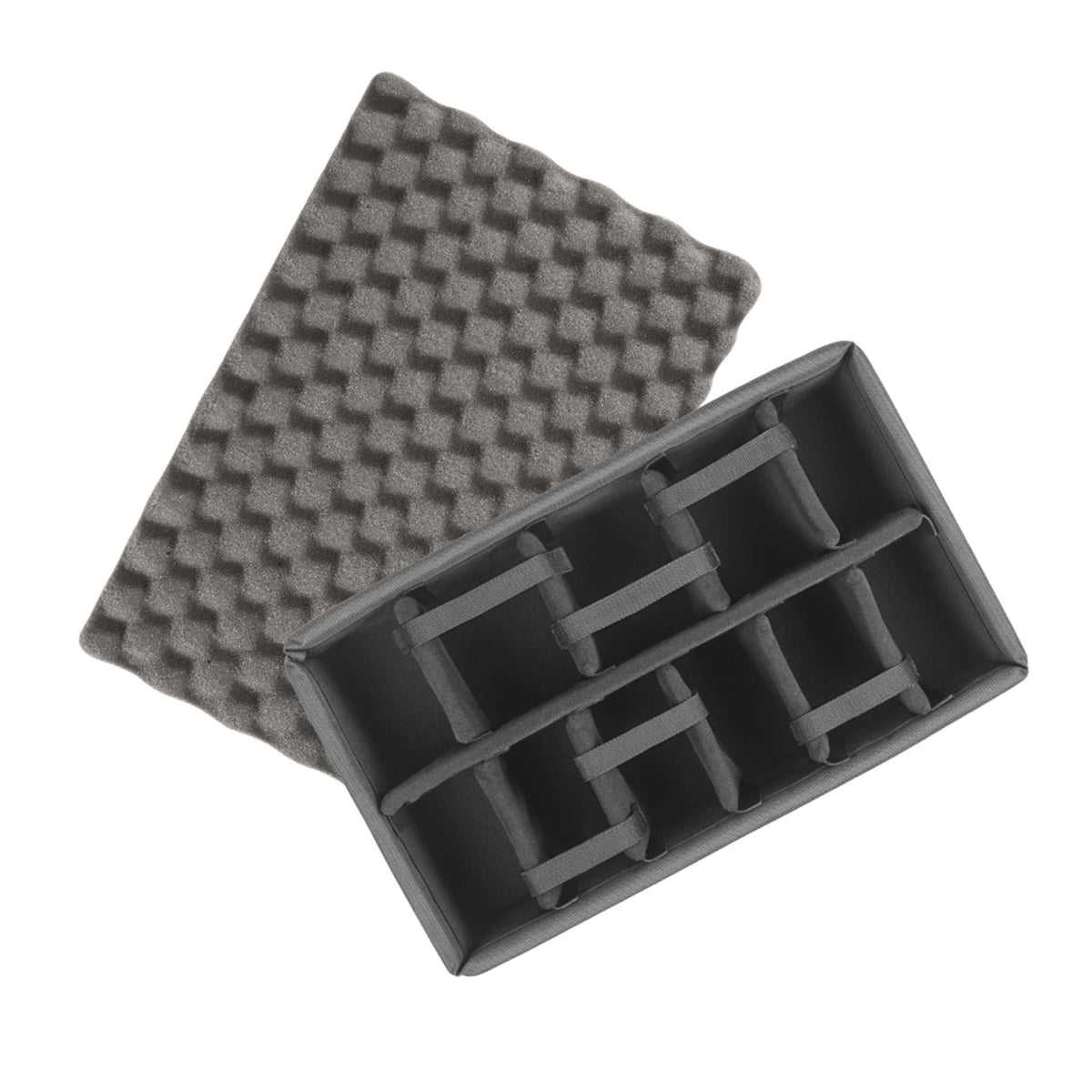

MAX520 padded divider insert with its convoluted lid foam sheet, grey dividers forming adjustable bays

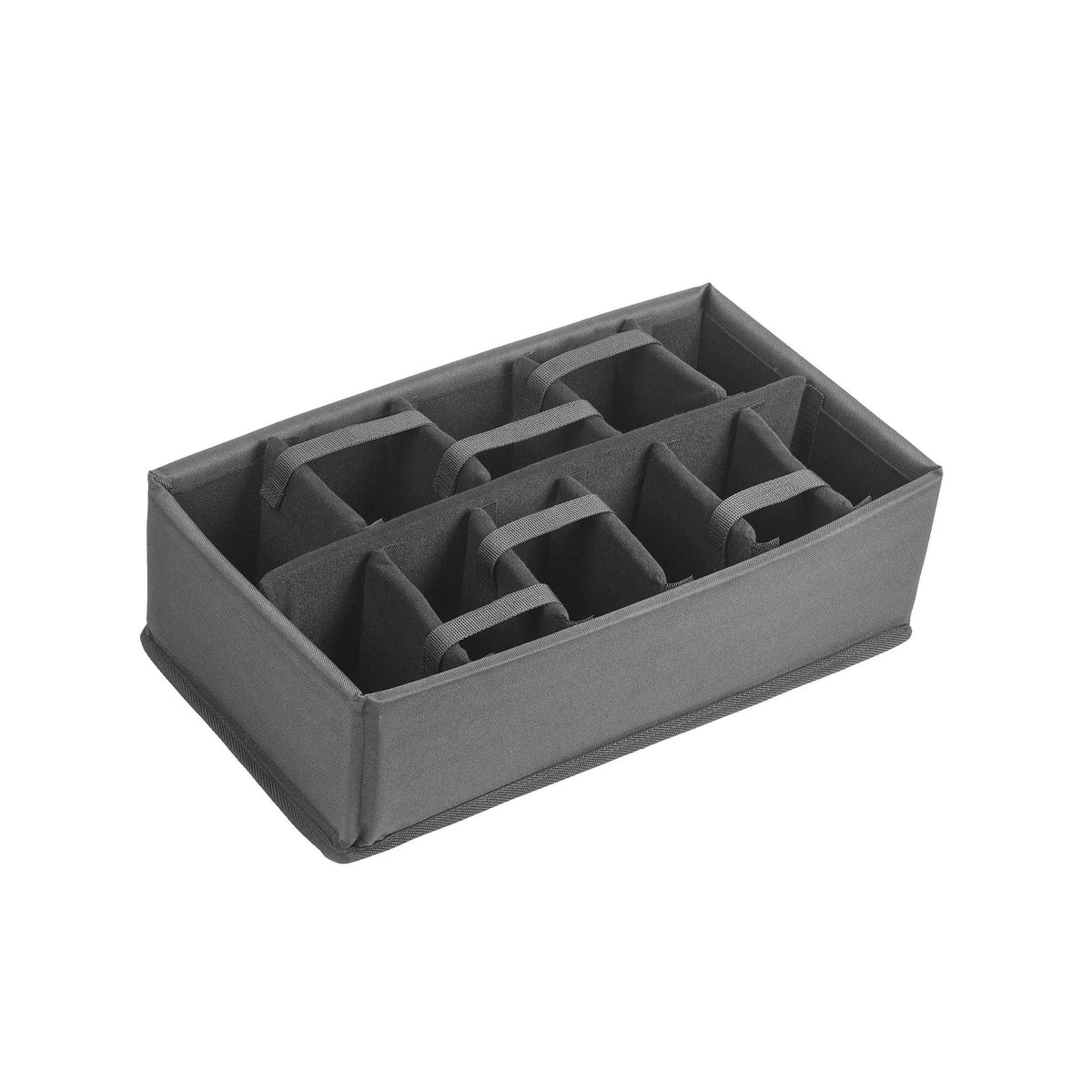

MAX520 padded divider insert out of the case, grey walls and removable dividers forming camera and lens bays

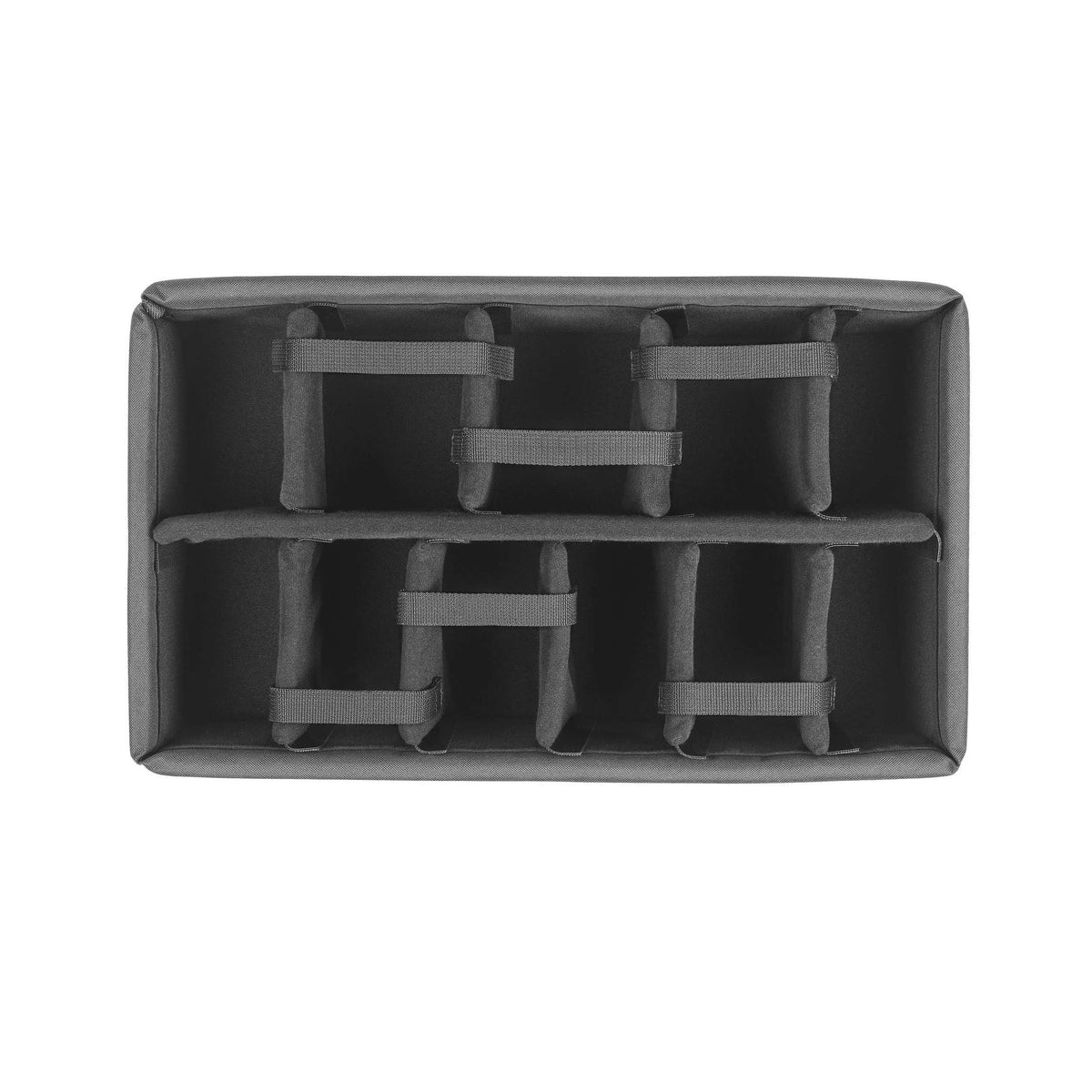

Top view of the MAX520 padded divider insert showing the grey compartment layout

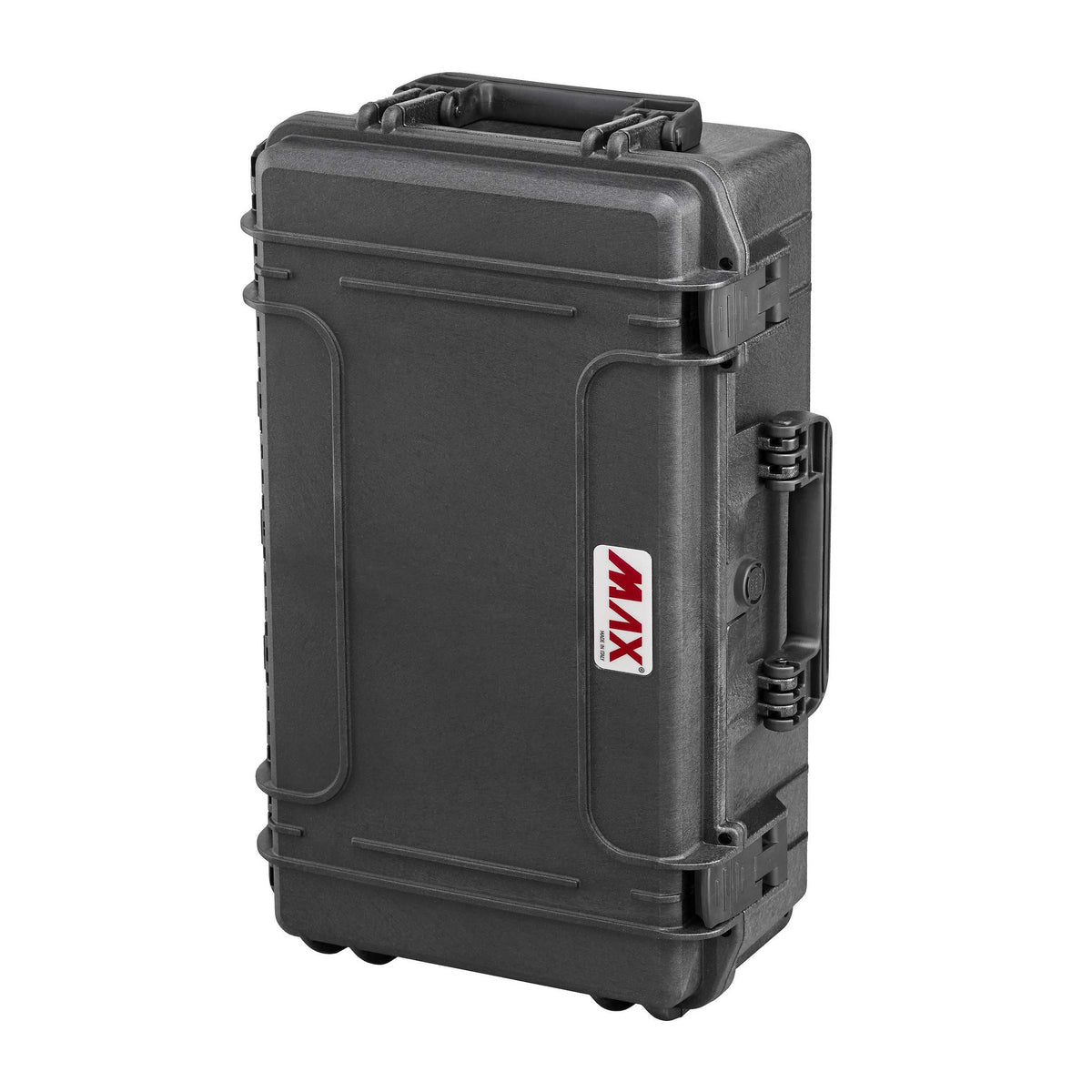

Panaro MAX520CAM stood on its end, black MAX520 shell with the MAX logo running vertically and the hinge side visible
Panaro MAX520CAM open: grey padded dividers split the base into bays and convoluted foam lines the lid
Panaro MAX520CAM closed, three-quarter view of the black MAX520 shell with the red MAX logo, top carry handle and side latches
Panaro MAX520CAM straight-on view of the black MAX520 lid with red MAX logo, carry handle at the top and latches at each end
MAX520 padded divider insert with its convoluted lid foam sheet, grey dividers forming adjustable bays
MAX520 padded divider insert out of the case, grey walls and removable dividers forming camera and lens bays
Top view of the MAX520 padded divider insert showing the grey compartment layout
Panaro MAX520CAM stood on its end, black MAX520 shell with the MAX logo running vertically and the hinge side visible
Panaro MAX520CAM open: grey padded dividers split the base into bays and convoluted foam lines the lid
Panaro MAX520CAM closed, three-quarter view of the black MAX520 shell with the red MAX logo, top carry handle and side latches
Panaro MAX520CAM straight-on view of the black MAX520 lid with red MAX logo, carry handle at the top and latches at each end
MAX520 padded divider insert with its convoluted lid foam sheet, grey dividers forming adjustable bays
MAX520 padded divider insert out of the case, grey walls and removable dividers forming camera and lens bays
Top view of the MAX520 padded divider insert showing the grey compartment layout
Panaro MAX520CAM stood on its end, black MAX520 shell with the MAX logo running vertically and the hinge side visible
Panaro

Panaro MAX520CAM Waterproof Case with Padded Dividers Black

$457.16
$457.16
RRP $490.18
Or 4 payments of $114.29 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX520CAM

A Camera Case You Arrange Yourself

The Panaro MAX520CAM is the MAX520 watertight case fitted with a padded divider set, so a camera body, lenses and accessories each get their own bay.

The grey dividers sit in the base and can be moved to suit the kit you carry, while egg-crate foam on the underside of the lid keeps the gear from lifting when you shut it. The bays share a 520 x 290 x 200 mm interior, roughly 30.16 litres, inside a 574 x 361 x 225 mm shell.

Panaro injection mould the MAX520 shell in Italy, with nylon latches and a polymer O-ring seal; its IP67 certificate and ATA 300 air transport report are both downloadable here. You also get a self-venting pressure valve, two double throw latches, holes for padlocks and moulding that lets cases stack.

It suits photographers, videographers and drone operators who change lenses and kit between jobs. If you would rather cut a fixed layout, the cubed foam MAX520S is the alternative.

Explore camera and AV cases, protective hard cases and the Panaro range.

Often ordered together

  • Padded divider set in the base, rearranged to suit
  • Convoluted foam lining in the lid
  • Bays within a 520 x 290 x 200 mm space
  • Panaro IP67 certificate for the shell
  • Automatic pressure release valve
  • Holes for two padlocks
  • Made in Italy by Panaro
  • Camera bodies with two or three lenses
  • Drone, controller and batteries
  • Video and audio recorders
  • Field instruments that need separate bays

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX520CAM

Mega Code: PMMAX520CAM

Configuration: Padded dividers in the base, convoluted foam in the lid

Colour: Black

Internal Dimensions: 520 x 290 x 200 mm

External Dimensions: 574 x 361 x 225 mm

Lid + Base Depth: 45 + 155 mm

Empty Case Weight (Panaro, MAX520): 3.60 kg

Capacity: 30.16 litres

Shell: Polypropylene with nylon latches and polymer O-ring

Certifications (Panaro, MAX520): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236520073

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Grey padded dividers sit in the lower half, with egg-crate foam on the lid, all inside the MAX520 shell. Panaro do not publish the number of dividers, so go by the photos.
Yes. The divider walls are removable, so you can open up a long bay for a lens or a gimbal and close it off again later.
Yes. Only the interior differs: the S has pick and pluck cubed foam, the CAM has dividers.
The datasheet, a dimensioned 2D drawing and every Panaro test file for the MAX520 are attached to this page.
No. This is the carry version with a soft grip handle. If you want wheels, the MAX520CAMTR rolls on a built-in trolley.
