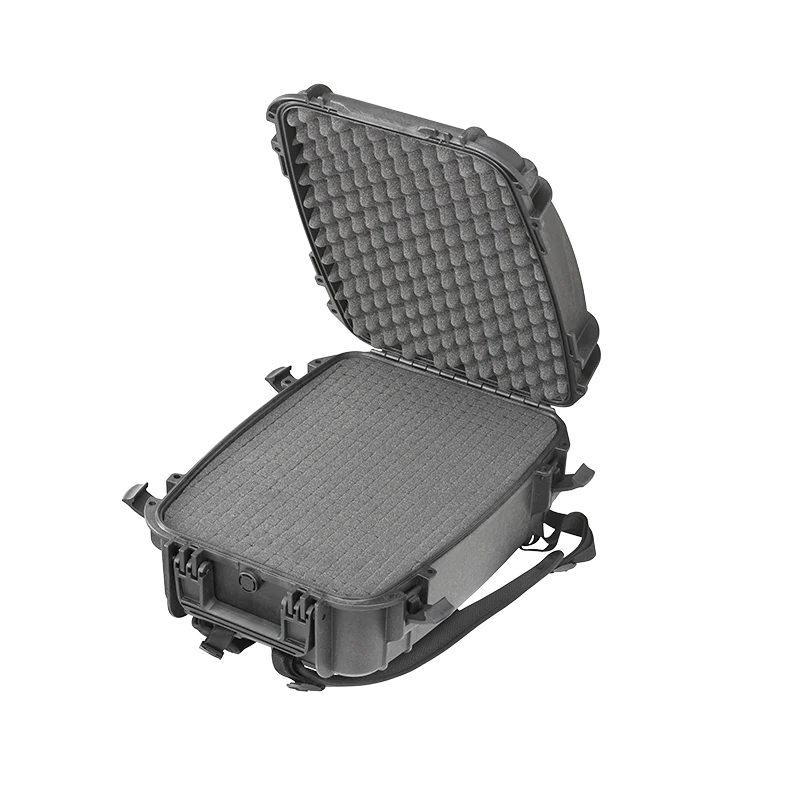

Panaro MAX485S black case open with grey cubed foam in the base and convoluted foam in the lid

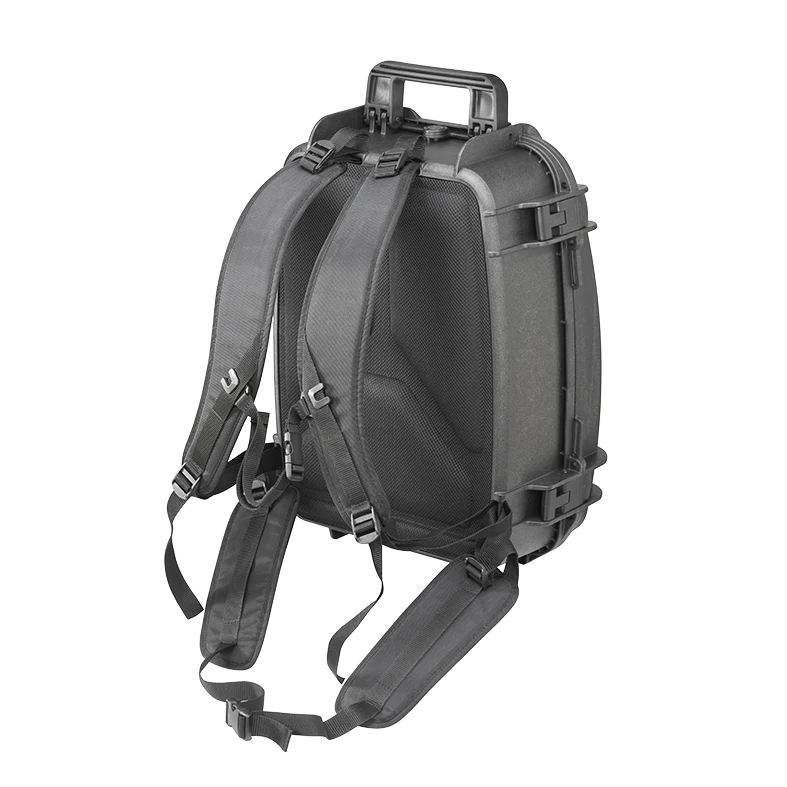

Rear of the Panaro MAX485S showing the padded back panel, shoulder straps and waist belt
Panaro MAX485S lying on its back with the harness straps underneath and the latches facing up

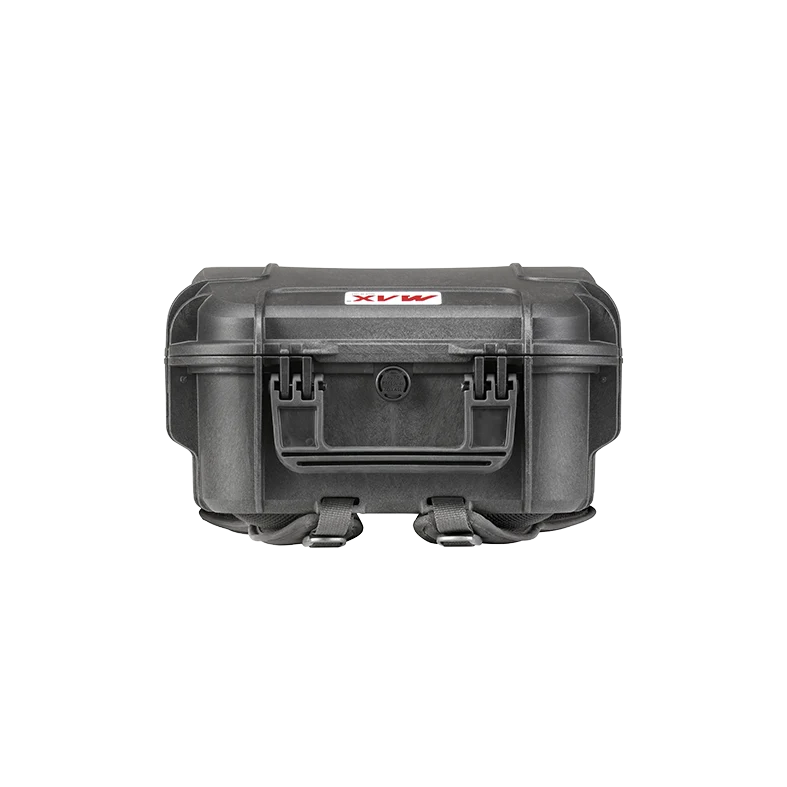

Front edge of the Panaro MAX485S showing two latches, the pressure valve and the moulded handle

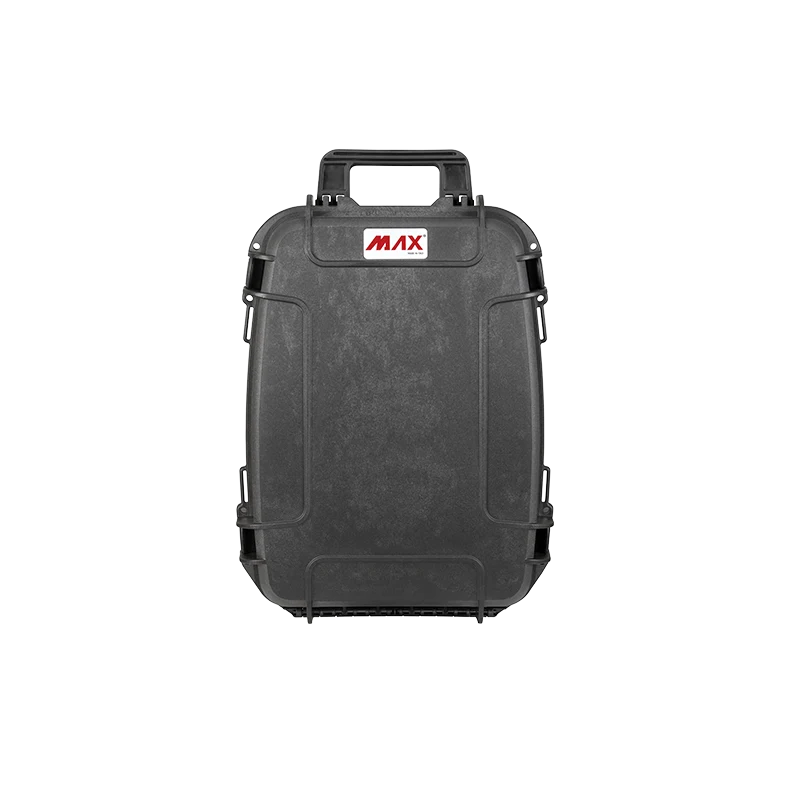

Lid of the Panaro MAX485S seen from above with the carry handle and red MAX logo

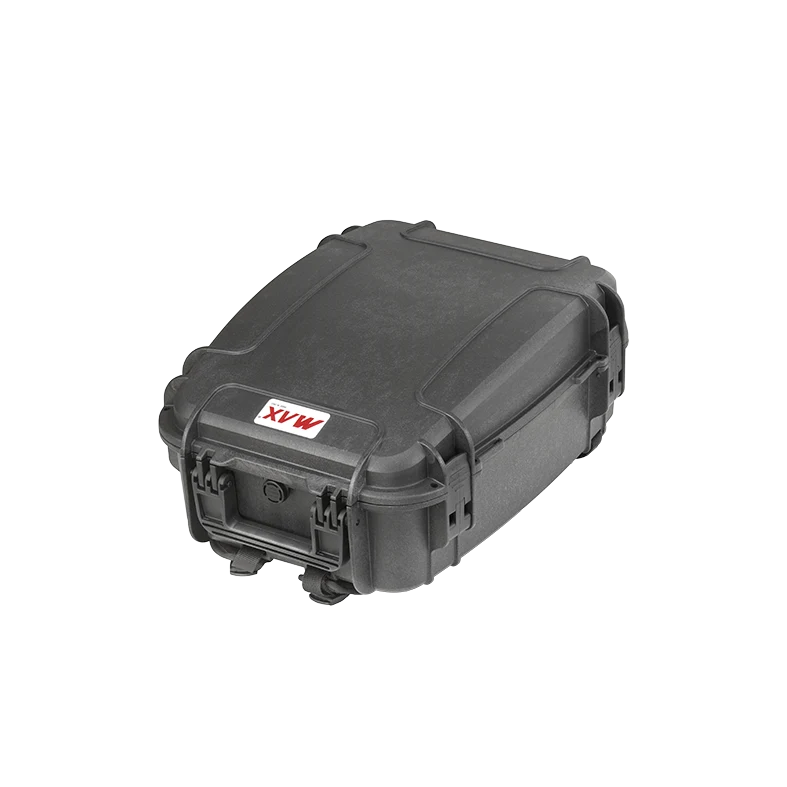

Panaro MAX485S at an angle showing the lid, latches and the backpack harness on the rear

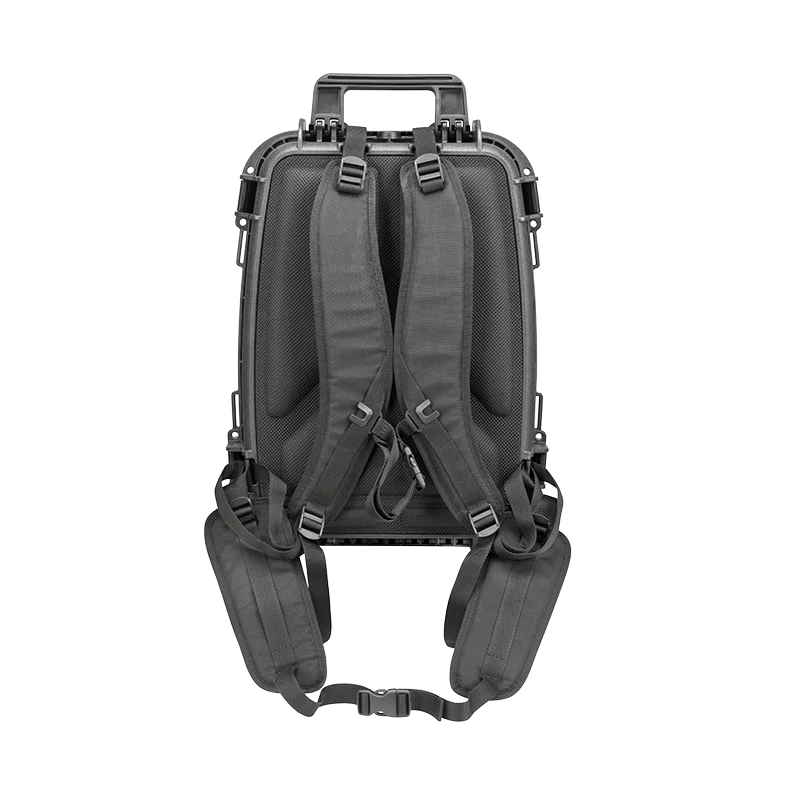

Panaro MAX485S from behind with both padded shoulder straps and the waist belt buckled

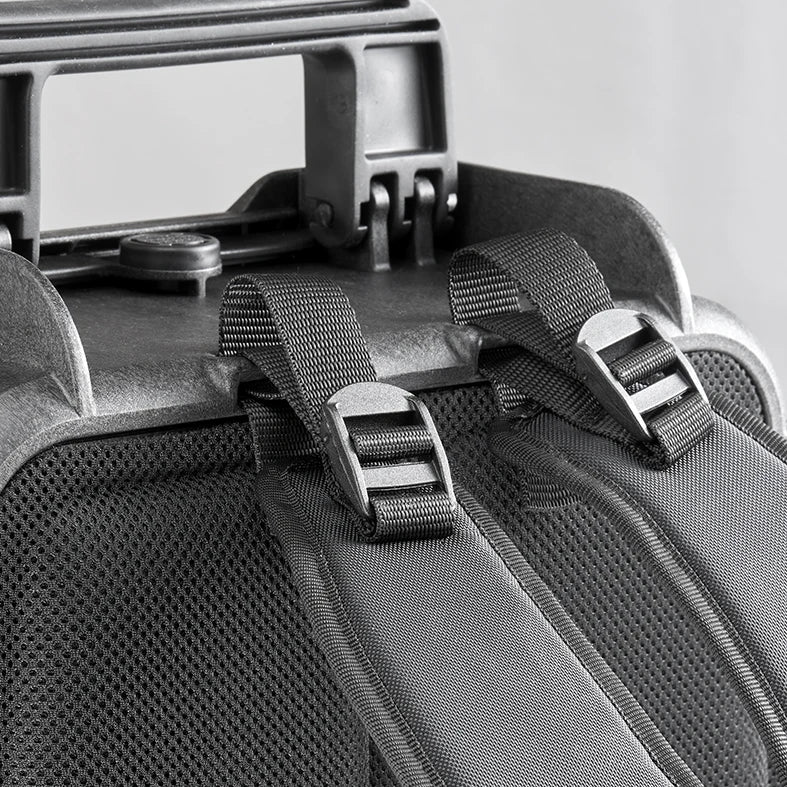

Close up of the Panaro MAX485S harness adjusters where the shoulder straps meet the case
Panaro MAX485S black case open with grey cubed foam in the base and convoluted foam in the lid
Rear of the Panaro MAX485S showing the padded back panel, shoulder straps and waist belt
Panaro MAX485S lying on its back with the harness straps underneath and the latches facing up
Front edge of the Panaro MAX485S showing two latches, the pressure valve and the moulded handle
Lid of the Panaro MAX485S seen from above with the carry handle and red MAX logo
Panaro MAX485S at an angle showing the lid, latches and the backpack harness on the rear
Panaro MAX485S from behind with both padded shoulder straps and the waist belt buckled
Close up of the Panaro MAX485S harness adjusters where the shoulder straps meet the case
Panaro MAX485S black case open with grey cubed foam in the base and convoluted foam in the lid
Rear of the Panaro MAX485S showing the padded back panel, shoulder straps and waist belt
Panaro MAX485S lying on its back with the harness straps underneath and the latches facing up
Front edge of the Panaro MAX485S showing two latches, the pressure valve and the moulded handle
Lid of the Panaro MAX485S seen from above with the carry handle and red MAX logo
Panaro MAX485S at an angle showing the lid, latches and the backpack harness on the rear
Panaro MAX485S from behind with both padded shoulder straps and the waist belt buckled
Close up of the Panaro MAX485S harness adjusters where the shoulder straps meet the case
Panaro

Panaro MAX485S Waterproof Backpack Case with Cubed Foam Black

Regular price
$631.62
Sale price
$631.62
Regular price
RRP $676.39
Or 4 payments of $157.91 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX485S

Cubed Foam Protection in a Backpack Hard Case

The Panaro MAX485S is a 30 litre watertight hard case filled with cubed foam and fitted with a padded backpack harness built in, sized at 485 x 357 x 201 mm inside so a drone, camera kit or field instrument rides on your back instead of in your hand.

Panaro's datasheet lists a breathable, cushioned back support with adjustable shoulder straps and a waist belt, so the weight sits on the hips on longer walks. The case itself weighs 3.91 kg with the foam fitted. Outside it measures 544 x 408 x 215.5 mm, and it splits into a 79.5 mm lid and a 121.5 mm base. Panaro publish IP67, STANAG 4280 / DEF STAN 81-41 and MIL-STD-810H documents for the MAX485 shell.

Double throw latches, an automatic pressure release valve and holes for two padlocks look after the contents, and a soft grip handle on top means it can still be carried like a normal case. Pluck the foam cubes to the shape of your gear and the lid foam holds it down.

The MAX485S is made in Italy, according to Panaro, and shares its shell with the rest of the MAX485 family. Browse more sizes in our Panaro collection, alongside other protective cases and our defence and tactical range.

  • Padded backpack harness with waist belt built in
  • 485 x 357 x 201 mm interior, 30 litres
  • Cubed pick and pluck foam, convoluted lid foam
  • Watertight lid seal and automatic pressure valve
  • Double throw latches and two padlock points
  • Soft grip top handle for hand carry
  • MAX485 shell documented to IP67 and MIL-STD-810H
  • Drone and controller carry on foot
  • Camera bodies and lenses on hikes
  • Survey and test instruments in the field
  • Search and rescue or first responder kits
  • Marine and outdoor electronics

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX485S

Mega Code: PMMAX485S

Configuration: Cubed foam (S), backpack harness

Internal Dimensions: 485 x 357 x 201 mm

External Dimensions: 544 x 408 x 215.5 mm

Lid and Base Depth: 79.5 mm lid + 121.5 mm base

Capacity: 30 litres

Weight: 3.91 kg with foam (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam, polyester backpack harness

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

FAQs

Yes. The MAX485S keeps the soft grip handle on the lid, so you can carry it by hand and only use the harness when you are walking further.
No. The harness mounts to the outside of the shell, and the lid seal, latches and pressure valve are the same as other MAX cases. Panaro publish an IP67 certificate for the MAX485.
Panaro give 3.91 kg for the MAX485S including the foam, before you add your gear. The waist belt moves much of the load onto your hips.
Yes, the MAX485 is the same backpack case supplied empty, ready for your own foam or dividers.
Yes. Panaro offer custom foam inlays for MAX cases. Ask us for a quote with your equipment list and we will pass it to Panaro.
