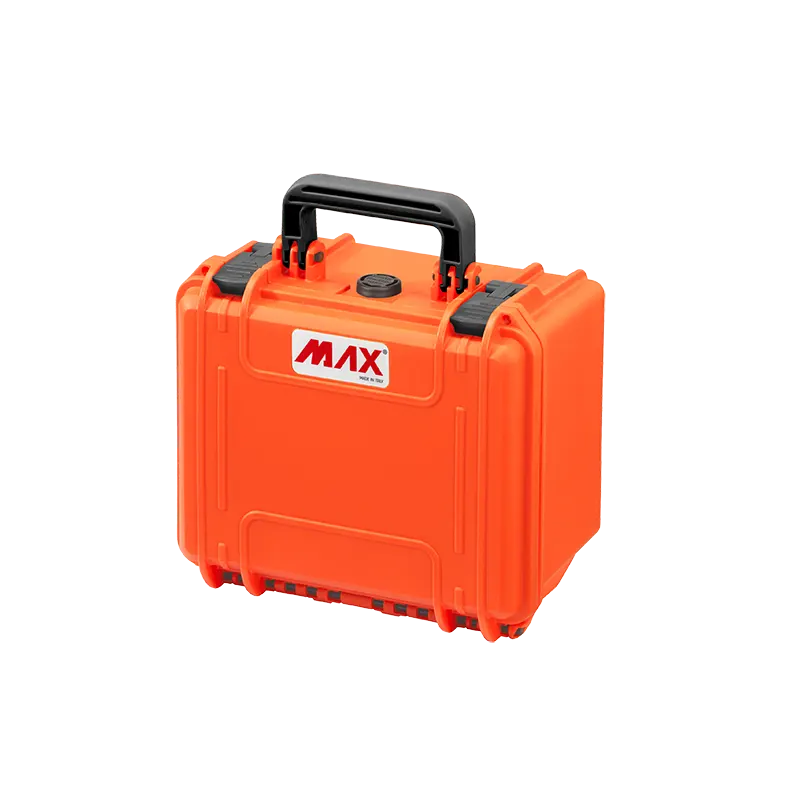

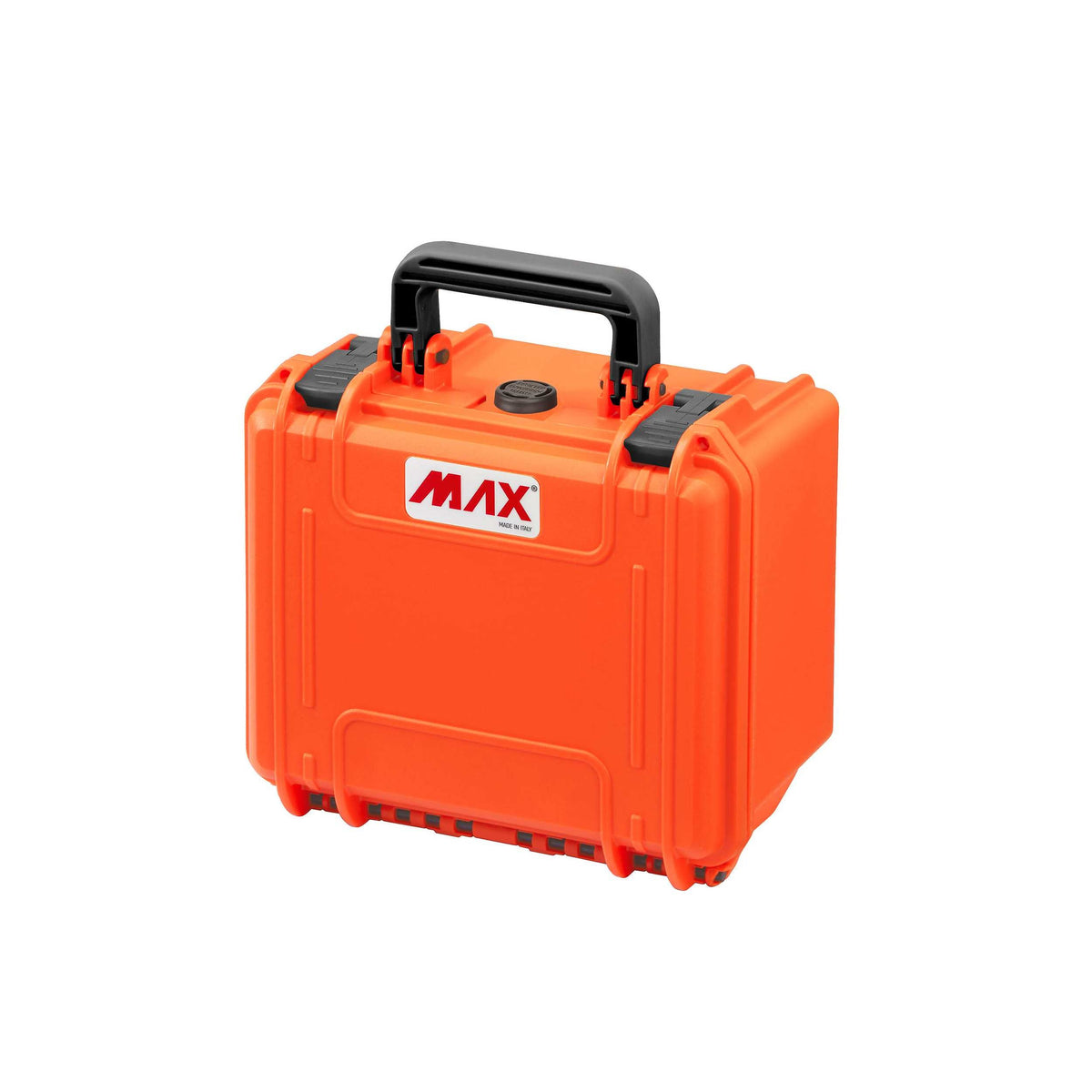

Panaro MAX235H155 in orange with the lid shut, angled to show the black handle, latches and MAX logo label

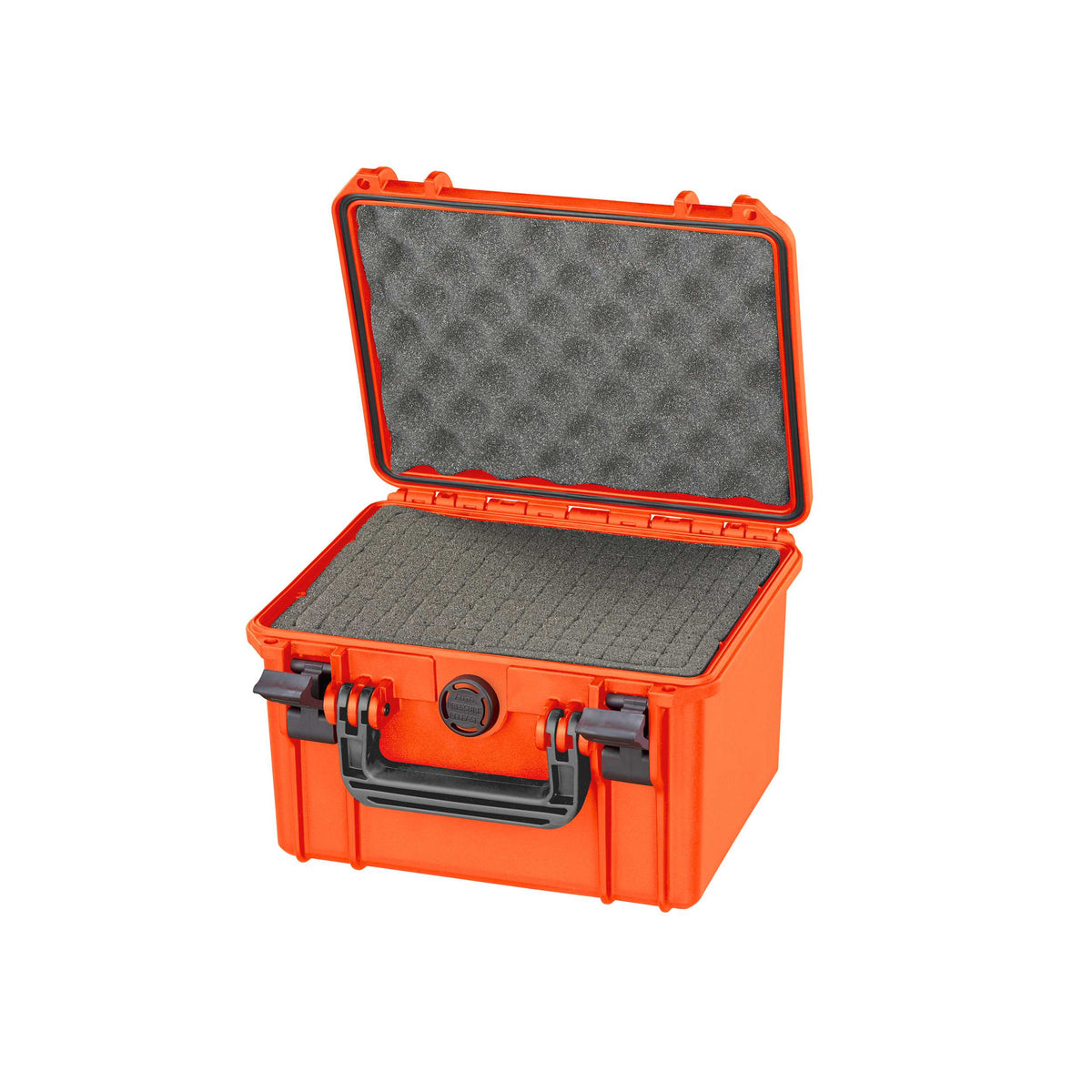

Orange MAX235H155S open: grey convoluted foam in the lid and a full block of cubed pick and pluck foam in the base
Orange MAX235H155 lying on its back, front edge showing the latches, handle and pressure release valve

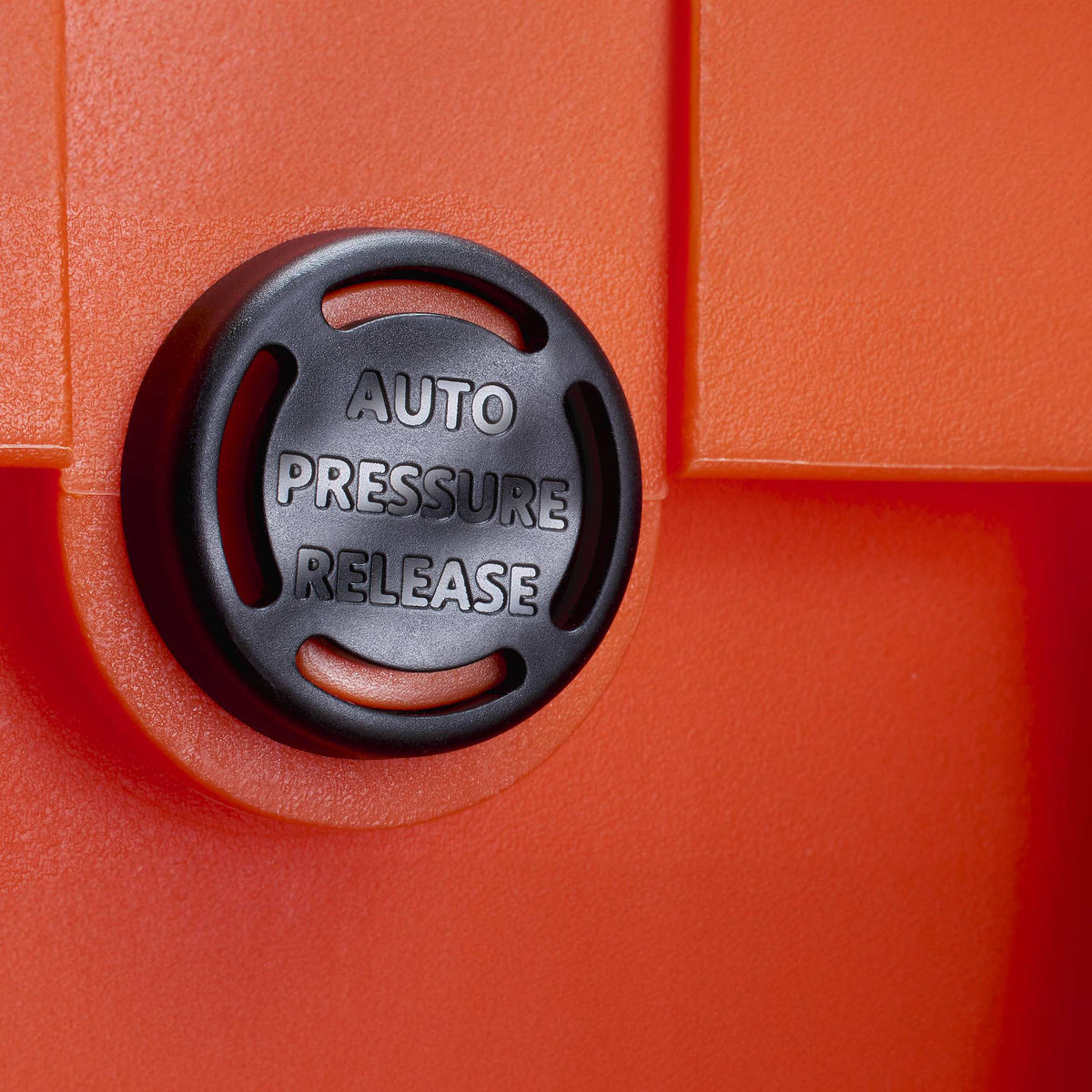

Close view of the AUTO PRESSURE RELEASE valve on the front of an orange MAX case
Panaro MAX235H155 in orange with the lid shut, angled to show the black handle, latches and MAX logo label
Orange MAX235H155S open: grey convoluted foam in the lid and a full block of cubed pick and pluck foam in the base
Orange MAX235H155 lying on its back, front edge showing the latches, handle and pressure release valve
Close view of the AUTO PRESSURE RELEASE valve on the front of an orange MAX case
Panaro MAX235H155 in orange with the lid shut, angled to show the black handle, latches and MAX logo label
Orange MAX235H155S open: grey convoluted foam in the lid and a full block of cubed pick and pluck foam in the base
Orange MAX235H155 lying on its back, front edge showing the latches, handle and pressure release valve
Close view of the AUTO PRESSURE RELEASE valve on the front of an orange MAX case
Panaro

Panaro MAX235H155S Waterproof Case with Cubed Foam Orange

$118.47
$118.47
RRP $126.61
Or 4 payments of $29.62 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX235H155S-ORANGE

A Foam-Lined Orange Case You Can Spot Across a Room

The orange MAX235H155S comes fitted with Panaro's standard foam set, so a bright, compact watertight case is ready to load the day it lands.

Pick and pluck cubes fill the base and an egg-crate layer lines the lid. Clear cubes to the outline of each item and the lid foam closes over them. Orange makes the case easy to pick out in a dim cupboard, a vehicle boot or a crowded shed, which is why many teams keep first aid and emergency gear in it.

Outside: 258 x 243 x 167 mm and 1 kg. Inside: 235 x 180 x 156 mm, with 131 mm in the base and 25 mm in the lid. The polypropylene shell has full length hinges, nylon pins that do not corrode, double throw latches and a pressure release valve, and Panaro make it in Italy. The documents on this page show it passing IP67, environmental testing to DEF STAN 81-41 and STANAG 4280, MIL-STD-810H vibration and drop, and ATA 300.

Find more Panaro MAX cases, medical and first aid storage and protective cases.

Often ordered together

  • Orange shell with pick and pluck foam
  • Egg-crate foam lines the lid
  • 6.60 L capacity, 1 kg empty
  • Full length hinges, corrosion free nylon pins
  • Load tested soft grip handle
  • Certificates for IP67, STANAG 4280 and ATA 300
  • First aid and trauma kits
  • Emergency torches and radios
  • Dive computers and small marine gear
  • Field test kits
  • Hobby and model equipment

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro (MAX Cases)

MPN: MAX235H155S

Mega Code: PMMAX235H155S-ORANGE

Configuration: Cubed foam (S)

Colour: Orange

External Dimensions: 258 x 243 x 167 mm

Internal Dimensions: 235 x 180 x 156 mm

Lid + Base Depth: 25 + 131 mm

Weight: 1 kg (empty case, per Panaro)

Capacity: 6.60 L

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Certificates (Panaro): IP67; STANAG 4280 and DEF STAN 81-41; MIL-STD-810H; ATA 300 Category 1

Temperature Range (Panaro datasheet): -51 to 90 degrees C

Made In: Italy, per Panaro

Pack Size: 1 case (Each)

EAN: 8011236235083

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Yes. This S version ships with pluckable cubes underneath and egg-crate foam on the lid. The empty case is MAX235H155-ORANGE.
Panaro publish no flotation data for this case, so we make no claim either way. The IP67 certificate covers temporary immersion only.
Panaro publish an ATA 300 Category 1 test report for the MAX235H155, an air transport packaging specification. Airline baggage size and weight rules are separate, so check those with your carrier.
The case has holes for a shoulder strap. A strap is not included with this listing.
That depends on how you pluck the foam. The usable space is 235 x 180 x 156 mm, less the foam around each pocket.
