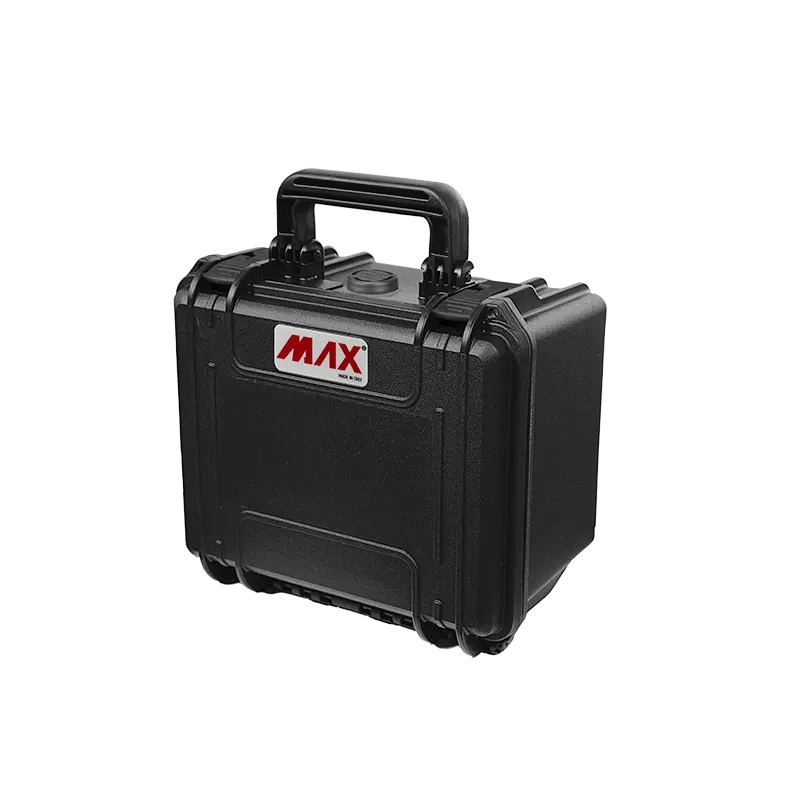

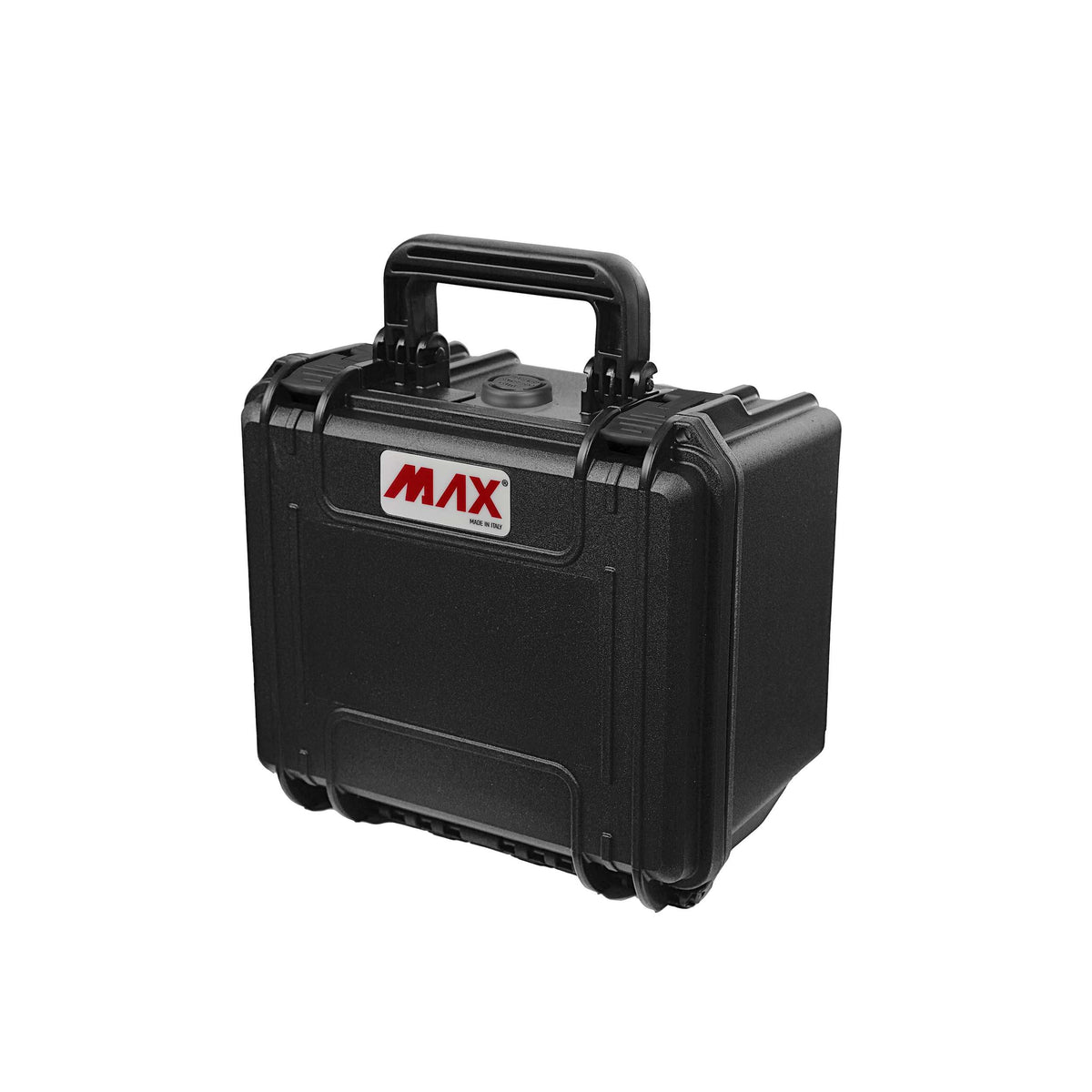

Panaro MAX235H155 black case closed and upright, taller shell with handle, two latches and MAX label

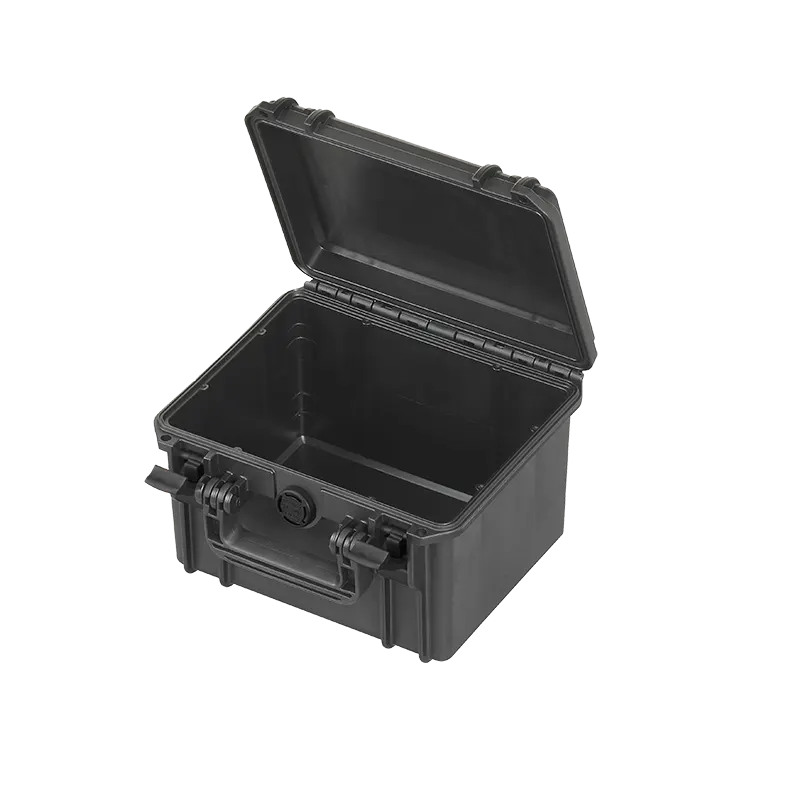

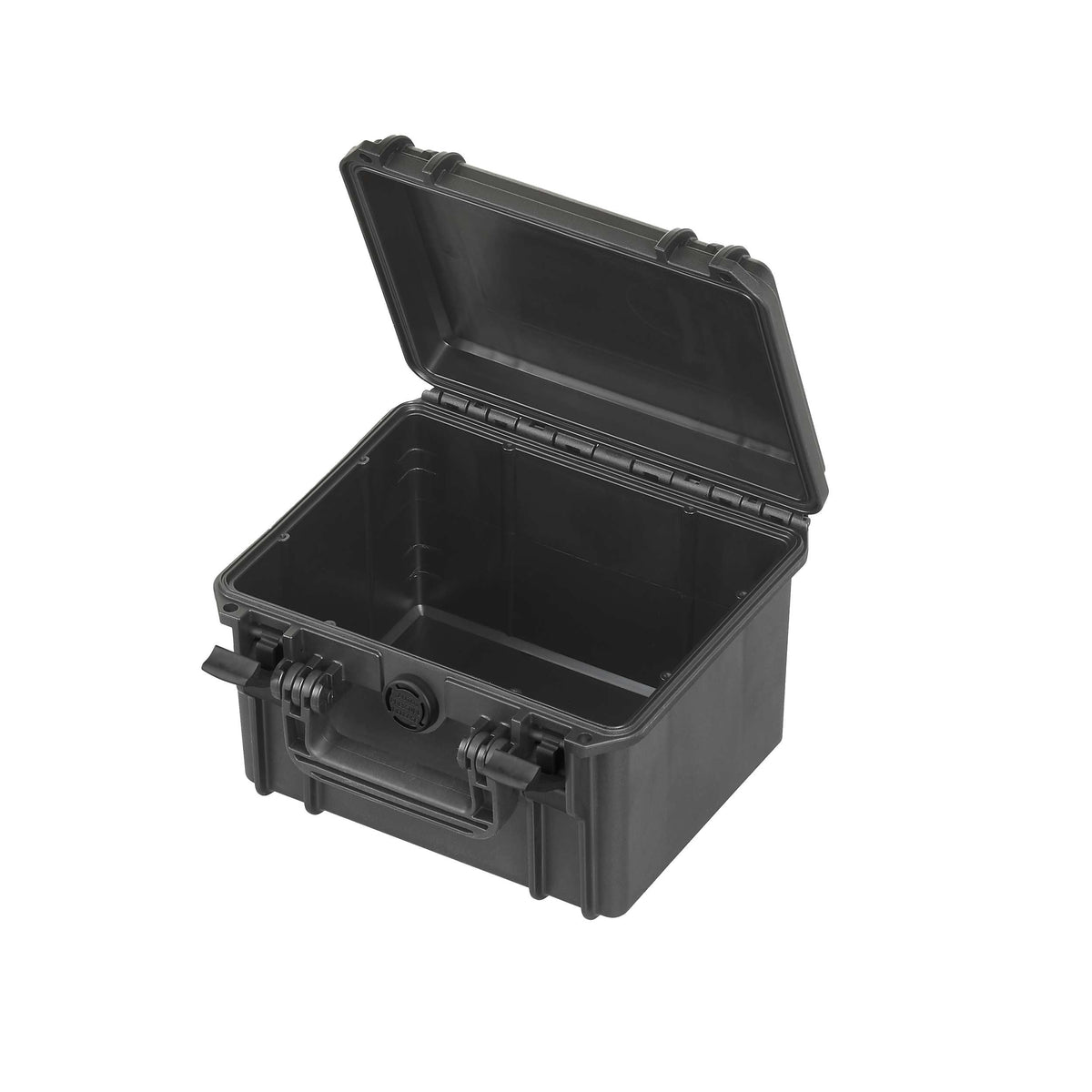

Empty MAX235H155 opened, showing the deep black base, lid recess and gasket channel

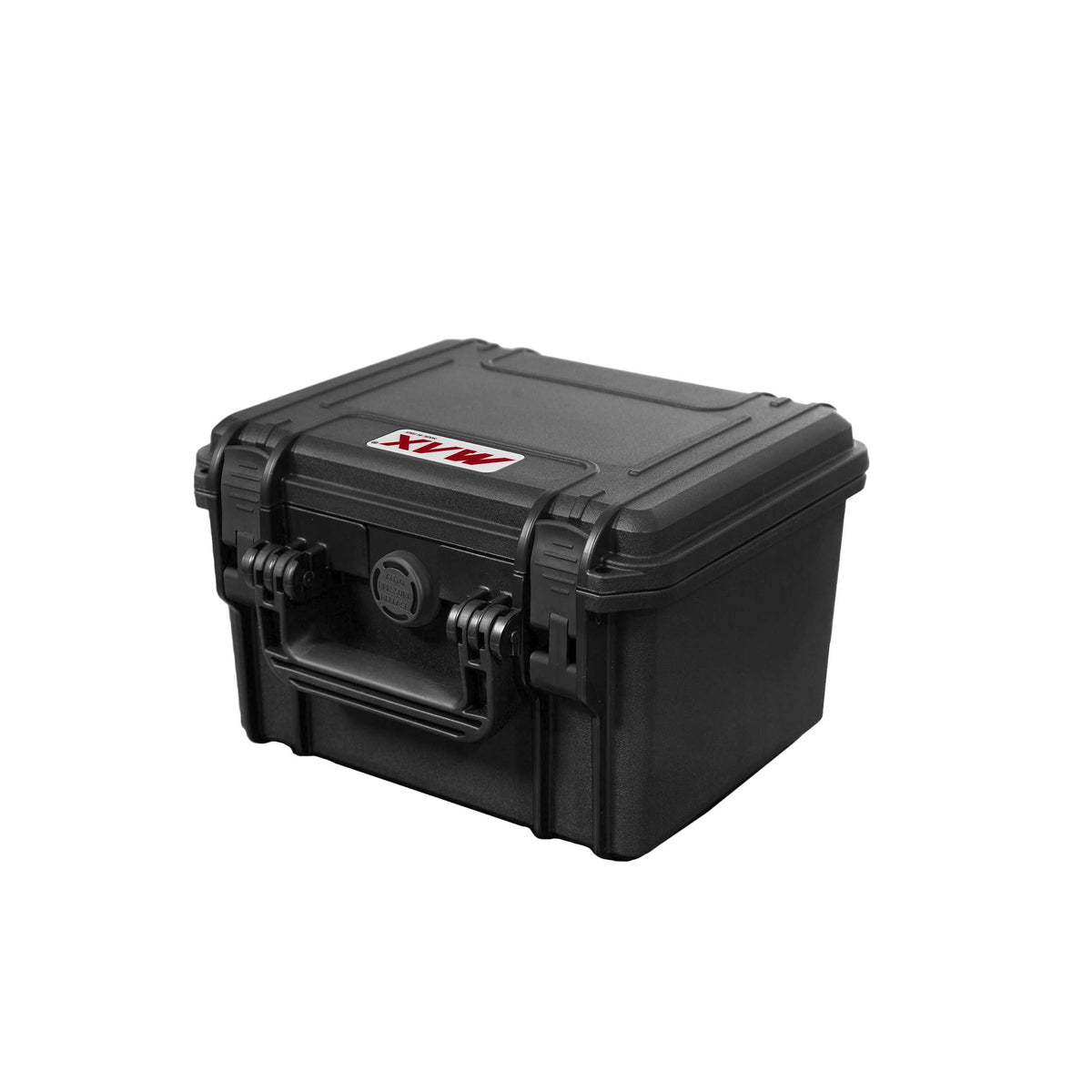

Closed MAX235H155 lying flat, front corner view showing the latches, valve and folded handle

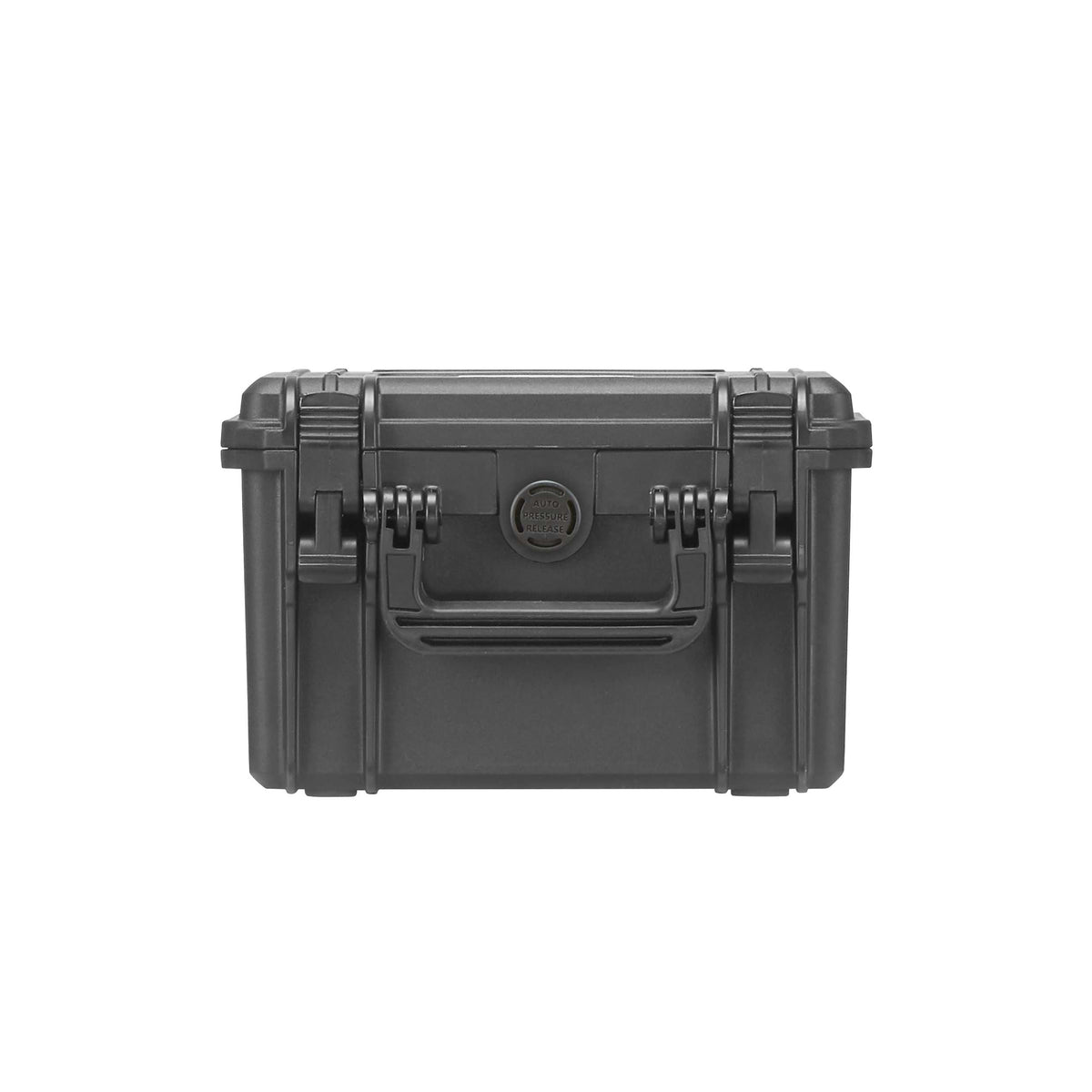

MAX235H155 seen from above, closed, with handle, latch pair and pressure valve along the front
Panaro MAX235H155 black case closed and upright, taller shell with handle, two latches and MAX label
Empty MAX235H155 opened, showing the deep black base, lid recess and gasket channel
Closed MAX235H155 lying flat, front corner view showing the latches, valve and folded handle
MAX235H155 seen from above, closed, with handle, latch pair and pressure valve along the front
Panaro MAX235H155 black case closed and upright, taller shell with handle, two latches and MAX label
Empty MAX235H155 opened, showing the deep black base, lid recess and gasket channel
Closed MAX235H155 lying flat, front corner view showing the latches, valve and folded handle
MAX235H155 seen from above, closed, with handle, latch pair and pressure valve along the front
Panaro

Panaro MAX235H155 Waterproof Case Black

$94.93
$94.93
RRP $100.40
Or 4 payments of $23.73 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX235H155

MAX235H155: The Taller 235 Case, Empty

The MAX235H155 takes the MAX235 footprint and adds height, giving 156 mm of clear internal depth in an empty black case for taller items or stacked kit.

Inside it measures 235 x 180 x 156 mm, with 25 mm in the lid and 131 mm in the base, about 6.6 litres. Panaro's datasheet gives the outside as 258 x 243 x 167.5 mm and the weight as 1.00 kg. That is 50 mm more internal height than the MAX235H105 on the same footprint.

Panaro back the MAX235H155 with a CMC IP67 summary, Teslab's STANAG 4280 trials at NATO level 1, a PAConsult ATA 300 shipping report and Teslab's MIL-STD-810H vibration and drop report, plus a -51 to 90 °C range. It has a soft grip handle, double throw latches, an automatic pressure release valve and padlock holes beside the latches.

Use it empty for a camera body standing upright, a stack of radios or meters, a compact first aid kit with bulky dressings, or tools with a custom foam inlay.

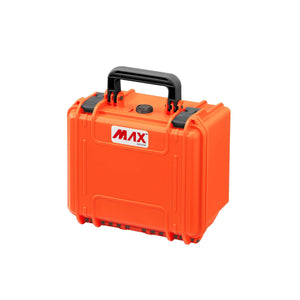

Foam versions and the orange shell are listed in our Panaro range. Taller kit may also suit defence equipment cases or medical cases, and there are more protective cases to compare.

Often ordered together

  • Inside 235 x 180 x 156 mm, empty
  • About 6.6 litres
  • PAConsult ATA 300 and Teslab MIL-STD-810H
  • STANAG 4280 trials by Teslab
  • IP67 summary by CMC
  • Padlock holes beside the latches
  • Taller cameras and accessories
  • Stacked radios and meters
  • First aid kits with bulky dressings
  • Custom foam fit-outs
  • Air-freighted field kit

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX235H155

Mega Code: PMMAX235H155

Configuration: Empty (no foam)

Colour: Black

External Dimensions: 258 x 243 x 167.5 mm

Internal Dimensions: 235 x 180 x 156 mm

Lid and Base Depth: 25 mm lid + 131 mm base

Capacity: 6.6 litres

Weight: 1.00 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range: -51 to 90 °C (Panaro datasheet)

Test Reports: IP67 (CMC), STANAG 4280 (Teslab 169190A), ATA 300 (PAConsult), MIL-STD-810H (Teslab 25B319A)

Pack Size: 1

Unit: Each

EAN: 8011236235052

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Same 235 x 180 mm internal footprint, but 156 mm of internal height instead of 106 mm, and 1.00 kg instead of 0.84 kg.
Panaro's datasheet gives 167.5 mm and the product page rounds it to 167 mm. Capacity is 6.60 litres on the page and 6.59 on the datasheet.
No, this is the empty black case. Foam versions are the MAX235H155S and MAX235H155HDS, also in orange.
The H155 has its own set: datasheet, 2D drawing, CMC IP67 summary, Teslab environmental and MIL-STD reports, the PAConsult ATA report and a fungus and fluid letter, all downloadable.
