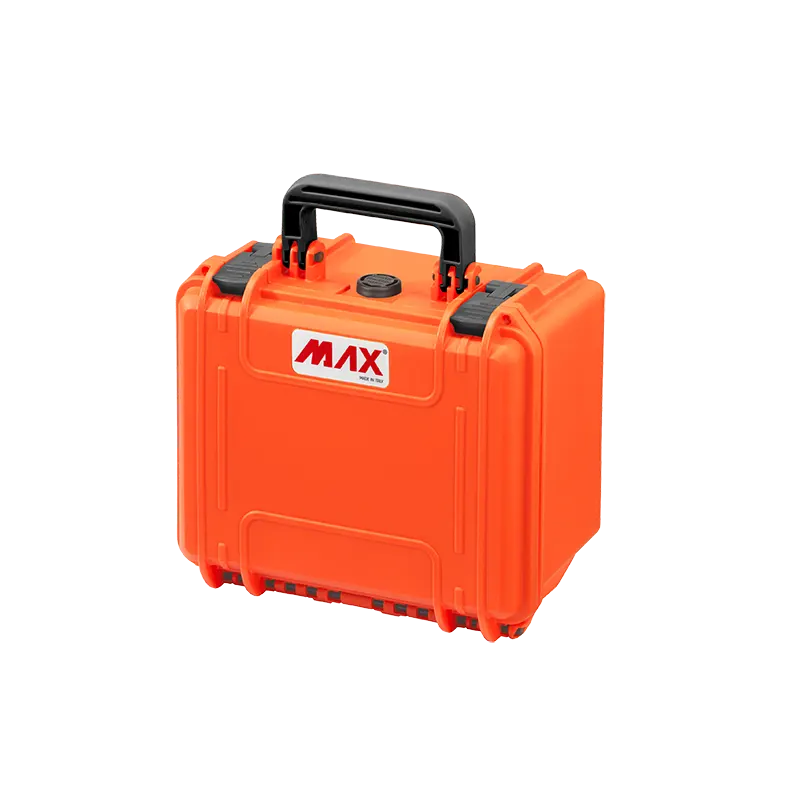

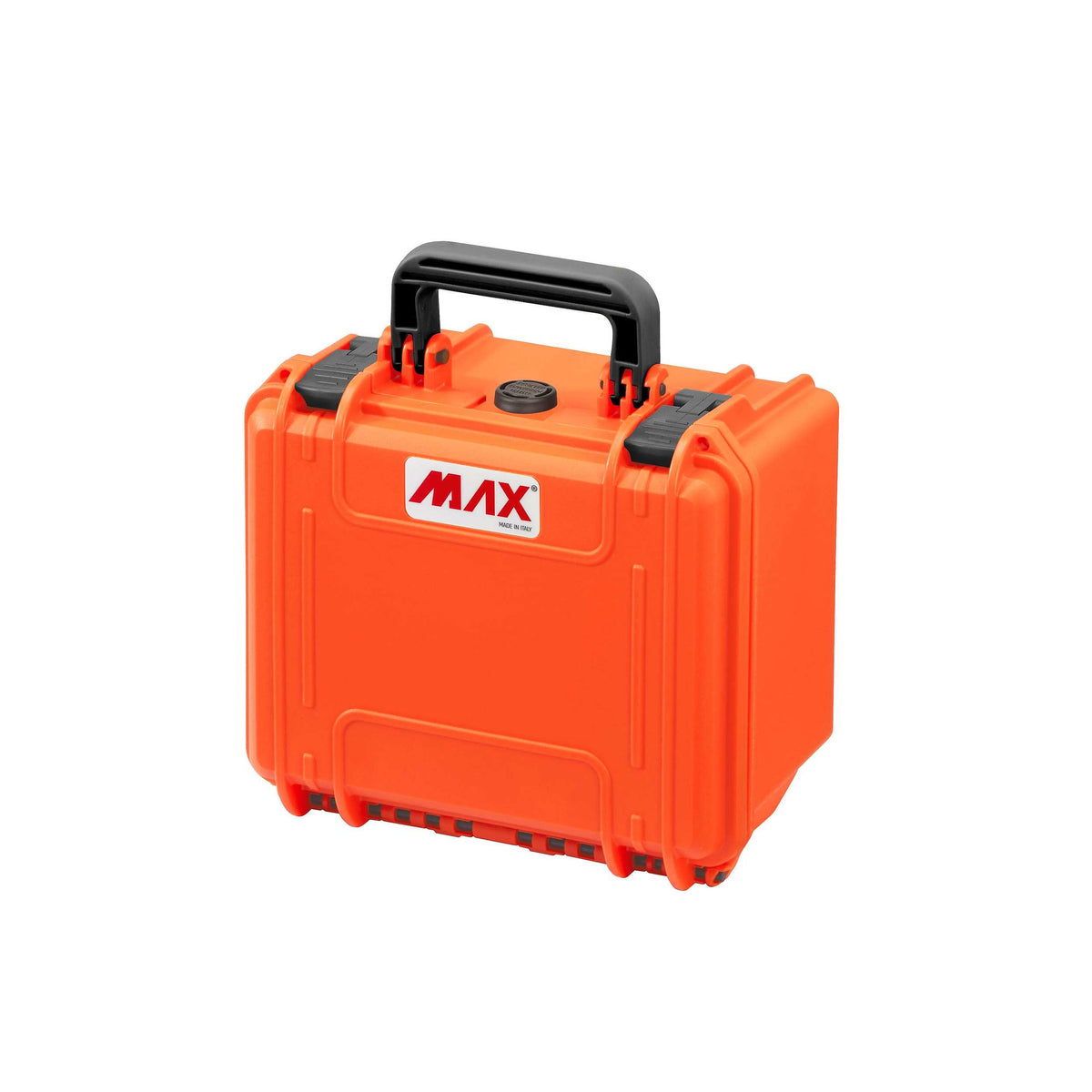

Panaro MAX235H155 watertight case in orange, closed, three quarter view with black handle, latches and red MAX logo label

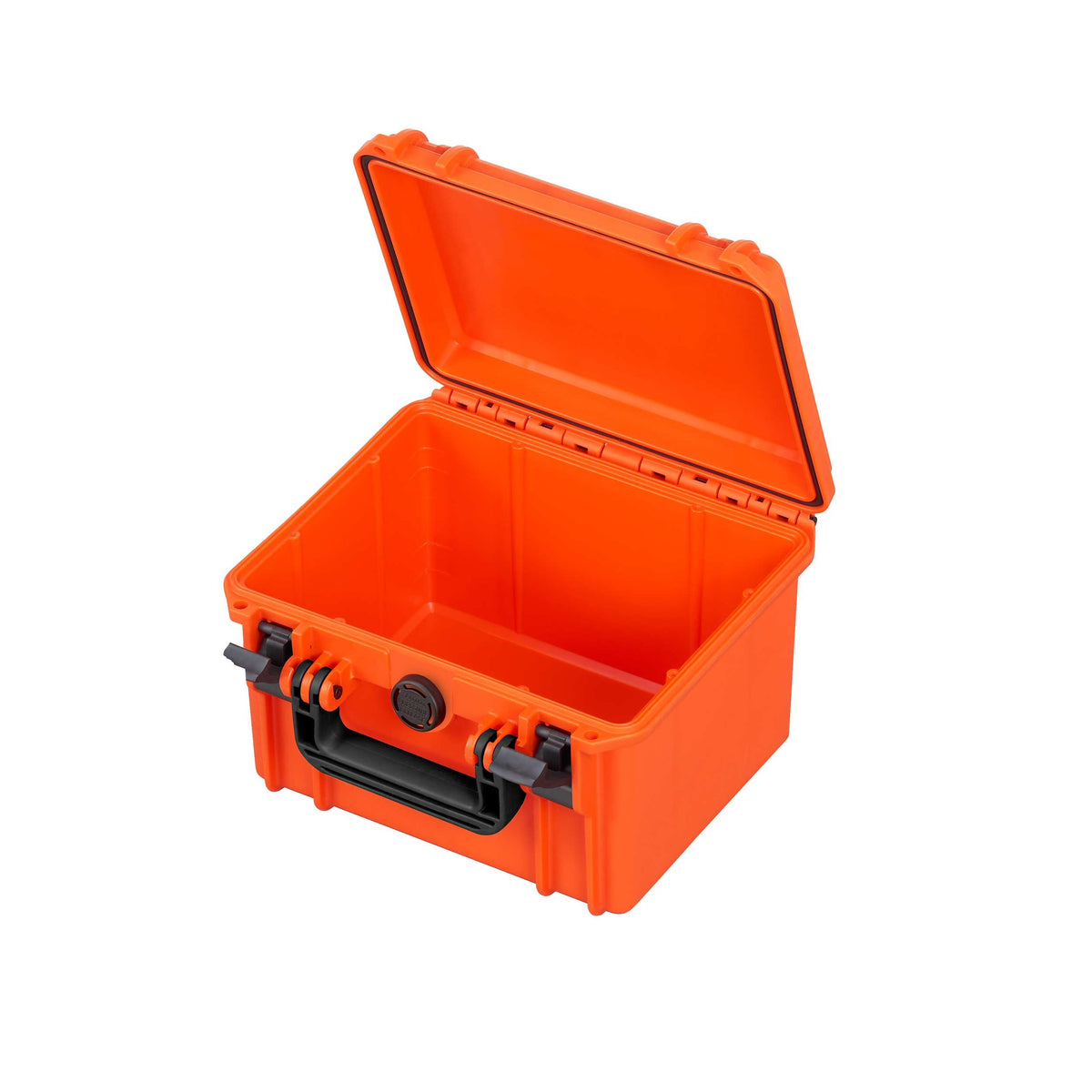

Orange MAX235H155 case open with the lid raised, showing the empty moulded interior with no foam fitted
Orange MAX235H155 case lying flat, front view of the twin latches, carry handle and round pressure release valve

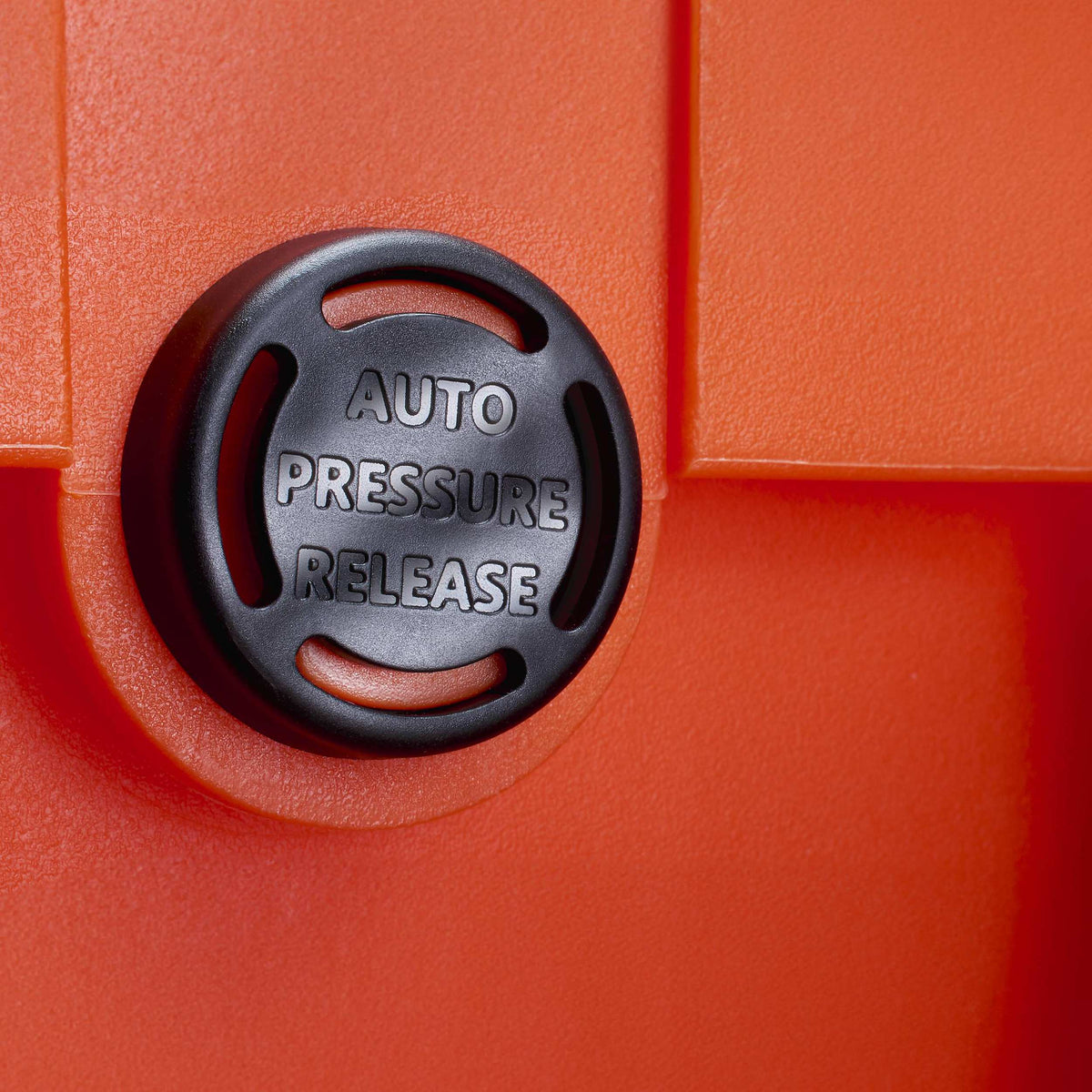

Close-up of the AUTO PRESSURE RELEASE valve moulded into the front of an orange MAX case
Panaro MAX235H155 watertight case in orange, closed, three quarter view with black handle, latches and red MAX logo label
Orange MAX235H155 case open with the lid raised, showing the empty moulded interior with no foam fitted
Orange MAX235H155 case lying flat, front view of the twin latches, carry handle and round pressure release valve
Close-up of the AUTO PRESSURE RELEASE valve moulded into the front of an orange MAX case
Panaro MAX235H155 watertight case in orange, closed, three quarter view with black handle, latches and red MAX logo label
Orange MAX235H155 case open with the lid raised, showing the empty moulded interior with no foam fitted
Orange MAX235H155 case lying flat, front view of the twin latches, carry handle and round pressure release valve
Close-up of the AUTO PRESSURE RELEASE valve moulded into the front of an orange MAX case
Panaro

Panaro MAX235H155 Waterproof Case Orange

$96.91
$96.91
RRP $102.59
Or 4 payments of $24.23 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX235H155-ORANGE

Compact, Deep and Bright Orange, With Nothing Inside

Panaro's MAX235H155 in orange is a small watertight case shipped empty, so the 235 x 180 x 156 mm interior is yours to fit out.

Orange is the shell to pick when a case has to be found fast: on a boat deck, in the back of a rescue vehicle or among black kit bags on a job site. With no foam supplied it takes loose items as they are, a custom foam insert, or pouches and small boxes stood on end in the 156 mm depth.

Its shell is injection moulded polypropylene; nylon latches pull the lid down onto a polymer O-ring. Its outside size is 258 x 243 x 167 mm and the empty weight 1 kg; the lid is 25 mm deep over a 131 mm base. Panaro make it in Italy. Its downloadable paperwork runs to an IP67 certificate, a STANAG 4280 environmental report (which cites DEF STAN 81-41 too), MIL-STD-810H results and an ATA 300 Category 1 report.

See more Panaro MAX cases, other protective cases, and kit for medical and first aid or defence and tactical work.

Often ordered together

  • Shipped empty in bright orange
  • Interior 235 x 180 x 156 mm, 6.60 L
  • Automatic pressure release valve in the front
  • Double throw latches and a soft grip handle
  • Holes for two padlocks and a shoulder strap
  • IP67, STANAG 4280, MIL-STD-810H and ATA 300 certificates
  • Rescue and first aid kits that need to be spotted quickly
  • Boating and marine gear
  • Small instruments with your own foam insert
  • Spare parts and consumables on site
  • Field sampling kits

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro (MAX Cases)

MPN: MAX235H155

Mega Code: PMMAX235H155-ORANGE

Configuration: Empty (no foam)

Colour: Orange

External Dimensions: 258 x 243 x 167 mm

Internal Dimensions: 235 x 180 x 156 mm

Lid + Base Depth: 25 + 131 mm

Weight: 1 kg (empty case, per Panaro)

Capacity: 6.60 L

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Certificates (Panaro): IP67; STANAG 4280 and DEF STAN 81-41; MIL-STD-810H; ATA 300 Category 1

Temperature Range (Panaro datasheet): -51 to 90 degrees C

Made In: Italy, per Panaro

Pack Size: 1 case (Each)

EAN: 8011236235076

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No, this listing is the empty case. The same orange MAX235H155 is also sold with cubed foam (MAX235H155S) or with high density cubed foam (MAX235H155HDS).
The base is 131 mm deep and the lid adds 25 mm, so there is 156 mm of height over a 235 x 180 mm floor. Measure the item with any padding before you order.
Four: IP67, ATA 300 Category 1, MIL-STD-810H (vibration and transit drop) and a STANAG 4280 report that includes DEF STAN 81-41. All of them, plus the datasheet and 2D drawing, are downloadable from this page.
Yes. There are holes for double padlocking beside the latches. Padlocks are not supplied.
Panaro state that MAX cases are made in Italy. The test reports give their plant address as Marano sul Panaro, in the province of Modena.
