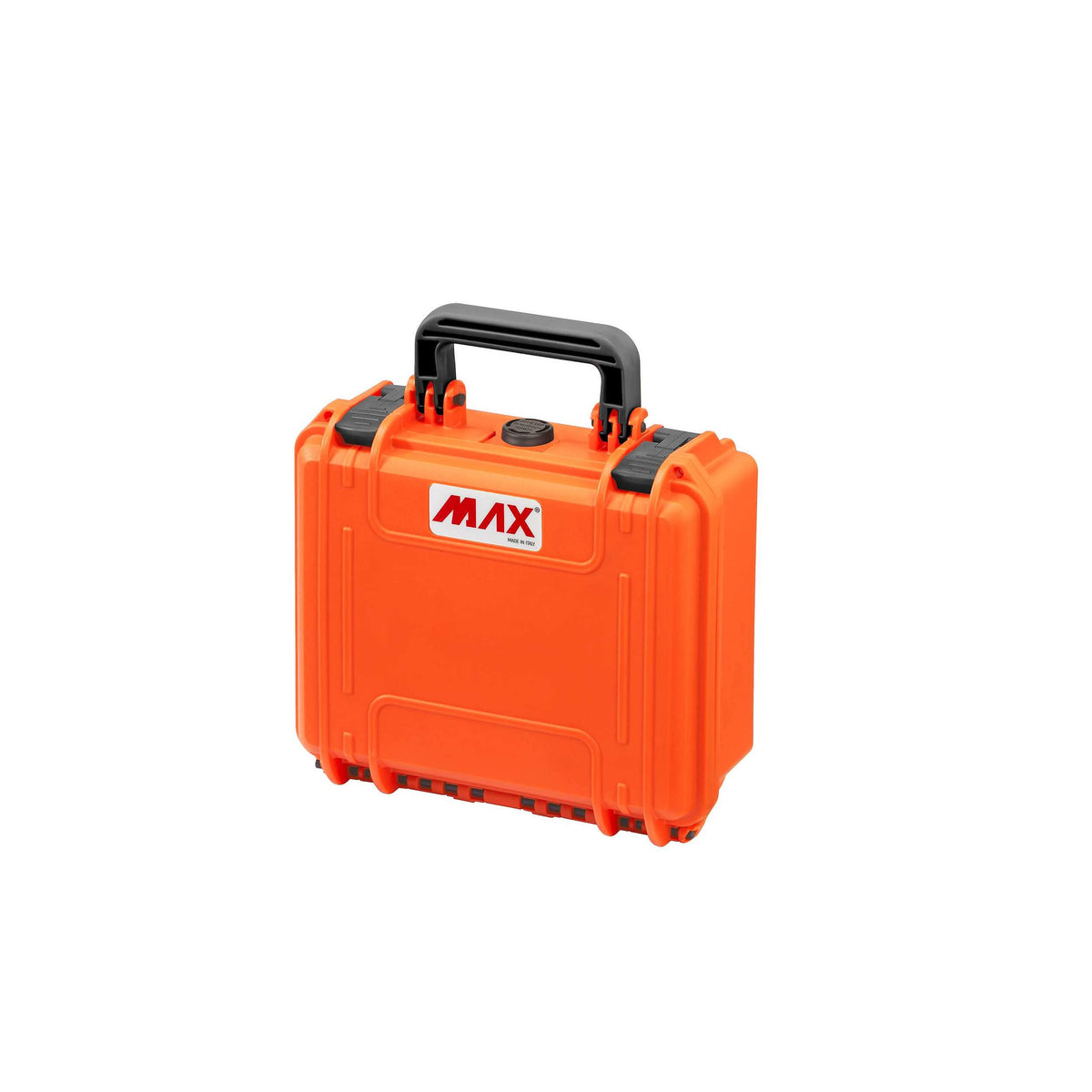

Panaro MAX235H105 orange case closed, upright angled view with black latches, black handle and MAX label

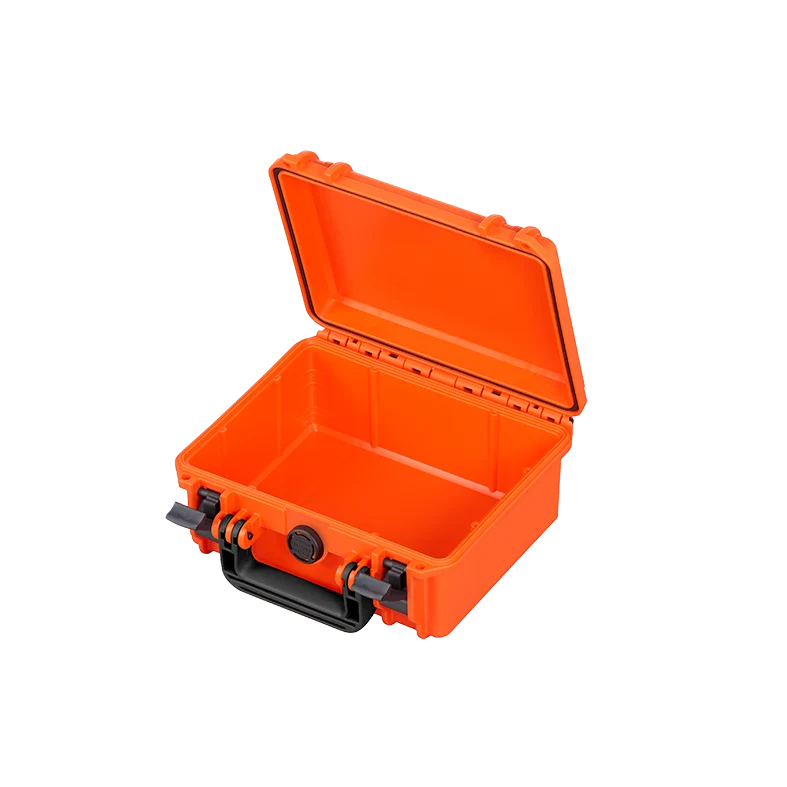

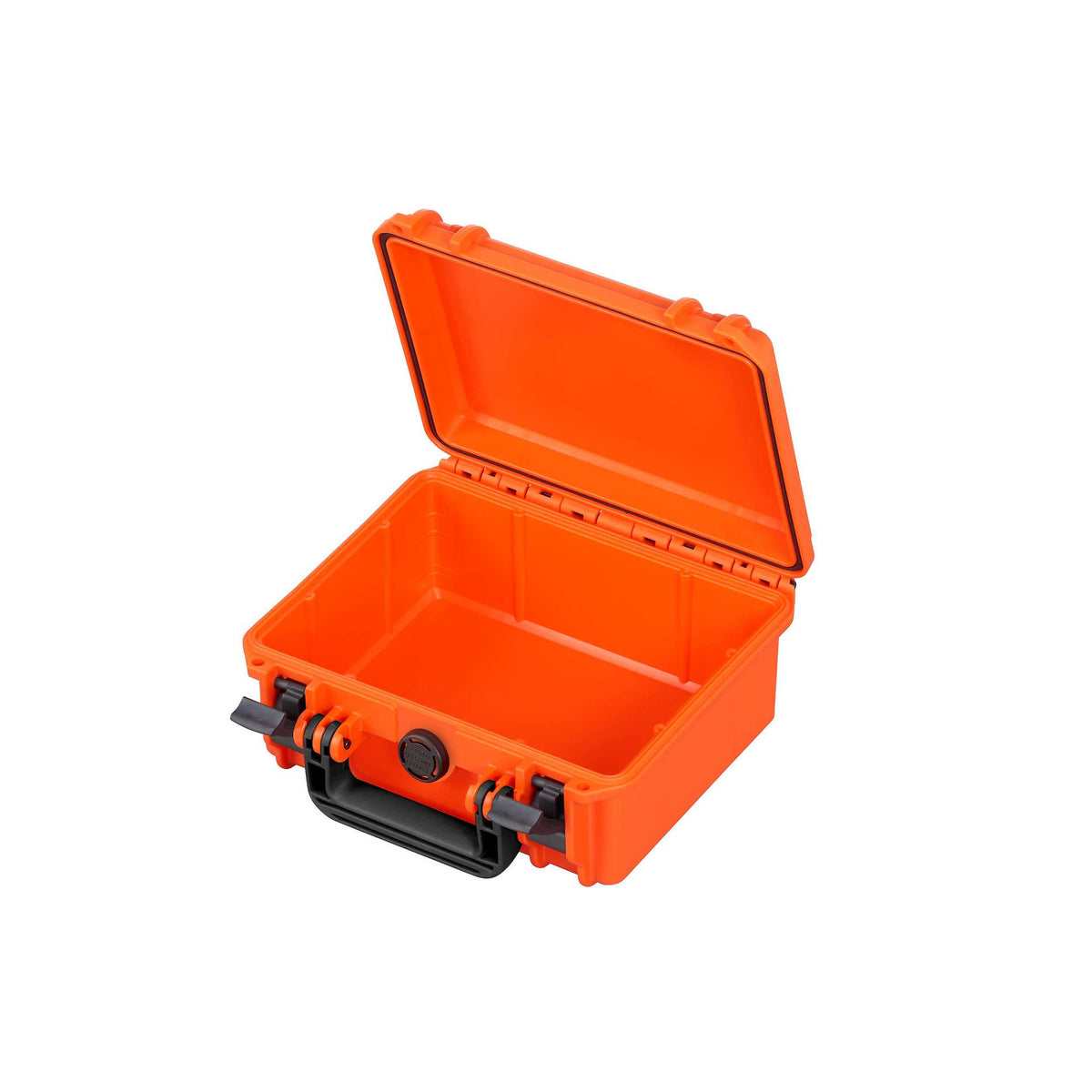

Orange MAX235H105 opened and empty, lid raised to show the bare orange base and the seal channel

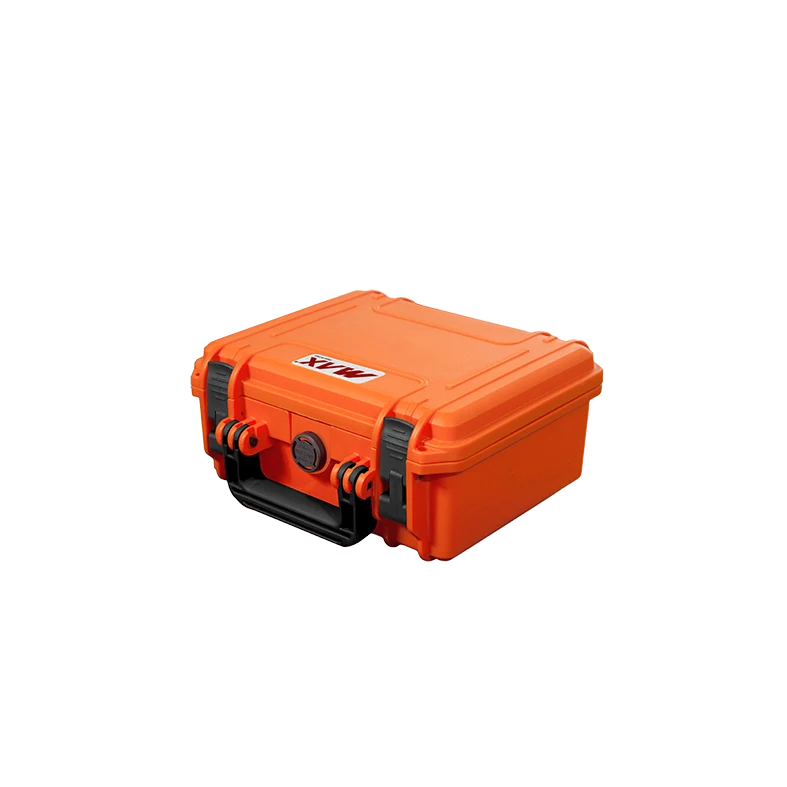

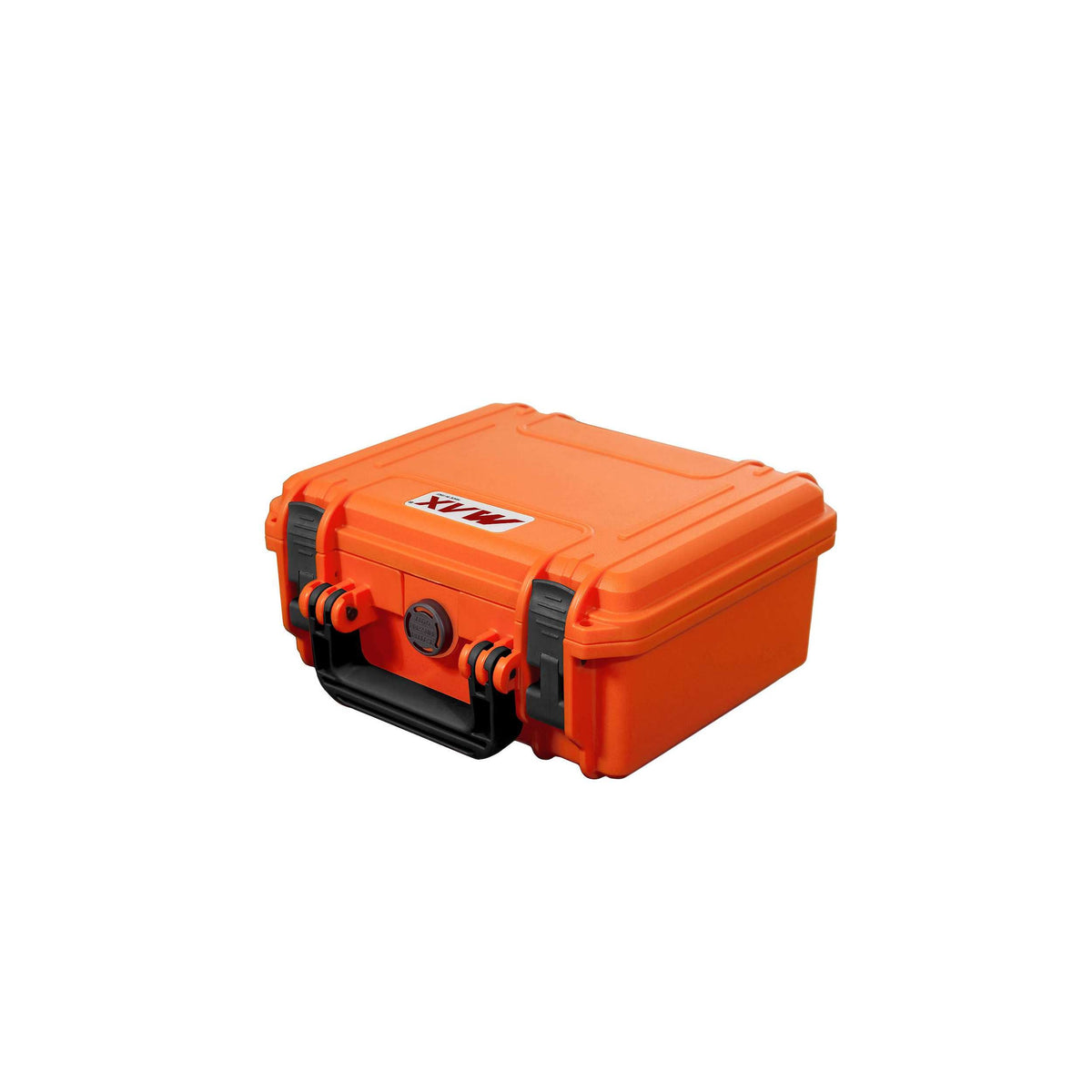

Closed orange MAX235H105 lying flat, front corner view showing the black latches and folded handle
Panaro MAX235H105 orange case closed, upright angled view with black latches, black handle and MAX label
Orange MAX235H105 opened and empty, lid raised to show the bare orange base and the seal channel
Closed orange MAX235H105 lying flat, front corner view showing the black latches and folded handle
Panaro MAX235H105 orange case closed, upright angled view with black latches, black handle and MAX label
Orange MAX235H105 opened and empty, lid raised to show the bare orange base and the seal channel
Closed orange MAX235H105 lying flat, front corner view showing the black latches and folded handle
Panaro

Panaro MAX235H105 Waterproof Case Orange

$87.56
$87.56
RRP $93.83
Or 4 payments of $21.89 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX235H105-ORANGE

The Orange MAX235H105, Easy To Spot

This is the MAX235H105 in orange, an empty mid-size case that stands out on a boat deck, in a vehicle or on a crowded store shelf when you need to grab it quickly.

Colour aside, it is the same shell as the black version: 235 x 180 x 106 mm inside (25 mm lid over an 81 mm base), 4.48 litres, 258 x 243 x 120 mm outside and 0.84 kg empty according to Panaro. It has a folding soft grip handle, double throw latches and an automatic pressure release valve.

For this model Panaro hold an IP67 summary from CMC, a Teslab environmental report under the NATO STANAG 4280 test plan, a PAConsult ATA 300 Category 1 report for airline shipping, and Teslab MIL-STD-810H vibration and drop results. The datasheet range is -51 to 90 °C.

Teams often colour-code their kit: orange for the emergency or first aid case, the spares box on a vessel, or the case that must not be left behind on site.

The black version and the foam-filled orange ones are in our Panaro range. Look at first aid and medical cases or field and defence cases too, or browse all protective cases.

Often ordered together

  • Orange shell for quick identification
  • Inside 235 x 180 x 106 mm, empty
  • ATA 300 Cat. 1 report for air shipping
  • Teslab MIL-STD-810H and NATO test reports
  • IP67 report from CMC
  • Padlock holes beside the latches
  • Colour-coded emergency kits
  • Boat and marine spares
  • Vehicle grab cases
  • Site and field equipment
  • Search and rescue team kit

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX235H105

Mega Code: PMMAX235H105-ORANGE

Configuration: Empty (no foam)

Colour: Orange

External Dimensions: 258 x 243 x 120 mm

Internal Dimensions: 235 x 180 x 106 mm

Lid and Base Depth: 25 mm lid + 81 mm base

Capacity: 4.48 litres

Weight: 0.84 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range: -51 to 90 °C (Panaro datasheet)

Test Reports: IP67 (CMC), STANAG 4280 / DEF STAN 81-41 (Teslab 169189A), ATA 300 Cat. 1 (PAConsult), MIL-STD-810H (Teslab 25B318A)

Pack Size: 1

Unit: Each

EAN: 8011236235038

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Only in colour. The MAX235H105 test reports, sizes and weight are the same for both colours.
Yes. MAX235H105S-ORANGE has standard cubed foam and MAX235H105HDS-ORANGE has high density foam.
Panaro publish a PAConsult ATA 300 Category 1 test report for this model, the airline packaging standard. Airline rules on what goes inside still apply.
Open the downloads on this page: datasheet, outline drawing, and every MAX235H105 report from CMC, Teslab and PAConsult, plus the fungus and fluid letter.
