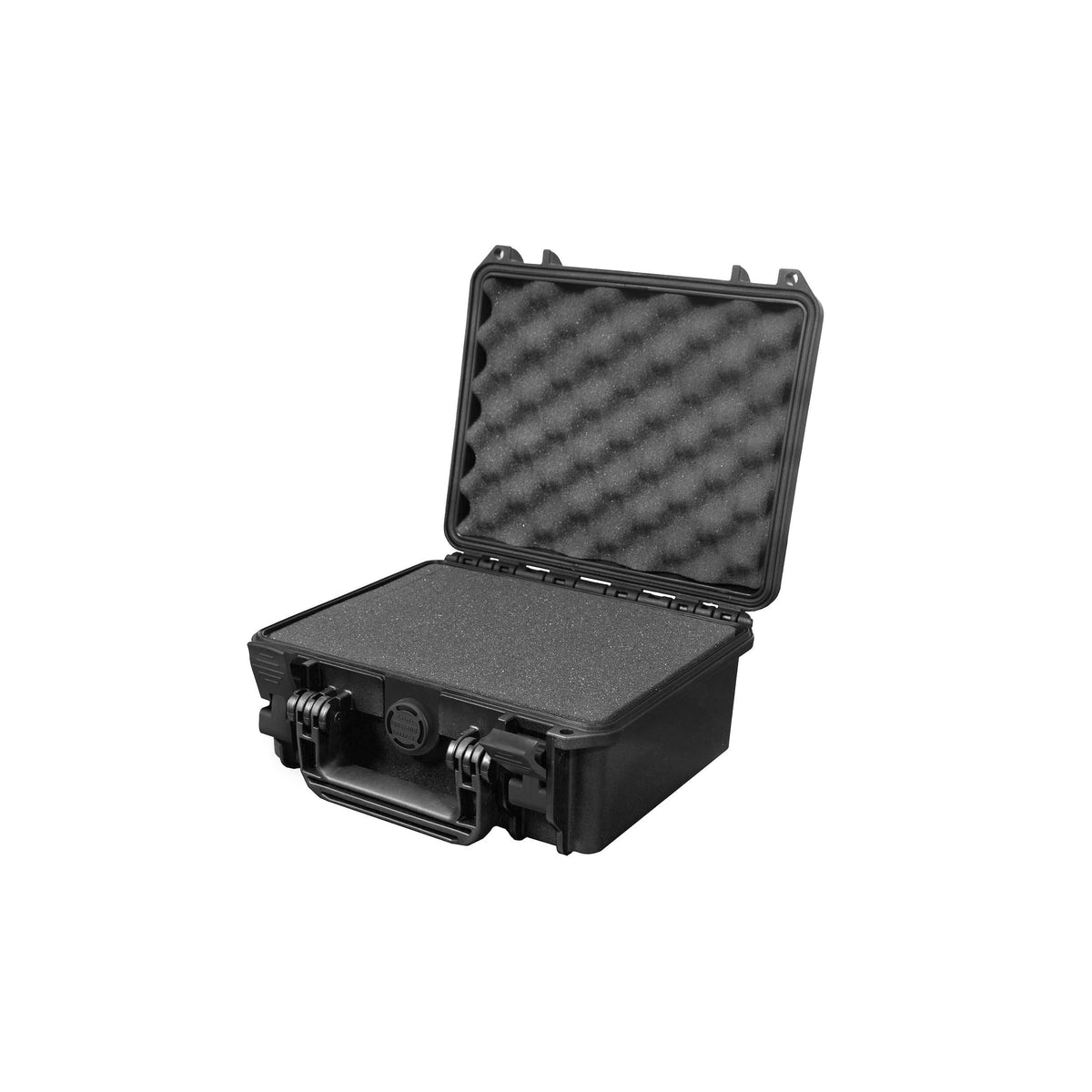

Panaro MAX235H105S in black, opened, grey pick and pluck cubed foam in the base and egg-crate foam in the lid

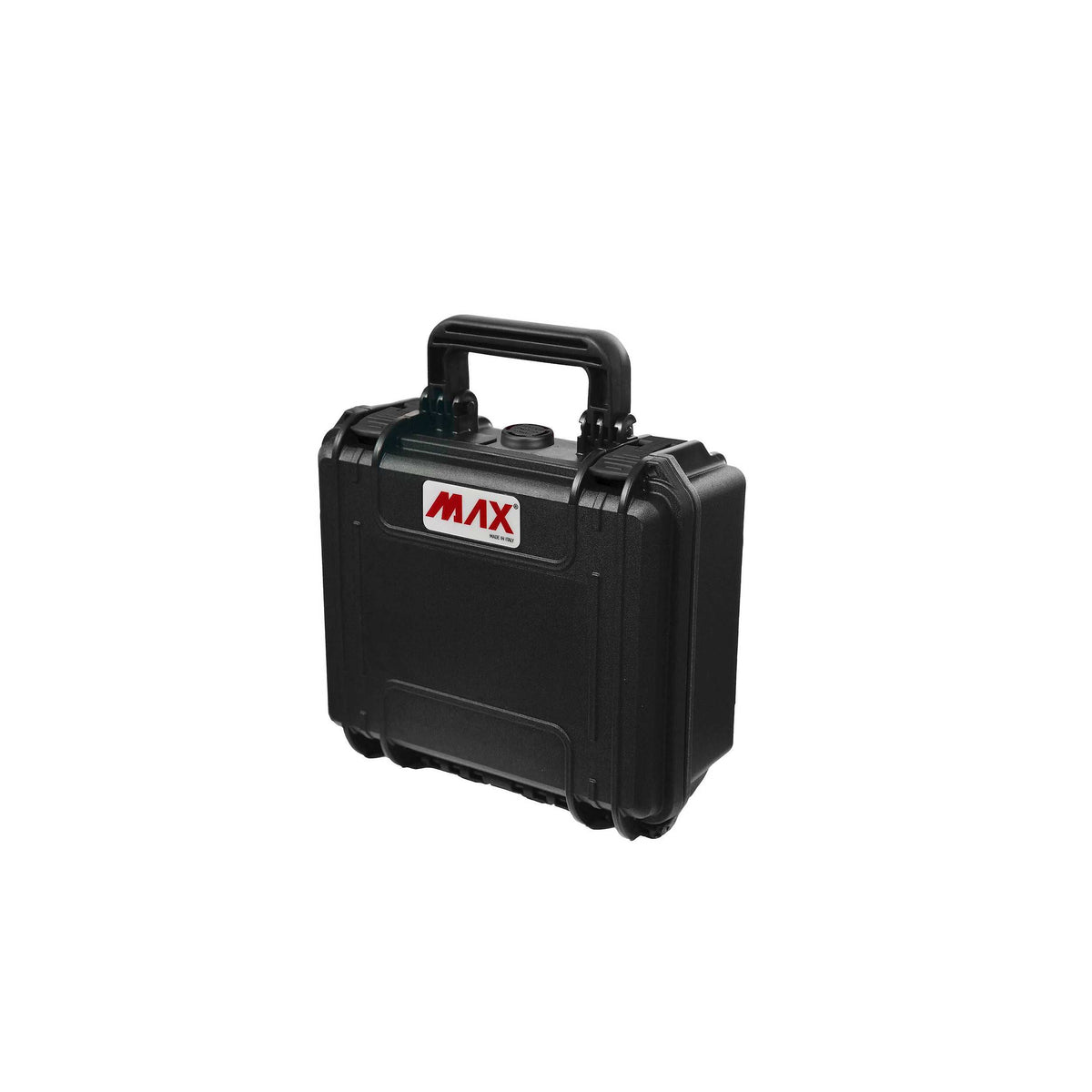

Closed black MAX235H105 standing upright, handle raised, latches and MAX label at the front

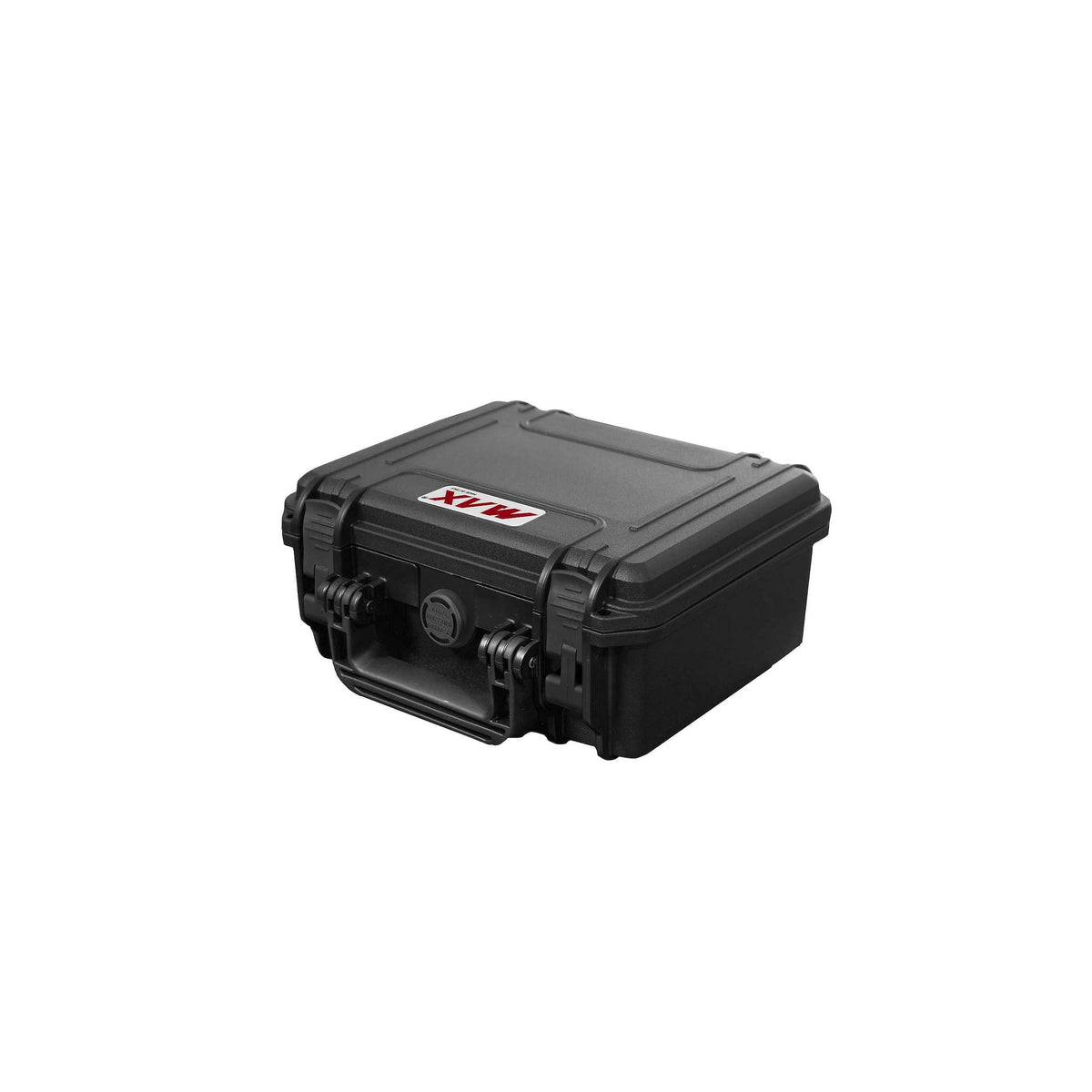

Black MAX235H105 lying flat and closed, front corner view of the two latches and the handle

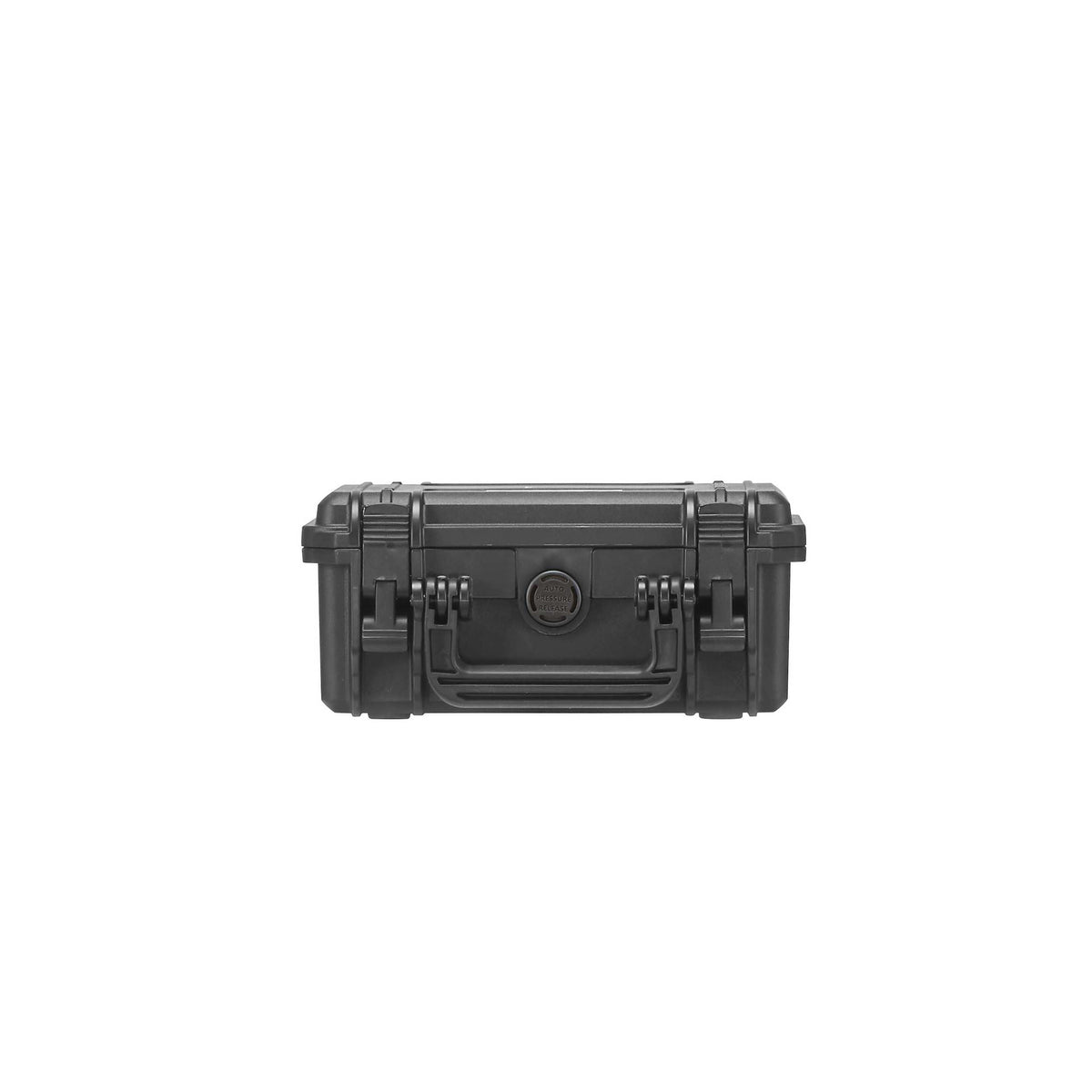

The closed black MAX235H105 seen from above with the handle, latch pair and pressure valve in view
Panaro MAX235H105S in black, opened, grey pick and pluck cubed foam in the base and egg-crate foam in the lid
Closed black MAX235H105 standing upright, handle raised, latches and MAX label at the front
Black MAX235H105 lying flat and closed, front corner view of the two latches and the handle
The closed black MAX235H105 seen from above with the handle, latch pair and pressure valve in view
Panaro MAX235H105S in black, opened, grey pick and pluck cubed foam in the base and egg-crate foam in the lid
Closed black MAX235H105 standing upright, handle raised, latches and MAX label at the front
Black MAX235H105 lying flat and closed, front corner view of the two latches and the handle
The closed black MAX235H105 seen from above with the handle, latch pair and pressure valve in view
Panaro

Panaro MAX235H105S Waterproof Case with Cubed Foam Black

$102.08
$102.08
RRP $109.97
Or 4 payments of $25.52 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX235H105S

Black MAX235H105 With Pick And Pluck Foam

The black MAX235H105S is the everyday foam choice in this size: standard cubed foam you pluck to fit a camera, drone or instrument, inside a case tested for air transport and military handling.

Panaro describe it as convoluted foam in the lid over a pick and pluck cubed base. Their foam sheet gives a 20 mm base pad, two 30 mm cube layers and a 22 mm lid layer. The interior footprint is 235 x 180 mm, deep enough at 25 mm in the lid plus 81 mm in the base for most compact kit, and the S version weighs 0.92 kg.

For the case itself Panaro publish IP67 from CMC, Teslab trials under STANAG 4280 and DEF STAN 81-41 Part 3, Teslab MIL-STD-810H vibration and transit drop, and PAConsult's ATA 300 Category 1 report. Its datasheet lists a -51 to 90 °C range, and the latch holes take padlocks.

It suits a mirrorless camera with two lenses, a compact drone and its controller, a two-way radio set or a portable ultrasound probe.

All foam grades and colours for this size are listed under Panaro. Camera users can compare AV and photo cases, field teams defence cases, and everyone else protective hard cases.

Often ordered together

  • Standard S cubed foam, pick and pluck
  • 20 mm base pad, 22 mm convoluted lid
  • ATA 300 Cat. 1 report (PAConsult)
  • STANAG 4280 and MIL-STD-810H reports
  • IP67 summary report by CMC
  • 0.92 kg as supplied
  • Mirrorless camera and lenses
  • Compact drones and controllers
  • Two-way radio sets
  • Portable medical probes
  • Field test instruments

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX235H105S

Mega Code: PMMAX235H105S

Configuration: Cubed pick and pluck foam (S)

Colour: Black

External Dimensions: 258 x 243 x 120 mm

Internal Dimensions: 235 x 180 mm footprint (25 mm lid + 81 mm base)

Capacity: 4.48 litres

Weight: 0.92 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range: -51 to 90 °C (Panaro datasheet)

Test Reports: IP67 (CMC), STANAG 4280 / DEF STAN 81-41 (Teslab 169189A), ATA 300 Cat. 1 (PAConsult), MIL-STD-810H (Teslab 25B318A)

Pack Size: 1

Unit: Each

EAN: 8011236235021

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Arrange the items on the foam first, leaving at least a cube of foam between them and the walls, then trace and pluck. The two 30 mm layers let you vary pocket depth.

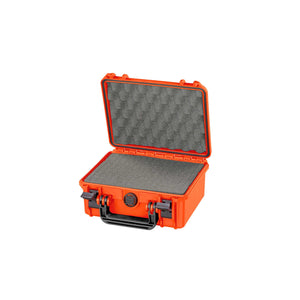

Yes, MAX235H105S-ORANGE has the same foam in an orange shell.
The lid has 25 mm and the base 81 mm of depth. Panaro's pages give 106 mm overall and the S and HDS datasheet prints 105 mm.
You can download Panaro's S and HDS datasheet, the foam diagram, the 2D drawing, each lab report for the MAX235H105 and the fungus and fluid declaration.
