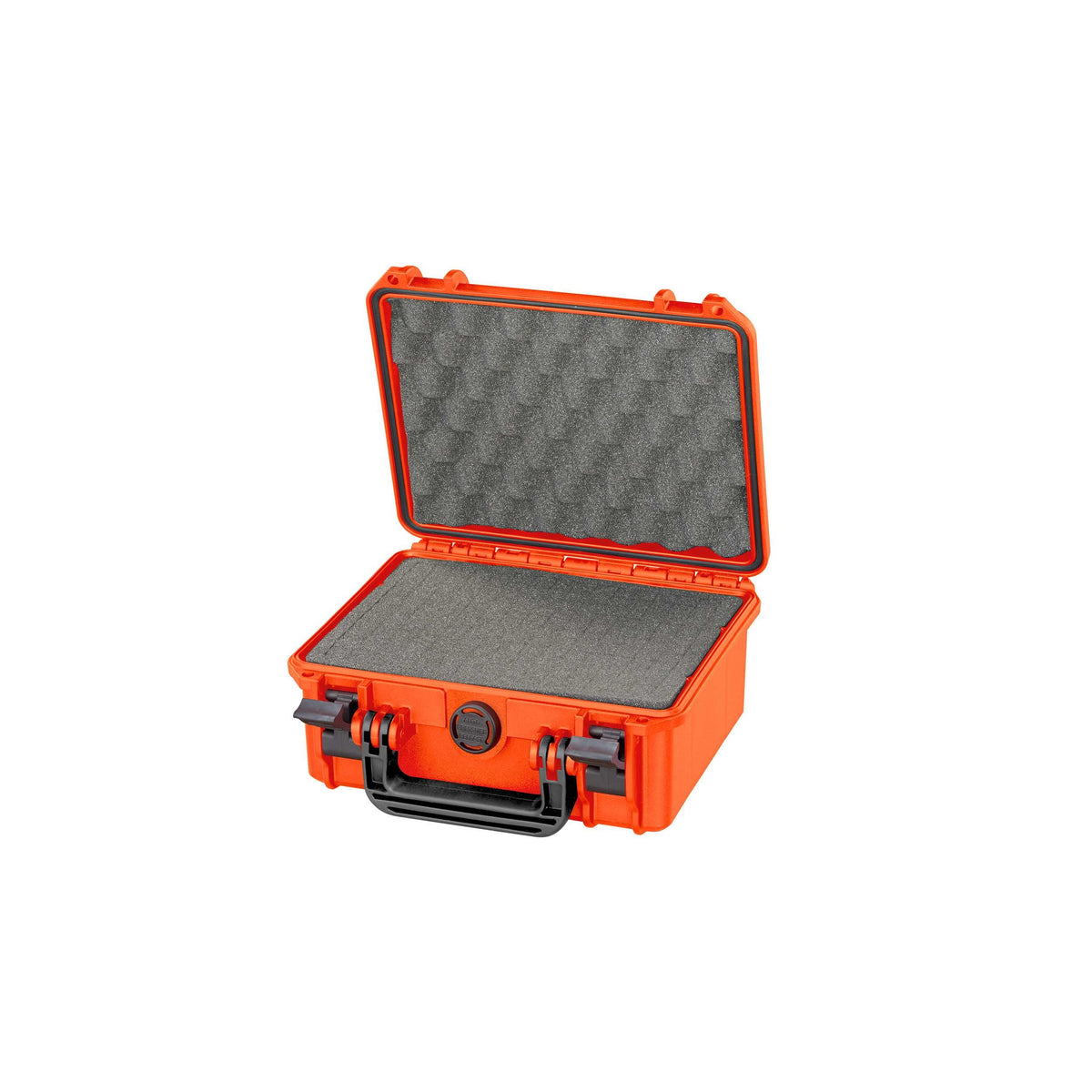

Panaro MAX235H105S in orange, opened, grey pick and pluck cubed foam in the base and egg-crate foam in the lid

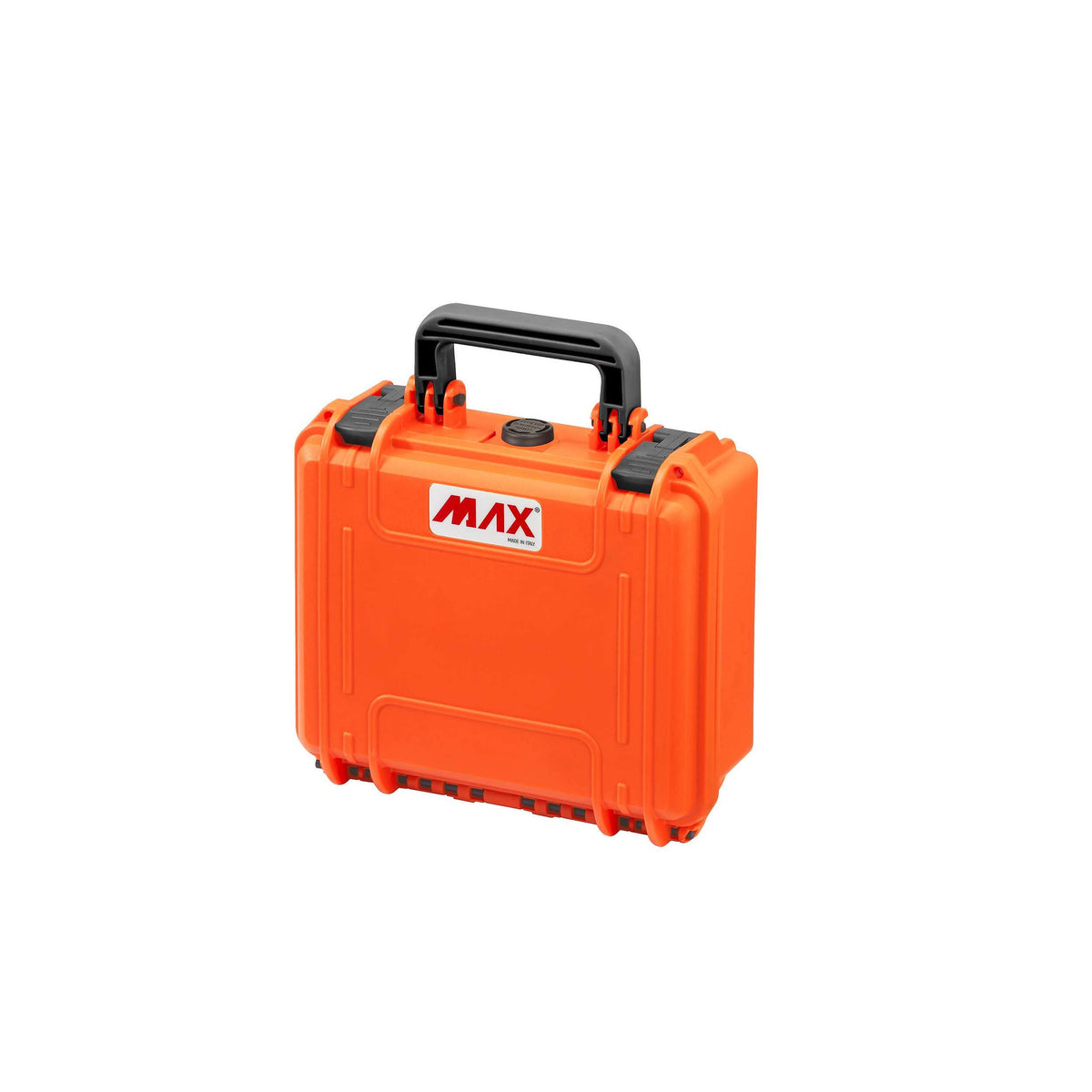

Orange MAX235H105 closed and upright, black handle raised, black latches and MAX label on the front
Orange MAX235H105 lying flat and closed, seen from the front corner with the black latches
Panaro MAX235H105S in orange, opened, grey pick and pluck cubed foam in the base and egg-crate foam in the lid
Orange MAX235H105 closed and upright, black handle raised, black latches and MAX label on the front
Orange MAX235H105 lying flat and closed, seen from the front corner with the black latches
Panaro MAX235H105S in orange, opened, grey pick and pluck cubed foam in the base and egg-crate foam in the lid
Orange MAX235H105 closed and upright, black handle raised, black latches and MAX label on the front
Orange MAX235H105 lying flat and closed, seen from the front corner with the black latches
Panaro

Panaro MAX235H105S Waterproof Case with Cubed Foam Orange

$104.50
$104.50
RRP $112.71
Or 4 payments of $26.13 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX235H105S-ORANGE

Orange MAX235H105S For Kit You Must Find Fast

MAX235H105S-ORANGE puts standard pick and pluck foam in the orange MAX235H105, so a first aid set, rescue radio or marine instrument has its own pocket in a case that is easy to see.

The insert is a 20 mm base pad, two 30 mm layers of standard cubes and a 22 mm convoluted lid layer, in a 235 x 180 mm interior made up of a 25 mm lid and an 81 mm base. Panaro list this S version at 0.92 kg, and the shell is 258 x 243 x 120 mm.

Test evidence for the MAX235H105 comes from CMC (IP67), Teslab (NATO level 1 trials, and MIL-STD-810H vibration plus transit drop) and PAConsult (ATA 300 Category 1). The datasheet gives -51 to 90 °C, and padlocks or seals fit beside the latches.

Pick it for a vessel's handheld VHF and flares kit, a workplace first responder set, a defib pad and spares kit, or a colour-coded drone battery case.

More orange and black cases are in the Panaro MAX range; first responders may also like our medical and first aid cases, and field teams our defence and tactical range. See protective cases for other brands.

Often ordered together

  • Orange shell with standard cubed foam
  • Two 30 mm cube layers to pluck
  • PAConsult ATA 300 Cat. 1 report
  • Teslab NATO level 1 trials
  • IP67 summary from CMC
  • Seal or padlock holes by the latches
  • Handheld VHF and marine kits
  • Workplace first responder sets
  • Defib pads and spares
  • Colour-coded drone battery cases
  • Rescue team equipment

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX235H105S

Mega Code: PMMAX235H105S-ORANGE

Configuration: Cubed pick and pluck foam (S)

Colour: Orange

External Dimensions: 258 x 243 x 120 mm

Internal Dimensions: 235 x 180 mm footprint (25 mm lid + 81 mm base)

Capacity: 4.48 litres

Weight: 0.92 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range: -51 to 90 °C (Panaro datasheet)

Test Reports: IP67 (CMC), STANAG 4280 / DEF STAN 81-41 (Teslab 169189A), ATA 300 Cat. 1 (PAConsult), MIL-STD-810H (Teslab 25B318A)

Pack Size: 1

Unit: Each

EAN: 8011236235045

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Yes, the only difference is the orange shell. Foam, sizes and test reports are the same.
It is a protective case with foam you shape yourself, so it can hold first aid items you supply. It does not come with any first aid contents.
Panaro list the MAX235H105S at 0.92 kg with its foam.
Everything Panaro publish for this case is in the PDF downloads: datasheet, foam layout, drawing, and the CMC, Teslab and PAConsult reports.
