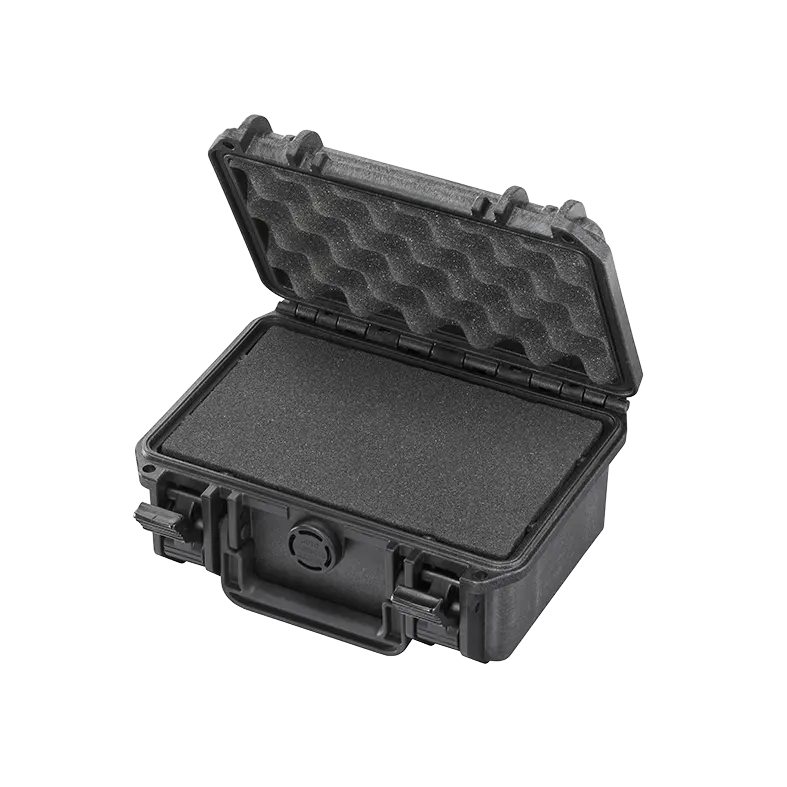

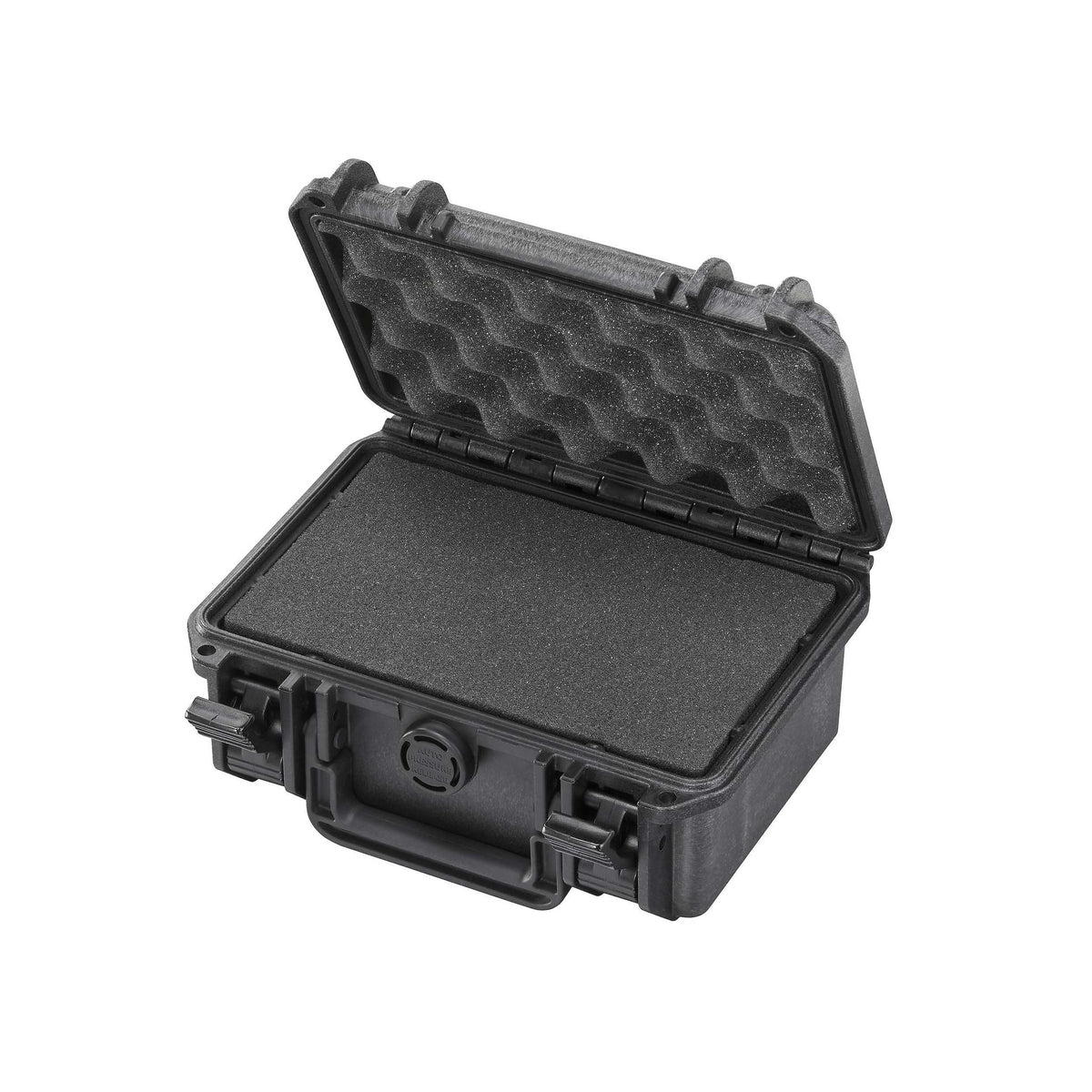

Panaro MAX200S opened, grey pick and pluck cubed foam in the deep base and egg-crate foam in the lid

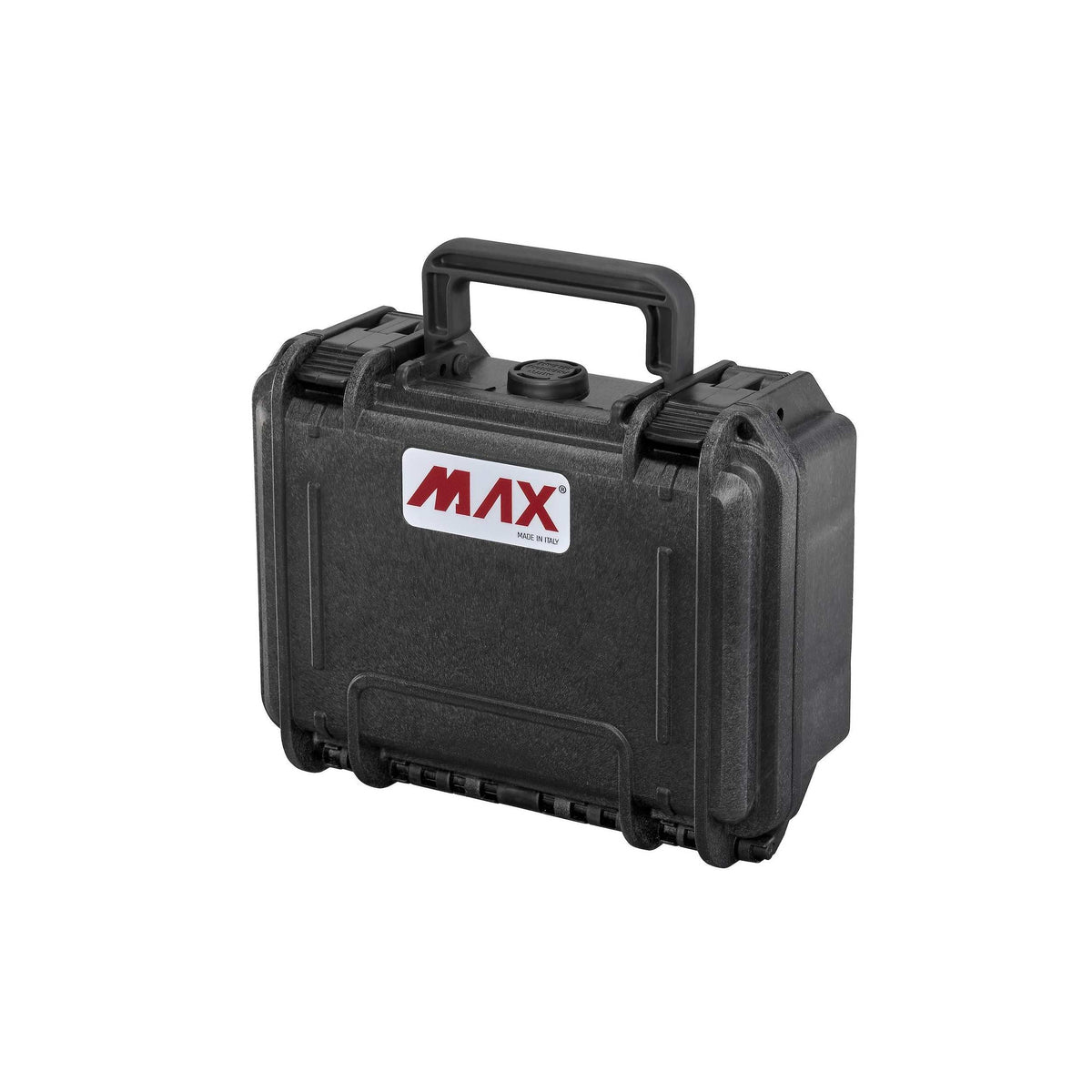

Closed MAX200 compact case in black, angled view of the handle, latches and the MAX label

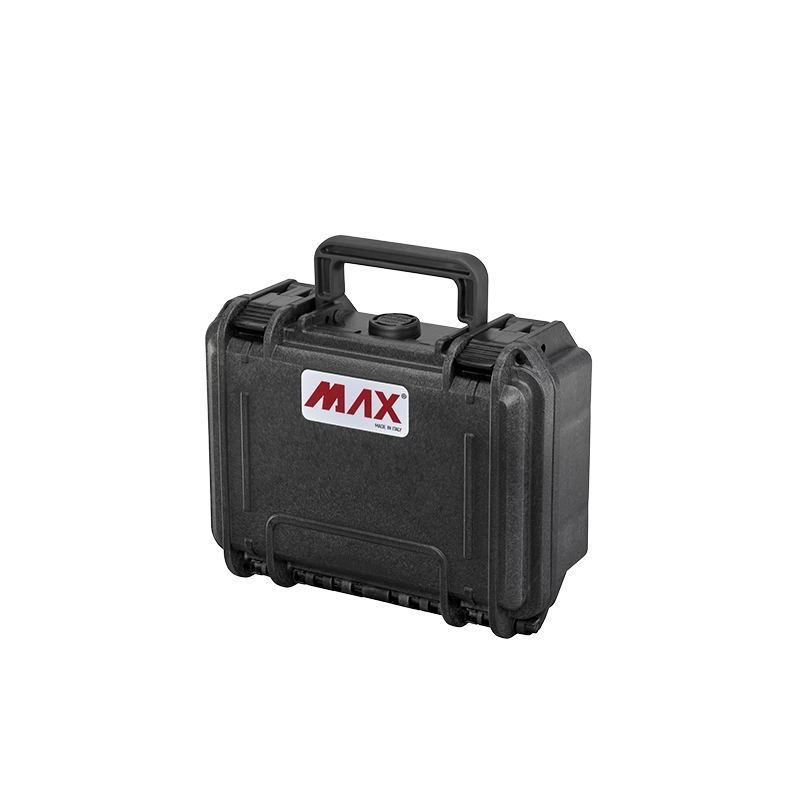

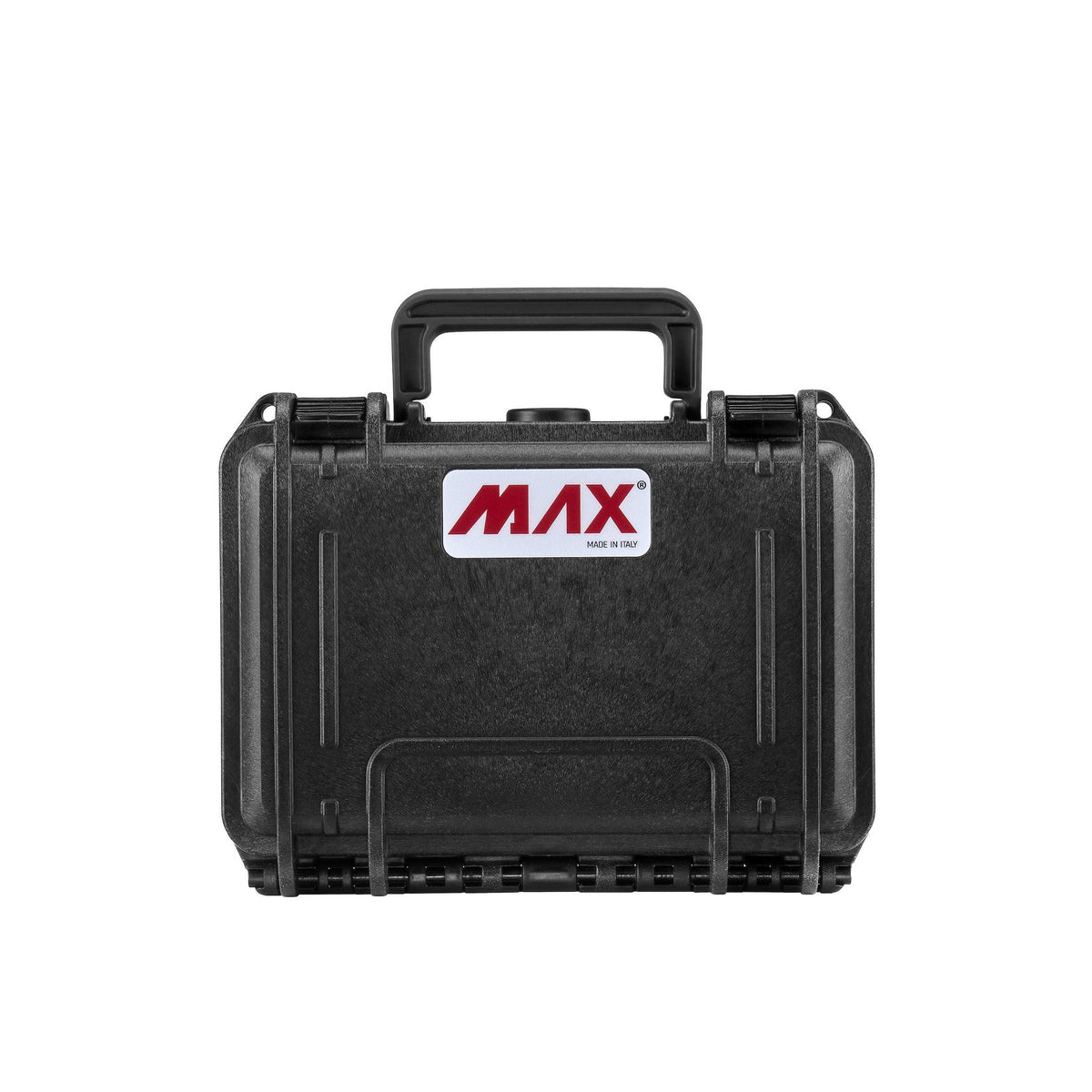

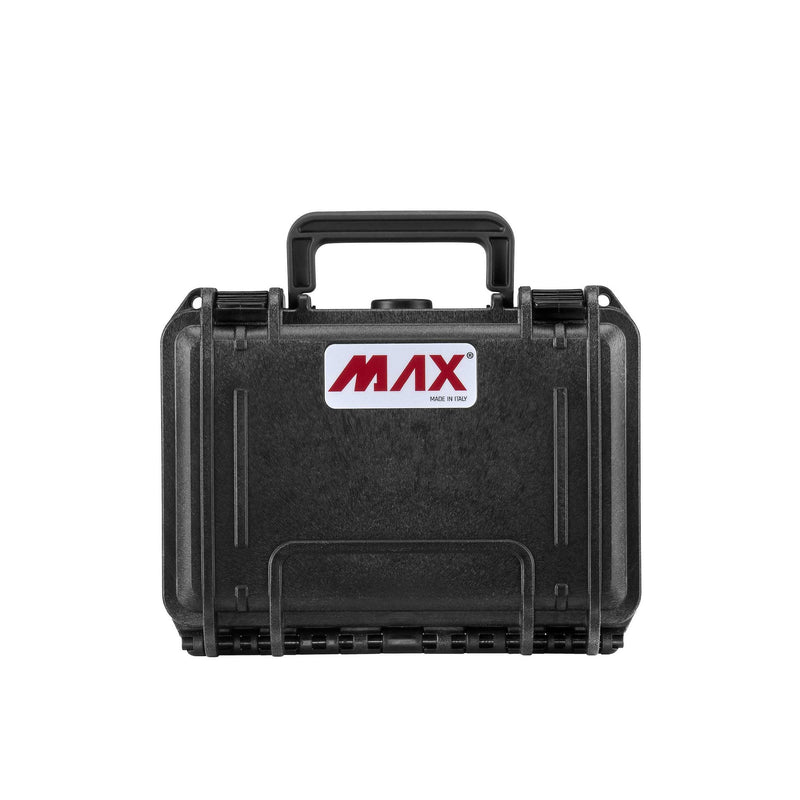

Front-on view of the MAX200 closed, handle raised, with the white and red MAX label
MAX200 from above, closed, showing the folding handle, both latches and the pressure valve
Panaro MAX200S opened, grey pick and pluck cubed foam in the deep base and egg-crate foam in the lid
Closed MAX200 compact case in black, angled view of the handle, latches and the MAX label
Front-on view of the MAX200 closed, handle raised, with the white and red MAX label
MAX200 from above, closed, showing the folding handle, both latches and the pressure valve
Panaro MAX200S opened, grey pick and pluck cubed foam in the deep base and egg-crate foam in the lid
Closed MAX200 compact case in black, angled view of the handle, latches and the MAX label
Front-on view of the MAX200 closed, handle raised, with the white and red MAX label
MAX200 from above, closed, showing the folding handle, both latches and the pressure valve
Panaro

Panaro MAX200S Waterproof Case with Cubed Foam Black

$72.05
$72.05
RRP $78.22
Or 4 payments of $18.01 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX200S

Cubed Foam Inside A Compact MAX200

The MAX200S is Panaro's small, deep MAX200 with standard pick and pluck foam, a quick way to give a camera body, drone controller or field instrument a fitted pocket.

The cubes come as two 30 mm layers over a 10 mm base pad, with a 22 mm convoluted pad in the lid, all within 200 x 125 x 90 mm of interior space. Panaro describe it as convoluted foam on top and pick and pluck cubes underneath. At 0.60 kg it is the lighter foam version.

Outside it is 223 x 172 x 102 mm. Teslab tested the MAX200 against STANAG 4280 and DEF STAN 81-41 at NATO level 1, for IP6X and IPX7, and the MIL-STD-810H vibration and transit drop methods. The datasheet gives -51 to 90 °C and lists double throw latches and full length hinges, and the latch holes take padlocks.

Fit a mirrorless body, a GoPro kit, a drone controller, a pulse oximeter or a pair of two-way radios.

There are bigger foam cases in the Panaro range, camera-friendly options under photography and AV, and clinical kit cases under medical and first aid. Or see all protective cases.

Often ordered together

  • Standard pick and pluck cubed foam
  • Two 30 mm cube layers, 10 mm base pad
  • NATO level 1 STANAG 4280 results
  • MIL-STD-810H tested case
  • Inside 200 x 125 x 90 mm
  • 0.60 kg as supplied
  • Mirrorless camera bodies
  • Action camera kits
  • Drone controllers
  • Two-way radio pairs
  • Pulse oximeters and small medical devices

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX200S

Mega Code: PMMAX200S

Configuration: Cubed pick and pluck foam (S)

Colour: Black

External Dimensions: 223 x 172 x 102 mm

Internal Dimensions: 200 x 125 x 90 mm

Lid and Base Depth: 21.5 mm lid + 68.5 mm base

Capacity: 2.01 litres

Weight: 0.60 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range: -51 to 90 °C (Panaro datasheet)

Test Reports: IP67, STANAG 4280 / DEF STAN 81-41 (Teslab 245181A), MIL-STD-810H (Teslab 25B317A)

Pack Size: 1

Unit: Each

EAN: 8011236200036

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Place the item on top, trace around it, then pluck cubes out a little at a time. With two 30 mm layers you can make pockets of either depth.
S is the standard grade and the lighter case. HDS is denser and suits heavier, compact items such as metal-bodied tools.
Teslab's reports cover STANAG 4280 and DEF STAN 81-41 trials, IP6X and IPX7, and MIL-STD-810H methods 514.8 and 516.8.
Yes. Seven PDFs are attached, from the S and HDS datasheet and foam sheet to the drawing, Teslab reports and the fungus and fluid declaration.
