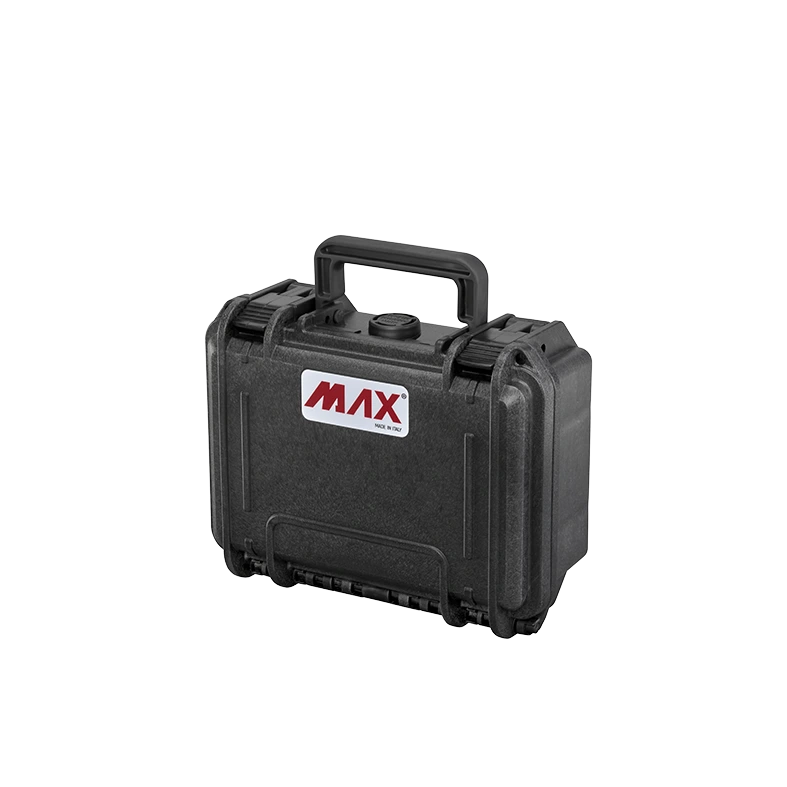

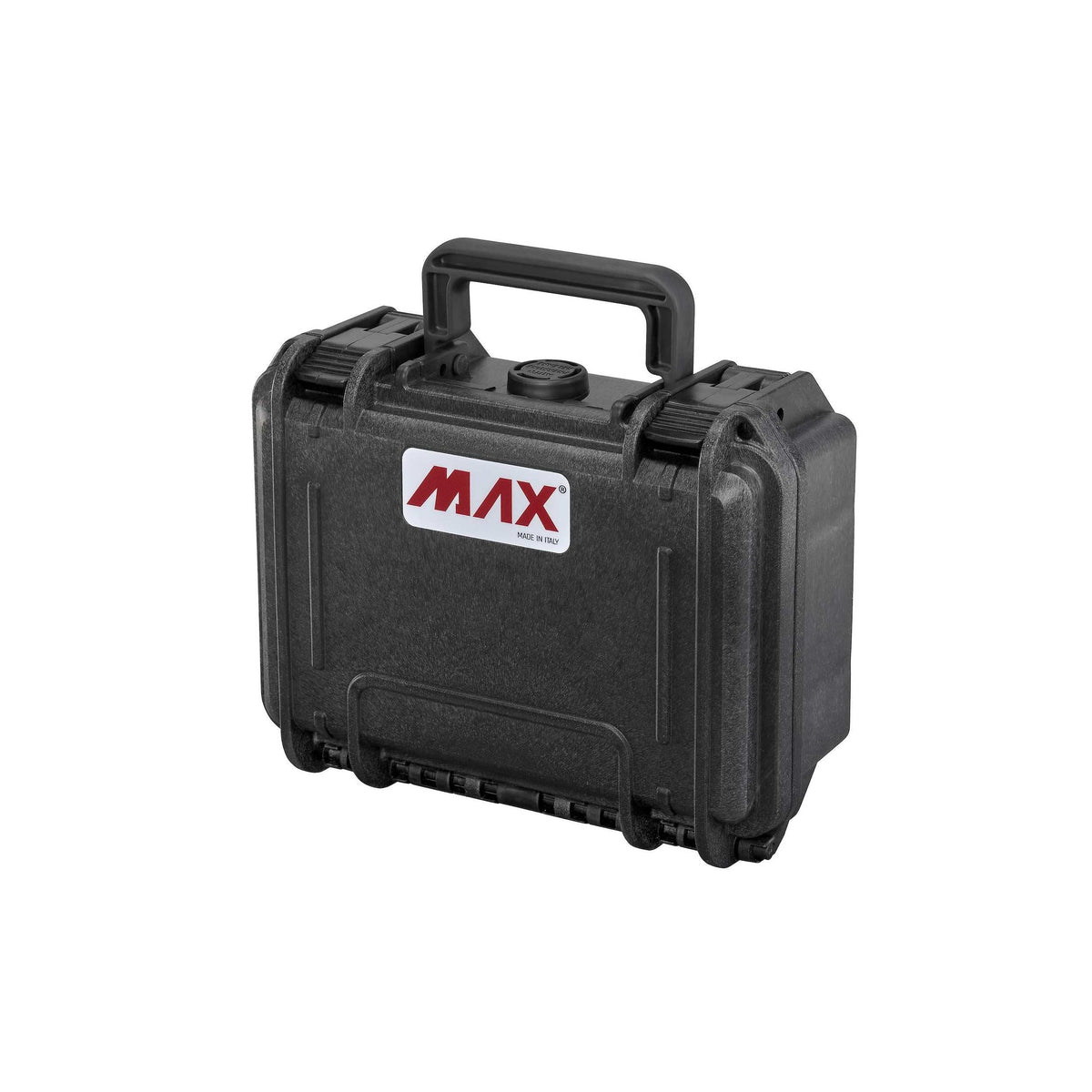

Panaro MAX200 black case closed, three-quarter view showing the carry handle, two latches, pressure valve and MAX logo

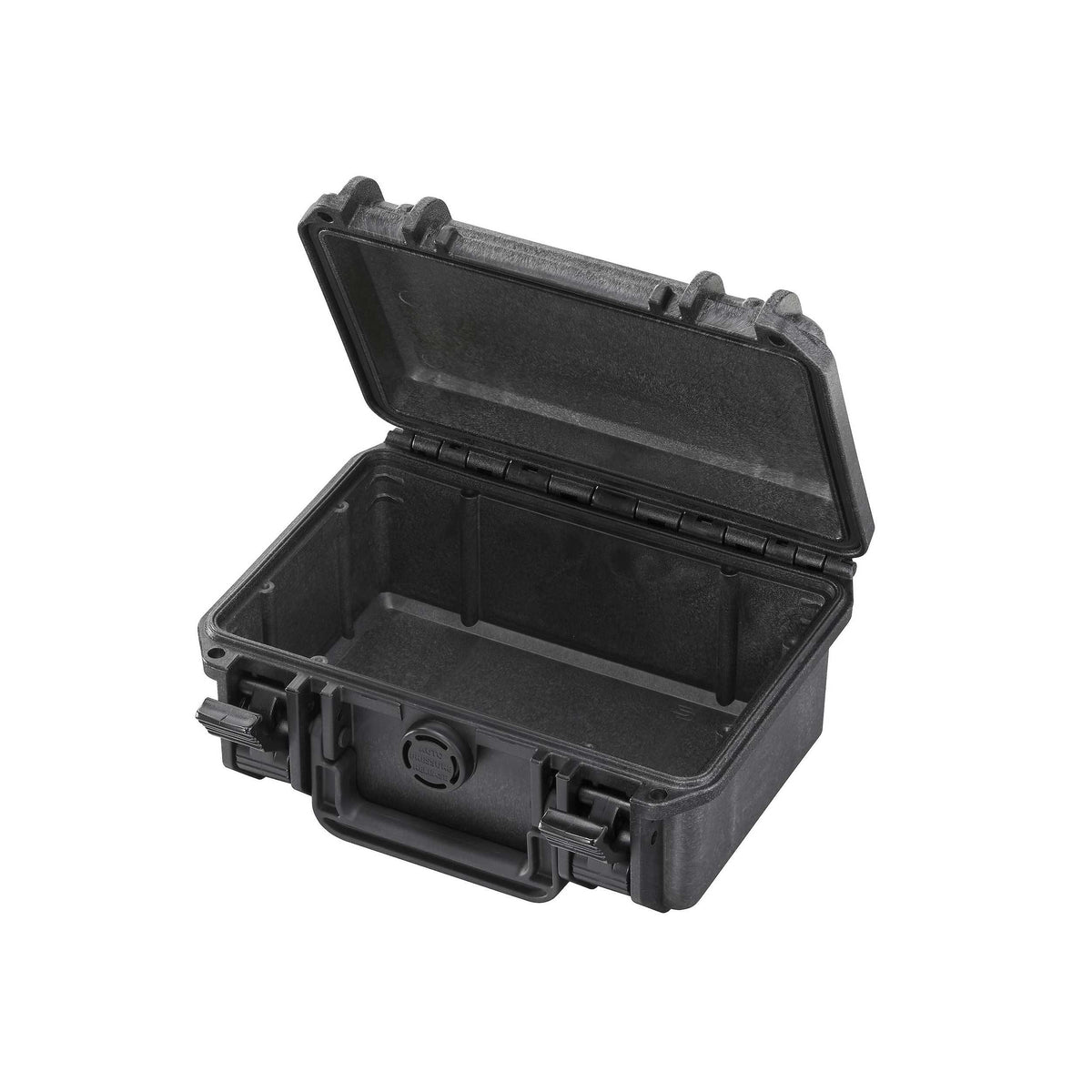

MAX200 open and empty, lid tilted back to show the deep black base, lid gasket channel and latches

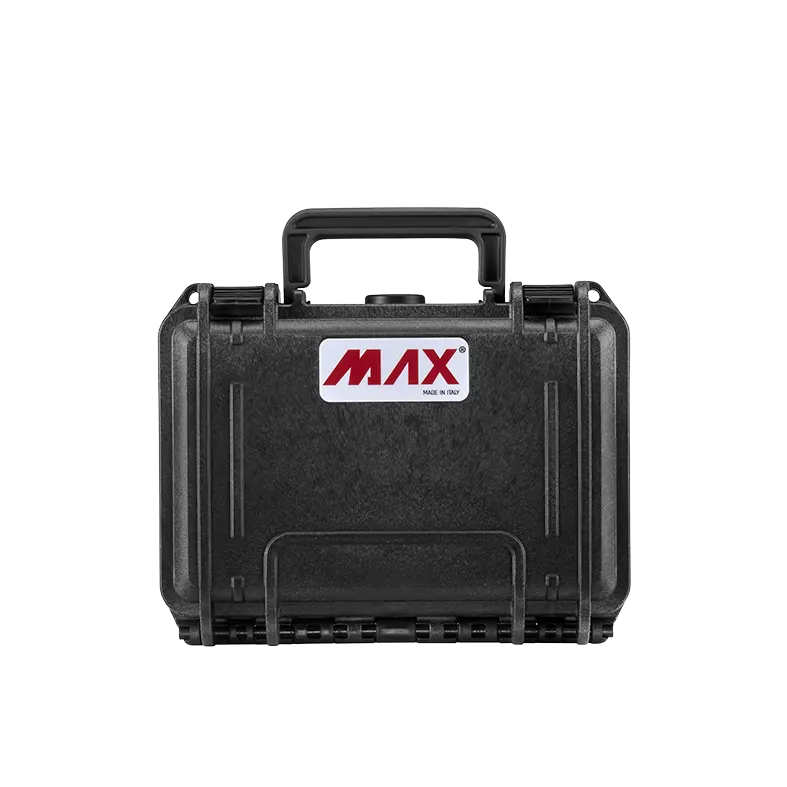

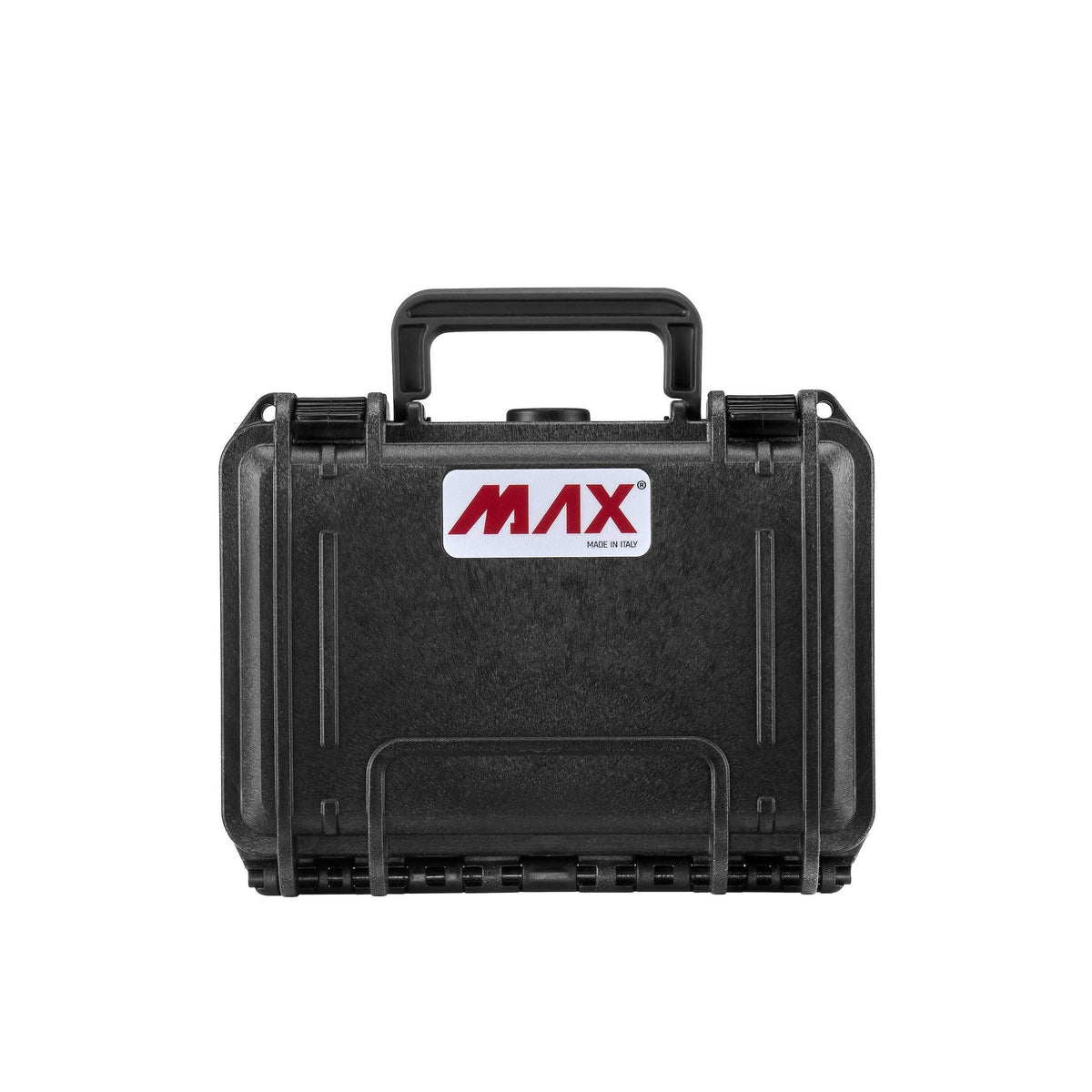

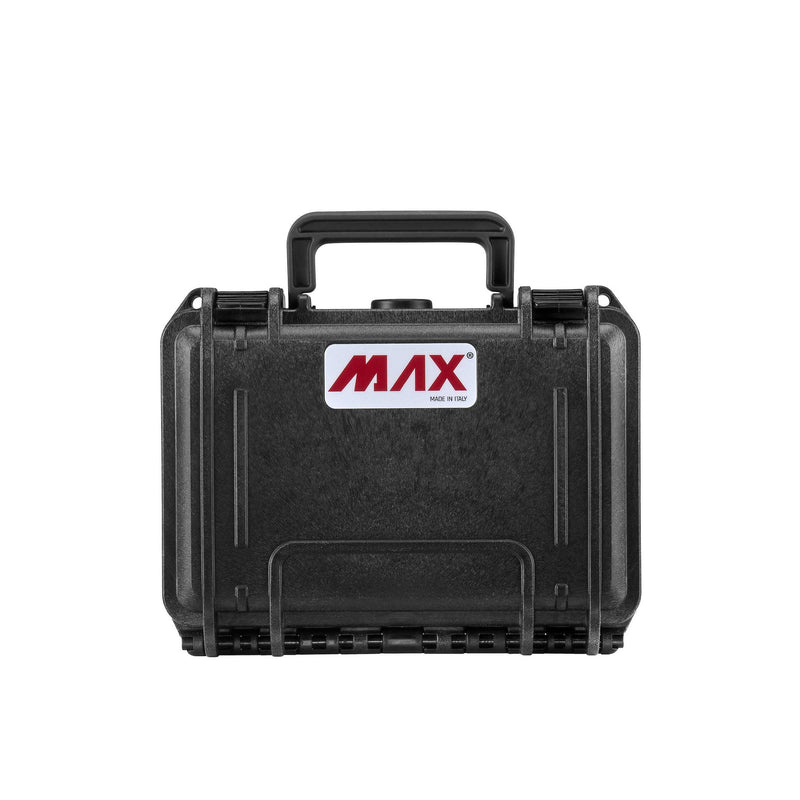

Front view of the closed MAX200 with its large white MAX label and the handle raised
MAX200 viewed from directly above, showing the handle, the two latches and the pressure valve on the front
Panaro MAX200 black case closed, three-quarter view showing the carry handle, two latches, pressure valve and MAX logo
MAX200 open and empty, lid tilted back to show the deep black base, lid gasket channel and latches
Front view of the closed MAX200 with its large white MAX label and the handle raised
MAX200 viewed from directly above, showing the handle, the two latches and the pressure valve on the front
Panaro MAX200 black case closed, three-quarter view showing the carry handle, two latches, pressure valve and MAX logo
MAX200 open and empty, lid tilted back to show the deep black base, lid gasket channel and latches
Front view of the closed MAX200 with its large white MAX label and the handle raised
MAX200 viewed from directly above, showing the handle, the two latches and the pressure valve on the front
Panaro

Panaro MAX200 Waterproof Case Black

$63.91
$63.91
RRP $69.07
Or 4 payments of $15.98 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX200

Small, Deep And Military Tested: MAX200

The Panaro MAX200 is a compact, deep handle case supplied empty, and despite its small size it comes with published STANAG 4280, DEF STAN 81-41 and MIL-STD-810H test reports.

It measures 223 x 172 x 102 mm outside and 200 x 125 x 90 mm inside, split 21.5 mm in the lid and 68.5 mm in the base, for 2.01 litres. Empty, it weighs 0.56 kg. The holes beside the latches take padlocks or a security seal, and Panaro suggest two padlocks to lock a MAX case properly.

Teslab ran low temperature, dry heat, vibration and impact tests on the MAX200 at NATO level 1, following STANAG 4280 with DEF STAN 81-41, plus dust (IP6X) and immersion (IPX7) checks; a later Teslab report adds MIL-STD-810H vibration and transit drop. The datasheet lists a -51 to 90 °C range, double throw latches, a soft grip handle, full length hinges and nylon pins that resist corrosion.

Empty, it suits a handheld radio, a GPS unit, a compact first aid kit or a field phone with its charger.

Step up to larger Panaro MAX cases when kit grows, or compare defence and field cases, first aid carry cases and other rugged protective cases.

Often ordered together

  • Tested to STANAG 4280 with DEF STAN 81-41
  • MIL-STD-810H vibration and transit drop
  • IP6X and IPX7 results (Teslab)
  • Inside 200 x 125 x 90 mm, 2.01 litres
  • Padlock holes beside the latches
  • Temperature range -51 to 90 °C
  • Handheld radios and GPS units
  • Compact first aid and trauma kits
  • Field phones and chargers
  • Small drones accessories and batteries
  • Sealed evidence or sample storage

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX200

Mega Code: PMMAX200

Configuration: Empty (no foam)

Colour: Black

External Dimensions: 223 x 172 x 102 mm

Internal Dimensions: 200 x 125 x 90 mm

Lid and Base Depth: 21.5 mm lid + 68.5 mm base

Capacity: 2.01 litres

Weight: 0.56 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range: -51 to 90 °C (Panaro datasheet)

Test Reports: IP67, STANAG 4280 / DEF STAN 81-41 (Teslab 245181A), MIL-STD-810H (Teslab 25B317A)

Pack Size: 1

Unit: Each

EAN: 8011236200029

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Teslab report 245181A covers the NATO level 1 STANAG 4280 and DEF STAN 81-41 programme plus IP6X and IPX7. Report 25B317A covers MIL-STD-810H vibration (Method 514.8) and transit drop (Method 516.8).

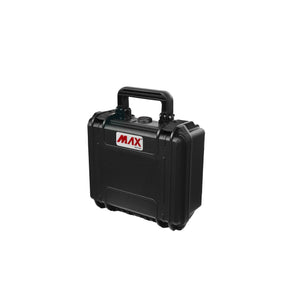

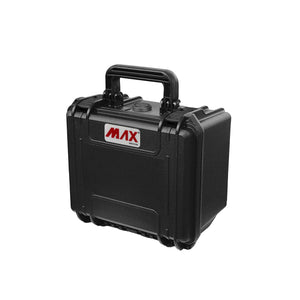

Panaro have not published an ATA 300 report for the MAX200. The larger MAX235H105 and MAX235H155 have one.
Yes. Holes next to the latches take a padlock or seal. Panaro recommend two padlocks on the outer points for a secure lock.
No, this is the empty case. MAX200S has standard cubed foam and MAX200HDS has high density foam.
Six PDFs are attached for the MAX200: datasheet, drawing, the IP67 and NATO test report, the MIL-STD-810H report, plus Panaro's fungus and fluid declaration.
