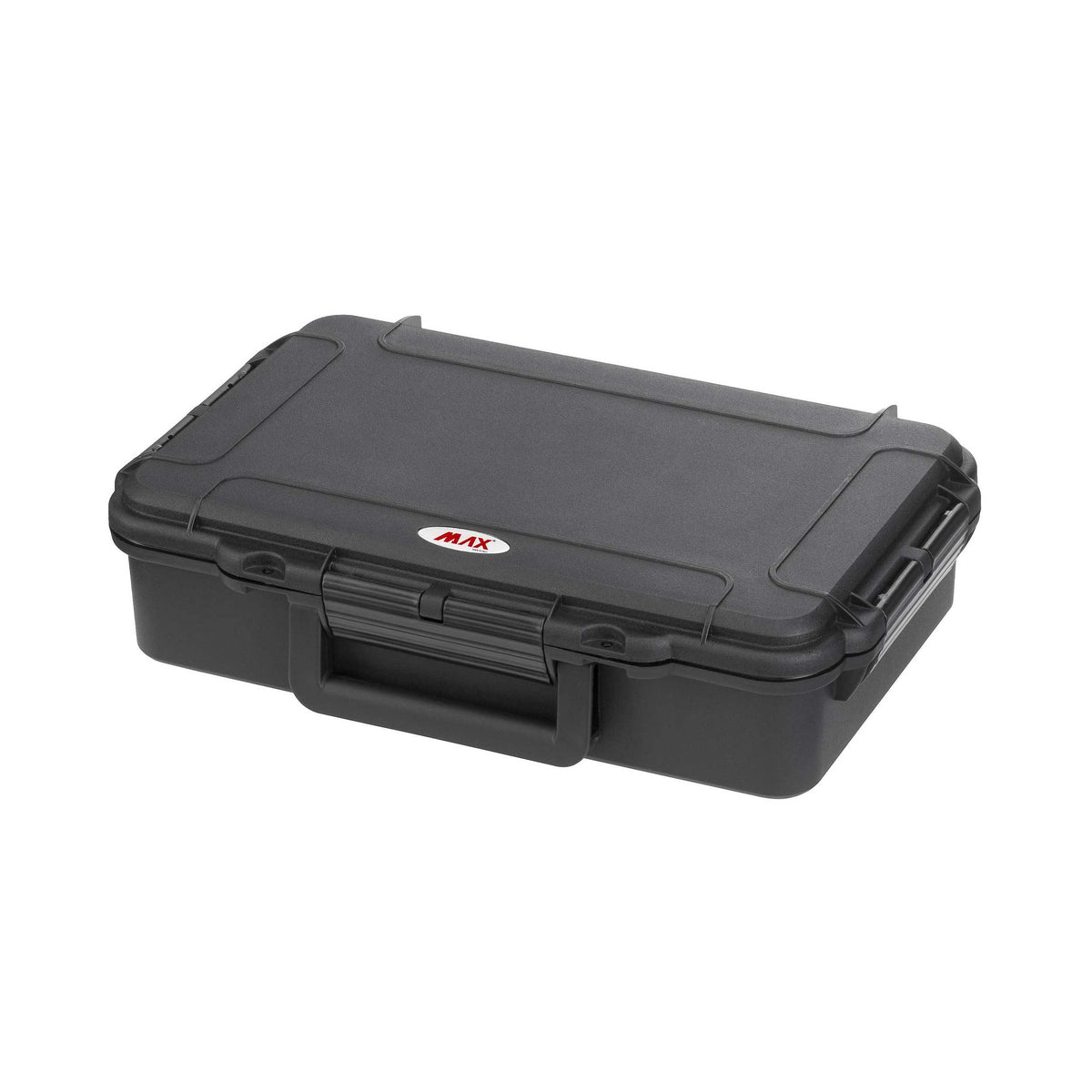

Panaro MAX004 black case closed, three-quarter view of the lid, front latches, handle and red MAX logo

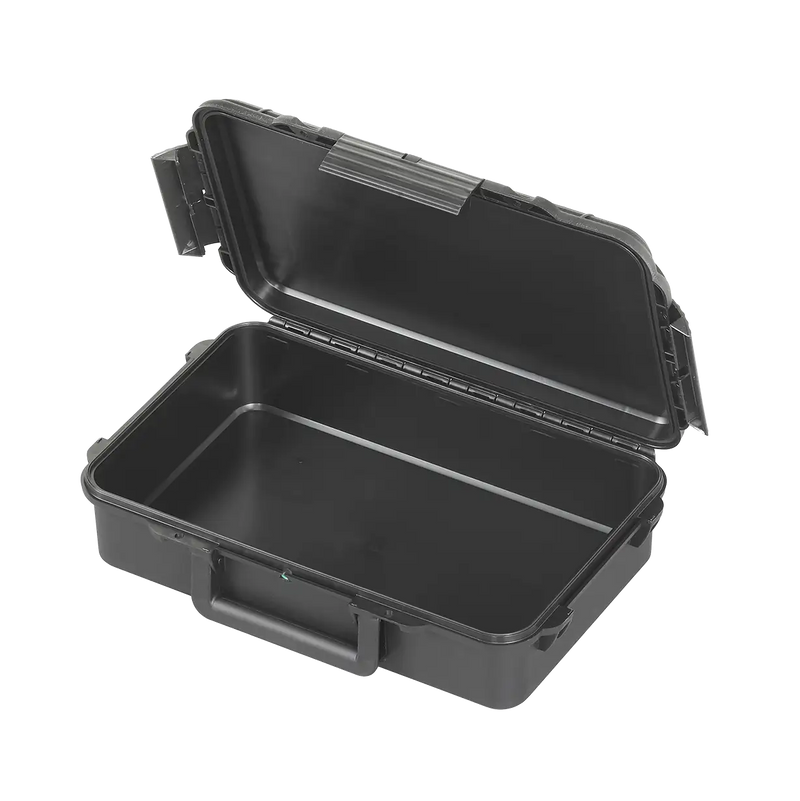

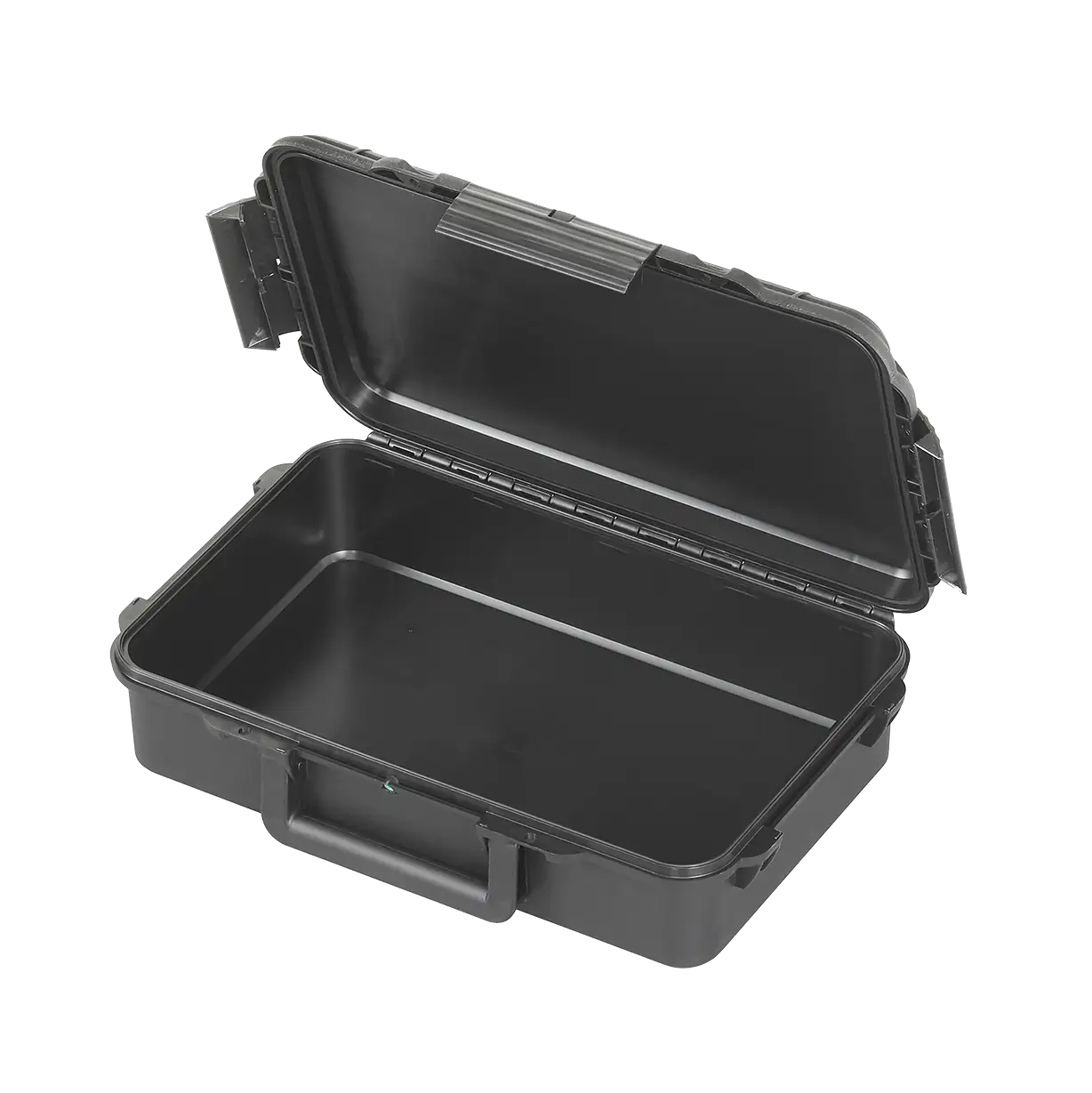

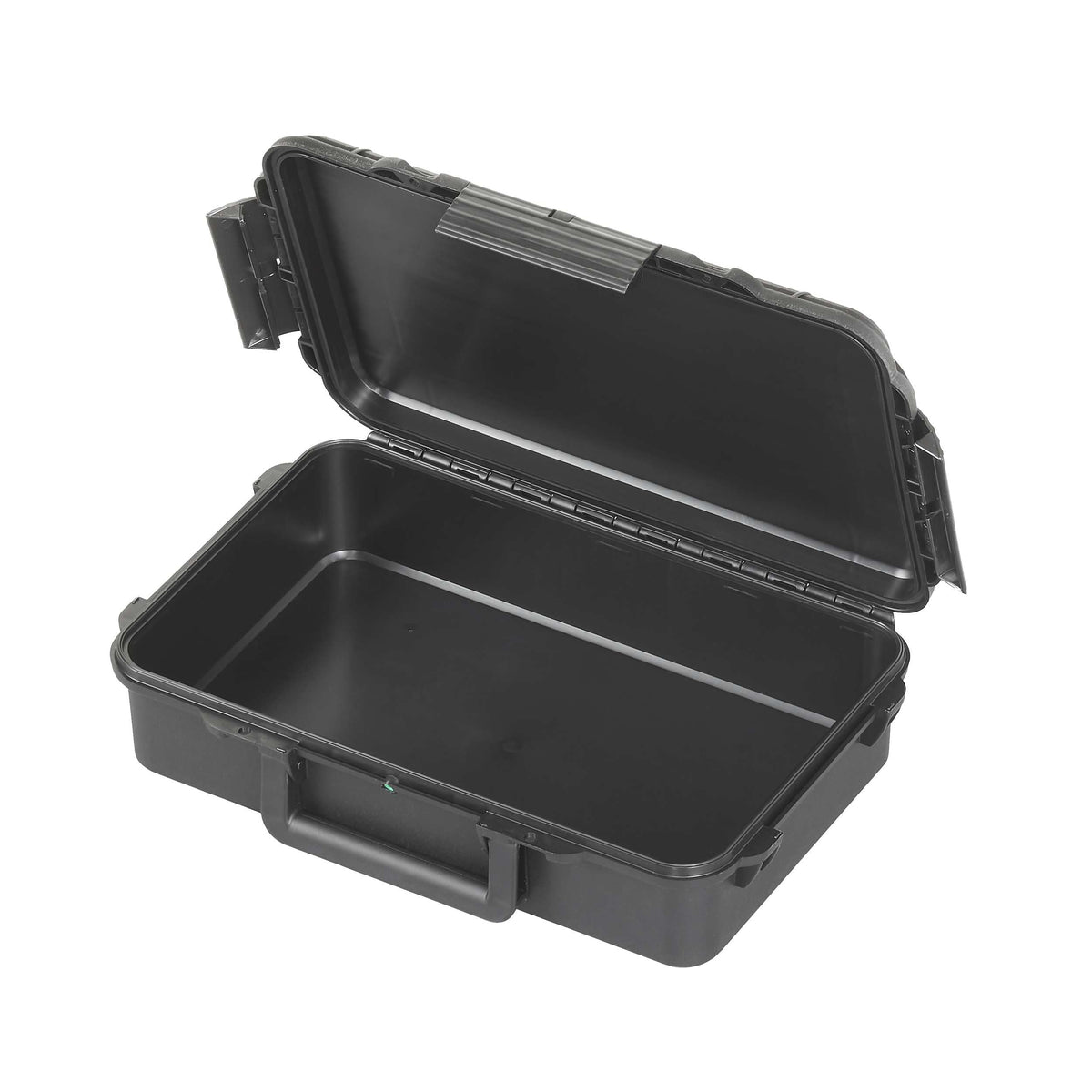

Empty MAX004 opened, lid tilted back to show the bare black base, lid recess and seal groove

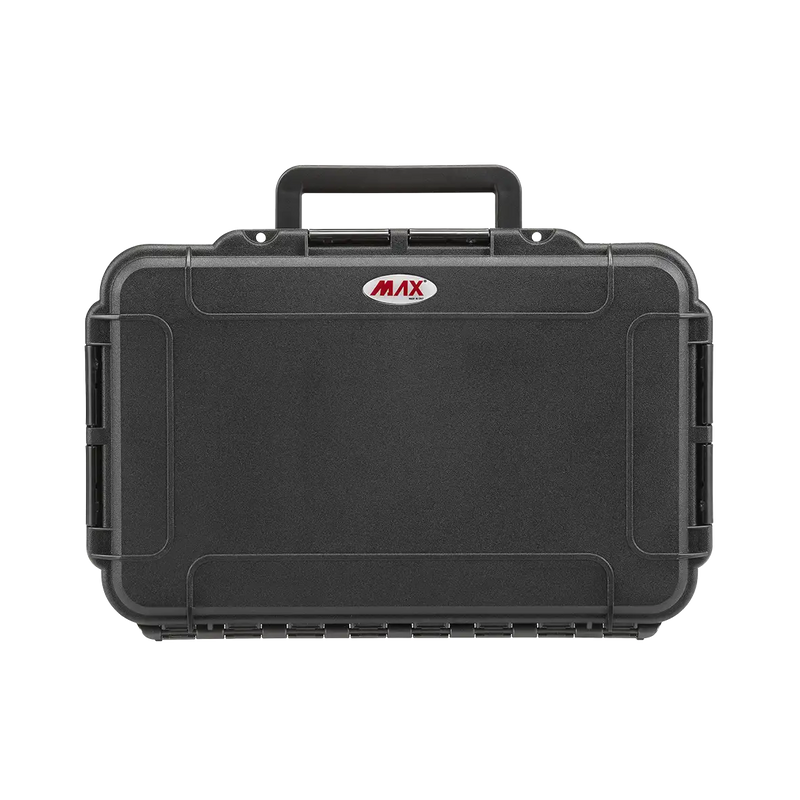

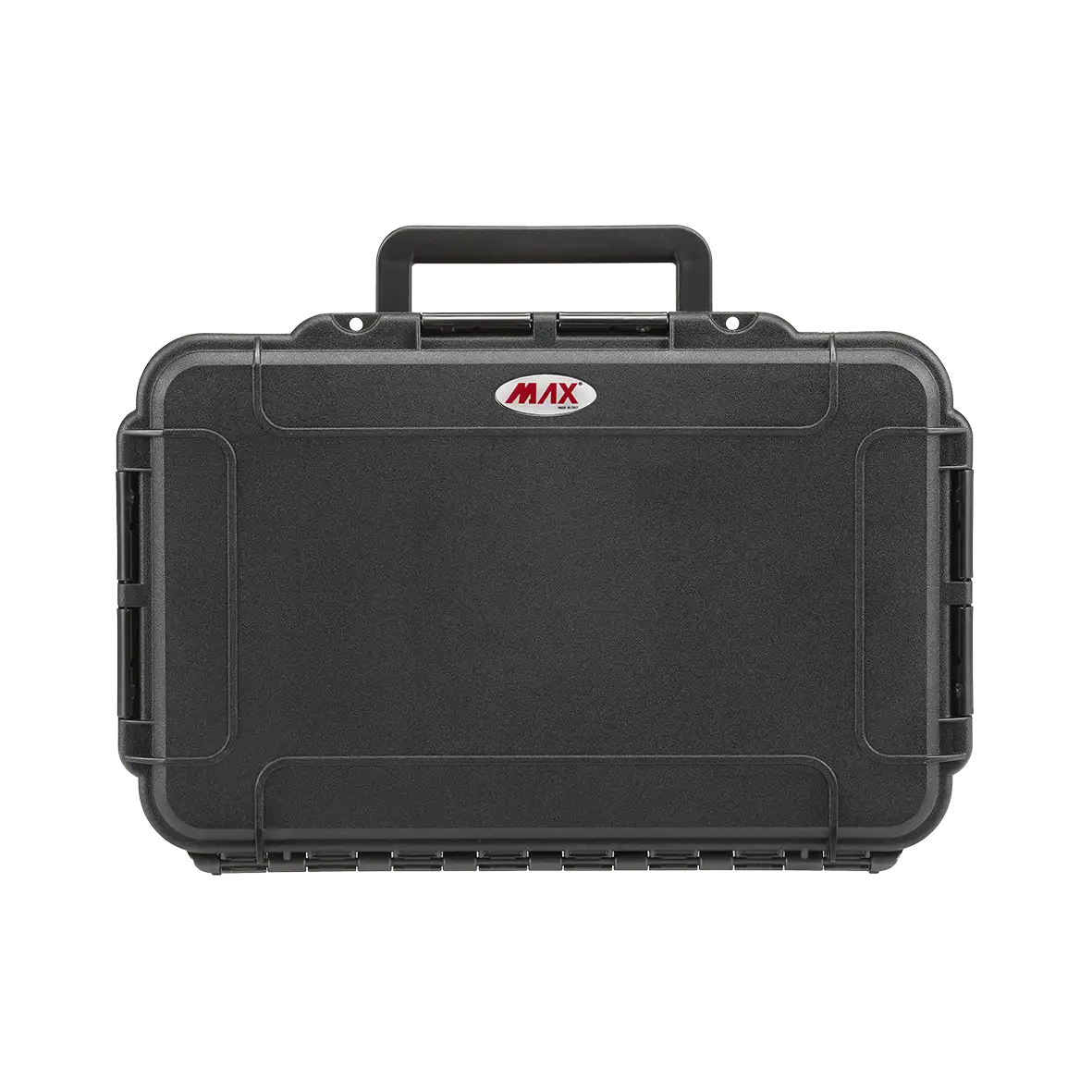

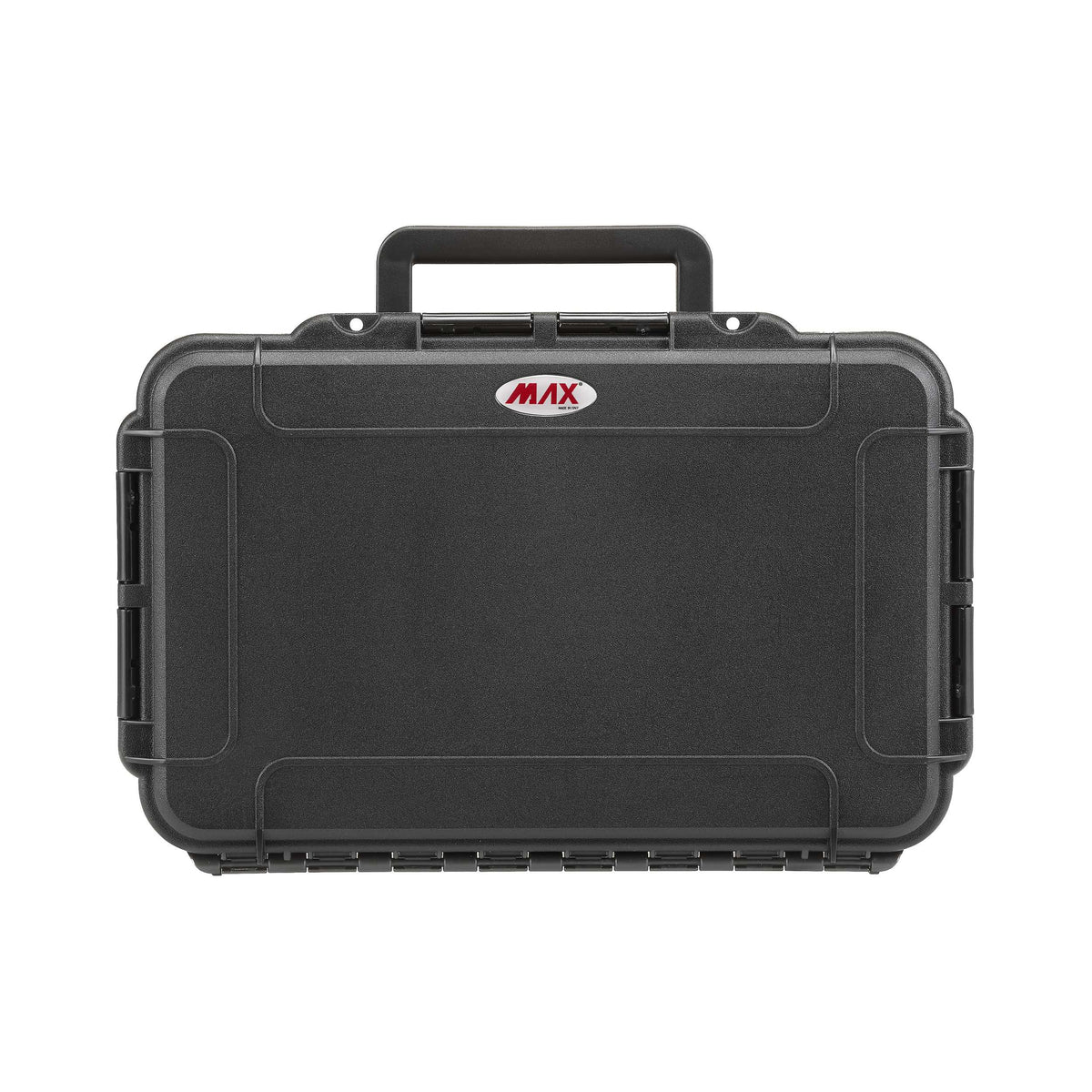

Upright front view of the closed black MAX004 with the fold-down handle raised
Panaro MAX004 black case closed, three-quarter view of the lid, front latches, handle and red MAX logo
Empty MAX004 opened, lid tilted back to show the bare black base, lid recess and seal groove
Upright front view of the closed black MAX004 with the fold-down handle raised
Panaro MAX004 black case closed, three-quarter view of the lid, front latches, handle and red MAX logo
Empty MAX004 opened, lid tilted back to show the bare black base, lid recess and seal groove
Upright front view of the closed black MAX004 with the fold-down handle raised
Panaro

Panaro MAX004V Waterproof Case Black

$64.02
$64.02
RRP $68.63
Or 4 payments of $16.01 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX004V

Empty MAX004: The Deeper 350 x 230 Shell

Panaro's MAX004V is the empty, black MAX004, giving 81 mm of clear internal height for chargers, cables, tools or a foam insert you cut yourself.

It shares the 350 x 230 mm footprint of the MAX003 but is deeper: 316 x 195 x 81 mm inside, split 16 mm in the lid and 65 mm in the base for 4.99 litres, and 350 x 230 x 86 mm outside. Panaro list it at 0.58 kg, and it has a fold-down carry handle.

This exact code, the MAX004V, holds a CMC IP67 test report under EN 60529. Panaro's datasheet credits it with self-acting pressure release, a gasket that seals the lid, thick walls and nesting for stacking, over -10 to 80 °C, and Panaro say the MAX line is built in Italy.

Bought empty, it works as a dry box for a field laptop charger and cables, a compact first aid kit, radio spares or tools in their own rolls, and Panaro offer custom foam inlays for fitted kits.

Compare it with the rest of the Panaro range, with cases used in defence and with first aid storage cases, or browse all hard protective cases.

Often ordered together

  • Empty interior, 316 x 195 x 81 mm
  • IP67 tested by CMC as MAX004V
  • Fold-down carry handle
  • 4.99 litres, 0.58 kg
  • Automatic pressure release valve
  • Stackable interlocking shape
  • Chargers, power banks and cables
  • Compact first aid kits
  • Radio and electronics spares
  • Tool rolls and pouches
  • Dry storage on boats and in utes

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX004V

Mega Code: PMMAX004V

Configuration: Empty (no foam)

Colour: Black

External Dimensions: 350 x 230 x 86 mm

Internal Dimensions: 316 x 195 x 81 mm

Lid and Base Depth: 16 mm lid + 65 mm base

Capacity: 4.99 litres

Weight: 0.58 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range: -10 to 80 °C (Panaro datasheet)

Test Reports: IP67 (CMC report CT16024001, tested as MAX004V)

Pack Size: 1

Unit: Each

EAN: 8011236000155

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No, the MAX004V is supplied empty. The same shell comes with cubed foam as MAX004S, high density foam as MAX004HDS, or clear with compartments as MAX004T.
Same 350 x 230 mm footprint, but the MAX004 has 81 mm of internal height against 53 mm, and it adds a fold-down carry handle.
An independent laboratory, CMC, put the MAX004V through IP67 testing to EN 60529. The rating applies to the closed case with a clean seal.
Panaro list custom foam inlays as a service on request. The ready-made inserts for this shell are the S and HDS cubed foam versions.
Under downloads: the MAX004 datasheet, the MAX004V outline drawing and the CMC report confirming IP67.
