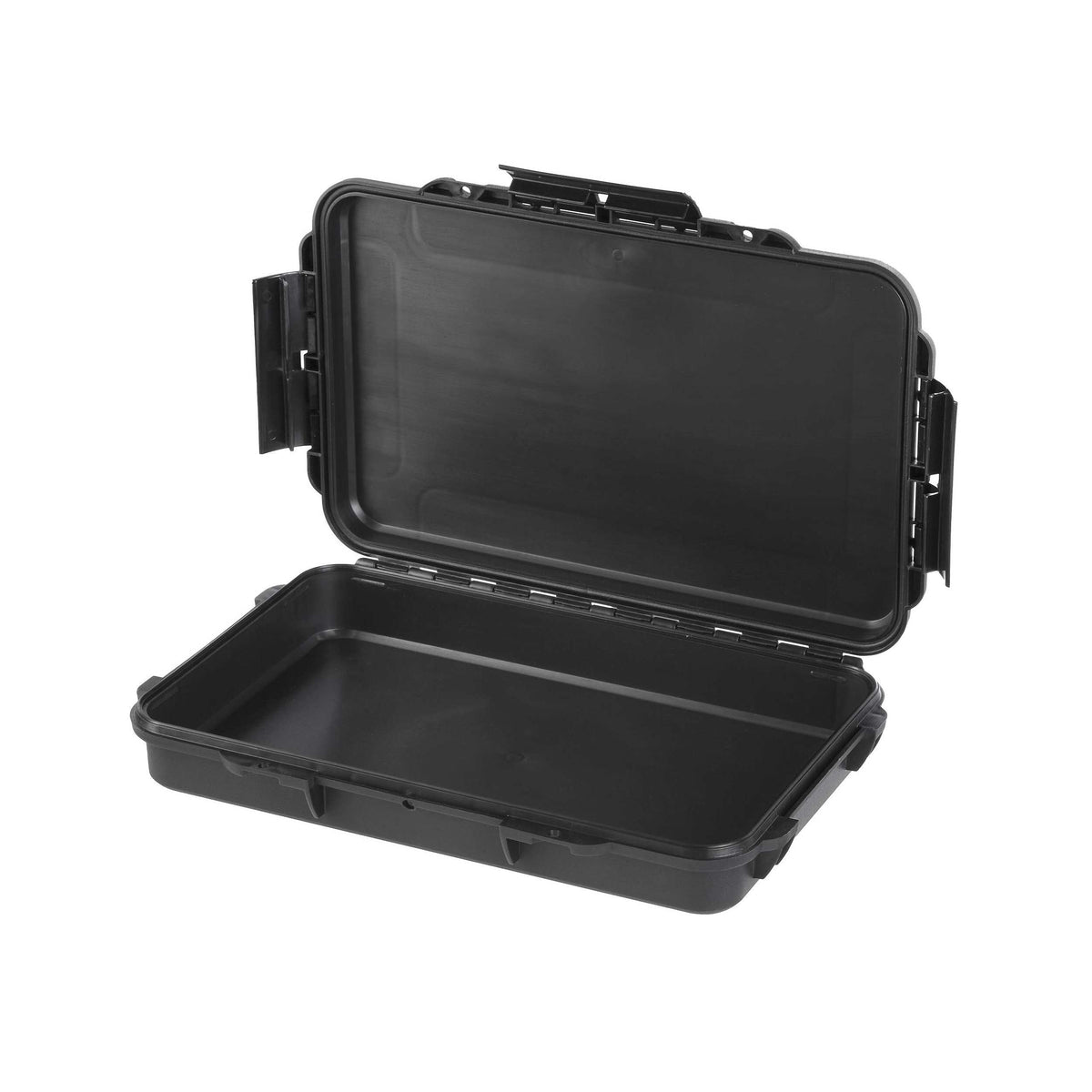

MAX003 black case open and empty, lid raised to show the plain lid recess, seal channel and shallow base
Side angle of the empty MAX003 opened, showing the full-length hinge and the depth of the black base

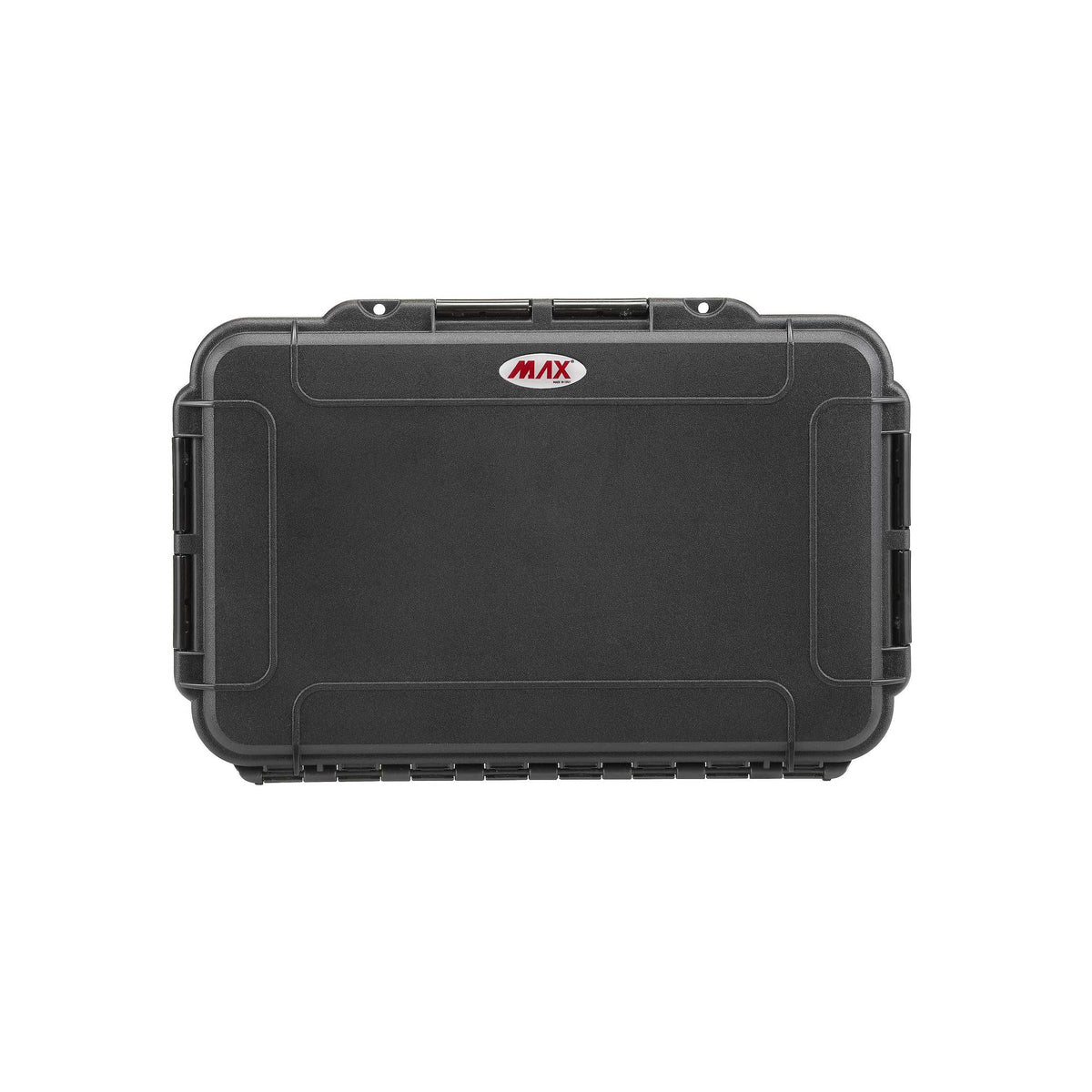

Top view of the closed black MAX003 with the MAX logo badge and latches on the front edge
Panaro MAX003 black waterproof case closed, angled view of the flat textured lid, red MAX logo and two front latches
MAX003 black case open and empty, lid raised to show the plain lid recess, seal channel and shallow base
Side angle of the empty MAX003 opened, showing the full-length hinge and the depth of the black base
Top view of the closed black MAX003 with the MAX logo badge and latches on the front edge
Panaro MAX003 black waterproof case closed, angled view of the flat textured lid, red MAX logo and two front latches
MAX003 black case open and empty, lid raised to show the plain lid recess, seal channel and shallow base
Side angle of the empty MAX003 opened, showing the full-length hinge and the depth of the black base
Top view of the closed black MAX003 with the MAX logo badge and latches on the front edge
Panaro

Panaro MAX003V Waterproof Case Black

$50.82
$50.82
RRP $54.76
Or 4 payments of $12.71 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX003V

The Slim MAX003 Shell, Supplied Empty

Panaro's MAX003V is the black MAX003 with nothing inside: a slim watertight shell for flat kit, paperwork and owners who want to fit their own lining.

The outside measures 350 x 230 x 59 mm and the clear space inside is 316 x 195 x 53 mm, with 16 mm in the lid and 37 mm in the base, or 3.26 litres. Empty, it weighs 0.52 kg according to Panaro.

The MAX003V passed IP67 testing at CMC under EN 60529. Its datasheet credits it with a sealed lid gasket, automatic pressure release, an interlocking stackable profile and thick walls, rated from -10 to 80 °C. Panaro state MAX cases are made in Italy.

With no insert, the full depth is yours for permits and site paperwork, flat tools, cables or gear already in its own pouch, and it leaves room for a custom foam inlay. The same shell is also sold with cubed foam (MAX003S), high density foam (MAX003HDS) or convoluted foam (MAX003VGPB).

Browse every Panaro case we carry, compare other protective hard cases, or see cases for defence work and medical kit cases.

Often ordered together

  • Empty interior, 316 x 195 x 53 mm
  • IP67 tested by CMC as MAX003V
  • 3.26 litre capacity, 0.52 kg
  • Automatic pressure release valve
  • Watertight seal around the lid
  • Stackable interlocking shape
  • Permits, logbooks and site paperwork
  • Flat hand tools and cables
  • Pouched electronics and chargers
  • Custom foam inlay projects
  • Boat and vehicle glovebox storage

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX003V

Mega Code: PMMAX003V

Configuration: Empty (no foam)

Colour: Black

External Dimensions: 350 x 230 x 59 mm

Internal Dimensions: 316 x 195 x 53 mm

Lid and Base Depth: 16 mm lid + 37 mm base

Capacity: 3.26 litres

Weight: 0.52 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range: -10 to 80 °C (Panaro datasheet)

Test Reports: IP67 (CMC report CT15231201, tested as MAX003V)

Pack Size: 1

Unit: Each

EAN: 8011236000124

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. The MAX003V is the empty case. Panaro make the same shell with cubed foam (MAX003S), high density cubed foam (MAX003HDS) and convoluted foam (MAX003VGPB).
There is 53 mm of internal height in total, 16 mm in the lid and 37 mm in the base. It suits flat items rather than bulky ones; the MAX004V has the same footprint with 81 mm inside.
IP67 under EN 60529 is the rating for an enclosure that keeps dust out completely and survives temporary immersion. CMC tested the closed MAX003V to it, so keep grit off the seal.
No. The MAX003 is a flat case with two latches and no carry handle. The deeper MAX004 adds a fold-down handle.
Yes, look in the downloads area for the MAX003 datasheet, a 2D drawing with all dimensions and CMC's IP67 certificate.
