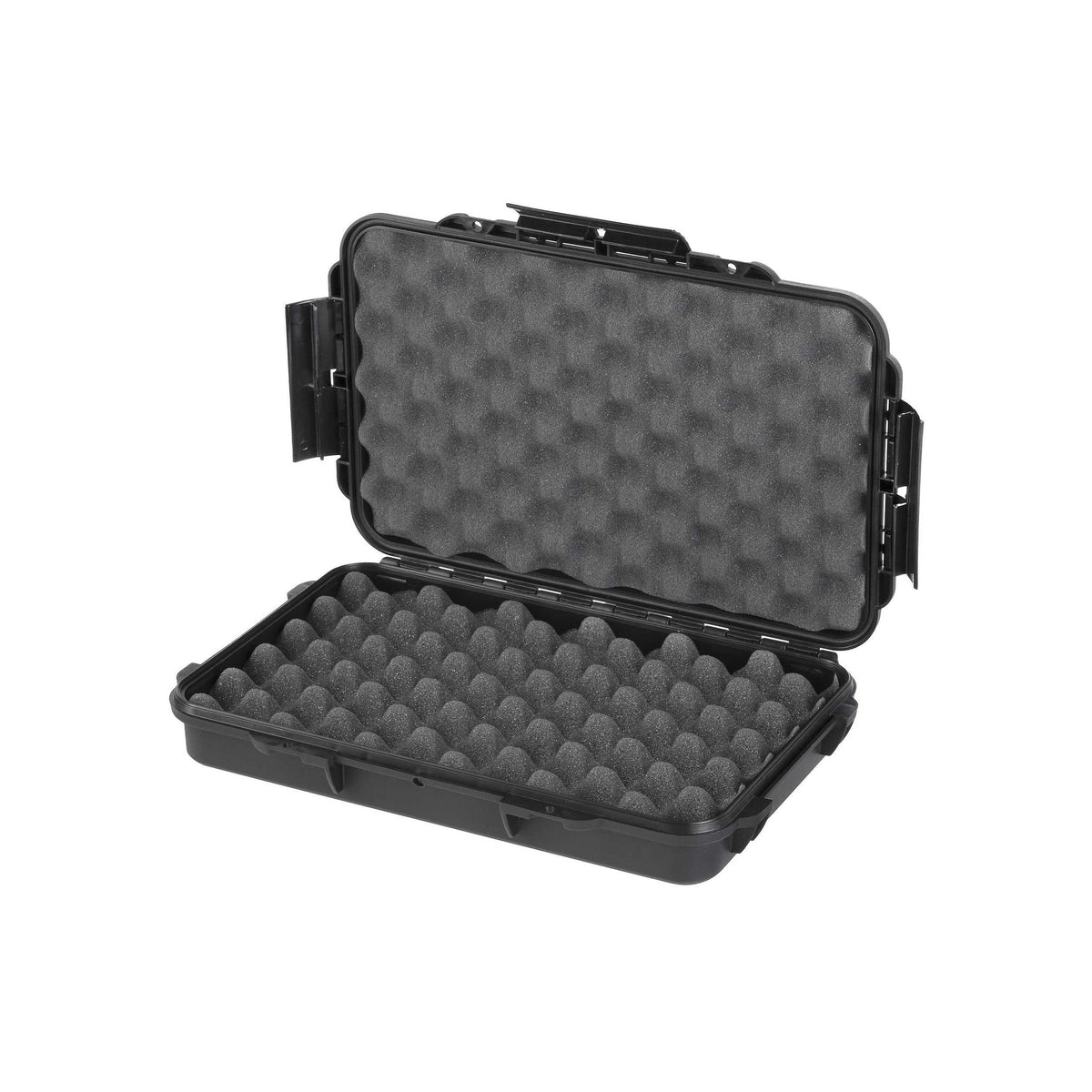

Panaro MAX003GPB open, black egg-crate convoluted foam lining both the raised lid and the shallow base

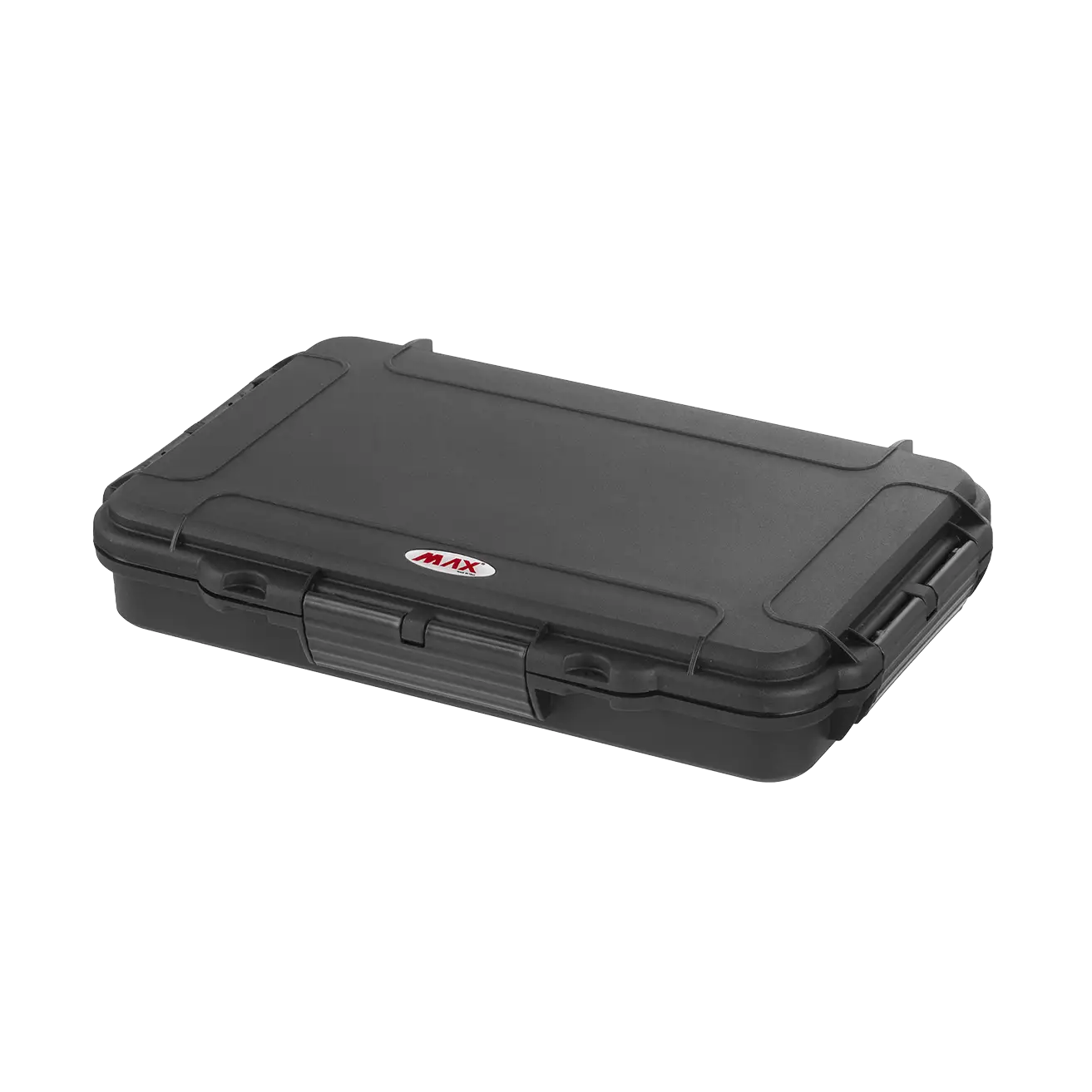

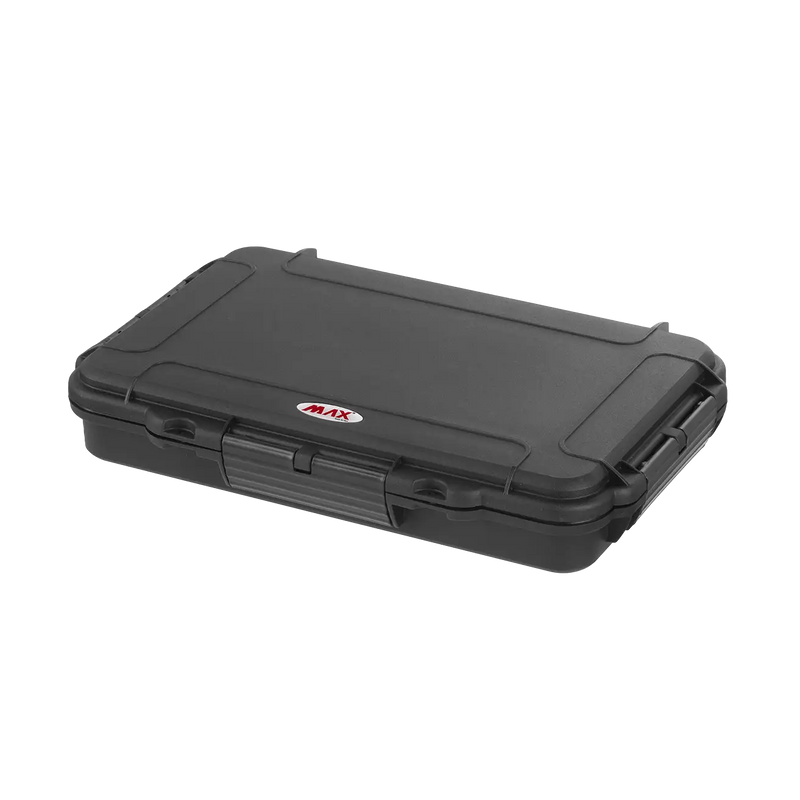

Closed black MAX003 case from an angle, showing the textured lid, red MAX badge and front latches

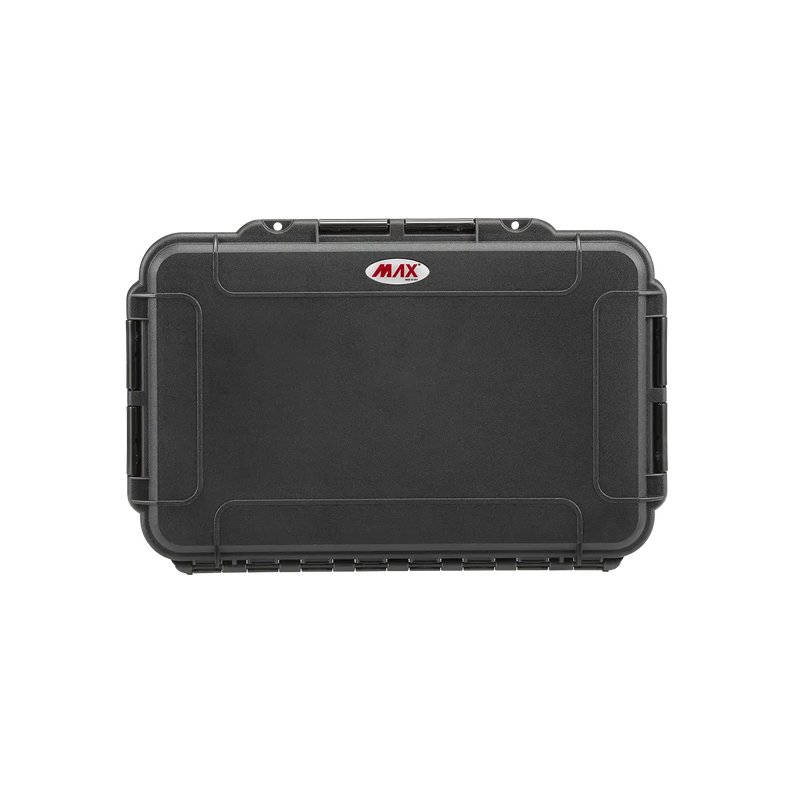

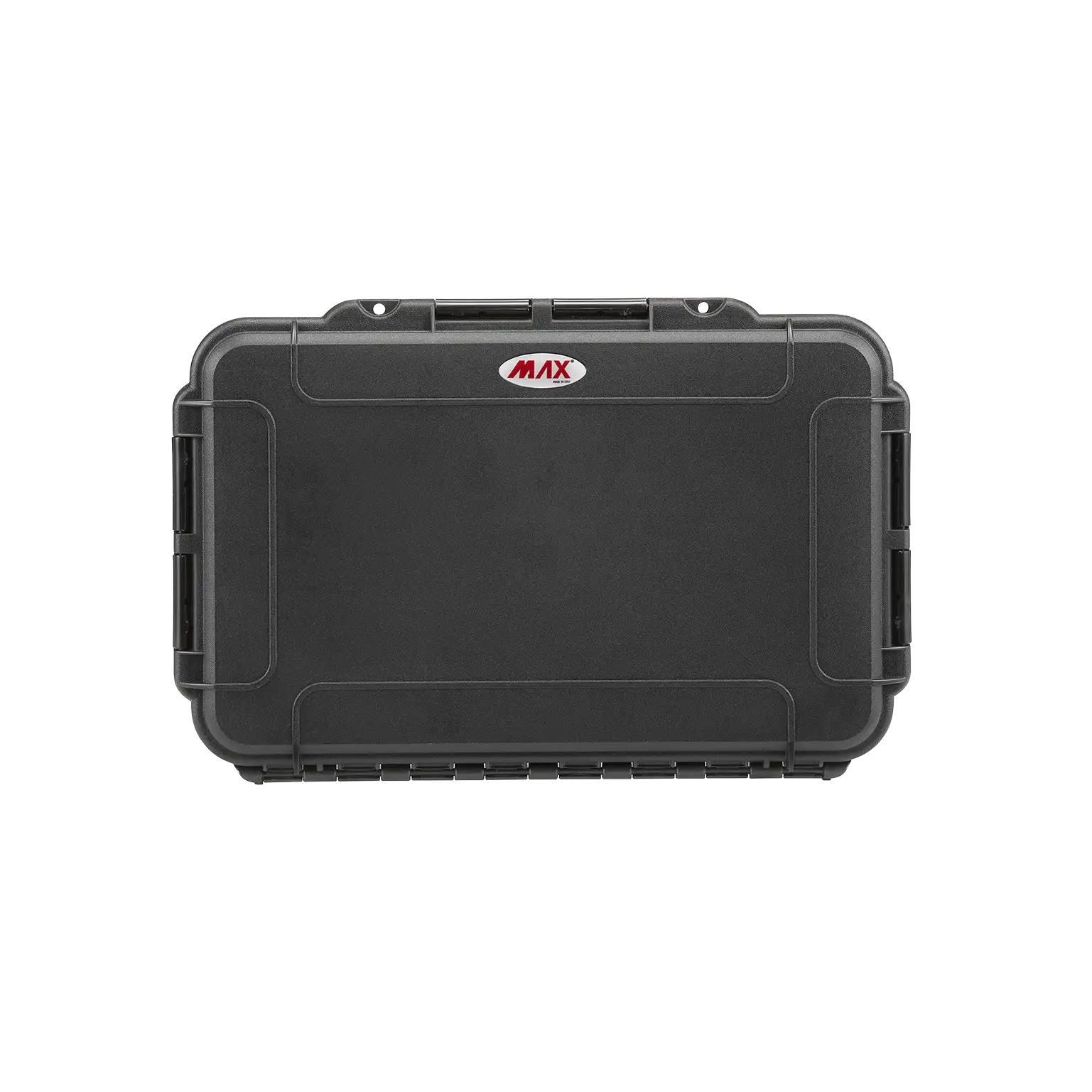

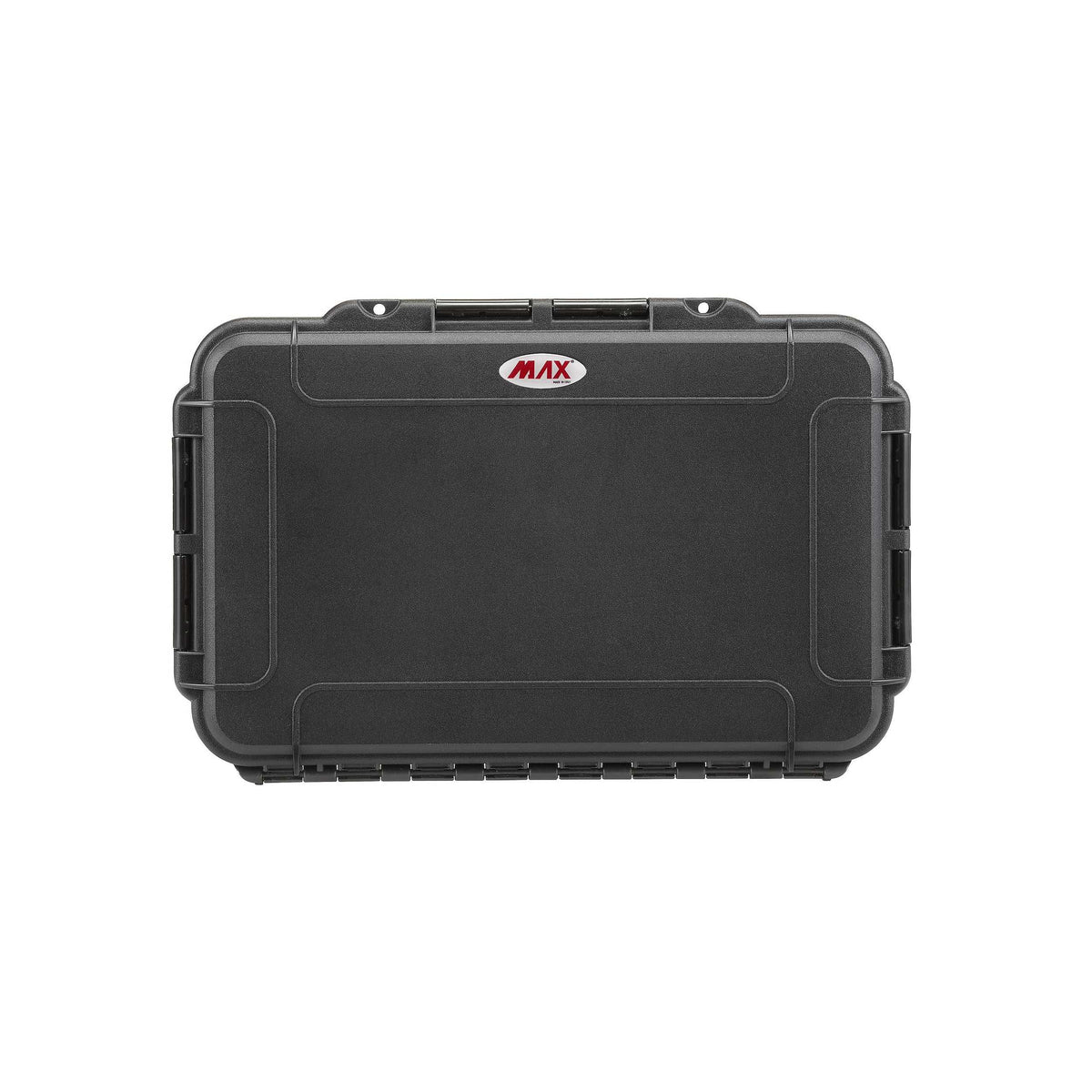

Top view of the closed MAX003 shell in black with the MAX logo and latch tabs along the front
Panaro MAX003GPB open, black egg-crate convoluted foam lining both the raised lid and the shallow base
Closed black MAX003 case from an angle, showing the textured lid, red MAX badge and front latches
Top view of the closed MAX003 shell in black with the MAX logo and latch tabs along the front
Panaro MAX003GPB open, black egg-crate convoluted foam lining both the raised lid and the shallow base
Closed black MAX003 case from an angle, showing the textured lid, red MAX badge and front latches
Top view of the closed MAX003 shell in black with the MAX logo and latch tabs along the front
Panaro

Panaro MAX003VGPB Waterproof Case with Convoluted Foam Black

$57.75
$57.75
RRP $62.57
Or 4 payments of $14.44 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX003VGPB

MAX003 With Egg-Crate Foam Top And Bottom

The MAX003VGPB pairs the slim black MAX003 with convoluted foam in both halves, so a fragile item rides between two profiled layers with no cutting or plucking needed.

Panaro's foam sheet for the MAX003 shows the GPB set as a 35 mm convoluted layer in the base and a 15 mm convoluted layer in the lid. The peaks compress around whatever you lay on them, which suits loads that change from trip to trip. The shell is 350 x 230 x 59 mm outside and 316 x 195 x 53 mm inside, and Panaro list this version at 0.54 kg.

CMC tested the MAX003 shell to IP67 under EN 60529 (the report is issued for the MAX003V). The GPB datasheet repeats the core MAX points, a watertight lid, an auto pressure release valve and stacking ribs, with -10 to 80 °C as the working range.

Use it for a small instrument, sensor, lens in a pouch or a sample that must not rattle. When one item always travels in the same spot, cubed foam (MAX003S) lets you pluck a fixed outline instead.

More sizes with egg-crate foam are in our Panaro collection. You can also compare foam-lined protective cases from other makers, or cases for medical supplies.

Often ordered together

  • Convoluted foam in lid and base
  • 35 mm base layer, 15 mm lid layer
  • No plucking or cutting required
  • IP67 tested shell (CMC, MAX003V)
  • Inside 316 x 195 x 53 mm
  • Flat profile with two latches
  • Small instruments and sensors
  • Lenses and accessories in pouches
  • Samples that must not rattle
  • Changing loads from job to job

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX003VGPB

Mega Code: PMMAX003VGPB

Configuration: Convoluted foam in lid and base (GPB)

Colour: Black

External Dimensions: 350 x 230 x 59 mm

Internal Dimensions: 316 x 195 x 53 mm

Lid and Base Depth: 16 mm lid + 37 mm base

Capacity: 3.26 litres

Weight: 0.54 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range: -10 to 80 °C (Panaro datasheet)

Test Reports: IP67 (CMC report CT15231201, tested as MAX003V)

Pack Size: 1

Unit: Each

EAN: 8011236000148

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Convoluted foam has a wavy, peaked surface like an egg tray. Laid in both halves of the case, the peaks press around an item and hold different shapes without any cutting.
Panaro's MAX003 foam sheet gives the GPB set as 35 mm in the base and 15 mm in the lid.
V is the empty MAX003V shell and GPB is the convoluted foam set fitted to it. Panaro's own page lists this configuration as MAX003GPB.
This listing is the case with the GPB foam fitted. If you would prefer pick and pluck foam, the MAX003S has cubed foam in the base.
Four PDFs are attached: the MAX003GPB datasheet, Panaro's MAX003 foam layout sheet, the shell drawing and the IP67 summary from CMC.
