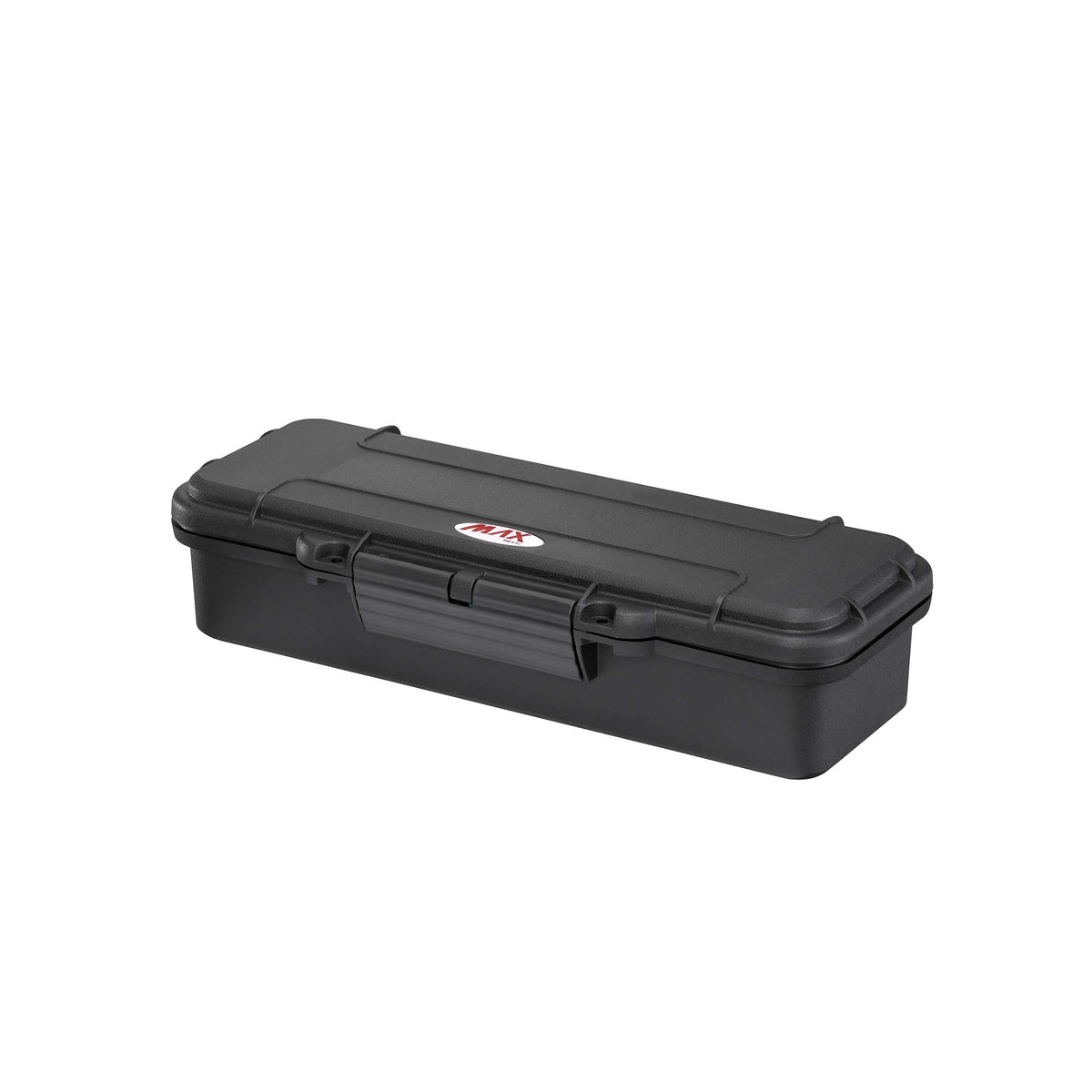

Panaro MAX005 black narrow case closed, angled view showing the lid, two latches and the red MAX badge

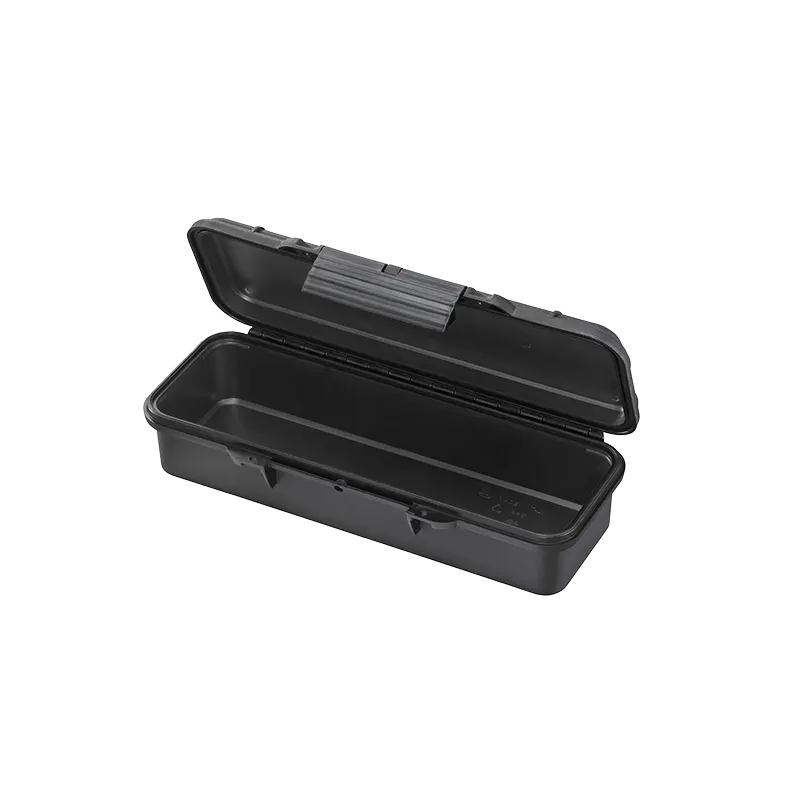

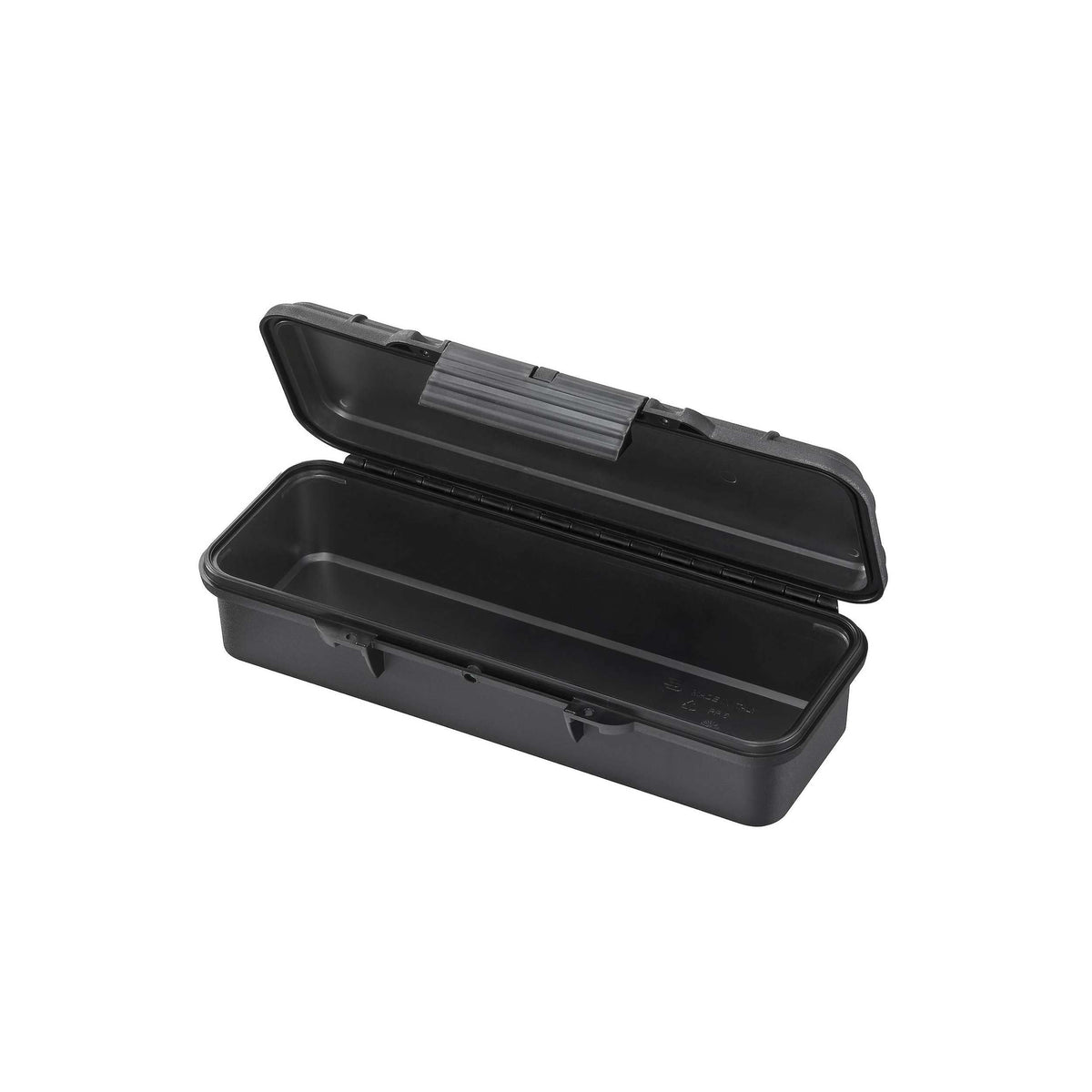

MAX005 opened and empty, the long black base and lid recess visible with the hinge along the back

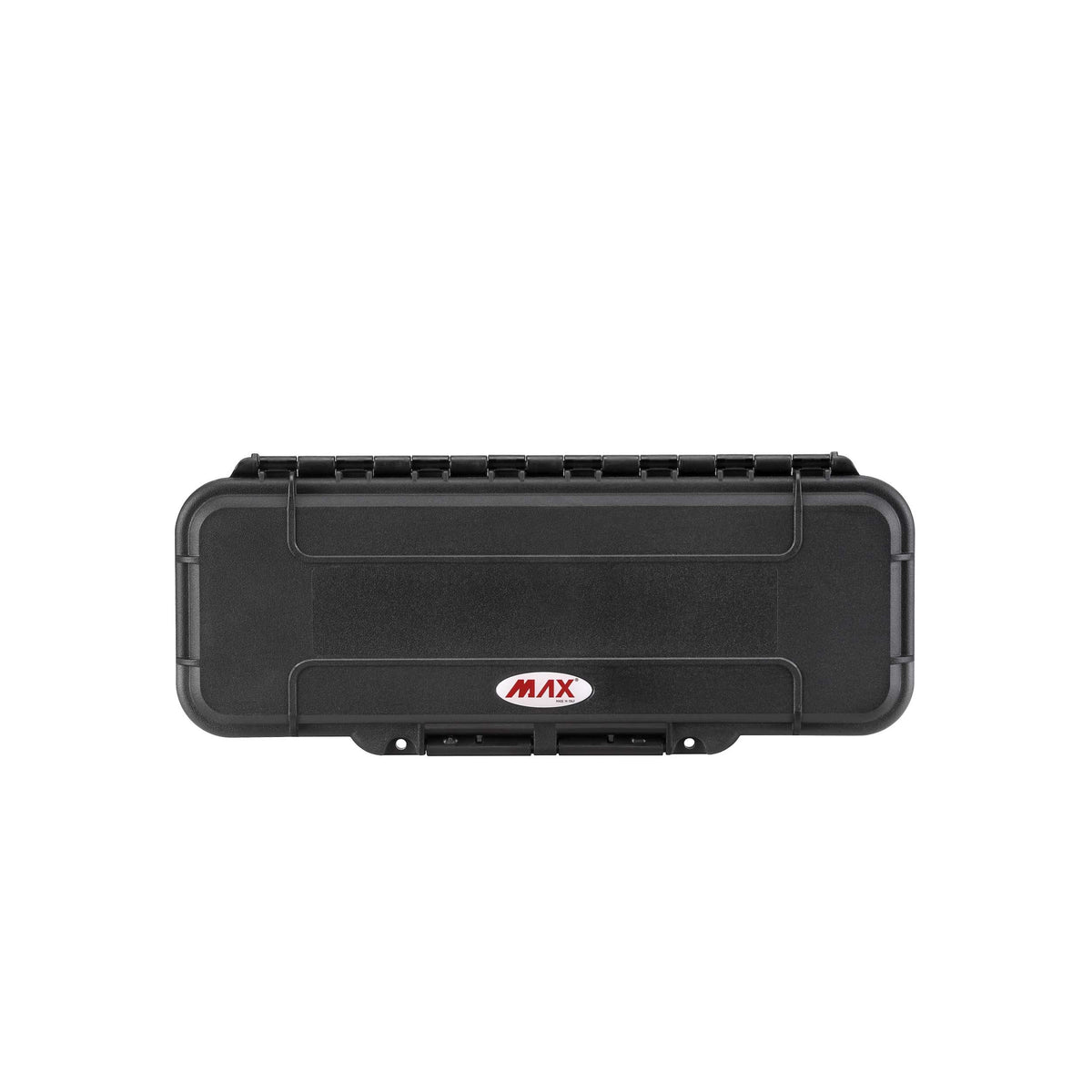

Overhead view of the closed MAX005, a long rectangular black shell with latch tabs at the front
Panaro MAX005 black narrow case closed, angled view showing the lid, two latches and the red MAX badge
MAX005 opened and empty, the long black base and lid recess visible with the hinge along the back
Overhead view of the closed MAX005, a long rectangular black shell with latch tabs at the front
Panaro MAX005 black narrow case closed, angled view showing the lid, two latches and the red MAX badge
MAX005 opened and empty, the long black base and lid recess visible with the hinge along the back
Overhead view of the closed MAX005, a long rectangular black shell with latch tabs at the front
Panaro

Panaro MAX005V Hard Case Black

$33.66
$33.66
RRP $36.30
Or 4 payments of $8.42 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX005V

Empty MAX005 For Slim Tools And Spares

The MAX005V is Panaro's narrow MAX005 sold empty, a 0.28 kg hard shell for long, thin things that would get crushed or lost in a bag.

There is 292 x 92 x 65 mm of open space inside, 13.5 mm in the lid and 51.5 mm in the base, or 1.6 litres, and the shell is 309 x 128 x 71.5 mm outside. Without foam, you can drop in tools in a roll, a cable bundle or a stack of spare blades in their packet.

Its test result is IP52 under EN 60529 (Teslab report 252050A): dust-protected and resistant to dripping water. Panaro have not published an IP67 report for the MAX005, so do not count on it under water. A Panaro declaration also records MIL-STD-810G fungus and fluid contamination results for the MAX series materials.

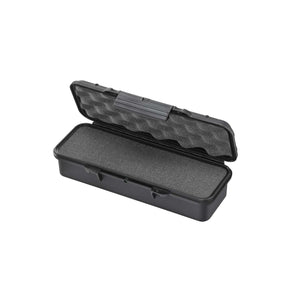

If you want the contents held still, the same shell is sold with cubed foam as the MAX005S and with high density foam as the MAX005HDS.

Bigger empty shells are in the Panaro range. You may also like our defence case selection, first aid cases and other protective cases.

Often ordered together

  • Empty, 292 x 92 x 65 mm inside
  • 1.6 litre capacity
  • Very light at 0.28 kg
  • IP52 test report (Teslab)
  • Automatic pressure release valve
  • Two-latch narrow shell
  • Tool rolls and slim hand tools
  • Cable and charger bundles
  • Spare blades in their packs
  • Pens, markers and stationery
  • Glovebox and console storage

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX005V

Mega Code: PMMAX005V

Configuration: Empty (no foam)

Colour: Black

External Dimensions: 309 x 128 x 71.5 mm

Internal Dimensions: 292 x 92 x 65 mm

Lid and Base Depth: 13.5 mm lid + 51.5 mm base

Capacity: 1.6 litres

Weight: 0.28 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range: -10 to 80 °C (Panaro datasheet)

Test Reports: IP52 (Teslab report 252050A); no IP67 report published for MAX005

Pack Size: 1

Unit: Each

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No, the MAX005V is empty. Foam versions are the MAX005S (standard cubed) and MAX005HDS (high density cubed).
IP52 is the published result: dust-protected, with protection from dripping water. No immersion rating has been issued for this model.
Inside you have 292 mm of length, 92 mm of width and 65 mm of depth, about 1.6 litres.
Yes: the datasheet, the MAX005 2D drawing, the IP52 test report and Panaro's fungus and fluid statement are attached.
