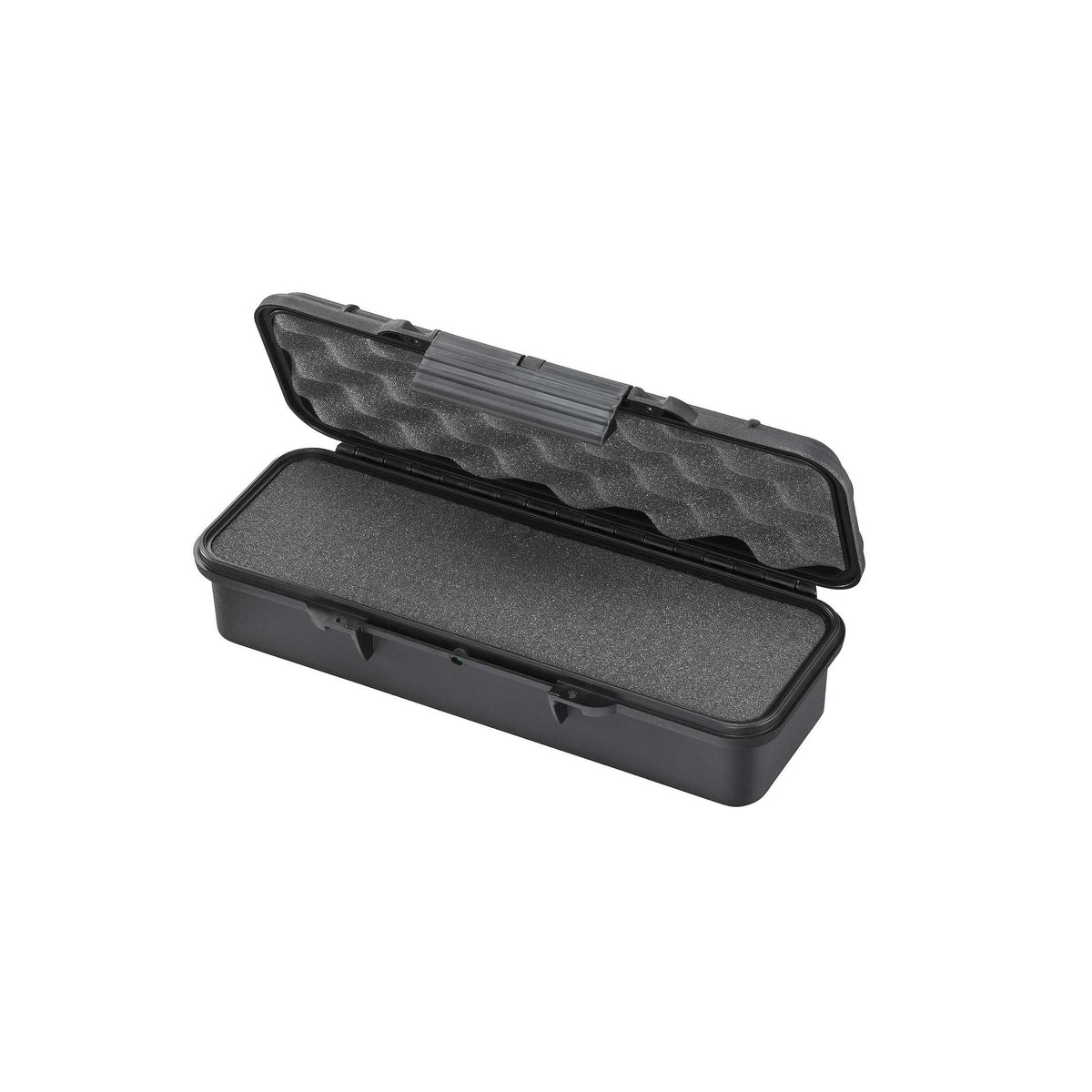

Panaro MAX005S opened, grey cubed pick and pluck foam in the long base with egg-crate foam in the lid

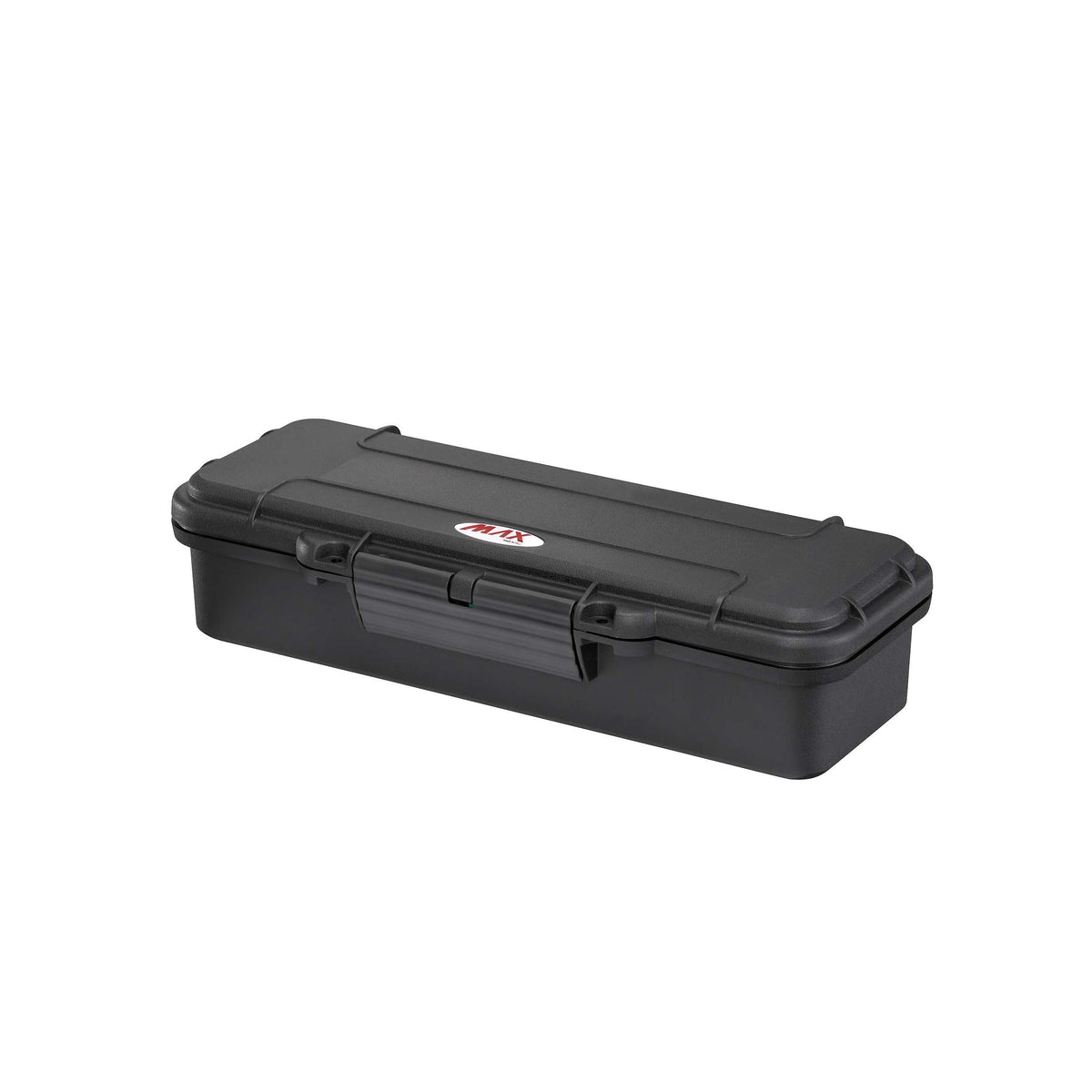

Closed black MAX005 case at an angle, a long narrow shell with two latches and the MAX logo

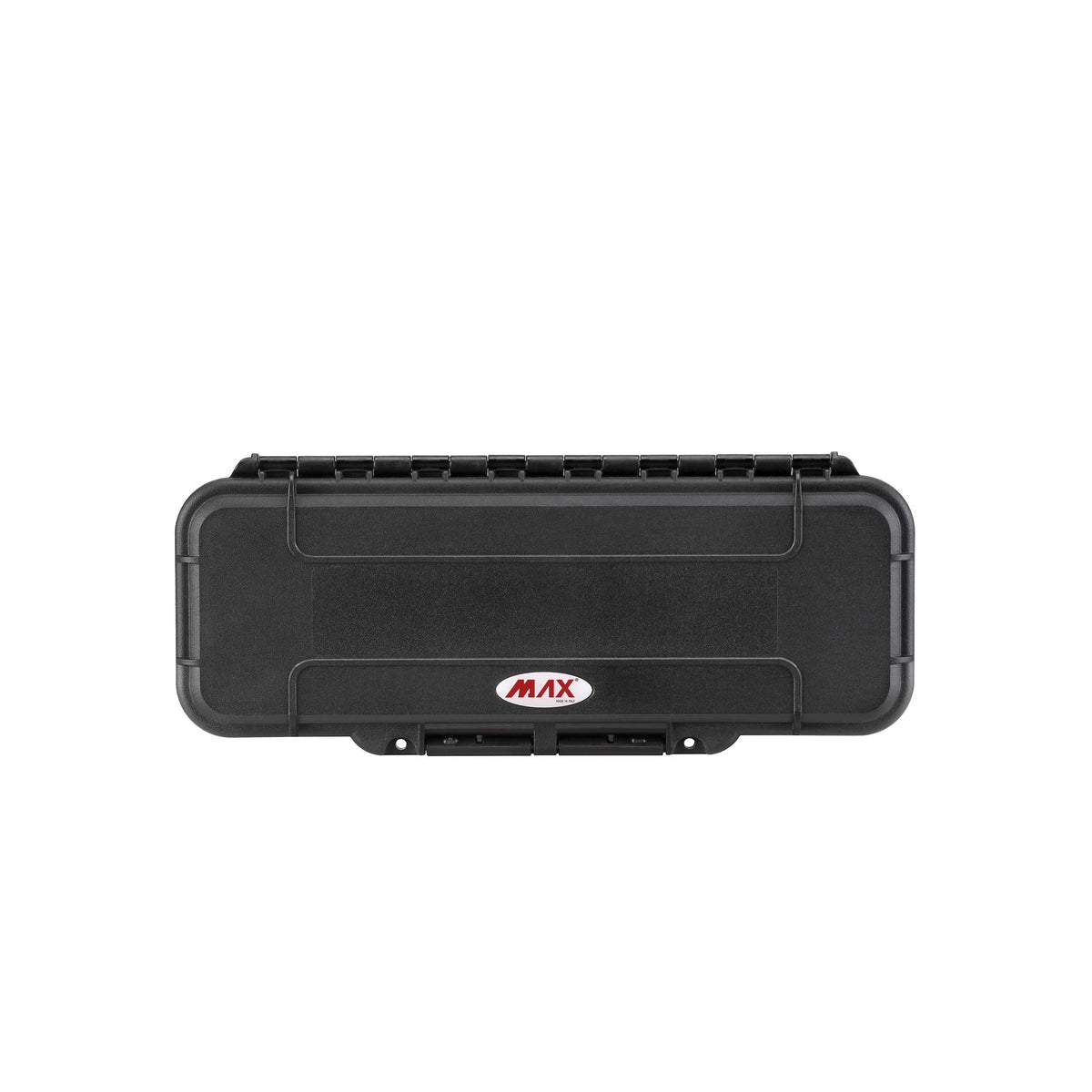

MAX005 seen from above, closed, showing the flat lid and the latch tabs along one long side
Panaro MAX005S opened, grey cubed pick and pluck foam in the long base with egg-crate foam in the lid
Closed black MAX005 case at an angle, a long narrow shell with two latches and the MAX logo
MAX005 seen from above, closed, showing the flat lid and the latch tabs along one long side
Panaro MAX005S opened, grey cubed pick and pluck foam in the long base with egg-crate foam in the lid
Closed black MAX005 case at an angle, a long narrow shell with two latches and the MAX logo
MAX005 seen from above, closed, showing the flat lid and the latch tabs along one long side
Panaro

Panaro MAX005S Hard Case with Cubed Foam Black

$42.13
$42.13
RRP $45.73
Or 4 payments of $10.53 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX005S

Pick And Pluck Foam For Slim, Long Items

MAX005S is the standard cubed foam version of Panaro's slim MAX005, a light 0.30 kg case for pens, styluses, probes or a small camera accessory kept in its own cut-out.

Two 20 mm layers of pre-cut cubes sit on a 10 mm base pad, so shallow items can be set into the top layer and deeper ones through both. A 15 mm convoluted layer in the lid holds everything down. The usable space is 292 x 92 x 65 mm (13.5 mm lid plus 51.5 mm base), inside a 309 x 128 x 71.5 mm shell.

Teslab tested the MAX005 to IP52 under EN 60529, which covers dust protection and dripping water. That is the only rating published for this model, so it is a splash and dust case rather than an immersion one. Panaro's declaration covers MIL-STD-810G fluid contamination and fungus testing of MAX series materials.

Good uses are fine-tip drawing tools, a fountain pen set, a handheld microphone, spare camera batteries or a stylus kit.

Browse Panaro MAX sizes for something deeper, photo and video cases for media accessories, medical cases for clinic items, or any protective case.

Often ordered together

  • Standard cubed foam, two 20 mm layers
  • Convoluted lid foam, 15 mm
  • 292 x 92 x 65 mm interior
  • IP52 test report (Teslab)
  • Light at 0.30 kg
  • Stackable MAX shell
  • Drawing pens and styluses
  • Fountain pen sets
  • Handheld microphones
  • Spare camera batteries and cards
  • Probes and slim tools

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX005S

Mega Code: PMMAX005S

Configuration: Cubed pick and pluck foam (S)

Colour: Black

External Dimensions: 309 x 128 x 71.5 mm

Internal Dimensions: 292 x 92 x 65 mm

Lid and Base Depth: 13.5 mm lid + 51.5 mm base

Capacity: 1.6 litres

Weight: 0.30 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range: -10 to 80 °C (Panaro datasheet)

Test Reports: IP52 (Teslab report 252050A); no IP67 report published for MAX005

Pack Size: 1

Unit: Each

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. The MAX005 test report is IP52, which covers dust and dripping water only. For immersion-tested cases, look at the MAX003 or MAX004, which have IP67 reports.
Mark the outline with the item in place, then pull cubes out gradually, working inwards. Two layers let you choose 20 mm or 40 mm deep pockets.
S is Panaro's standard grade. If you want firmer support for a heavier item, the MAX005HDS uses high density cubes.
Attached as PDFs: Panaro's S and HDS datasheet for the MAX005, its foam diagram, the outline drawing, the IP52 test report and a fungus and fluid declaration.
