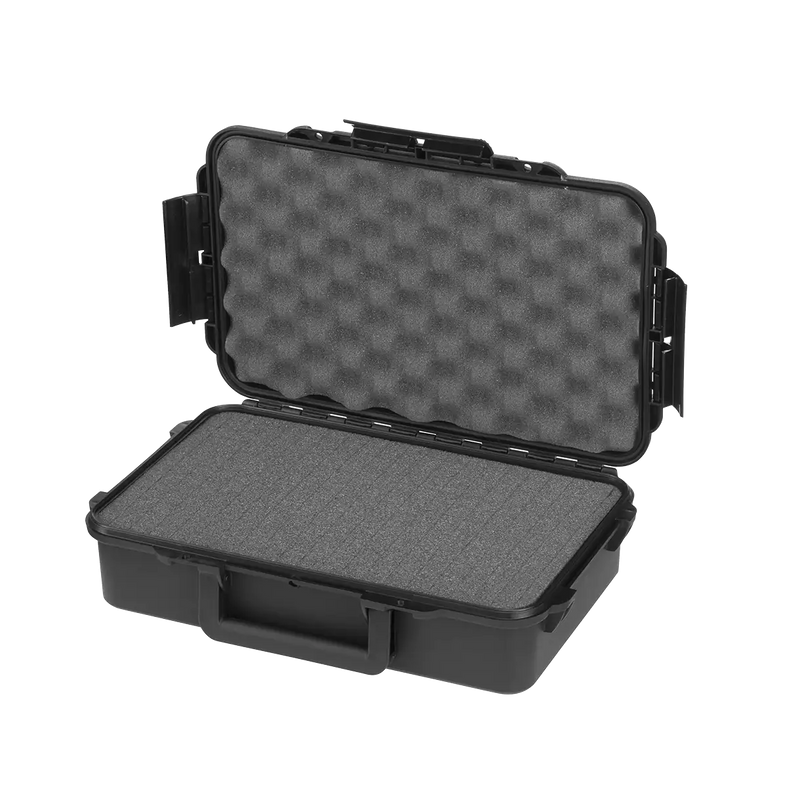

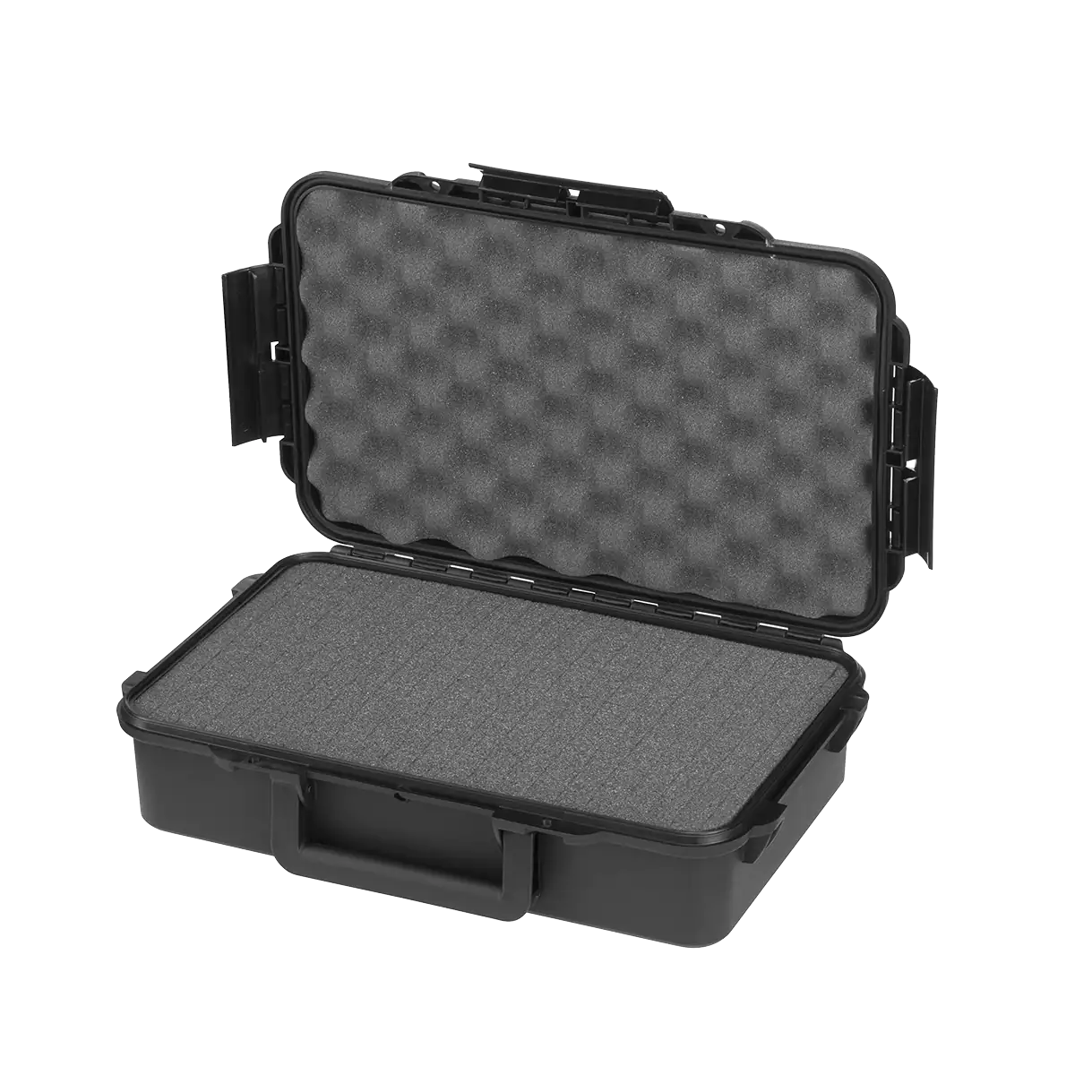

Panaro MAX004S open, grey pick and pluck cubed foam filling the black base and convoluted foam in the raised lid
Closed MAX004 in black seen from an angle, showing the front handle, two latches and the red MAX logo

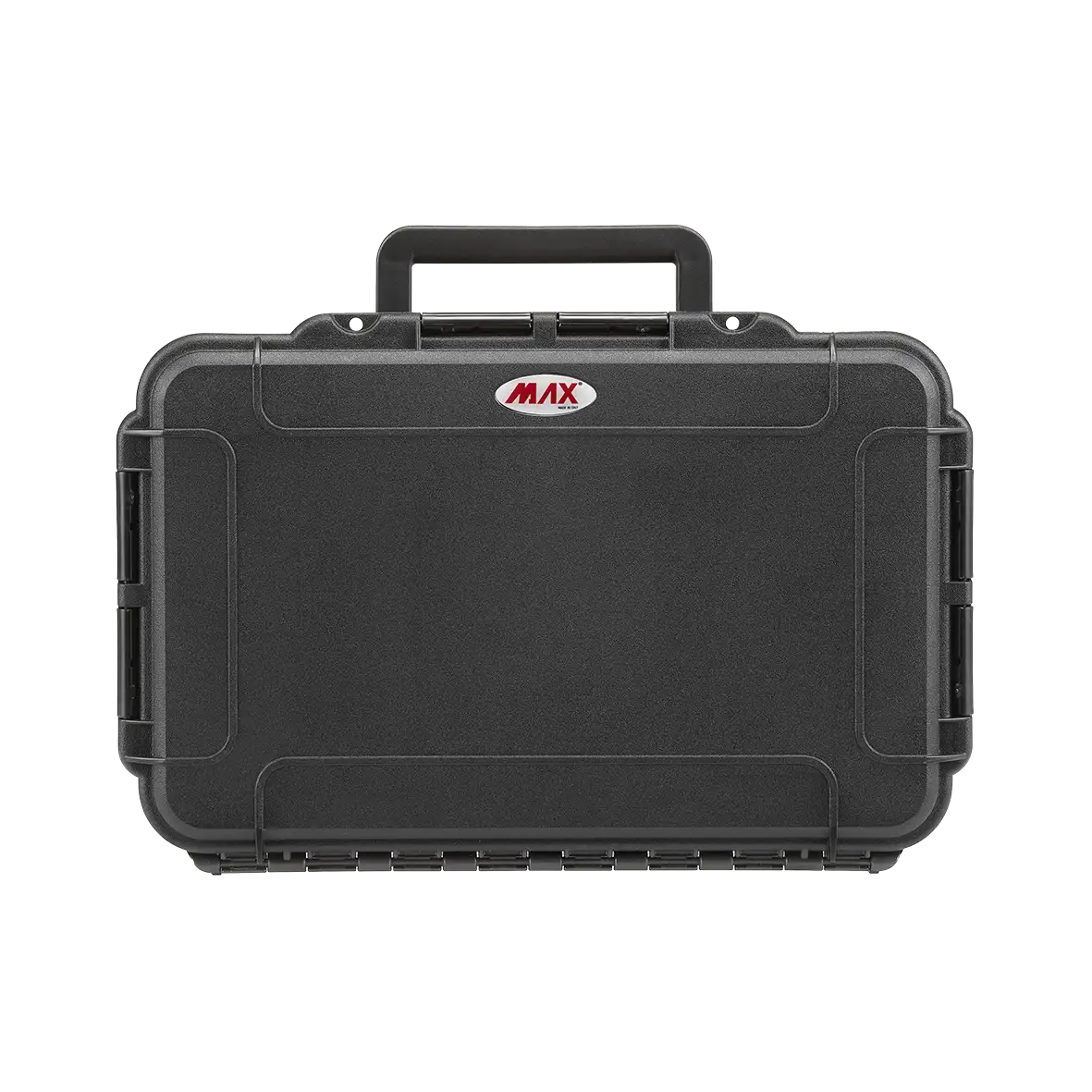

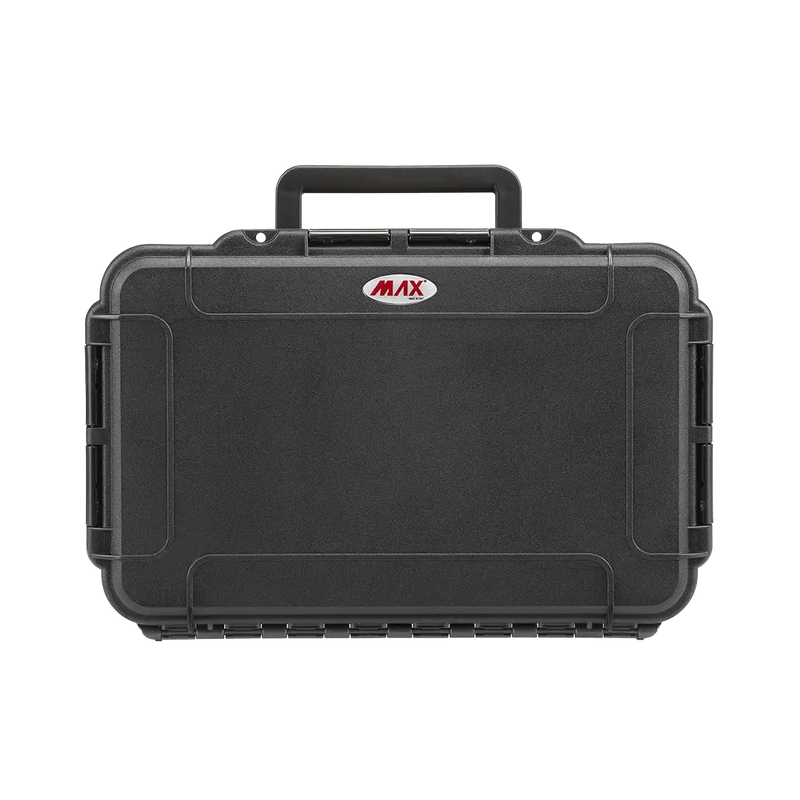

MAX004 case standing upright in front view, handle up, with the flat textured lid face
Panaro MAX004S open, grey pick and pluck cubed foam filling the black base and convoluted foam in the raised lid
Closed MAX004 in black seen from an angle, showing the front handle, two latches and the red MAX logo
MAX004 case standing upright in front view, handle up, with the flat textured lid face
Panaro MAX004S open, grey pick and pluck cubed foam filling the black base and convoluted foam in the raised lid
Closed MAX004 in black seen from an angle, showing the front handle, two latches and the red MAX logo
MAX004 case standing upright in front view, handle up, with the flat textured lid face
Panaro

Panaro MAX004S Waterproof Case with Cubed Foam Black

$81.62
$81.62
RRP $88.22
Or 4 payments of $20.41 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX004S

Everyday Pick And Pluck Foam In The MAX004

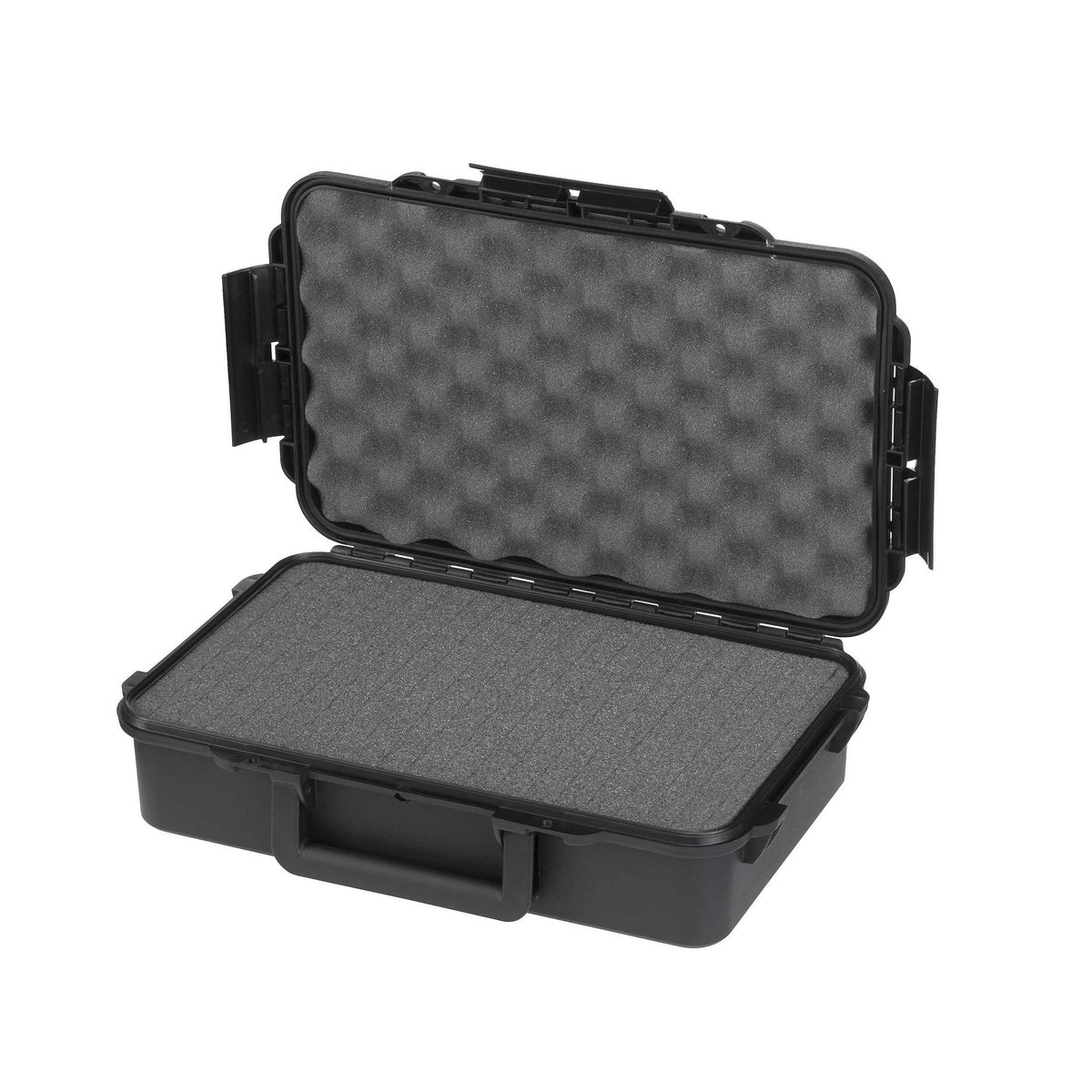

MAX004S is the standard foam version of Panaro's MAX004: pluck the pre-scored cubes to the shape of a small camera, meter or tool set and it stays put in transit.

Under the cubes sits a thin 5 mm pad, and the cubed foam itself comes as two 30 mm layers, so you can cut shallow pockets for flat items and full-depth ones for taller kit. The lid carries 15 mm of convoluted foam that presses down on top. At 0.66 kg, the S version is lighter than the high density HDS.

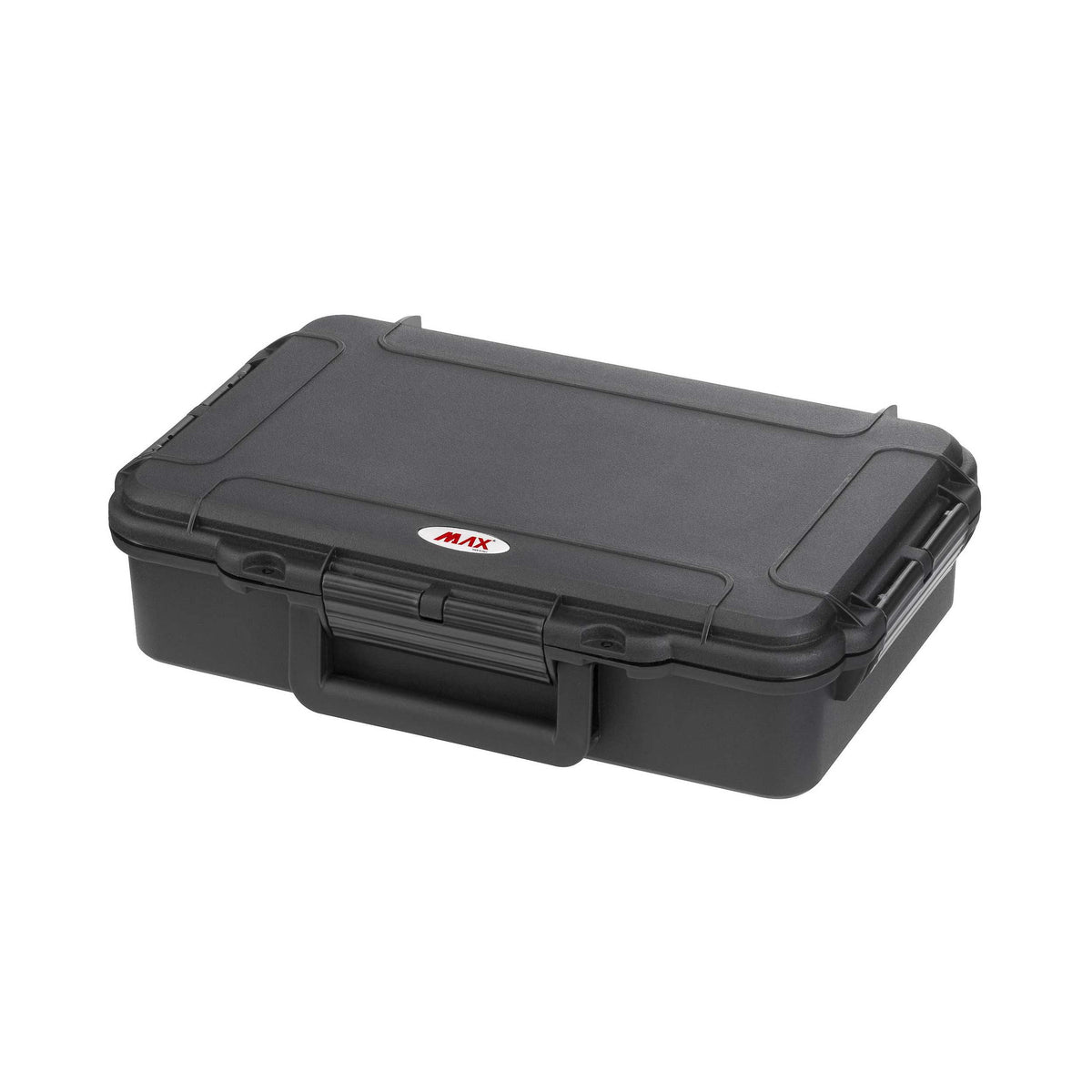

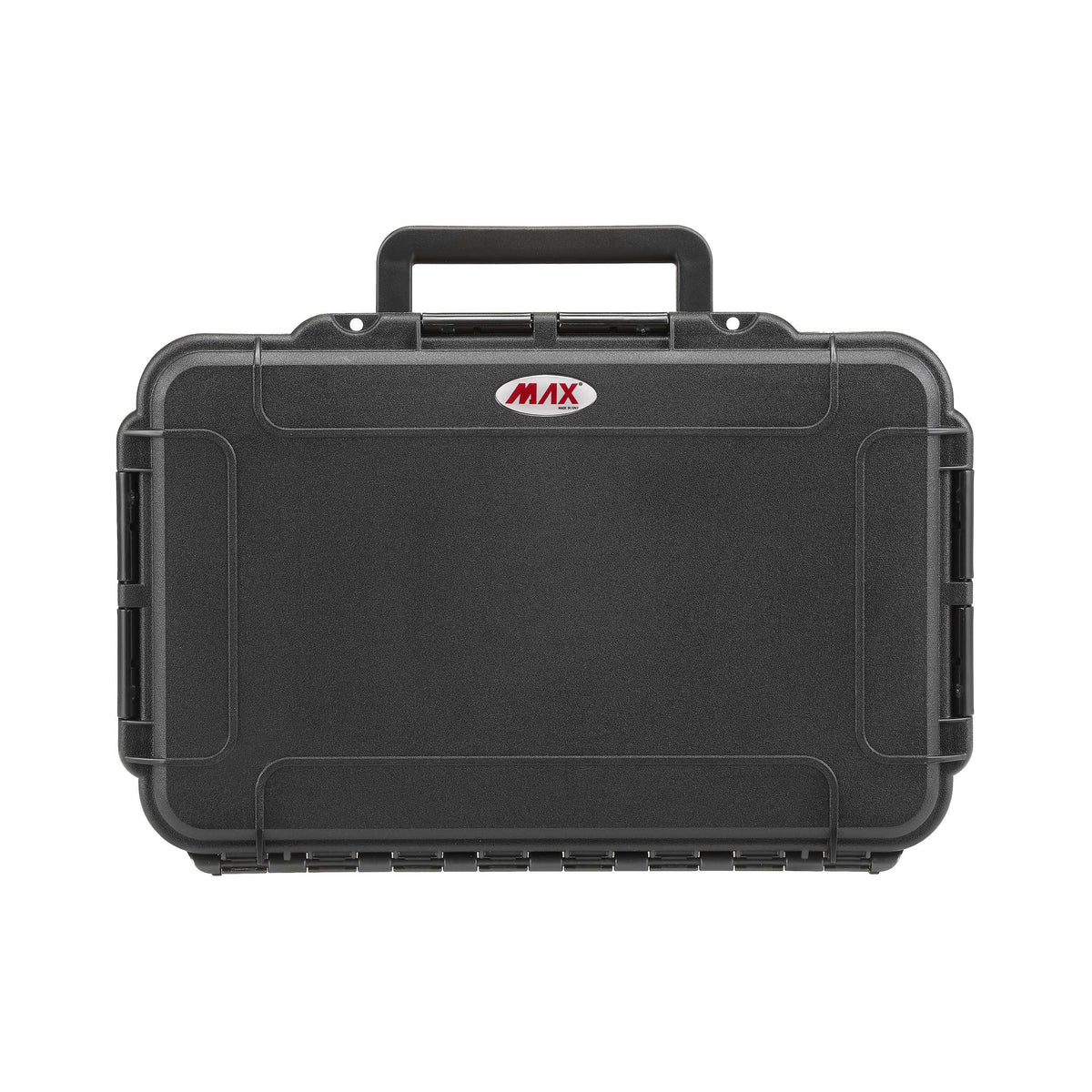

Inside the case there is 316 x 195 x 81 mm (16 mm lid, 65 mm base), 4.99 litres in all, behind a fold-down front handle. CMC's IP67 report covers the MAX004V shell, and Panaro's spec sheet adds a valve that balances air pressure on its own, a gasket-sealed lid and stacking ribs, for use from -10 to 80 °C.

It suits a compact camera with spare lens, an action camera kit, a multimeter with leads or a set of hand tools you want to see at a glance.

Find matching sizes across all Panaro MAX cases, look through cases for photography gear, or widen the search to every protective case we stock.

Often ordered together

  • Standard S cubed foam, two 30 mm layers
  • 5 mm base pad under the cubes
  • Convoluted 15 mm lid foam
  • Inside 316 x 195 x 81 mm, 4.99 litres
  • IP67 tested shell (CMC, MAX004V)
  • 0.66 kg as supplied
  • Compact camera with a spare lens
  • Action camera kits
  • Multimeters and test leads
  • Precision hand tool sets
  • Audio recorders and microphones

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX004S

Mega Code: PMMAX004S

Configuration: Cubed pick and pluck foam (S)

Colour: Black

External Dimensions: 350 x 230 x 86 mm

Internal Dimensions: 316 x 195 x 81 mm

Lid and Base Depth: 16 mm lid + 65 mm base

Capacity: 4.99 litres

Weight: 0.66 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range: -10 to 80 °C (Panaro datasheet)

Test Reports: IP67 (CMC report CT16024001, tested as MAX004V)

Pack Size: 1

Unit: Each

EAN: 8011236000162

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro split the cubed foam into two 30 mm layers, so you can pluck a shallow pocket in the top layer only, or go through both for taller items.
S is the standard grade and the lighter case at 0.66 kg. HDS uses high density cubes and weighs 0.84 kg; it suits heavier, denser items.
Keep them. If you change the layout later, cubes can be pushed back into a pocket you no longer need.
Yes, it has a fold-down carry handle on the front, which the slimmer MAX003 does not.
Downloads for this case: the MAX004 S and HDS spec sheet, a foam configuration diagram, Panaro's technical drawing and the CMC IP67 test certificate.
