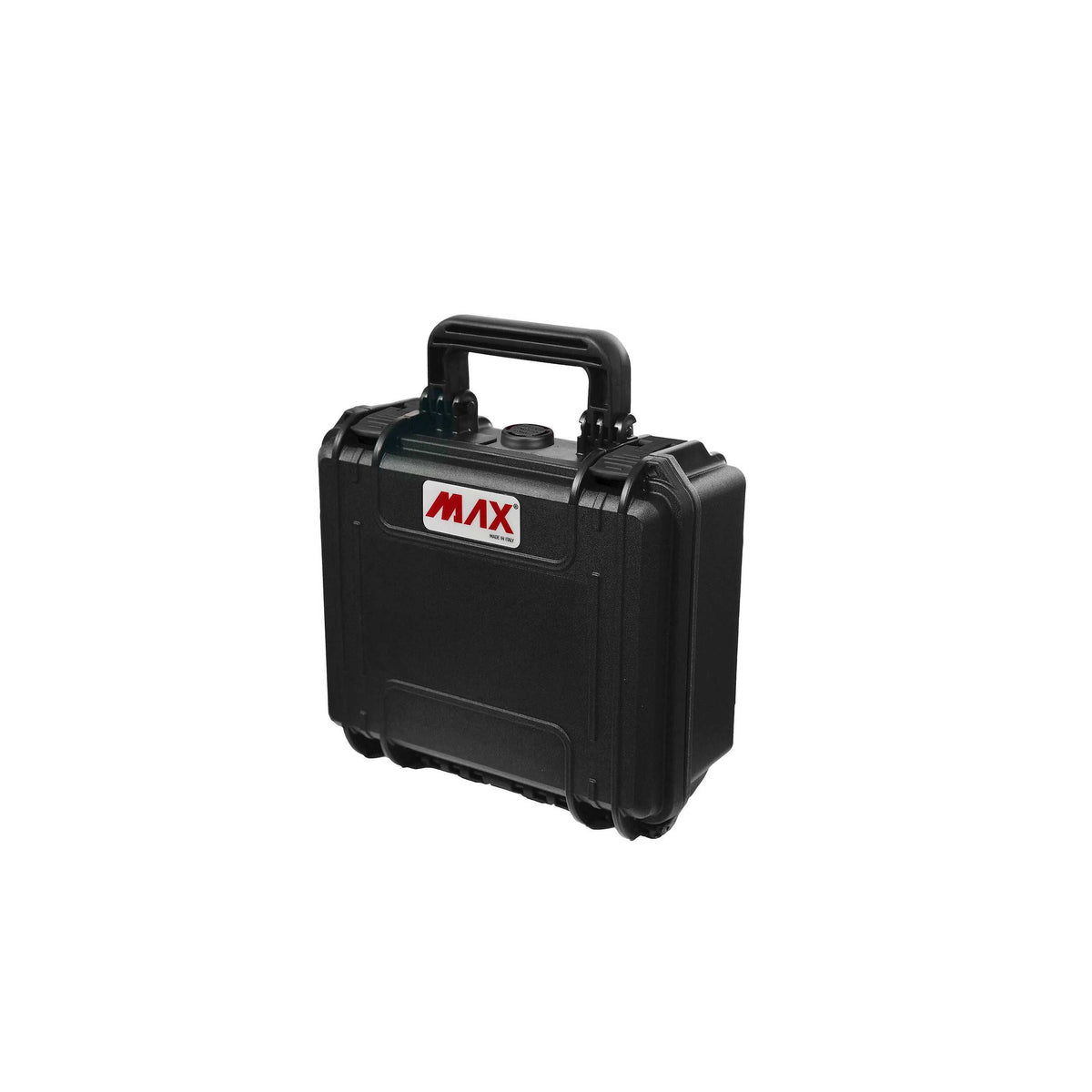

Panaro MAX235H105 black case closed, upright three-quarter view of the handle, latches and red MAX label

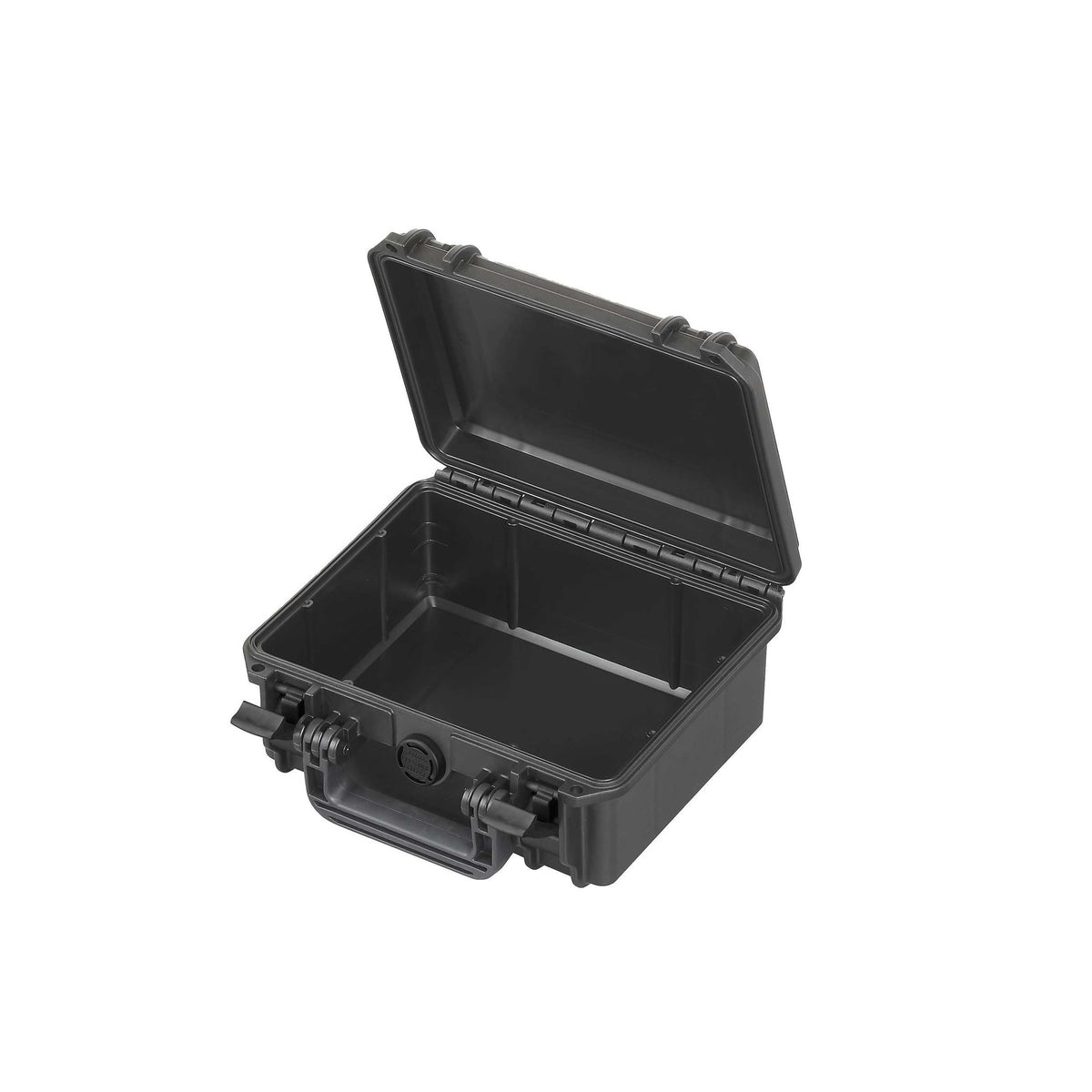

Empty MAX235H105 opened, showing the plain black base, the lid recess and the gasket channel

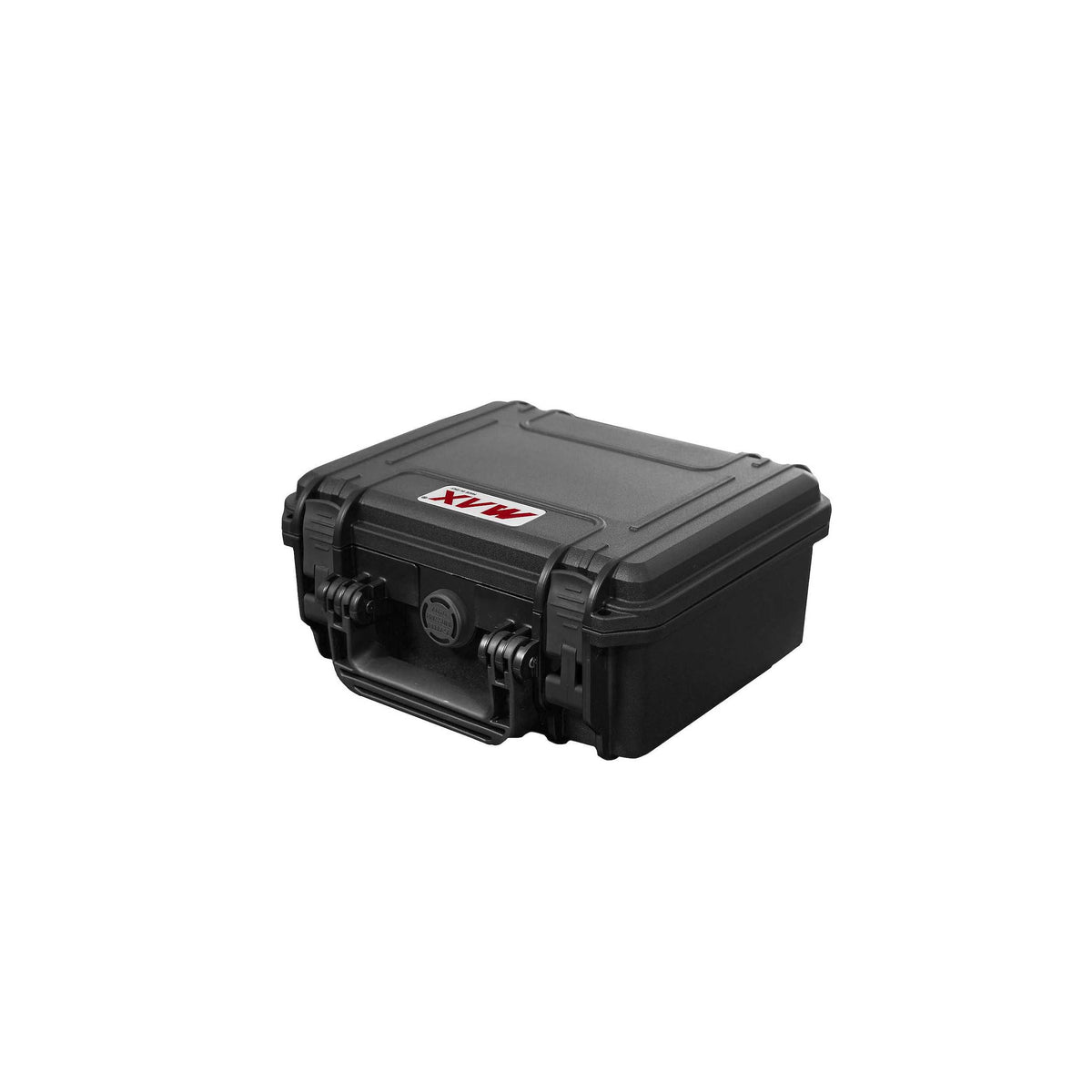

MAX235H105 lying flat, closed, seen from the front corner with its two latches and the handle folded down

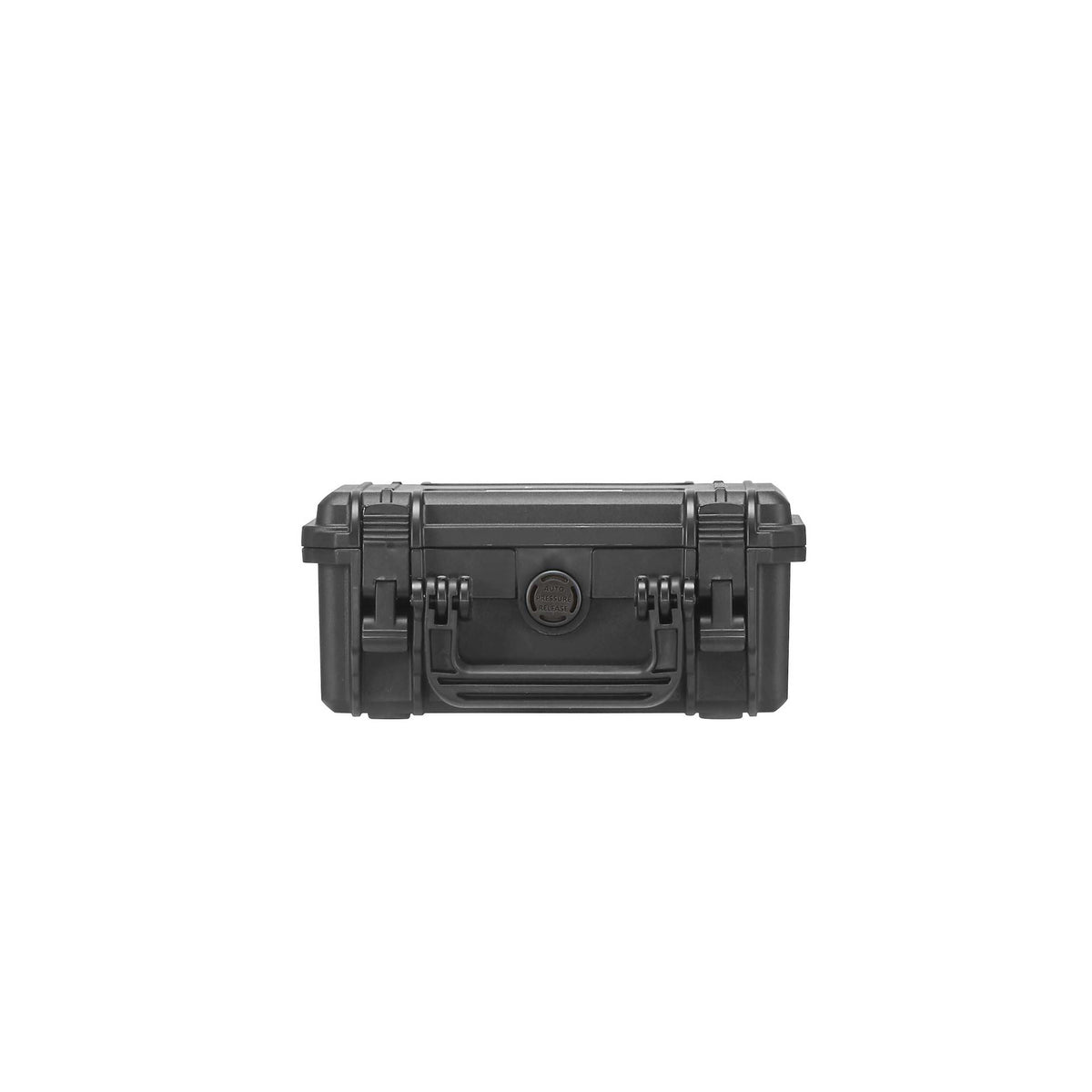

Overhead view of the closed black MAX235H105 showing the handle, latch pair and pressure valve
Panaro MAX235H105 black case closed, upright three-quarter view of the handle, latches and red MAX label
Empty MAX235H105 opened, showing the plain black base, the lid recess and the gasket channel
MAX235H105 lying flat, closed, seen from the front corner with its two latches and the handle folded down
Overhead view of the closed black MAX235H105 showing the handle, latch pair and pressure valve
Panaro MAX235H105 black case closed, upright three-quarter view of the handle, latches and red MAX label
Empty MAX235H105 opened, showing the plain black base, the lid recess and the gasket channel
MAX235H105 lying flat, closed, seen from the front corner with its two latches and the handle folded down
Overhead view of the closed black MAX235H105 showing the handle, latch pair and pressure valve
Panaro

Panaro MAX235H105 Waterproof Case Black

$85.14
$85.14
RRP $91.09
Or 4 payments of $21.29 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX235H105

MAX235H105: Air Transport And Military Tested

The black MAX235H105 is an empty, mid-size MAX case backed by a full file of Panaro test reports: IP67, the NATO STANAG 4280 programme, MIL-STD-810H and ATA 300 Category 1 for air transport.

Inside there is 235 x 180 x 106 mm (25 mm lid, 81 mm base), 4.48 litres, in a shell that measures 258 x 243 x 120 mm and weighs 0.84 kg empty. A soft grip handle, double throw latches, full length hinges and an automatic pressure release valve are on Panaro's datasheet, and the latch holes take padlocks.

The reports behind it: CMC for IP67; Teslab for NATO level 1 low temperature, heat, vibration and impact under STANAG 4280 (with DEF STAN 81-41 Part 3); PAConsult for ATA 300 Cat. 1 shipping tests; and Teslab again in 2026 for MIL-STD-810H vibration and transit drop. Panaro give a temperature range of -51 to 90 °C.

In black and empty, it is a discreet case for a radio, camera lenses in pouches, medical monitors or tools, ready for a custom foam inlay.

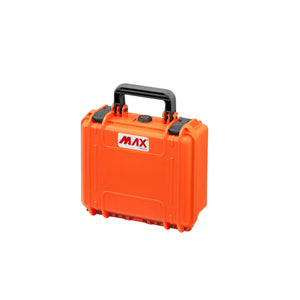

All MAX235 versions, black and orange, are in the Panaro collection. For other options see defence-grade cases, medical equipment cases and protective cases.

Often ordered together

  • ATA 300 Cat. 1 shipping tests (PAConsult)
  • NATO level 1 STANAG 4280 results
  • MIL-STD-810H vibration and drop
  • IP67 report from CMC
  • Inside 235 x 180 x 106 mm, 4.48 litres
  • Padlock holes beside the latches
  • Kit checked onto flights
  • Radios and comms equipment
  • Lenses and camera accessories in pouches
  • Patient monitors and medical devices
  • Custom foam fit-outs

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX235H105

Mega Code: PMMAX235H105

Configuration: Empty (no foam)

Colour: Black

External Dimensions: 258 x 243 x 120 mm

Internal Dimensions: 235 x 180 x 106 mm

Lid and Base Depth: 25 mm lid + 81 mm base

Capacity: 4.48 litres

Weight: 0.84 kg (Panaro)

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range: -51 to 90 °C (Panaro datasheet)

Test Reports: IP67 (CMC), STANAG 4280 / DEF STAN 81-41 (Teslab 169189A), ATA 300 Cat. 1 (PAConsult), MIL-STD-810H (Teslab 25B318A)

Pack Size: 1

Unit: Each

EAN: 8011236235014

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

ATA 300 is the airline industry packaging specification. PAConsult tested the MAX235H105 to its Category 1 shipping tests, Panaro's evidence that the case suits repeated air transport.
No, this listing is the empty black case. MAX235H105S has standard cubed foam and MAX235H105HDS has high density foam, and both come in orange too.
Teslab tested it at NATO level 1 to STANAG 4280 (edition 2) and DEF STAN 81-41 Part 3, and later to MIL-STD-810H Method 514.8 vibration and Method 516.8 transit drop.
Use the holes beside the latches for padlocks or a seal. Panaro recommend two padlocks on the outer points.
Seven PDFs are attached for this model, covering the datasheet and drawing, CMC's IP67 summary, Teslab's environmental and MIL-STD reports, PAConsult's ATA report and Panaro's fungus and fluid note.
