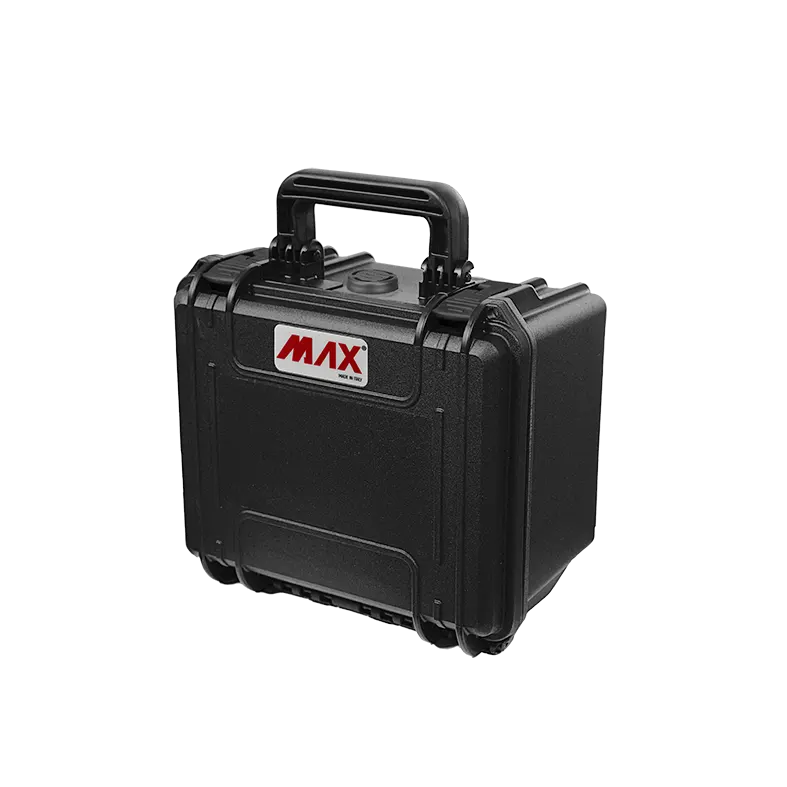

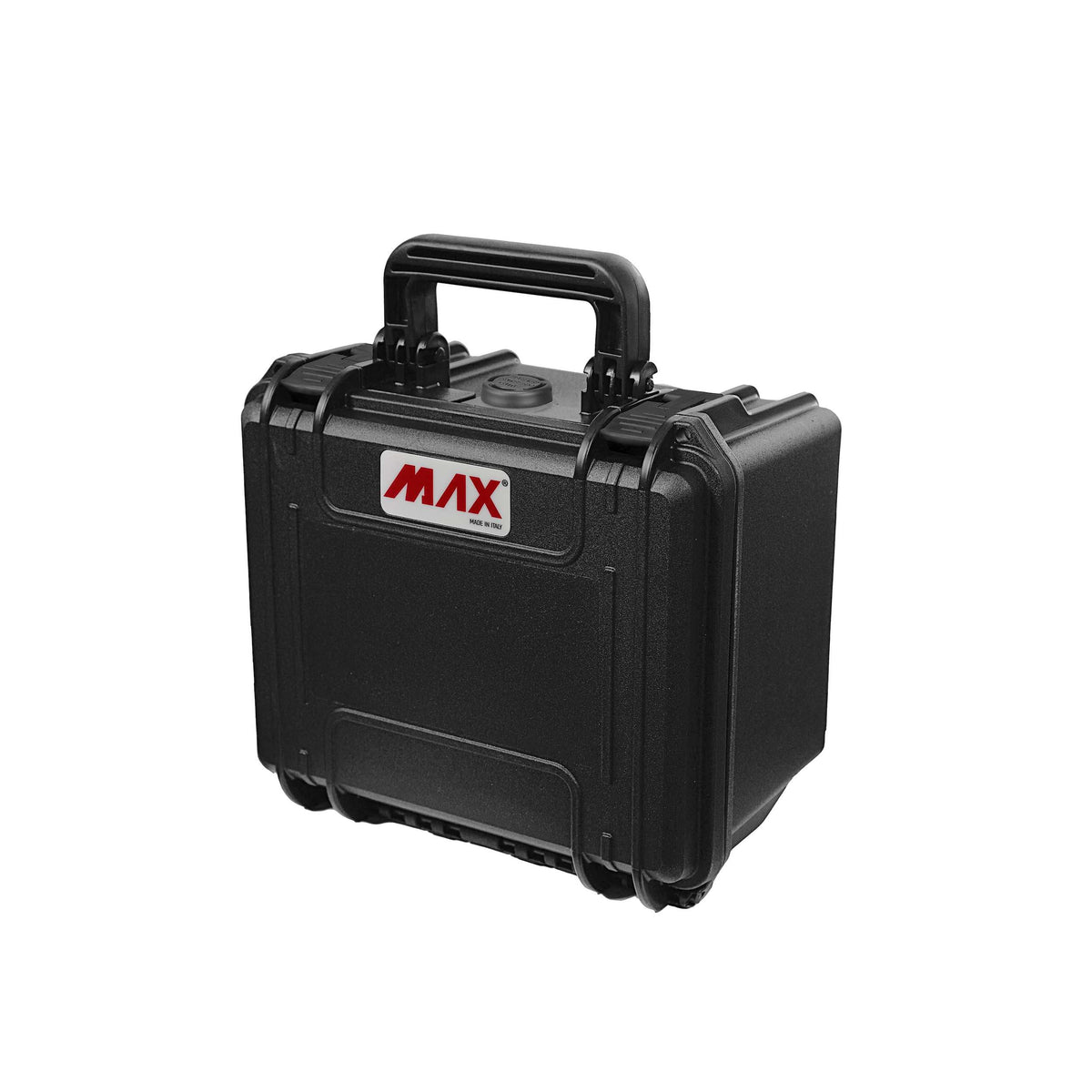

Closed black Panaro MAX235H155 case seen at an angle, with the handle up and the red MAX logo on the front

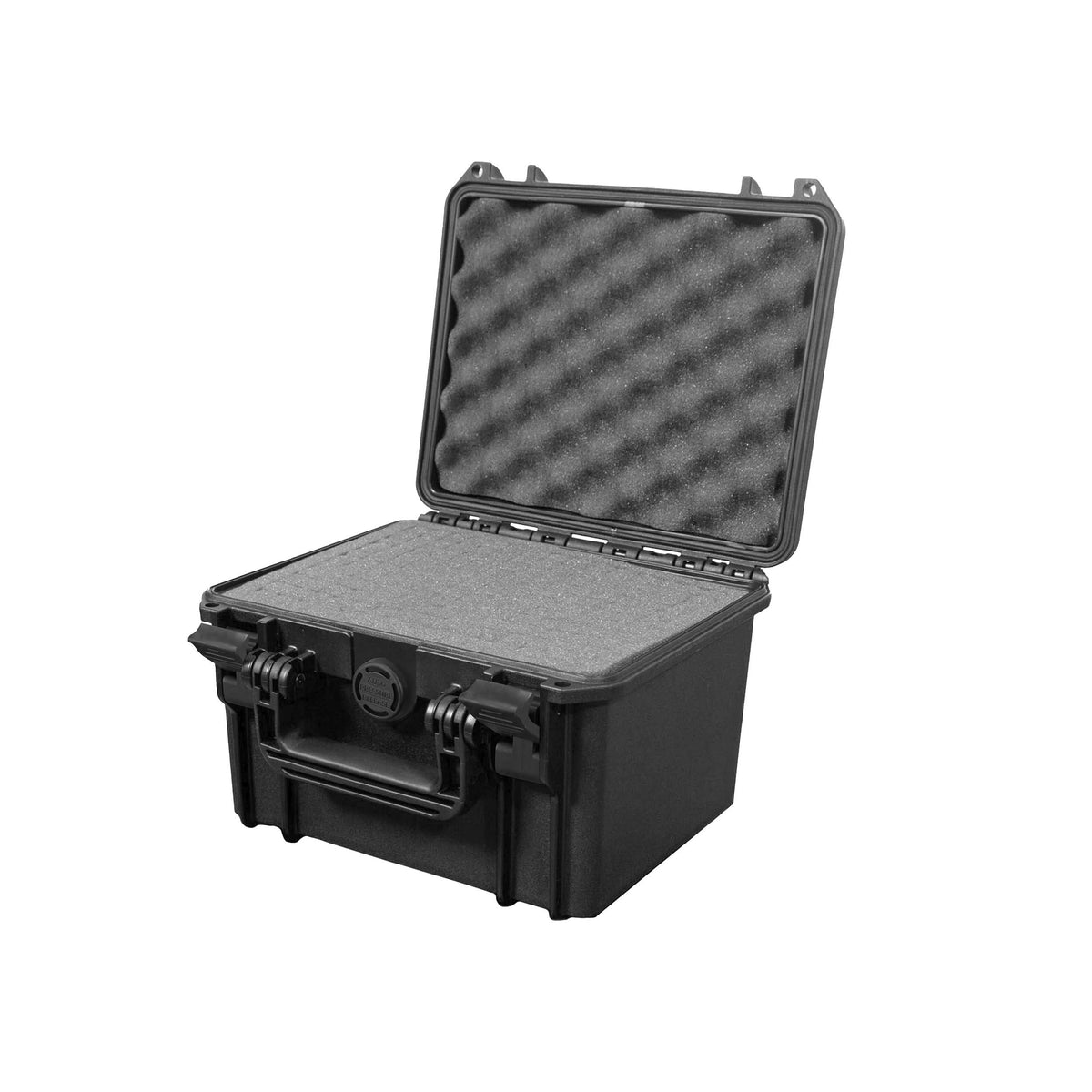

Black MAX235H155S open, convoluted egg-crate foam in the lid and a block of cubed pick and pluck foam in the base

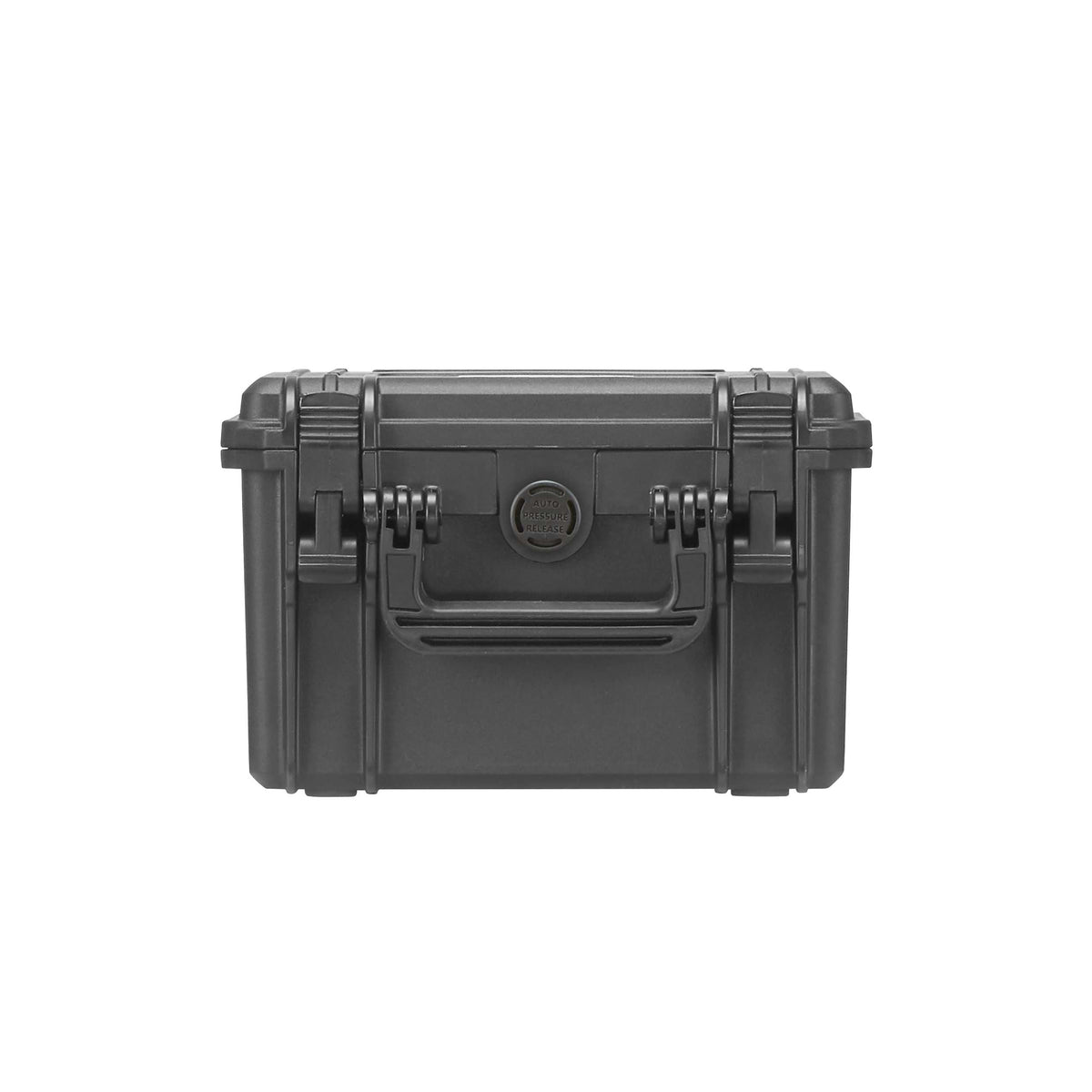

Straight-on view of the black MAX235H155 front: two latches, padlock holes and the round pressure valve
The black MAX235H155 on its back, showing the lid with MAX label above the latches and handle

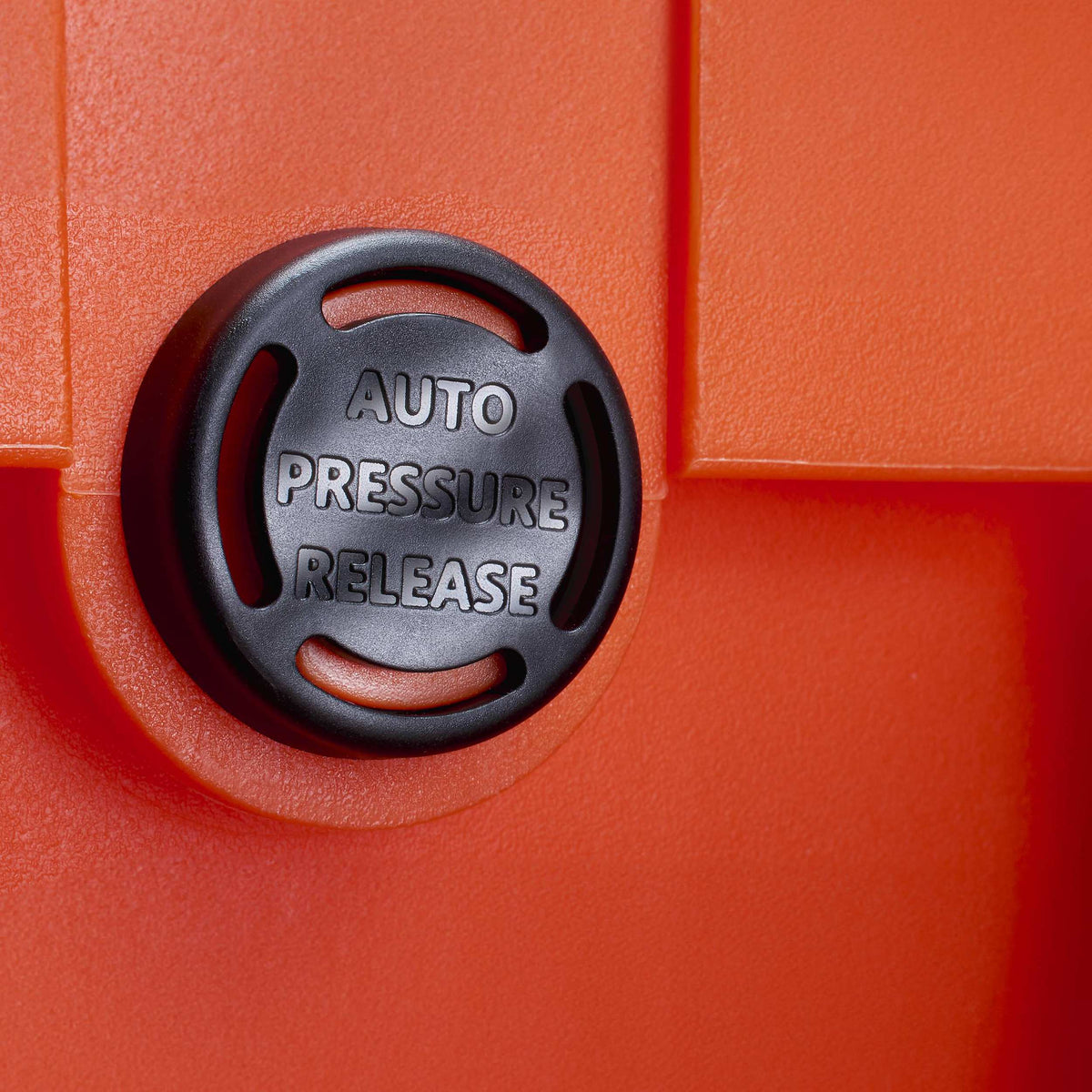

Macro shot of the AUTO PRESSURE RELEASE valve, pictured on an orange MAX case shell
Closed black Panaro MAX235H155 case seen at an angle, with the handle up and the red MAX logo on the front

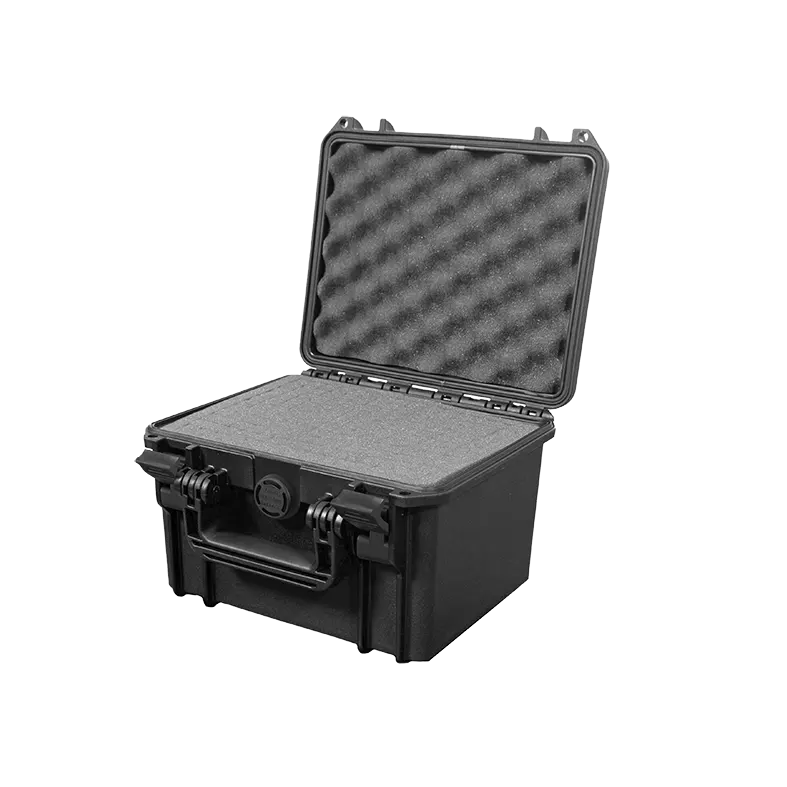

Black MAX235H155S open, convoluted egg-crate foam in the lid and a block of cubed pick and pluck foam in the base
Straight-on view of the black MAX235H155 front: two latches, padlock holes and the round pressure valve
The black MAX235H155 on its back, showing the lid with MAX label above the latches and handle
Macro shot of the AUTO PRESSURE RELEASE valve, pictured on an orange MAX case shell
Closed black Panaro MAX235H155 case seen at an angle, with the handle up and the red MAX logo on the front
Black MAX235H155S open, convoluted egg-crate foam in the lid and a block of cubed pick and pluck foam in the base
Straight-on view of the black MAX235H155 front: two latches, padlock holes and the round pressure valve
The black MAX235H155 on its back, showing the lid with MAX label above the latches and handle
Macro shot of the AUTO PRESSURE RELEASE valve, pictured on an orange MAX case shell
Panaro

Panaro MAX235H155S Waterproof Case with Cubed Foam Black

$116.49
$116.49
RRP $124.42
Or 4 payments of $29.12 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX235H155S

Ready to Pack, With Pick and Pluck Foam

Order the black MAX235H155S when you want a small watertight case that arrives with foam: pick and pluck cubes below and a convoluted lid layer above.

This is Panaro's standard foam kit. You pull cubes from the base layer to make a cavity for each item, and the egg-crate foam in the lid presses down on top when the case is closed. It is the quickest way to give a camera body, a pair of radios or a small medical kit a home of its own.

The deep, square-ish shape is the point of the MAX235H155: a 235 x 180 mm floor with 156 mm of height, from a 131 mm base and 25 mm lid. The shell measures 258 x 243 x 167 mm and weighs 1 kg empty. It is polypropylene with nylon latches and hinge pins, a polymer O-ring and a pressure release valve, and it is made in Italy. The test papers Panaro list for this model are ATA 300 Category 1, IP67, MIL-STD-810H and a combined STANAG 4280 / DEF STAN 81-41 report.

Browse Panaro MAX cases, protective cases and kit for photography and AV.

Often ordered together

  • Cubed foam base, convoluted foam lid
  • Black shell, 258 x 243 x 167 mm
  • Deep interior: 156 mm of height
  • Watertight lid seal with polymer O-ring
  • Stacks with interlocking MAX cases
  • Screen printing and label space on the lid
  • Compact camera bodies and lenses
  • Two-way radios
  • Small medical kits
  • Measuring instruments
  • Collectables and small valuables

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro (MAX Cases)

MPN: MAX235H155S

Mega Code: PMMAX235H155S

Configuration: Cubed foam (S)

Colour: Black

External Dimensions: 258 x 243 x 167 mm

Internal Dimensions: 235 x 180 x 156 mm

Lid + Base Depth: 25 + 131 mm

Weight: 1 kg (empty case, per Panaro)

Capacity: 6.60 L

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Certificates (Panaro): IP67; STANAG 4280 and DEF STAN 81-41; MIL-STD-810H; ATA 300 Category 1

Temperature Range (Panaro datasheet): -51 to 90 degrees C

Made In: Italy, per Panaro

Pack Size: 1 case (Each)

EAN: 8011236235069

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro's standard MAX foam: a block of pick and pluck cubes for the base, and a convoluted (egg-crate) sheet for the lid.
Arrange the kit on top of the foam, trace round each piece, then remove cubes a few at a time. Leave at least one row of cubes between items and next to the walls.
Panaro's environmental report runs low temperature, dry heat, vibration and impact tests at NATO level 1 to STANAG 4280 and DEF STAN 81-41. A separate MIL-STD-810H report covers vibration and transit drop.
A cubed foam kit appears among Panaro's accessories for this case; Mega does not currently sell the kit on its own.
Yes. The MAX235H105 shares the 235 x 180 mm floor but is shallower; the MAX235H105S is its foam version.
