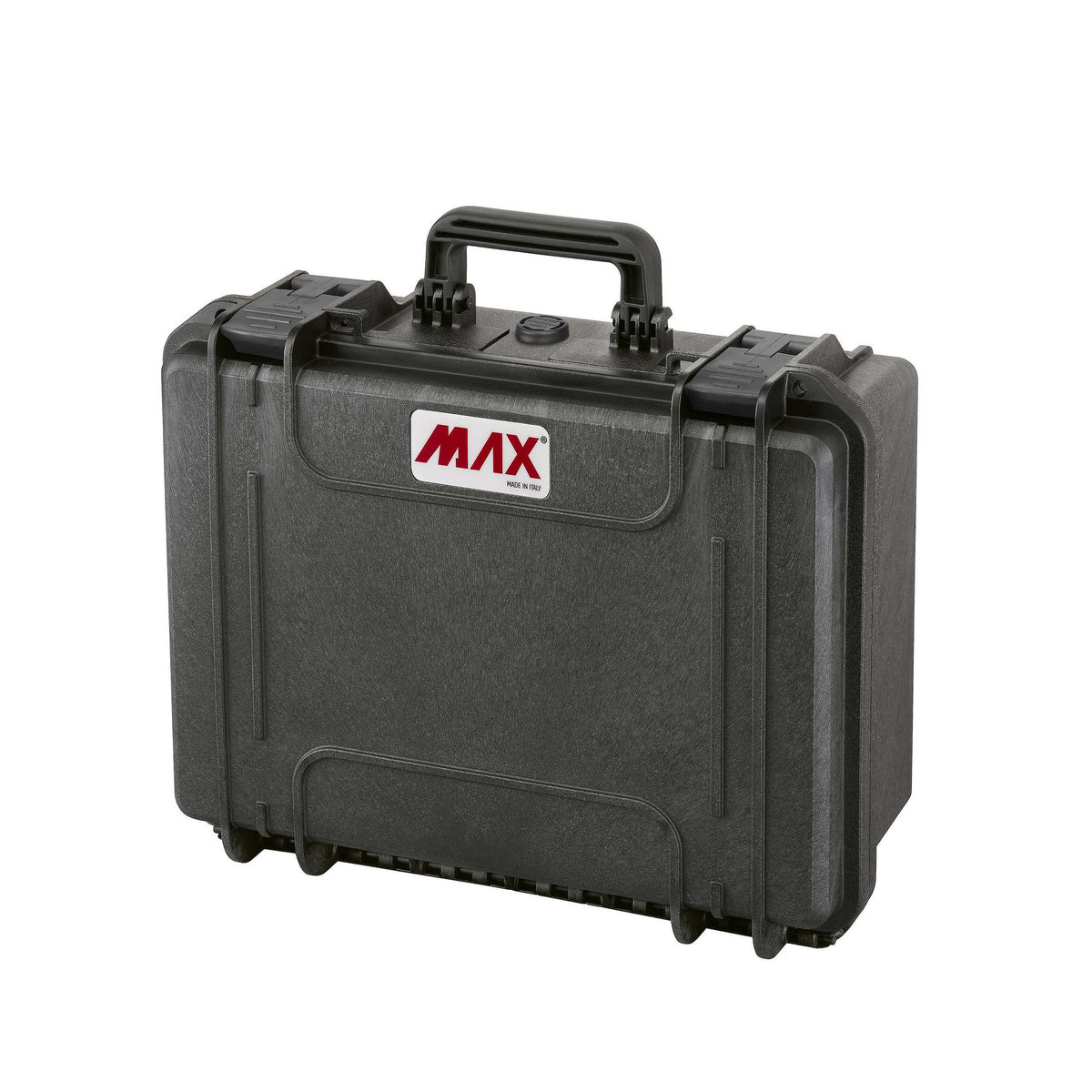

Panaro MAX380H160 deep waterproof case in black, standing on its base with the red MAX logo panel, handle raised

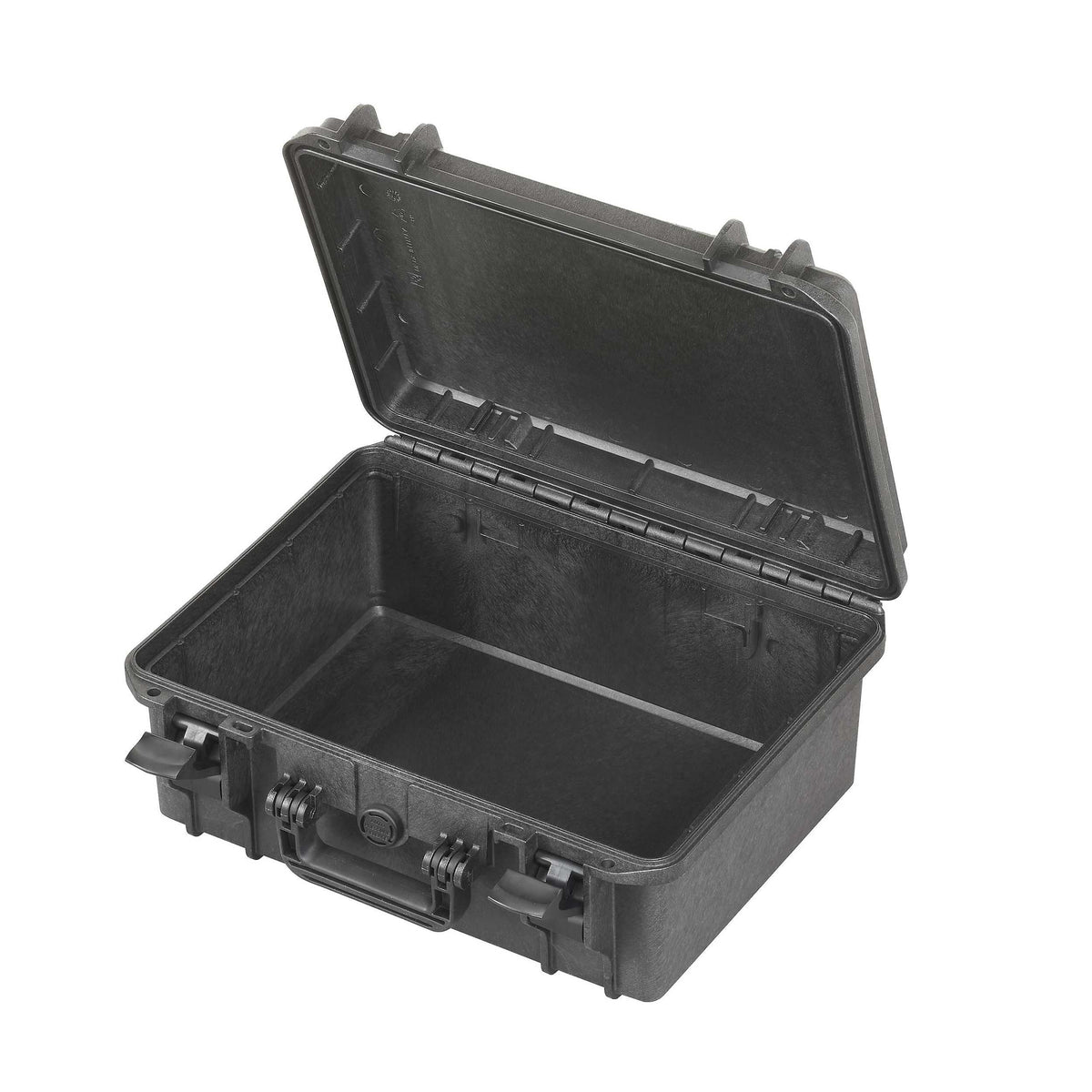

Open empty MAX380H160 showing the bare black moulded interior, the lid seal channel and both hinged halves

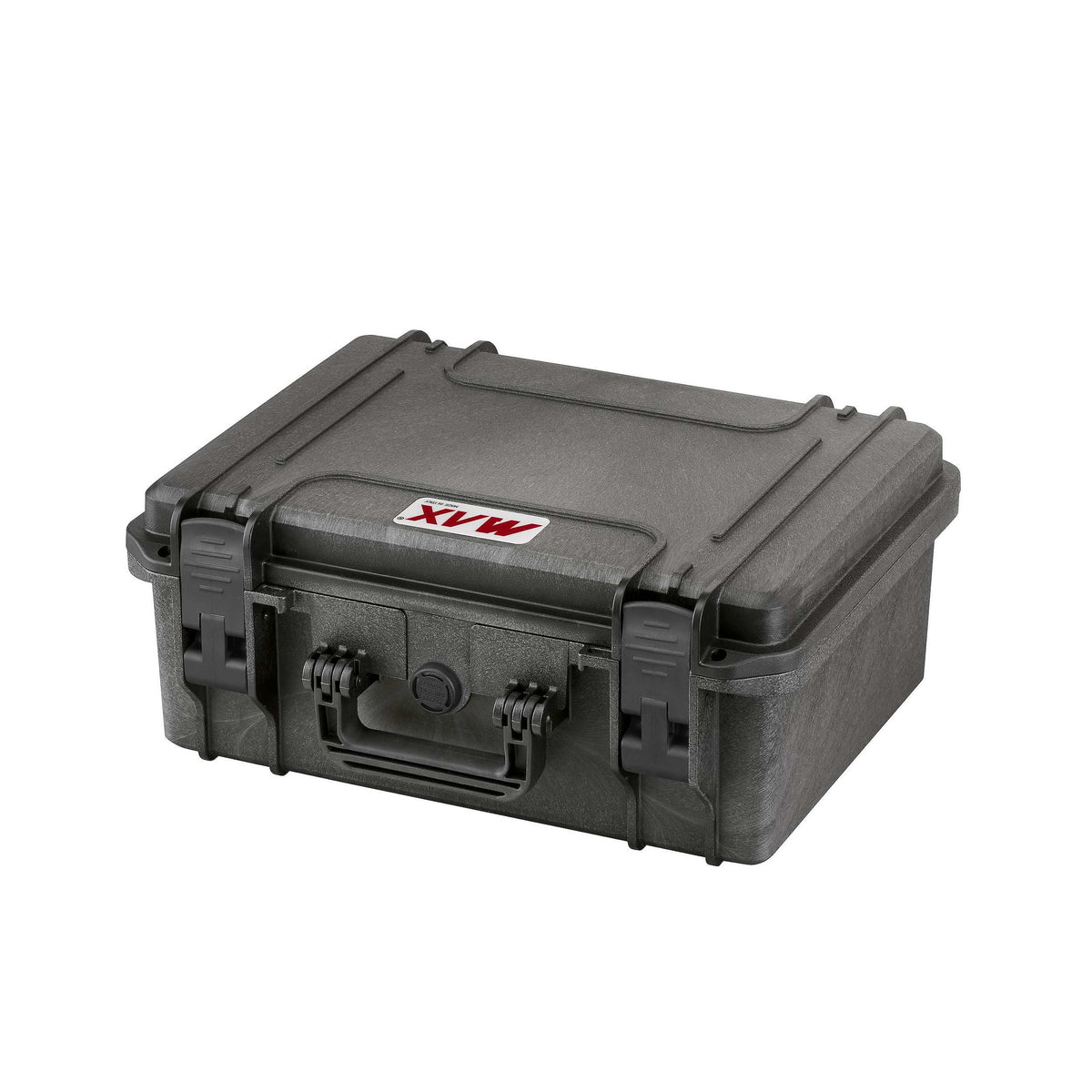

Closed black MAX380H160 lying flat at an angle, showing its depth, front latches and folded handle

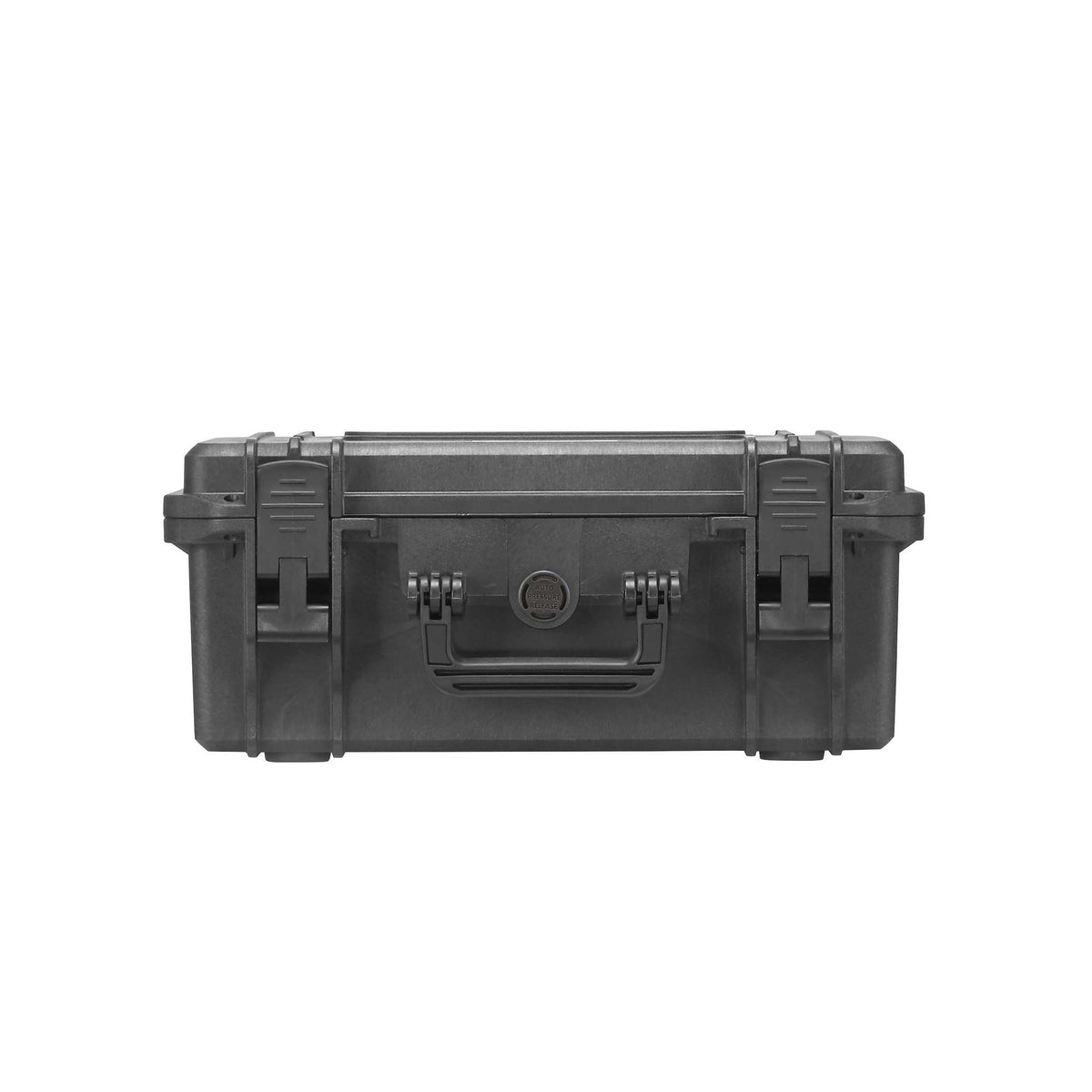

Straight-on front view of the closed black MAX380H160 with two latches, centre handle and pressure valve
Panaro MAX380H160 deep waterproof case in black, standing on its base with the red MAX logo panel, handle raised
Open empty MAX380H160 showing the bare black moulded interior, the lid seal channel and both hinged halves
Closed black MAX380H160 lying flat at an angle, showing its depth, front latches and folded handle
Straight-on front view of the closed black MAX380H160 with two latches, centre handle and pressure valve
Panaro MAX380H160 deep waterproof case in black, standing on its base with the red MAX logo panel, handle raised
Open empty MAX380H160 showing the bare black moulded interior, the lid seal channel and both hinged halves
Closed black MAX380H160 lying flat at an angle, showing its depth, front latches and folded handle
Straight-on front view of the closed black MAX380H160 with two latches, centre handle and pressure valve
Panaro

Panaro MAX380H160 Waterproof Case Black

$170.06
$170.06
RRP $176.72
Or 4 payments of $42.52 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX380H160

The Deep MAX380 Shell, Left Empty For Your Own Fit Out

The Panaro MAX380H160 is supplied as a bare shell: no foam, no dividers, just 16.4 litres of sealed space for gear that brings its own packaging or a custom insert.

Inside you get 380 x 270 x 160 mm, made up of a 36 mm lid and a 124 mm base, and the outside measures 414 x 345 x 174 mm. That suits boxed instruments, spare parts in bags, sample kits, or a foam inlay cut to your own pattern. Panaro list cubed foam, padded dividers, a lid organiser and a laptop holder as other ways to fit out this same shell.

An empty MAX380H160 weighs 2.20 kg, per Panaro. The polypropylene body has full length hinges with corrosion free nylon pins, a soft grip handle Panaro load test, interlocking feet for stacking and holes for a shoulder strap and two padlocks. Its paperwork runs from an IP67 certificate through NATO environmental trials to an ATA 300 Category 1 air transport report (full list in the specifications), and the case is made in Italy.

Browse every insert option in protective cases, see the field and service picks in defence and tactical and medical and first aid, or start from the Panaro brand page.

Often ordered together

  • Empty interior, 380 x 270 x 160 mm
  • 16.4 litre capacity
  • Air transport report to ATA 300 Category 1
  • Stackable interlocking system
  • Full length hinge with nylon pins
  • Flat lid panel ready for your own print or label
  • Custom foam inlays and fit outs
  • Spare parts and consumables kits
  • Sample and specimen transport
  • Field service kits
  • Documents and small electronics kept dry

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX380H160

Mega Code: PMMAX380H160

Configuration: Empty case (no insert)

Colour: Black

External Dimensions: 414 x 345 x 174 mm

Internal Dimensions: 380 x 270 x 160 mm (lid + base 36 + 124 mm)

Weight: 2.20 kg as supplied, per Panaro

Capacity: 16.4 L

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certifications (Panaro test documents): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Temperature Range (Panaro datasheet): -51 to 90 °C

Made In: Italy, per Panaro

EAN: 8011236380905

Unit: Each (one case)

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. This is the empty case. The MAX380H160S (cubed foam), MAX380H160HDS (high density foam), MAX380H160CAM (padded dividers) and MAX380H160CAMORG (dividers plus lid organiser) are the fitted versions.
Panaro rate it at 16.4 litres, with 380 x 270 x 160 mm inside. The lid takes 36 mm of that depth and the base 124 mm.
Panaro list a UN 4H2 approval for the MAX380H160 and sell a separate UN kit version with the labels. This listing is the plain case, so check with your carrier before shipping dangerous goods in it.
Yes. There are holes for two padlocks. Locks are not included.
Every file Panaro publish for the bare MAX380H160, from datasheet and drawing to each test report, can be downloaded below.
