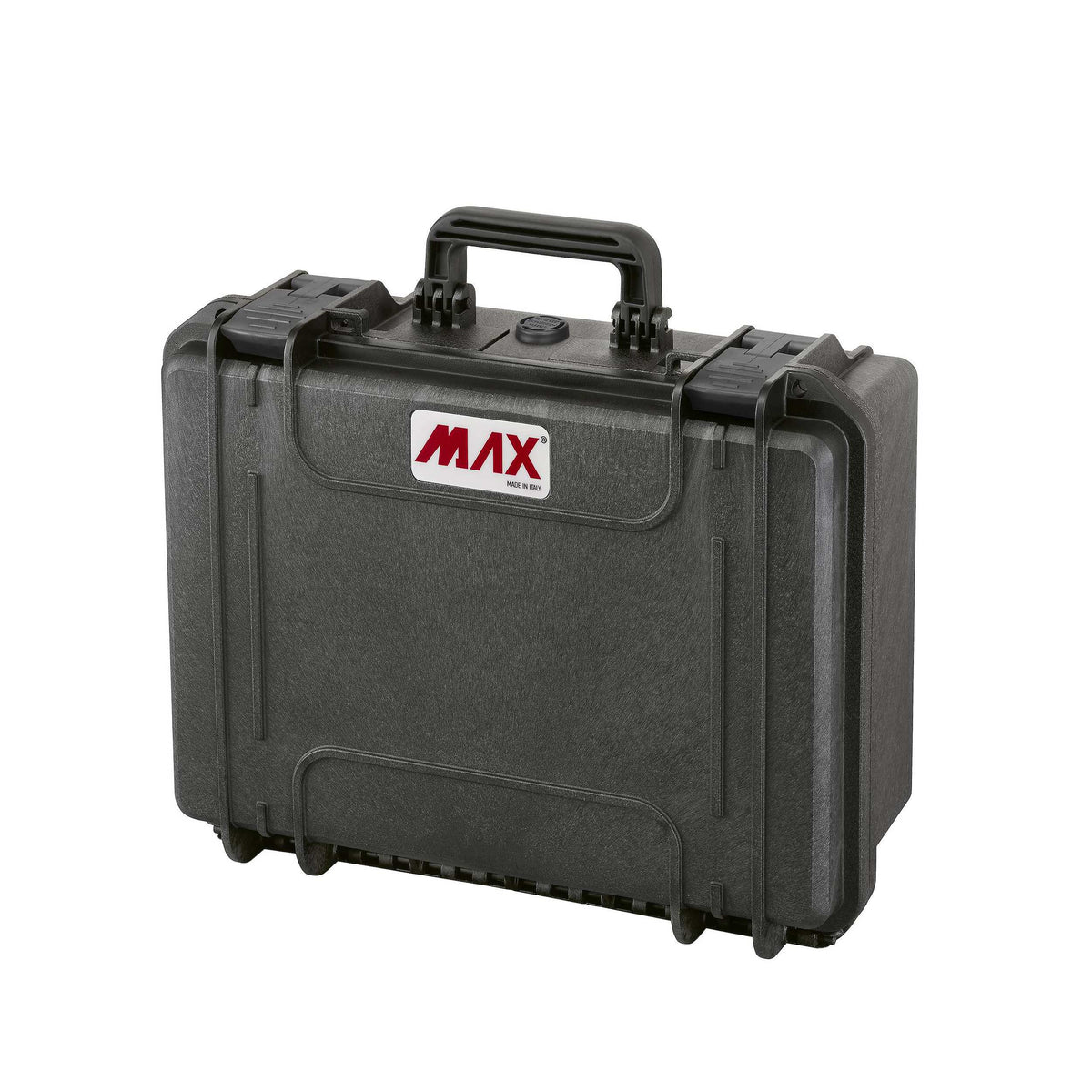

Black Panaro MAX380H160S closed and standing, red MAX logo, raised carry handle and two latches

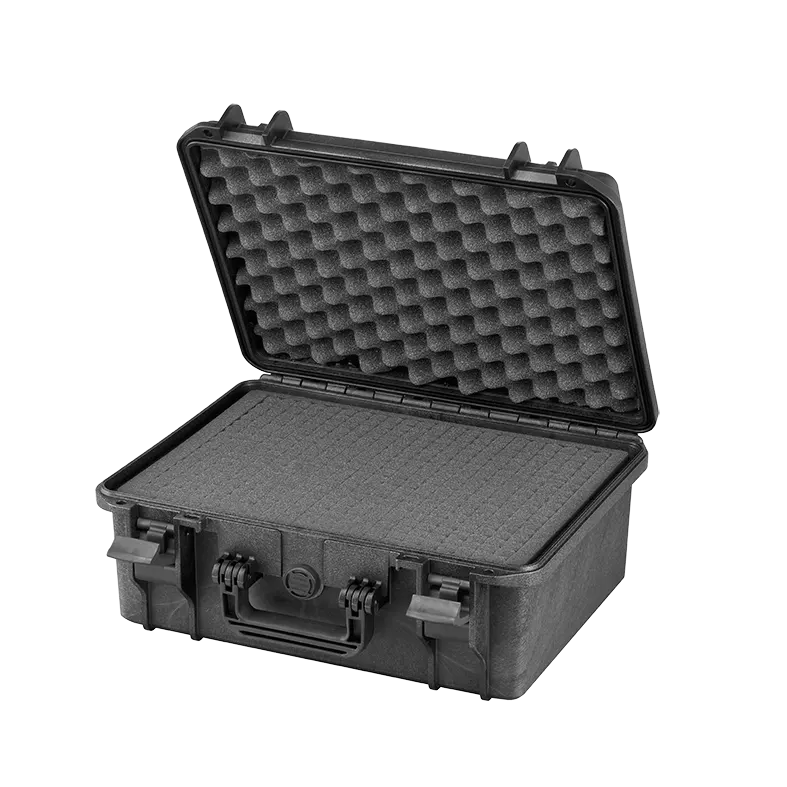

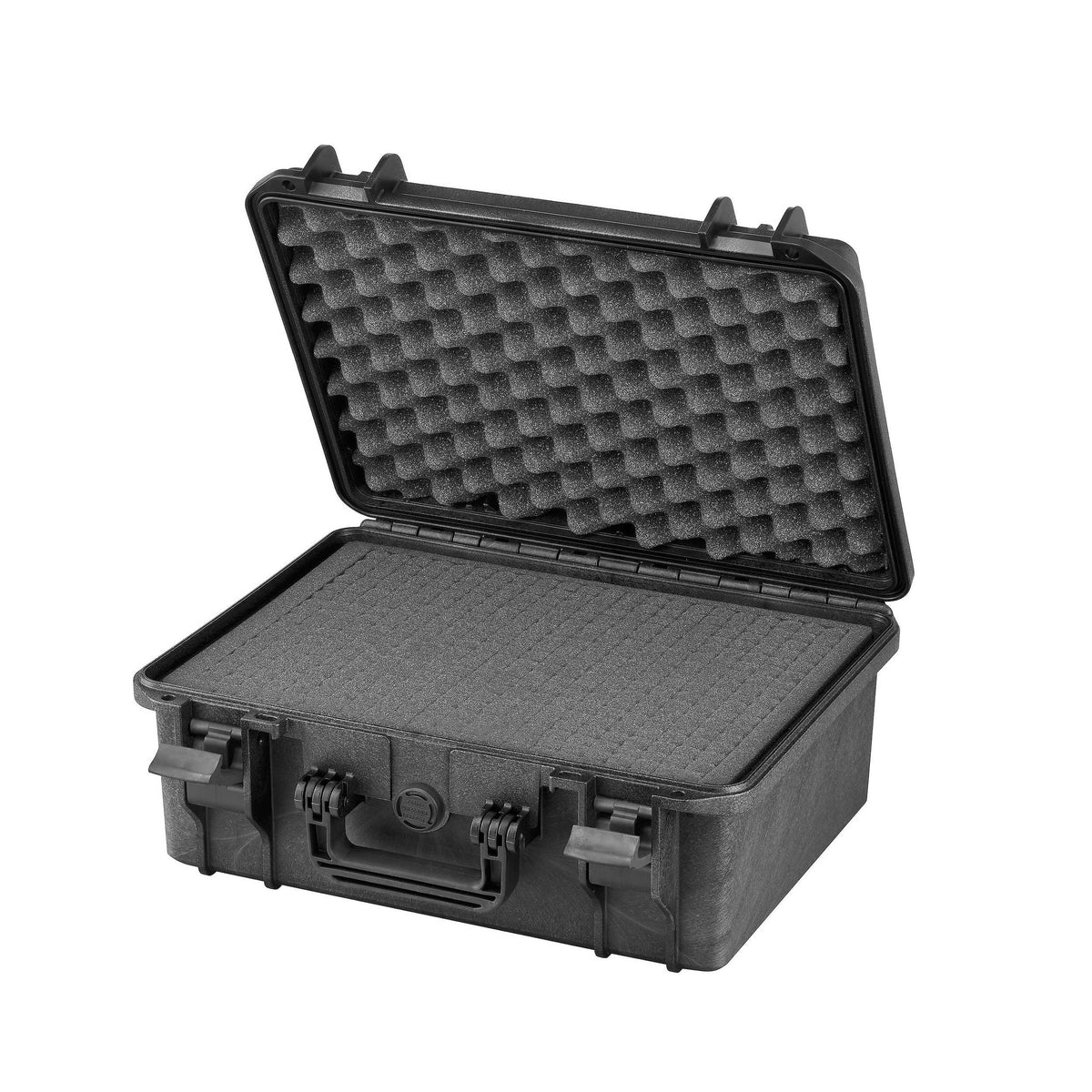

Open black MAX380H160S showing grey cubed pick and pluck foam in the deep base and egg crate foam in the lid
Closed black MAX380H160 lying flat at an angle, front latches and handle visible

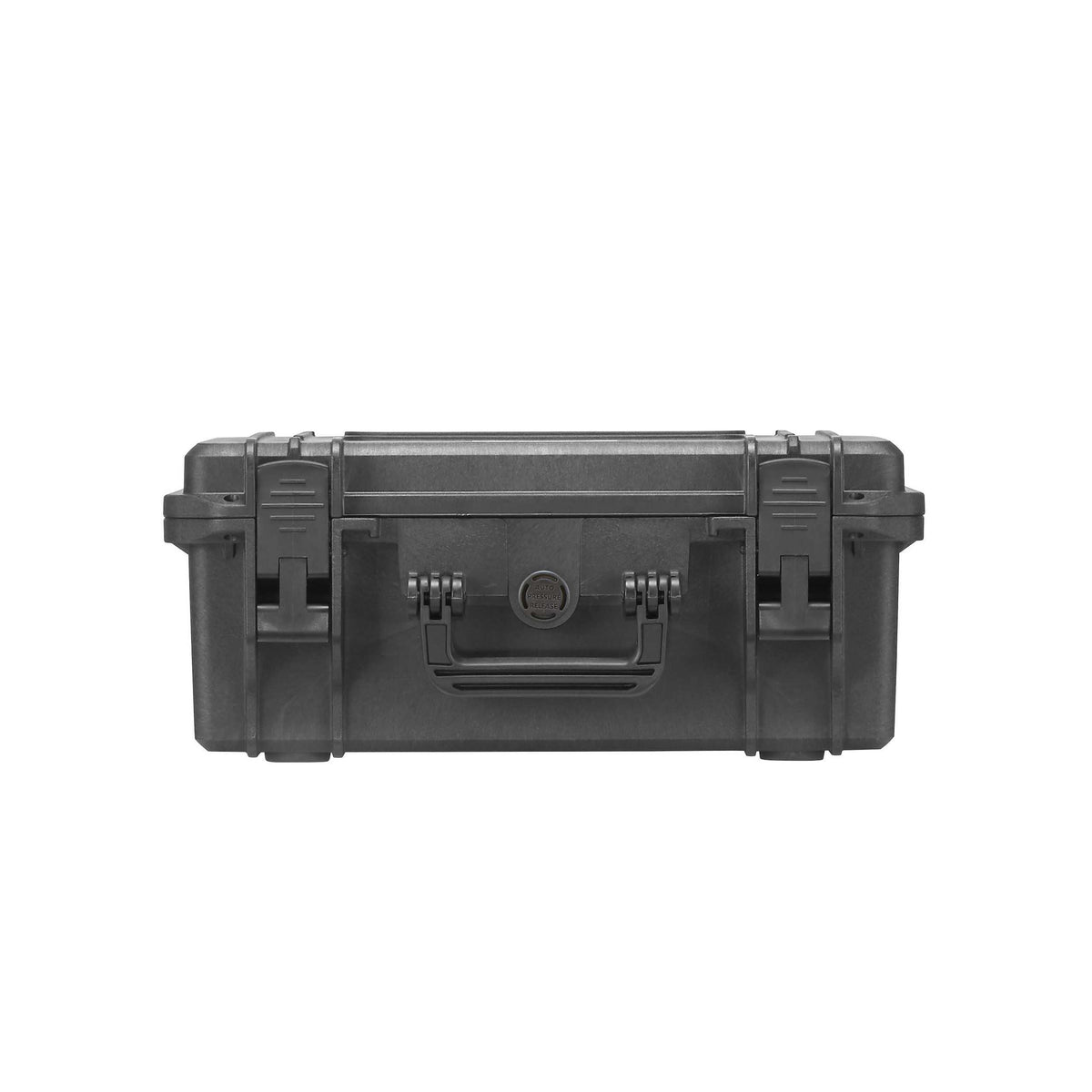

Front of the closed black MAX380H160 showing both latches, the handle and the pressure release valve
Black Panaro MAX380H160S closed and standing, red MAX logo, raised carry handle and two latches
Open black MAX380H160S showing grey cubed pick and pluck foam in the deep base and egg crate foam in the lid
Closed black MAX380H160 lying flat at an angle, front latches and handle visible
Front of the closed black MAX380H160 showing both latches, the handle and the pressure release valve
Black Panaro MAX380H160S closed and standing, red MAX logo, raised carry handle and two latches
Open black MAX380H160S showing grey cubed pick and pluck foam in the deep base and egg crate foam in the lid
Closed black MAX380H160 lying flat at an angle, front latches and handle visible
Front of the closed black MAX380H160 showing both latches, the handle and the pressure release valve
Panaro

Panaro MAX380H160S Waterproof Case with Cubed Foam Black

$206.58
$206.58
RRP $217.32
Or 4 payments of $51.65 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX380H160S

Deep Pick And Pluck Foam For Bulky Gear

The MAX380H160S is the deep MAX380 filled with Panaro's standard S cubed foam, a quick way to give each item its own cut out without ordering a custom insert.

With 124 mm in the base, there is room for two 55 mm layers of cubed foam over a 10 mm base sheet, plus a 35 mm convoluted pad in the lid (Panaro's MAX380 foam sheet). Tall items such as a camera with a lens attached, a gas detector or a stack of radios can sink through both layers, while slimmer items only need the top one.

Panaro list the case at 2.42 kg with foam, inside a 414 x 345 x 174 mm polypropylene shell with 380 x 270 x 160 mm usable. Seals, latches and the pressure valve are the same as every MAX case. On paper, Panaro back this model with an IP67 certificate and an ATA 300 report, among others listed below. Made in Italy.

For flatter loads see the shallow MAX380H115S in protective cases; camera and medical buyers can browse photography and AV or medical and first aid, and the rest of Panaro.

Often ordered together

  • S cubed foam, two 55 mm layers over a 10 mm base
  • 35 mm egg crate foam in the lid
  • 2.42 kg with foam, per Panaro
  • O-ring lid seal with automatic pressure valve
  • Backed by a Panaro MIL-STD-810H certificate
  • Made in Italy
  • Camera with lens attached
  • Gas detectors and safety meters
  • Two-way radio sets
  • First responder equipment
  • Lab instruments in transit

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX380H160S

Mega Code: PMMAX380H160S

Configuration: S: cubed pick and pluck foam with convoluted lid foam

Foam Set (Panaro): 10 mm base, 2 x 55 mm cubed layers, 35 mm convoluted lid pad

Colour: Black

External Dimensions: 414 x 345 x 174 mm

Internal Dimensions: 380 x 270 x 160 mm (lid + base 36 + 124 mm)

Weight: 2.42 kg as supplied, per Panaro

Capacity: 16.4 L

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Certifications (Panaro test documents): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Temperature Range (Panaro datasheet): -51 to 90 °C

Made In: Italy, per Panaro

EAN: 8011236380912

Unit: Each (one case)

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro list a Cubed Foam KIT as an accessory for the MAX380H160, so the foam set can be replaced once it is worn or plucked out for a different load.
Panaro list polyurethane foam for the S version.
The base holds two 55 mm cubed layers on a 10 mm sheet. Pluck through one layer for flat items or both for tall ones, leaving the base sheet as a floor.
Yes. Panaro's S and HDS datasheet, the MAX380 foam layout sheet, the drawing and the certificates are in the downloads.
