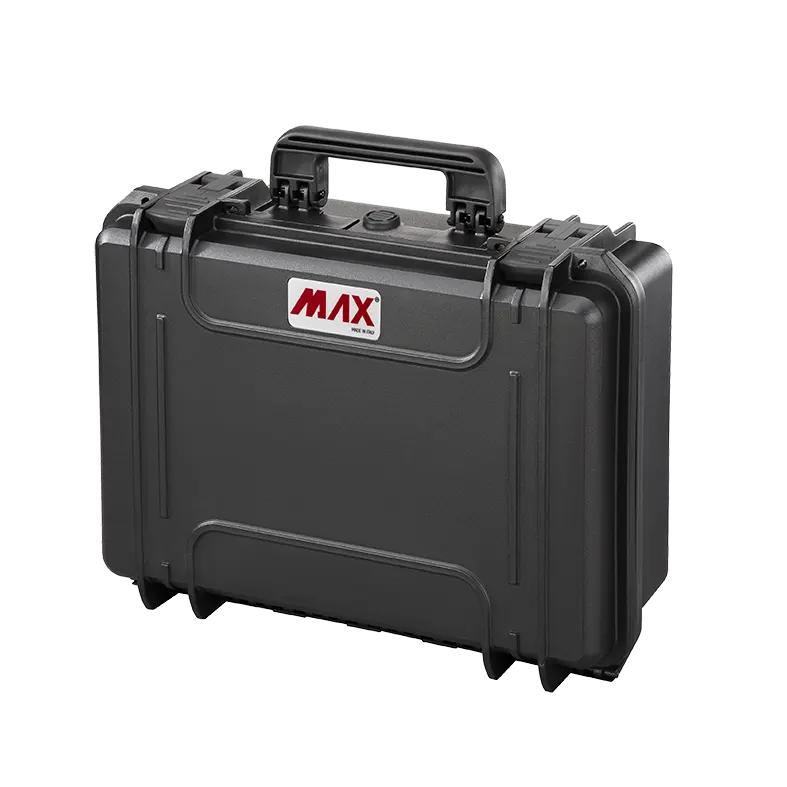

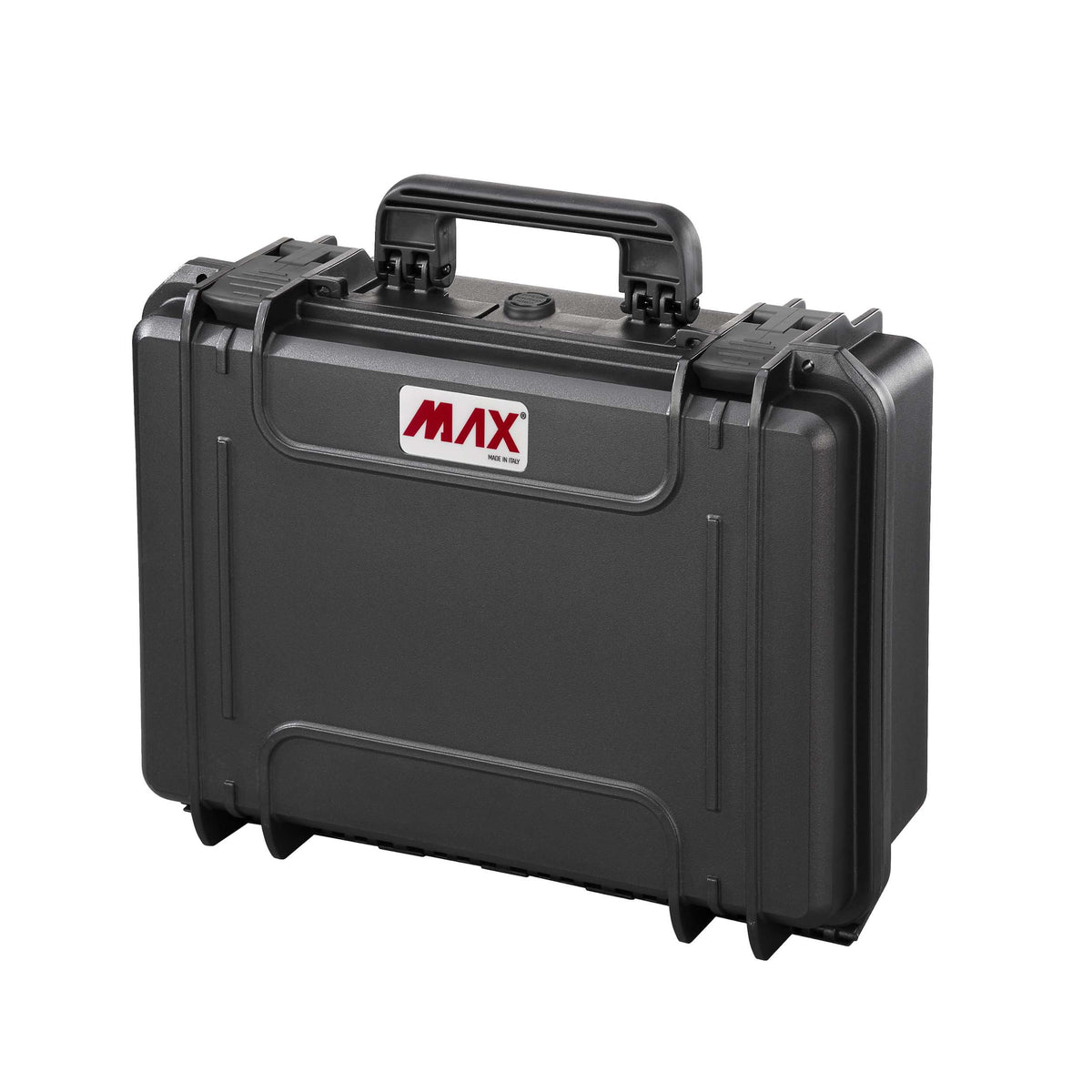

Black Panaro MAX430 waterproof case closed and standing, red MAX logo on the lid, carry handle raised

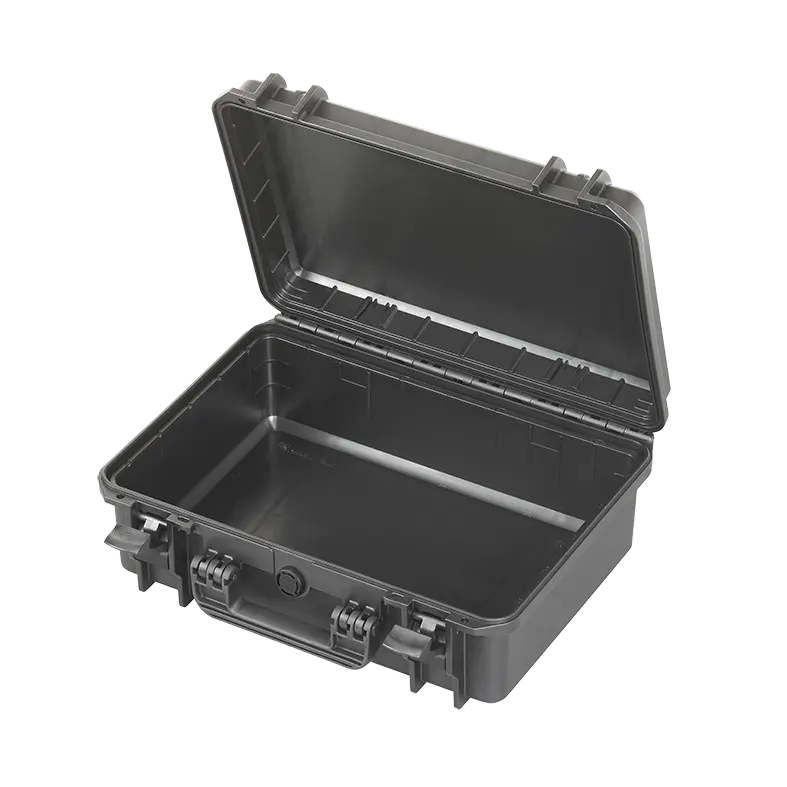

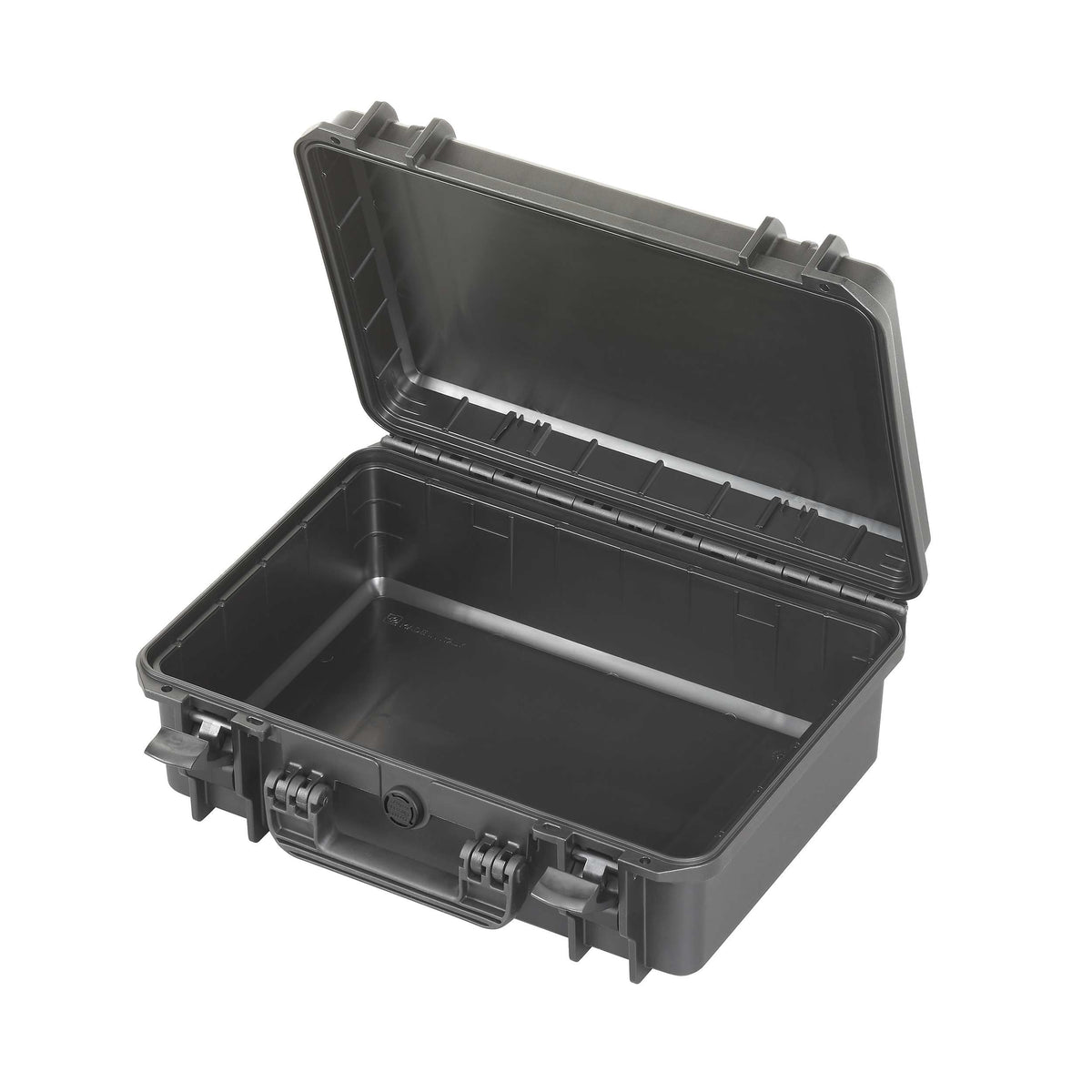

Open empty black MAX430 showing the bare moulded interior, the lid recess and the full length hinge

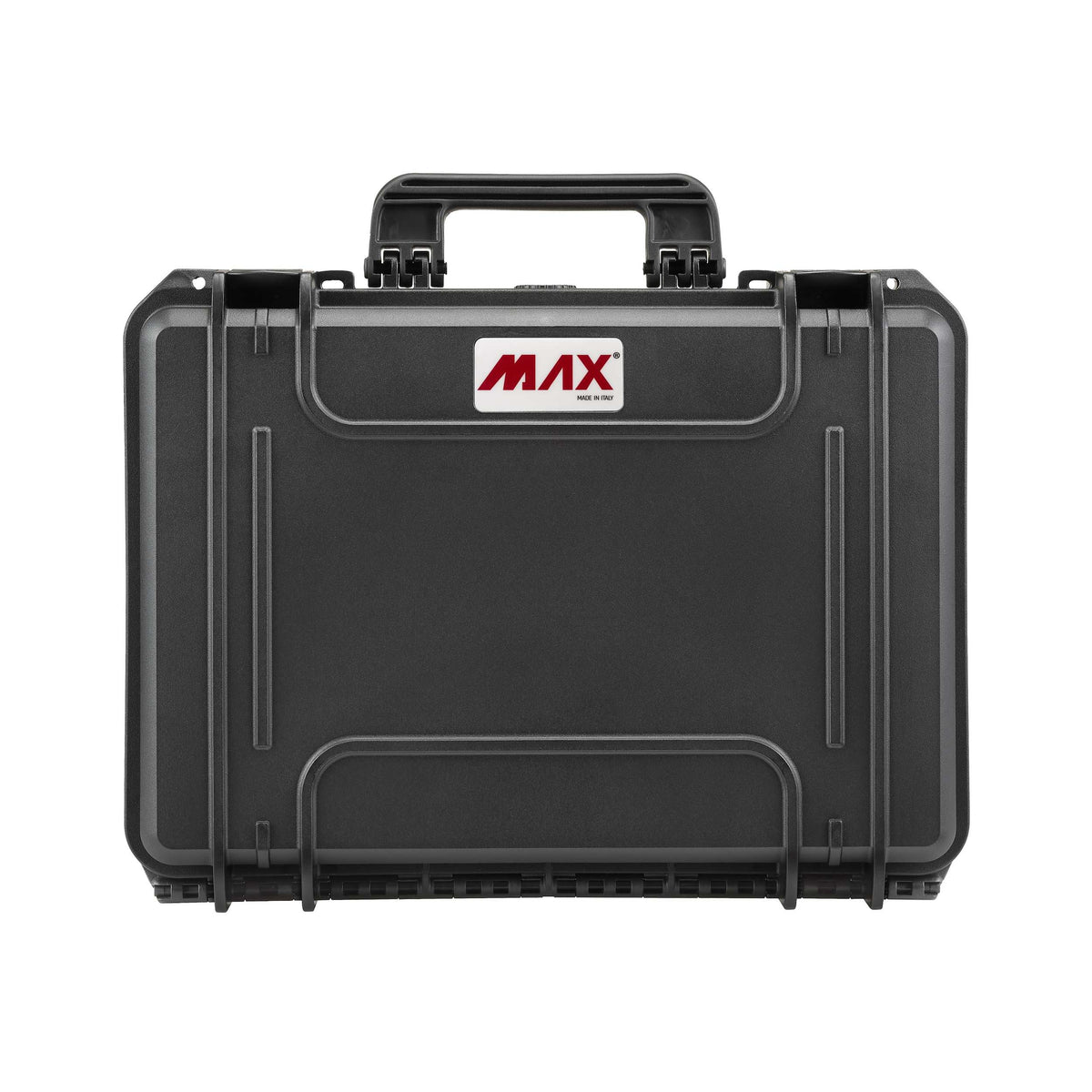

Lid face of the black MAX430 seen straight on, with the MAX logo panel and the handle on the top edge

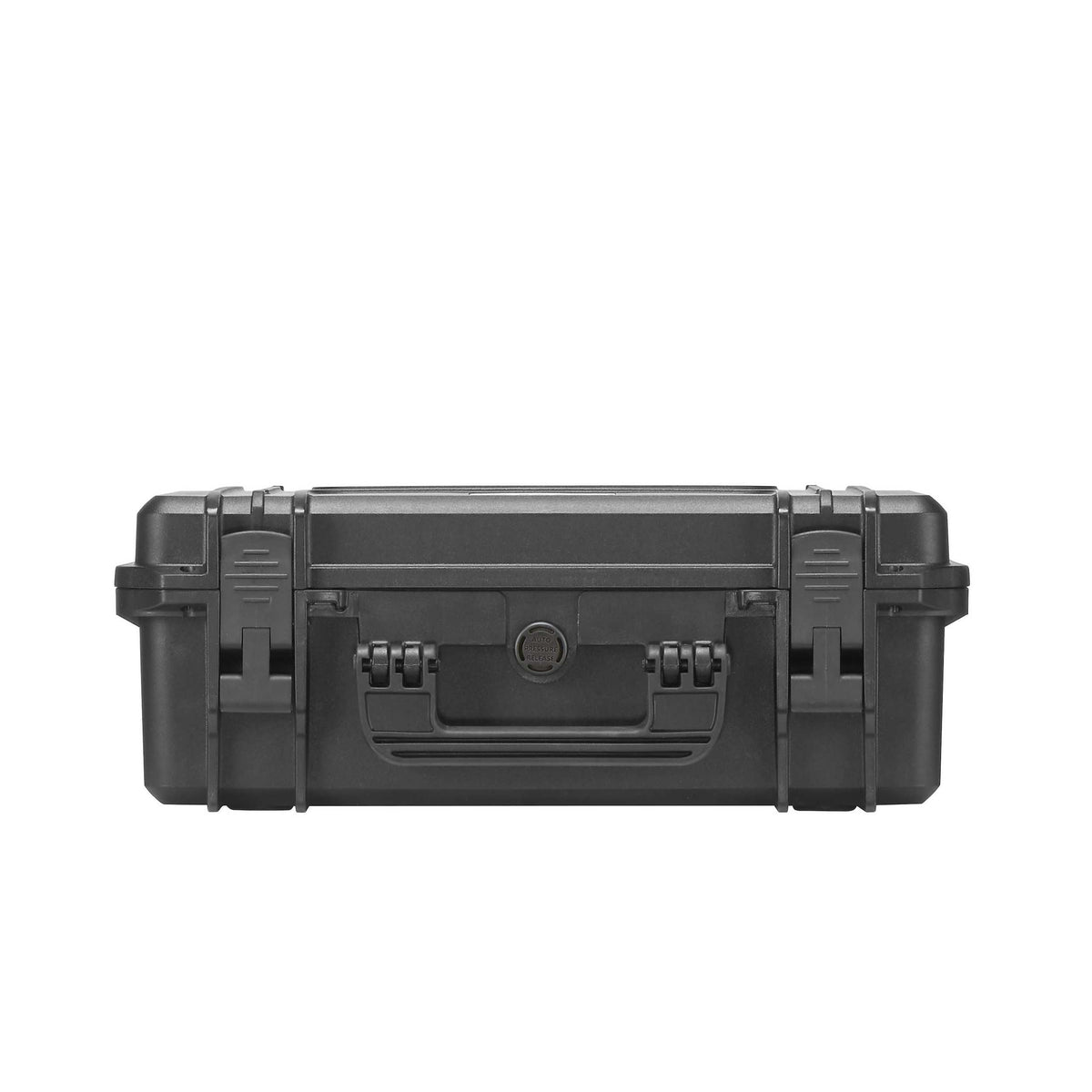

Front edge of the closed black MAX430 showing two double throw latches, the handle and the pressure valve
Black Panaro MAX430 waterproof case closed and standing, red MAX logo on the lid, carry handle raised
Open empty black MAX430 showing the bare moulded interior, the lid recess and the full length hinge
Lid face of the black MAX430 seen straight on, with the MAX logo panel and the handle on the top edge
Front edge of the closed black MAX430 showing two double throw latches, the handle and the pressure valve
Black Panaro MAX430 waterproof case closed and standing, red MAX logo on the lid, carry handle raised
Open empty black MAX430 showing the bare moulded interior, the lid recess and the full length hinge
Lid face of the black MAX430 seen straight on, with the MAX logo panel and the handle on the top edge
Front edge of the closed black MAX430 showing two double throw latches, the handle and the pressure valve
Panaro

Panaro MAX430 Waterproof Case Black

$187.55
$187.55
RRP $194.35
Or 4 payments of $46.89 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX430

The MAX430 Shell, Empty And Ready To Fit Out

The Panaro MAX430 in black is the plain, unfitted case: a wide 426 x 290 mm floor with 159 mm of depth, for gear that comes in its own packaging or a foam inlay you have made to suit.

Of that depth, the lid takes 45 mm and the base 114 mm, for a total of 19.64 litres, and the shell measures 464 x 366 x 176 mm outside. Panaro offer the same model with cubed foam (S), high density foam (HDS), a padded camera set (CAM), the camera set plus a lid organiser (CAMORG), a pouch and tool panel, and a tool storage system, so the bare case can be fitted out later.

Without an insert it weighs 2.76 kg according to Panaro. You get two double throw latches over an O-ring, an automatic pressure release valve, a soft grip handle that Panaro load test, padlock and strap holes, and interlocking feet. For the MAX430 Panaro publish an IP67 certificate, NATO and MIL-STD-810H test files and an airline report; the specifications list them in full. Made in Italy.

The fitted MAX430 versions and every other size are in protective cases; service and field picks are in defence and tactical, and the brand range at Panaro.

Often ordered together

  • Empty interior, 426 x 290 x 159 mm
  • 19.64 litres, 45 mm lid plus 114 mm base
  • Black polypropylene shell, 2.76 kg empty
  • Plain shell with Panaro IP67 certificate
  • Automatic pressure release valve
  • Stackable interlocking feet
  • Custom foam inlay projects
  • Boxed instruments and accessories
  • Spare parts kits for vehicles or plant
  • Documents and records kept dry
  • Workshop consumables

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases

MPN: MAX430

Mega Code: PMMAX430

Configuration: Empty case (no insert)

Colour: Black

External Dimensions: 464 x 366 x 176 mm

Internal Dimensions: 426 x 290 x 159 mm (lid + base 45 + 114 mm)

Weight: 2.76 kg as supplied, per Panaro

Capacity: 19.64 L

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certifications (Panaro test documents): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Temperature Range (Panaro datasheet): -51 to 90 °C

Made In: Italy, per Panaro

EAN: 8011236430105

Unit: Each (one case)

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No, this listing is the empty case. Choose the MAX430S, MAX430HDS, MAX430CAM or MAX430CAMORG for a fitted interior.
We list the MAX430 in black, orange and sahara. This page is black.
Panaro publish an ATA 300 Category 1 report for the MAX430, the air transport test standard Panaro quote for MAX cases.
Yes. Yes. The 2D drawing is with the datasheet and test reports in the downloads.
