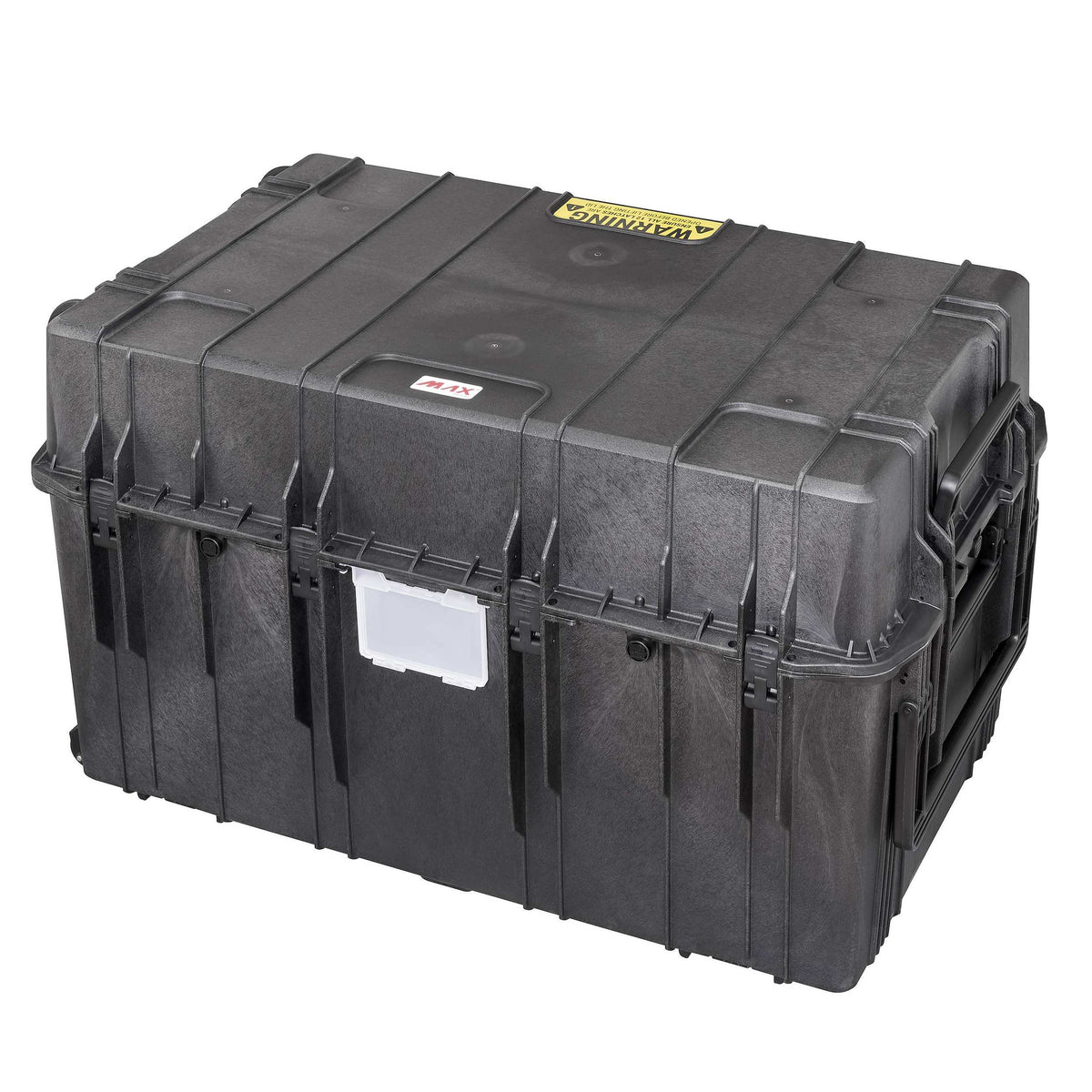

Panaro MAX1090H640-R tall black trunk case closed, three-quarter view with the deep removable lid, yellow warning label, MAX logo and clear document holder

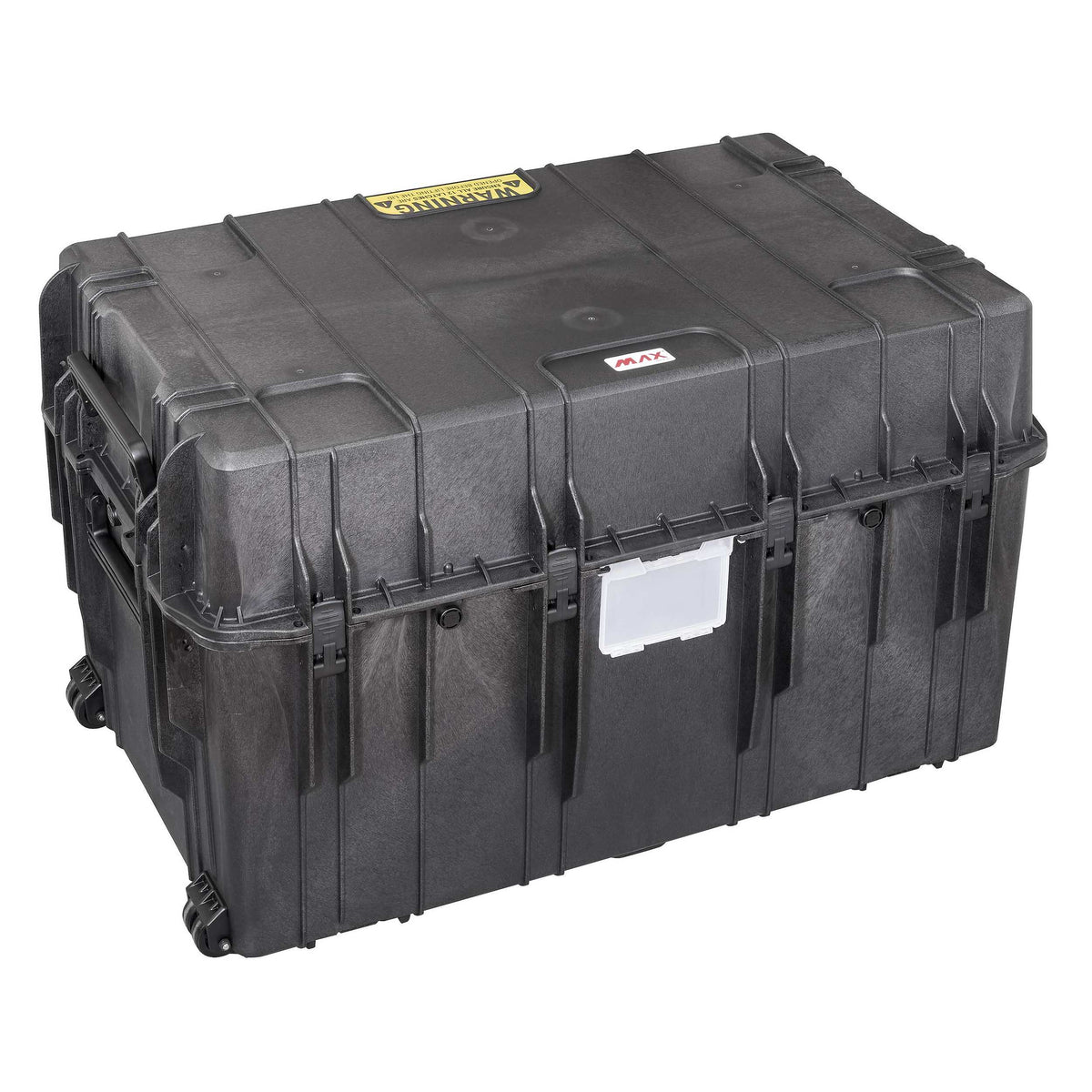

MAX1090H640-R closed from the opposite corner, showing the side handles, latches around the deep lid and the wheels at the base

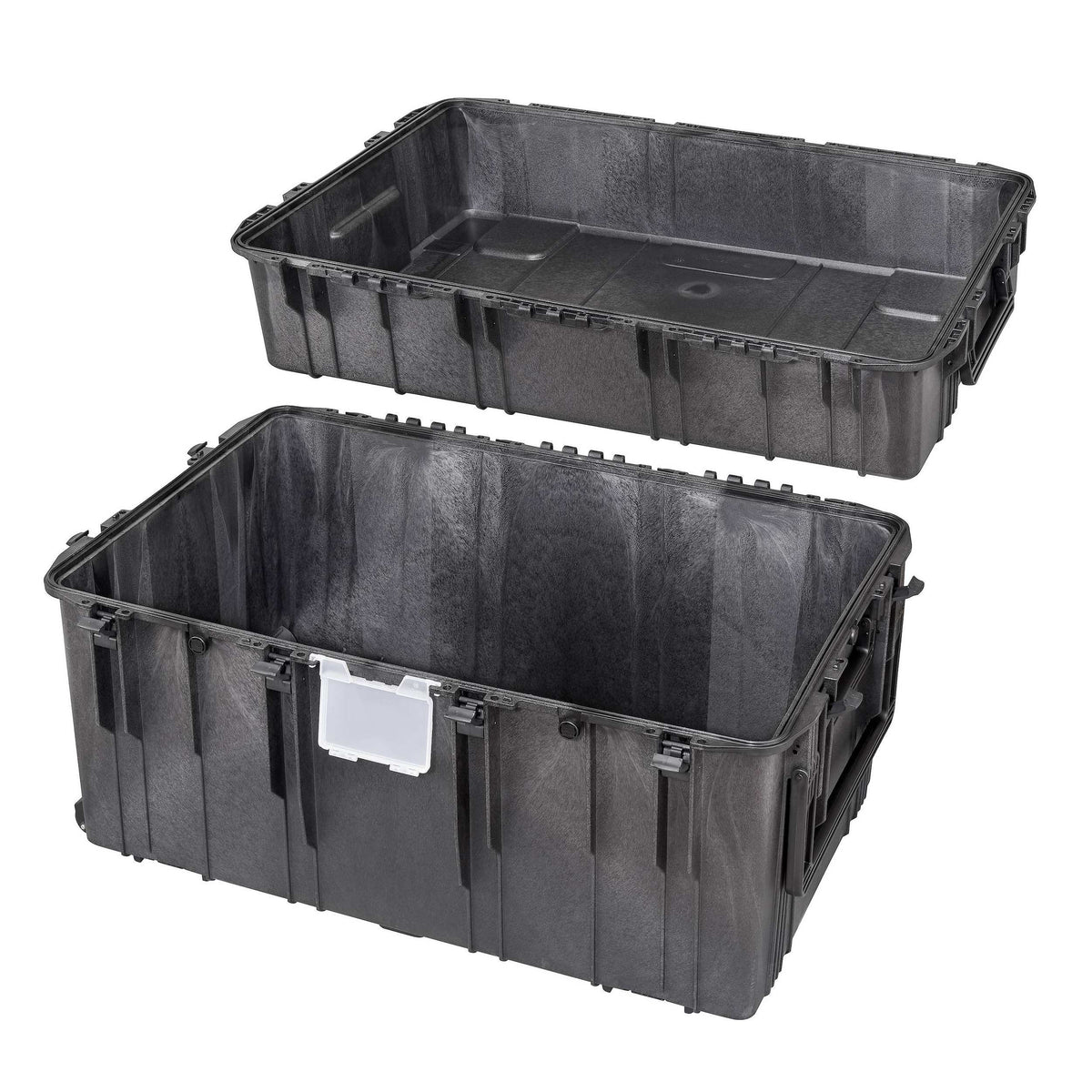

MAX1090H640-R with the deep removable lid lifted above the empty base, showing the open black interior of both halves

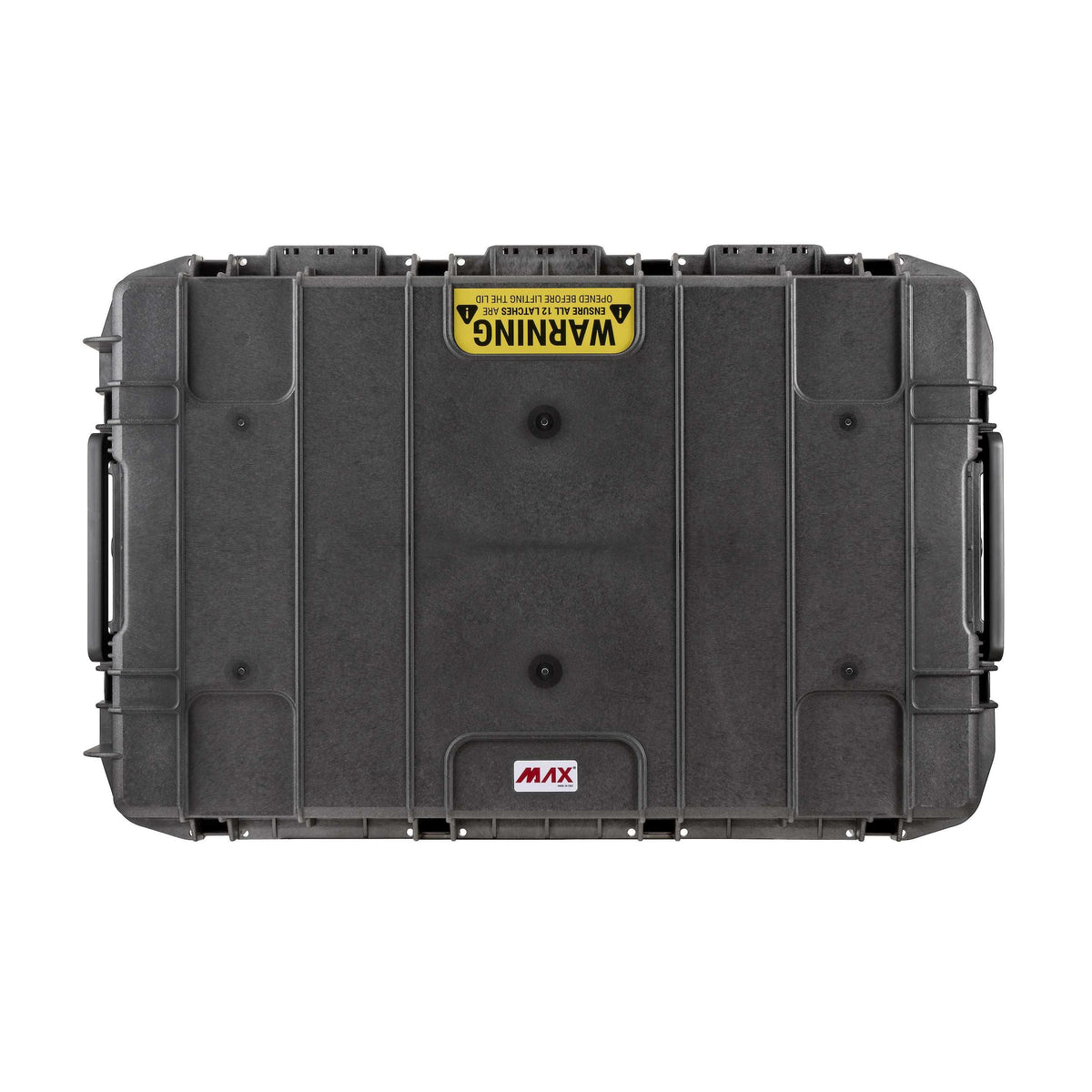

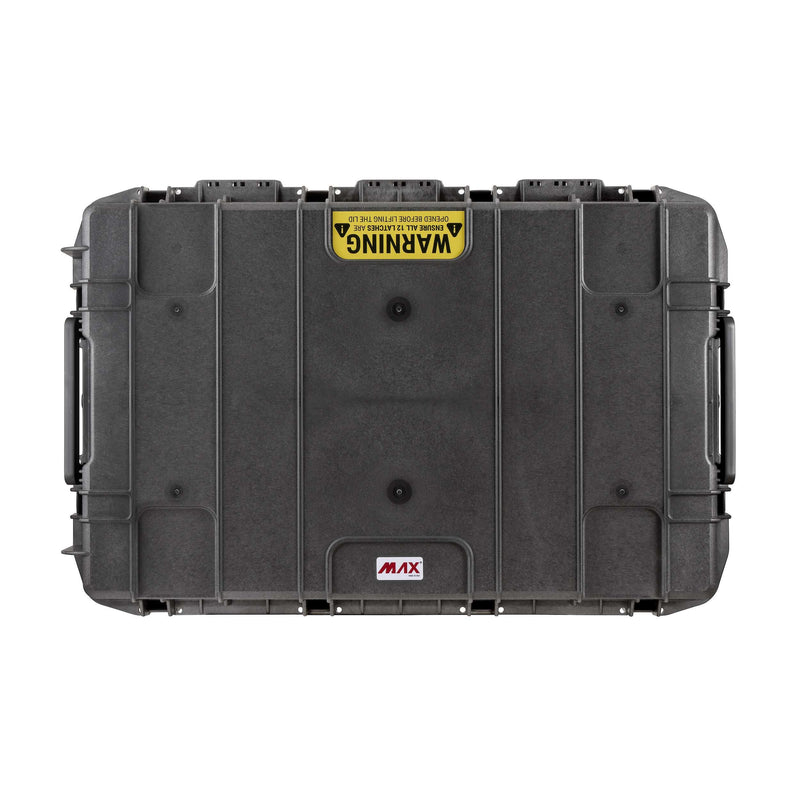

Top-down view of the MAX1090H640-R lid with its yellow warning label, MAX logo and moulded ribs

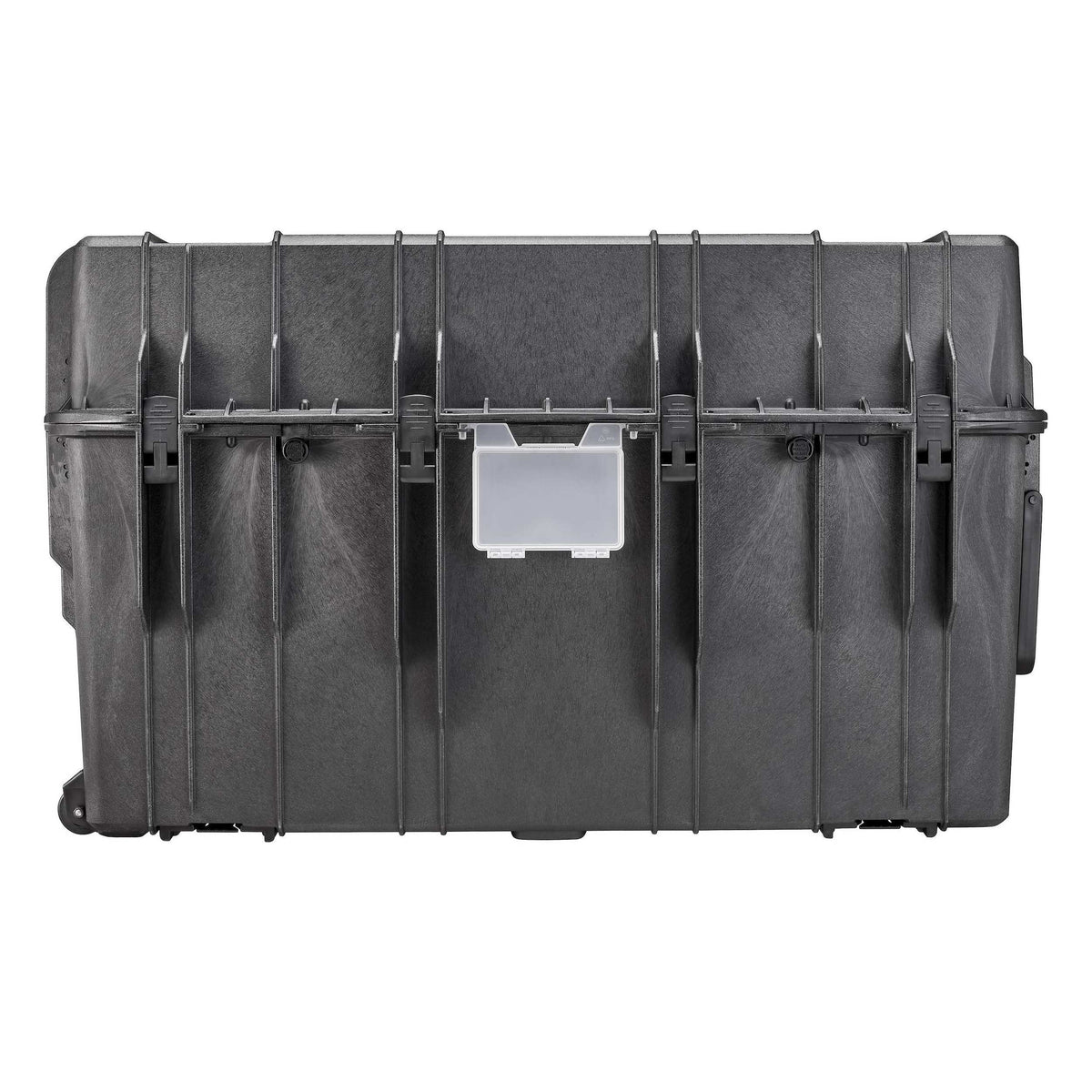

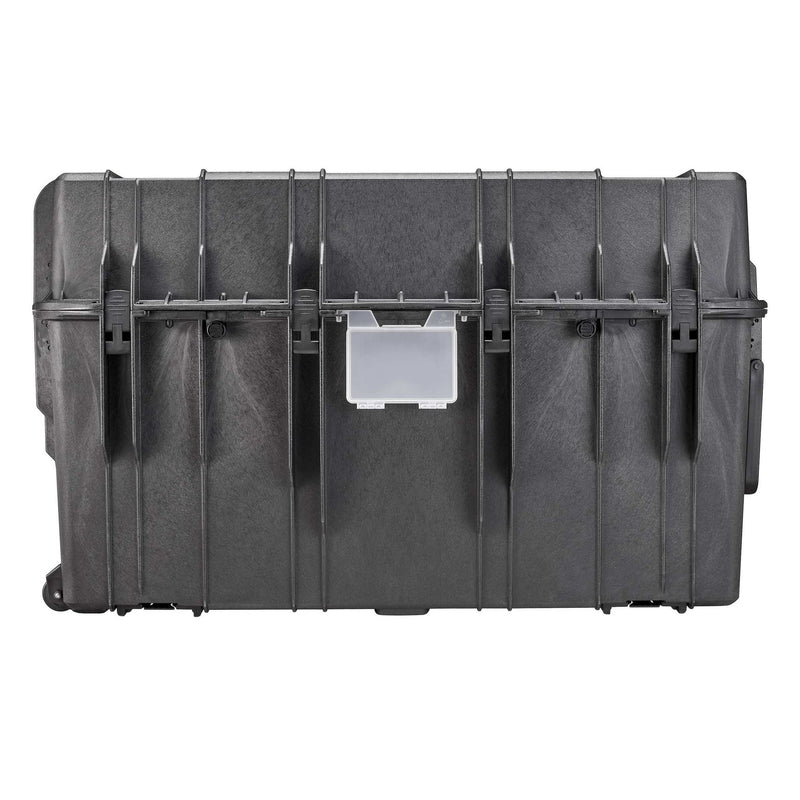

MAX1090H640-R side view showing the clear document holder, the latch line between lid and base and the wheels
Panaro MAX1090H640-R tall black trunk case closed, three-quarter view with the deep removable lid, yellow warning label, MAX logo and clear document holder
MAX1090H640-R closed from the opposite corner, showing the side handles, latches around the deep lid and the wheels at the base
MAX1090H640-R with the deep removable lid lifted above the empty base, showing the open black interior of both halves
Top-down view of the MAX1090H640-R lid with its yellow warning label, MAX logo and moulded ribs
MAX1090H640-R side view showing the clear document holder, the latch line between lid and base and the wheels
Panaro MAX1090H640-R tall black trunk case closed, three-quarter view with the deep removable lid, yellow warning label, MAX logo and clear document holder
MAX1090H640-R closed from the opposite corner, showing the side handles, latches around the deep lid and the wheels at the base
MAX1090H640-R with the deep removable lid lifted above the empty base, showing the open black interior of both halves
Top-down view of the MAX1090H640-R lid with its yellow warning label, MAX logo and moulded ribs
MAX1090H640-R side view showing the clear document holder, the latch line between lid and base and the wheels
Panaro

Panaro MAX1090H640-R Waterproof Case with Removable Lid Black

$2,694.67
$2,694.67
RRP $2,783.75
Or 4 payments of $673.67 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1090H640-R

The Deepest MAX1090, With 200 mm Of Lid Depth

Panaro's MAX1090H640-R is the tallest case in the MAX1090 family: 480 litres of empty, watertight space under a removable lid.

Its interior is 1090 x 680 x 640 mm, split as a 200 mm deep lid over a 440 mm base, so taller items can stand upright and the lid itself carries useful volume. Outside it measures 1178 x 780 x 702 mm, and Panaro weigh the bare case at 24.80 kg.

The lid is not hinged. Twelve latches hold it down and side handles on the lid let you lift it away to load from above; Panaro list a butterfly steel latch kit as an alternative. Double wheels, a fold down handle and low side handles take care of moving it, and four automatic valves equalise the pressure in the air or as temperatures change.

Teslab report 25A300A, issued for this exact height, shows compliant results for IP6X and IPX7, for STANAG 4280 alongside DEF STAN 81-41, and for MIL-STD-810H test methods. Panaro rate the case from -51 to 90 C.

Compare it with the rest of the Panaro MAX line, or look through defence and tactical and hard protective cases.

Often ordered together

  • 480 litre interior, 1090 x 680 x 640 mm
  • Deep 200 mm lid adds volume above the base
  • Removable lid held by twelve latches
  • Rolls on twin wheels with a fold down pull bar
  • Pressure equalised by four automatic valves
  • Tested by Teslab to IP67, STANAG 4280 and MIL-STD-810H
  • Tall instruments, generators or pumps that must travel upright
  • Rescue, field hospital and disaster response stores
  • Touring production and rigging gear
  • Bulk spares for mining and remote sites
  • Secure storage of oversize kit in depots

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX1090H640-R

Mega Code: PMMAX1090H640-R

Configuration: Empty, removable lid (-R)

External Dimensions: 1178 x 780 x 702 mm (46.38 x 30.70 x 27.63 in)

Internal Dimensions: 1090 x 680 x 640 mm (42.91 x 26.77 x 25.19 in)

Lid and Base Depth: 200 mm lid + 440 mm base

Weight: 24.80 kg (empty case, per Panaro)

Capacity: 480 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Reports Published: IP67, STANAG 4280 and DEF STAN 81-41, MIL-STD-810H

Temperature Range: -51 to 90 C, per Panaro datasheet

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236109087

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Same 1090 x 680 mm footprint and 440 mm base, but the lid is 200 mm deep instead of 70 mm, taking the inside height to 640 mm and the volume to 480 litres. Choose it when your tallest item will not fit in 510 mm.
Per Panaro, 24.80 kg bare and 29.80 kg as shipped in its carton. Plan on two people or a trolley once it is loaded.
Panaro's site lists this height only with a removable lid, in empty, modular divider and custom foam versions. We sell the empty version.
The Teslab report, IP67 and MIL-STD-810H certificates, datasheet and 2D drawing are attached as downloads on this page, along with Panaro's fungus and fluid declaration for MAX cases.
Panaro list holes for double padlocking on the MAX1090 series and sell their coloured MAXLOCK separately. No padlocks are included.
