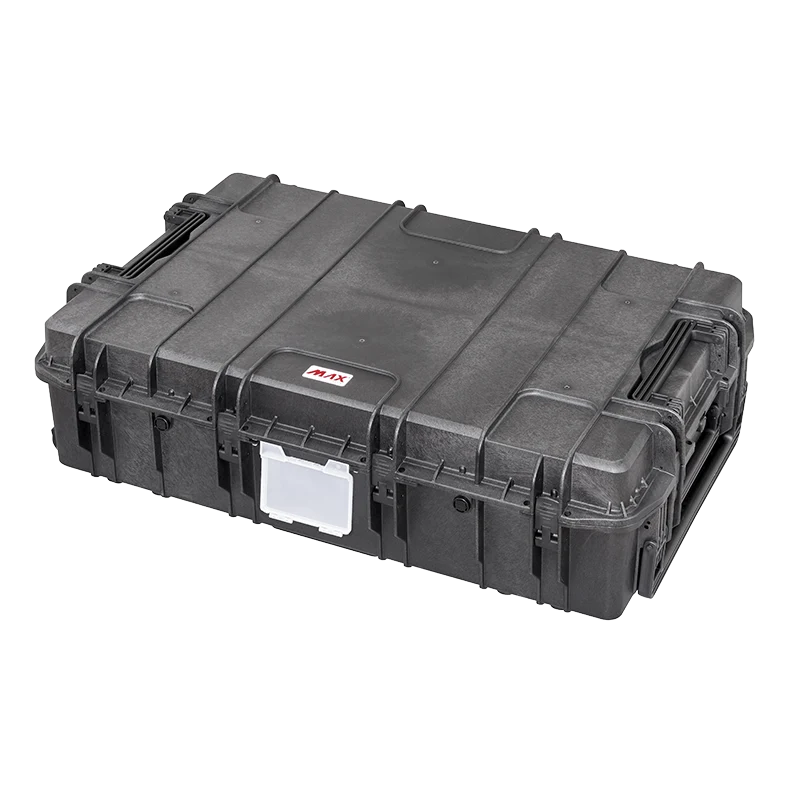

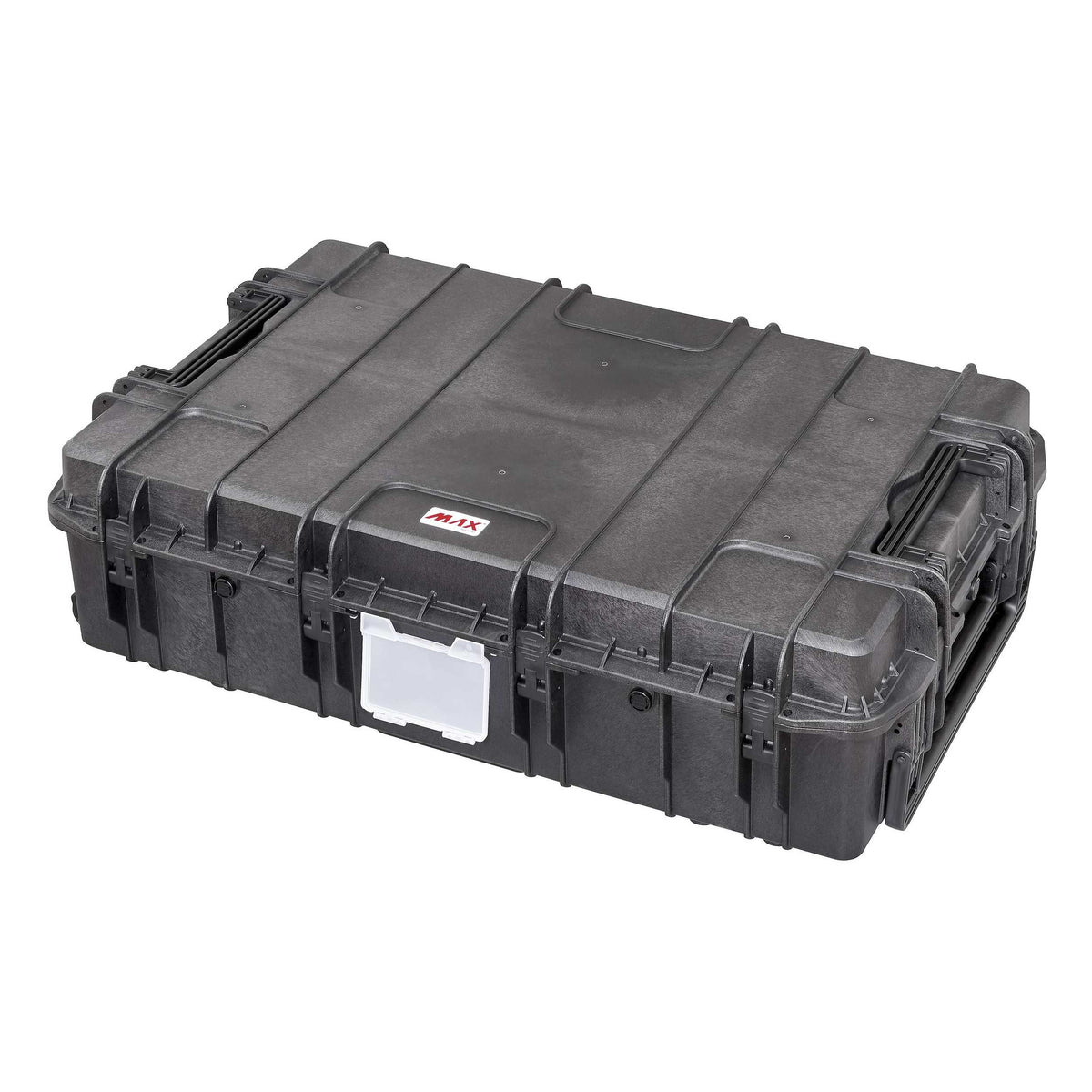

Panaro MAX1090H280-H large black waterproof case closed, showing the hinged lid, latches and clear label holder

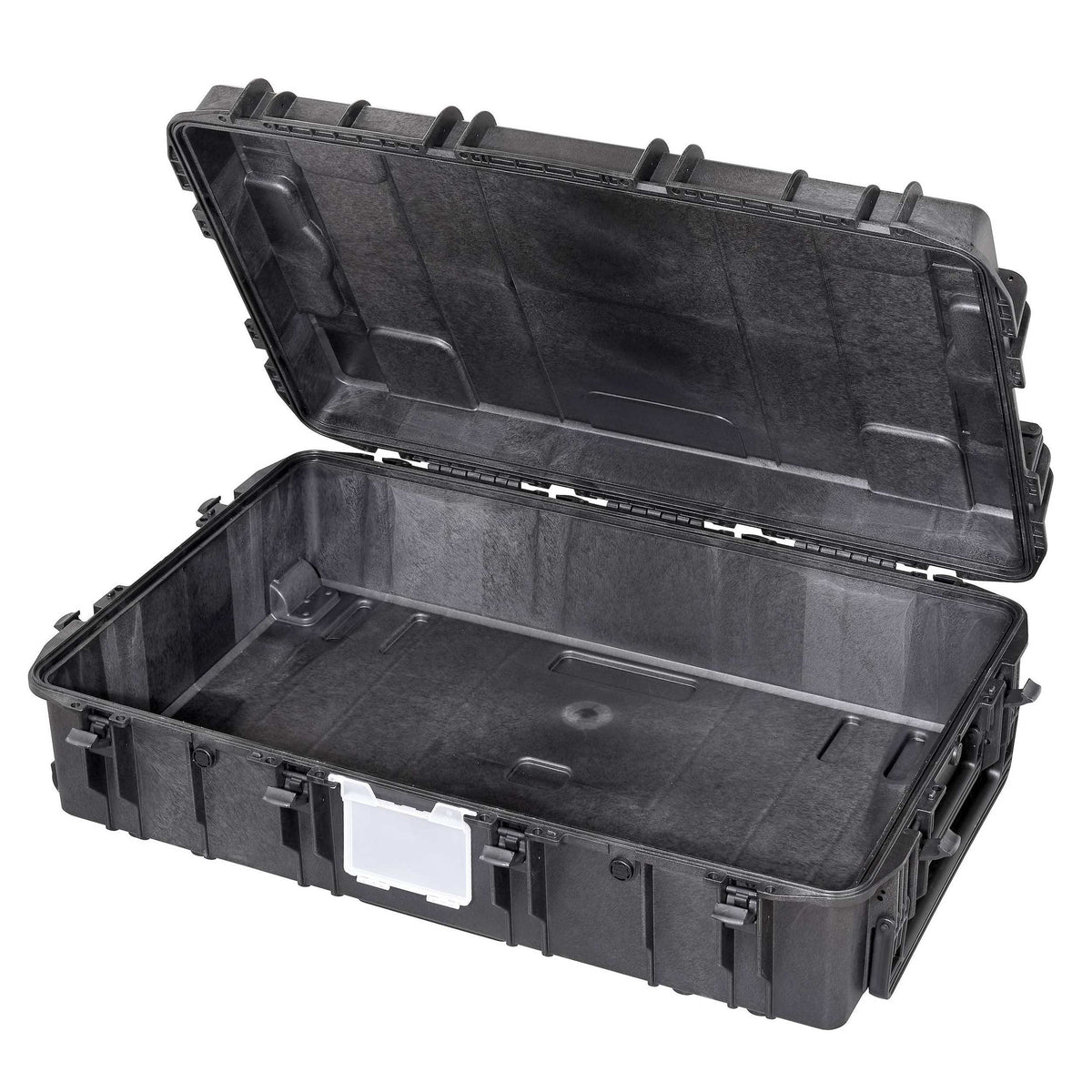

Panaro MAX1090H280-H open and empty with the hinged lid raised, showing the bare interior

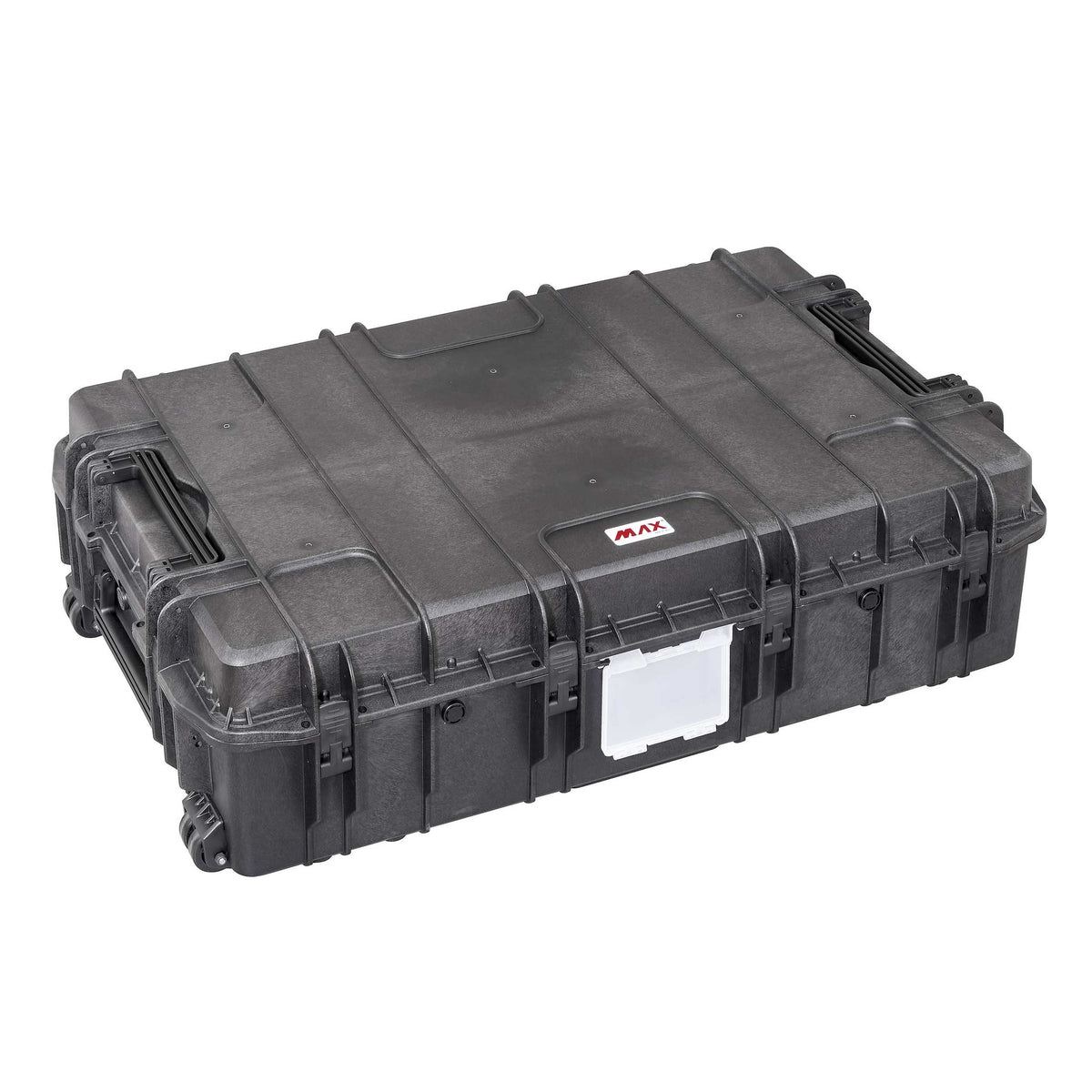

Panaro MAX1090H280-H from the other corner, closed, with side handles and wheels

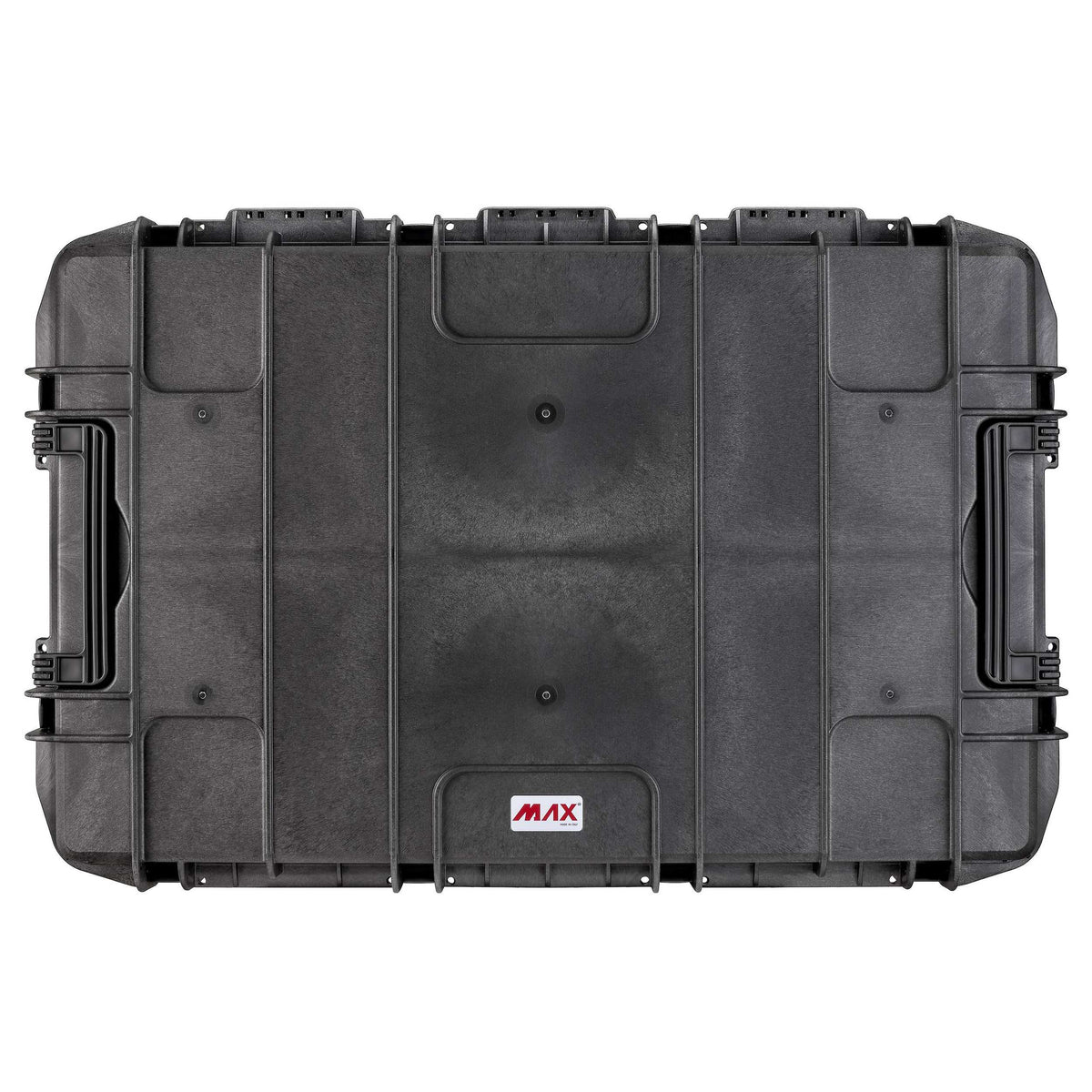

Lid view of the Panaro MAX1090 hinged version with handles on both ends and the MAX logo

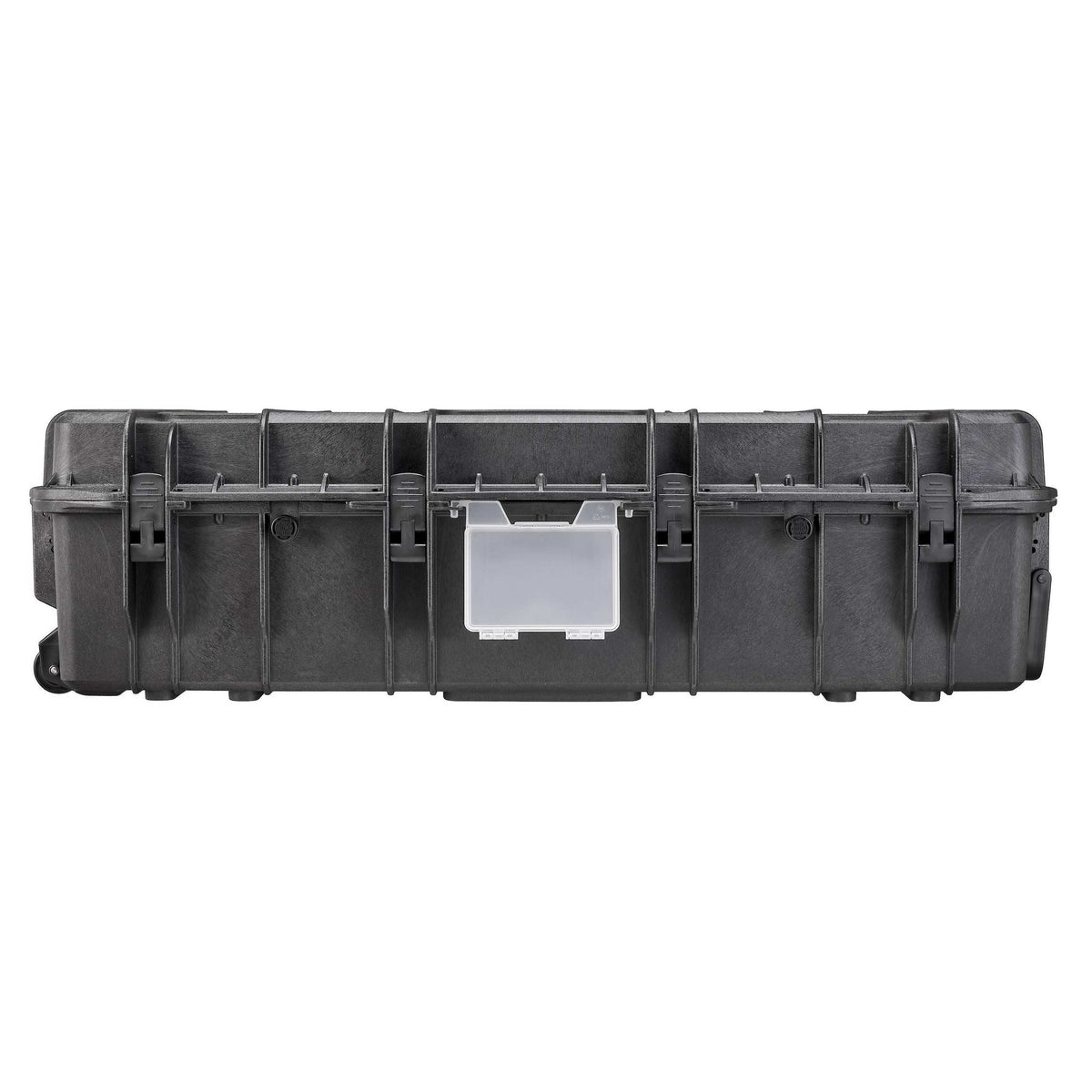

Side view of the Panaro MAX1090H280 showing the row of latches, label holder and a wheel
Panaro MAX1090H280-H large black waterproof case closed, showing the hinged lid, latches and clear label holder
Panaro MAX1090H280-H open and empty with the hinged lid raised, showing the bare interior
Panaro MAX1090H280-H from the other corner, closed, with side handles and wheels
Lid view of the Panaro MAX1090 hinged version with handles on both ends and the MAX logo
Side view of the Panaro MAX1090H280 showing the row of latches, label holder and a wheel
Panaro MAX1090H280-H large black waterproof case closed, showing the hinged lid, latches and clear label holder
Panaro MAX1090H280-H open and empty with the hinged lid raised, showing the bare interior
Panaro MAX1090H280-H from the other corner, closed, with side handles and wheels
Lid view of the Panaro MAX1090 hinged version with handles on both ends and the MAX logo
Side view of the Panaro MAX1090H280 showing the row of latches, label holder and a wheel
Panaro

Panaro MAX1090H280-H Waterproof Case with Hinged Lid Black

Regular price
$1,858.23
Sale price
$1,858.23
Regular price
RRP $1,968.43
Or 4 payments of $464.56 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1090H280-H

Over a Metre Long, With a Lid That Swings Open

The Panaro MAX1090H280-H is the hinged-lid version of Panaro's largest MAX footprint: 1090 x 680 mm inside and 280 mm deep, an empty 215 litre space for long and wide loads such as survey gear, stretchers, antenna masts or folded shelters.

On the -H version the lid stays attached and swings up to 90 degrees, held closed by 8 latches. That makes it the easier choice when one person opens and closes it often. Panaro also offer butterfly steel latches as an accessory. The lid is 70 mm deep over a 210 mm base, and the empty case weighs 17.50 kg per Panaro.

To move it, tip it onto the double wheels and pull the big fold down handle; two people can also carry it by the low side handles. Fibreglass reinforced nylon pins, a watertight seal and four automatic pressure release valves complete the shell. The -H shell holds an IP67 certificate and passed STANAG 4280 and MIL-STD-810H testing, per Panaro. Made in Italy.

Deeper MAX1090 cases and removable-lid versions are in Panaro; see also protective cases and defence and tactical.

  • Hinged lid opening to 90 degrees, 8 latches
  • Internal 1090 x 680 x 280 mm, 215 litres
  • Rolls on double wheels
  • Four pressure release valves in the shell
  • IP67 certificate from Panaro
  • Low side handles for two-person carrying
  • Long survey and measuring equipment
  • Stretchers and rescue boards
  • Antenna masts and folding poles
  • Folded shelters and awnings
  • Large drone frames and props

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX1090H280-H

Mega Code: PMMAX1090H280-H

Configuration: Empty, hinged lid (-H)

Internal Dimensions: 1090 x 680 x 280 mm

External Dimensions: 1178 x 780 x 330 mm

Lid and Base Depth: 70 mm lid + 210 mm base

Capacity: 215 litres

Weight: 17.50 kg (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

EAN: 8011236109032

FAQs

H is the hinged lid version: it swings up to 90 degrees and is held by 8 latches. The -R version has a fully removable lid with 12 latches.
Hinged suits frequent opening by one person, as the lid stays attached. Removable suits loading from above with a crane or two people, or using the lid separately.
No, this listing is the empty MAX1090H280-H. Panaro offer cubed foam and rifle case configurations for this size.
Double wheels with a large fold down handle for rolling, plus bottom side handles for a two-person carry. Empty it is 17.50 kg.
For the MAX1090H280-H: datasheet covering both lid types, 2D drawing, report 25A297A, IP67 and MIL-STD-810H certificates and the fungus and fluid sheet.
