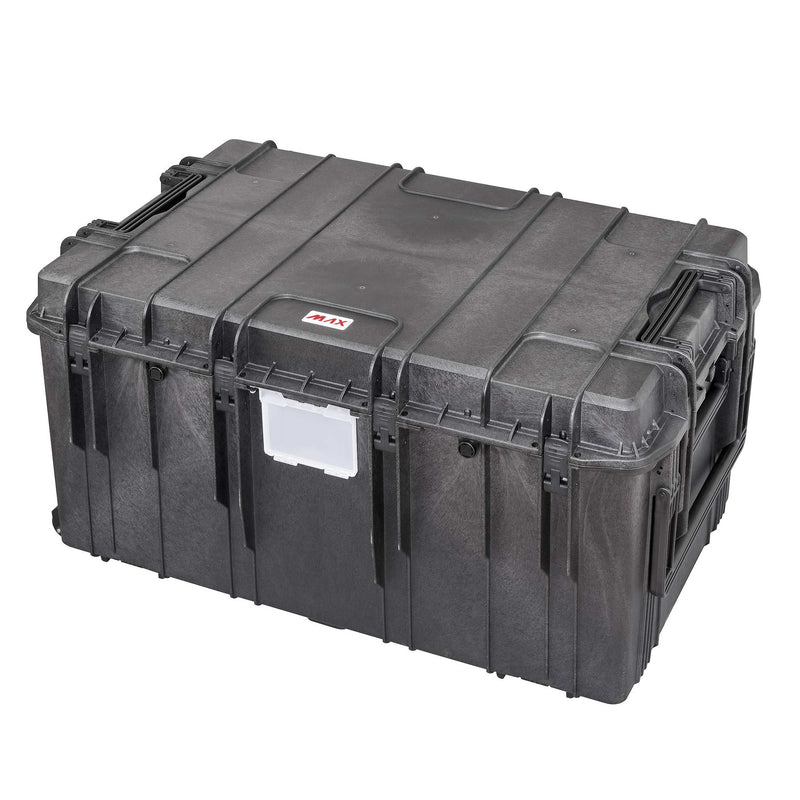

Panaro MAX1090H510-H large deep black waterproof case closed, with latches, side handles and clear label holder

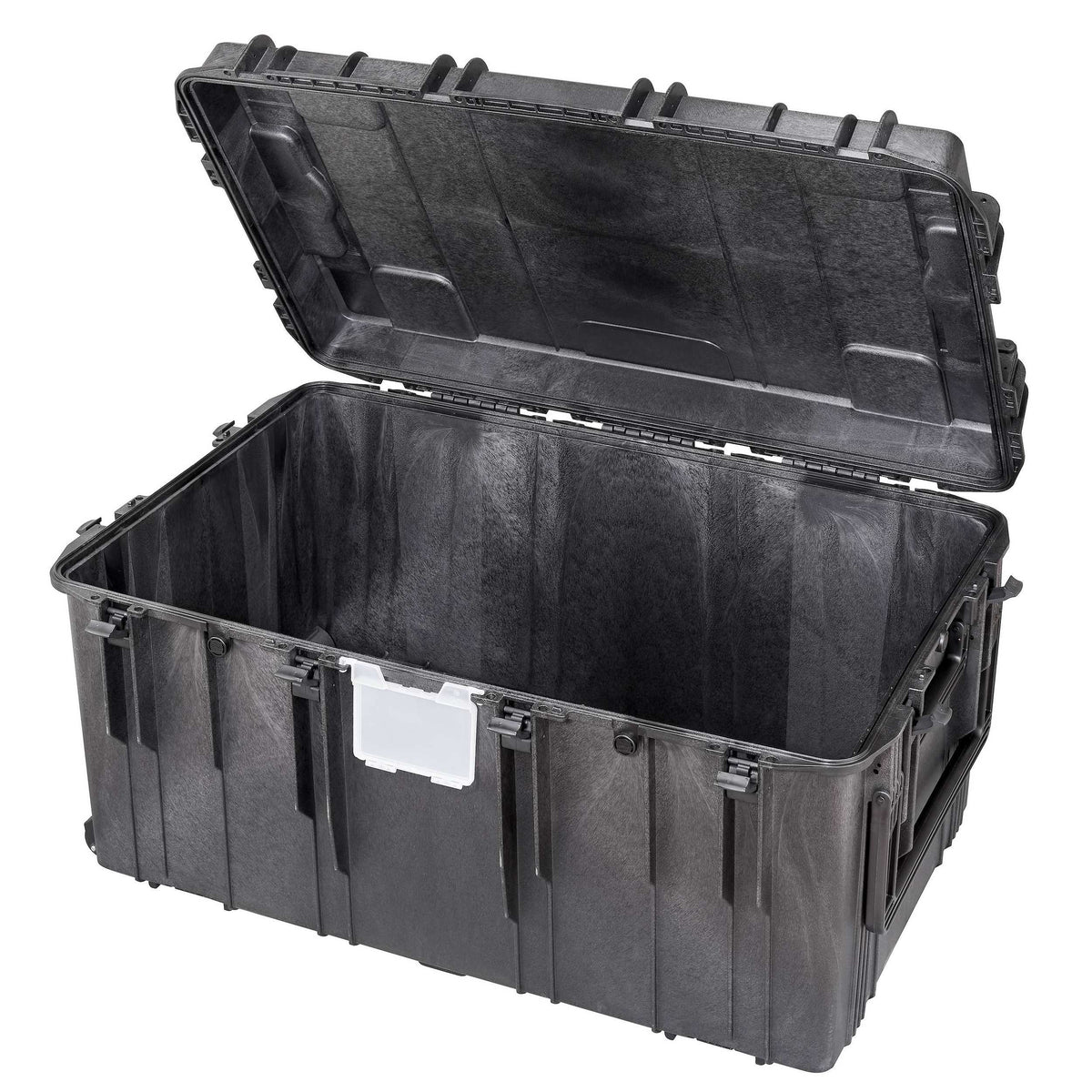

Panaro MAX1090H510-H open and empty with the hinged lid raised, showing the deep base

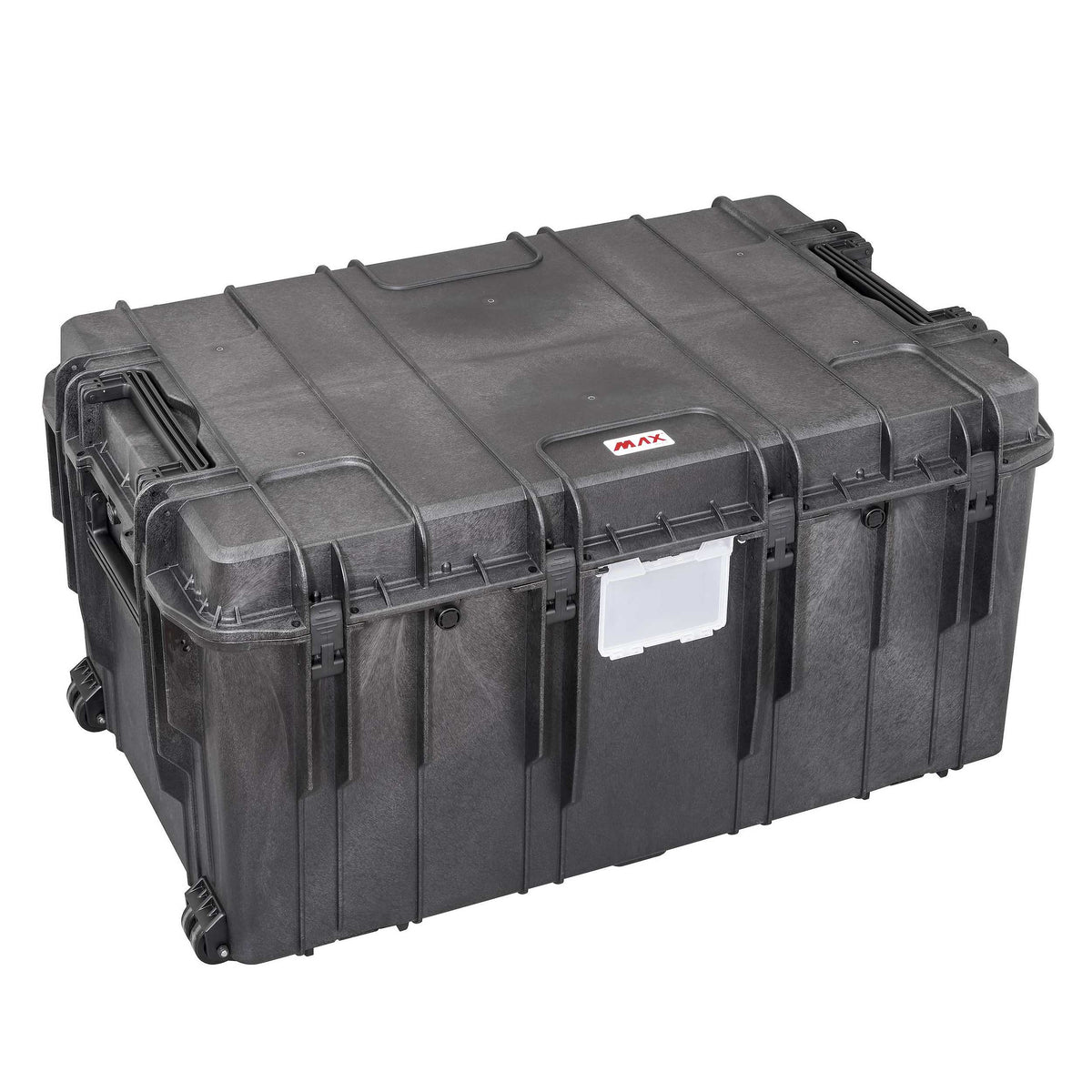

Panaro MAX1090H510-H closed from the other corner, showing handles and wheels

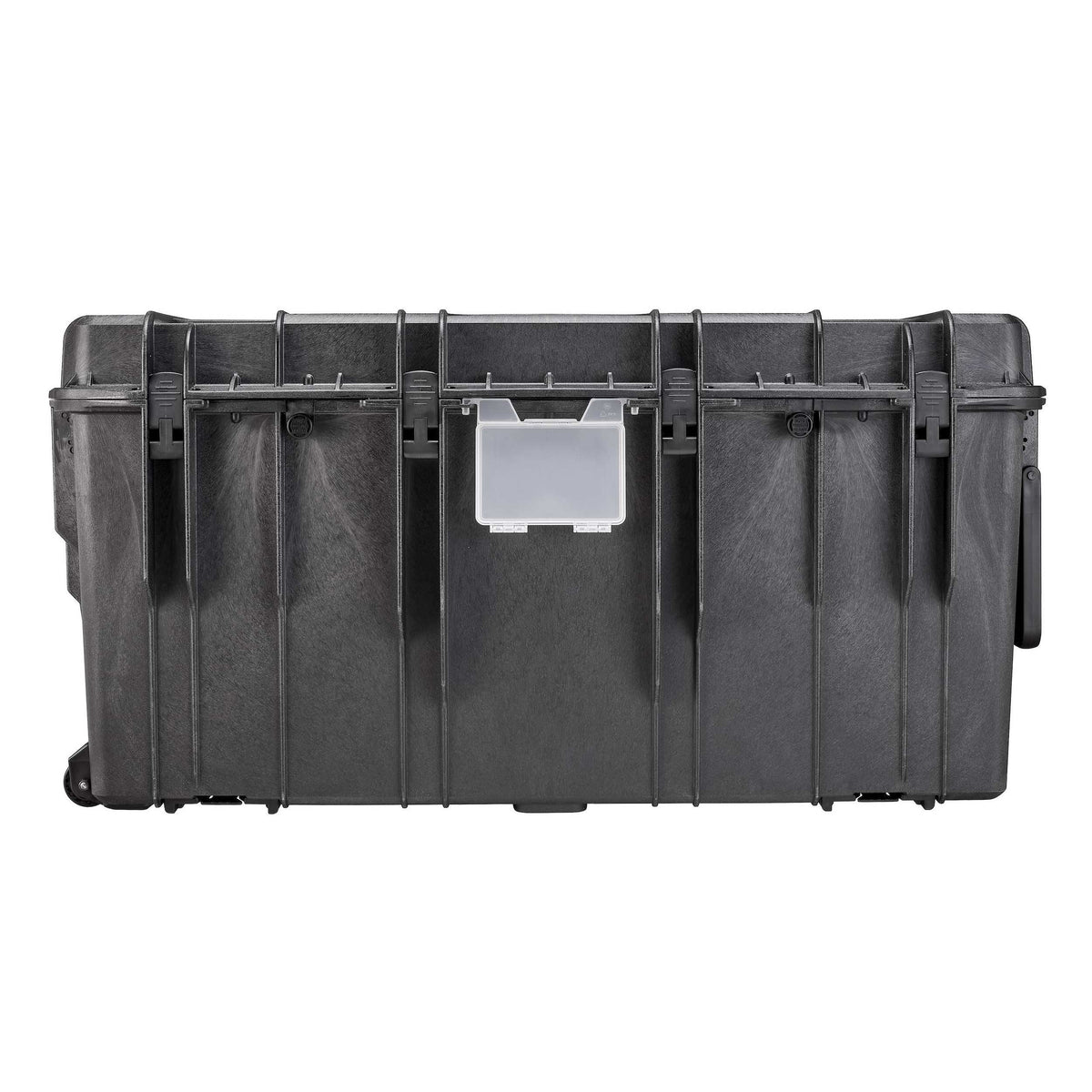

Side view of the Panaro MAX1090H510 showing the latch line, label holder and a wheel
Panaro MAX1090H510-H large deep black waterproof case closed, with latches, side handles and clear label holder
Panaro MAX1090H510-H open and empty with the hinged lid raised, showing the deep base
Panaro MAX1090H510-H closed from the other corner, showing handles and wheels
Side view of the Panaro MAX1090H510 showing the latch line, label holder and a wheel
Panaro MAX1090H510-H large deep black waterproof case closed, with latches, side handles and clear label holder
Panaro MAX1090H510-H open and empty with the hinged lid raised, showing the deep base
Panaro MAX1090H510-H closed from the other corner, showing handles and wheels
Side view of the Panaro MAX1090H510 showing the latch line, label holder and a wheel
Panaro

Panaro MAX1090H510-H Waterproof Case with Hinged Lid Black

Regular price
$2,381.94
Sale price
$2,381.94
Regular price
RRP $2,462.58
Or 4 payments of $595.49 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1090H510-H

The Deep MAX1090 With a Hinged Lid

The Panaro MAX1090H510-H is a deep, wheeled tub of a case: 1090 x 680 x 510 mm inside and 395 litres, with a hinged lid that stays attached, supplied empty for big mixed loads.

The base is 440 mm deep under a 70 mm lid, so heavy items sit low. The hinged lid opens to 90 degrees and closes with 8 latches, or butterfly steel latches as an accessory. Panaro list the empty case at 23 kg. Their accessory list for this size includes a caster wheel kit, foot kit, cable kit and a modular divider configuration.

Loaded, it moves on double wheels with a large fold down handle, or between two people on the bottom side handles. Standard fit includes four automatic valves and fibreglass reinforced nylon pins, and the MAX1090H510 has Panaro's IP67 and MIL-STD-810H certificates and STANAG 4280 testing. Made in Italy.

The removable-lid MAX1090H510-R and other depths are in Panaro; see protective cases and defence and tactical too.

  • Hinged lid to 90 degrees, 8 latches
  • 1090 x 680 x 510 mm inside, 395 litres
  • Deep 440 mm base
  • Double wheels, large fold down handle
  • Four valves balance air pressure
  • IP67 rated by Panaro
  • Mixed expedition and field camp stores
  • Generators and pumps
  • Bulk medical or rescue supplies
  • Stage cabling and lighting
  • Spare parts for remote plant

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX1090H510-H

Mega Code: PMMAX1090H510-H

Configuration: Empty, hinged lid (-H)

Internal Dimensions: 1090 x 680 x 510 mm

External Dimensions: 1178 x 780 x 564 mm

Lid and Base Depth: 70 mm lid + 440 mm base

Capacity: 395 litres

Weight: 23 kg (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

EAN: 8011236109063

FAQs

1090 x 680 x 510 mm inside, 395 litres, and 1178 x 780 x 564 mm outside, per Panaro.
The lid stays attached and opens to 90 degrees, so one person can open and close it with 8 latches. The MAX1090H510-R has a removable lid instead.
Panaro list 23 kg empty. Use the bottom side handles for a two-person lift, or roll it on the double wheels.
Panaro list a modular divider configuration and caster wheel, foot and cable kits as accessories for this size.
Use the downloads for the MAX1090H510 drawing and datasheet, report 25A299A, its fungus and fluid declaration, and the IP67 and 810H certificates.
