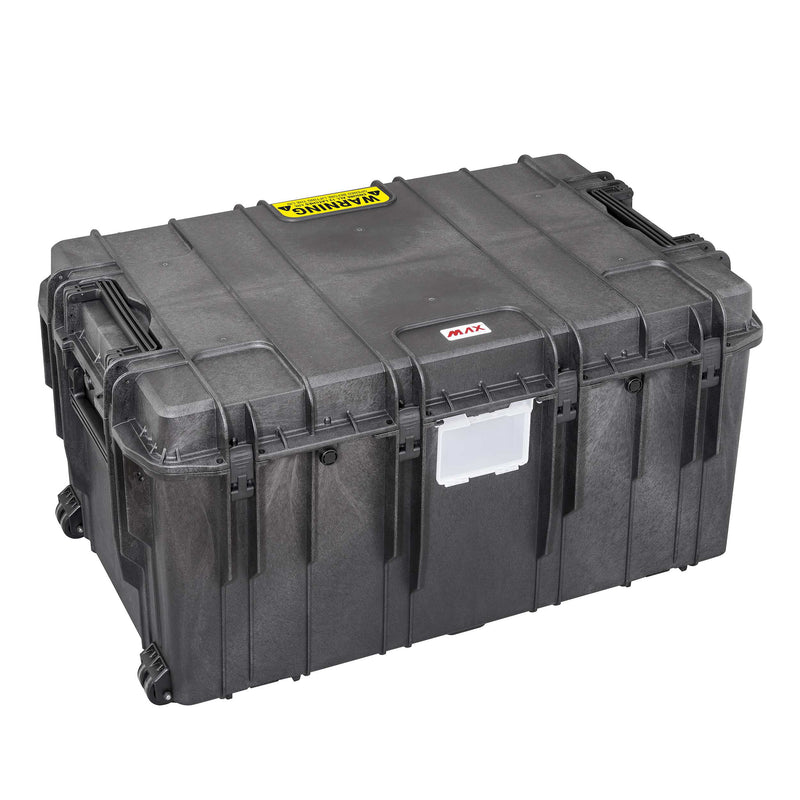

MAX1090H510-R closed from the other corner, showing the side handles, wheels at the base and the row of latches holding the removable lid

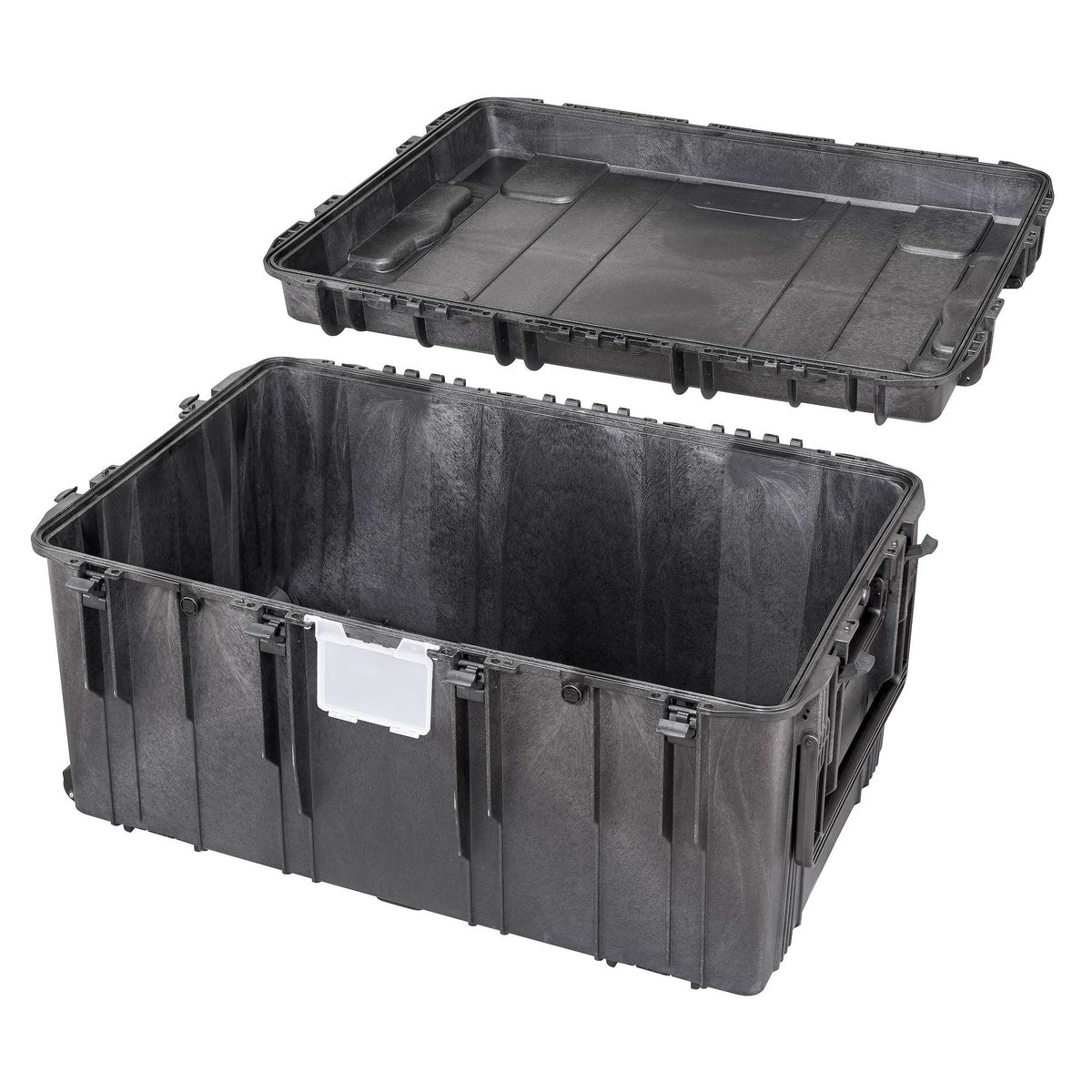

MAX1090H510-R with the removable lid lifted off and set above the empty base, showing the plain black interior walls
Panaro MAX1090H510-R black trunk case closed, three-quarter view showing the removable lid, latches, MAX logo, yellow lid label and clear document holder
MAX1090H510-R closed from the other corner, showing the side handles, wheels at the base and the row of latches holding the removable lid
MAX1090H510-R with the removable lid lifted off and set above the empty base, showing the plain black interior walls
Panaro MAX1090H510-R black trunk case closed, three-quarter view showing the removable lid, latches, MAX logo, yellow lid label and clear document holder
MAX1090H510-R closed from the other corner, showing the side handles, wheels at the base and the row of latches holding the removable lid
MAX1090H510-R with the removable lid lifted off and set above the empty base, showing the plain black interior walls
Panaro

Panaro MAX1090H510-R Waterproof Case with Removable Lid Black

$2,390.41
$2,390.41
RRP $2,472.02
Or 4 payments of $597.60 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1090H510-R

A 395 Litre Trunk With A Lid That Lifts Clean Off

The Panaro MAX1090H510-R is the removable-lid version of Panaro's big MAX1090 trunk, an empty 395 litre watertight case with a 510 mm deep interior.

Inside you get 1090 x 680 x 510 mm of open space, 70 mm of it in the lid and 440 mm in the base. Instead of a hinge, the lid comes away completely once its latches are released, and Panaro fit side handles to the lid so it can be lifted off and set down. The datasheet gives the removable version 12 latches, with a butterfly steel latch kit offered by Panaro as an option.

To move it, tip it onto its paired wheels and pull on the big folding handle; for stairs or a ute tray, Panaro add grips near the bottom of each side for a two-person lift. The bare case weighs 23 kg. Four automatic pressure release valves balance the air inside when altitude or temperature changes, and the nylon pins are fibreglass reinforced against corrosion.

Panaro publish Teslab report 25A299A for this size. It records IP67 dust and immersion results, the NATO STANAG 4280 and British DEF STAN 81-41 packaging tests, and several MIL-STD-810H storage, drop and vibration methods. It ships empty, ready for your own foam, frames or loose kit.

Other large trunks sit in protective cases; field kit buyers may also want defence and tactical gear, and every MAX size is under Panaro.

Often ordered together

  • Lift-off lid with its own pair of side grips
  • 395 litres inside, 1090 x 680 x 510 mm
  • Paired wheels and a wide folding pull handle
  • Low side grips so two people can share the load
  • Quad automatic pressure valves
  • Corrosion resistant nylon pins with glass fibre
  • Teslab report covering IP67, STANAG 4280 and MIL-STD-810H
  • Bulk transport of field and expedition equipment
  • Event, staging and broadcast kit that needs full top access
  • Defence and emergency response stores
  • Shipping tooling and spares between sites
  • Long-term storage of bulky gear in sheds and vehicles

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX1090H510-R

Mega Code: PMMAX1090H510-R

Configuration: Empty, removable lid (-R)

External Dimensions: 1178 x 780 x 564 mm (46.38 x 30.70 x 22.99 in)

Internal Dimensions: 1090 x 680 x 510 mm (42.91 x 26.77 x 20.07 in)

Lid and Base Depth: 70 mm lid + 440 mm base

Weight: 23 kg (empty case, per Panaro)

Capacity: 395 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Reports Published: IP67, STANAG 4280 and DEF STAN 81-41, MIL-STD-810H

Temperature Range: -51 to 90 C, per Panaro datasheet

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236109070

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

With the lid off nothing overhangs the base, so you can load from above with a hoist and reach in from all four sides. The hinged version keeps its lid attached, which suits frequent opening in the field.
Panaro give 23 kg for the bare case and 27.80 kg for it in its shipping carton. Add your contents to that; at this size it is a two-person lift, which is what the lower side handles are for.
No. This listing is the empty case. Panaro offer modular dividers and custom foam inlays for the MAX1090H510, so ask us if you would like one quoted.
Panaro's datasheet shows an optional set of four caster wheels for this case. They are not included with this listing.
Teslab report 25A299A lists IP6X and IPX7 dust and immersion tests, STANAG 4280 and DEF STAN 81-41 impact, heat, cold and vibration tests, and MIL-STD-810H storage, drop and vibration methods. The report, datasheet and 2D drawing are downloadable on this page.
Panaro make MAX cases in Italy, at their plant in Marano sul Panaro near Modena.
