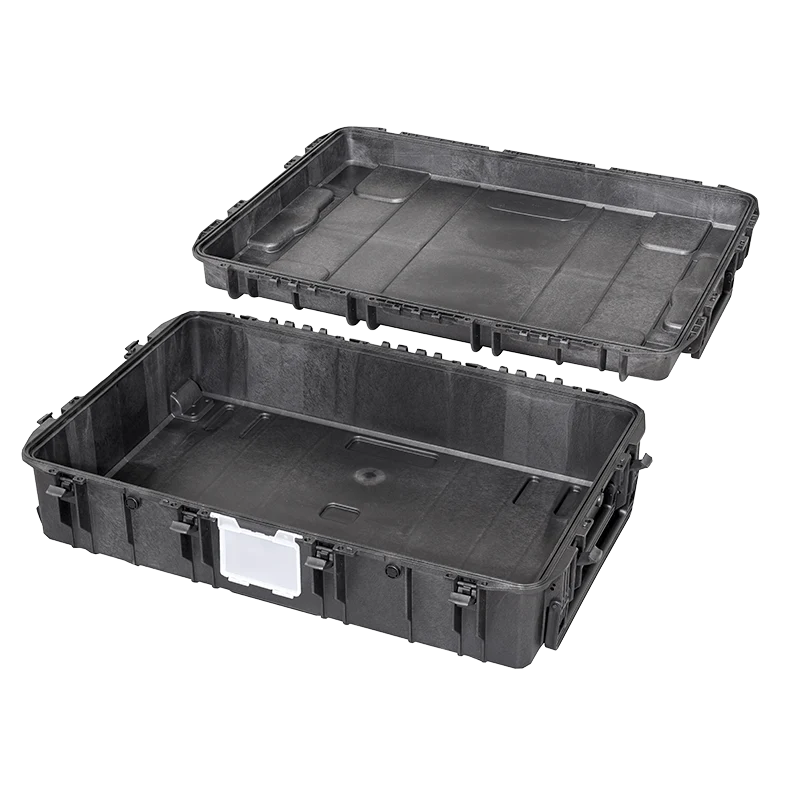

Panaro MAX1090H280-R with the removable lid lifted off and placed behind the empty base
Panaro MAX1090H280-R closed from the other corner, showing the lid handles and wheels
Lid view of the Panaro MAX1090 removable-lid version with the yellow warning label and MAX logo
Side view of the Panaro MAX1090H280 showing the row of latches, label holder and a wheel
Panaro MAX1090H280-R large black waterproof case closed, yellow warning label on the removable lid and clear label holder at the front
Panaro MAX1090H280-R with the removable lid lifted off and placed behind the empty base
Panaro MAX1090H280-R closed from the other corner, showing the lid handles and wheels
Lid view of the Panaro MAX1090 removable-lid version with the yellow warning label and MAX logo
Side view of the Panaro MAX1090H280 showing the row of latches, label holder and a wheel
Panaro MAX1090H280-R large black waterproof case closed, yellow warning label on the removable lid and clear label holder at the front
Panaro MAX1090H280-R with the removable lid lifted off and placed behind the empty base
Panaro MAX1090H280-R closed from the other corner, showing the lid handles and wheels
Lid view of the Panaro MAX1090 removable-lid version with the yellow warning label and MAX logo
Side view of the Panaro MAX1090H280 showing the row of latches, label holder and a wheel
Panaro

Panaro MAX1090H280-R Waterproof Case with Removable Lid Black

$1,868.13
$1,868.13
RRP $1,979.46
Or 4 payments of $467.03 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1090H280-R

The MAX1090H280 With a Lift-Off Lid

The Panaro MAX1090H280-R has the same 1090 x 680 x 280 mm interior as the hinged version, but its lid comes off completely, which matters when a long load is lowered in from above or the case sits under a bench where a swinging lid would not clear.

Panaro close the removable lid with 12 latches, with butterfly steel latches available as an accessory, and fit handles on the lid sides so you can lift it away once the latches are open. A yellow warning label sits on the lid in Panaro's photos. Depth is split 70 mm lid and 210 mm base, 215 litres overall, and Panaro list the empty case at 17.50 kg.

It rolls on a double wheel set with a big fold down handle, and the bottom side handles suit a two-person lift. The -R shell carries four pressure release valves and a watertight seal, and Panaro have it certified IP67 and tested to DEF STAN 81-41 and MIL-STD-810H. Made in Italy.

The hinged version and deeper removable-lid sizes are listed under Panaro; browse protective cases and defence and tactical for more.

Often ordered together

  • Fully removable lid with 12 latches
  • Lid side handles for lifting it off
  • 1090 x 680 x 280 mm inside, 215 litres
  • Double wheel set and big fold down handle
  • Four valves equalise pressure
  • IP67 certified removable-lid shell
  • Loads craned or lowered in from above
  • Bench-mounted test rigs
  • Long tool sets for line crews
  • Rescue boards and splints
  • Signage and banner stands

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX1090H280-R

Mega Code: PMMAX1090H280-R

Configuration: Empty, removable lid (-R)

Internal Dimensions: 1090 x 680 x 280 mm

External Dimensions: 1178 x 780 x 330 mm

Lid and Base Depth: 70 mm lid + 210 mm base

Capacity: 215 litres

Weight: 17.50 kg (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

EAN: 8011236109049

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

The -R lid lifts off completely and closes with 12 latches. The -H lid is hinged, opens to 90 degrees and uses 8 latches. The interior size is the same.
Open all latches, then use the handles on the lid sides, which Panaro add for removing and handling the lid.
Panaro's photos of the removable-lid MAX1090 show a yellow warning label on the lid. Read the label on your case for its instructions.
No, this is the empty case. Panaro list cubed foam and rifle case configurations for the MAX1090H280.
Yes. Panaro share one datasheet and drawing for the H280 -H and -R, and this page also has report 25A297A, the IP67 and 810H certificates and a fungus and fluid declaration.
