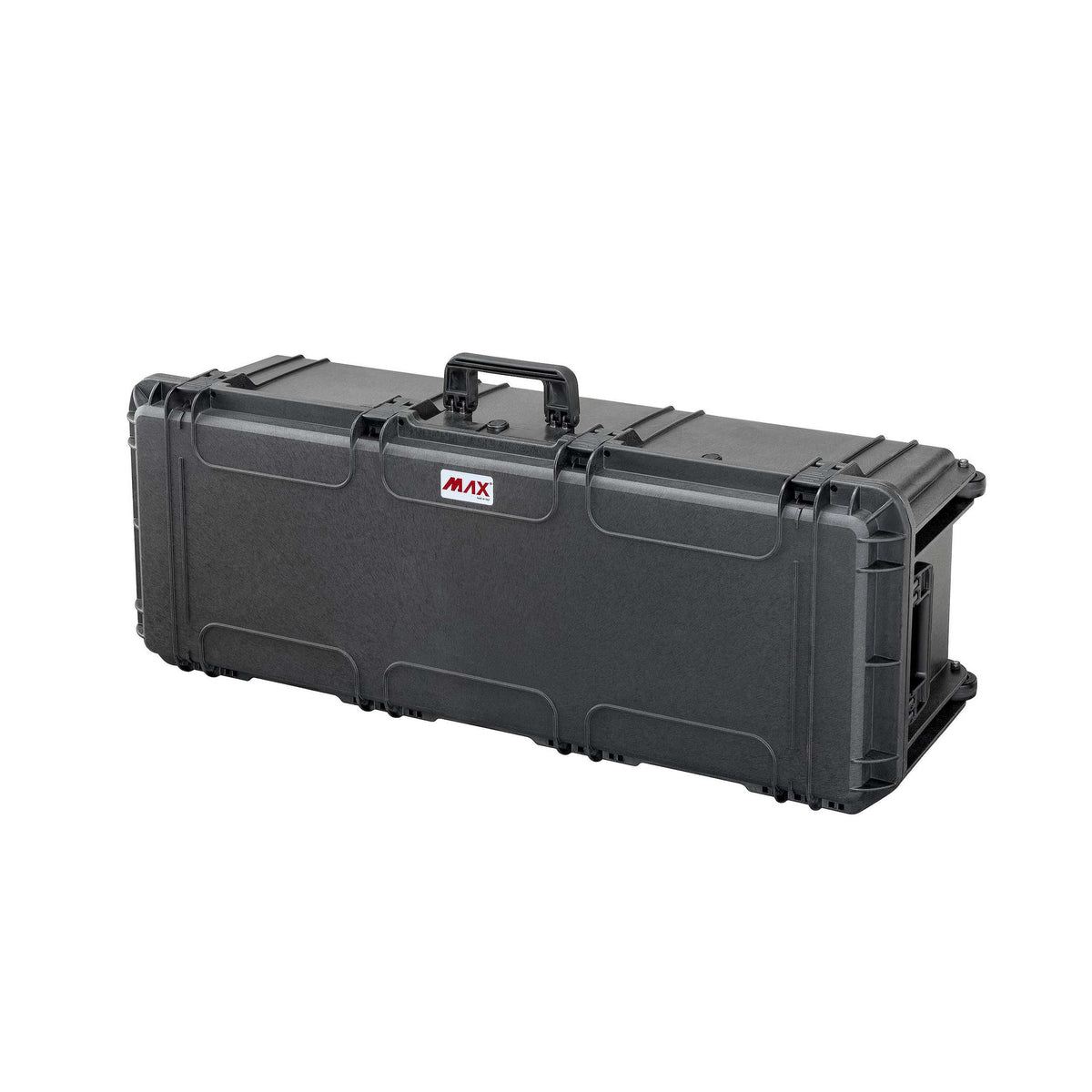

Panaro MAX1100H330 deep long black case closed, three-quarter view with the top carry handle, red MAX logo and latches

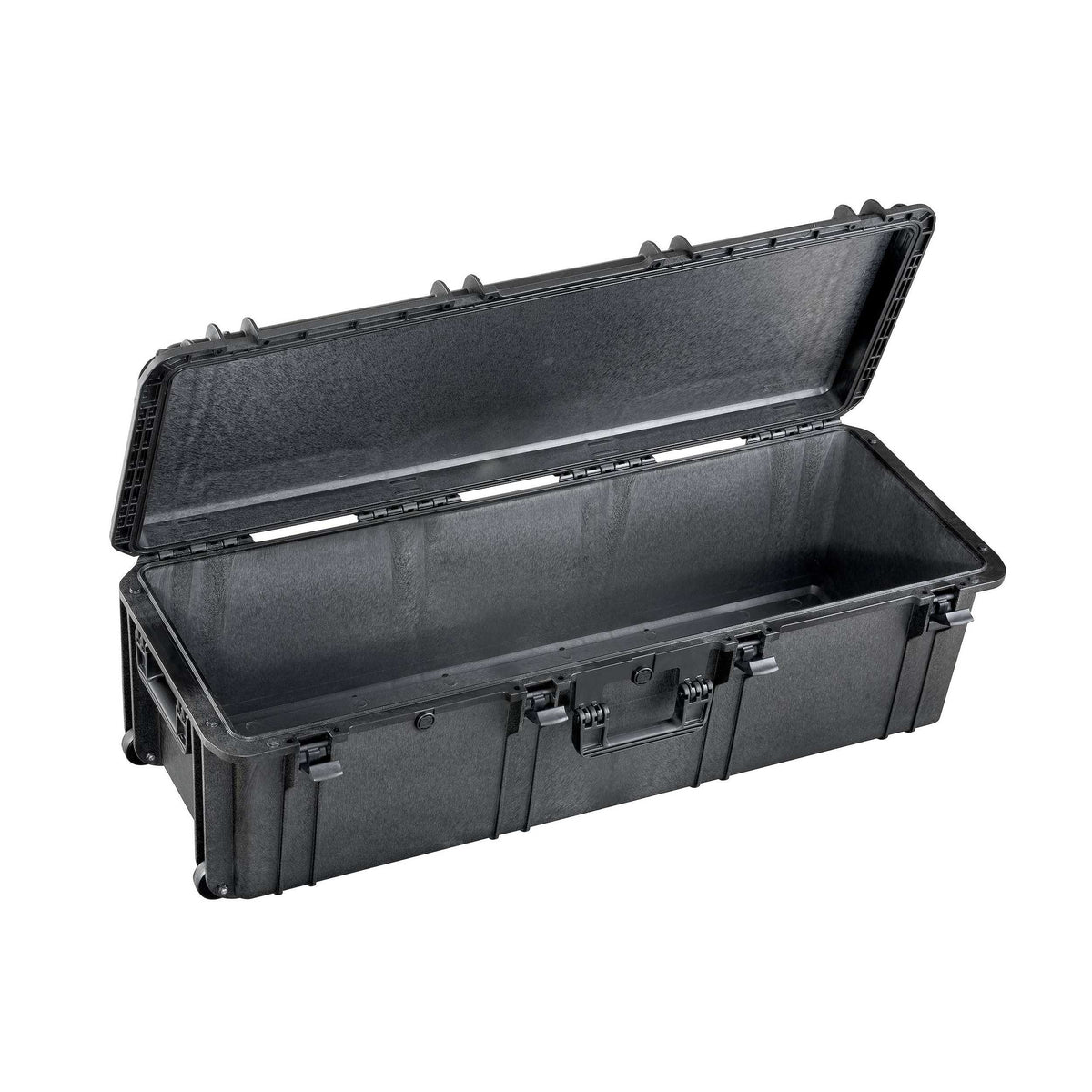

MAX1100H330 opened on its hinge, showing the deep empty base and the shallow empty lid

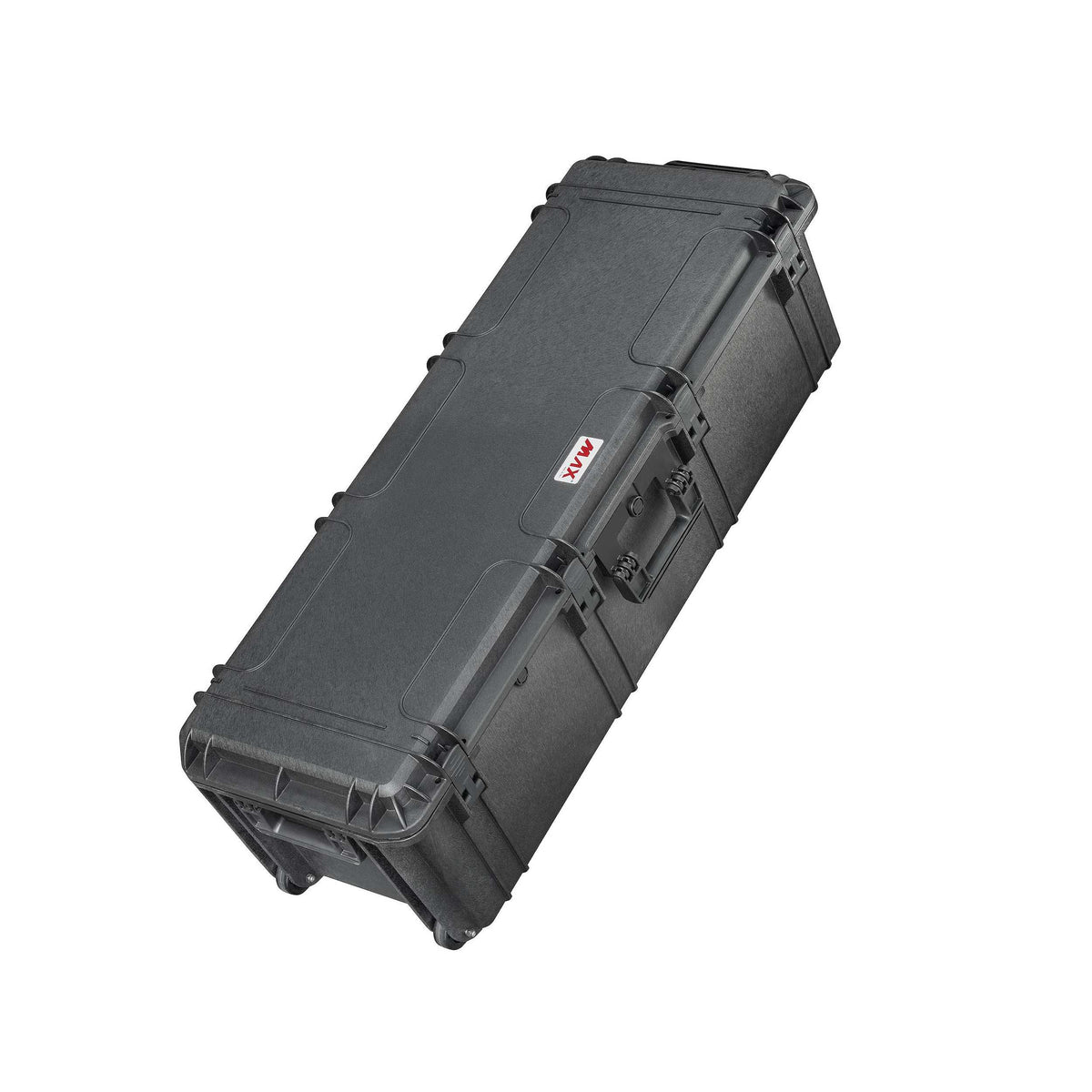

MAX1100H330 viewed end-on from above, showing the wheels and end handle at one end of the deep shell

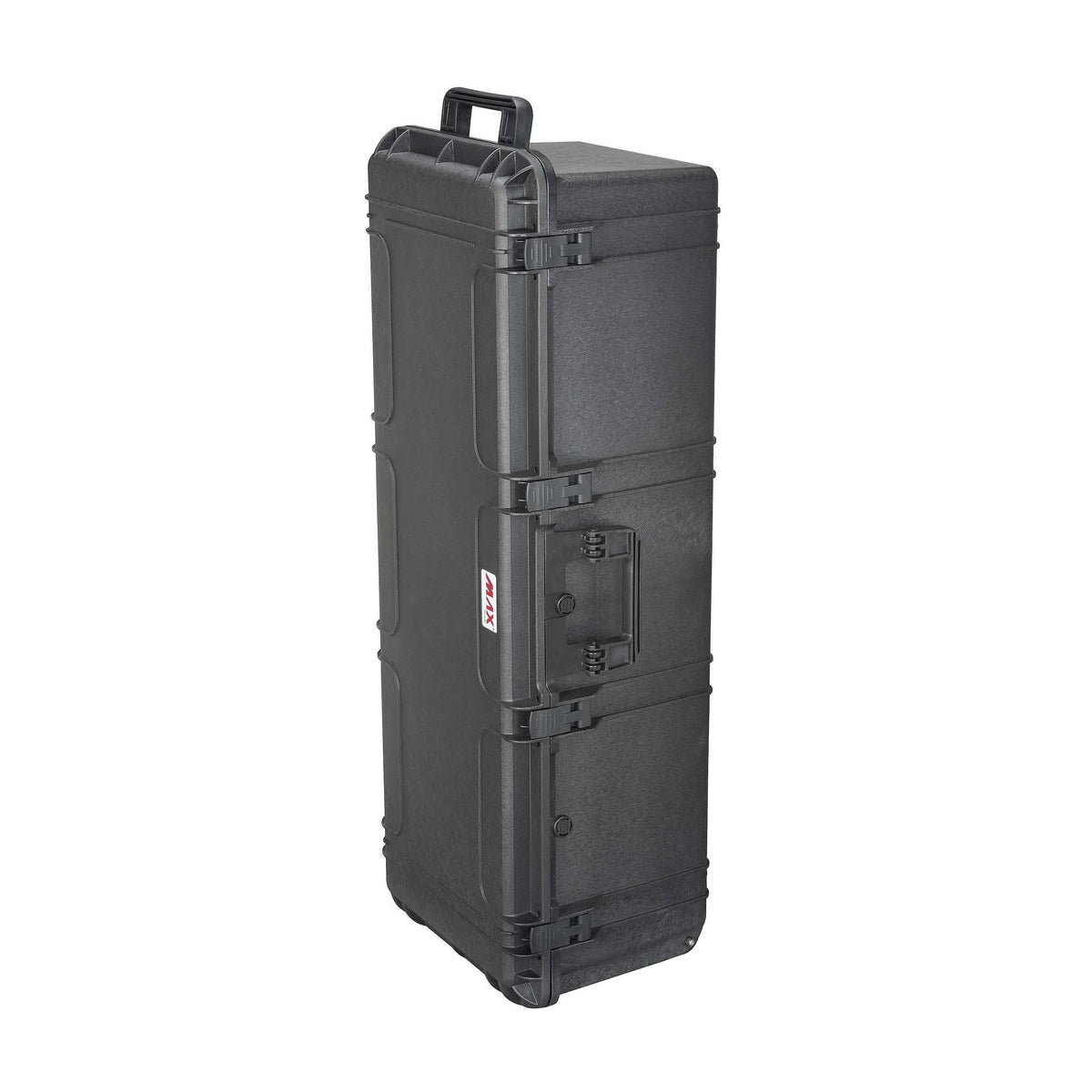

MAX1100H330 standing upright on its wheel end, side view with the latches and the handle at the top

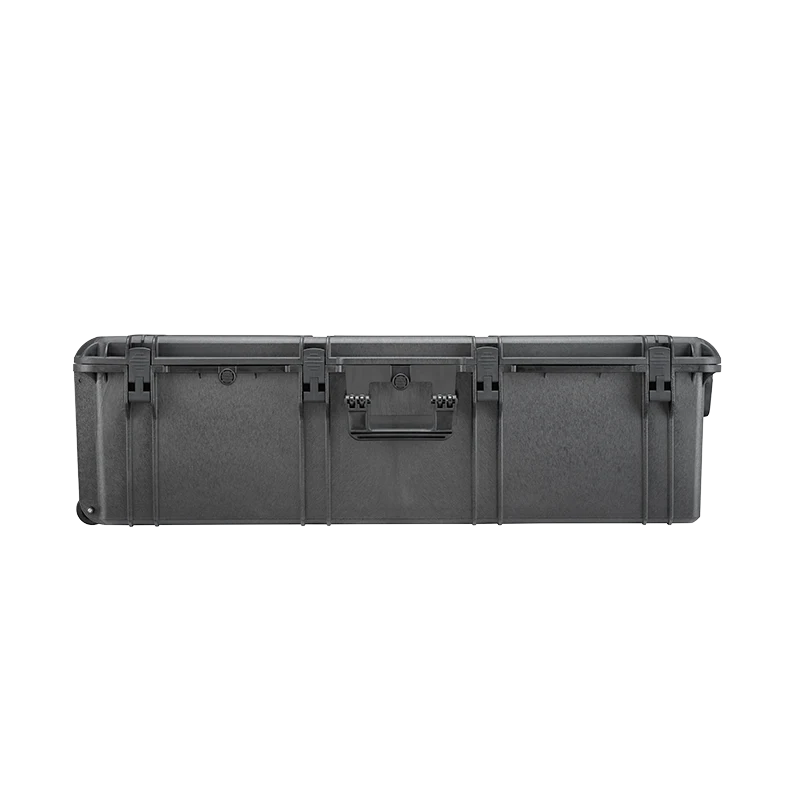

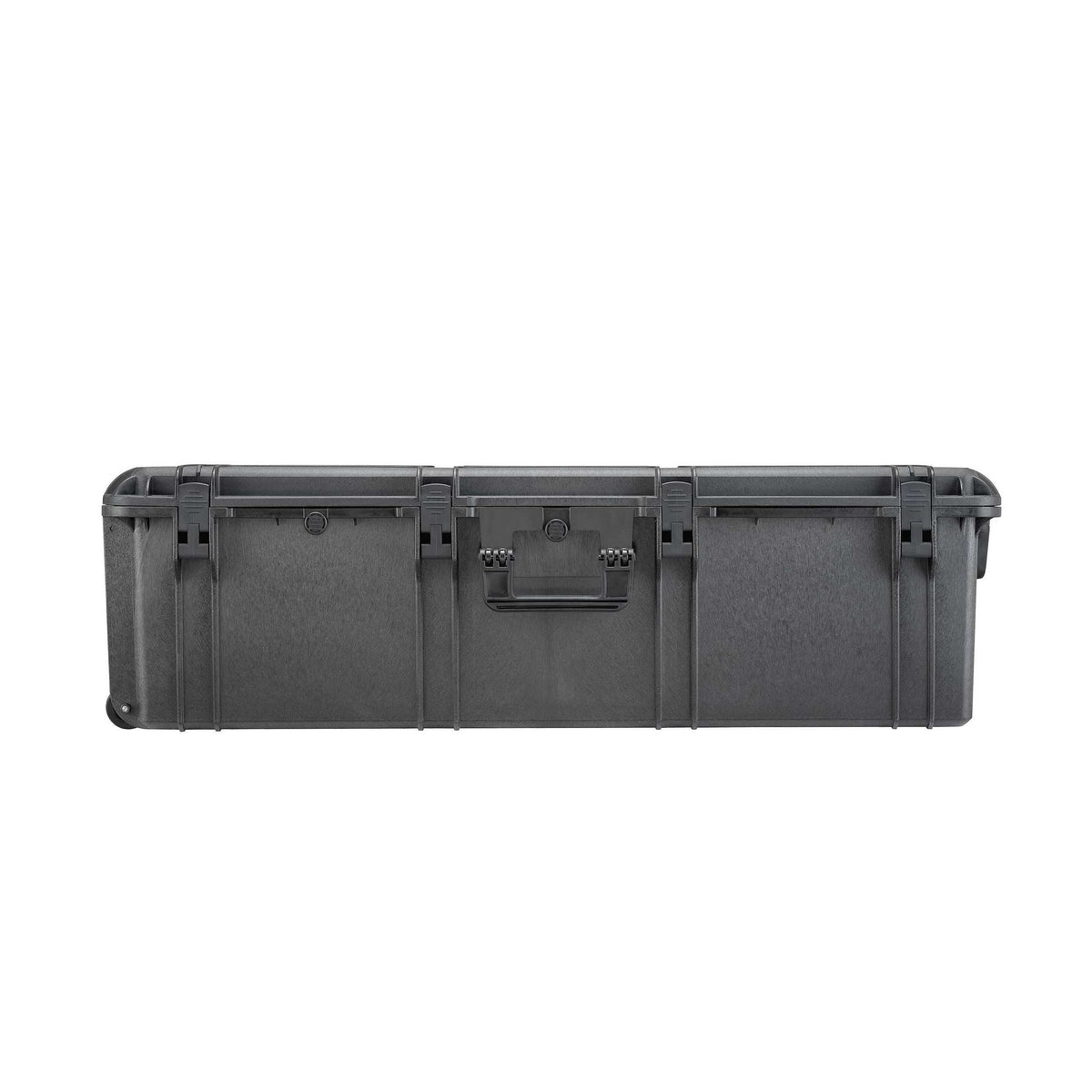

Side view of the closed MAX1100H330 showing the latch row, front handle and a wheel at the bottom corner
Panaro MAX1100H330 deep long black case closed, three-quarter view with the top carry handle, red MAX logo and latches
MAX1100H330 opened on its hinge, showing the deep empty base and the shallow empty lid
MAX1100H330 viewed end-on from above, showing the wheels and end handle at one end of the deep shell
MAX1100H330 standing upright on its wheel end, side view with the latches and the handle at the top
Side view of the closed MAX1100H330 showing the latch row, front handle and a wheel at the bottom corner
Panaro MAX1100H330 deep long black case closed, three-quarter view with the top carry handle, red MAX logo and latches
MAX1100H330 opened on its hinge, showing the deep empty base and the shallow empty lid
MAX1100H330 viewed end-on from above, showing the wheels and end handle at one end of the deep shell
MAX1100H330 standing upright on its wheel end, side view with the latches and the handle at the top
Side view of the closed MAX1100H330 showing the latch row, front handle and a wheel at the bottom corner
Panaro

Panaro MAX1100H330 Waterproof Case Black

$873.18
$873.18
RRP $896.36
Or 4 payments of $218.30 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1100H330

The Deep MAX1100: 330 mm Inside, Wheels At One End

Panaro's MAX1100H330 takes the 1100 x 370 mm footprint of the MAX1100 and deepens it to 330 mm, giving 130 litres of empty, watertight space.

Most of the depth is in the base, 285 mm under a 45 mm lid, so tall items drop into the lower half and the lid closes flat over them. Outside it is 1177 x 450 x 348 mm on Panaro's website, and the bare case weighs 10.90 kg. Panaro list stainless steel wheel pins, and their photos show a pair of wheels at one end with a handle at the other for pulling.

Everything else follows the MAX1100: the gasketed lid, self-venting pressure valve, two-stage latches, rubber-feel grip, lugs for two padlocks and a strap, spare fixing points and a recess on the lid for a label.

Report 23B374A from Teslab, dated 2024, finds this height compliant with STANAG 4280, DEF STAN 81-41, IP6X and IPX7, and Panaro also publish an IP67 certificate and a MIL-STD-810H report. No ATA 300 report is published for this height.

Find the shallower and longer models in Panaro MAX cases, or browse protective cases and tactical cases.

Often ordered together

  • 130 litre empty interior, 1100 x 370 x 330 mm
  • 285 mm deep base under a 45 mm lid
  • Wheels at one end for rolling
  • Pressure release valve and O-ring lid seal
  • Padlock holes, strap holes and fixing points
  • Teslab tested to STANAG 4280 and IP67
  • Bulky long equipment that will not fit a slim case
  • Custom foam or panel builds for instruments
  • Lighting, cable and stand kits for events
  • Medical and rescue equipment stores
  • Tool and spares cases for service vans

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX1100H330

Mega Code: PMMAX1100H330

Configuration: Empty (no foam)

External Dimensions: 1177 x 450 x 348 mm (46.34 x 17.72 x 13.7 in)

Internal Dimensions: 1100 x 370 x 330 mm (43.30 x 14.57 x 12.9 in)

Lid and Base Depth: 45 mm lid + 285 mm base

Weight: 10.90 kg (empty case, per Panaro)

Capacity: 130 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Reports Published: IP67, STANAG 4280 and DEF STAN 81-41, MIL-STD-810H

Temperature Range: -51 to 90 C, per Panaro datasheet

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236110113

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

The standard MAX1100 is 140 mm deep inside; this one is 330 mm, on the same 1100 x 370 mm footprint.
No foam comes in this one. If you want pluckable cubes ready to go, order the MAX1100H330S instead.
Panaro's website gives the outside as 1177 x 450 x 348 mm and the datasheet gives 451 mm for the width. Work to 451 mm if the case must fit a tight bay.
Not that Panaro publish. You can download its IP67 certificate, Teslab report 23B374A and MIL-STD-810H certificate here, with the datasheet and 2D drawing.
Panaro give 10.90 kg for the bare case and 12.82 kg in its shipping carton.
