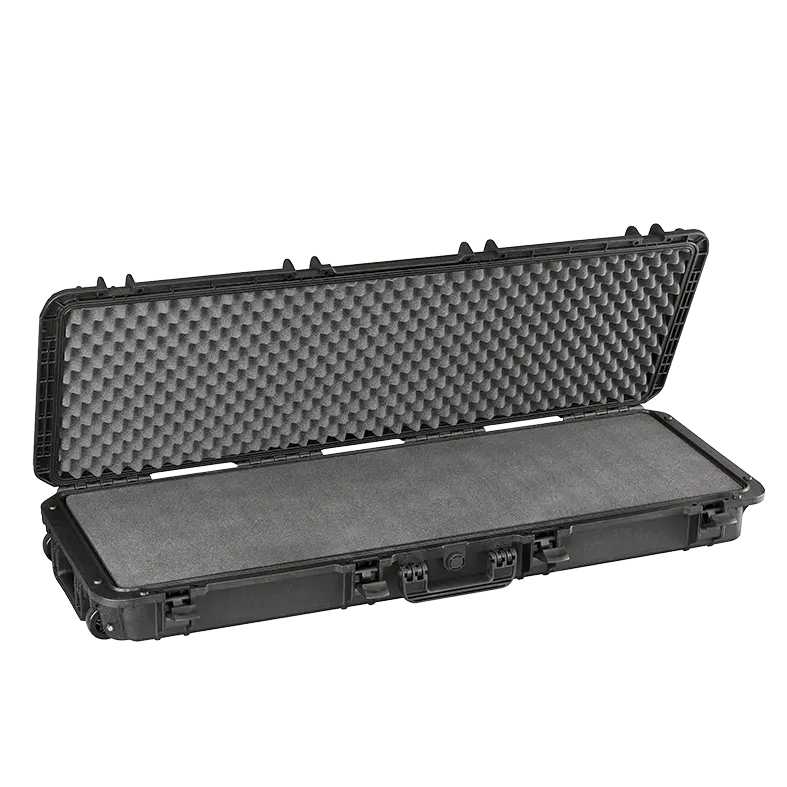

Panaro MAX1100S open, showing grey cubed pick and pluck foam filling the base and convoluted egg-crate foam in the lid
MAX1100S closed, three-quarter view of the long black case with its centre handle, red MAX logo and latches

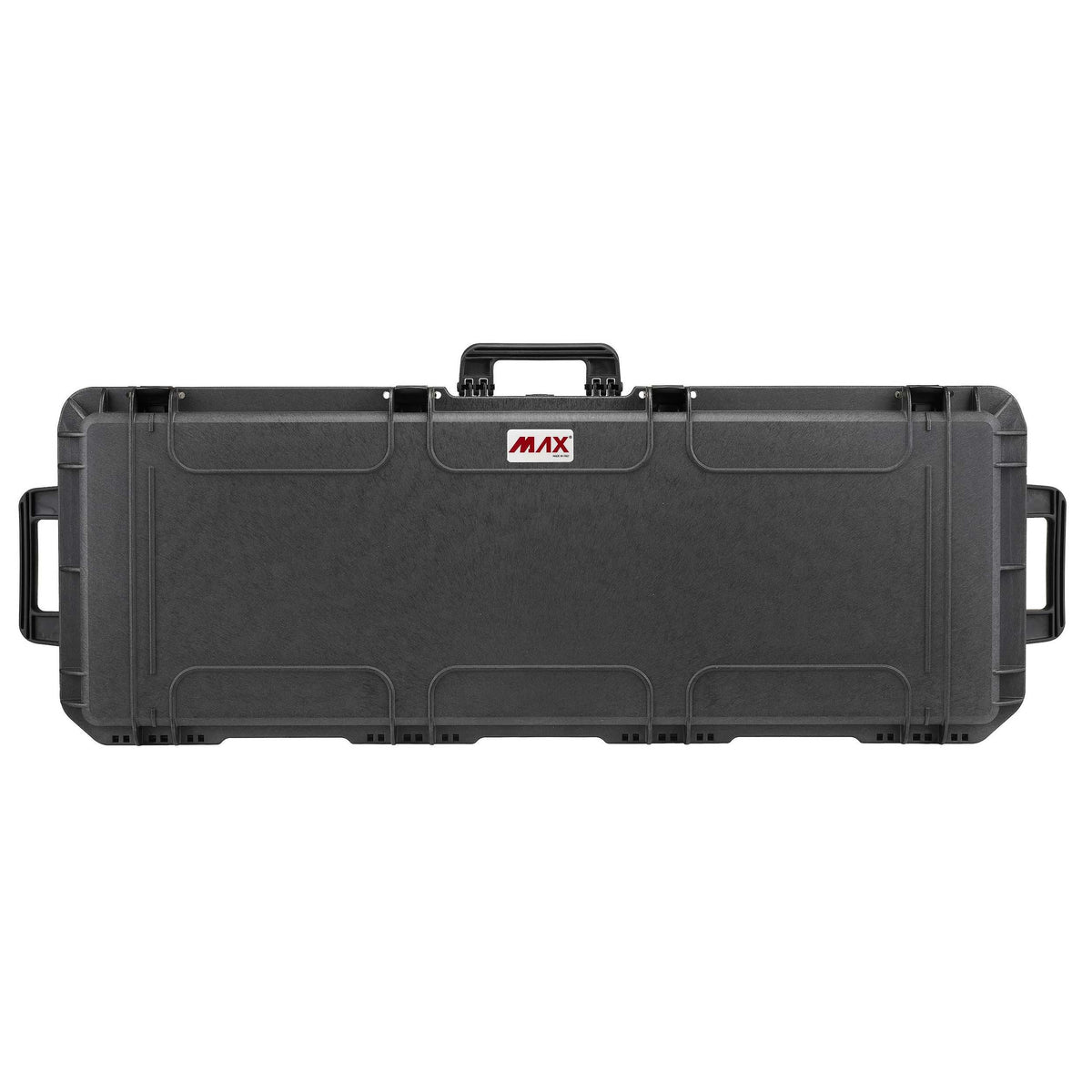

Top view of the closed MAX1100S lid showing the centre carry handle and both end handles

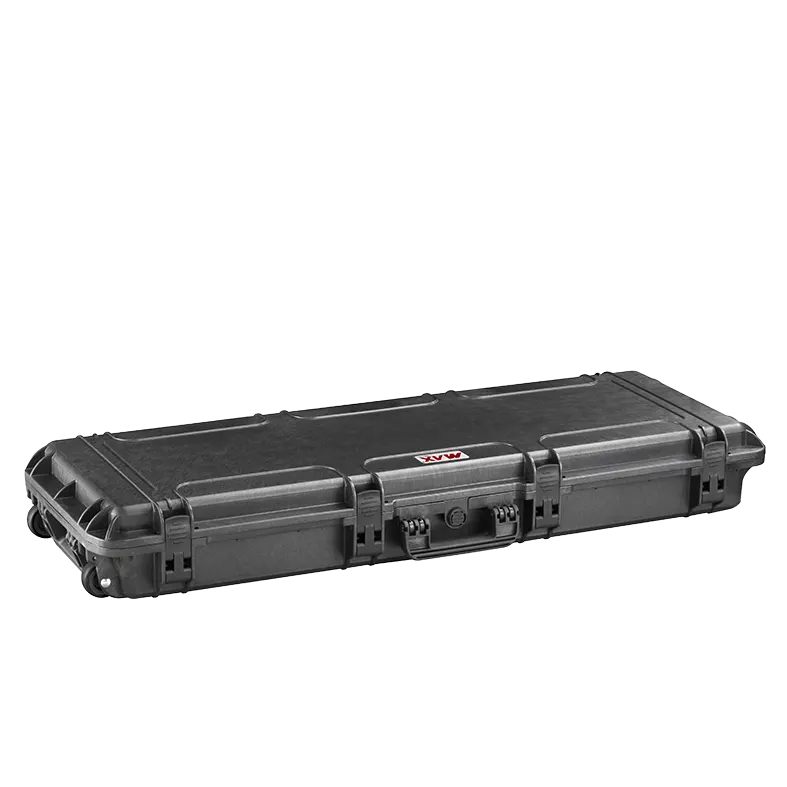

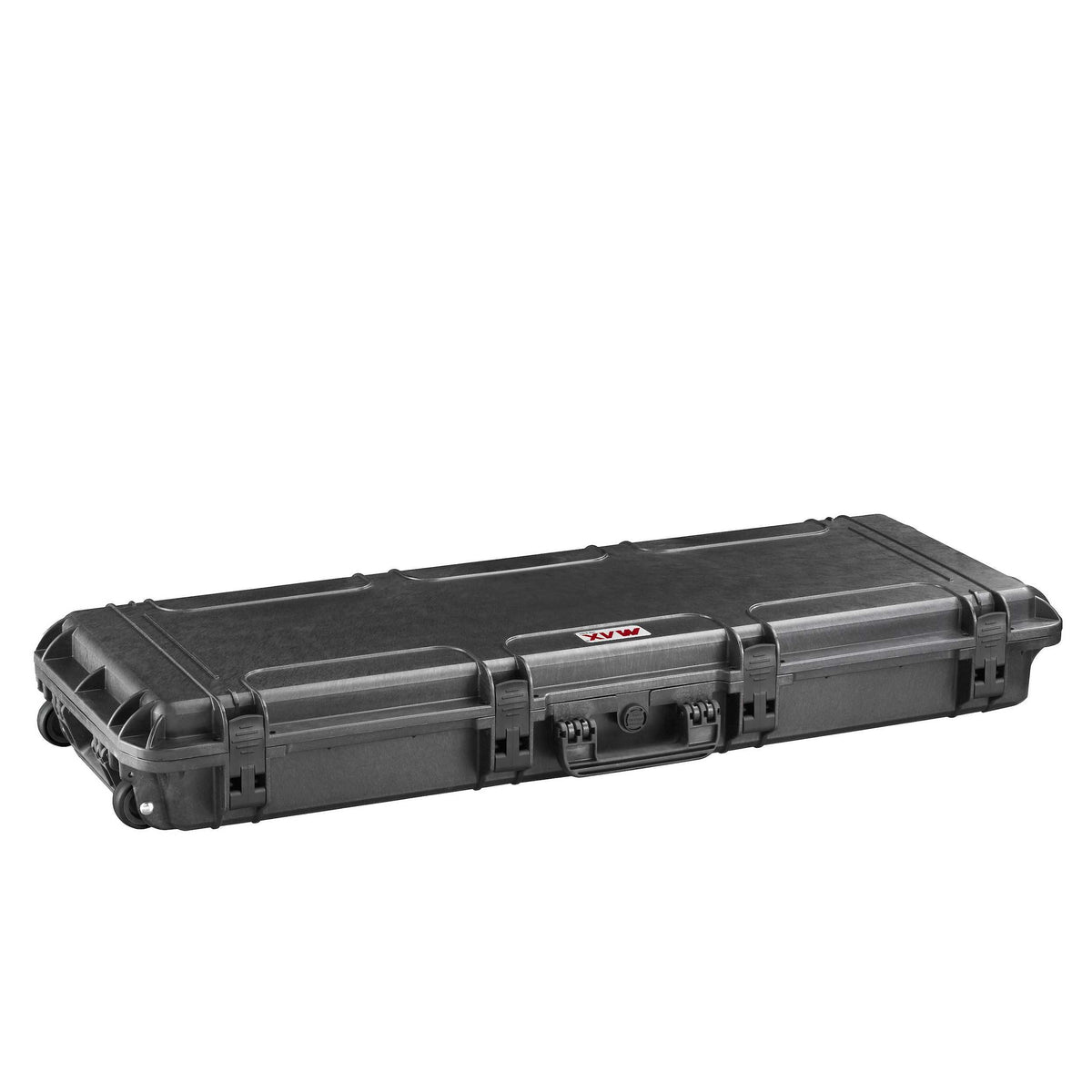

Low-angle view of the closed MAX1100S showing the latch row along the front and a wheel at one end

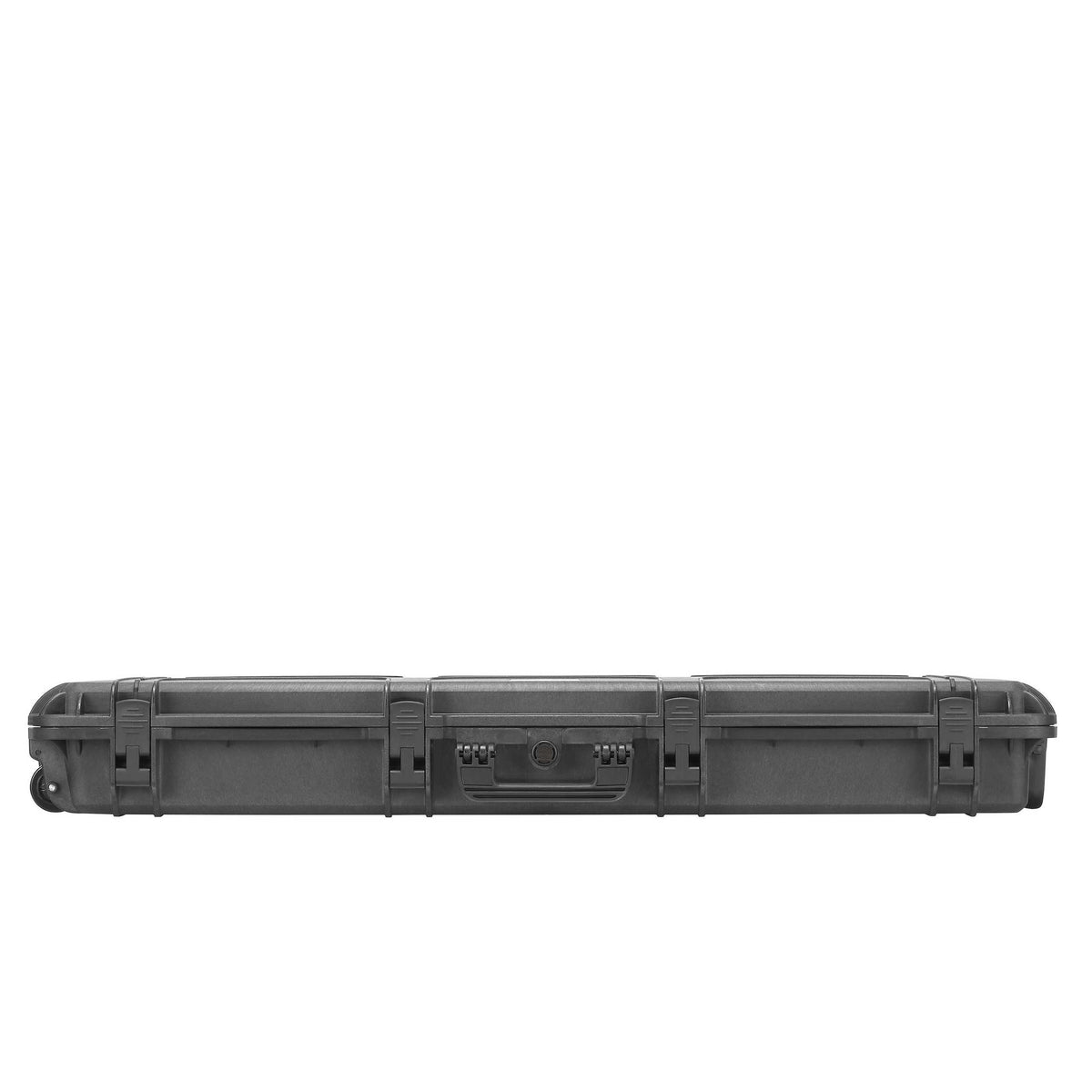

Side elevation of the MAX1100S closed, with latches and the folded front handle
Panaro MAX1100S open, showing grey cubed pick and pluck foam filling the base and convoluted egg-crate foam in the lid
MAX1100S closed, three-quarter view of the long black case with its centre handle, red MAX logo and latches
Top view of the closed MAX1100S lid showing the centre carry handle and both end handles
Low-angle view of the closed MAX1100S showing the latch row along the front and a wheel at one end
Side elevation of the MAX1100S closed, with latches and the folded front handle
Panaro MAX1100S open, showing grey cubed pick and pluck foam filling the base and convoluted egg-crate foam in the lid
MAX1100S closed, three-quarter view of the long black case with its centre handle, red MAX logo and latches
Top view of the closed MAX1100S lid showing the centre carry handle and both end handles
Low-angle view of the closed MAX1100S showing the latch row along the front and a wheel at one end
Side elevation of the MAX1100S closed, with latches and the folded front handle
Panaro

Panaro MAX1100S Waterproof Case with Cubed Foam Black

$755.81
$755.81
RRP $808.02
Or 4 payments of $188.95 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1100S

Pick And Pluck Foam For Long Kit, Ready To Shape

MAX1100S is the MAX1100 supplied with Panaro's standard foam set, a pre-cubed block below and a convoluted pad above.

You press out the small cubes to trace the outline of each item, so a tripod, a set of rods or a long tool lies in its own pocket without any cutting. The interior is 1100 x 370 x 140 mm, with 95 mm of base depth for the cubed block and 45 mm in the lid for the egg-crate layer that presses down on the load when the case is shut.

Underneath it is the same case as the empty MAX1100: a polypropylene body, nylon latch set, O-ring gasket and self-acting purge valve, plus drilled lugs for padlocks and a strap. Volume is 56.98 litres and Panaro give the bare case as 7.80 kg. Their photo of this configuration shows the foam set in place.

For the MAX1100 shell itself, Panaro's downloads include the ATA 300 Cat. 1 air transport report, the IP67 certificate, MIL-STD-810H and the STANAG 4280 environmental report.

Camera crews can find more in photography and AV; all sizes are in Panaro and protective cases.

Often ordered together

  • A pre-scored cube block filling the base
  • Convoluted foam layer in the lid
  • Shape pockets by hand, no cutting tools
  • Watertight O-ring seal and pressure valve
  • Double throw nylon latches with padlock holes
  • MAX1100 shell tested to IP67 and ATA 300
  • Camera sliders, tripods and light stands
  • Long hand tools and measuring staffs
  • Drone arms, antennas and accessories
  • Fishing rods and archery bows
  • Demonstration and sample kits for sales teams

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX1100S

Mega Code: PMMAX1100S

Configuration: S: cubed (pick and pluck) foam in the base, convoluted foam in the lid

External Dimensions: 1177 x 450 x 158 mm (46.34 x 17.72 x 6.22 in)

Internal Dimensions: 1100 x 370 x 140 mm (43.30 x 14.57 x 5.51 in)

Lid and Base Depth: 45 mm lid + 95 mm base

Weight: 7.80 kg (empty case, per Panaro)

Capacity: 56.98 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Reports Published: IP67, STANAG 4280 and DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Temperature Range: -51 to 90 C, per Panaro datasheet

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236110021

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Plan the layout first, then pull out the cubes inside each outline a layer at a time. Leave a wall of foam between items and around the edges so nothing touches the shell.
A convoluted, egg-crate style foam layer, as Panaro list for the standard MAX1100 foam set. It holds items down into their pockets.
Yes, a spare cubed foam kit for this model is in Panaro's accessory list. Ask us if you need one.
The HDS uses high density cubed foam, which we suggest for heavier items. The S is the standard cubed set.
They are Panaro's reports for the MAX1100 shell, which this is. You can download them here with the datasheet and 2D drawing.
