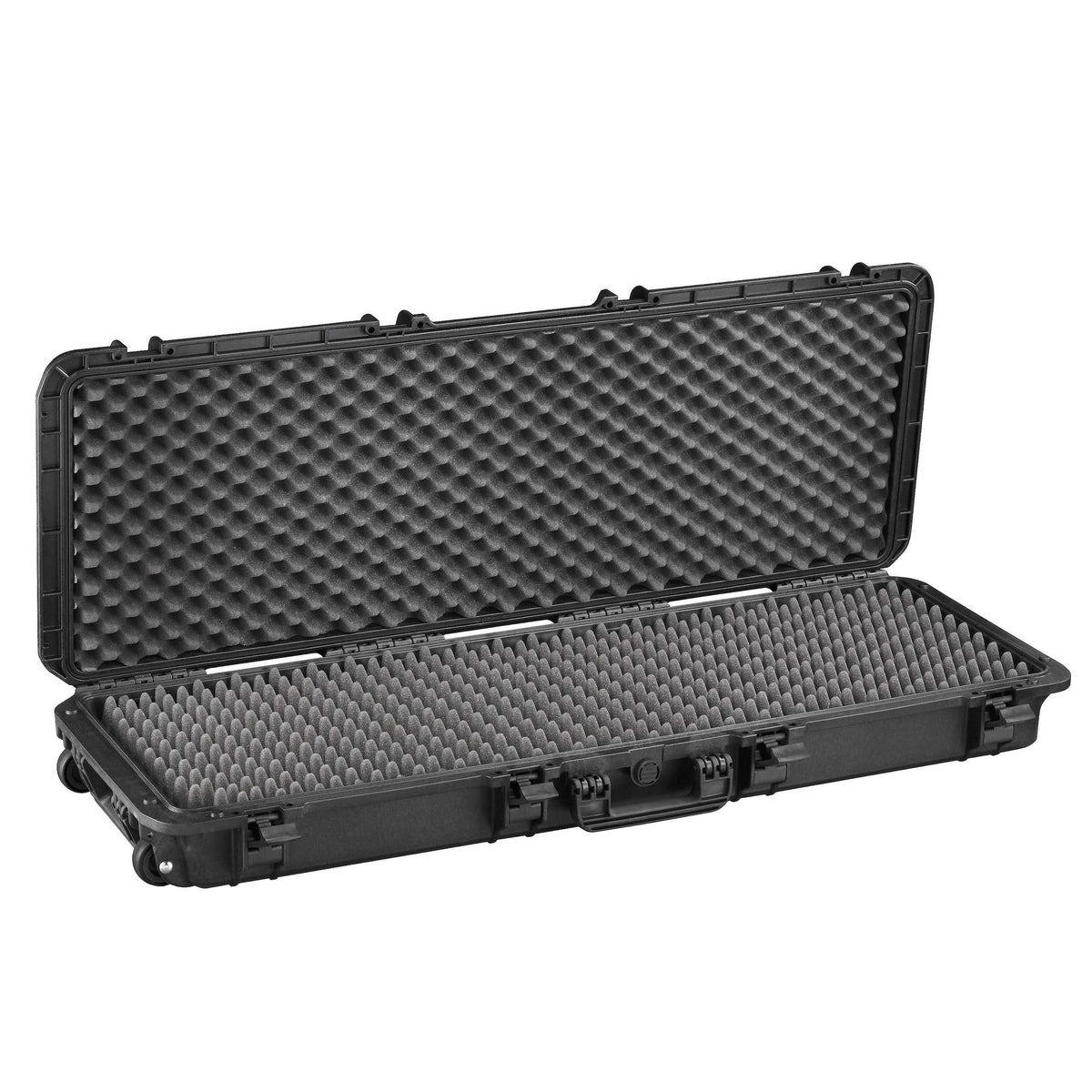

Panaro MAX1100GPB open, with grey convoluted egg-crate foam lining both the lid and the base along the full length

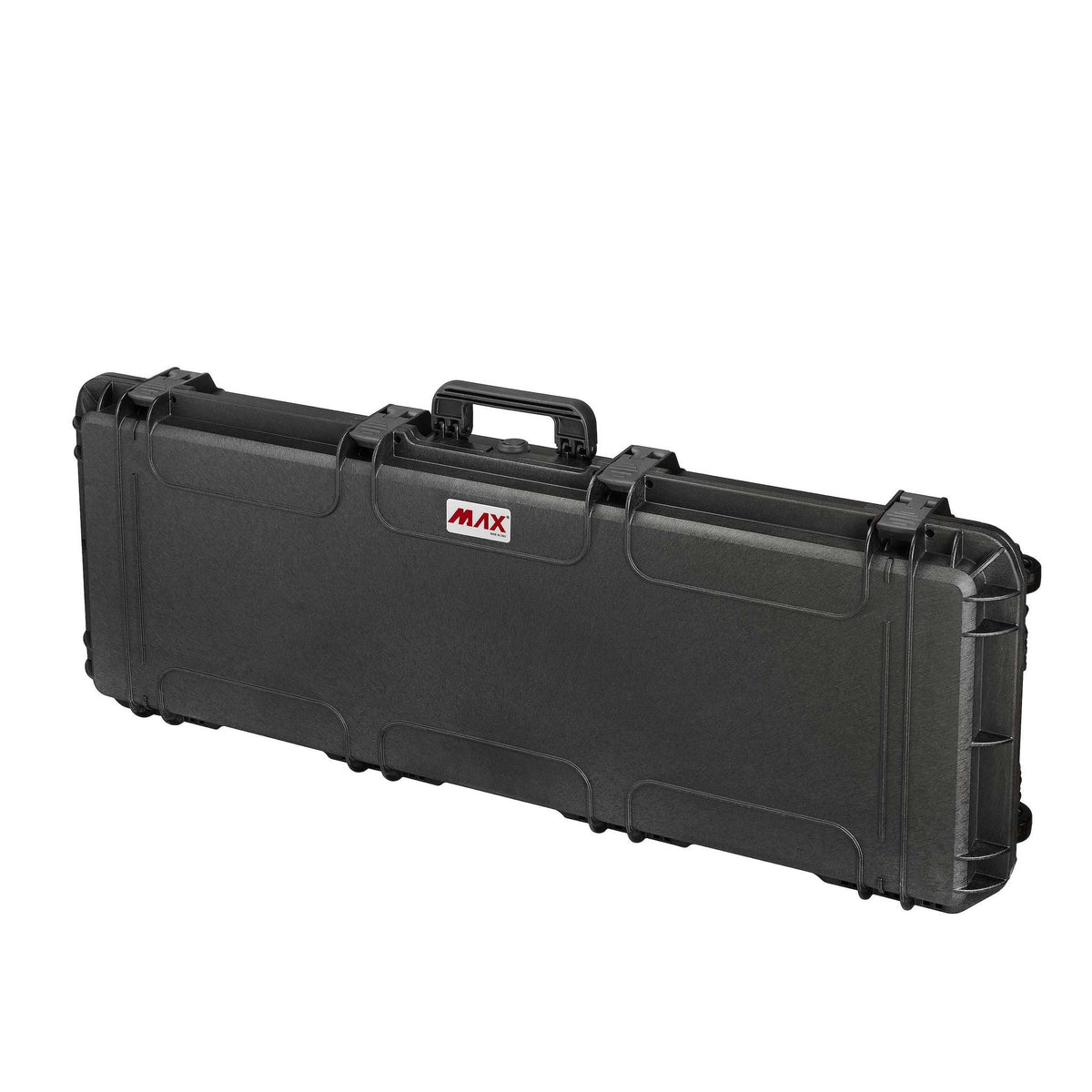

MAX1100GPB closed, three-quarter view of the black shell with centre handle, MAX logo and double throw latches

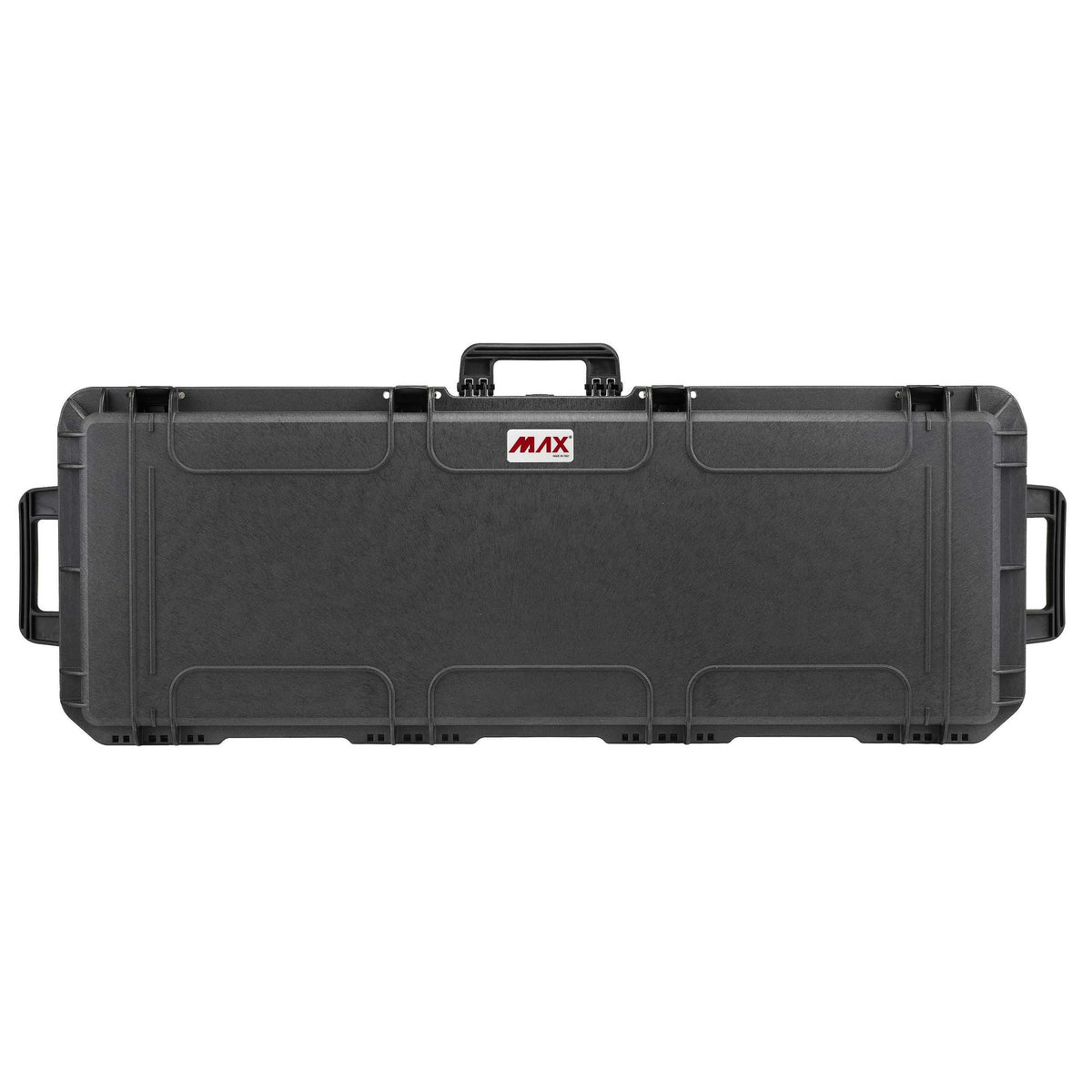

MAX1100GPB lid seen from above with the centre carry handle and an end handle at each side

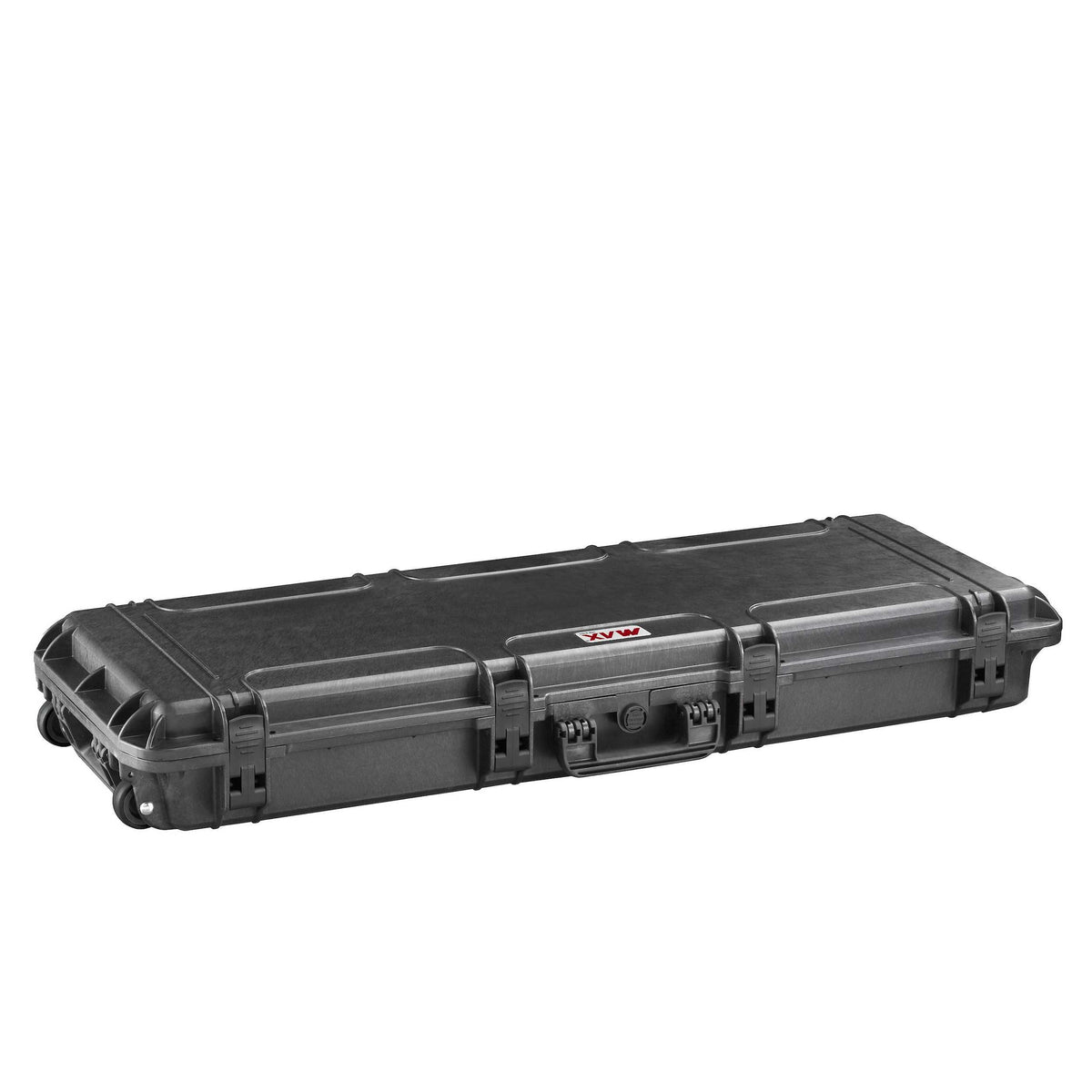

MAX1100GPB closed and lying flat from a low angle, showing the front latches and a wheel at one end

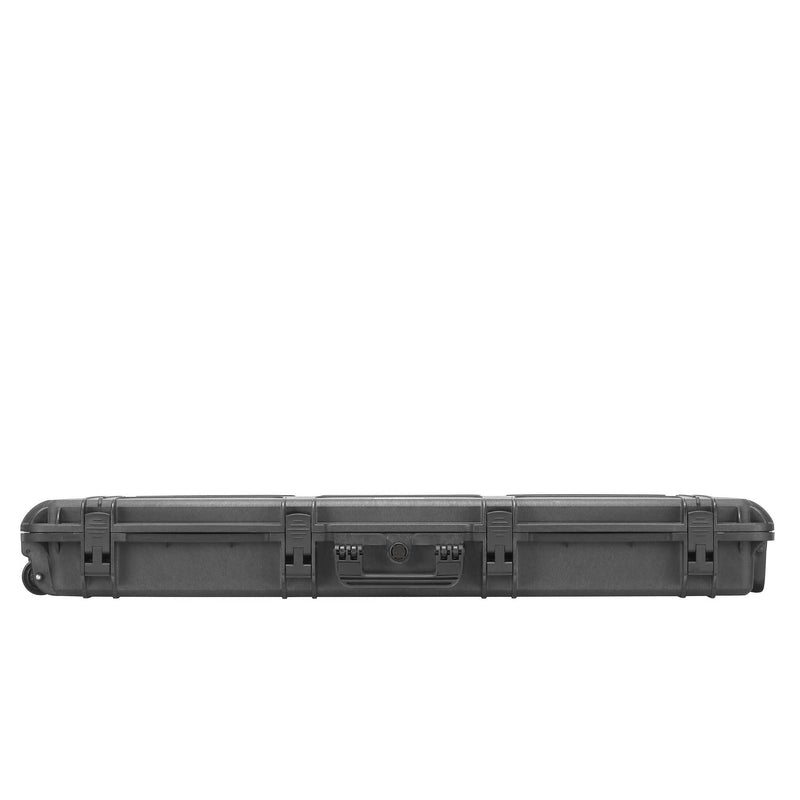

Side-on view of the closed MAX1100GPB showing its latches and folded handle
Panaro MAX1100GPB open, with grey convoluted egg-crate foam lining both the lid and the base along the full length
MAX1100GPB closed, three-quarter view of the black shell with centre handle, MAX logo and double throw latches
MAX1100GPB lid seen from above with the centre carry handle and an end handle at each side
MAX1100GPB closed and lying flat from a low angle, showing the front latches and a wheel at one end
Side-on view of the closed MAX1100GPB showing its latches and folded handle
Panaro MAX1100GPB open, with grey convoluted egg-crate foam lining both the lid and the base along the full length
MAX1100GPB closed, three-quarter view of the black shell with centre handle, MAX logo and double throw latches
MAX1100GPB lid seen from above with the centre carry handle and an end handle at each side
MAX1100GPB closed and lying flat from a low angle, showing the front latches and a wheel at one end
Side-on view of the closed MAX1100GPB showing its latches and folded handle
Panaro

Panaro MAX1100GPB Waterproof Case with Convoluted Foam Black

$725.67
$725.67
RRP $774.54
Or 4 payments of $181.42 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1100GPB

Egg-Crate Foam Top And Bottom For Loose Long Items

The MAX1100GPB pairs the long MAX1100 shell with convoluted foam in both lid and base, a quick way to cushion items without cutting a layout.

Panaro's photo of this configuration shows the peaked egg-crate profile on both halves. Lay the item in and close the lid; the peaks squeeze around it and stop it sliding. It suits kit that changes from job to job, or items too irregular for a fixed cut-out.

Inside it measures 1100 x 370 x 140 mm. The bare case weighs 7.80 kg and holds 56.98 litres, and the shell has an automatic pressure release valve, an O-ring seal, nylon latches and holes for padlocks and a strap.

Panaro publish IP67, MIL-STD-810H, STANAG 4280 and DEF STAN 81-41 reports for the MAX1100, and it is the long MAX model with an ATA 300 Cat. 1 report for air transport.

Shop on through Panaro cases, waterproof protective cases and the defence range.

Often ordered together

  • Convoluted foam in lid and base
  • No plucking or cutting needed
  • 1100 x 370 x 140 mm interior
  • Self-venting valve keeps the lid easy to open
  • Lugs for two padlocks plus strap holes
  • Stackable, interlocking MAX shell
  • Mixed kit that changes between jobs
  • Antenna, mast and cable sets
  • Lighting tubes and long fixtures
  • Archery and fishing gear
  • Display rails and sample lengths

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX1100GPB

Mega Code: PMMAX1100GPB

Configuration: GPB: convoluted foam in lid and base

External Dimensions: 1177 x 450 x 158 mm (46.34 x 17.72 x 6.22 in)

Internal Dimensions: 1100 x 370 x 140 mm (43.30 x 14.57 x 5.51 in)

Lid and Base Depth: 45 mm lid + 95 mm base

Weight: 7.80 kg (empty case, per Panaro)

Capacity: 56.98 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Reports Published: IP67, STANAG 4280 and DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Temperature Range: -51 to 90 C, per Panaro datasheet

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236110038

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Convoluted foam cushions by pressing from both sides. Small loose parts can drift between the peaks, so bag or box them, or choose the cubed MAX1100S to pluck pockets.
No. The MAX1100S has cubed foam in the base; the GPB has convoluted foam top and bottom, as Panaro's photo of this configuration shows.
The case can be converted, because Panaro sell a MAX1100 cubed foam kit separately. We can source it for you.
The MAX1100 IP67, ATA 300, MIL-STD-810H and environmental test reports, plus its datasheet and 2D drawing, are attached to this page.
