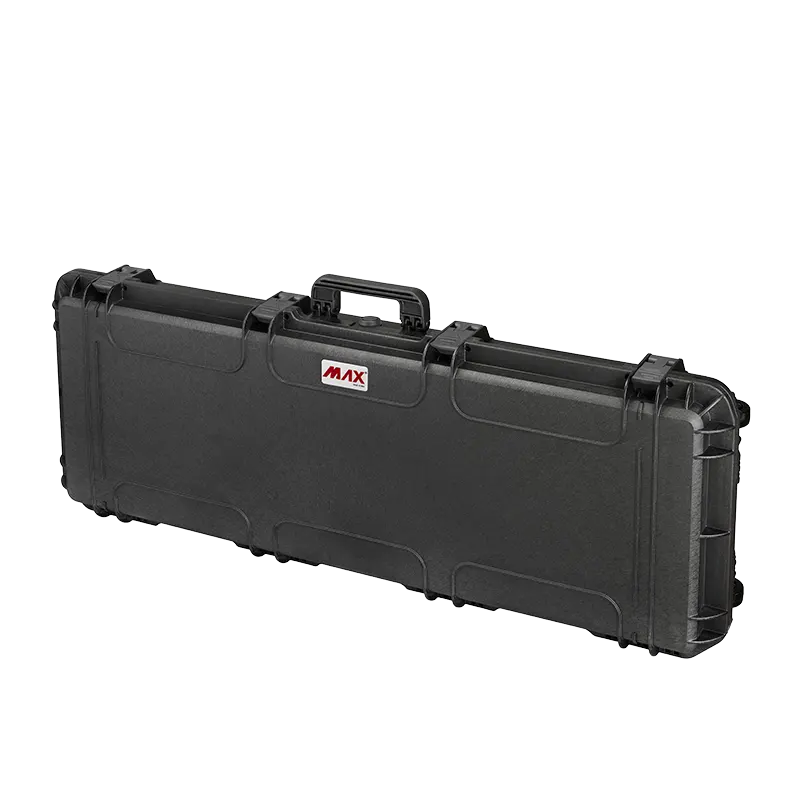

Panaro MAX1100 long black case closed, three-quarter view showing the centre carry handle, red MAX logo, latches and end handle

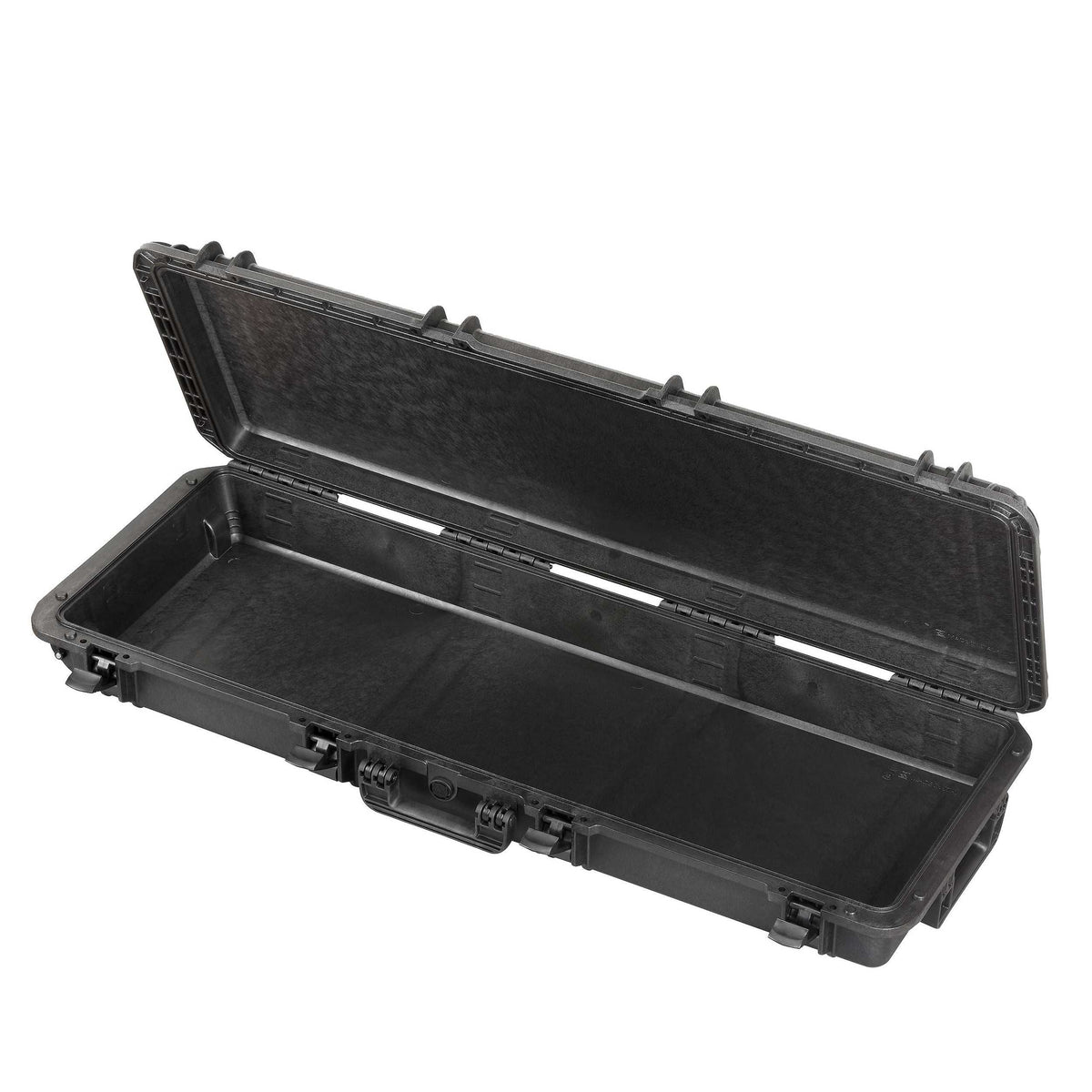

MAX1100 opened on its full length hinge with an empty black interior in both the lid and the base

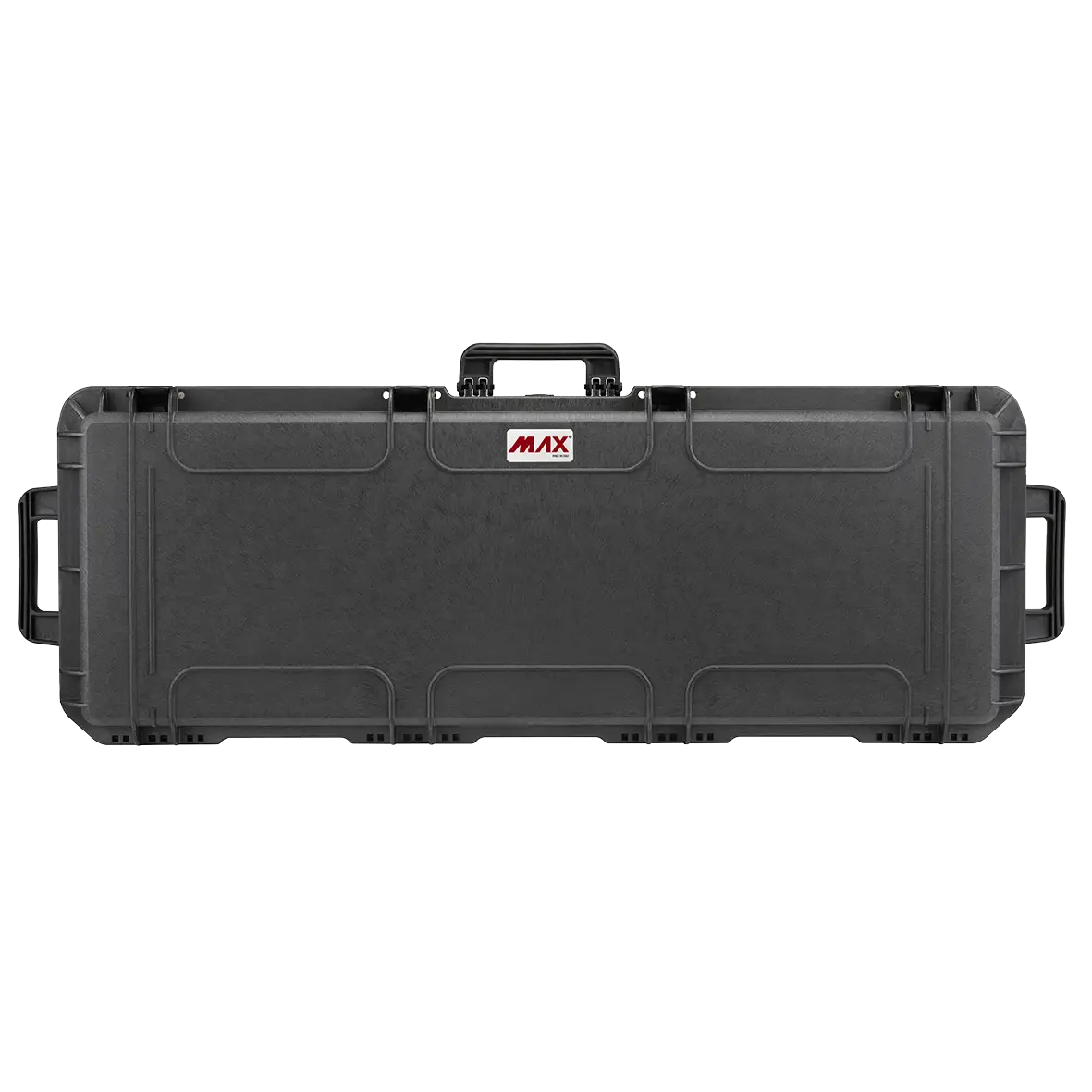

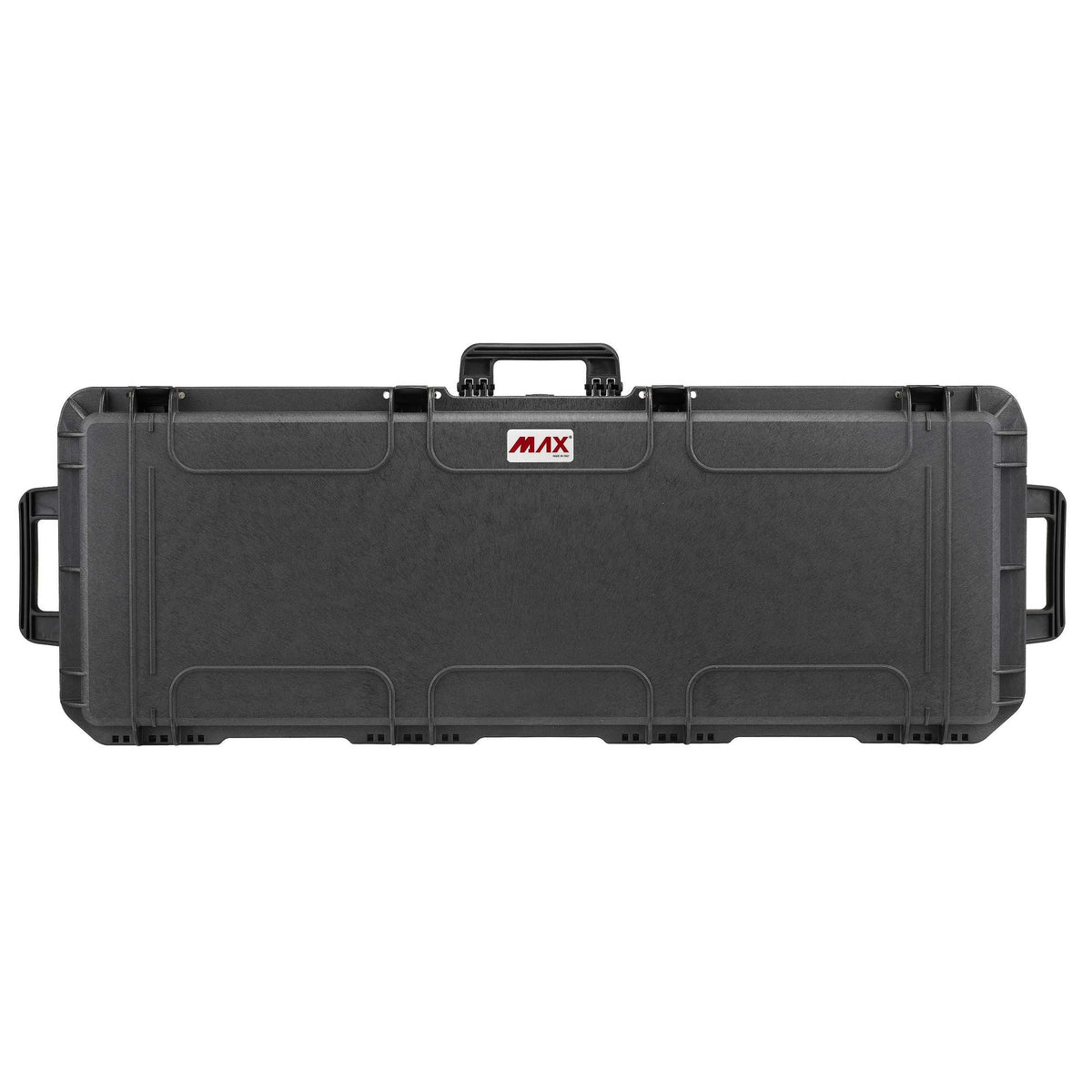

MAX1100 seen straight on from the lid, showing the centre handle, the two end handles and the MAX logo

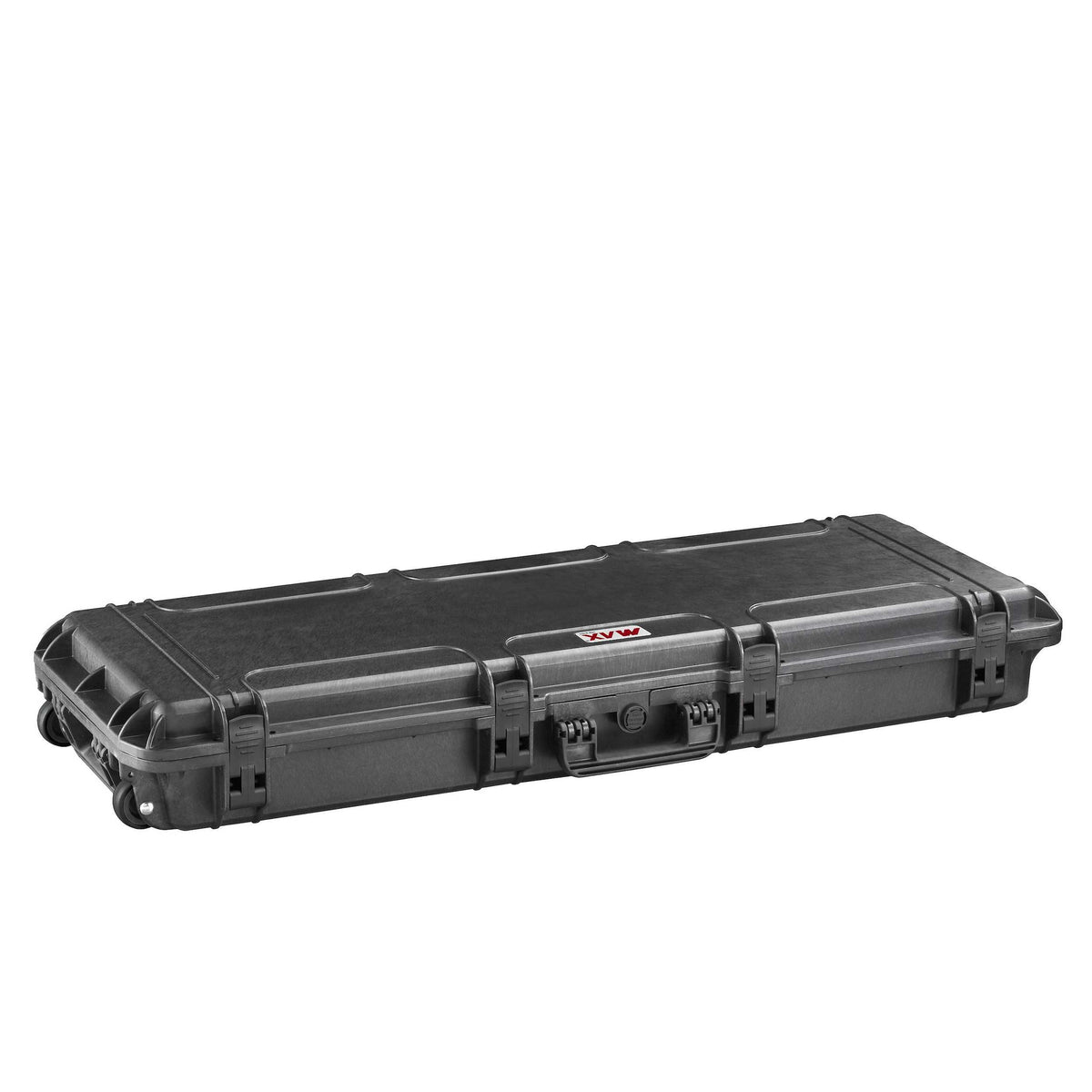

MAX1100 lying flat from a low angle, showing the front latches, padlock points and a wheel at one end

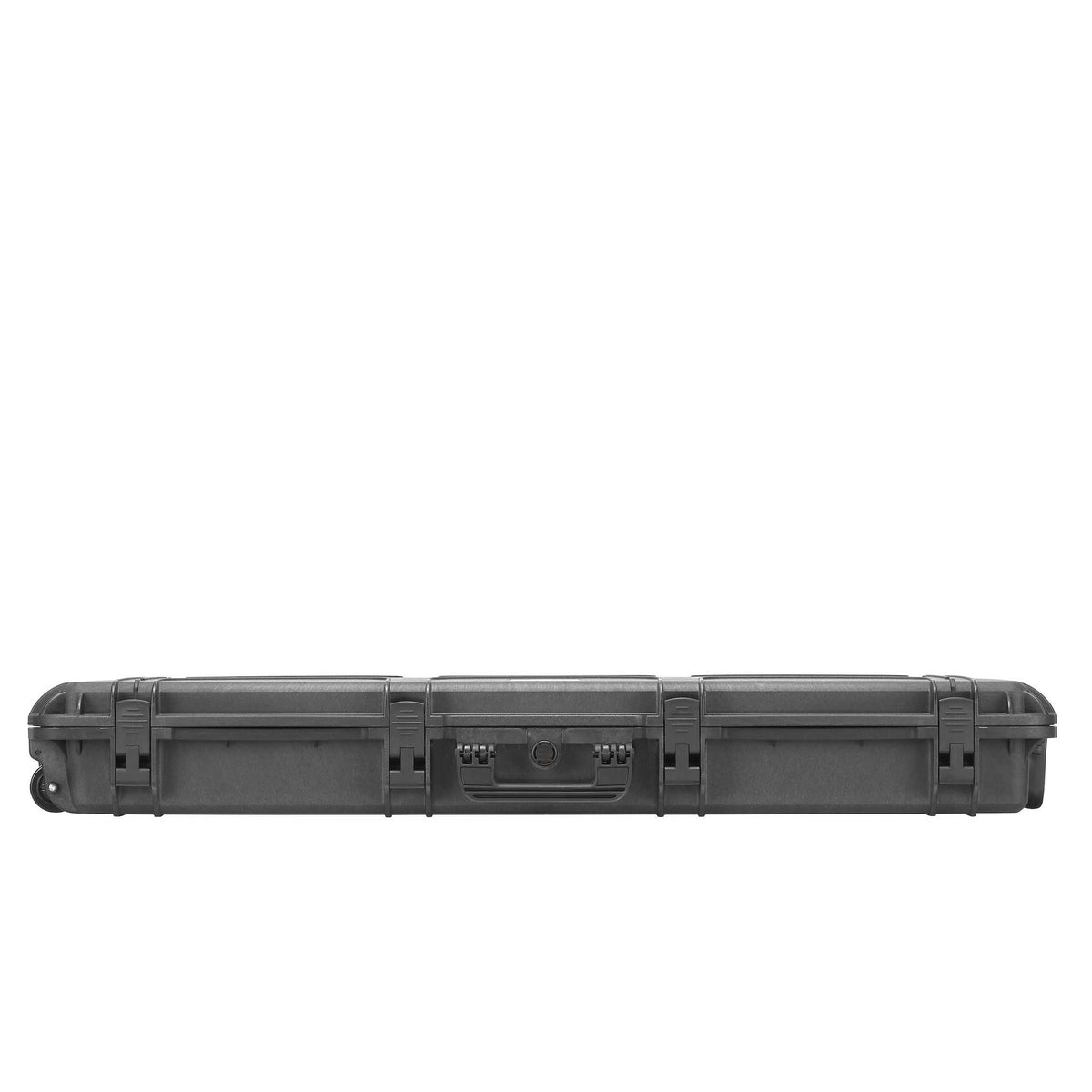

Side view of the closed MAX1100 showing the latch row and the folded front handle along its length

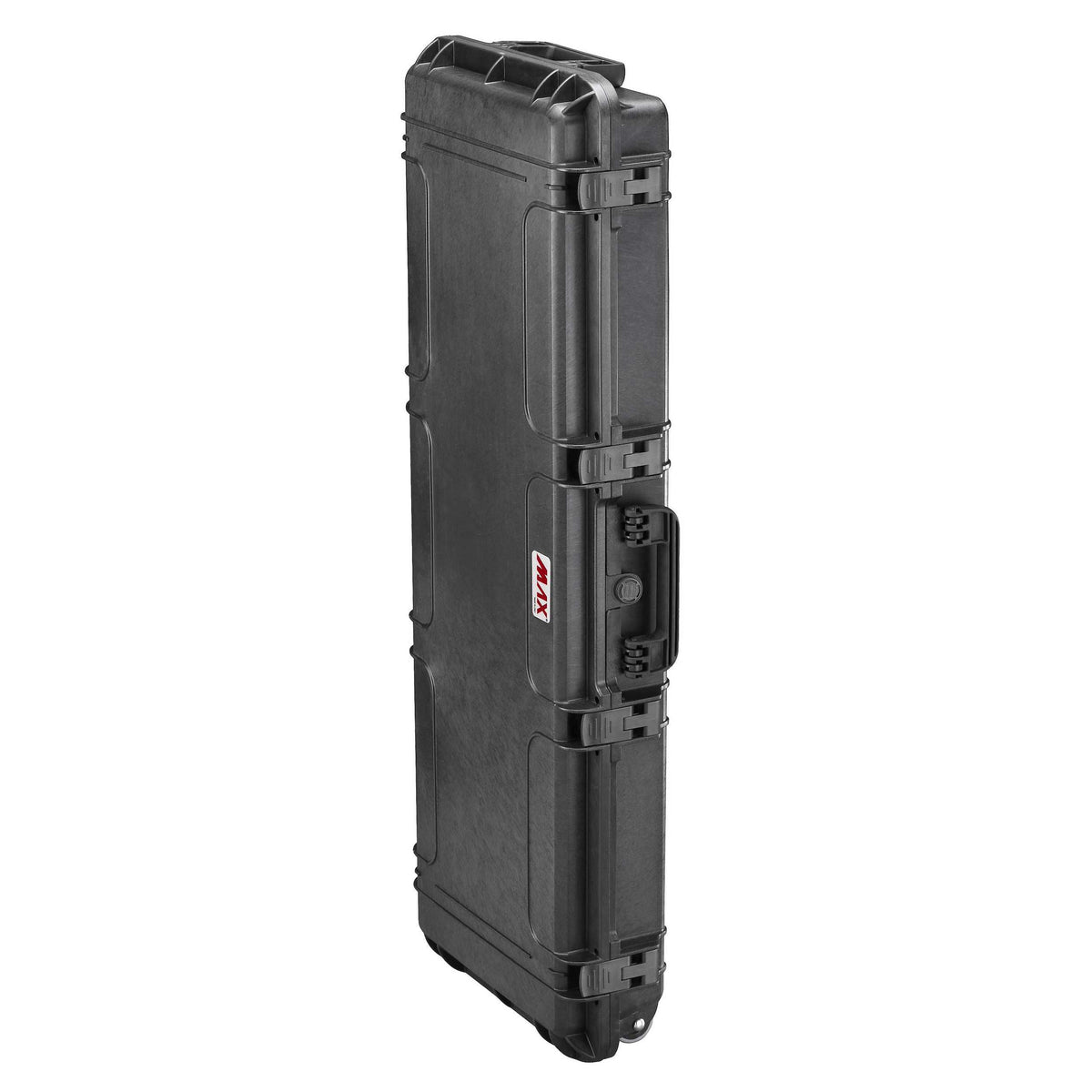

MAX1100 standing upright on its end, side view showing the latches and the handle at the top

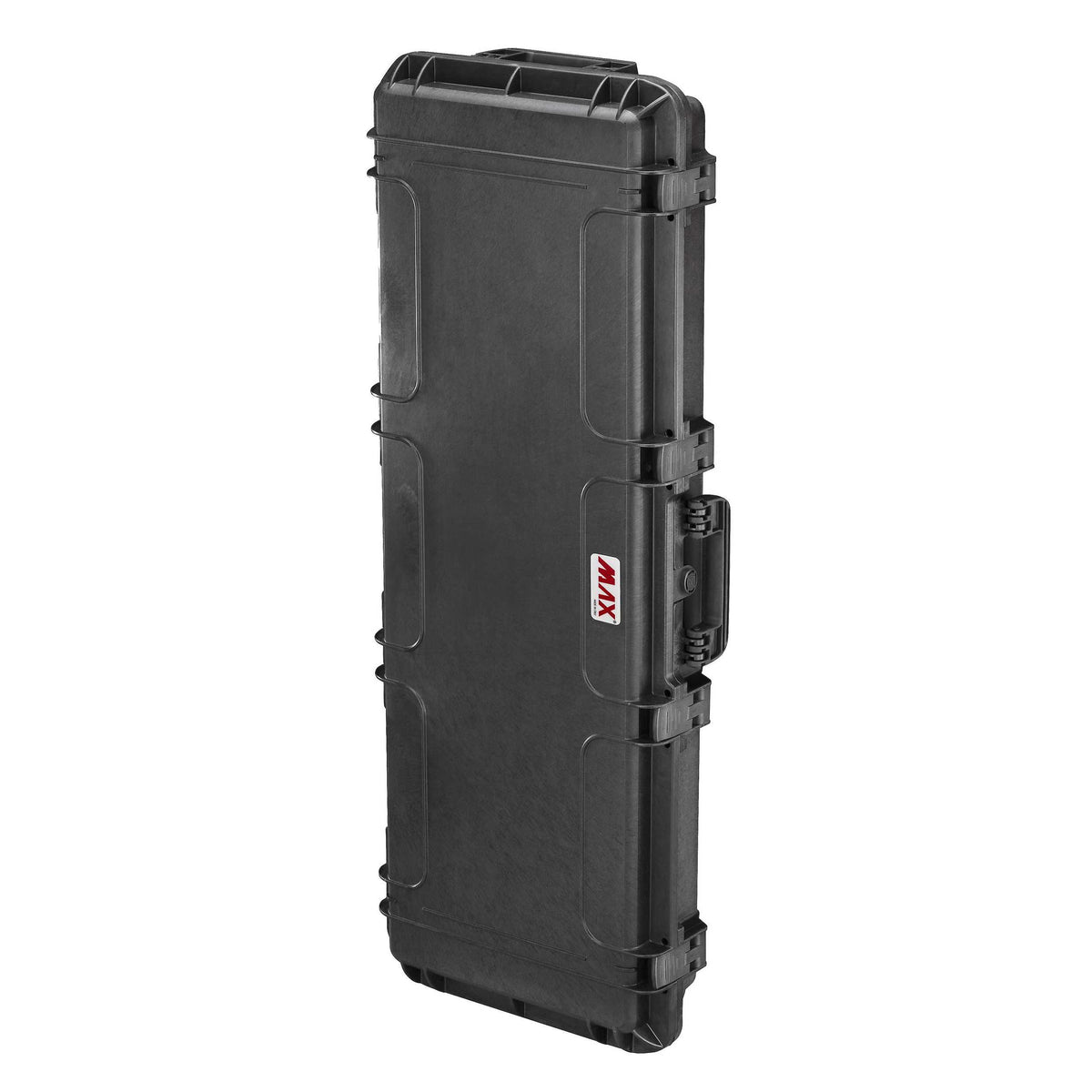

MAX1100 standing on end viewed from the other side, showing the lid face, MAX logo and end handle
Panaro MAX1100 long black case closed, three-quarter view showing the centre carry handle, red MAX logo, latches and end handle
MAX1100 opened on its full length hinge with an empty black interior in both the lid and the base
MAX1100 seen straight on from the lid, showing the centre handle, the two end handles and the MAX logo
MAX1100 lying flat from a low angle, showing the front latches, padlock points and a wheel at one end
Side view of the closed MAX1100 showing the latch row and the folded front handle along its length
MAX1100 standing upright on its end, side view showing the latches and the handle at the top
MAX1100 standing on end viewed from the other side, showing the lid face, MAX logo and end handle
Panaro MAX1100 long black case closed, three-quarter view showing the centre carry handle, red MAX logo, latches and end handle
MAX1100 opened on its full length hinge with an empty black interior in both the lid and the base
MAX1100 seen straight on from the lid, showing the centre handle, the two end handles and the MAX logo
MAX1100 lying flat from a low angle, showing the front latches, padlock points and a wheel at one end
Side view of the closed MAX1100 showing the latch row and the folded front handle along its length
MAX1100 standing upright on its end, side view showing the latches and the handle at the top
MAX1100 standing on end viewed from the other side, showing the lid face, MAX logo and end handle
Panaro

Panaro MAX1100 Waterproof Case Black

$647.57
$647.57
RRP $687.42
Or 4 payments of $161.89 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1100

An Open 1100 mm Case You Fit Out Yourself

The Panaro MAX1100 is a long, slim watertight case supplied empty, giving you an 1100 x 370 x 140 mm interior to line with your own foam, panels or fittings.

That length suits long, flat equipment: survey staffs and tripods, antenna masts, light stands, fishing rods, rails and test rigs. The lid is 45 mm deep and the base 95 mm, for 56.98 litres in total, and the case weighs 7.80 kg before anything goes in. Panaro's photos show wheels at one end so it can be tipped up and rolled.

Panaro mould the shell from polypropylene by injection, seal it on a polymer O-ring under a run of nylon two-stage latches, and fit an automatic pressure release valve. There are holes for double padlocking and a shoulder strap, extra fixing points, space for screen printing and a resin label on the lid, and the cases stack and interlock.

Of the long MAX cases, this one carries the widest set of published reports: an IP67 certificate, the STANAG 4280 report that also covers DEF STAN 81-41, a MIL-STD-810H certificate, and an ATA 300 Cat. 1 transport test for air freight.

For other shapes see our protective case range, the full Panaro list or tactical equipment cases.

Often ordered together

  • Empty interior 1100 x 370 x 140 mm
  • 56.98 litres, 7.80 kg bare
  • Nylon double throw latches and O-ring seal
  • Automatic pressure release valve
  • Padlock and shoulder strap holes
  • Screen print and label space on the lid
  • ATA 300, IP67, STANAG 4280 and MIL-STD-810H reports
  • Tripods, light stands and survey staffs
  • Custom foam or panel fit-outs for long instruments
  • Antenna and mast kits for field communications
  • Fishing rods and outdoor sports gear
  • Rail, profile and sample transport between sites

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX1100

Mega Code: PMMAX1100

Configuration: Empty (no foam)

External Dimensions: 1177 x 450 x 158 mm (46.34 x 17.72 x 6.22 in)

Internal Dimensions: 1100 x 370 x 140 mm (43.30 x 14.57 x 5.51 in)

Lid and Base Depth: 45 mm lid + 95 mm base

Weight: 7.80 kg (empty case, per Panaro)

Capacity: 56.98 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Reports Published: IP67, STANAG 4280 and DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Temperature Range: -51 to 90 C, per Panaro datasheet

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236110014

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. This listing is the bare shell. Its foam-fitted twins are the MAX1100S (cubed), MAX1100GPB (convoluted) and MAX1100HDS (high density cubed).
Panaro publish PAConsult report 20DE-00548-04, run to ATA 300 Revision 2008 Cat. 1. It records that single latches unclenched during the drop tests but the case as a whole did not open, and that the edges and corners showed abrasion marks.
Yes. The MAX1100H330 has the same length and width with a 330 mm deep interior.
Yes. Panaro's dimensioned 2D drawing sits in the downloads here next to the datasheet and the four test documents.
Panaro's datasheet gives -51 to 90 C.
