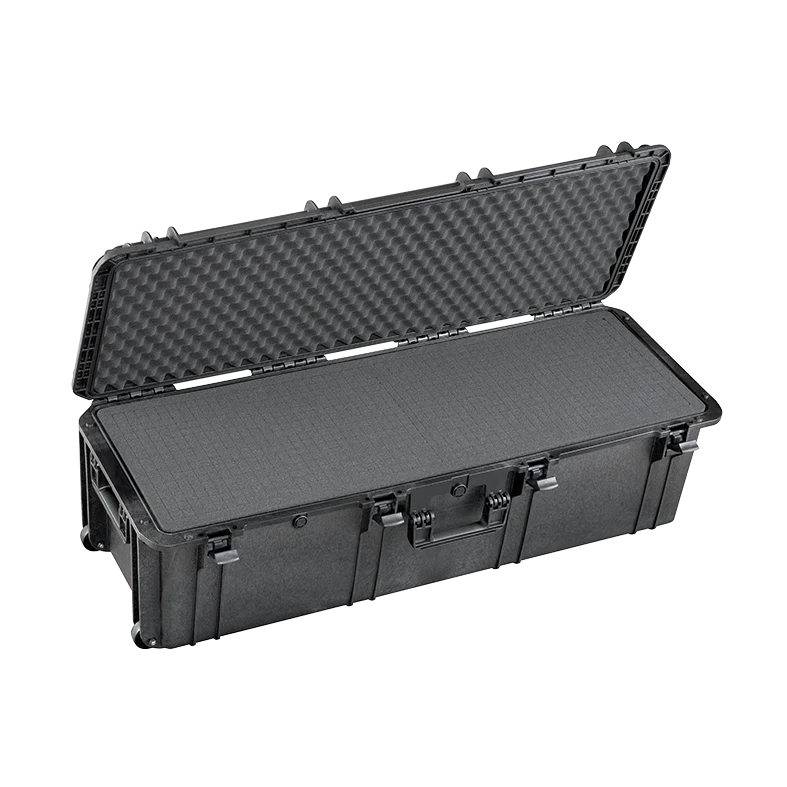

Panaro MAX1100H330S open, showing a deep grey cubed foam block in the base and convoluted foam in the lid
MAX1100H330S closed, three-quarter view of the deep black shell with its carry handle, MAX logo and latches

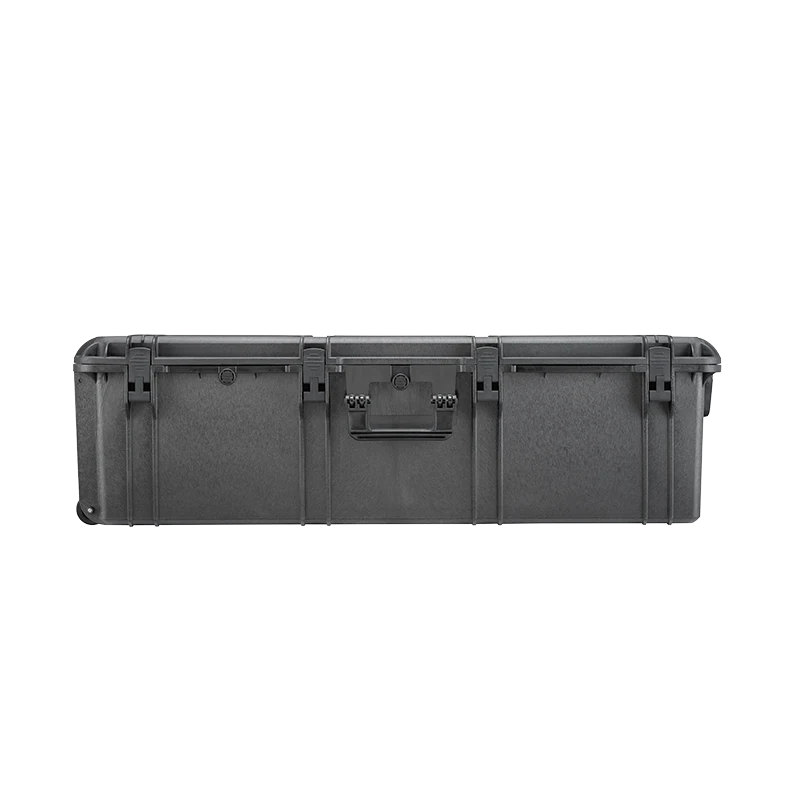

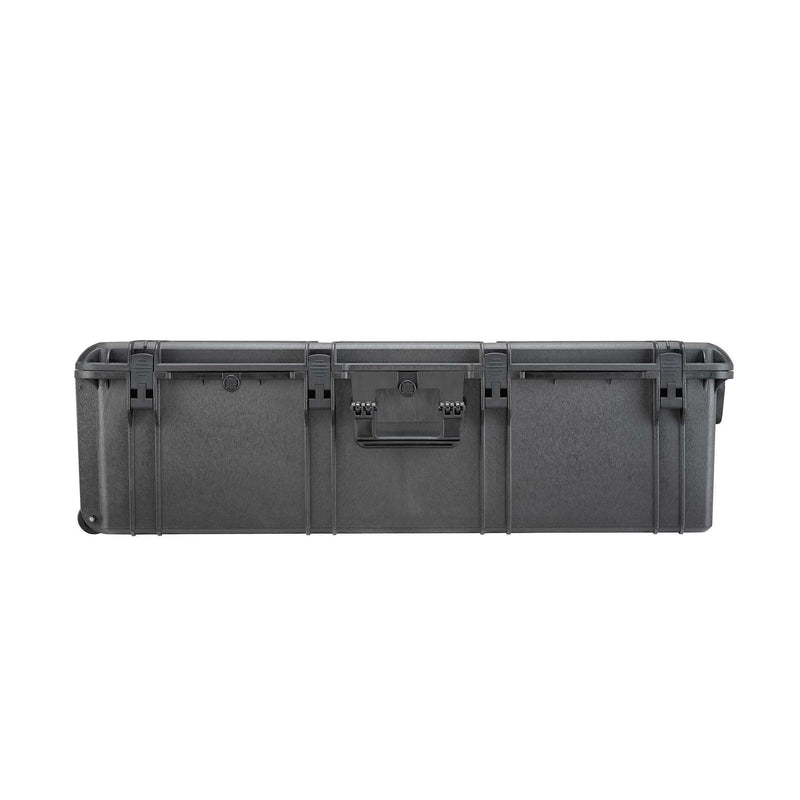

Closed MAX1100H330S from the side, showing the latch row, front handle and a wheel at one corner
MAX1100H330S end view from above, with the pair of wheels and the end handle

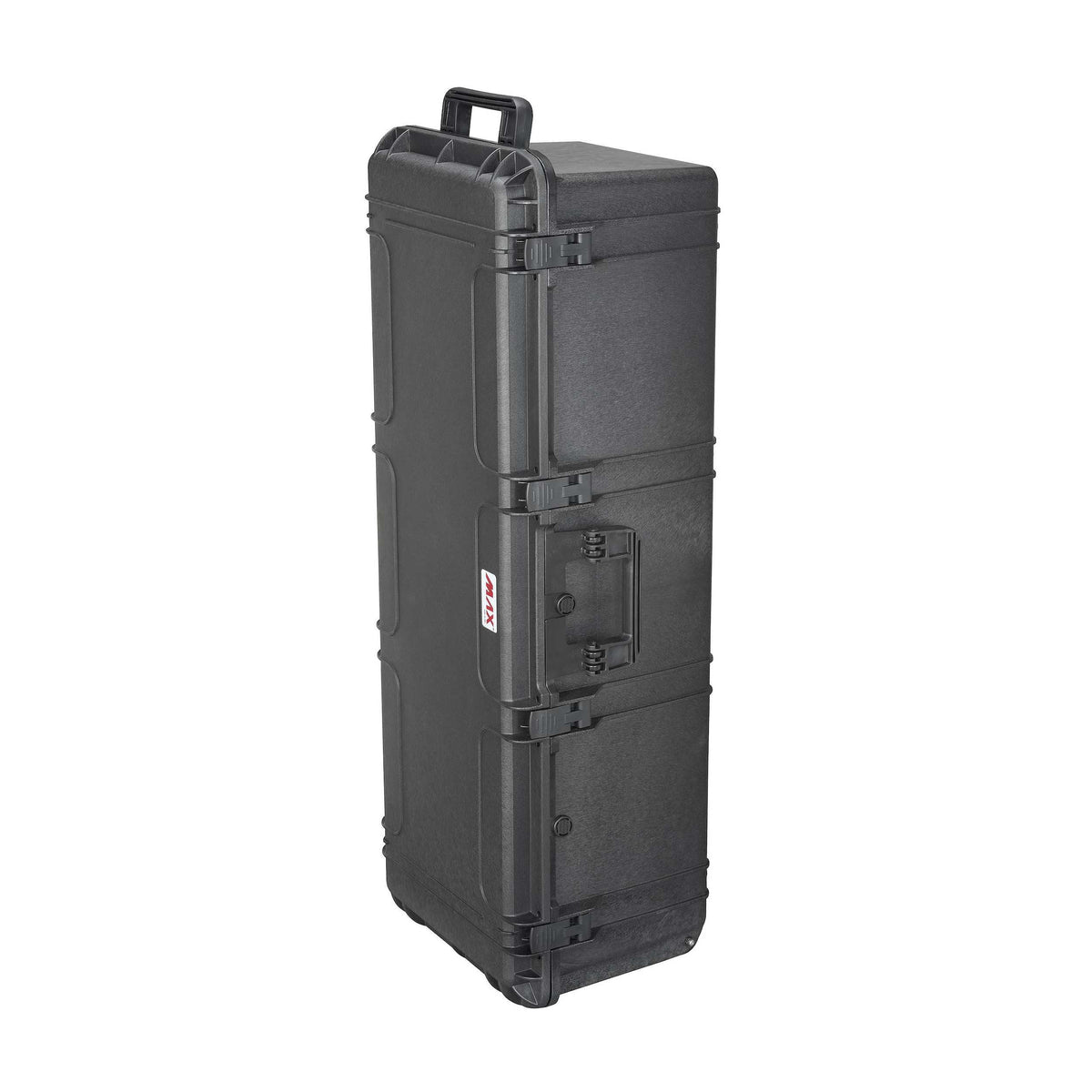

MAX1100H330S standing on its wheel end, side view showing latches and the top handle
Panaro MAX1100H330S open, showing a deep grey cubed foam block in the base and convoluted foam in the lid
MAX1100H330S closed, three-quarter view of the deep black shell with its carry handle, MAX logo and latches
Closed MAX1100H330S from the side, showing the latch row, front handle and a wheel at one corner
MAX1100H330S end view from above, with the pair of wheels and the end handle
MAX1100H330S standing on its wheel end, side view showing latches and the top handle
Panaro MAX1100H330S open, showing a deep grey cubed foam block in the base and convoluted foam in the lid
MAX1100H330S closed, three-quarter view of the deep black shell with its carry handle, MAX logo and latches
Closed MAX1100H330S from the side, showing the latch row, front handle and a wheel at one corner
MAX1100H330S end view from above, with the pair of wheels and the end handle
MAX1100H330S standing on its wheel end, side view showing latches and the top handle
Panaro

Panaro MAX1100H330S Waterproof Case with Cubed Foam Black

$1,121.12
$1,121.12
RRP $1,172.57
Or 4 payments of $280.28 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1100H330S

Deep Cubed Foam In A Rolling 1100 mm Case

MAX1100H330S is the deep MAX1100H330 fitted with cubed foam, so bulky long items can be bedded into custom pockets up to 330 mm deep.

Panaro's photo of this configuration shows a deep cubed foam block in the base and a convoluted layer in the lid. Pluck out cubes to trace each item and keep a wall of foam between them; with 285 mm of base depth, chunky items such as lighting heads, drill kits or a folded drone sit below the lid line.

The case holds 130 litres, weighs 10.90 kg bare and rolls on wheels at one end. Its polypropylene body closes on nylon latches over a polymer seal, and an automatic valve evens out the pressure inside after flights or temperature swings.

Teslab report 23B374A covers STANAG 4280, DEF STAN 81-41 and IP6X with IPX7 for this case, alongside Panaro's IP67 certificate and MIL-STD-810H report.

More for crews in photography and AV; more sizes in Panaro; more brands in protective cases.

Often ordered together

  • Deep cubed foam in the base
  • Egg-crate convoluted pad under the lid
  • 1100 x 370 x 330 mm interior
  • Rolls on wheels at one end
  • Automatic pressure release valve
  • STANAG 4280, IP67 and MIL-STD-810H reports
  • Lighting heads, stands and grip kit
  • Drone and camera rigs with batteries
  • Power tool sets and test gear
  • Medical response equipment
  • Trade show and demonstration kits

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX1100H330S

Mega Code: PMMAX1100H330S

Configuration: S: cubed foam base with convoluted lid foam

External Dimensions: 1177 x 450 x 348 mm (46.34 x 17.72 x 13.7 in)

Internal Dimensions: 1100 x 370 x 330 mm (43.30 x 14.57 x 12.9 in)

Lid and Base Depth: 45 mm lid + 285 mm base

Weight: 10.90 kg (empty case, per Panaro)

Capacity: 130 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Test Reports Published: IP67, STANAG 4280 and DEF STAN 81-41, MIL-STD-810H

Temperature Range: -51 to 90 C, per Panaro datasheet

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236110120

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Pick by height. Both are 1100 x 370 mm inside; the MAX1100S is 140 mm deep and this one is 330 mm.
Panaro offer a cubed foam kit for the MAX1100H330 as a spare. Ask us for a quote.
Yes, the MAX1100H330 is the same case without foam.
Five MAX1100H330 files: IP67 certificate, Teslab 23B374A, MIL-STD-810H certificate, datasheet and 2D drawing, plus Panaro's fungus and fluid declaration.
