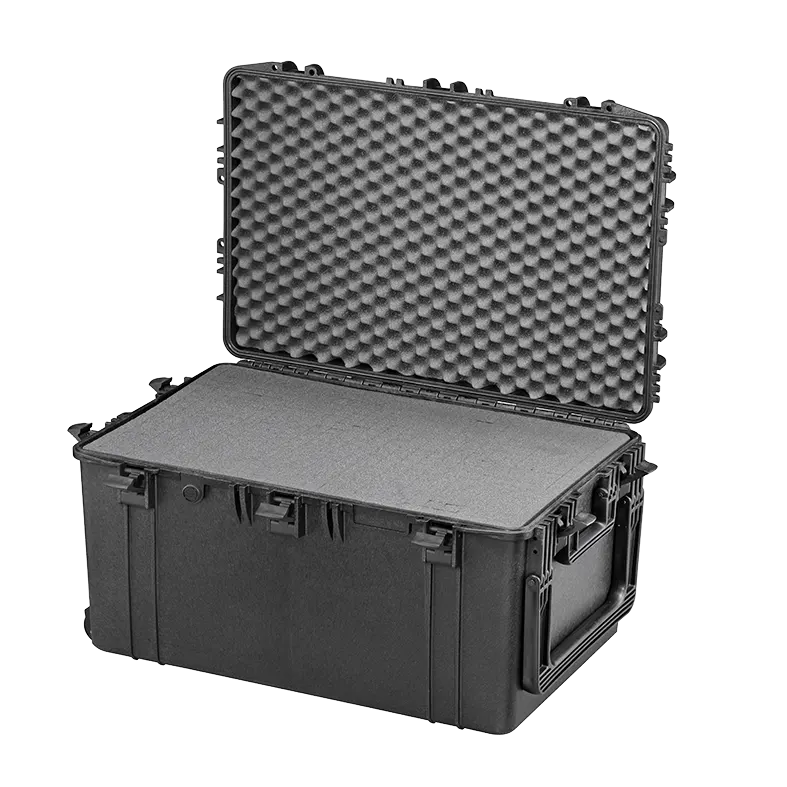

Panaro MAX750H400S black waterproof case open with five layers of grey cubed foam and convoluted foam in the lid

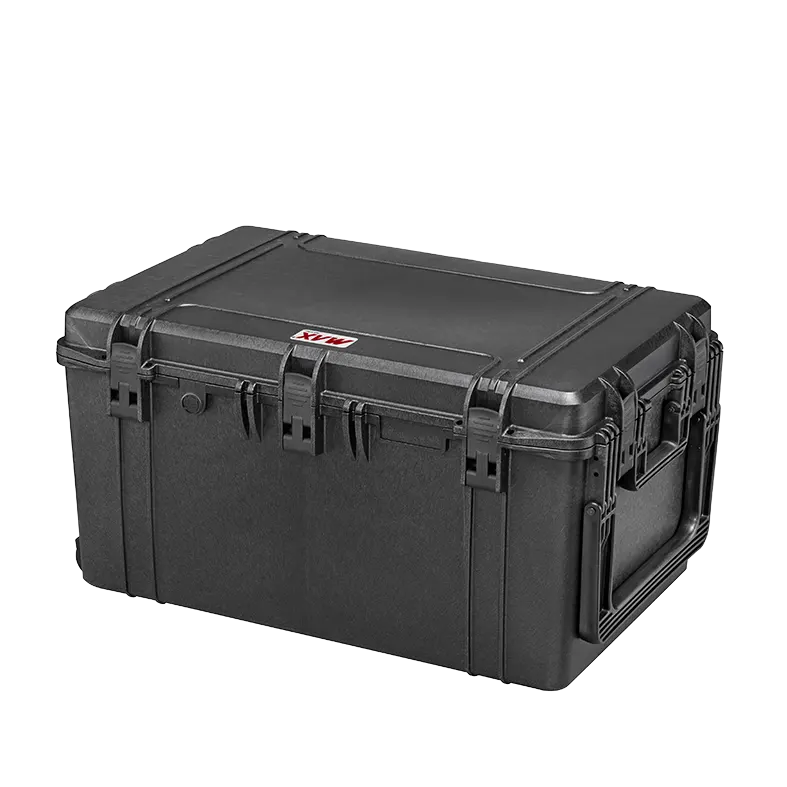

Panaro MAX750H400 black waterproof case closed at an angle, showing latches, side handle and MAX logo

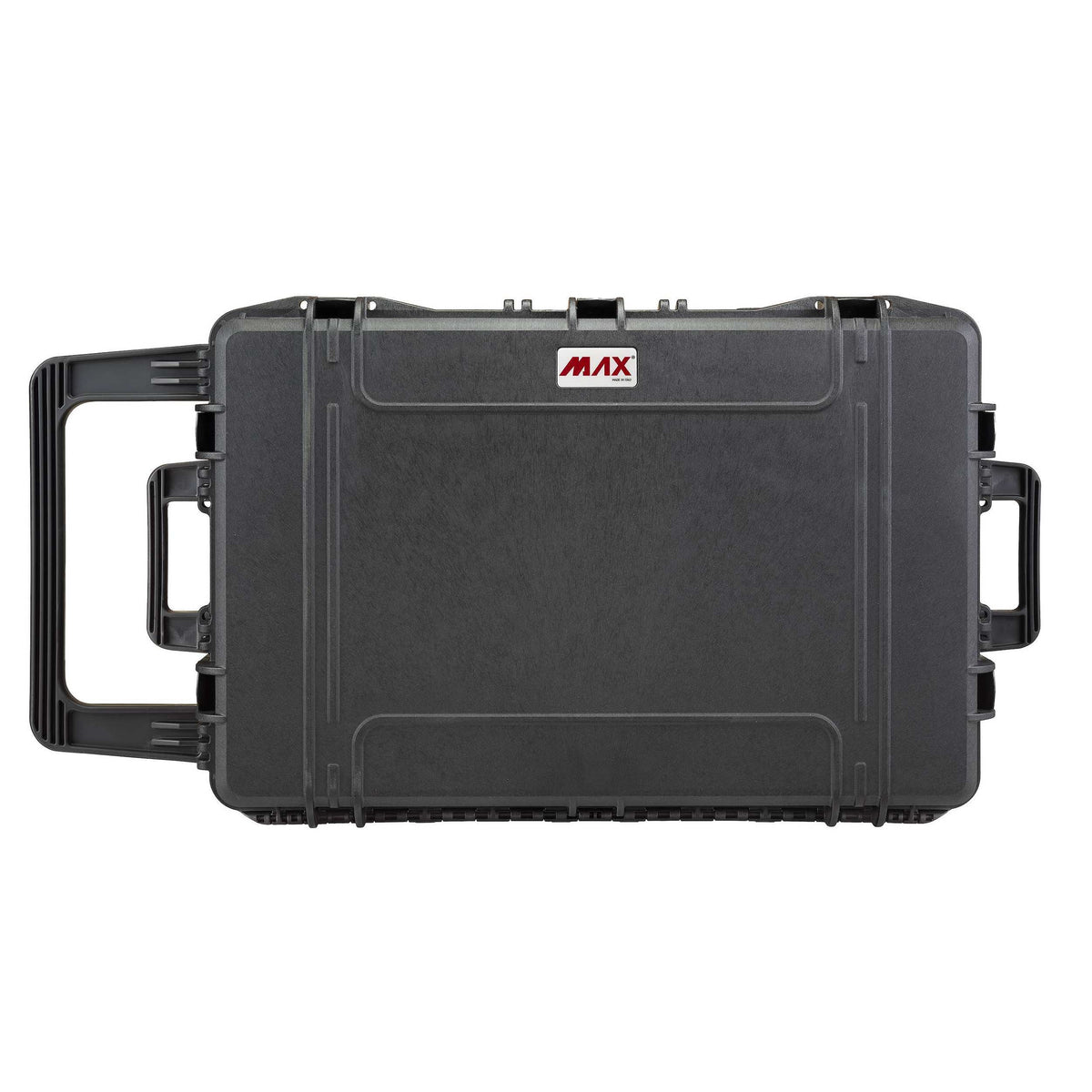

Panaro MAX750H400 lid view with the carry handle and the end handle folded out

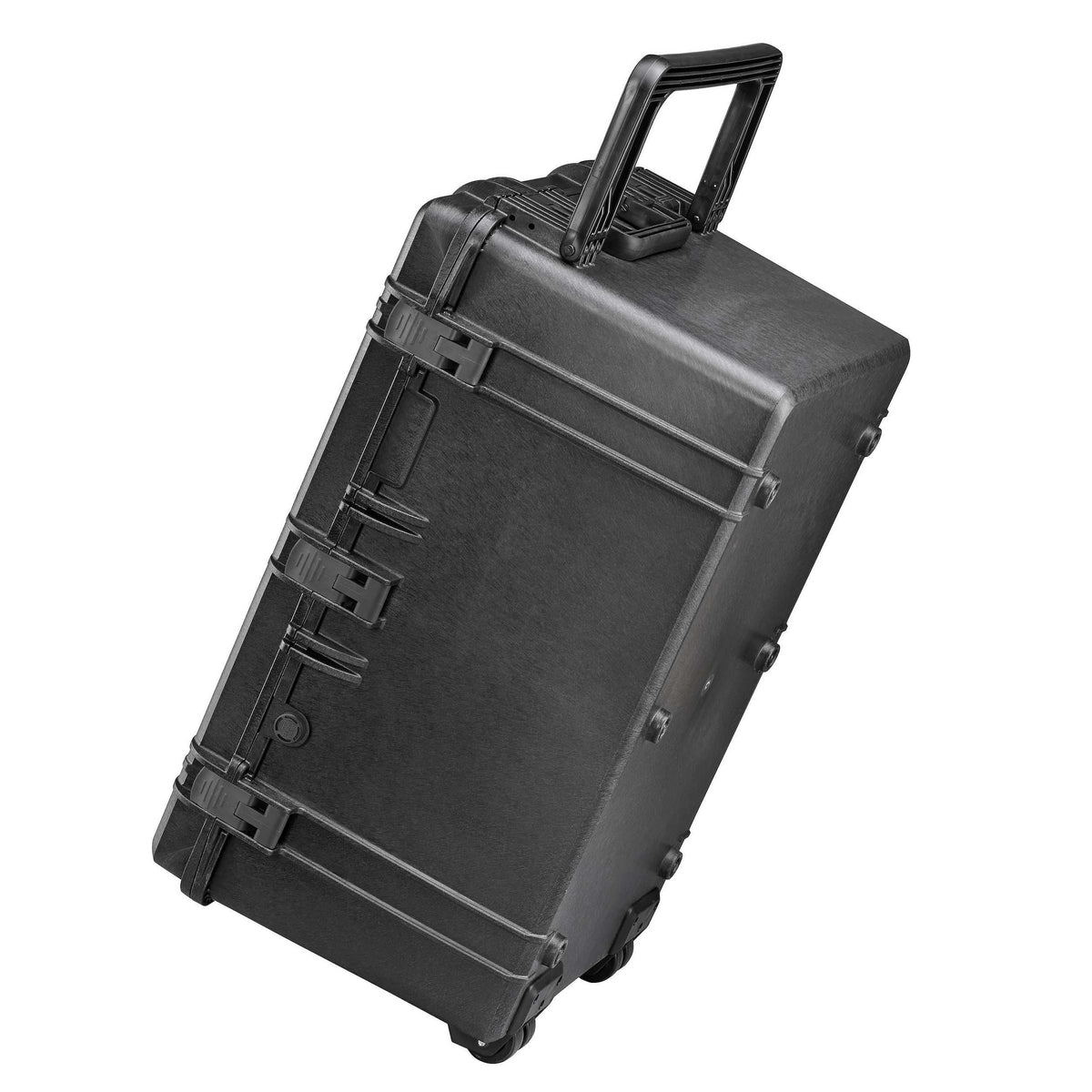

Panaro MAX750H400 tilted onto its wheels with the large fold down handle raised
Side view of the Panaro MAX750H400 showing the latches, label window and a wheel
Panaro MAX750H400S black waterproof case open with five layers of grey cubed foam and convoluted foam in the lid
Panaro MAX750H400 black waterproof case closed at an angle, showing latches, side handle and MAX logo
Panaro MAX750H400 lid view with the carry handle and the end handle folded out
Panaro MAX750H400 tilted onto its wheels with the large fold down handle raised
Side view of the Panaro MAX750H400 showing the latches, label window and a wheel
Panaro MAX750H400S black waterproof case open with five layers of grey cubed foam and convoluted foam in the lid
Panaro MAX750H400 black waterproof case closed at an angle, showing latches, side handle and MAX logo
Panaro MAX750H400 lid view with the carry handle and the end handle folded out
Panaro MAX750H400 tilted onto its wheels with the large fold down handle raised
Side view of the Panaro MAX750H400 showing the latches, label window and a wheel
Panaro

Panaro MAX750H400S Waterproof Case with Cubed Foam Black

$1,297.23
$1,297.23
RRP $1,368.81
Or 4 payments of $324.31 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX750H400S

Deep Cubed Foam for Tall Kit in the MAX750H400S

The Panaro MAX750H400S gives you five layers of pick and pluck foam in the deep MAX750 shell, so tall items like a camera on its cage, a gimbal or a stack of radios can sit upright in their own cut-outs.

Per Panaro's foam sheet the base is 40 mm, the five cubed layers are 60 mm each, and the lid carries a 55 mm convoluted pad. Inside there is 750 x 480 x 400 mm to work with, 144 litres in all. Panaro give 13.10 kg as the weight with this foam.

The MAX750H400 shell under the foam is rated IP67, tested to STANAG 4280 and MIL-STD-810H, and certified to ATA 300 Category 1 for air freight. The polypropylene body closes with nylon latches on an O-ring, vents through an automatic valve, and rolls on twin wheels. Made in Italy.

The empty and HDS versions are in Panaro, with more options under protective cases and defence and tactical.

Often ordered together

  • Five 60 mm cubed foam layers
  • Convoluted lid pad and 40 mm base
  • 750 x 480 x 400 mm inside, 144 litres
  • ATA 300 Cat. 1 for air freight
  • Twin wheels and large fold down handle
  • 13.10 kg as supplied
  • Cinema cameras with cages and rigs
  • Gimbals and stabilisers
  • Two-way radios with chargers
  • Lab instruments that must travel upright
  • Stage and lighting control gear

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX750H400S

Mega Code: PMMAX750H400S

Configuration: Cubed foam (S)

Internal Dimensions: 750 x 480 x 400 mm

External Dimensions: 816 x 540 x 426 mm

Lid and Base Depth: 60 mm lid + 340 mm base

Capacity: 144 litres

Weight: 13.10 kg with foam (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

EAN: 8011236750043

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Five 60 mm cubed layers on a 40 mm base, with a 55 mm convoluted pad in the lid, per Panaro.
Same footprint, but 400 mm deep inside instead of 280 mm, with two more cubed layers, and Panaro add an ATA 300 certificate for the H400.
Panaro list 13.10 kg with the standard cubed foam fitted.
Panaro offer custom foam inlays on request, and a MAX750H400 foam kit as a replacement for the cubed foam.
Under downloads: the MAX750H400 drawing, its datasheet, IP67 and ATA 300 certificates, the 810H certificate, report 173075A and the fungus and fluid sheet.
