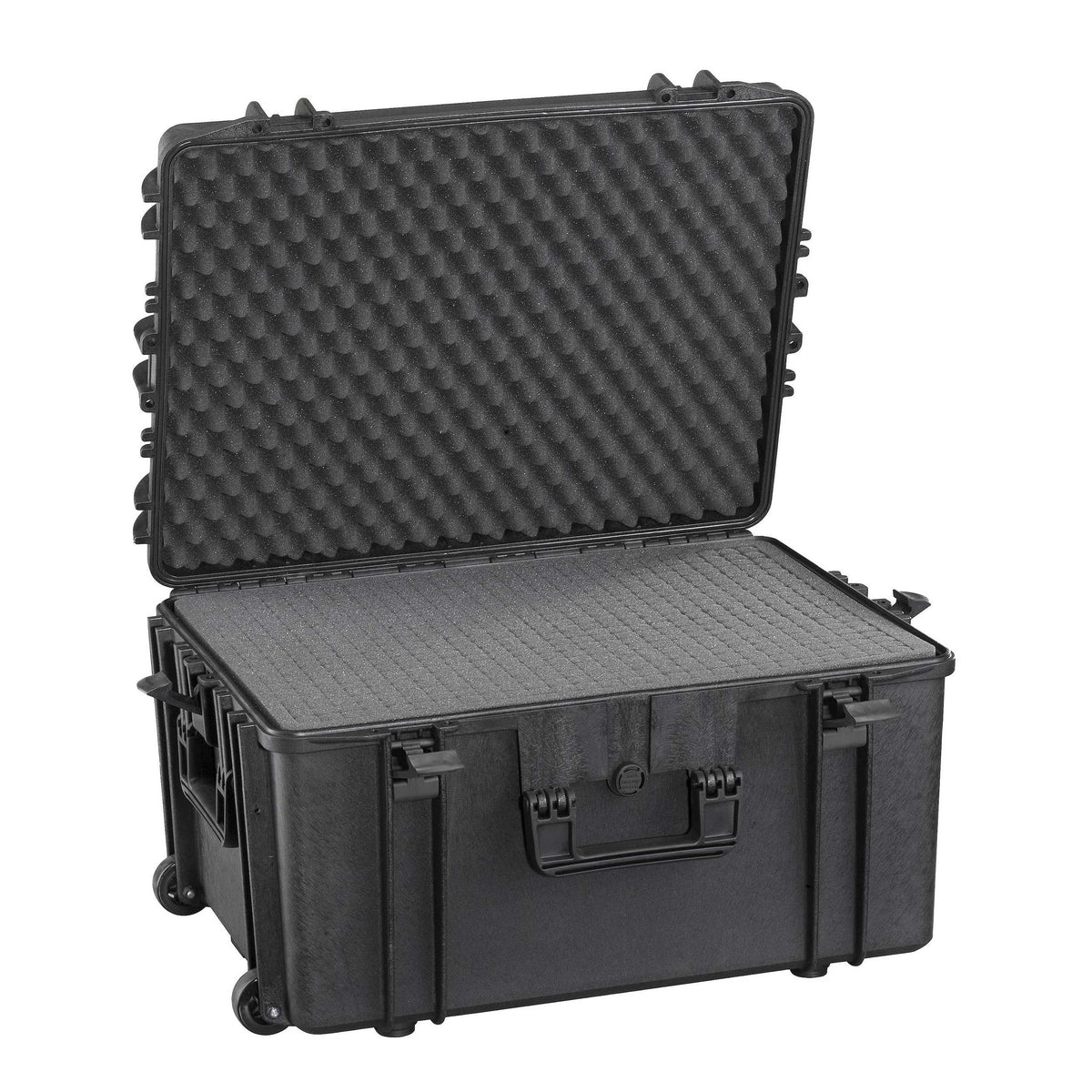

Panaro MAX620H340STR black waterproof case open, cubed pick and pluck foam in the base and convoluted foam in the lid, trolley wheels at the back

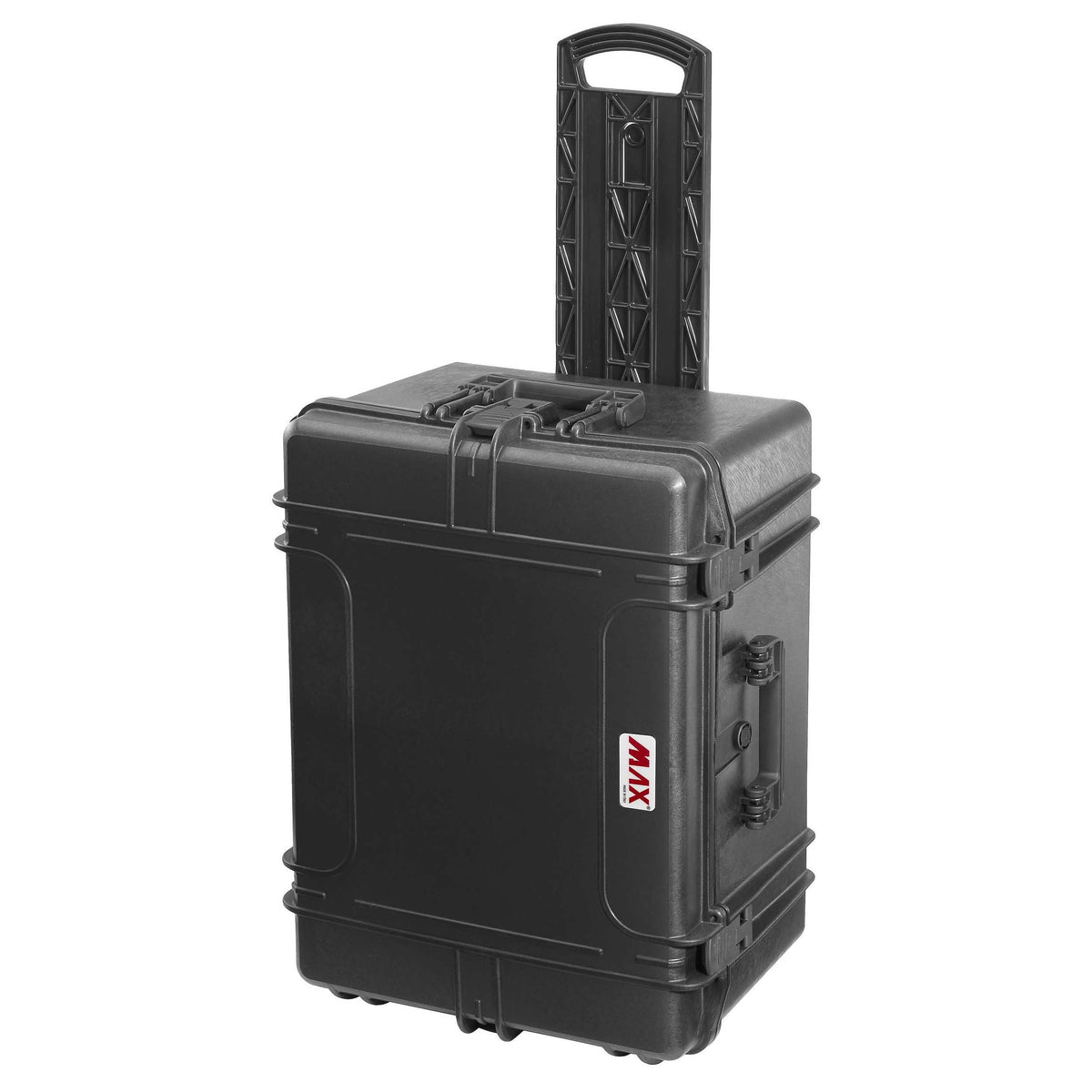

Panaro MAX620H340STR stood upright with the extendable trolley handle raised and the red MAX logo on the side

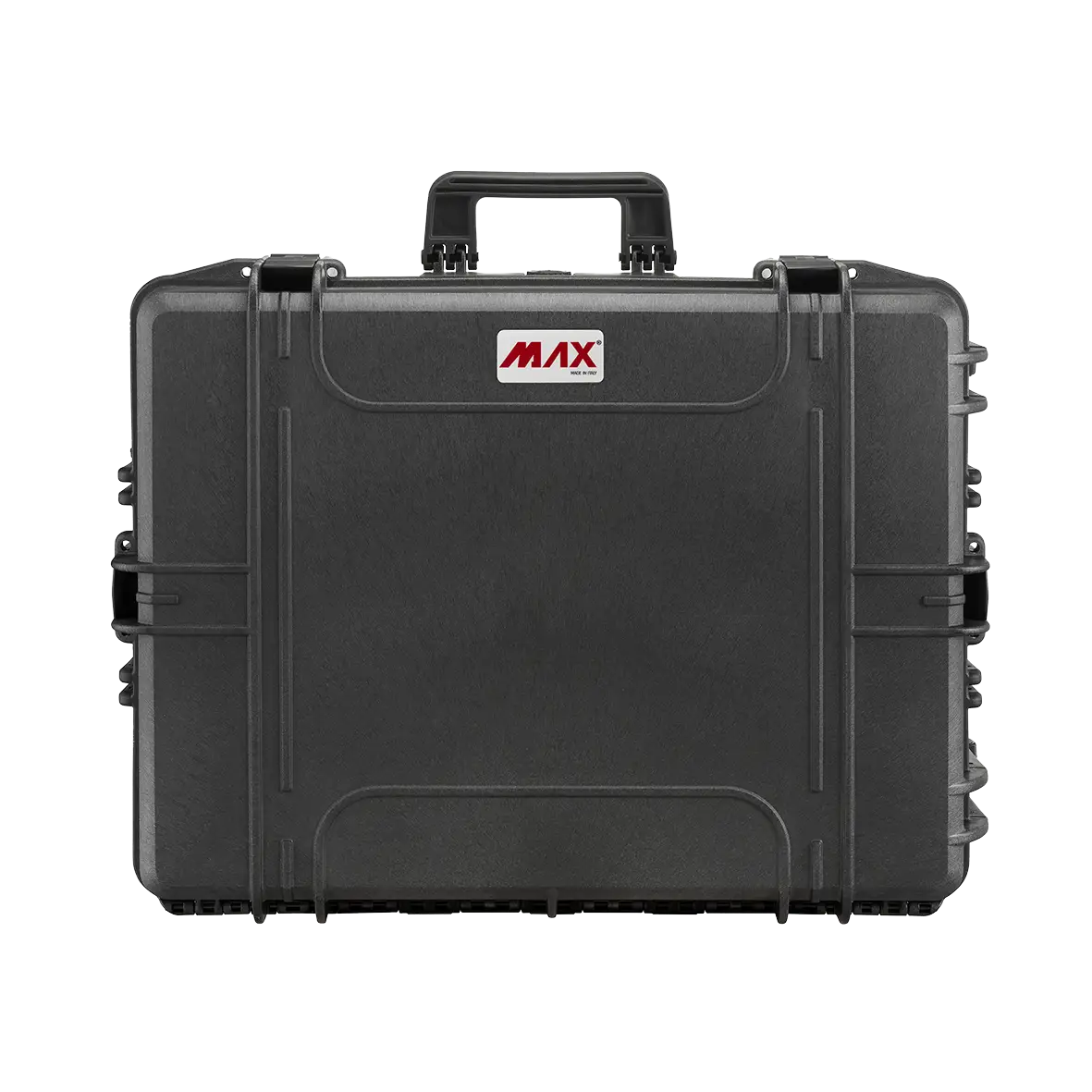

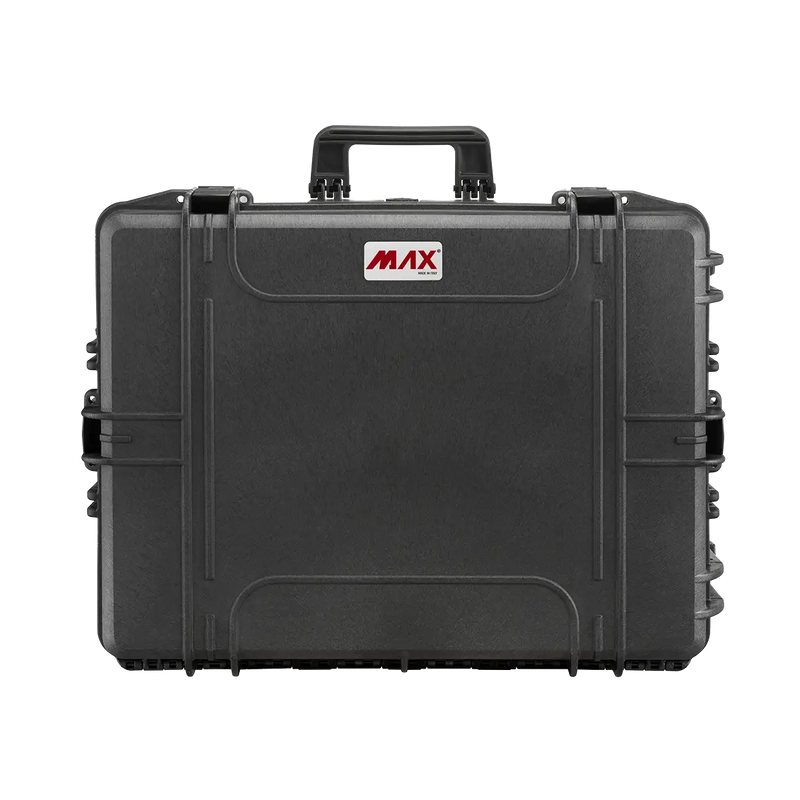

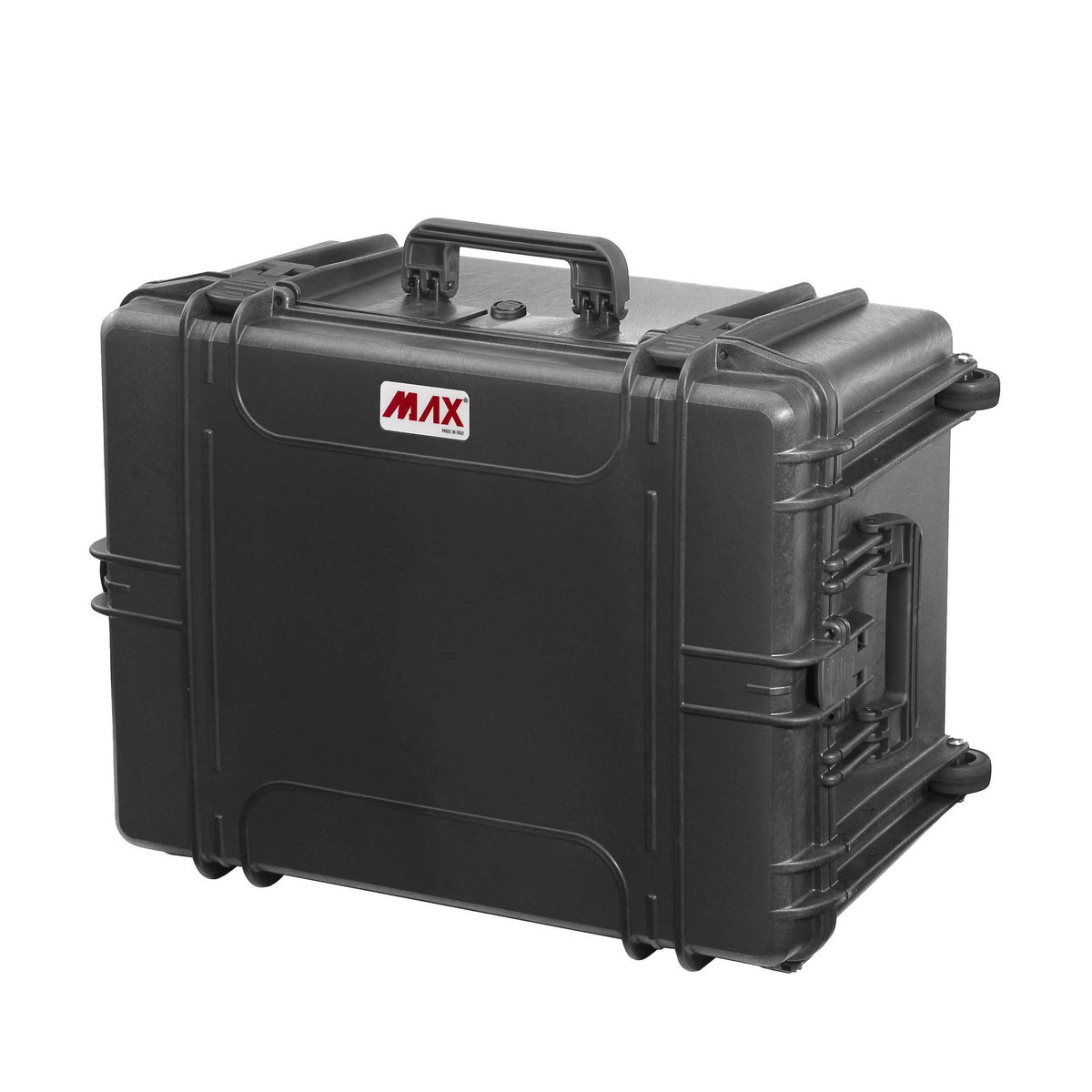

Front view of the closed Panaro MAX620H340 trolley case showing the top carry handle, latches and MAX logo on the lid

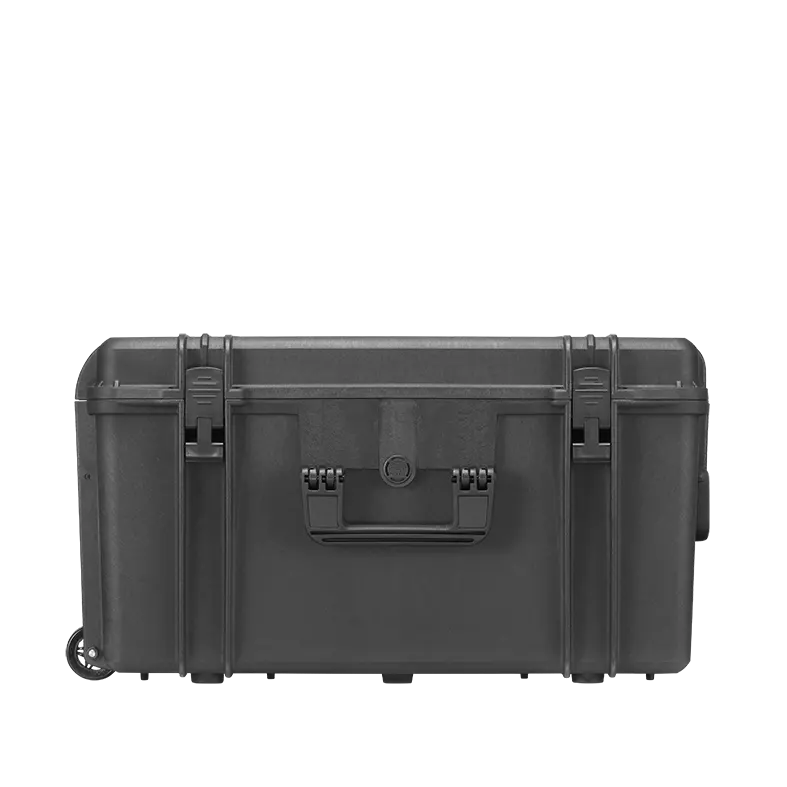

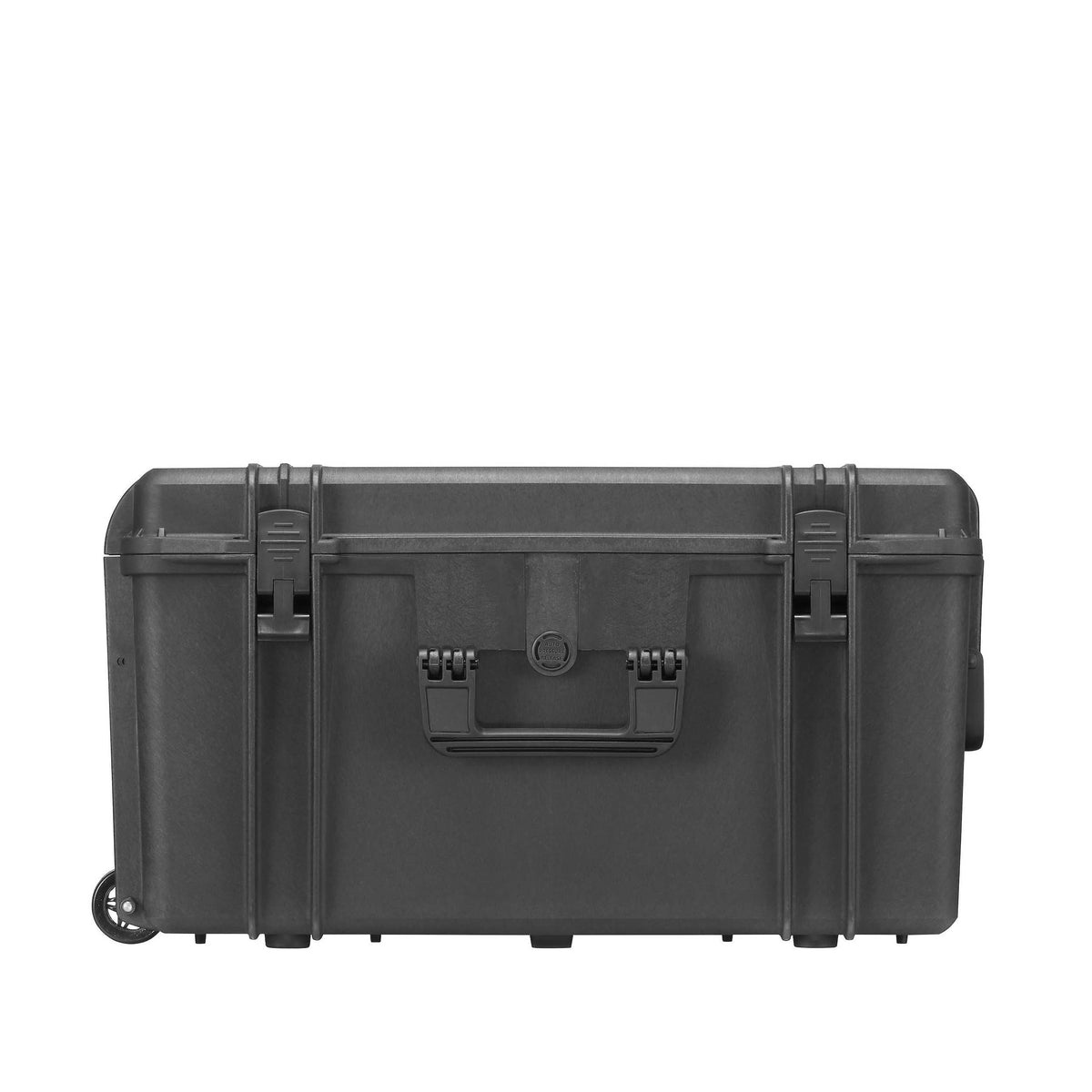

Side view of the Panaro MAX620H340 trolley case showing the soft grip handle, latches and a wheel at the base
Panaro MAX620H340STR black waterproof case open, cubed pick and pluck foam in the base and convoluted foam in the lid, trolley wheels at the back
Panaro MAX620H340STR stood upright with the extendable trolley handle raised and the red MAX logo on the side
Front view of the closed Panaro MAX620H340 trolley case showing the top carry handle, latches and MAX logo on the lid
Side view of the Panaro MAX620H340 trolley case showing the soft grip handle, latches and a wheel at the base
Panaro MAX620H340STR black waterproof case open, cubed pick and pluck foam in the base and convoluted foam in the lid, trolley wheels at the back
Panaro MAX620H340STR stood upright with the extendable trolley handle raised and the red MAX logo on the side
Front view of the closed Panaro MAX620H340 trolley case showing the top carry handle, latches and MAX logo on the lid
Side view of the Panaro MAX620H340 trolley case showing the soft grip handle, latches and a wheel at the base
Panaro

Panaro MAX620H340STR Waterproof Case with Cubed Foam and Trolley Black

$1,015.30
$1,015.30
RRP $1,080.24
Or 4 payments of $253.83 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX620H340STR

Cubed Foam and a Telescopic Trolley in One Case

The Panaro MAX620H340STR arrives ready to load: pick and pluck cubed foam in the base, a convoluted pad in the lid, and an extendable handle with wheels for rolling it through terminals and car parks.

Inside is 620 x 460 x 340 mm, or 96.96 litres. Panaro's foam sheet for the H340 lists a 40 mm base layer, two 55 mm and two 65 mm cubed layers and a 50 mm convoluted lid pad. Pull cubes out along the scored grid to make a pocket for each item, and keep the plucked pieces in case the kit changes.

Injection moulded in polypropylene, the shell closes with nylon latches over an O-ring seal, and Panaro's test certificates cover IP67 immersion, the STANAG 4280 transport protocol and MIL-STD-810H for this trolley shell. An automatic pressure release valve stops the lid sticking shut after a flight. With the foam fitted, Panaro give the weight as 11 kg. It is made in Italy.

Compare it with the rest of the Panaro MAX range, our other protective cases and the defence and tactical section.

Often ordered together

  • Pick and pluck cubed foam base with convoluted lid pad
  • Extendable trolley handle and wheels
  • Internal 620 x 460 x 340 mm, 96.96 litres
  • IP67 rated, with STANAG 4280 testing
  • Automatic pressure release valve
  • Holes for double padlocking
  • Camera bodies and lenses wheeled through airports
  • Drone and controller kits for site surveys
  • Test meters and calibration gear on service calls
  • Audio and broadcast equipment moving between venues
  • Rescue kit that has to stay dry

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX620H340STR

Mega Code: PMMAX620H340STR

Configuration: Cubed foam (S) with trolley (TR)

Internal Dimensions: 620 x 460 x 340 mm

External Dimensions: 687 x 528 x 376 mm

Lid and Base Depth: 60 mm lid + 280 mm base

Capacity: 96.96 litres

Weight: 11 kg with foam (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

EAN: 8011236620087

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

S is Panaro's cubed foam configuration and TR is the trolley. This one ships with pick and pluck cubes below, a convoluted pad above, and the extendable handle with wheels.
Sit each item on the top layer, mark around it and pull the cubes out one at a time. The H340 kit has four cubed layers, so tall items can go deep while the lower layers stay whole underneath smaller ones.
Panaro rate the MAX620H340STR IP67, test it to DEF STAN 81-41, and fit an automatic pressure release valve for altitude changes. There is no ATA 300 certificate for this model, and airline size and weight limits still apply at 687 x 528 x 376 mm outside.
Yes. The MAX620H340TR is the same trolley case supplied empty, and the MAX620H340HDSTR swaps in high density cubed foam.
Six PDFs sit on this page for the STR: Panaro's TR datasheet and 2D drawing, an IP67 certificate, a MIL-STD-810H certificate, test report 173077A and the fungus and fluid sheet.
