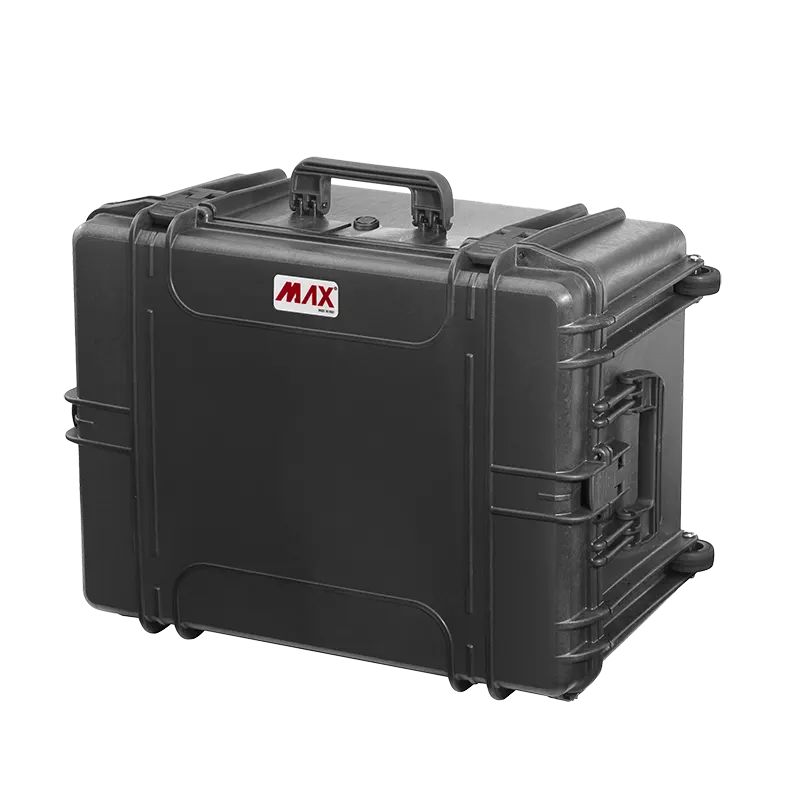

Closed Panaro MAX620H340 case at an angle showing the handle, latches and MAX logo

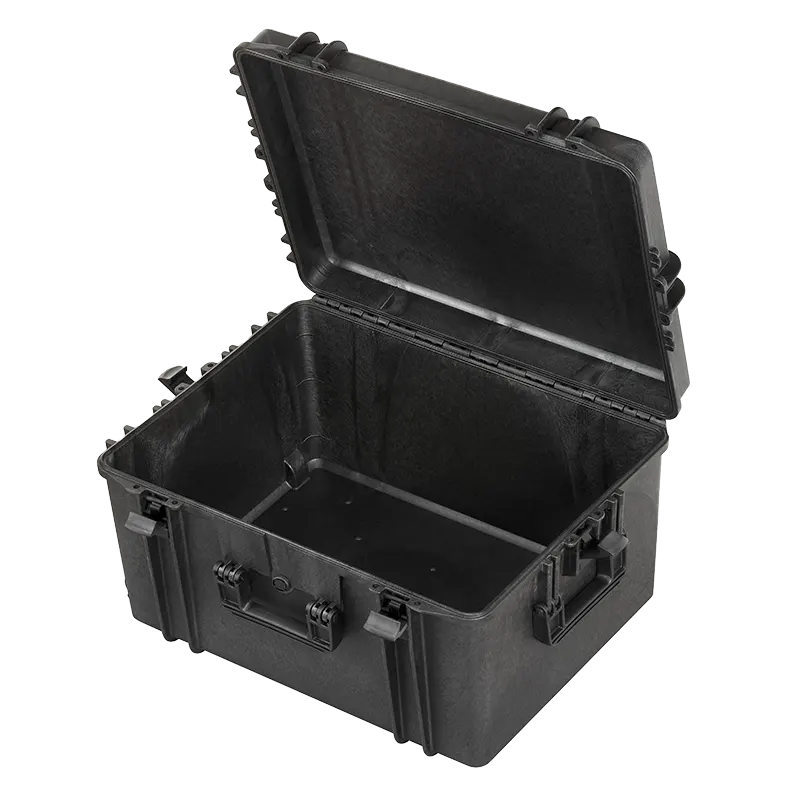

Panaro MAX620H340 open and empty, showing the deep base and the inside of the lid

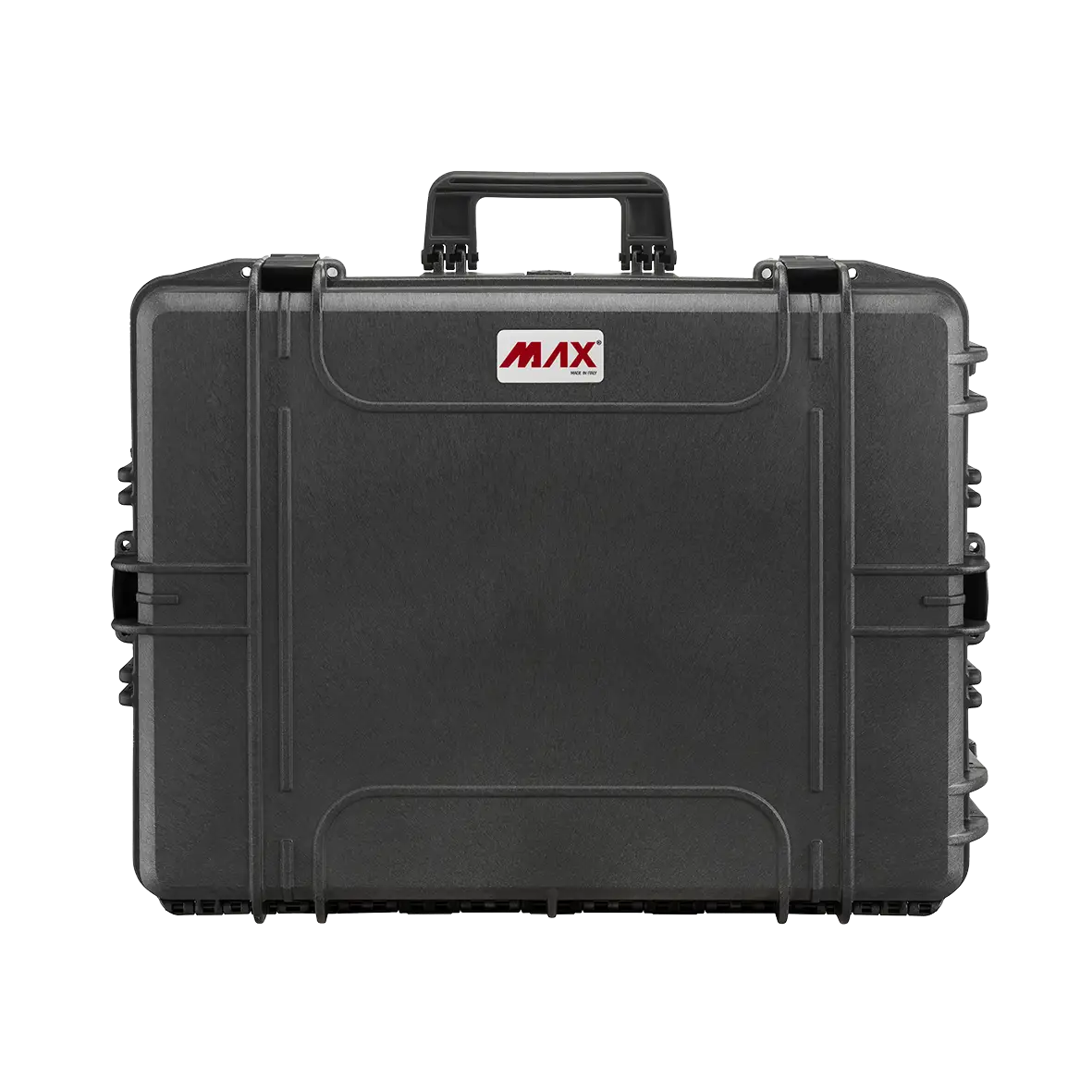

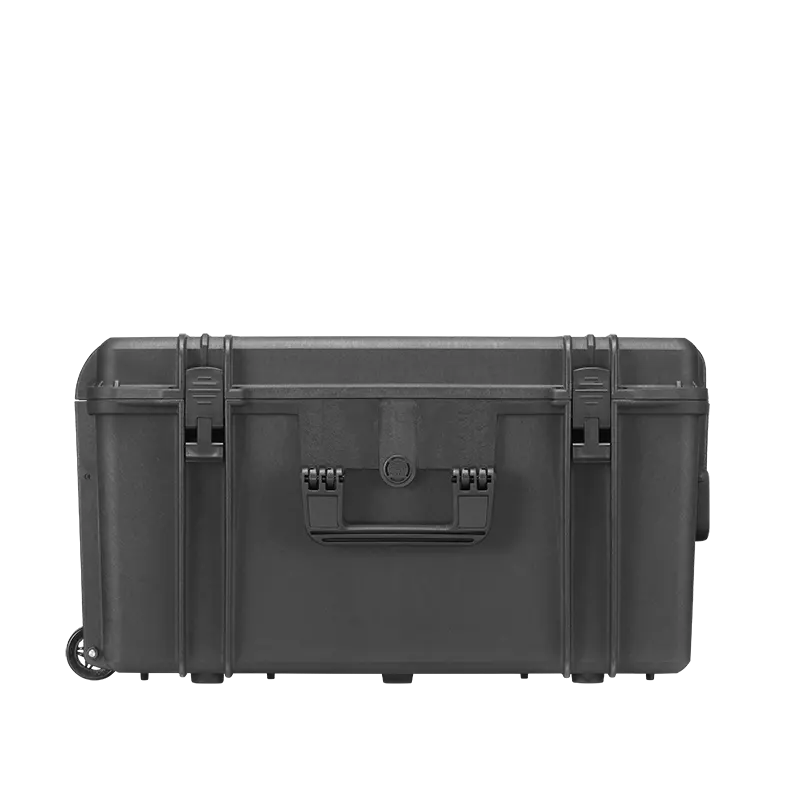

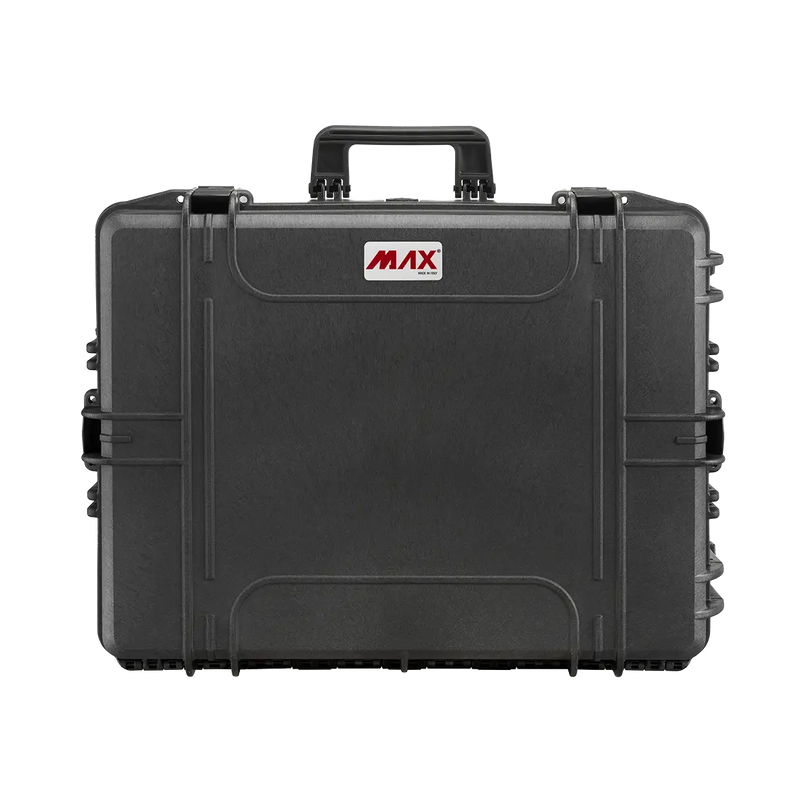

Front of the closed Panaro MAX620H340 case showing the latches and lower edge

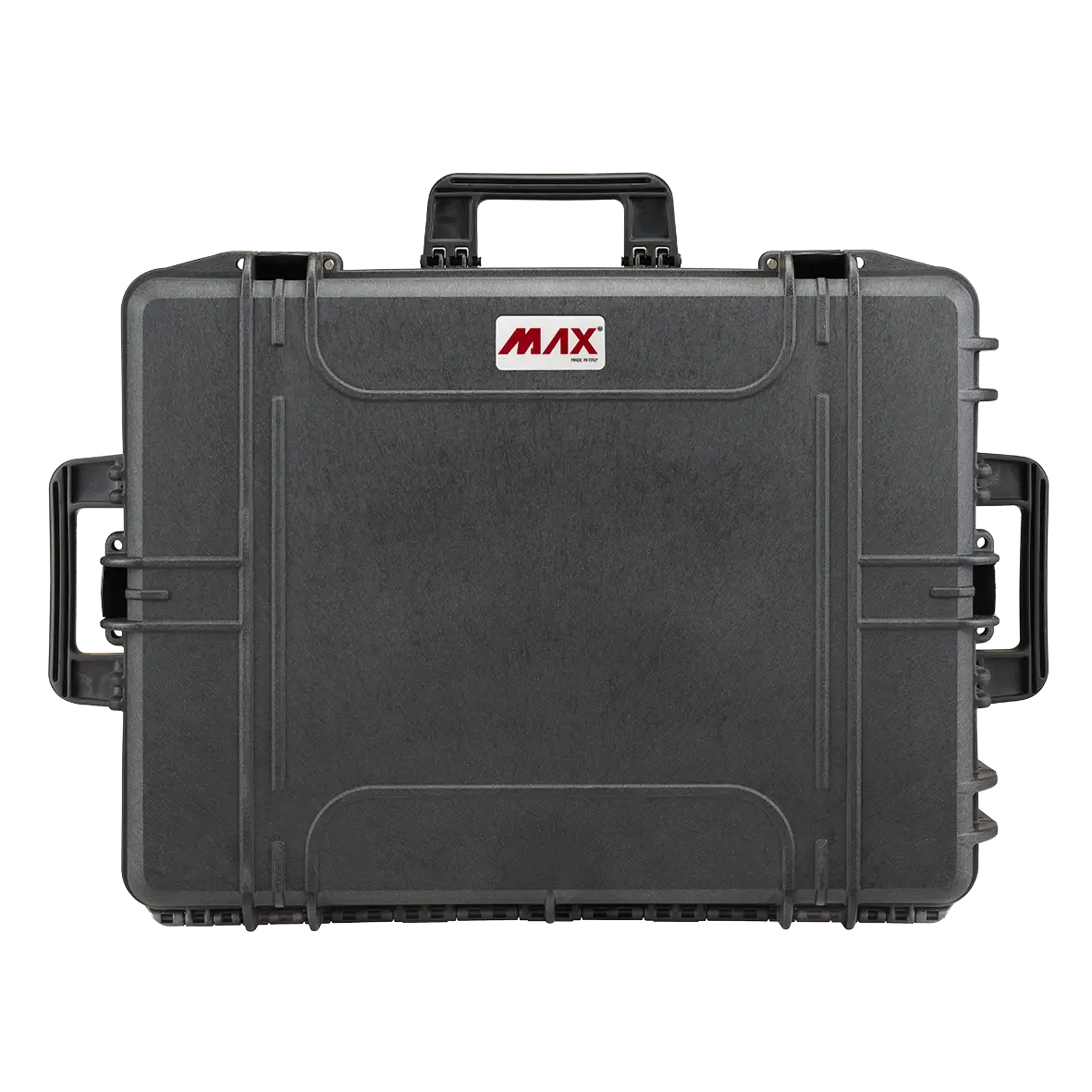

Closed Panaro MAX620H340 lid face on with carry handle and folding side handles
Top view of the closed Panaro MAX620H340 lid with carry handle and MAX logo
Closed Panaro MAX620H340 case at an angle showing the handle, latches and MAX logo
Panaro MAX620H340 open and empty, showing the deep base and the inside of the lid
Front of the closed Panaro MAX620H340 case showing the latches and lower edge
Closed Panaro MAX620H340 lid face on with carry handle and folding side handles
Top view of the closed Panaro MAX620H340 lid with carry handle and MAX logo
Closed Panaro MAX620H340 case at an angle showing the handle, latches and MAX logo
Panaro MAX620H340 open and empty, showing the deep base and the inside of the lid
Front of the closed Panaro MAX620H340 case showing the latches and lower edge
Closed Panaro MAX620H340 lid face on with carry handle and folding side handles
Top view of the closed Panaro MAX620H340 lid with carry handle and MAX logo
Panaro

Panaro MAX620H340 Waterproof Case Black

Regular price
$709.39
Sale price
$709.39
Regular price
RRP $739.38
Or 4 payments of $177.35 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX620H340

A Deep MAX Case Ready for Your Own Interior

The Panaro MAX620H340 is a large, deep watertight case supplied empty, with 620 x 460 x 340 mm inside so bulky kit, stacked instruments or custom foam inserts have room to spare.

It holds 96.96 litres, measures 687 x 528 x 366 mm outside and weighs 7.80 kg empty, splitting into a 60 mm lid and a 280 mm base. The polypropylene shell closes on an O-ring seal with double throw latches and an automatic pressure release valve. Wheels sit at one end on stainless steel pins, with side handles at both ends. The open interior takes your own foam, dividers or a custom inlay.

Holes for two padlocks secure the contents between jobs, and the full length hinge and corrosion free nylon pins stand up to regular handling. The stackable lid and base let you store a fleet of cases neatly, and Panaro offer screen printing and custom labels for branded or numbered cases.

Panaro publish IP67, STANAG 4280 / DEF STAN 81-41 and MIL-STD-810H documents for the MAX620H340 and state it is made in Italy. See our Panaro collection for foam versions, with other protective cases and defence and tactical cases.

  • 620 x 460 x 340 mm interior, 96.96 litres
  • Empty interior for your own foam or dividers
  • O-ring seal and automatic pressure release valve
  • Double throw latches with two padlock points
  • Wheels at one end and side handles
  • Full length hinge with nylon pins
  • Stackable lid and base
  • Bulky test and measurement kits
  • Custom foam builds for large equipment
  • Medical and first response kits
  • Broadcast and stage gear
  • Defence and emergency service equipment

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX620H340

Mega Code: PMMAX620H340

Configuration: Empty

Internal Dimensions: 620 x 460 x 340 mm

External Dimensions: 687 x 528 x 366 mm

Lid and Base Depth: 60 mm lid + 280 mm base

Capacity: 96.96 litres

Weight: 7.80 kg empty (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring, stainless steel wheel pins

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

FAQs

Empty suits a custom foam inlay, padded dividers or pouches. If you want pick and pluck foam straight away, the MAX620H340S is the same case with cubed foam fitted.
Panaro publish an IP67 certificate for the MAX620H340, which covers dust and temporary immersion. Keep the O-ring seal clean and the latches fully closed.
Yes. Wheels sit at one end on stainless steel pins, and the side handles let you tilt it onto them.
Yes. Panaro offer custom foam inlays for MAX cases. Send us your equipment list and we will get a quote from Panaro.
Yes. The downloads below include Panaro's datasheet, a 2D drawing and the test documents published for the MAX620H340.
