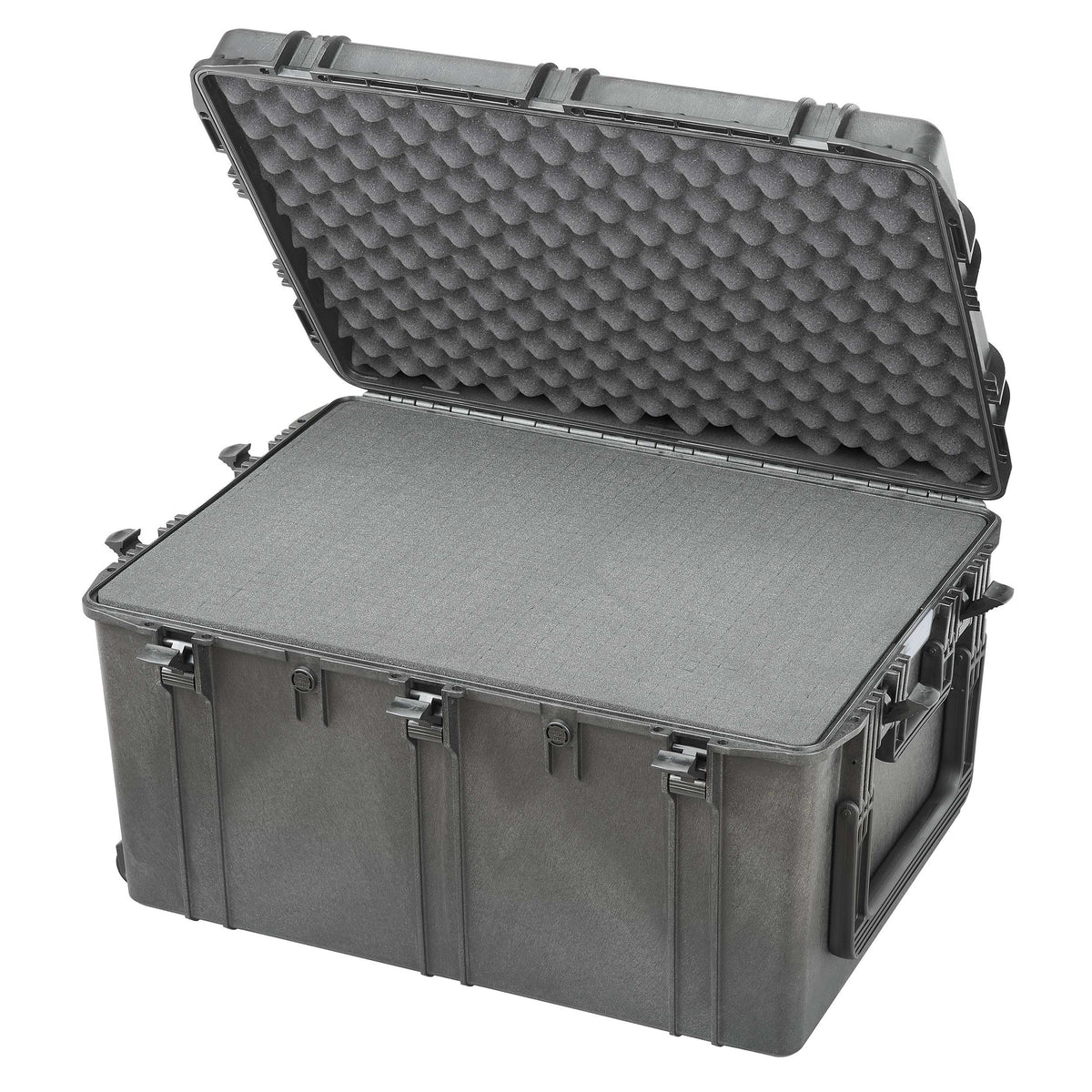

Panaro MAX820S large black waterproof case open with grey cubed foam in the base and convoluted foam in the lid

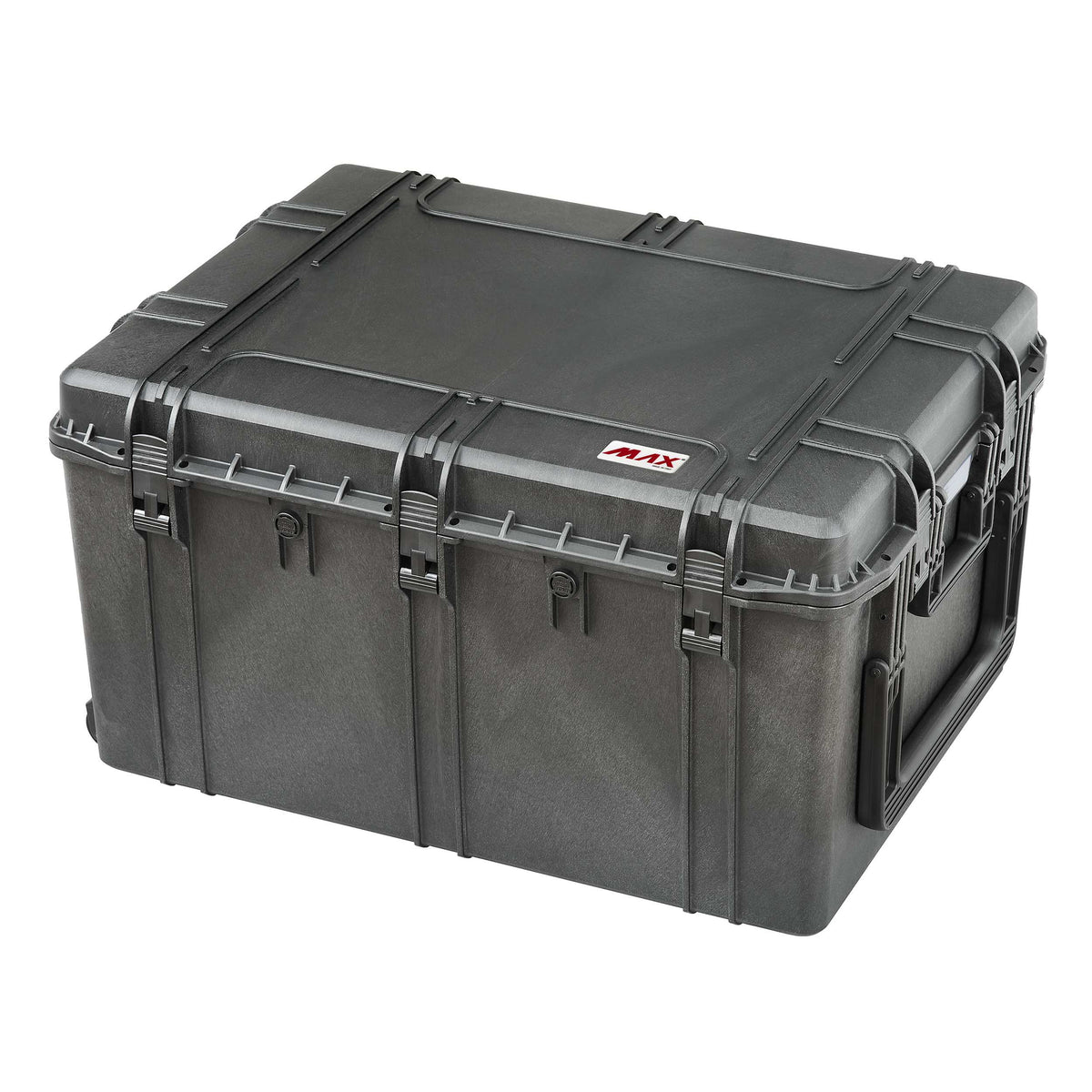

Panaro MAX820 large black waterproof case closed at an angle showing latches, side handle and MAX logo

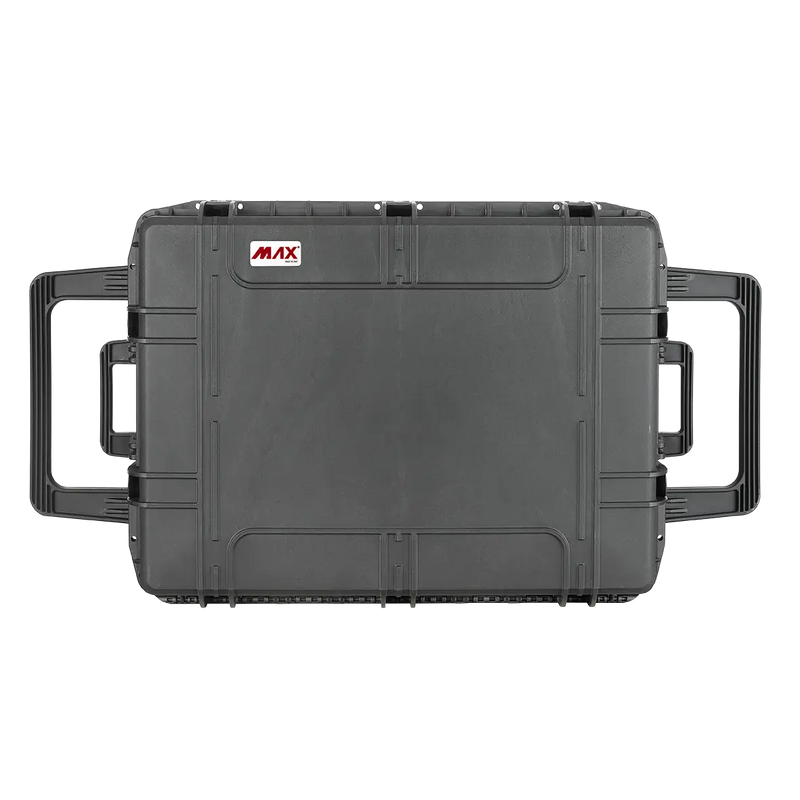

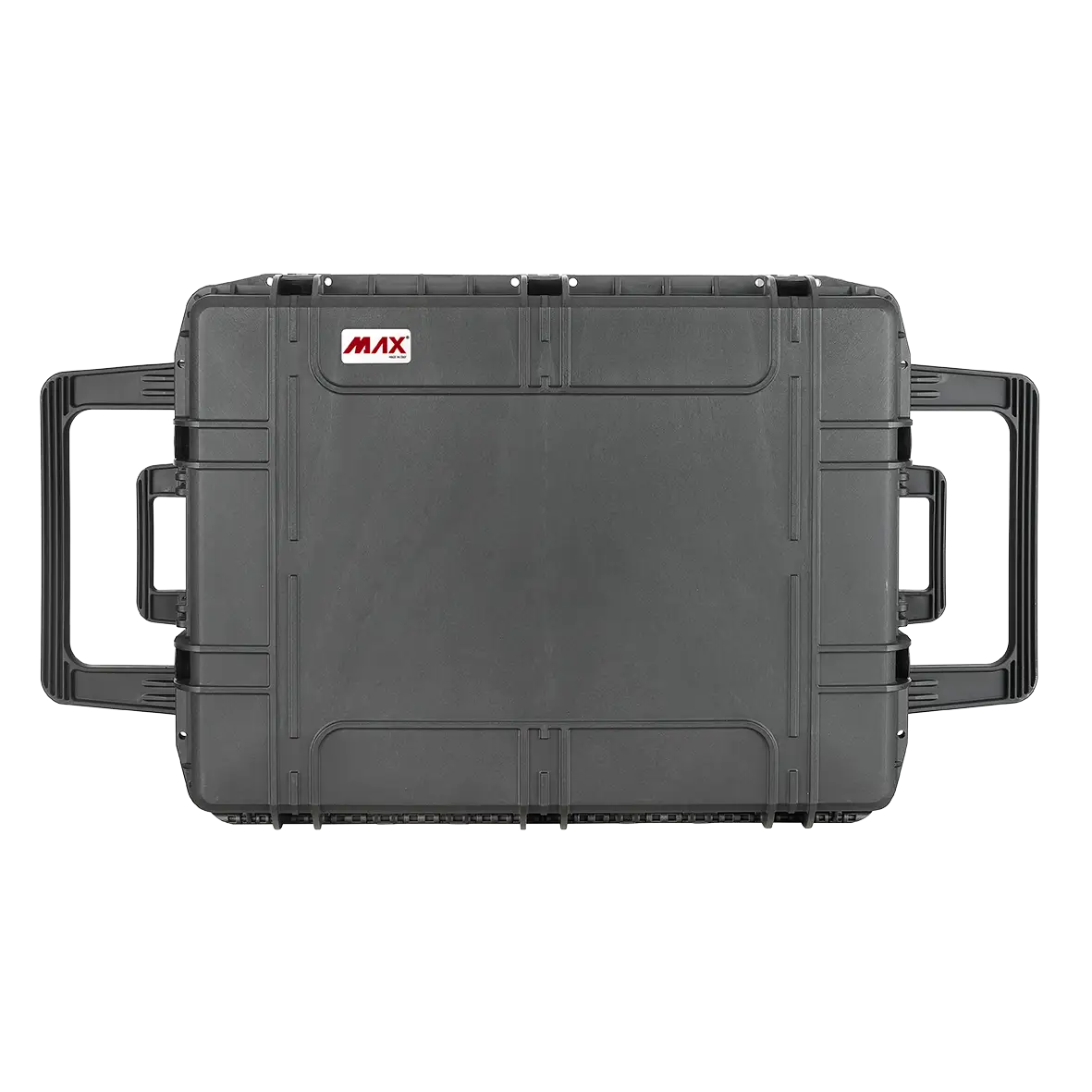

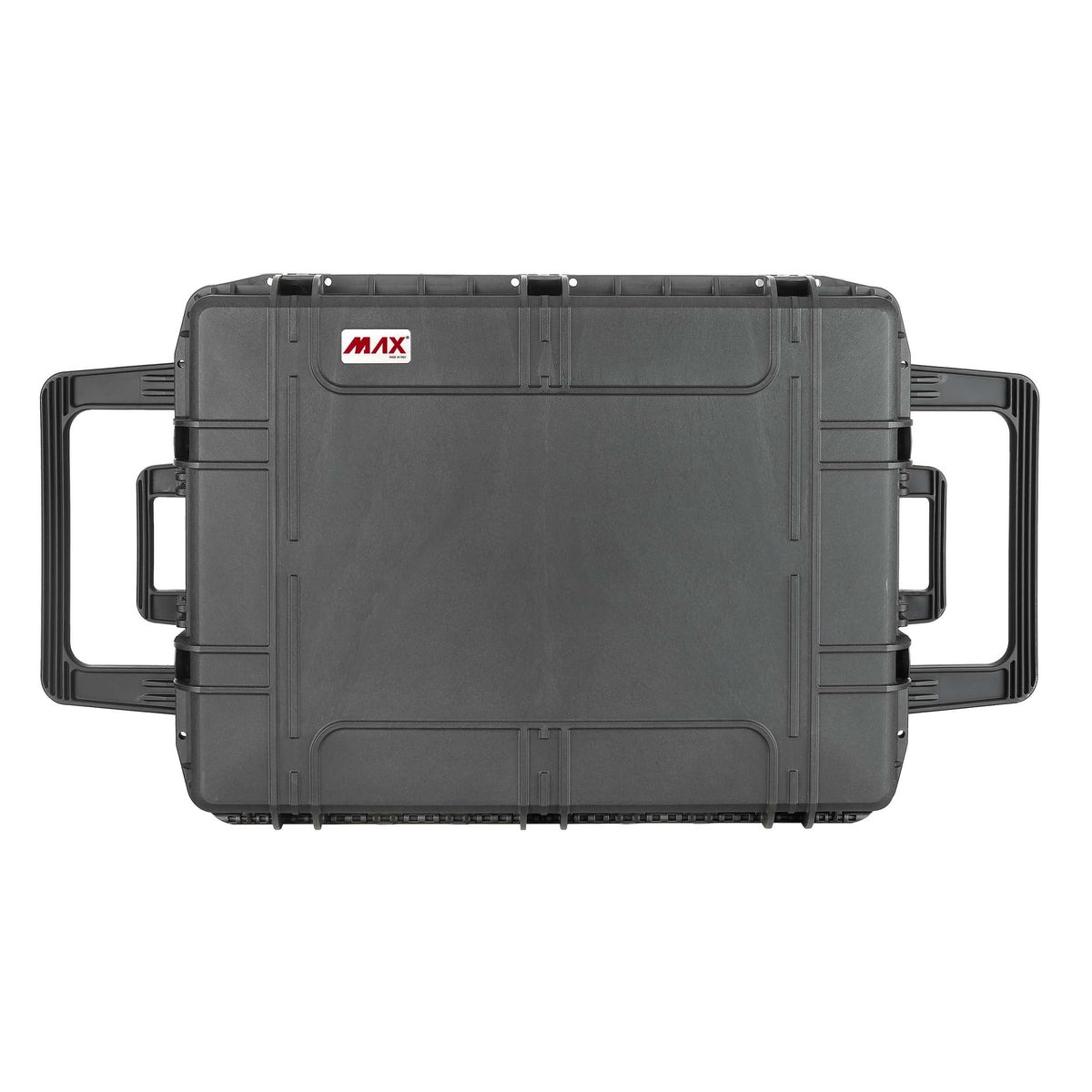

Panaro MAX820 lid view with the handles on both sides folded out

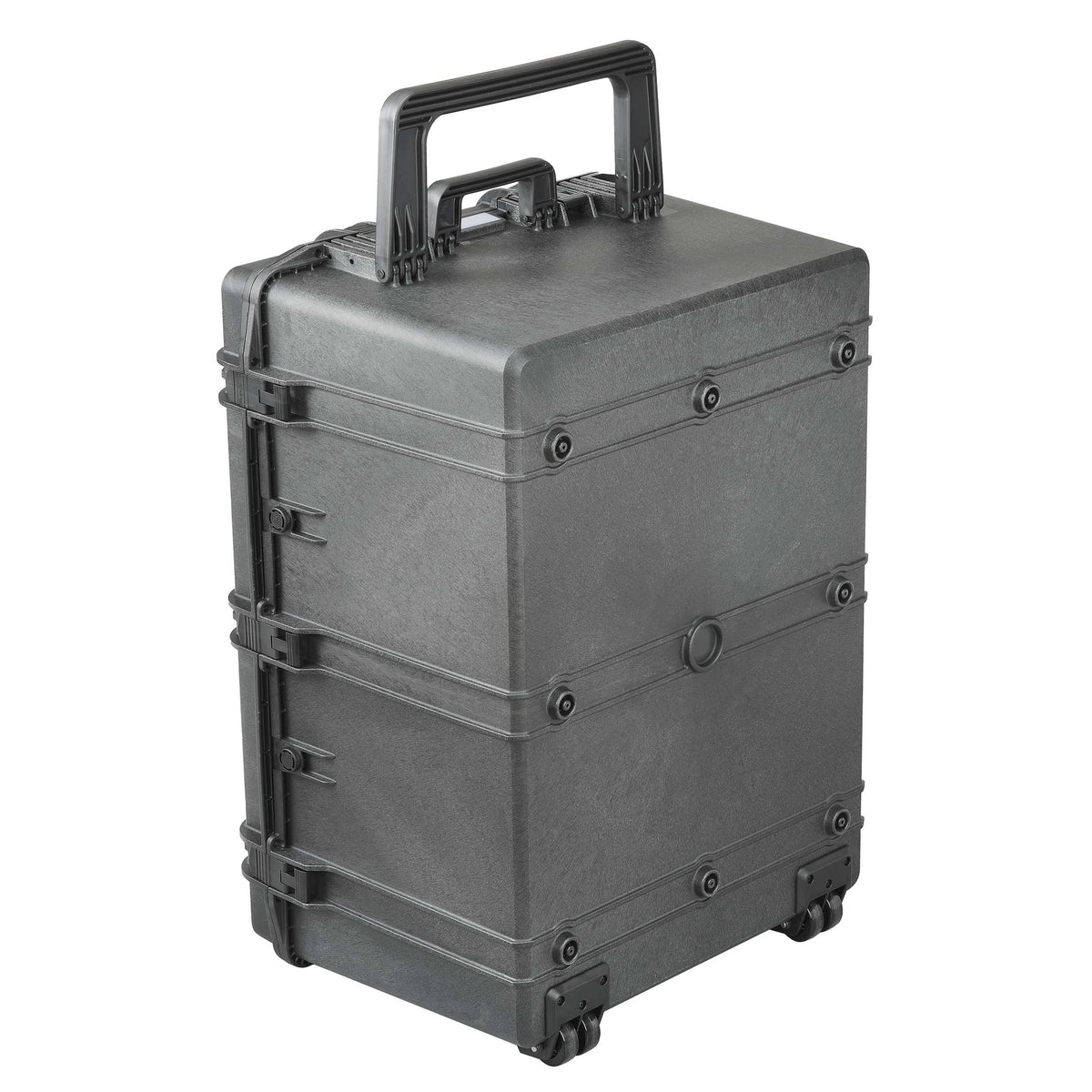

Panaro MAX820 stood on its wheels with the large fold down handle raised

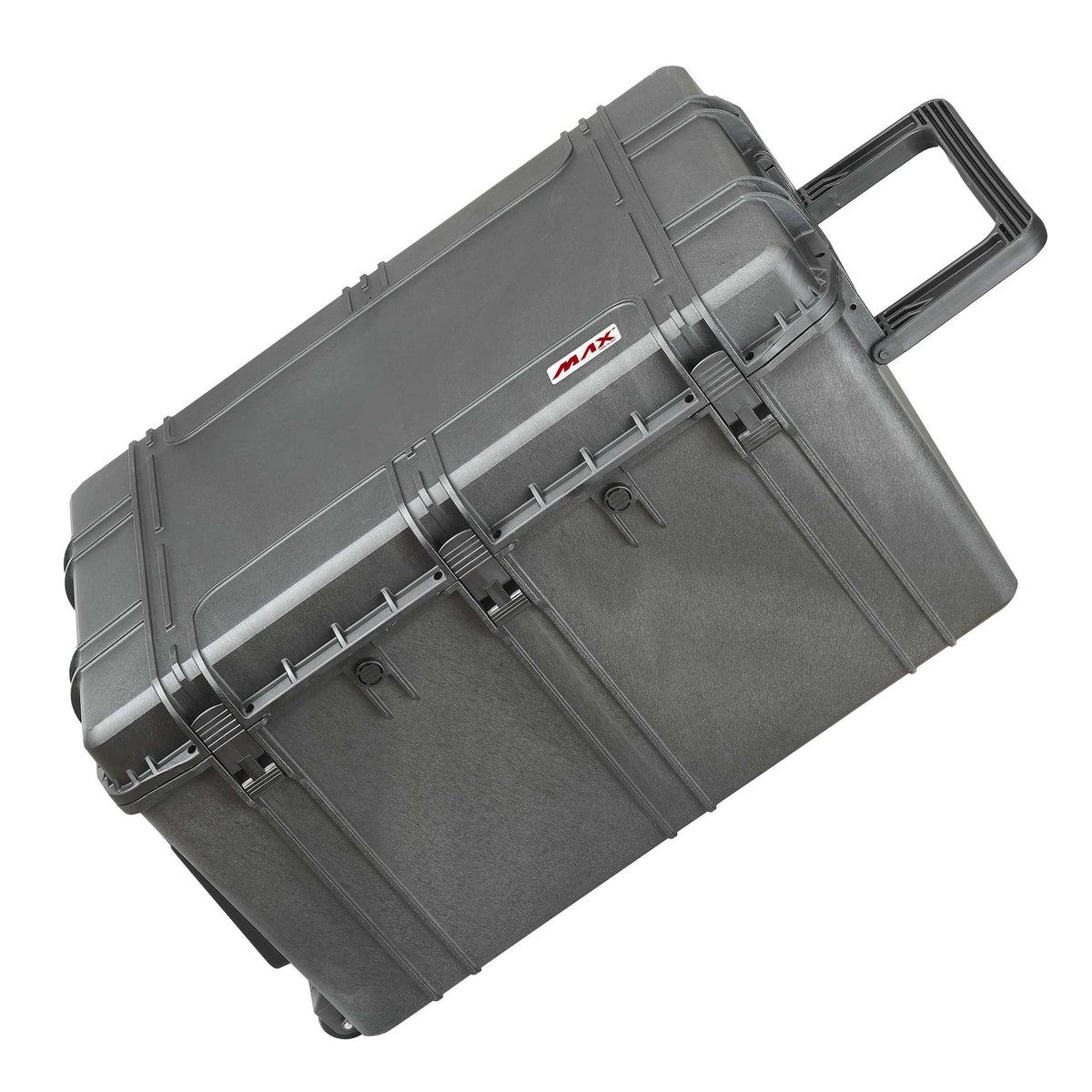

Panaro MAX820 tilted for rolling with the fold down handle extended

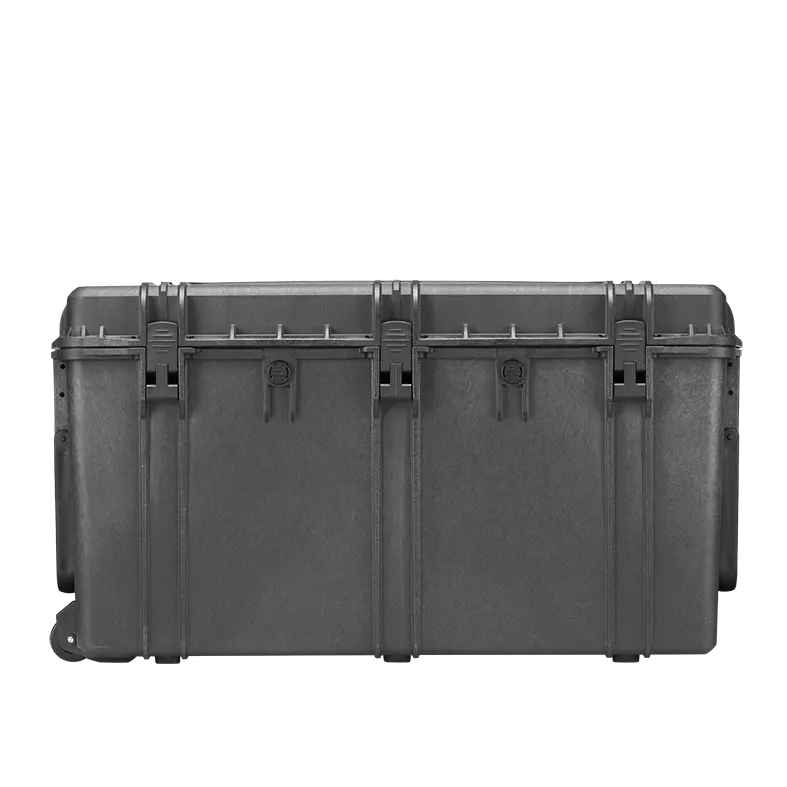

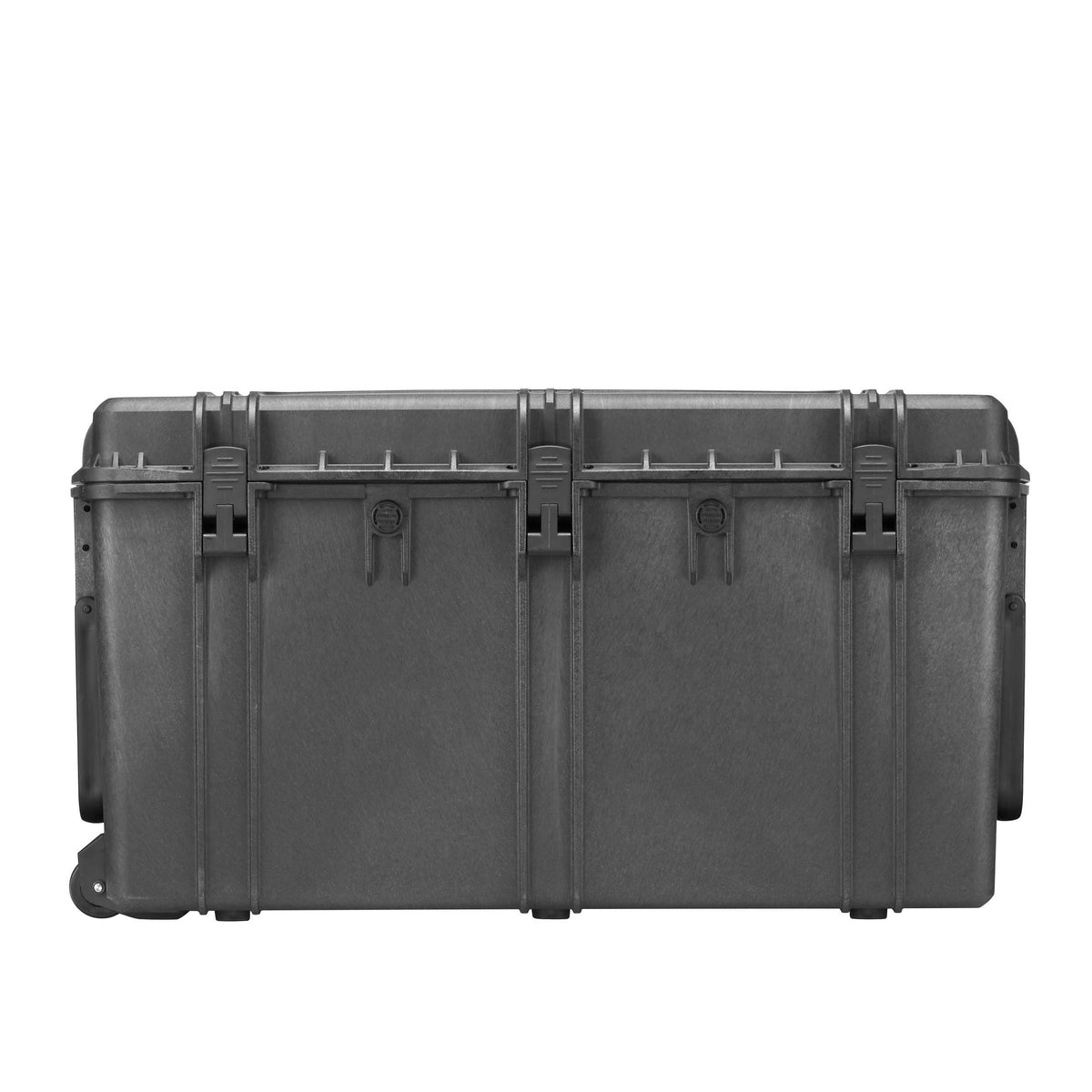

Side view of the Panaro MAX820 showing latches and a wheel at the lower corner
Panaro MAX820S large black waterproof case open with grey cubed foam in the base and convoluted foam in the lid
Panaro MAX820 large black waterproof case closed at an angle showing latches, side handle and MAX logo
Panaro MAX820 lid view with the handles on both sides folded out
Panaro MAX820 stood on its wheels with the large fold down handle raised
Panaro MAX820 tilted for rolling with the fold down handle extended
Side view of the Panaro MAX820 showing latches and a wheel at the lower corner
Panaro MAX820S large black waterproof case open with grey cubed foam in the base and convoluted foam in the lid
Panaro MAX820 large black waterproof case closed at an angle showing latches, side handle and MAX logo
Panaro MAX820 lid view with the handles on both sides folded out
Panaro MAX820 stood on its wheels with the large fold down handle raised
Panaro MAX820 tilted for rolling with the fold down handle extended
Side view of the Panaro MAX820 showing latches and a wheel at the lower corner
Panaro

Panaro MAX820S Waterproof Case with Cubed Foam Black

$1,842.94
$1,842.94
RRP $1,951.32
Or 4 payments of $460.74 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX820S

Six Layers of Foam in the Largest Square MAX

The Panaro MAX820S fills the big MAX820 with cubed foam, giving room to cut a complete kit into fixed places: a full camera package, a portable sound system or a set of rescue instruments.

Panaro's foam sheet for the MAX820 lists a 45 mm base, four 65 mm cubed layers and one 70 mm cubed layer, with a 65 mm convoluted pad in the lid. With all that foam the case weighs 18.42 kg per Panaro, so it rolls on wheels at one end with a large fold down handle, and has handles on both sides.

Inside measures 820 x 600 x 450 mm. The foam sits in the MAX820 shell, which carries Panaro's ATA 300 Category 1 and IP67 certificates and MIL-STD-810H test results, with an automatic pressure release valve and double throw latches. Made in Italy.

The empty MAX820 and other sizes are in Panaro, and wider ranges sit in protective cases and defence and tactical.

Often ordered together

  • Cubed foam: 45 mm base, four 65 mm and one 70 mm layer
  • 65 mm convoluted lid pad
  • 820 x 600 x 450 mm inside
  • 18.42 kg with foam, per Panaro
  • ATA 300 Cat. 1 and IP67 certified shell
  • Wheels, fold down handle and side handles
  • Complete camera and lens packages
  • Portable PA and sound systems
  • Rescue and paramedic instrument sets
  • Robotics and engineering demo kits
  • Drone fleets with spares

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX820S

Mega Code: PMMAX820S

Configuration: Cubed foam (S)

Internal Dimensions: 820 x 600 x 450 mm

External Dimensions: 880 x 660 x 483 mm

Lid and Base Depth: 70 mm lid + 380 mm base

Capacity: 221.4 litres

Weight: 18.42 kg with foam (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

EAN: 8011236820012

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Five cubed layers, four at 65 mm and one at 70 mm, on a 45 mm base, plus a 65 mm convoluted pad in the lid.
Panaro list 18.42 kg with the foam fitted, before your equipment goes in.
Yes, the MAX820 is the same case supplied empty.
Yes, there are wheels at one end, and you pull it by the large fold down handle.
The MAX820 2D drawing is one of seven PDFs here, beside the datasheet, report 208160A, the fungus and fluid sheet and the IP67, 810H and ATA 300 certificates.
