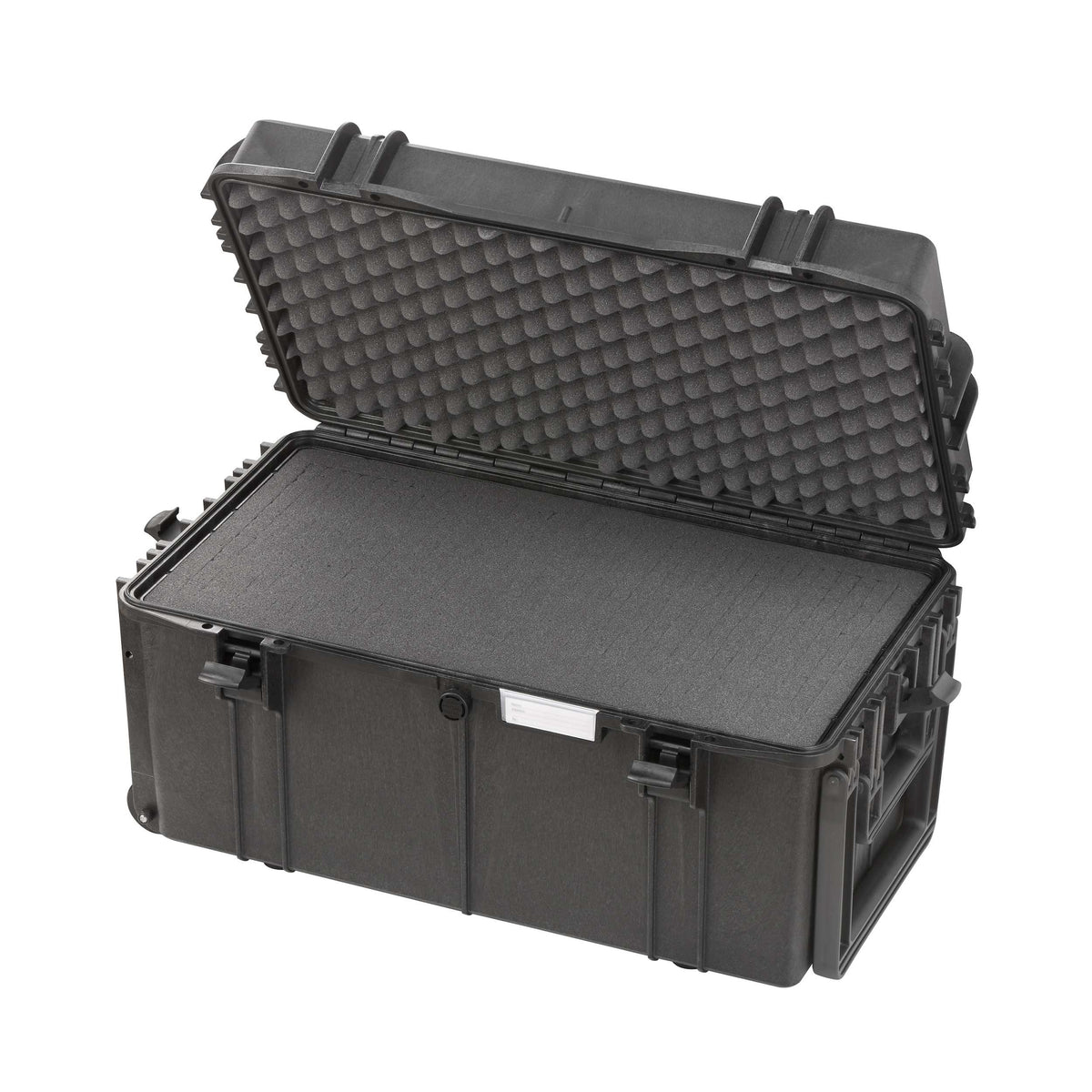

Panaro MAX630S black waterproof case open with grey cubed foam in the base and convoluted foam in the raised lid

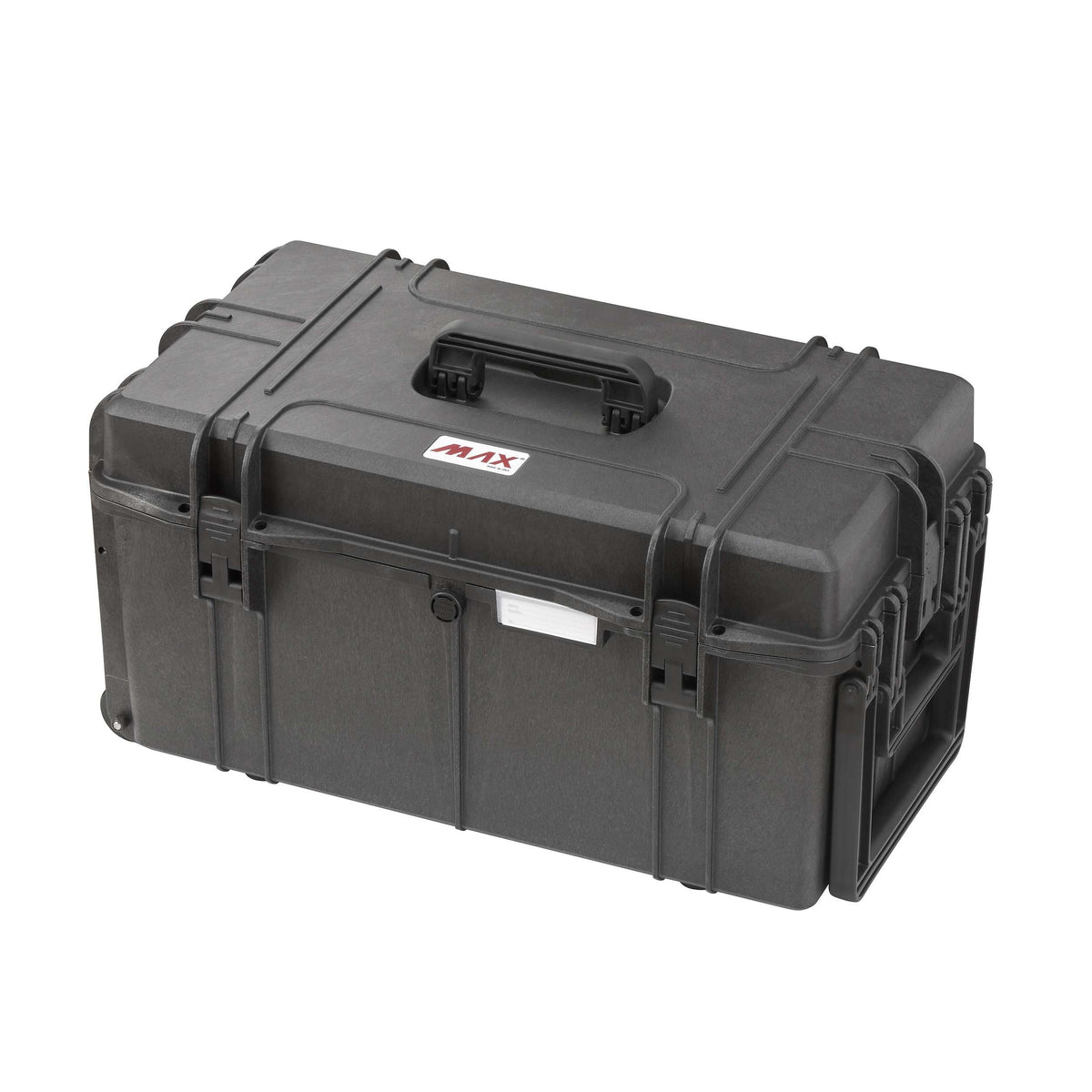

Closed Panaro MAX630 case at an angle showing the top carry handle, side latches and MAX logo

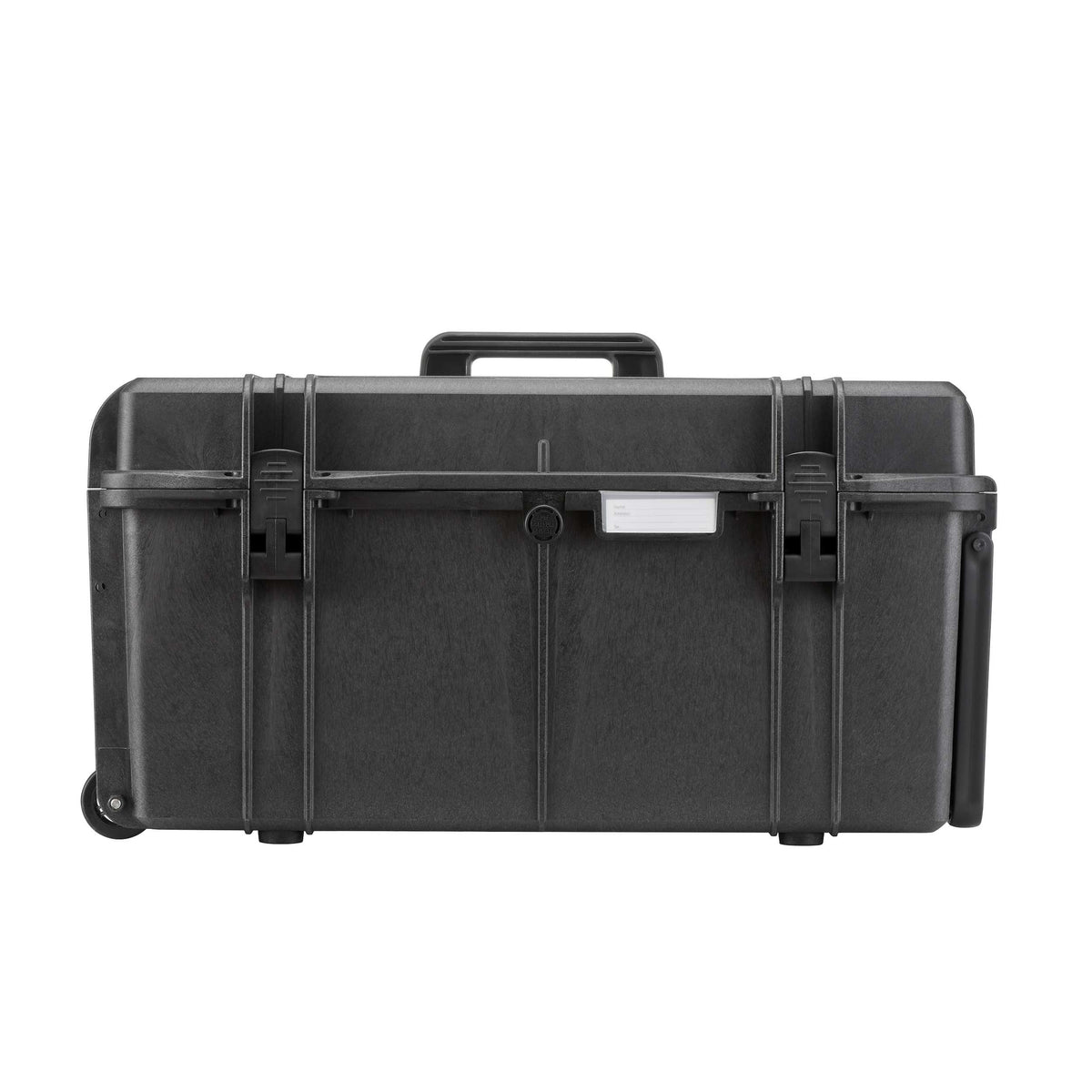

Front view of the Panaro MAX630 case with the carry handle, label window and wheel at the lower corner

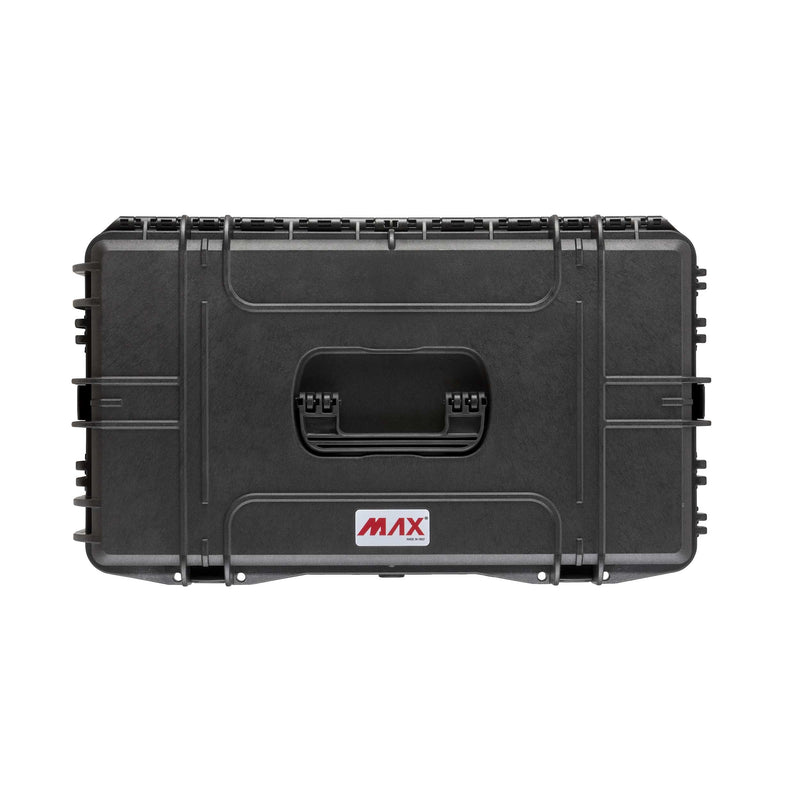

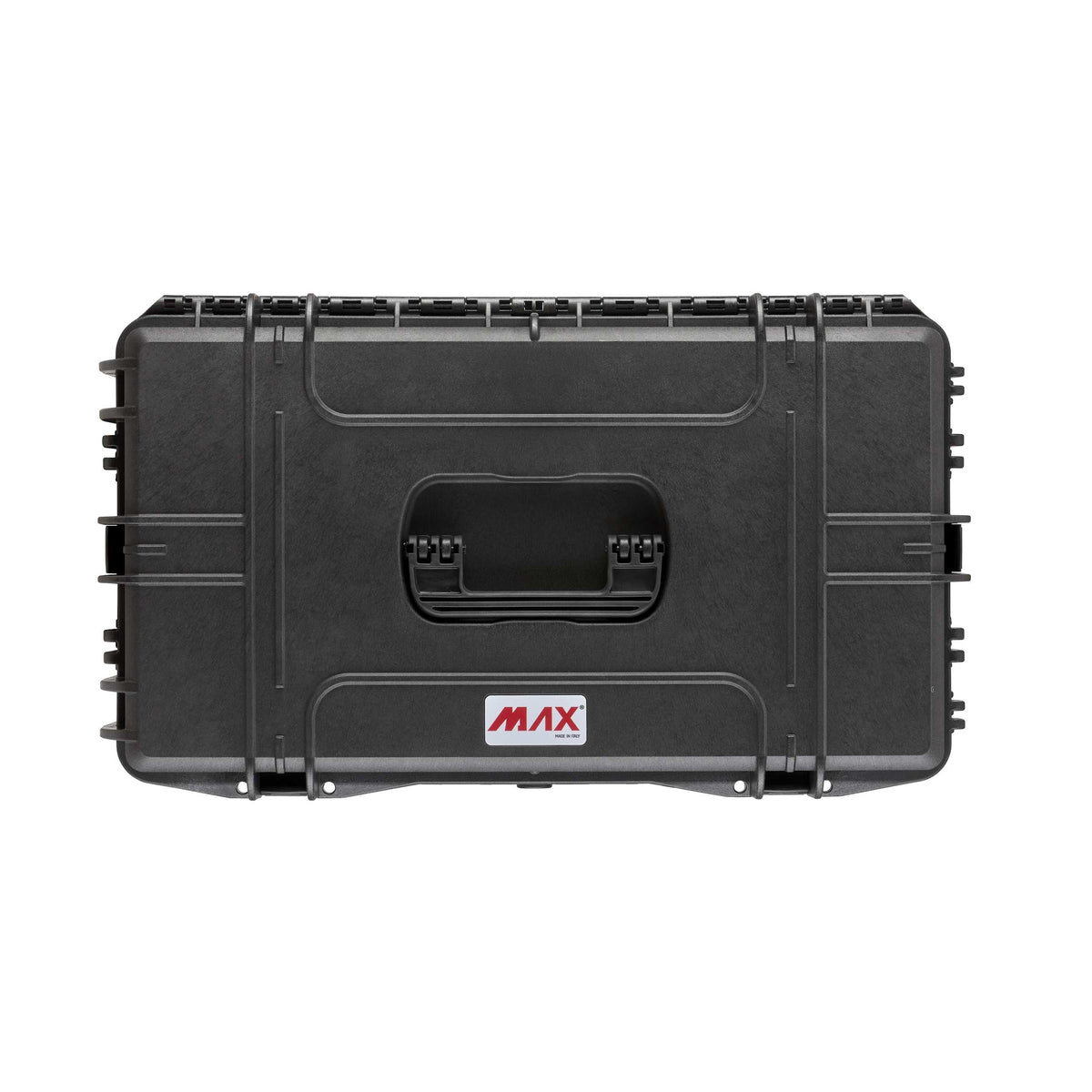

Top view of the Panaro MAX630 lid showing the moulded carry handle and the red MAX logo

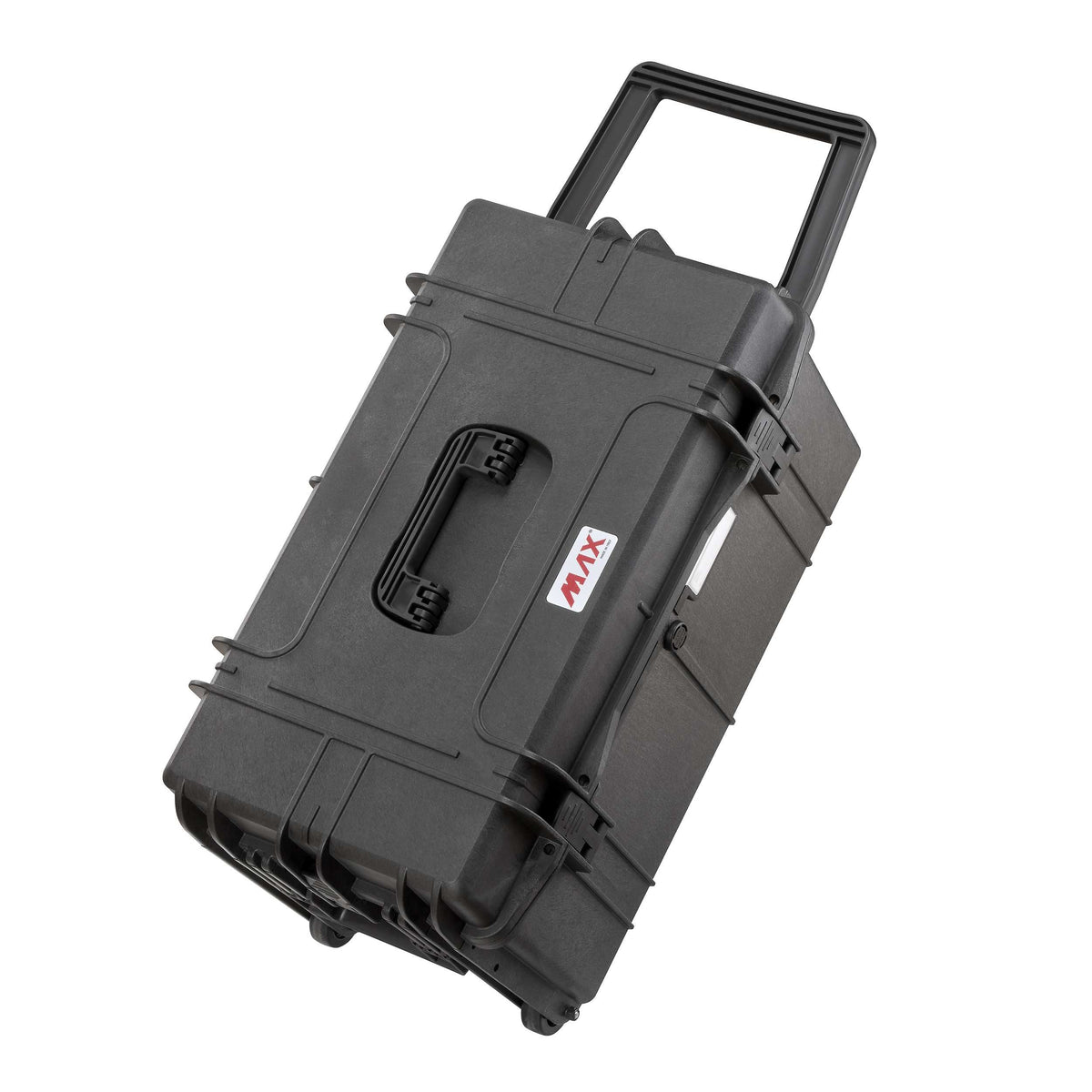

Panaro MAX630 tilted onto its wheels with the large fold down handle raised for rolling
Panaro MAX630 case from the rear corner showing wheels, latches and the side handle
Panaro MAX630S black waterproof case open with grey cubed foam in the base and convoluted foam in the raised lid
Closed Panaro MAX630 case at an angle showing the top carry handle, side latches and MAX logo
Front view of the Panaro MAX630 case with the carry handle, label window and wheel at the lower corner
Top view of the Panaro MAX630 lid showing the moulded carry handle and the red MAX logo
Panaro MAX630 tilted onto its wheels with the large fold down handle raised for rolling
Panaro MAX630 case from the rear corner showing wheels, latches and the side handle
Panaro MAX630S black waterproof case open with grey cubed foam in the base and convoluted foam in the raised lid
Closed Panaro MAX630 case at an angle showing the top carry handle, side latches and MAX logo
Front view of the Panaro MAX630 case with the carry handle, label window and wheel at the lower corner
Top view of the Panaro MAX630 lid showing the moulded carry handle and the red MAX logo
Panaro MAX630 tilted onto its wheels with the large fold down handle raised for rolling
Panaro MAX630 case from the rear corner showing wheels, latches and the side handle
Panaro

Panaro MAX630S Waterproof Case with Cubed Foam Black

$707.30
$707.30
RRP $749.75
Or 4 payments of $176.83 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX630S

A Tall, Narrow MAX Case Filled With Cubed Foam

The Panaro MAX630S is a deep, narrow watertight case with cubed foam fitted, sized at 630 x 335 x 335 mm inside so upright items like flasks, lamps, rack gear or stacked instruments stand rather than lie flat.

Panaro's foam sheet for the MAX630 lists a 50 mm base layer, two 70 mm cubed layers and a 60 mm cubed layer, plus convoluted foam in the 80 mm lid. That gives 68 litres you can pluck into pockets of different depths. Panaro give the weight with foam as 8.30 kg.

For moving it, there are side handles and a large fold down handle, and the datasheet lists stainless steel wheel pins for the wheels at one end. The polypropylene shell uses nylon pins with 30% fibreglass fill, double throw latches and an automatic pressure release valve. Its paperwork covers IP67, STANAG 4280 and MIL-STD-810H, all issued for the MAX630, and the case is made in Italy.

More sizes sit in our Panaro collection, alongside protective cases and defence and tactical lines.

Often ordered together

  • Cubed pick and pluck foam, convoluted lid foam
  • Deep 630 x 335 x 335 mm interior, 68 litres
  • Side handles plus large fold down handle
  • Wheels at one end on stainless steel pins
  • IP67 rating on the MAX630 shell
  • Nylon pins with 30% fibreglass fill
  • Upright lamps, flasks and bottles
  • Compact test instruments stacked in layers
  • Camera bodies stood on end with lenses
  • Sample kits that must stay dry
  • Tall tools and chargers

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX630S

Mega Code: PMMAX630S

Configuration: Cubed foam (S)

Internal Dimensions: 630 x 335 x 335 mm

External Dimensions: 702 x 406 x 360 mm

Lid and Base Depth: 80 mm lid + 255 mm base

Capacity: 68 litres

Weight: 8.30 kg with foam (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

EAN: 8011236630024

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

It is square in section, 335 mm wide and 335 mm deep inside, and 630 mm long, so tall items fit standing up. Flat cases like the MAX800 suit long, low items instead.
Panaro list a 50 mm base, two 70 mm cubed layers and one 60 mm cubed layer, with convoluted foam in the lid. You pluck cubes to the depth each item needs.
Panaro's MAX630S page mentions ATA300, but no ATA 300 certificate is published for the MAX630 and the datasheet does not list it, so we do not claim it. The published MAX630 papers are IP67, DEF STAN 81-41 and MIL-STD-810H.
The datasheet lists stainless steel wheel pins and a large fold down handle, and Panaro's photos show wheels at one end, so you can tilt and roll it.
Yes. For the MAX630 you get the datasheet (empty case figures), a 2D drawing, the IP67 and 810H certificates, test report 254121A and Panaro's fungus and fluid note.
