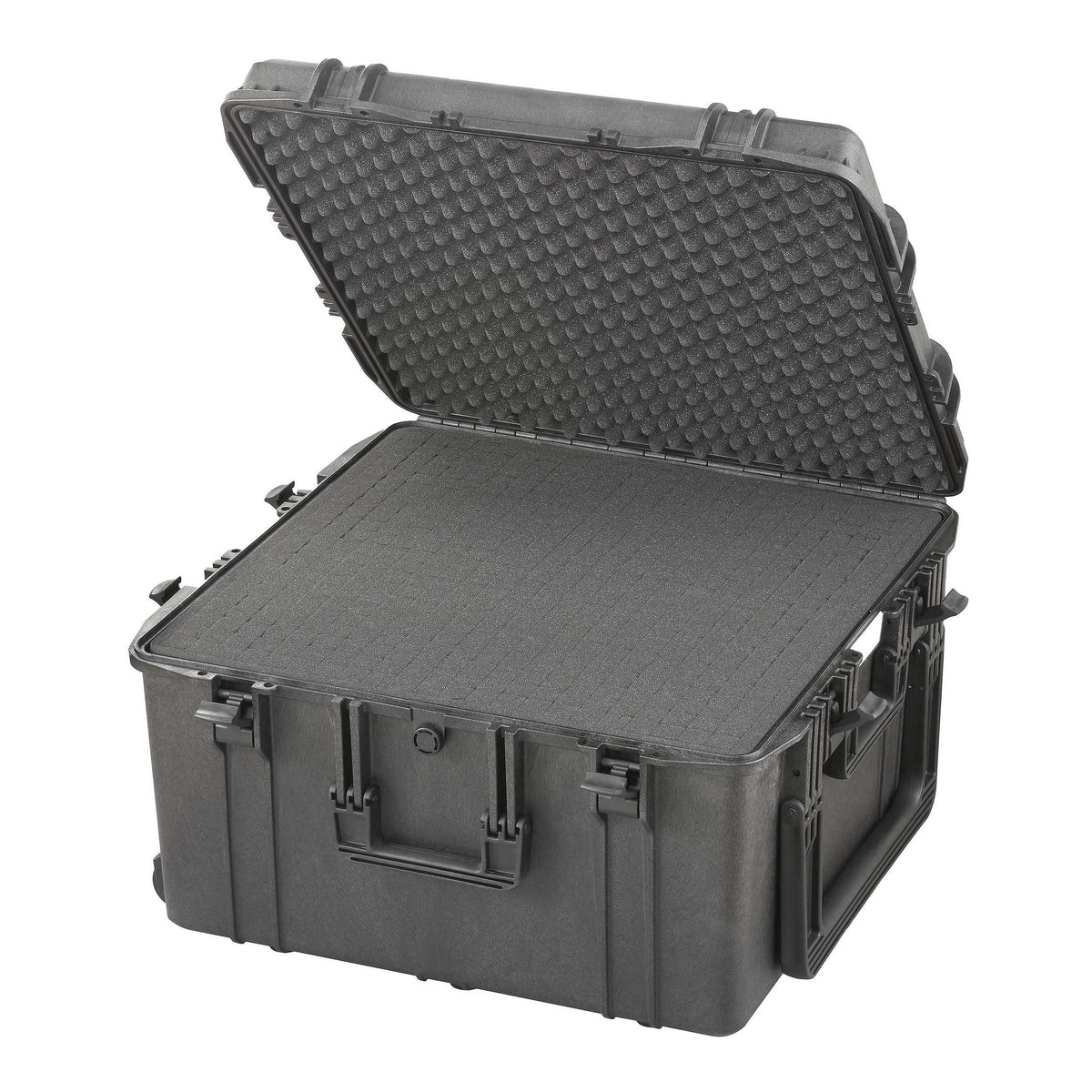

MAX615S open: grey cubed foam fills the deep square base and convoluted egg-crate foam lines the lid

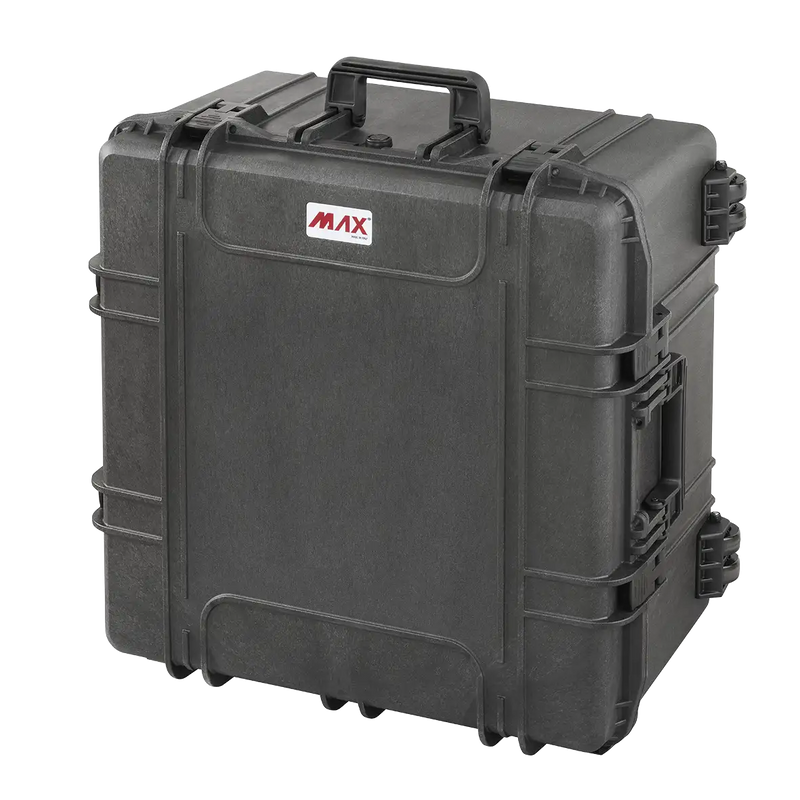

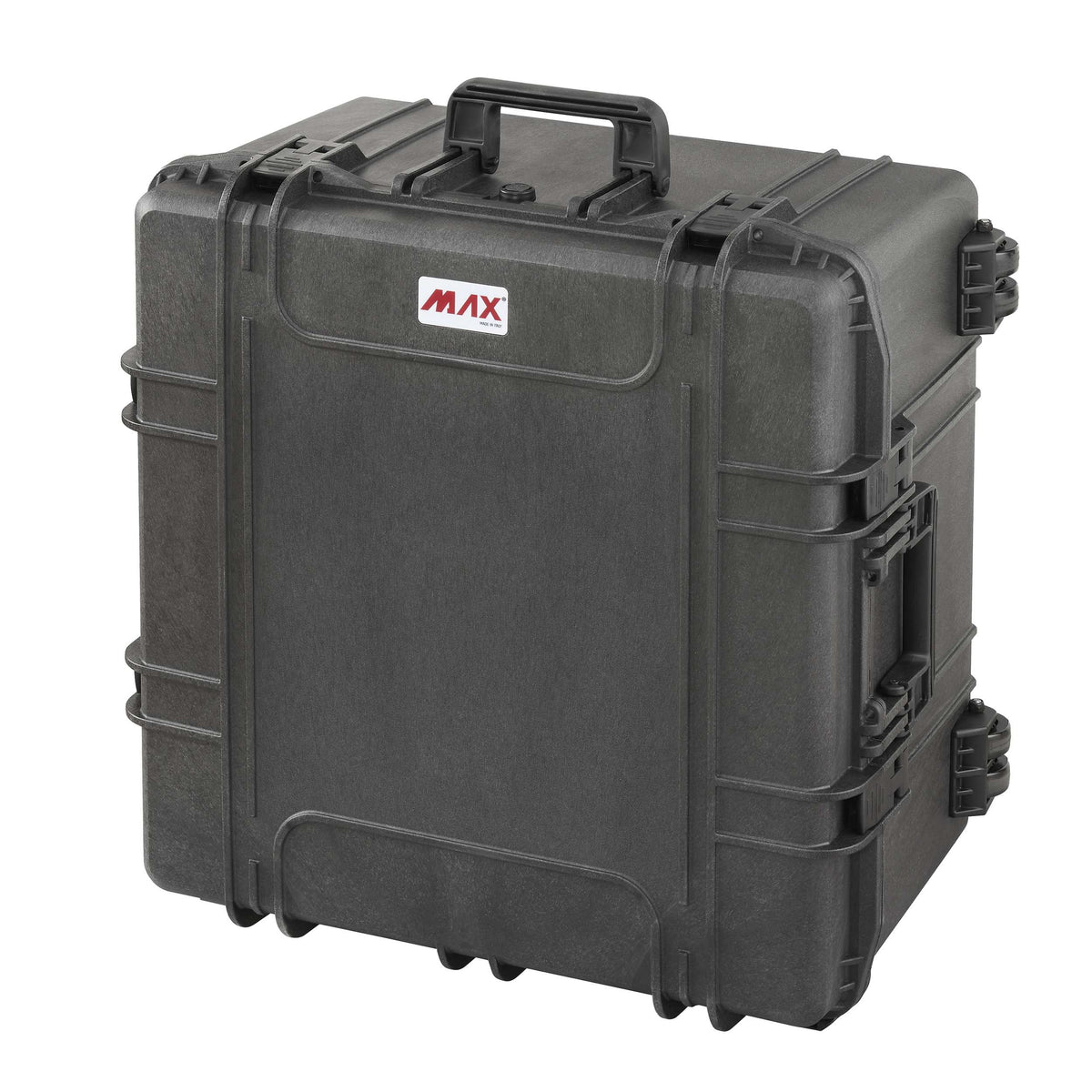

Panaro MAX615 black case closed, three-quarter view with the top carry handle, a side handle and the red MAX badge on the lid

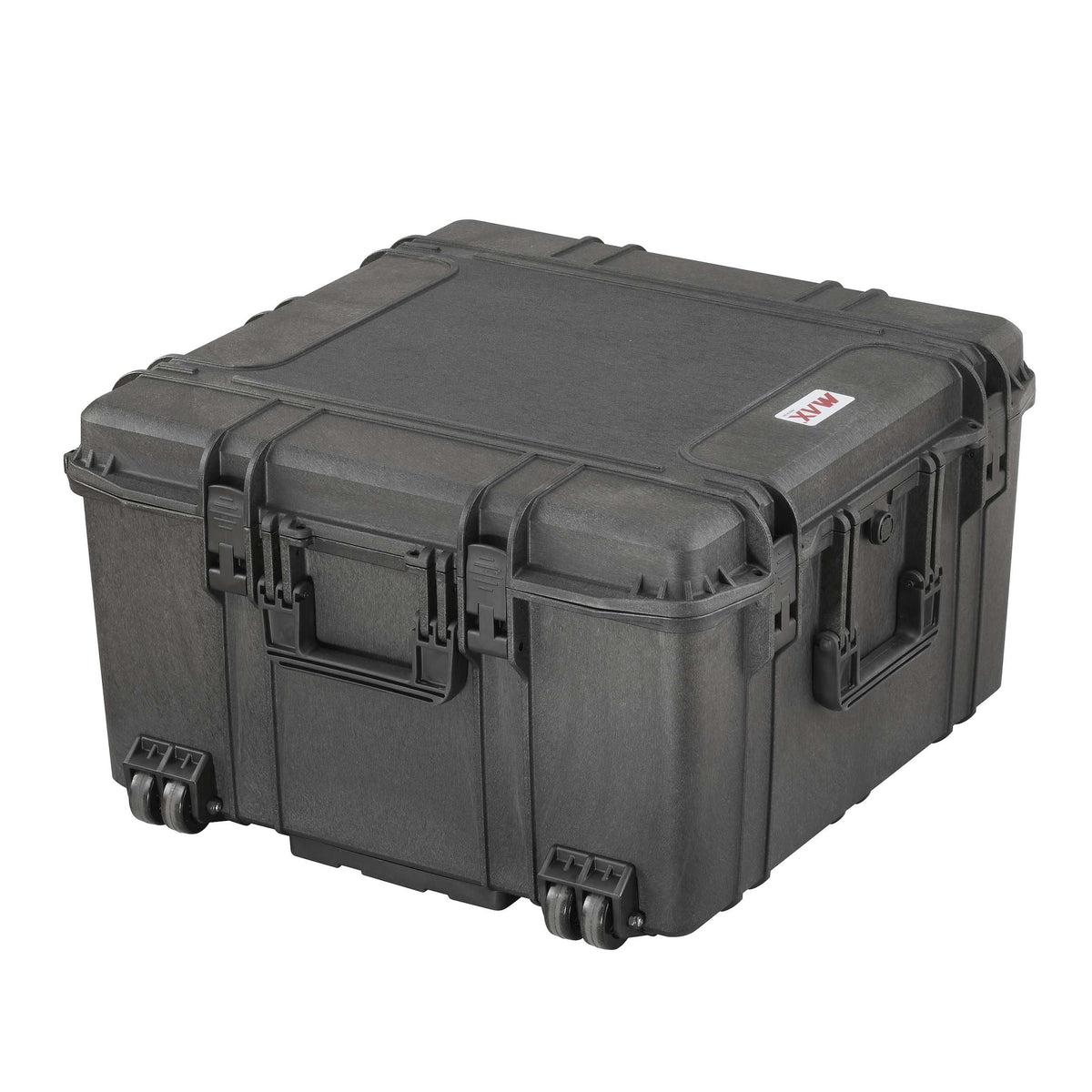

MAX615 lying closed, seen from the wheel end with two pairs of wheels and the moulded carry handles

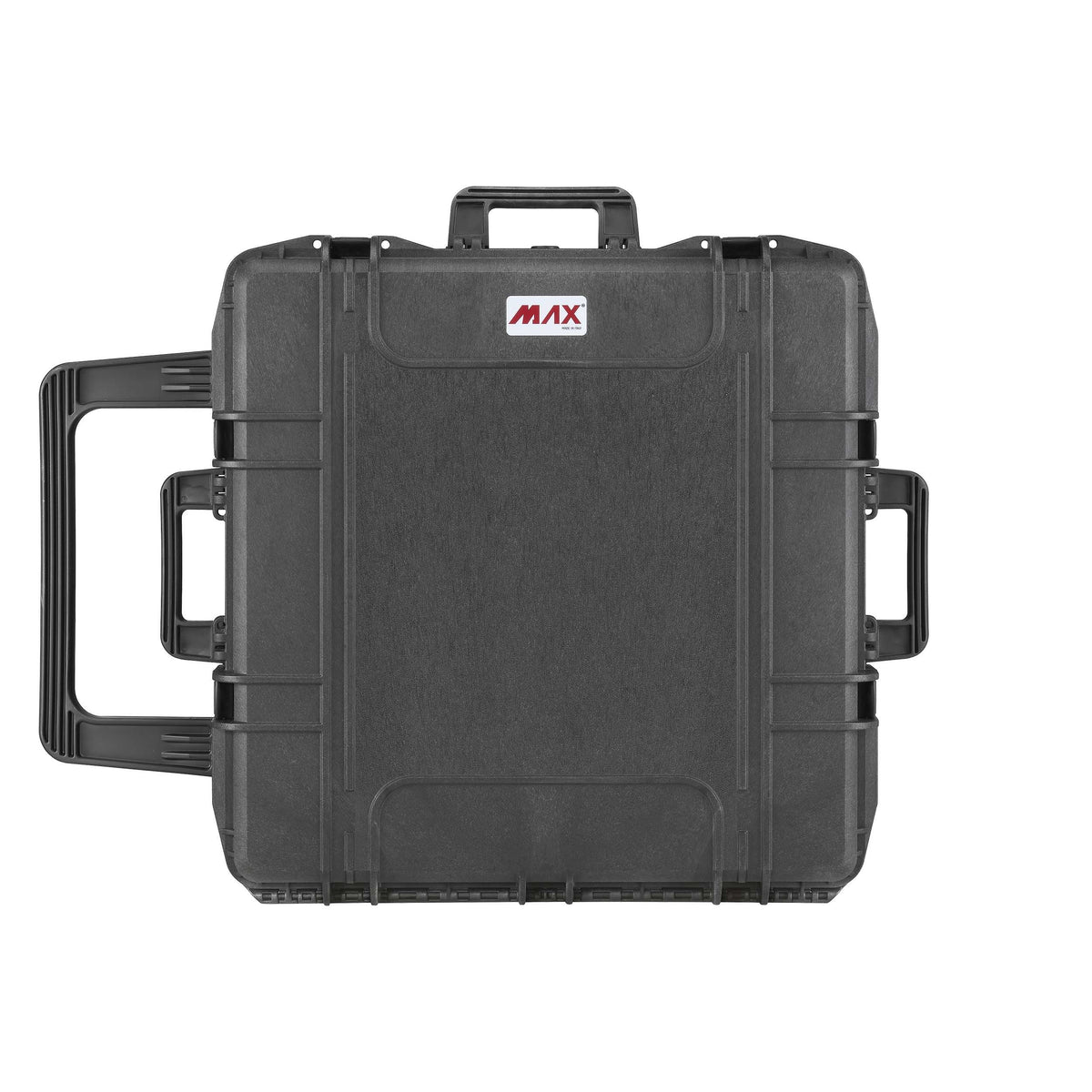

MAX615 lid view with the large fold down handle pulled out on one side and a side handle raised on the other
MAX615S open: grey cubed foam fills the deep square base and convoluted egg-crate foam lines the lid
Panaro MAX615 black case closed, three-quarter view with the top carry handle, a side handle and the red MAX badge on the lid
MAX615 lying closed, seen from the wheel end with two pairs of wheels and the moulded carry handles
MAX615 lid view with the large fold down handle pulled out on one side and a side handle raised on the other
MAX615S open: grey cubed foam fills the deep square base and convoluted egg-crate foam lines the lid
Panaro MAX615 black case closed, three-quarter view with the top carry handle, a side handle and the red MAX badge on the lid
MAX615 lying closed, seen from the wheel end with two pairs of wheels and the moulded carry handles
MAX615 lid view with the large fold down handle pulled out on one side and a side handle raised on the other
Panaro

Panaro MAX615S Waterproof Case with Cubed Foam Black

$1,323.85
$1,323.85
RRP $1,398.51
Or 4 payments of $330.96 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX615S

Deep Square Foam Block for Large Items

The Panaro MAX615S fills the square MAX615 with cubed pick and pluck foam and an egg-crate lid, so large or awkward items can be cut into one deep, snug pocket.

With a 615 x 615 mm floor and 300 mm of depth in the base, the foam block takes items that are too wide for most cases: a drone with its arms out, a projector, a survey base station or several instruments side by side. Trace each outline, pull out the cubes, and keep a layer below for cushioning. The convoluted foam in the 60 mm lid holds the load in place when closed.

Panaro give 11 kg for the empty MAX615 and a 680 x 675 mm footprint. The case rolls on its own wheels (stainless steel pins) and has a big fold down pull handle, according to Panaro's datasheet, plus handles on each side for lifting.

An automatic pressure valve, O-ring and nylon latches come as standard on this Italian made case. Panaro have it certified for IP67 and MIL-STD-810H, and trial-tested to STANAG 4280 / DEF STAN 81-41 as well.

Shooters and pilots can compare the AV and camera case section, while all square and long sizes are on the Panaro page.

Often ordered together

  • Cubed foam block in a 300 mm deep base
  • Convoluted foam in the lid
  • Square 615 x 615 mm floor
  • Built-in wheels and fold down handle
  • Automatic pressure release valve
  • Made in Italy, per Panaro
  • Quadcopters with fixed arms
  • Projectors and large lenses
  • Survey base stations
  • Several instruments packed side by side
  • Display models and prototypes

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro (MAX Cases)

MPN: MAX615S

Mega Code: PMMAX615S

Configuration: Cubed foam (S) in the base, convoluted foam in the lid

Internal Size: 615 x 615 x 360 mm

External Footprint: 680 x 675 mm (Panaro give two external heights)

Lid + Base Depth: 60 + 300 mm

Weight: 11 kg for the MAX615 case, per Panaro

Capacity: 135 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Made In: Italy, per Panaro

Colour: Black

Pack Size: 1

Unit: Each

EAN: 8011236615021

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro's MAX615S photo shows a block of standard cubes below and a convoluted pad on the lid, and that is what is supplied.
The cubes come out in full-height columns, so you can go as deep as the base allows. Leave the bottom layer in place where possible so items do not rest on the shell.
It has wheels and a large fold down handle for pulling, per Panaro. For a telescopic handle, choose the MAX615STR.
Panaro give 135 litres for the MAX615. Foam takes up part of that volume.
In the downloads on this page, next to Panaro's MAX615 datasheet and 2D drawing.
