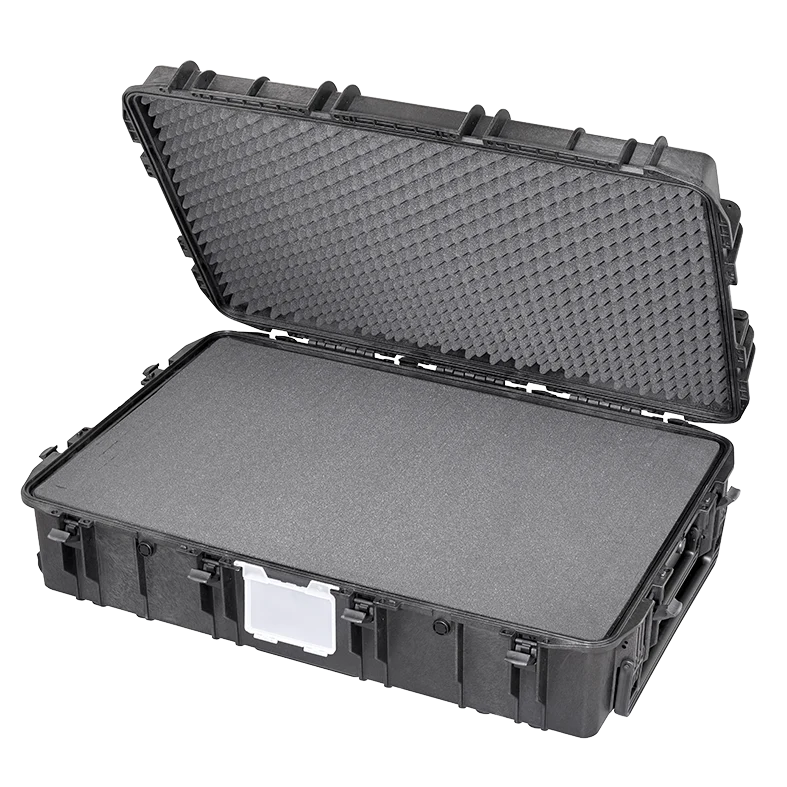

Panaro MAX1090H280S-H open on its hinges with grey cubed foam in the base and convoluted foam in the lid

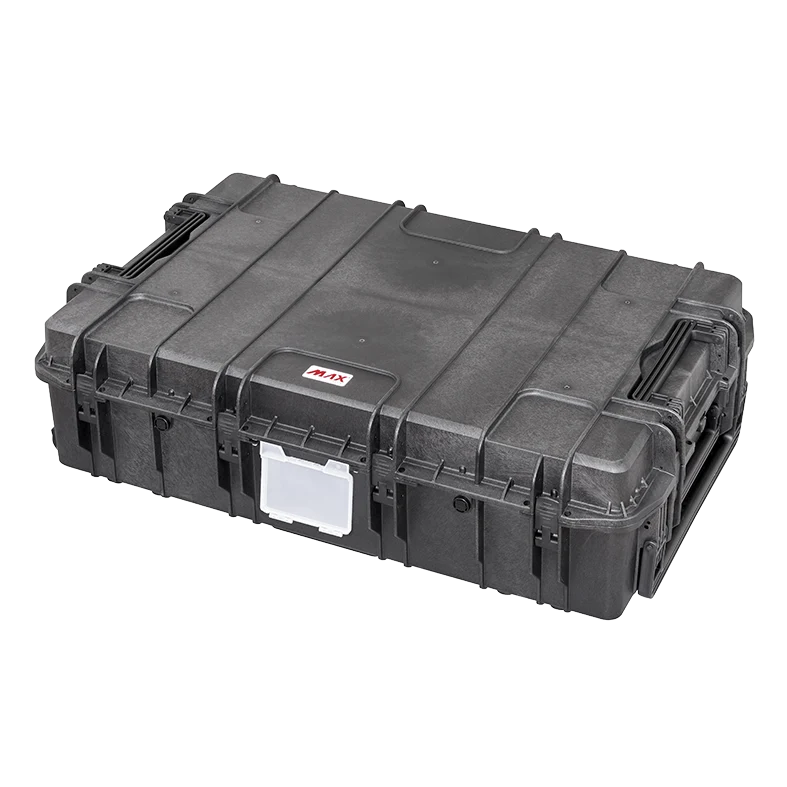

Closed Panaro MAX1090H280 long case at an angle showing the side handles, latches and front label holder
Close up of the clear document holder clipped to the front of a Panaro MAX1090 case
Top view of the Panaro MAX1090 hinged lid with handles at each end

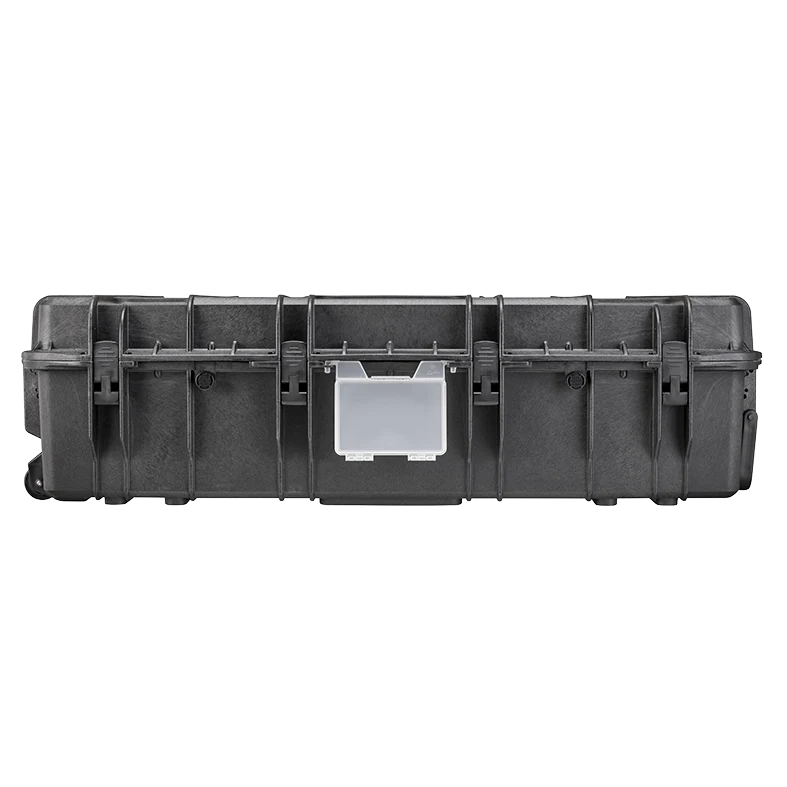

Front edge of the Panaro MAX1090H280 showing the row of latches and the label holder
Panaro MAX1090H280 from the end showing the folding end handle and wheel housing
Panaro MAX1090H280S-H open on its hinges with grey cubed foam in the base and convoluted foam in the lid
Closed Panaro MAX1090H280 long case at an angle showing the side handles, latches and front label holder
Close up of the clear document holder clipped to the front of a Panaro MAX1090 case
Top view of the Panaro MAX1090 hinged lid with handles at each end
Front edge of the Panaro MAX1090H280 showing the row of latches and the label holder
Panaro MAX1090H280 from the end showing the folding end handle and wheel housing
Panaro MAX1090H280S-H open on its hinges with grey cubed foam in the base and convoluted foam in the lid
Closed Panaro MAX1090H280 long case at an angle showing the side handles, latches and front label holder
Close up of the clear document holder clipped to the front of a Panaro MAX1090 case
Top view of the Panaro MAX1090 hinged lid with handles at each end
Front edge of the Panaro MAX1090H280 showing the row of latches and the label holder
Panaro MAX1090H280 from the end showing the folding end handle and wheel housing
Panaro

Panaro MAX1090H280S-H Waterproof Case with Cubed Foam and Hinged Lid Black

$2,164.25
$2,164.25
RRP $2,317.84
Or 4 payments of $541.06 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1090H280S-H

A Full Length MAX Case Filled With Cubed Foam

The Panaro MAX1090H280S-H is the long, wide MAX1090 case with cubed foam fitted and a hinged lid that opens to 90 degrees and closes with eight latches, giving 1090 x 680 x 280 mm inside for long tools, poles, antennas or equipment that will not fit anything shorter.

Panaro's foam sheet for the MAX1090H280 lists a 60 mm base layer, cubed layers of 50, 50 and 40 mm, and 60 mm convoluted foam in the lid, so you can pluck pockets to different depths across 215 litres. Outside it measures 1178 x 780 x 330 mm, and Panaro give 20.65 kg with the foam fitted. Four automatic pressure release valves are moulded into the shell.

Double wheels and a large fold down handle let one person roll it, while handles on the base sides allow a two person lift. The lid has side handles of its own for lifting it clear once the latches are open. A hinged lid suits a case that is opened often on a bench.

Panaro publish IP67, STANAG 4280 / DEF STAN 81-41 and MIL-STD-810H documents for the MAX1090H280 and state it is made in Italy. More sizes sit in our Panaro collection, with other protective cases and defence and tactical cases.

Often ordered together

  • 1090 x 680 x 280 mm interior, 215 litres
  • Cubed pick and pluck foam with convoluted lid foam
  • Hinged lid opens to 90 degrees, eight latches
  • Four automatic pressure release valves
  • Double wheels and large fold down handle
  • Base side handles for a two person lift
  • Stainless steel wheel pins
  • Long survey poles, tripods and antennas
  • Drones with arms and props fitted
  • Large test and measurement kits
  • Defence and emergency service equipment
  • Exhibition and broadcast gear in transit

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX1090H280S-H

Mega Code: PMMAX1090H280S-H

Configuration: Cubed foam (S), hinged lid (-H)

Internal Dimensions: 1090 x 680 x 280 mm

External Dimensions: 1178 x 780 x 330 mm

Lid and Base Depth: 70 mm lid + 210 mm base

Capacity: 215 litres

Weight: 20.65 kg with foam (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam, stainless steel wheel pins

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Pick the hinged -H version if the case is opened often on a bench. Pick the removable -R version if you want the lid right out of the way while you work from the base.
Panaro list a 60 mm base, cubed layers of 50, 50 and 40 mm, and 60 mm convoluted foam in the lid. Pluck cubes to the depth each item needs.
Yes on flat ground. It has double wheels and a large fold down handle. At 20.65 kg before your gear, use the base side handles and a second person to lift it.
Yes. We list the MAX1090H280-H without foam, and Panaro also make a rifle inlay version with a lockable cross bar.
Panaro list steel butterfly latches as an accessory for the MAX1090. Ask us if you need them fitted and we will check availability.
