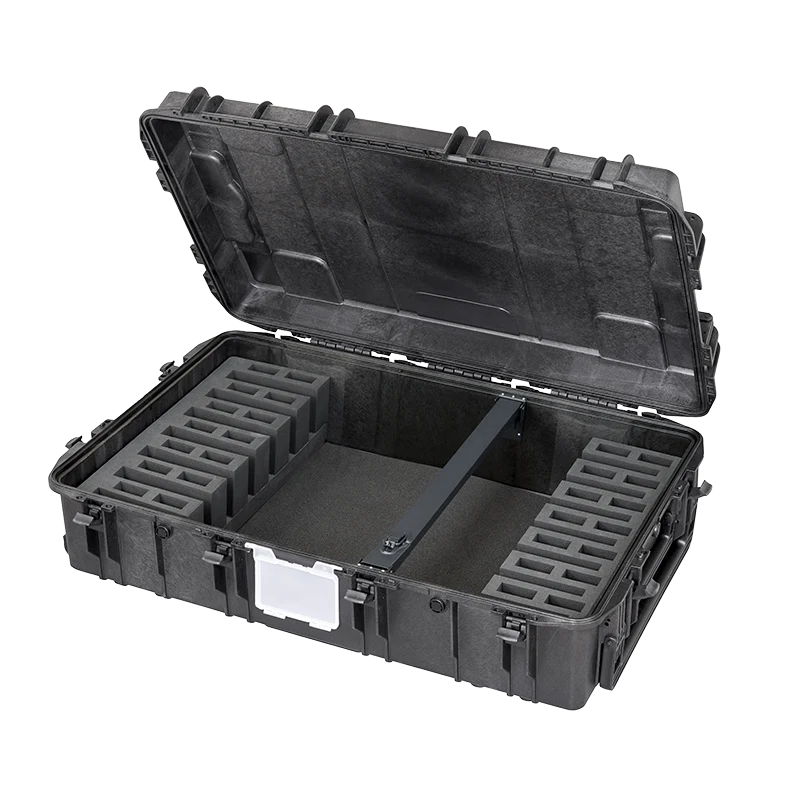

Panaro MAX1090H280GUN-H open showing the empty foam inlay with rifle slots on both sides and the central cross bar

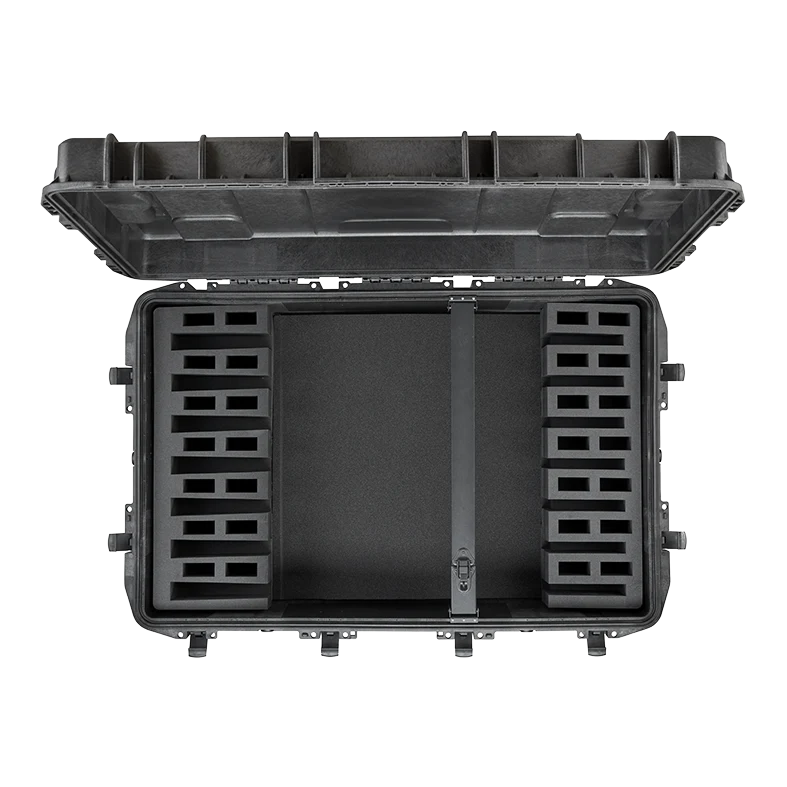

Overhead view of the Panaro MAX1090 rifle inlay with rows of slots and the black cross bar

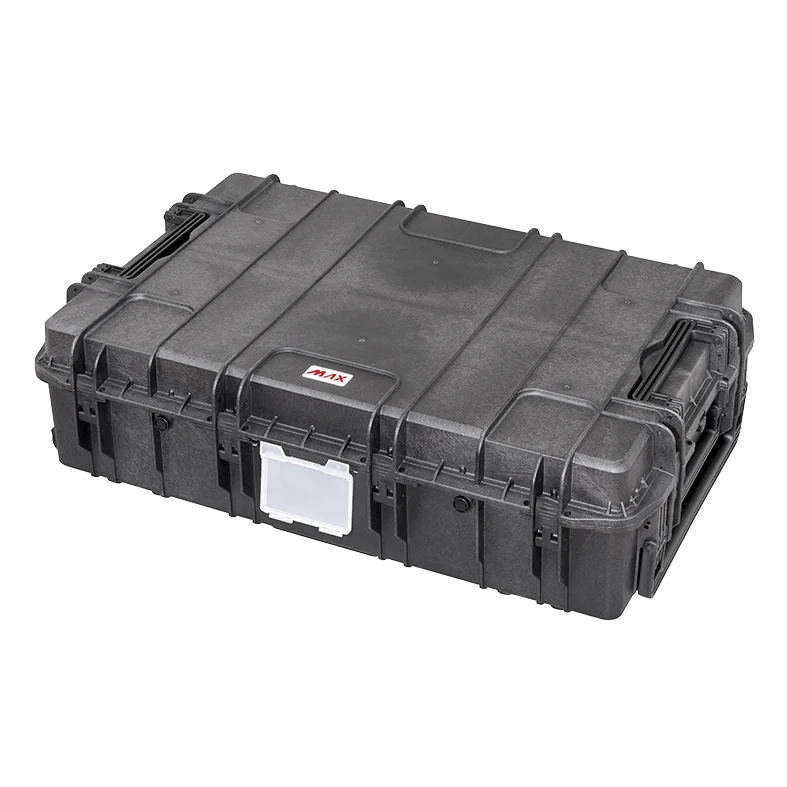

Closed Panaro MAX1090H280 long case at an angle showing the side handles, latches and front label holder

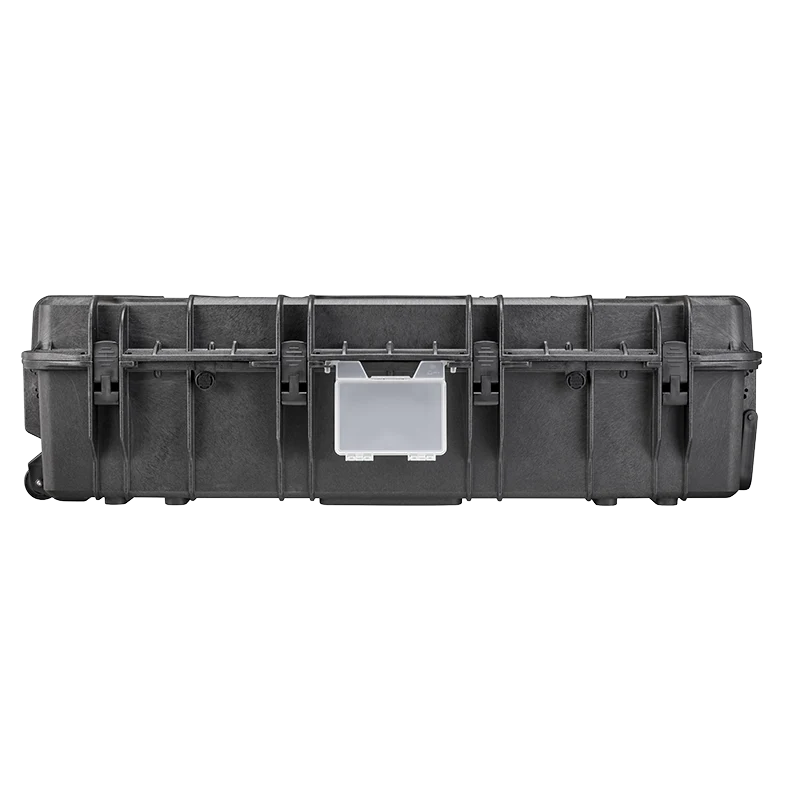

Front edge of the Panaro MAX1090H280 showing the row of latches and the label holder

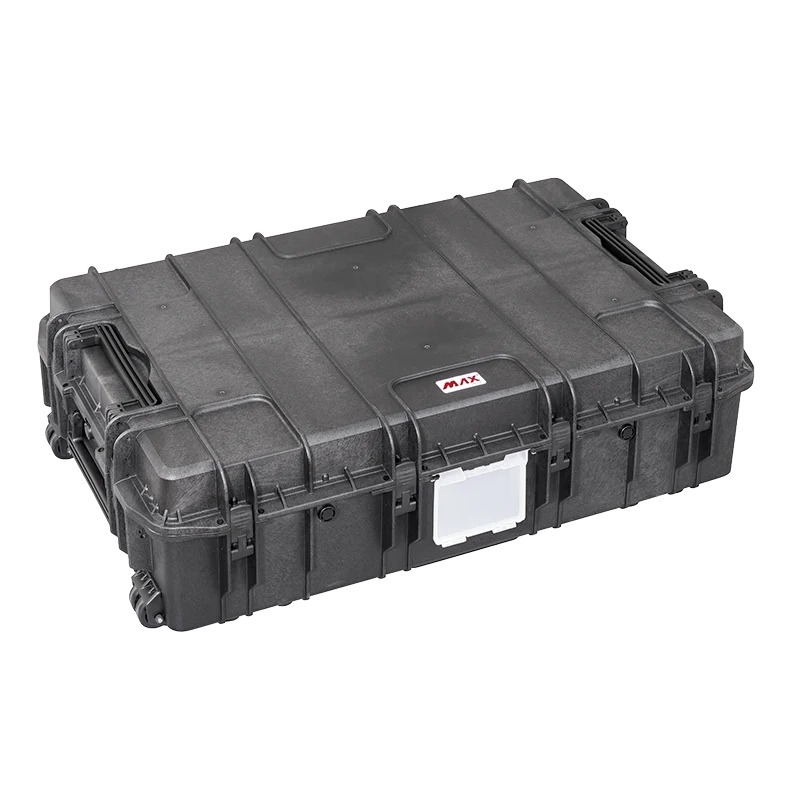

Panaro MAX1090H280 from the end showing the folding end handle and wheel housing

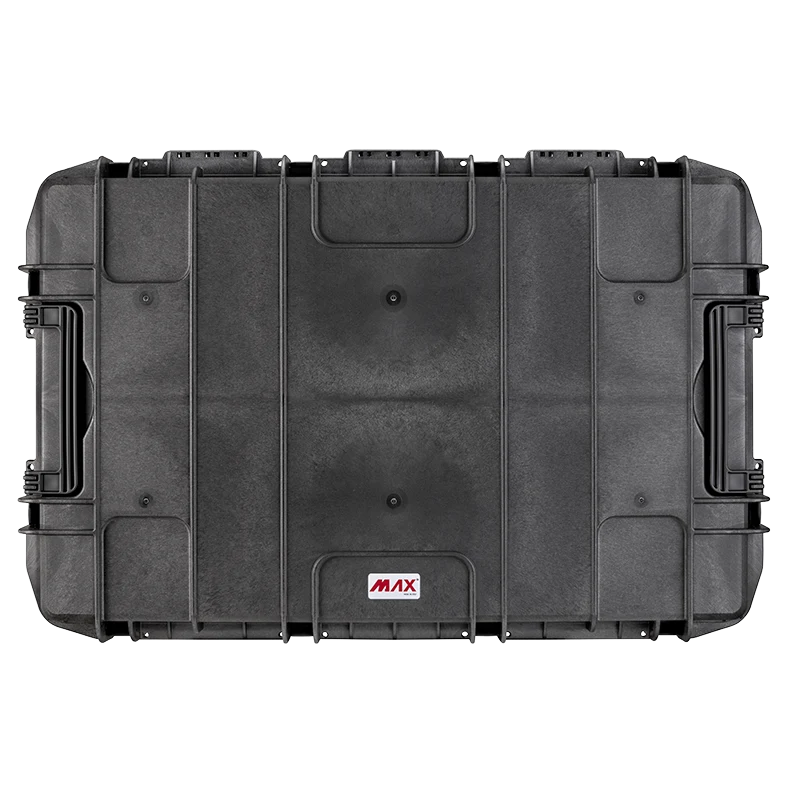

Top view of the Panaro MAX1090 hinged lid with handles at each end

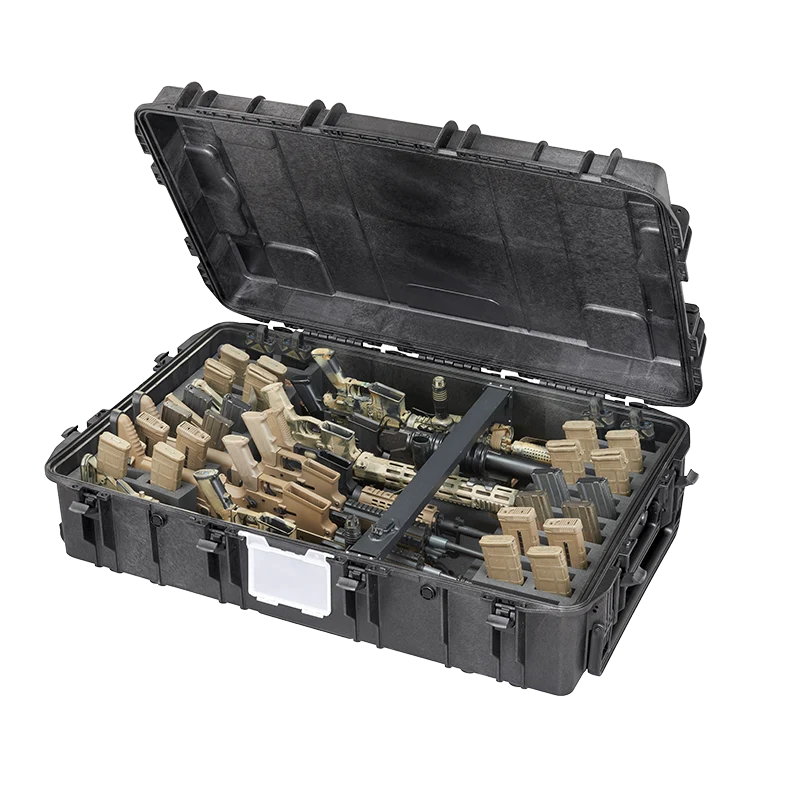

Panaro MAX1090H280GUN-H open with seven rifles laid in the foam slots and held by the cross bar

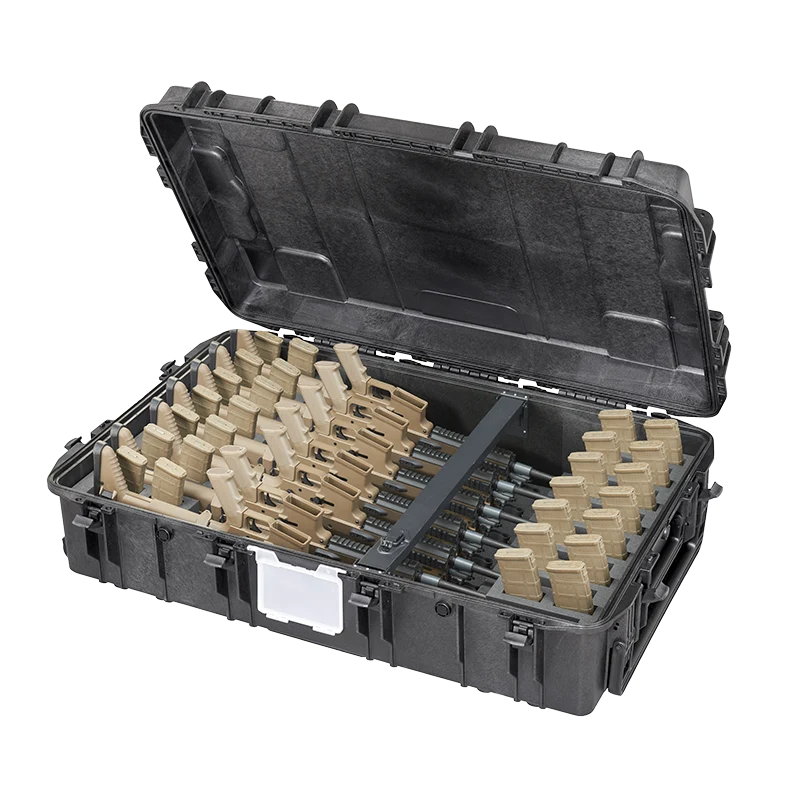

Panaro MAX1090H280GUN-H loaded with rifles and magazines in the high density foam inlay
Panaro MAX1090H280GUN-H open showing the empty foam inlay with rifle slots on both sides and the central cross bar
Overhead view of the Panaro MAX1090 rifle inlay with rows of slots and the black cross bar
Closed Panaro MAX1090H280 long case at an angle showing the side handles, latches and front label holder
Front edge of the Panaro MAX1090H280 showing the row of latches and the label holder
Panaro MAX1090H280 from the end showing the folding end handle and wheel housing
Top view of the Panaro MAX1090 hinged lid with handles at each end
Panaro MAX1090H280GUN-H open with seven rifles laid in the foam slots and held by the cross bar
Panaro MAX1090H280GUN-H loaded with rifles and magazines in the high density foam inlay
Panaro MAX1090H280GUN-H open showing the empty foam inlay with rifle slots on both sides and the central cross bar
Overhead view of the Panaro MAX1090 rifle inlay with rows of slots and the black cross bar
Closed Panaro MAX1090H280 long case at an angle showing the side handles, latches and front label holder
Front edge of the Panaro MAX1090H280 showing the row of latches and the label holder
Panaro MAX1090H280 from the end showing the folding end handle and wheel housing
Top view of the Panaro MAX1090 hinged lid with handles at each end
Panaro MAX1090H280GUN-H open with seven rifles laid in the foam slots and held by the cross bar
Panaro MAX1090H280GUN-H loaded with rifles and magazines in the high density foam inlay
Panaro

Panaro MAX1090H280GUN-H Waterproof Rifle Case for 7 Rifles with Hinged Lid Black

$2,879.36
$2,879.36
RRP $3,083.72
Or 4 payments of $719.84 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX1090H280GUN-H

A Watertight Long Arm Case With a Lockable Cross Bar

The Panaro MAX1090H280GUN-H is the long MAX1090 case fitted with a high density foam inlay for 7 rifles and 28 magazines, with a black lockable metal cross bar across the slots and a hinged lid that opens to 90 degrees.

Panaro's foam layout takes long arms up to 1000 mm, with magazine pockets of about 30 x 70 mm along the inlay. Inside it measures 1090 x 680 x 280 mm, giving 215 litres, and outside it is 1178 x 780 x 330 mm. Panaro give 21.40 kg with the inlay fitted. The hinged lid closes with eight latches.

Four automatic pressure release valves and a full lid seal keep moisture out on flights and long drives. Double wheels and a large fold down handle let one person roll it, and handles on the base sides allow a two person lift when it is loaded.

Panaro publish IP67, STANAG 4280 / DEF STAN 81-41 and MIL-STD-810H documents for the MAX1090H280 and state it is made in Italy. See the rest of our Panaro range, with other protective cases and defence and tactical cases.

Often ordered together

  • High density foam inlay for 7 rifles and 28 magazines
  • Lockable black metal cross bar
  • Takes long arms up to 1000 mm
  • 1090 x 680 x 280 mm interior, 215 litres
  • Four automatic pressure release valves
  • Double wheels and large fold down handle
  • Hinged lid with eight latches
  • Transporting rifles to the range or field
  • Defence and law enforcement armouries
  • Hunting trips by road or air
  • Training and competition teams
  • Storing long arms between uses

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX1090H280GUN-H

Mega Code: PMMAX1090H280GUN-H

Configuration: Rifle inlay for 7 rifles and 28 magazines, hinged lid (-H)

Maximum Rifle Length (Panaro): 1000 mm

Internal Dimensions: 1090 x 680 x 280 mm

External Dimensions: 1178 x 780 x 330 mm

Lid and Base Depth: 70 mm lid + 210 mm base

Capacity: 215 litres

Weight: 21.40 kg with inlay (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polyethylene foam, aluminium cross bar, stainless steel wheel pins

Made In: Italy (Panaro)

Colour: Black

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro's foam layout is designed for rifles up to 1000 mm long. Measure the overall length of each rifle, including anything you leave fitted, before ordering.
The black metal bar runs across the inlay and holds the rifles down in their slots. Panaro describe it as lockable, so the rifles cannot be lifted out while it is locked.
Storage and transport rules differ between states and licence types. Check the requirements that apply to you before relying on any case for storage.
The supplied inlay is a fixed layout. Panaro offer custom foam inlays, so ask us for a quote if you need a different arrangement.
Yes. The downloads include Panaro's datasheet, the MAX1090 GUN foam layout, a 2D drawing and the test documents published for the MAX1090H280.
