AC DC Motor Generator Demonstration Model

Regular price: $202.95
Sale price: $202.95
Regular price: ~~RRP $253.77~~

Or 4 payments of $50.74 with

SKU: EVEIS1245N8

MPN: EIS1245N8

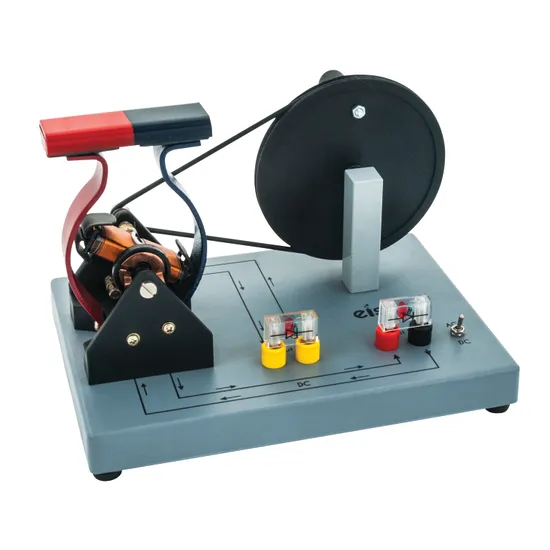

Turn the handle and get AC and DC at the same time, from one machine

Hand-driven generator producing alternating and direct current simultaneously - split ring and brushes at the front for DC, brushes at the rear for AC. $184.50.

Producing both at once is the whole idea. Most school apparatus shows AC or DC and asks students to imagine the other. This one has DC collection on the front and AC collection on the back of the same armature, so a class compares two traces from one turn of the handle. The difference between a split ring and slip rings stops being a diagram.

It runs the other way too. Feed current in and the same machine demonstrates an electromagnetic motor - which is the point students most often miss, that a motor and a generator are the same machine used in opposite directions.

Hand driven, so no batteries and no power point. The mechanical energy comes from a student's arm, which also makes the energy conversion obvious: turning gets harder as more current is drawn, and that is a lesson you cannot get from a battery.

Designed for low-current experiments. Connect it to a lamp, a galvanometer or an oscilloscope - none of which are included.

Often ordered together

Produces AC and DC at the same time from one armature
Split ring and brushes at the front for DC, brushes at the rear for AC
Also runs as an electromagnetic motor
Hand driven - no batteries, no power point
For low-current experiments; meters and lamps not included

AC and DC comparison
Generator and motor principle teaching
Electromagnetic induction lessons
Energy conversion demonstrations
Senior physics practicals

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Contents: 1 demonstration model

Drive: by hand

DC output: split ring with brushes, front of the apparatus

AC output: brushes, rear of the apparatus

Also demonstrates: electromagnetic motor principle

Current: designed for low-current experiments

Meters, lamps and leads: not included

Brand: MTA Essentials

Model: EIS1245N8

Barcode: none supplied

Always Here to Help

Based around the Gold Coast, our customer support team brings deep office supplies knowledge, with most members having more than 10 years of industry experience. We are more than customer service agents. We are experienced office supply experts ready to help. Contact us below.

Contact Support Read all FAQs

FAQs

That is the design. DC is collected through a split ring at the front and AC through brushes at the rear of the same armature, so one turn of the handle gives both outputs simultaneously.

It is built for low-current experiments - a small lamp, a galvanometer, an oscilloscope input. It is a teaching machine, not a power source.

Yes. Feed current in and it turns, which demonstrates that a motor and a generator are the same machine run in opposite directions.

No, and that is a selling point. The energy comes from turning the handle - and the handle getting harder to turn as the load increases is itself the lesson about energy conversion.

Leads, and something to show the output - a galvanometer for direction, a lamp for effect, an oscilloscope to see the waveforms side by side. None are included.
