Gold Leaf Electroscope with Scale

$77.00
$77.00
RRP $96.25
Or 4 payments of $19.25 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: EVSER1052028

MPN: SER1052028

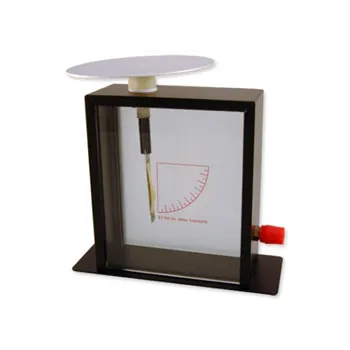

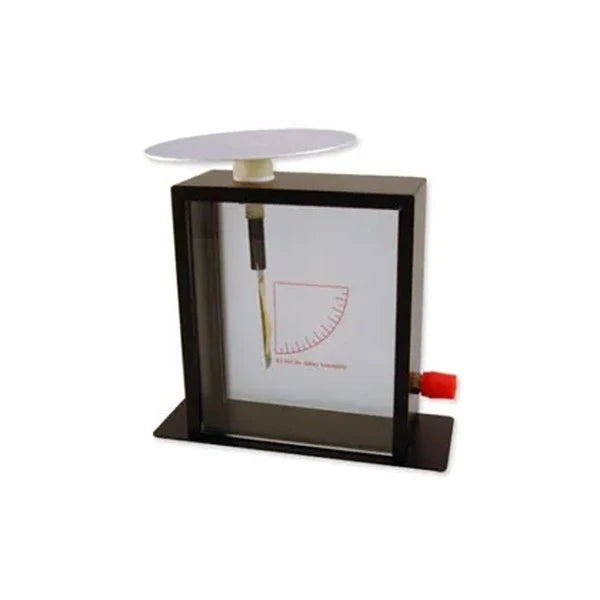

The classic electroscope, with a scale so it measures rather than just moves

Aluminium case, 4mm socket, ground terminal, Teflon-insulated gold leaf support, and an internal scale on the rear glass. $70.00.

An electroscope answers one question visibly: is this object charged, and how much. Bring a charged rod near the top plate and the gold leaf lifts; the more charge, the further it lifts. Students see a quantity, not just an effect.

The scale is what separates this from a cheap one. A transparent scale on the rear glass wall, marked from 0 to 90 in steps of 10, lets a class record deflection rather than describe it. That turns a demonstration into an experiment with results you can plot.

Teflon insulation on the leaf support. That is the part that decides whether an electroscope holds a charge for a minute or for five seconds. Teflon is one of the best insulators available for the job, and it is why this one still works on a humid day when a cheaper instrument has already leaked away.

Two interchangeable electrodes: a disc top plate for induction work with a charged rod, and a metal hook for hanging or connecting. There is a 4mm socket and a ground terminal, so it wires into a circuit or an earth line properly.

One note: the supplier's scale is printed "0 to 90 C x 10 C" and does not say what the unit is. Almost certainly degrees of leaf deflection. We have asked them; do not build an assessment around the unit until we confirm it.

Often ordered together

  • Internal transparent scale, 0 to 90 in steps of 10, on the rear glass
  • Gold leaf on a Teflon-insulated support - holds charge longer
  • Two interchangeable electrodes: disc plate and metal hook
  • 4mm socket and a ground terminal
  • Aluminium case
  • Detecting and measuring static charge
  • Charging by induction and by contact
  • Like and unlike charge demonstrations
  • Senior physics electrostatics practicals
  • Van de Graaff generator work

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Contents: 1 electroscope with 2 electrodes

Case: aluminium

Leaf: gold, on a Teflon-insulated support

Electrodes: disc top plate and metal hook, interchangeable

Connections: 4mm socket and ground terminal

Scale: internal, transparent, on the rear glass wall, 0 to 90 in steps of 10

Scale unit: printed as C by the supplier - unit not stated, we have asked

Brand: MTA Essentials

Model: SER1052028

Barcode: none supplied

Always Here to Help

Based around the Gold Coast, our customer support team brings deep office supplies knowledge, with most members having more than 10 years of industry experience. We are more than customer service agents. We are experienced office supply experts ready to help. Contact us below.

Contact Support Read all FAQs

FAQs

Leaf deflection - how far the gold leaf lifts. The supplier prints the scale as 0 to 90 C in steps of 10 without saying what C stands for; it is almost certainly degrees. We have asked them, so do not write the unit into an assessment task yet.
Because it is extraordinarily thin and light, so a very small charge moves it visibly. Aluminium leaf electroscopes exist and are less sensitive.
Yes, more than anything else on the instrument. The insulation decides how long a charge stays put. Teflon holds a charge on a humid day when cheaper insulators have already leaked it to earth.
Earthing the case during charging by induction, which is a required step in that experiment. Without a proper earth terminal you are touching it with a finger and hoping.
A polythene or perspex rod rubbed with the wool or rabbit fur cloth, or a Van de Graaff generator. Rods and cloths are sold separately.
