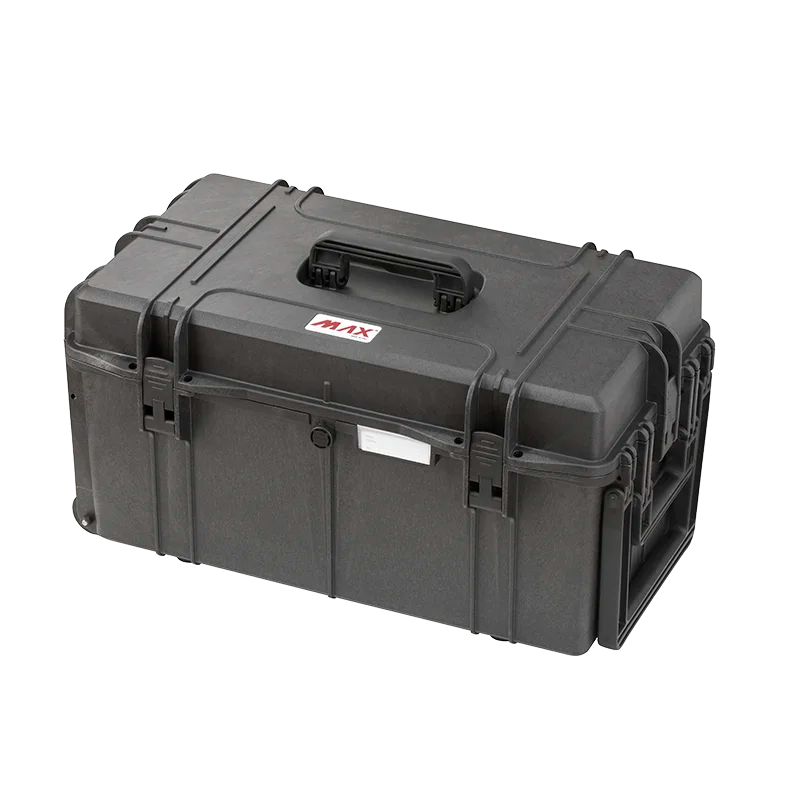

Closed Panaro MAX630 black case at an angle showing the top carry handle, latches and red MAX logo
Front view of the closed Panaro MAX630 with its double throw latches and a wheel at the lower corner

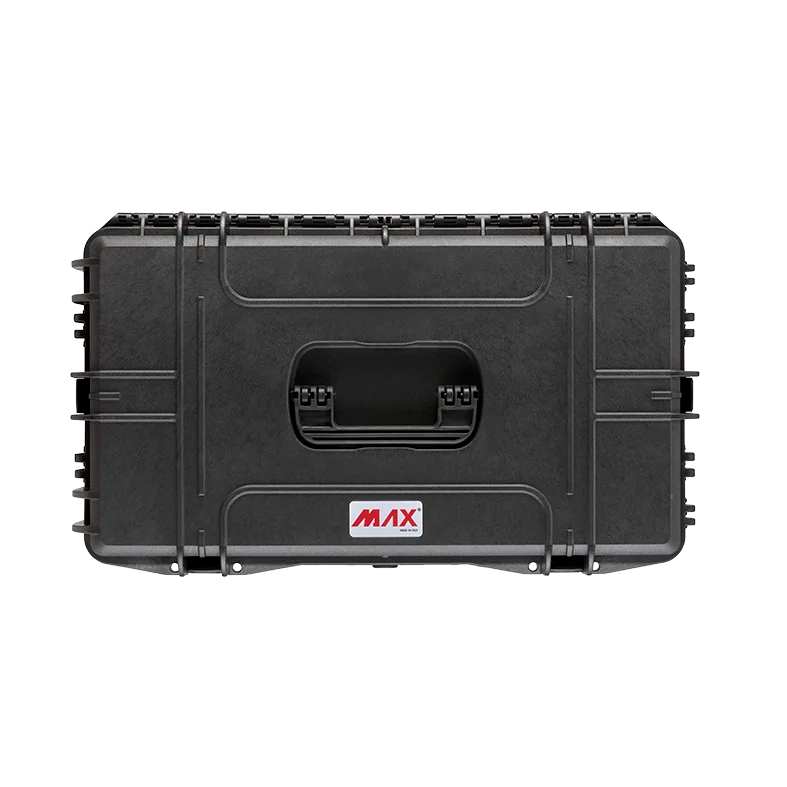

Top view of the Panaro MAX630 lid with the moulded carry handle and MAX logo
Panaro MAX630 from the rear corner showing the wheels, side handle and latches
Panaro MAX630 tilted onto its wheels with the large fold down handle raised for rolling
Panaro MAX630 open and empty, showing the deep base and the inside of the lid
Closed Panaro MAX630 black case at an angle showing the top carry handle, latches and red MAX logo
Front view of the closed Panaro MAX630 with its double throw latches and a wheel at the lower corner
Top view of the Panaro MAX630 lid with the moulded carry handle and MAX logo
Panaro MAX630 from the rear corner showing the wheels, side handle and latches
Panaro MAX630 tilted onto its wheels with the large fold down handle raised for rolling

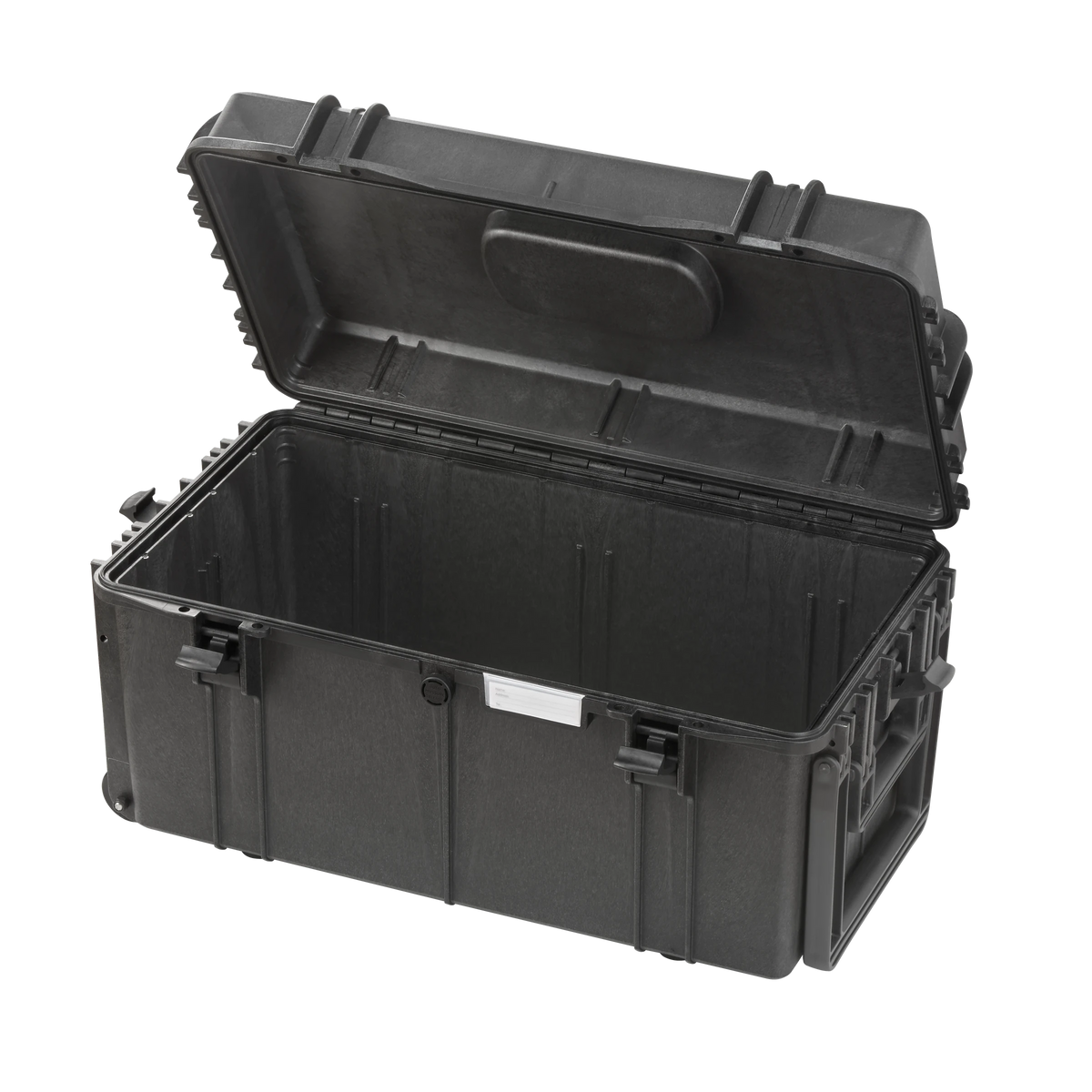

Panaro MAX630 open and empty, showing the deep base and the inside of the lid
Closed Panaro MAX630 black case at an angle showing the top carry handle, latches and red MAX logo
Front view of the closed Panaro MAX630 with its double throw latches and a wheel at the lower corner
Top view of the Panaro MAX630 lid with the moulded carry handle and MAX logo
Panaro MAX630 from the rear corner showing the wheels, side handle and latches
Panaro MAX630 tilted onto its wheels with the large fold down handle raised for rolling
Panaro MAX630 open and empty, showing the deep base and the inside of the lid
Panaro

Panaro MAX630 Waterproof Case Black

$567.05
$567.05
RRP $607.24
Or 4 payments of $141.76 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX630

A Tall, Narrow MAX Case Left Empty for Your Fit Out

The Panaro MAX630 is a deep, narrow watertight case supplied empty, with 630 x 335 x 335 mm inside so upright items like lamps, flasks or rack gear stand rather than lie flat.

It holds 68 litres, measures 702 x 406 x 360 mm outside and weighs 7.20 kg empty, splitting into an 80 mm lid and a 255 mm base. The polypropylene shell closes on an O-ring seal with double throw latches and an automatic pressure release valve. Wheels sit at one end on stainless steel pins, with a large fold down handle for rolling. The open interior takes your own foam, dividers or a custom inlay.

Holes for two padlocks secure the contents between jobs, and the full length hinge and corrosion free nylon pins stand up to regular handling. The stackable lid and base let you store a fleet of cases neatly, and Panaro offer screen printing and custom labels for branded or numbered cases.

Panaro publish IP67, STANAG 4280 / DEF STAN 81-41 and MIL-STD-810H documents for the MAX630 and state it is made in Italy. See our Panaro collection for foam versions, with other protective cases and defence and tactical cases.

Often ordered together

  • 630 x 335 x 335 mm interior, 68 litres
  • Empty interior for your own foam or dividers
  • O-ring seal and automatic pressure release valve
  • Double throw latches with two padlock points
  • Wheels and large fold down handle
  • Full length hinge with nylon pins
  • Stackable lid and base
  • Upright lamps, flasks and bottles
  • Rack or test gear stood on end
  • Sample and field kits that must stay dry
  • Custom foam builds for tall equipment
  • Tall tools and chargers

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX630

Mega Code: PMMAX630

Configuration: Empty

Internal Dimensions: 630 x 335 x 335 mm

External Dimensions: 702 x 406 x 360 mm

Lid and Base Depth: 80 mm lid + 255 mm base

Capacity: 68 litres

Weight: 7.20 kg empty (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, polymer O-ring, stainless steel wheel pins

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

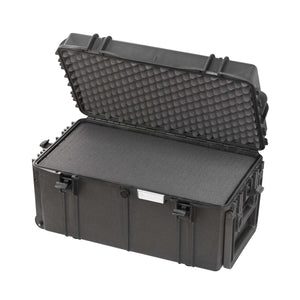

Empty suits a custom foam inlay, padded dividers or pouches. If you want pick and pluck foam straight away, the MAX630S is the same case with cubed foam fitted.
Panaro publish an IP67 certificate for the MAX630, which covers dust and temporary immersion. Keep the O-ring seal clean and the latches fully closed.
Yes. Panaro's photos show wheels at one end on stainless steel pins, plus a large fold down handle for rolling.
Yes. Panaro offer custom foam inlays for MAX cases. Send us your equipment list and we will get a quote from Panaro.
Yes. The downloads below include Panaro's datasheet, a 2D drawing and the test documents published for the MAX630.
