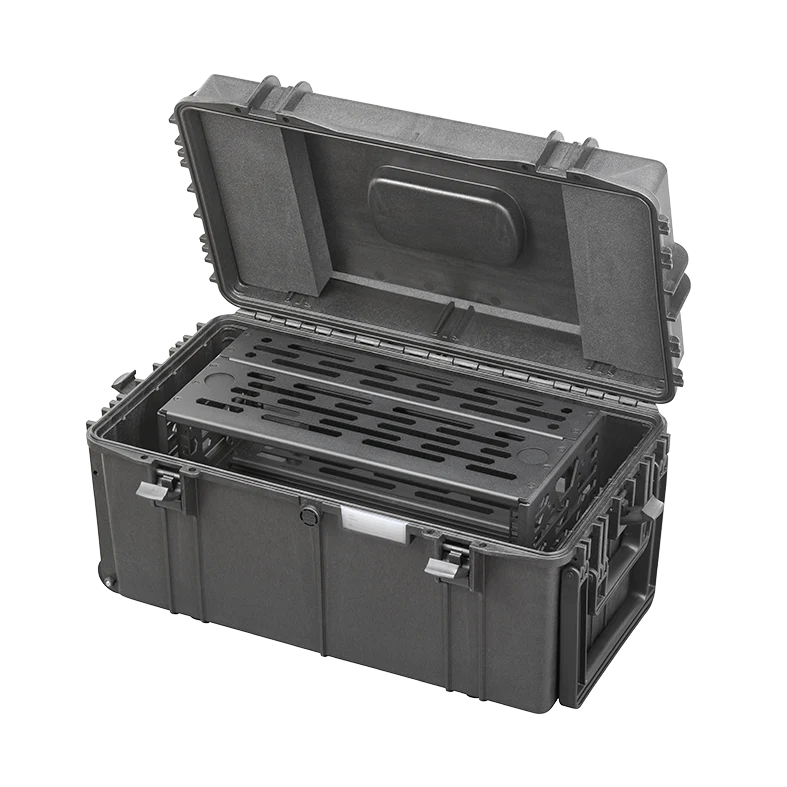

Panaro A-RACK3U-MAX630 open with the 3U compact rack frame fitted inside

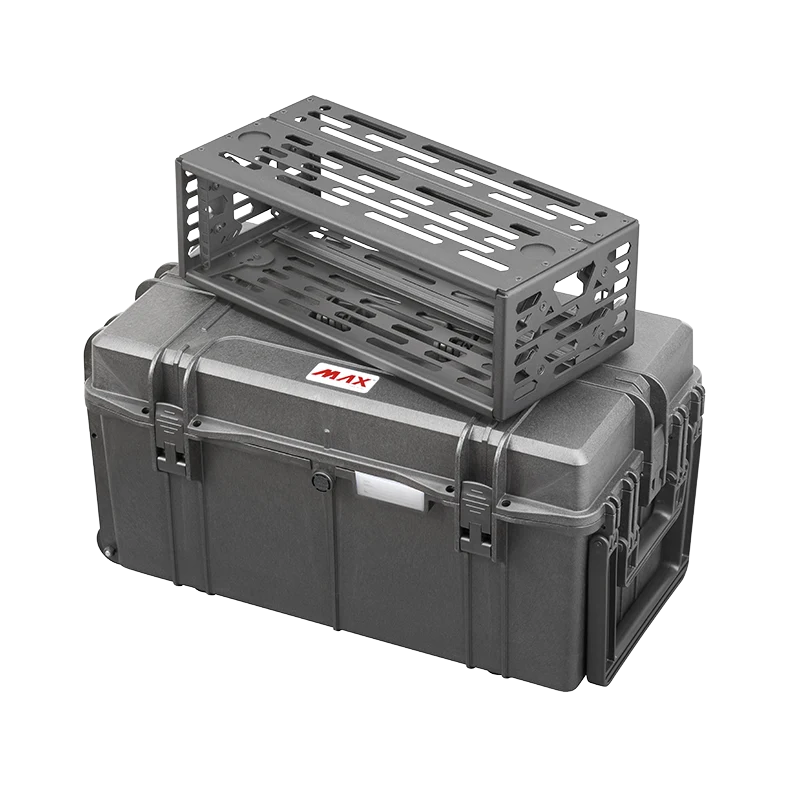

Panaro 3U compact rack frame resting on top of the closed MAX630 case

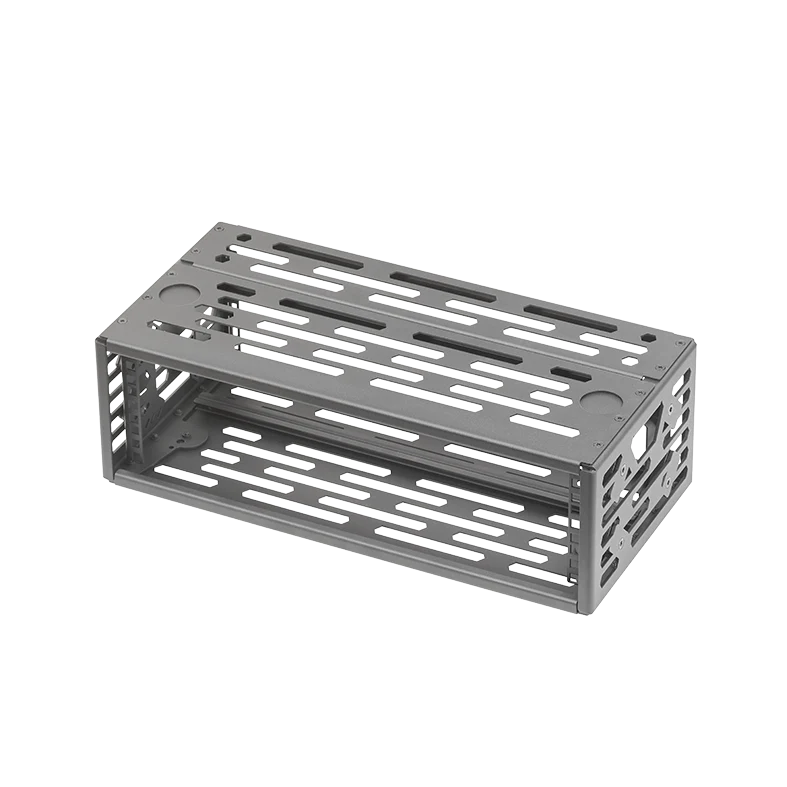

Panaro 3U compact A-RACK aluminium frame on its own

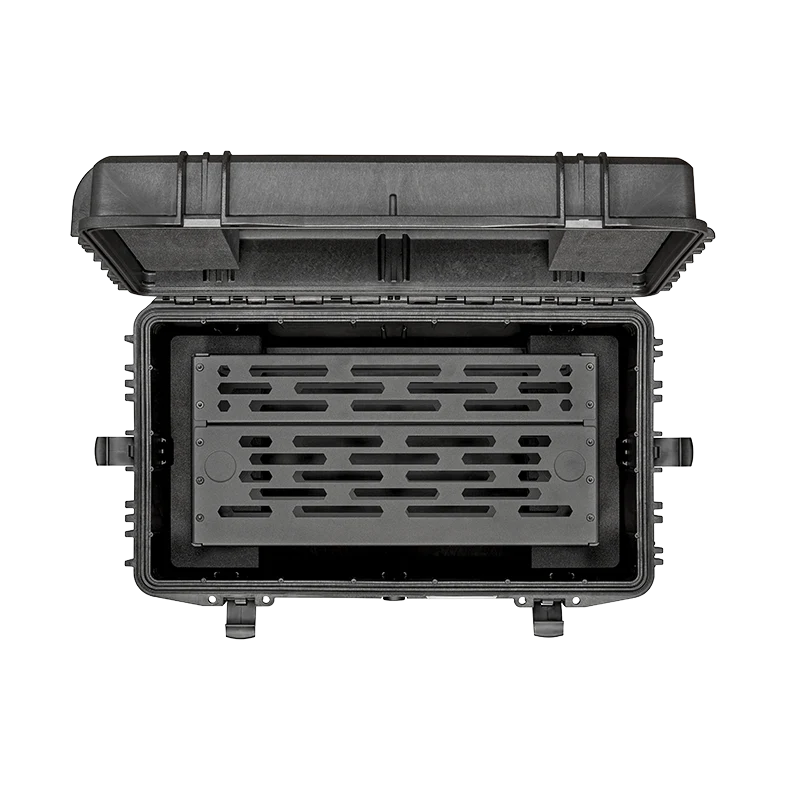

Overhead view of the open Panaro A-RACK3U-MAX630 with the 3U rack frame inside

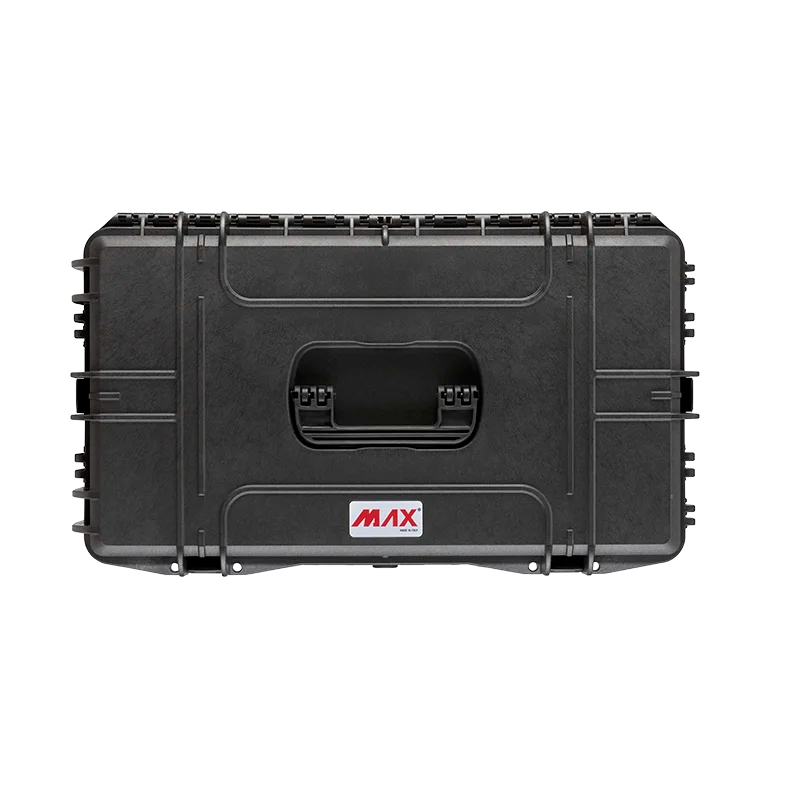

Top view of the Panaro A-RACK3U-MAX630 lid with the moulded carry handle and MAX logo

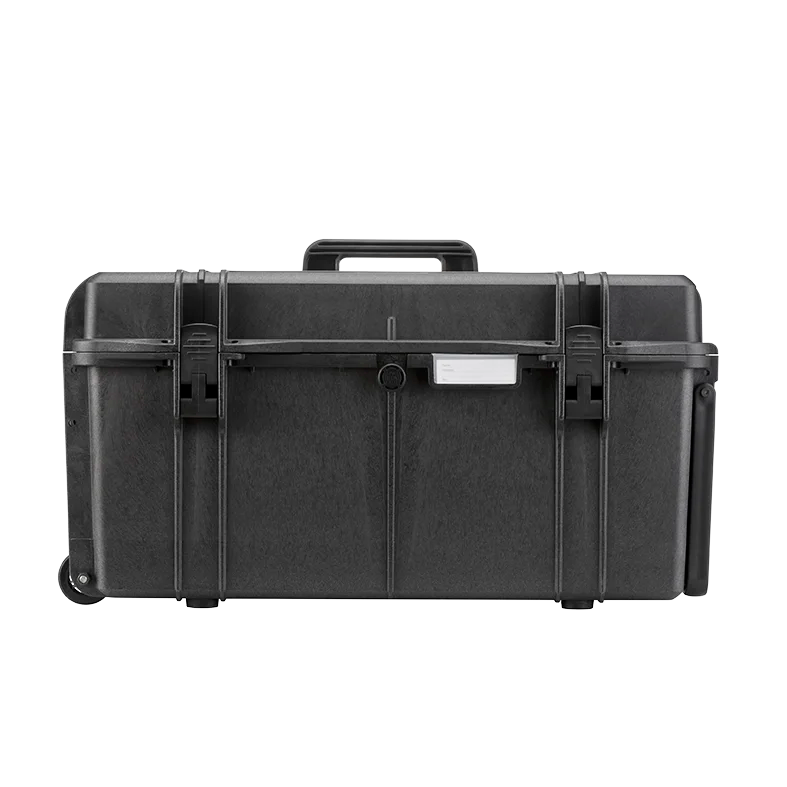

Front view of the closed Panaro A-RACK3U-MAX630 with its double throw latches and a wheel at the lower corner

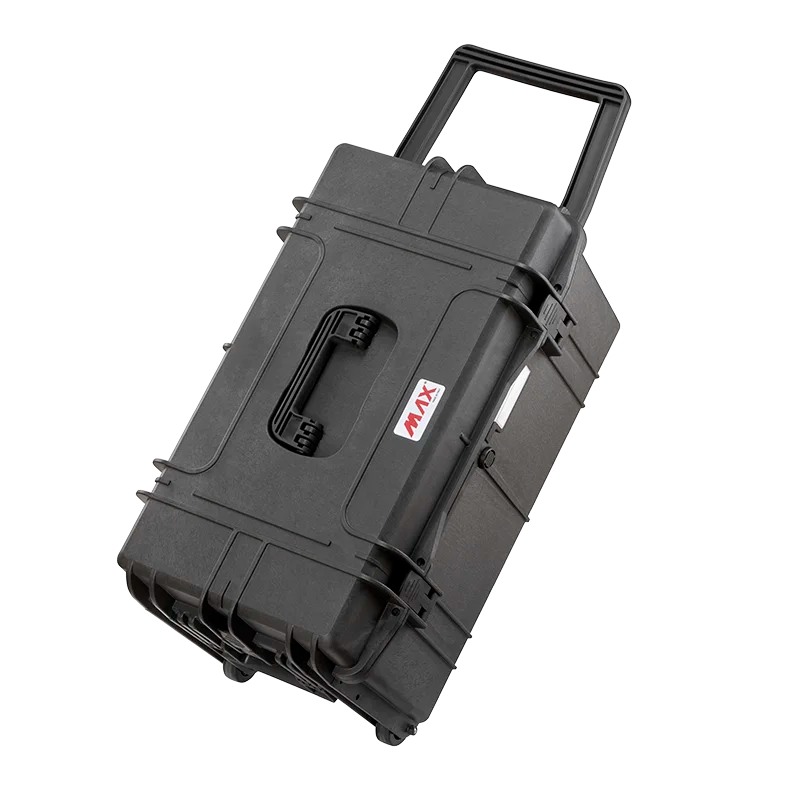

Panaro A-RACK3U-MAX630 tilted onto its wheels with the large fold down handle raised for rolling

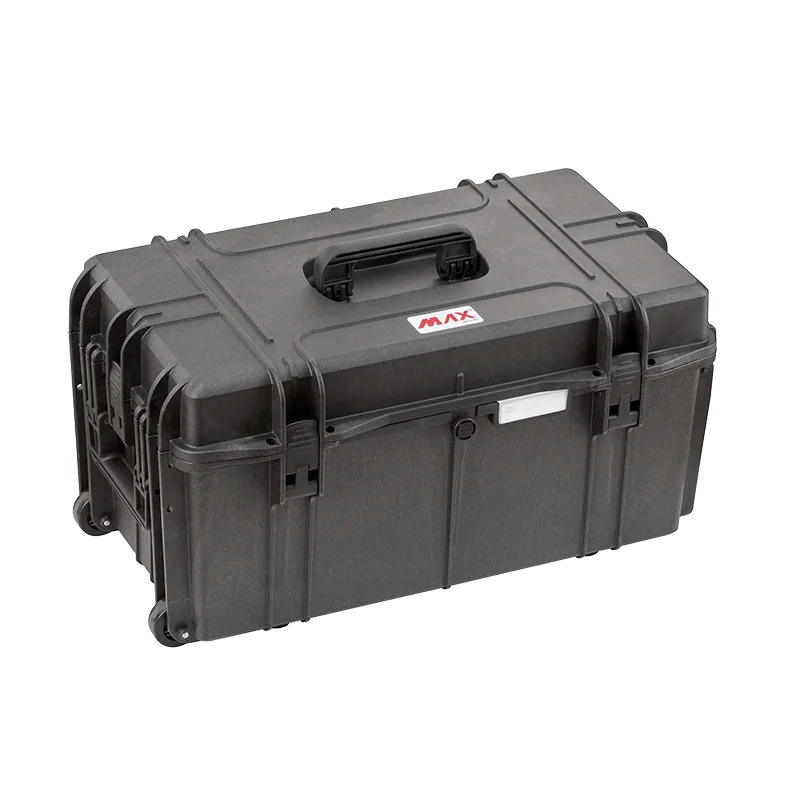

Panaro A-RACK3U-MAX630 from the rear corner showing the wheels, side handle and latches
Panaro A-RACK3U-MAX630 open with the 3U compact rack frame fitted inside
Panaro 3U compact rack frame resting on top of the closed MAX630 case
Panaro 3U compact A-RACK aluminium frame on its own
Overhead view of the open Panaro A-RACK3U-MAX630 with the 3U rack frame inside
Top view of the Panaro A-RACK3U-MAX630 lid with the moulded carry handle and MAX logo
Front view of the closed Panaro A-RACK3U-MAX630 with its double throw latches and a wheel at the lower corner
Panaro A-RACK3U-MAX630 tilted onto its wheels with the large fold down handle raised for rolling
Panaro A-RACK3U-MAX630 from the rear corner showing the wheels, side handle and latches
Panaro A-RACK3U-MAX630 open with the 3U compact rack frame fitted inside
Panaro 3U compact rack frame resting on top of the closed MAX630 case
Panaro 3U compact A-RACK aluminium frame on its own
Overhead view of the open Panaro A-RACK3U-MAX630 with the 3U rack frame inside
Top view of the Panaro A-RACK3U-MAX630 lid with the moulded carry handle and MAX logo
Front view of the closed Panaro A-RACK3U-MAX630 with its double throw latches and a wheel at the lower corner
Panaro A-RACK3U-MAX630 tilted onto its wheels with the large fold down handle raised for rolling
Panaro A-RACK3U-MAX630 from the rear corner showing the wheels, side handle and latches
Panaro

Panaro A-RACK 3U 19 Inch Rack Case in MAX630 Waterproof Case Black

$1,574.32
$1,574.32
RRP $1,686.09
Or 4 payments of $393.58 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMA-RACK3U-MAX630

3U of Shock Mounted Rack Space Inside a Watertight Case

The Panaro A-RACK3U-MAX630 pairs a 3U, 19 inch aluminium A-RACK frame with the watertight MAX630 case, so rack mounted audio, network or control gear travels already wired and protected from water, dust and knocks.

This is Panaro's Compact A-RACK size, with adjustable rail strips that give three rail-to-rail depths of 220, 200 and 178 mm to suit equipment of different depths. Anti-shock padding runs in the rail strips, and polyethylene foam inserts sit between the frame and the shell. The case measures 702 x 406 x 360 mm outside and 630 x 335 x 335 mm inside, and Panaro give 10.50 kg as supplied.

The open, slotted frame lets air move around running equipment and leaves cables easy to route and check. Side handles on the frame let you lift the whole rack out for bench work or to swap it between cases. Side handles on the case and a large fold down handle cover short carries.

Panaro publish IP67, STANAG 4280 / DEF STAN 81-41 and MIL-STD-810H documents for the MAX630 case and state it is made in Italy. Browse our Panaro collection, with more protective cases and defence and tactical cases.

Often ordered together

  • 3U, 19 inch aluminium A-RACK frame
  • Anti-shock padding in the rail strips
  • Three rail depths: 220, 200 and 178 mm
  • Open slotted frame for airflow and cabling
  • Frame side handles for quick removal
  • Watertight MAX630 case, IP67 documented
  • Foam inserts between frame and shell
  • Mixers, amplifiers and wireless receivers on tour
  • Network switches and routers for site deployments
  • Broadcast and outside broadcast equipment
  • Defence and emergency communications kits
  • Control and test equipment in the field

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases with A-RACK

MPN: A-RACK3U-MAX630

Mega Code: PMA-RACK3U-MAX630

Panaro Configuration: MAX630-RC3U

Rack Size: 3U, 19 inch

Rack Type: A-RACK Compact

Rail Depths (Panaro): Three rail-to-rail depths of 220, 200 and 178 mm

Internal Dimensions: 630 x 335 x 335 mm

External Dimensions: 702 x 406 x 360 mm

Lid and Base Depth: 80 mm lid + 255 mm base

Capacity: 68 litres

Weight: 10.50 kg as supplied (Panaro)

Certifications (Panaro, case): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, aluminium rack, polyethylene foam

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Yes. You get the MAX630 case with the 3U A-RACK frame and foam inserts fitted. Equipment shown in photos is not included.
The rail strips move to give three rail-to-rail depths of 220, 200 and 178 mm. Check the depth of your deepest unit, including connectors and cables at the back.
Yes for most jobs. Open the lid to reach the front panels. For rear access, lift the frame out by its side handles.
The MAX630 takes Compact frames in 2U, 3U and 4U. Pick the smallest size that fits your gear, as a full frame holds it more securely.
Panaro list a front or rear rack cover (RLID) and a screen mount (RSCREEN) as accessories. Ask us and we will check availability.
